eBikes by their very nature can in the future require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.

Your eBike will be delivered built, set up and updated.

Minimum personal assembly is required.

---

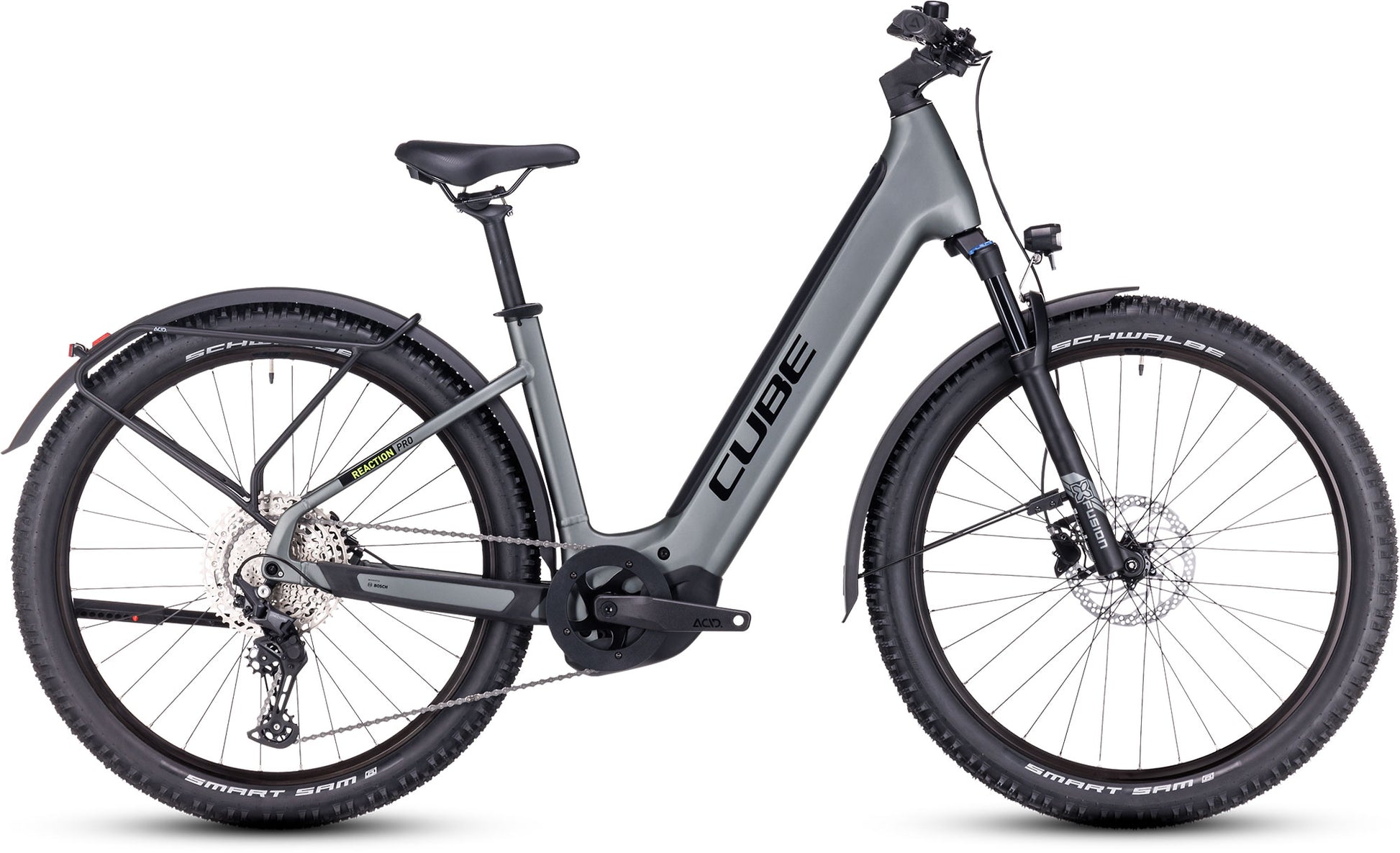

The CUBE Reaction Hybrid Pro Allroad is the Swiss Army knife of Bosch-powered e-mtbs. The high-capacity PowerTube battery and smooth power delivery of Bosch's fourth-generation CX motor is ideal for weekend exploring and weekday commuting alike.

---

Open 360° view

---

Shimano's 1x11 Deore gears serve up precise shifts and a range that's wide enough to tackle any route, while powerful hydraulic disc brakes and 2.6in Schwalbe tyres ensure you're always in full control. There's an easily adjustable air-sprung suspension fork to smooth the way ahead. And, for weekday commuting, weekday errands or weekend tours, the carrier, mudguards, kickstand and integrated lights add real-world practicality.

• 250W Bosch Motor: Most reliable pedal-assist motor in e-bike industry, capable of sustaining speeds up to 25 km/h
• Hydraulic Disc Brakes: Reliable braking performance to keep you in control, whatever the weather.
• Shimano Gears: Wide range of gears suitable for a range of terrain, with the simplicity of a single shifter.

• Frame :Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Boost 148, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points
• Fork: X-Fusion MIG32 Air, Tapered, 15x110mm, 120mm, Lockout (EE: 100mm)
• Motor: Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
• Battery: Bosch PowerTube 750

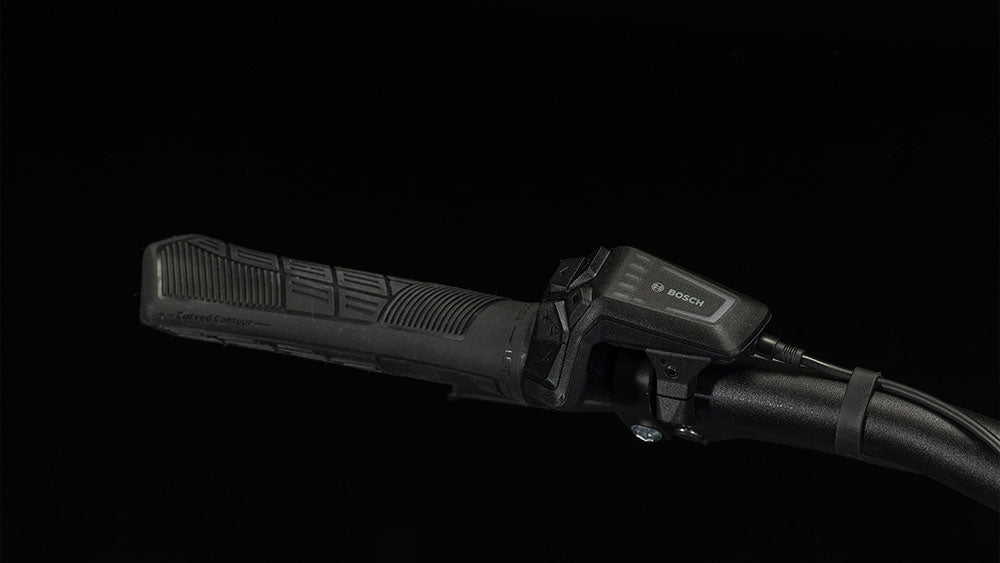

• Controller: Bosch LED Remote
• Charger: Bosch 4A
• Gear Shifters: Shimano Deore SL-M5100-IR, Direct Attach, Rapidfire-Plus
• Chainset: ACID E-Crank, 38T, 175mm
• Chainrings: 38T
• Rear Cassette: Shimano Deore CS-M5100, 11-51T
• Chain: KMC X11
• Front Derailleur: N/A
• Rear Derailleur: Shimano Deore RD-M5100-SGS, 11-Speed
• Pedals: ACID PP MTB
• Rims: Rodi Tryp 30, 32H, Disc, Tubeless Ready
• Front Hub: Shimano HB-MT400-B, 15mm, Boost, Centerlock
• Rear Hub: Shimano FH-MT400-B, 12mm, Boost, Centerlock
• Tyres: Schwalbe Smart Sam, Active, 2.6
• Brakes: Shimano BR-MT200, Hydr. Disc Brake (180/180)
• Handlebars: CUBE Rise Trail Bar Pro, 740mm
• Grips: ACID React Pro / EE: ACID Hybrid Perform
• Headset: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
• Stem: CUBE Performance Stem E-MTB, 31.8mm
• Saddle: Natural Fit Sequence
• Seatpost: CUBE Performance Post, 30.9mm
• Weight: 24.5Kg

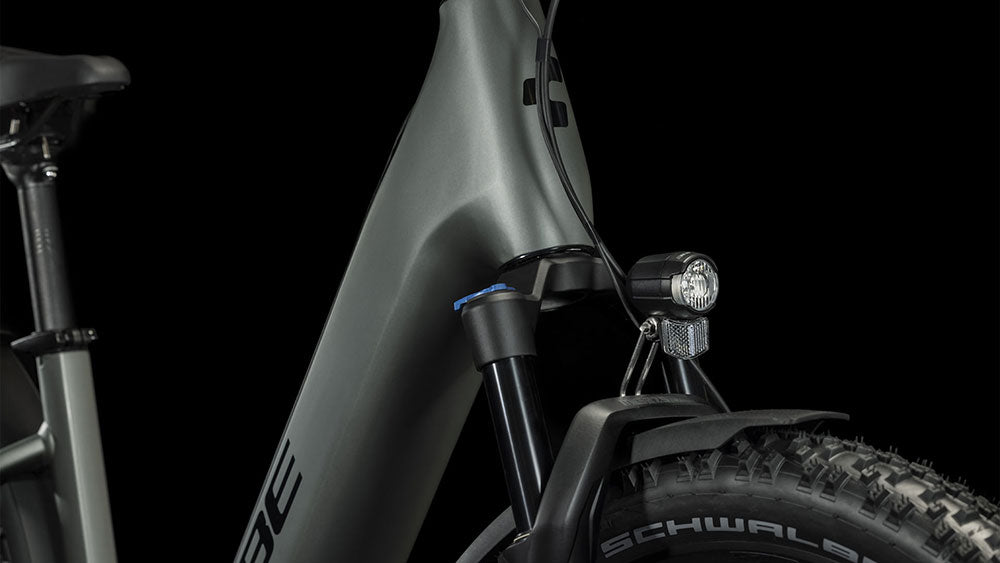

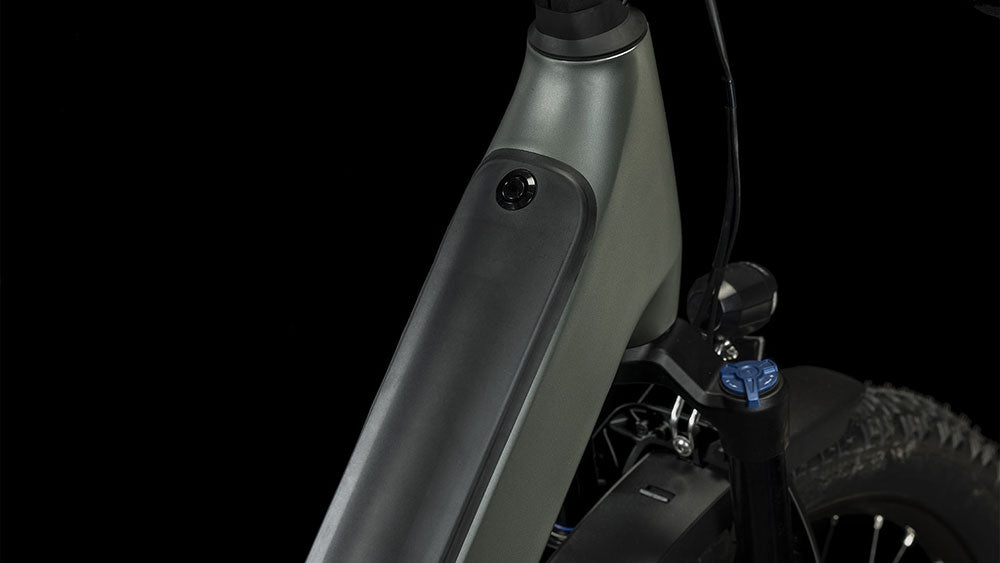

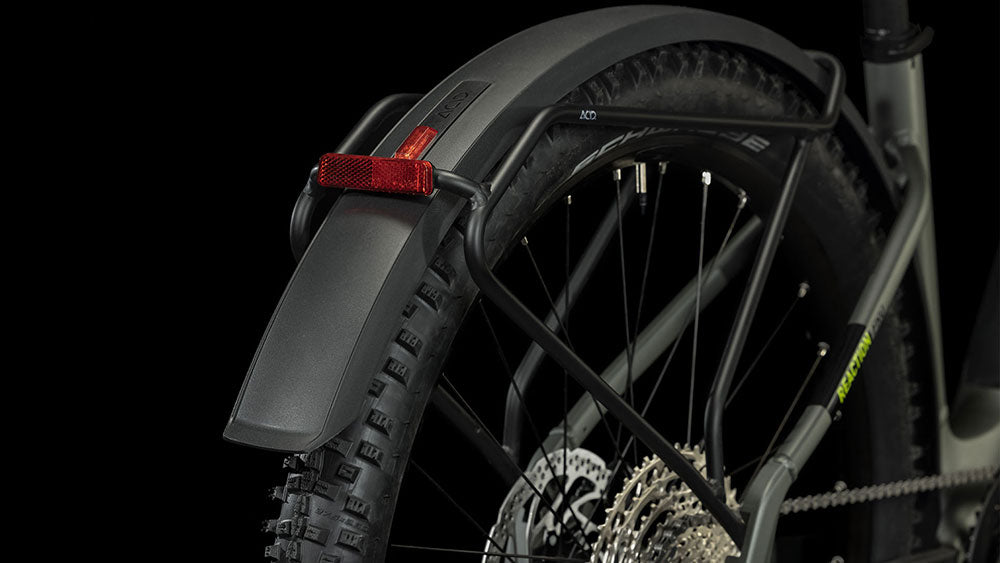

It's all in the detail. The Reaction Hybrid Allroad's practical full-length mudguards, carrier, kickstand and integrated lighting system is just the start. So neat is the frame design, you'll barely notice the high-capacity Bosch battery – now up to 750Wh, even for smaller frame sizes – and powerful fourth-generation, Smart System-equipped Bosch CX motor. But you'll definitely notice the power – and Agile Ride Geometry delivers confidence-inspiring handling. There's an Easy Entry frame option and a new S frame with 27.5in wheels, so everyone can find their ideal Reaction Hybrid. And, with internally routed cables including a stealth dropper post upgrade option, we've reduced the need for maintenance so that you can just enjoy the ride.

---

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.



After the first few weeks of use, the whole bike will settle down. As a result, the gears may need tweaking, some nuts and bolts may need tightening and you may well need to check the adjustment of the saddle and handlebars.

CABLE STRETCH

Gears

Cable stretch tends to occur shortly after a new bike has been ridden a few times. A rear derailleur that we have tuned to hit every gear, nicely and quietly, may now not be making each shift causing a sensation and sound of “being in between gears”. Generally you may have to shift up, or shift down a couple times to quiet it down and settle the derailleur into a “happy gear”. A front derailleur may no longer want to shift all the way onto the big ring or will require a much firmer push to get it there. It is advisable to get the cable tension adjusted as soon as this happens either by your local bike shop. This tune up is considered a necessary part of any bicycles maintenance schedule and as such should not be ignored.

Brakes

Your brakes will also be affected by cable stretch (provided of course that they are NOT hydraulic in which case this does not apply). The symptom here is that they usually start to feel quite loose. i.e. you have to pull the lever much further back or harder in order to get the same stopping power you once had. This is partly why new bikes come with a first free service. If your brakes start feeling a little spongy after a few weeks, you can adjust them at the barrel or the clamp or ask a mechanic at your local bike shop to do it for you.

DISC BRAKES

New disc brakes won’t deliver their full power until the rotor and pads have bedded in. SRAM has a really good guide for bedding in disc brakes: “Accelerate the bike to a moderate speed and then firmly applying the brakes until you are at walking speed. Repeat this process 20 times. Then accelerate the bike to a faster speed and apply the brakes until you are at walking speed. Repeat this process ten times. It’s important that during this process you never come to a complete stop or lock up the wheels at any point.” Doing this process should drastically improve the performance of your brakes and prepare them for many happy rides.

CRANKS

Check the cranks and crank bolts or nut for tightness; grab a crank arm in each hand and try to wiggle them to check for looseness. If there is play in the cranks, the nuts or bolts may need to be tightened. Cranks should be checked after every ride for the first week.

HEADSET

A loose headset can be diagnosed by turning the front wheel to point left or right, holding the front brake on, and then rocking the bike backwards and forwards. Hold your fingers between the stem and the frame. Any movement indicates that you need to tighten the headset.

SADDLE

Check your seat post is not loose and that you have not exceeded the limit marked on the seat post. Once you have checked these, use an allen key to tighten the seat post clamp. Check the seat is secure by giving it another check once you have finished.

STEM

Check that your front wheel and stem do not move independently, and that your handlebar clamp bolts are tight. Perform this check by standing in front of the bike, holding the front wheel between your knees, and twisting the handlebars. You can prevent any movement by tightening the stem bolts and the handlebar clamp with an allen key.

SUSPENSION FORKS

Keeping your mountain bike’s suspension maintained is one of the best ways to ensure you’re getting all the performance you can out of your bike. Plus, giving your fork and shock a few seconds of attention here and there can prevent costly repairs or even replacements.

Dirt is the number one enemy of suspension. After every ride make sure to wipe the seal area and stanchions of your fork and shock. Wipe in a horizontal motion, not vertical as you don’t want to force any debris towards the seals.

Every few rides double check that your suspension sag is correct, as well as your rebound and compression adjustments. If something has changed, or the adjustments aren’t working as before, some maintenance is likely due.

Working on your bike at home can seem daunting, and we'd always recommend you take your bike to a qualified mechanic if possible.
