TREK POWERFLY SPORT 4 EQUIPPED GEN 4 E-MTB BIKE 2023 - MATTE BLACK/GLOSS RED

TREK POWERFLY SPORT 4 EQUIPPED GEN 4 E-MTB BIKE 2023 - MATTE BLACK/GLOSS RED

Skip to product information
1 of 12

Product Details


eBikes by their very nature can in the future  require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.

Your eBike will be delivered built, set up and updated.

Minimum personal assembly is required.


The Powerfly 4 Equipped outfits our most affordable electric mountain bike with everything you need for rugged daily commutes and trail adventures. It's built with sturdy parts and it features a powerful Bosch smart system motor and our user-friendly Removable Integrated Battery (RIB) system. You also get commute-ready accessories like mudguards, a rear rack and front and rear lights that are powered by the e-MTB system.


Key Features

  • Bosch Performance CX motor: With smart system, perfect for tackling the climbs.
  • Intelligent e-MTB modeAutomatically delivers the right amount of power based on your terrain.
  • Shimano Deore 1x10 Drivetrain: Simplicity combined with a wide gear ratio.

Full Specifications

  • Frame: AlphaPlatinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, Motor Armour, Boost148, 12 mm thru axle (XS-S have curved top tube)
  • Fork: SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm thru axle, 120 mm travel(XS 80mm travel)
  • Motor: BoschPerformance Line CX, smart system, magnesium motor body, 85 Nm, 15 mph max assist
  • Battery: Bosch PowerTube 625, smart system
  • Controller: Bosch LED remote, smart system, Bosch Intuvia 100, smart system
  • Gear Shifters: Shimano Deore 4100, 10 speed
  • Chainset: FSA Bosch CK-220, 36T ring, 165 mm length
  • Chainrings: 36T
  • Rear Cassette: ShimanoDeore M4100, 11-46, 10-speed
  • Chain: KMC X10, 10-speed
  • Front Derailleur: N/A
  • Rear Derailleur: ShimanoDeore M5120, long cage
  • Pedals: VP-536 nylon platform
  • Rims: Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
  • Front Hub: Formula DC-511, 6-bolt, Boost110, 15 mm thru axle
  • Rear Hub: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle
  • Front Tyre: Bontrager LT4 Expert, reflective strip, wire bead, 60 tpi, 29x2.40" (XS - SM: 27.5x2.40˝)
  • Rear Tyre: Bontrager LT4 Expert, reflective strip, wire bead, 60 tpi, 29x2.40"(XS - SM: 27.5x2.40˝)
  • Brakes:Tektro HD-M275 hydraulic disc, Tektro, 6-bolt, 203 mm
  • Handlebars: Bontrager alloy, 31.8mm, 15mm rise, 720-750mm width
  • Grips: Bontrager XR Endurance Comp, lock-on
  • Headset: FSA IS-2, 1-1/8" top, 1.5" bottom
  • Stem: Bontrager comp, 31.8mm, Blendr compatible, 7 degree, 50-70mm length
  • Saddle: Bontrager Commuter Comp, 165mm width
  • Seatpost: Bontrager alloy, 31.6mm, 12mm offset, 330-400mm length
  • Accessories: Bosch standard 2A Charger, 230V, smart system
  • Headlight: AXA or Supernova Mini 2, 5-21V LED headlight or similar, TBC
  • Rear light: AXA, Blueline taillight or Supernova E3 Mini-2 rear light, LED,
  • Carrier: MIK Compatible alloy rear rack
  • Kickstand: Pletscher Comp Flex 18
  • Mudguard: Trek Powerfly custom mudguard
  • Weight: M - 26.6kg

     We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

    Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.




    How to Build Your Bike

    Aftercare

    After the first few weeks of use, the whole bike will settle down. As a result, the gears may need tweaking, some nuts and bolts may need tightening and you may well need to check the adjustment of the saddle and handlebars.

    CABLE STRETCH

    Gears

    Cable stretch tends to occur shortly after a new bike has been ridden a few times. A rear derailleur that we have tuned to hit every gear, nicely and quietly, may now not be making each shift causing a sensation and sound of “being in between gears”. Generally you may have to shift up, or shift down a couple times to quiet it down and settle the derailleur into a “happy gear”. A front derailleur may no longer want to shift all the way onto the big ring or will require a much firmer push to get it there. It is advisable to get the cable tension adjusted as soon as this happens either by your local bike shop. This tune up is considered a necessary part of any bicycles maintenance schedule and as such should not be ignored.

    Brakes

    Your brakes will also be affected by cable stretch (provided of course that they are NOT hydraulic in which case this does not apply). The symptom here is that they usually start to feel quite loose. i.e. you have to pull the lever much further back or harder in order to get the same stopping power you once had. This is partly why new bikes come with a first free service. If your brakes start feeling a little spongy after a few weeks, you can adjust them at the barrel or the clamp or ask a mechanic at your local bike shop to do it for you.

    DISC BRAKES

    New disc brakes won’t deliver their full power until the rotor and pads have bedded in. SRAM has a really good guide for bedding in disc brakes: “Accelerate the bike to a moderate speed and then firmly applying the brakes until you are at walking speed. Repeat this process 20 times. Then accelerate the bike to a faster speed and apply the brakes until you are at walking speed. Repeat this process ten times. It’s important that during this process you never come to a complete stop or lock up the wheels at any point.” Doing this process should drastically improve the performance of your brakes and prepare them for many happy rides.

    CRANKS

    Check the cranks and crank bolts or nut for tightness; grab a crank arm in each hand and try to wiggle them to check for looseness. If there is play in the cranks, the nuts or bolts may need to be tightened. Cranks should be checked after every ride for the first week.

    HEADSET

    A loose headset can be diagnosed by turning the front wheel to point left or right, holding the front brake on, and then rocking the bike backwards and forwards. Hold your fingers between the stem and the frame. Any movement indicates that you need to tighten the headset.

    SADDLE

    Check your seat post is not loose and that you have not exceeded the limit marked on the seat post. Once you have checked these, use an allen key to tighten the seat post clamp. Check the seat is secure by giving it another check once you have finished.

    STEM

    Check that your front wheel and stem do not move independently, and that your handlebar clamp bolts are tight. Perform this check by standing in front of the bike, holding the front wheel between your knees, and twisting the handlebars. You can prevent any movement by tightening the stem bolts and the handlebar clamp with an allen key.

    SUSPENSION FORKS

    Keeping your mountain bike’s suspension maintained is one of the best ways to ensure you’re getting all the performance you can out of your bike. Plus, giving your fork and shock a few seconds of attention here and there can prevent costly repairs or even replacements.

    Dirt is the number one enemy of suspension. After every ride make sure to wipe the seal area and stanchions of your fork and shock. Wipe in a horizontal motion, not vertical as you don’t want to force any debris towards the seals.

    Every few rides double check that your suspension sag is correct, as well as your rebound and compression adjustments. If something has changed, or the adjustments aren’t working as before, some maintenance is likely due.

    Working on your bike at home can seem daunting, and we'd always recommend you take your bike to a qualified mechanic if possible.



    TREK POWERFLY SPORT 4 EQUIPPED GEN 4 E-MTB BIKE 2023 - MATTE BLACK/GLOSS RED

    TREK POWERFLY SPORT 4 EQUIPPED GEN 4 E-MTB BIKE 2023 - MATTE BLACK/GLOSS RED

    Regular price £2,995.00
    Save 21%
    Regular price Was £3,800.00 Sale price £2,995.00

    SKU: 5278992

    EPOS Code:


    Save 10% on pedals with this purchase.Shop Pedals

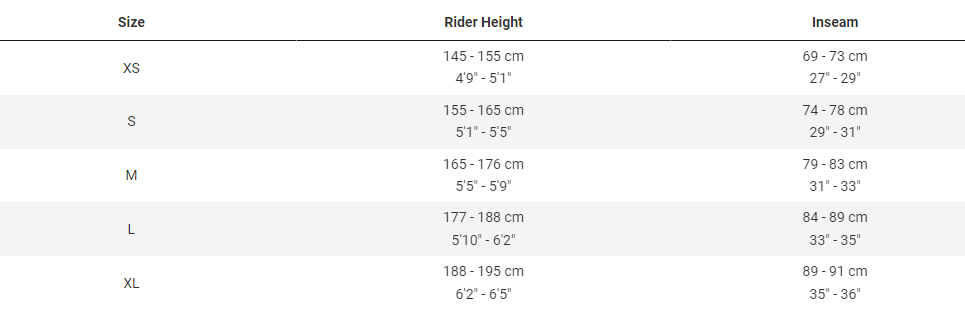

    Size
    Delivery From £14.99
    Simple Returns
    Built With Care
    View full details

    Product Description


    eBikes by their very nature can in the future  require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.

    Your eBike will be delivered built, set up and updated.

    Minimum personal assembly is required.


    The Powerfly 4 Equipped outfits our most affordable electric mountain bike with everything you need for rugged daily commutes and trail adventures. It's built with sturdy parts and it features a powerful Bosch smart system motor and our user-friendly Removable Integrated Battery (RIB) system. You also get commute-ready accessories like mudguards, a rear rack and front and rear lights that are powered by the e-MTB system.


    Key Features

    • Bosch Performance CX motor: With smart system, perfect for tackling the climbs.
    • Intelligent e-MTB modeAutomatically delivers the right amount of power based on your terrain.
    • Shimano Deore 1x10 Drivetrain: Simplicity combined with a wide gear ratio.

    Full Specifications

    • Frame: AlphaPlatinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, Motor Armour, Boost148, 12 mm thru axle (XS-S have curved top tube)
    • Fork: SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm thru axle, 120 mm travel(XS 80mm travel)
    • Motor: BoschPerformance Line CX, smart system, magnesium motor body, 85 Nm, 15 mph max assist
    • Battery: Bosch PowerTube 625, smart system
    • Controller: Bosch LED remote, smart system, Bosch Intuvia 100, smart system
    • Gear Shifters: Shimano Deore 4100, 10 speed
    • Chainset: FSA Bosch CK-220, 36T ring, 165 mm length
    • Chainrings: 36T
    • Rear Cassette: ShimanoDeore M4100, 11-46, 10-speed
    • Chain: KMC X10, 10-speed
    • Front Derailleur: N/A
    • Rear Derailleur: ShimanoDeore M5120, long cage
    • Pedals: VP-536 nylon platform
    • Rims: Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
    • Front Hub: Formula DC-511, 6-bolt, Boost110, 15 mm thru axle
    • Rear Hub: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle
    • Front Tyre: Bontrager LT4 Expert, reflective strip, wire bead, 60 tpi, 29x2.40" (XS - SM: 27.5x2.40˝)
    • Rear Tyre: Bontrager LT4 Expert, reflective strip, wire bead, 60 tpi, 29x2.40"(XS - SM: 27.5x2.40˝)
    • Brakes:Tektro HD-M275 hydraulic disc, Tektro, 6-bolt, 203 mm
    • Handlebars: Bontrager alloy, 31.8mm, 15mm rise, 720-750mm width
    • Grips: Bontrager XR Endurance Comp, lock-on
    • Headset: FSA IS-2, 1-1/8" top, 1.5" bottom
    • Stem: Bontrager comp, 31.8mm, Blendr compatible, 7 degree, 50-70mm length
    • Saddle: Bontrager Commuter Comp, 165mm width
    • Seatpost: Bontrager alloy, 31.6mm, 12mm offset, 330-400mm length
    • Accessories: Bosch standard 2A Charger, 230V, smart system
    • Headlight: AXA or Supernova Mini 2, 5-21V LED headlight or similar, TBC
    • Rear light: AXA, Blueline taillight or Supernova E3 Mini-2 rear light, LED,
    • Carrier: MIK Compatible alloy rear rack
    • Kickstand: Pletscher Comp Flex 18
    • Mudguard: Trek Powerfly custom mudguard
    • Weight: M - 26.6kg

       We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

      Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.




      How to Build Your Bike

      Aftercare

      After the first few weeks of use, the whole bike will settle down. As a result, the gears may need tweaking, some nuts and bolts may need tightening and you may well need to check the adjustment of the saddle and handlebars.

      CABLE STRETCH

      Gears

      Cable stretch tends to occur shortly after a new bike has been ridden a few times. A rear derailleur that we have tuned to hit every gear, nicely and quietly, may now not be making each shift causing a sensation and sound of “being in between gears”. Generally you may have to shift up, or shift down a couple times to quiet it down and settle the derailleur into a “happy gear”. A front derailleur may no longer want to shift all the way onto the big ring or will require a much firmer push to get it there. It is advisable to get the cable tension adjusted as soon as this happens either by your local bike shop. This tune up is considered a necessary part of any bicycles maintenance schedule and as such should not be ignored.

      Brakes

      Your brakes will also be affected by cable stretch (provided of course that they are NOT hydraulic in which case this does not apply). The symptom here is that they usually start to feel quite loose. i.e. you have to pull the lever much further back or harder in order to get the same stopping power you once had. This is partly why new bikes come with a first free service. If your brakes start feeling a little spongy after a few weeks, you can adjust them at the barrel or the clamp or ask a mechanic at your local bike shop to do it for you.

      DISC BRAKES

      New disc brakes won’t deliver their full power until the rotor and pads have bedded in. SRAM has a really good guide for bedding in disc brakes: “Accelerate the bike to a moderate speed and then firmly applying the brakes until you are at walking speed. Repeat this process 20 times. Then accelerate the bike to a faster speed and apply the brakes until you are at walking speed. Repeat this process ten times. It’s important that during this process you never come to a complete stop or lock up the wheels at any point.” Doing this process should drastically improve the performance of your brakes and prepare them for many happy rides.

      CRANKS

      Check the cranks and crank bolts or nut for tightness; grab a crank arm in each hand and try to wiggle them to check for looseness. If there is play in the cranks, the nuts or bolts may need to be tightened. Cranks should be checked after every ride for the first week.

      HEADSET

      A loose headset can be diagnosed by turning the front wheel to point left or right, holding the front brake on, and then rocking the bike backwards and forwards. Hold your fingers between the stem and the frame. Any movement indicates that you need to tighten the headset.

      SADDLE

      Check your seat post is not loose and that you have not exceeded the limit marked on the seat post. Once you have checked these, use an allen key to tighten the seat post clamp. Check the seat is secure by giving it another check once you have finished.

      STEM

      Check that your front wheel and stem do not move independently, and that your handlebar clamp bolts are tight. Perform this check by standing in front of the bike, holding the front wheel between your knees, and twisting the handlebars. You can prevent any movement by tightening the stem bolts and the handlebar clamp with an allen key.

      SUSPENSION FORKS

      Keeping your mountain bike’s suspension maintained is one of the best ways to ensure you’re getting all the performance you can out of your bike. Plus, giving your fork and shock a few seconds of attention here and there can prevent costly repairs or even replacements.

      Dirt is the number one enemy of suspension. After every ride make sure to wipe the seal area and stanchions of your fork and shock. Wipe in a horizontal motion, not vertical as you don’t want to force any debris towards the seals.

      Every few rides double check that your suspension sag is correct, as well as your rebound and compression adjustments. If something has changed, or the adjustments aren’t working as before, some maintenance is likely due.

      Working on your bike at home can seem daunting, and we'd always recommend you take your bike to a qualified mechanic if possible.
