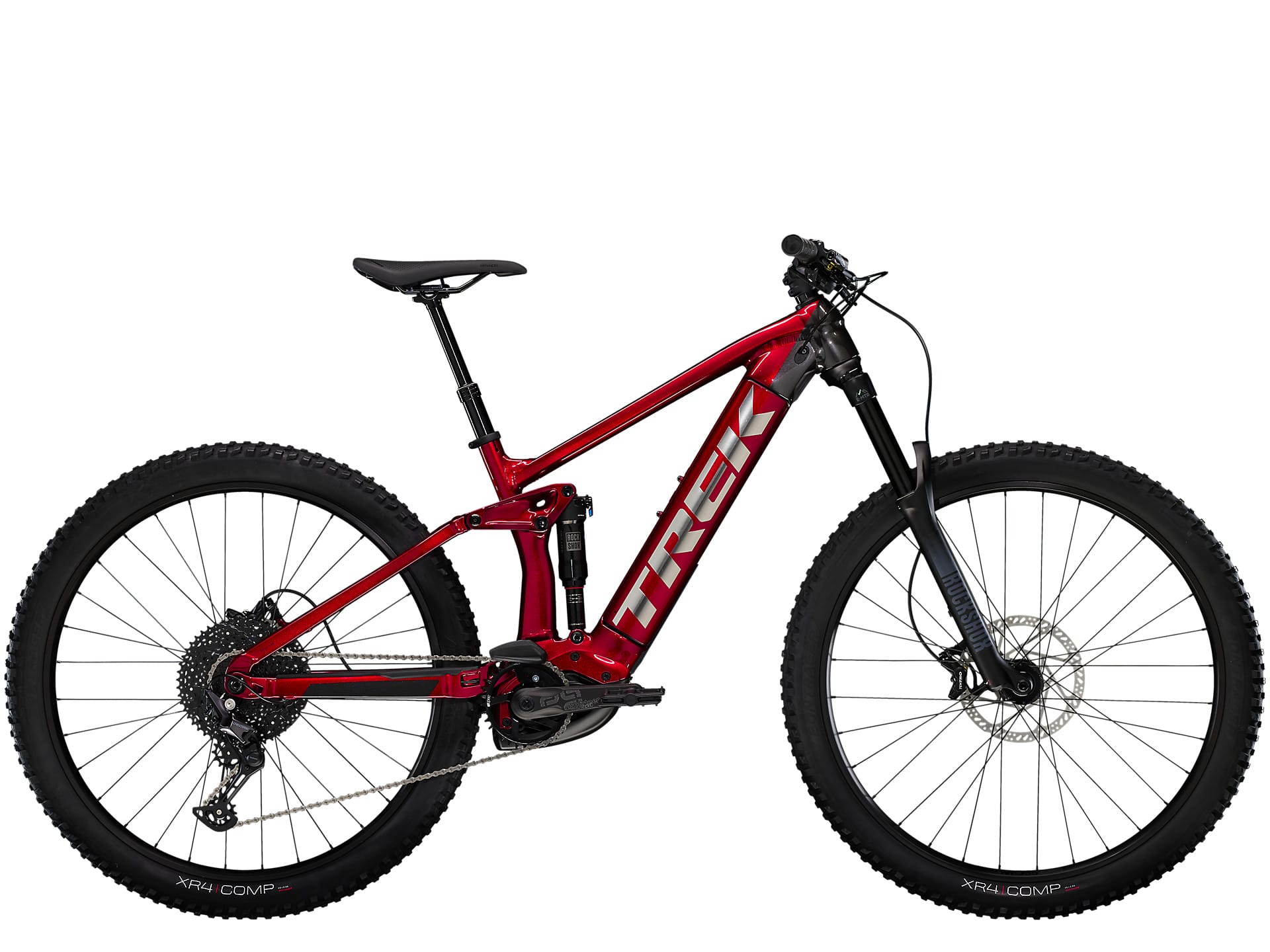

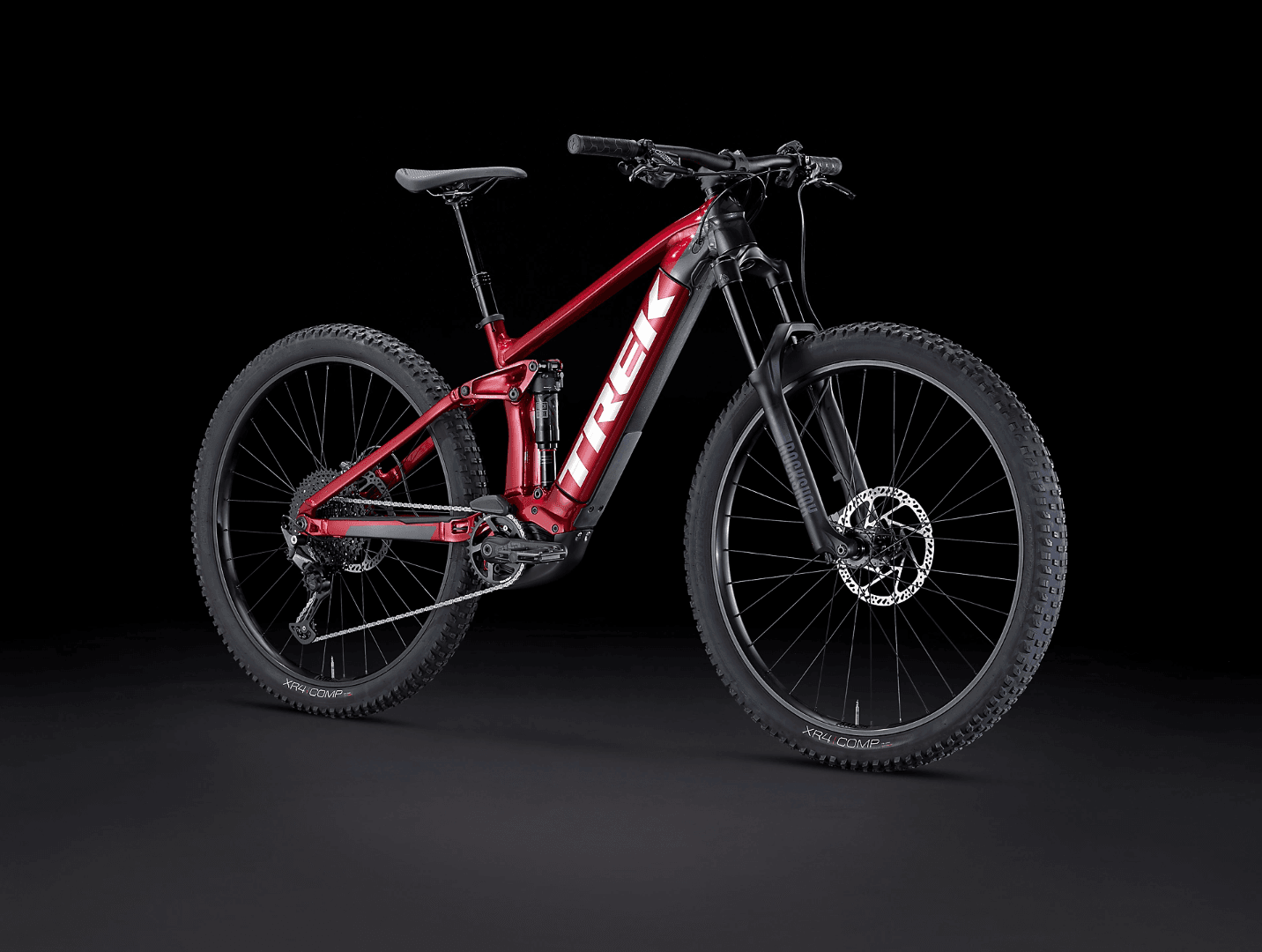

TREK RAIL 5 GEN 3 DEORE E-MTB BIKE 2023 - RAGE RED
Skip to product information
1 of 13

Product Details


eBikes by their very nature can require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.

Your eBike will be delivered built, set up and updated in two boxes.

Minimum personal assembly is required.

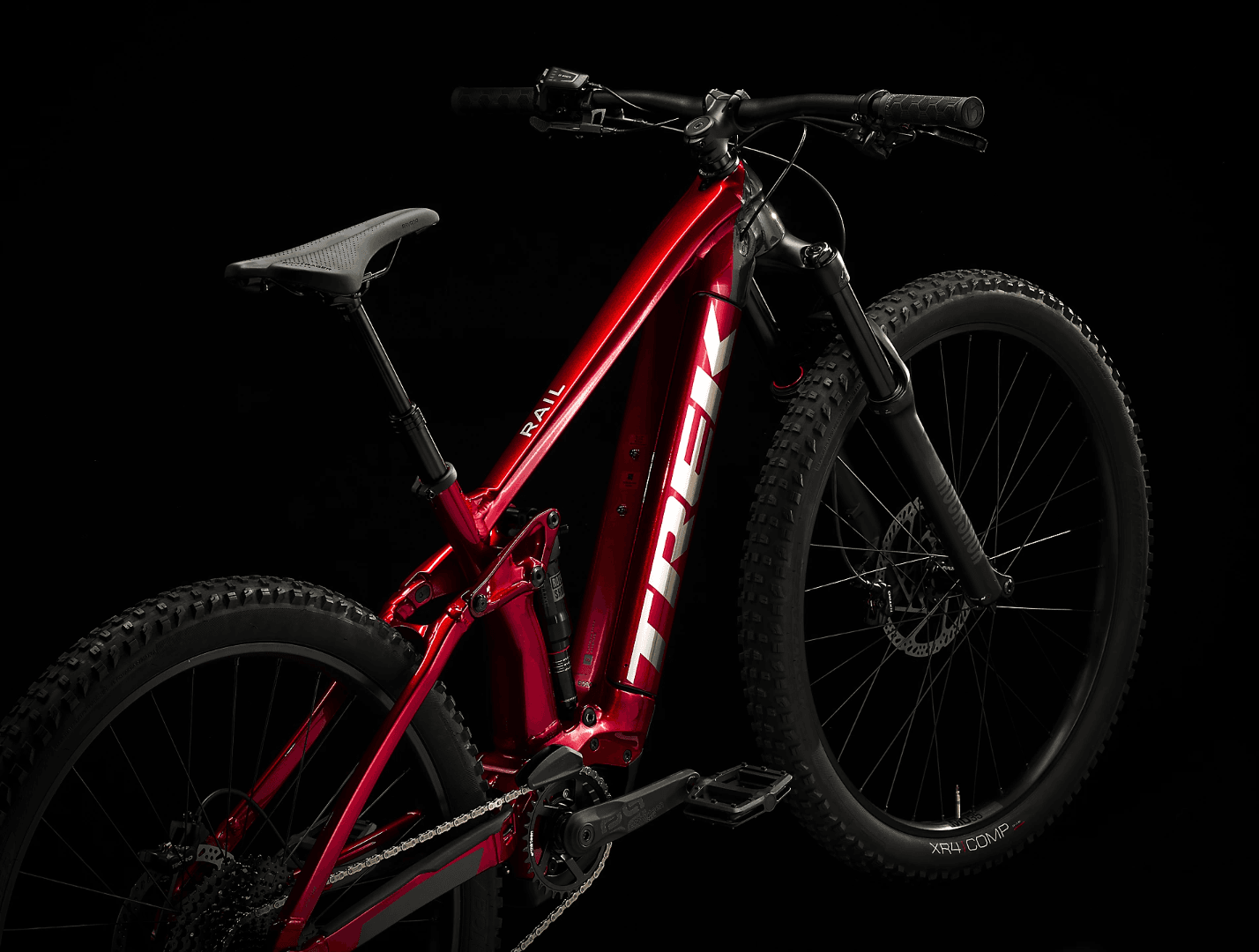

The Rail 5 625 is an electric mountain bike built for ripping the big stuff. It features the same high-end trail tech as our analogue trail bikes, plus a powerful new Bosch drive system that's basically like having your own shuttle.

Key Features

  • 160mm front and 150mm rear suspension: eats up the rough stuff.
  • New Bosch Performance Line CX motor: is lighter and more powerful.
  • 625Wh integrated battery: will keep you riding for longer.
Full Specification

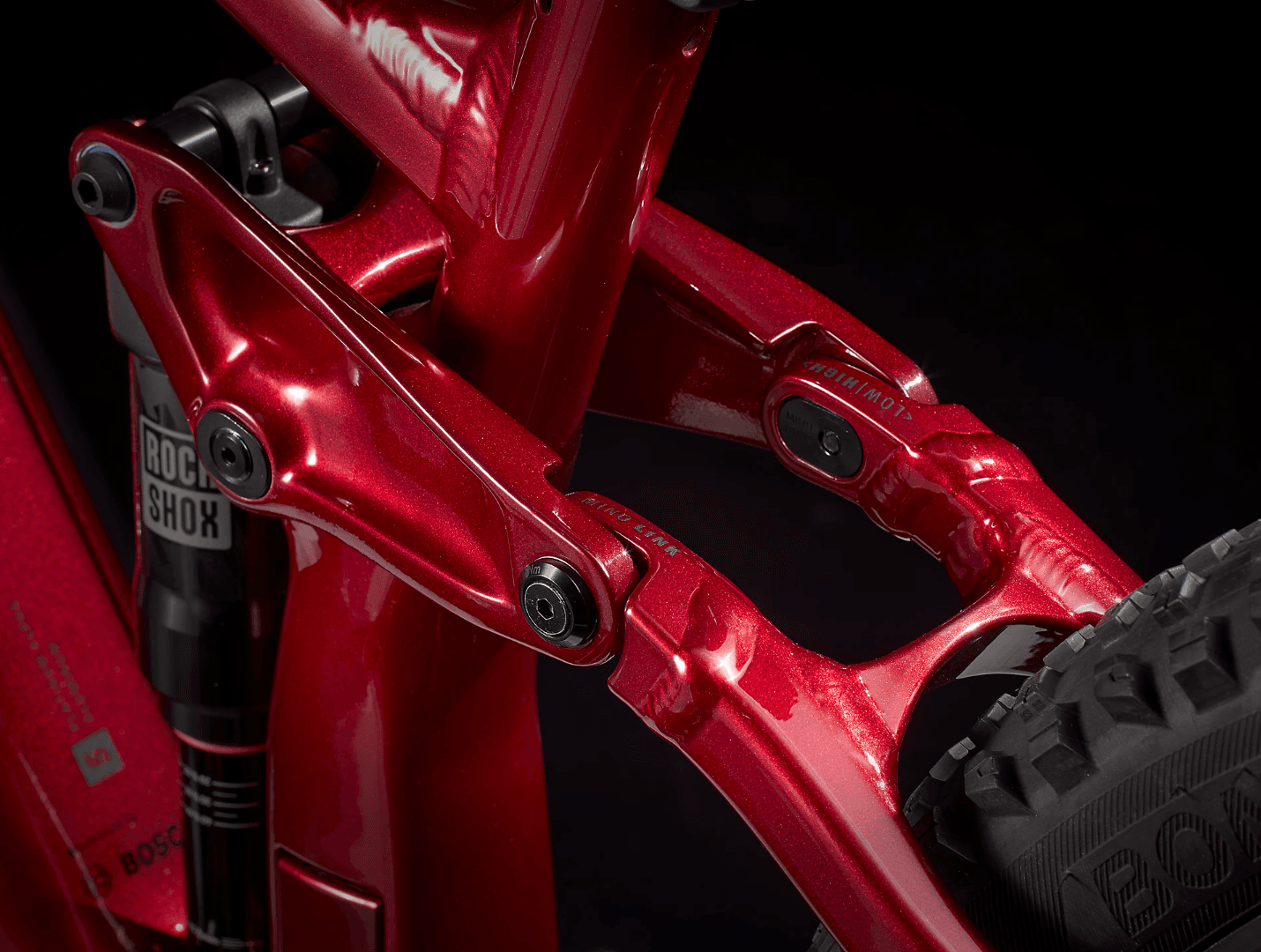

  • Frame: Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel

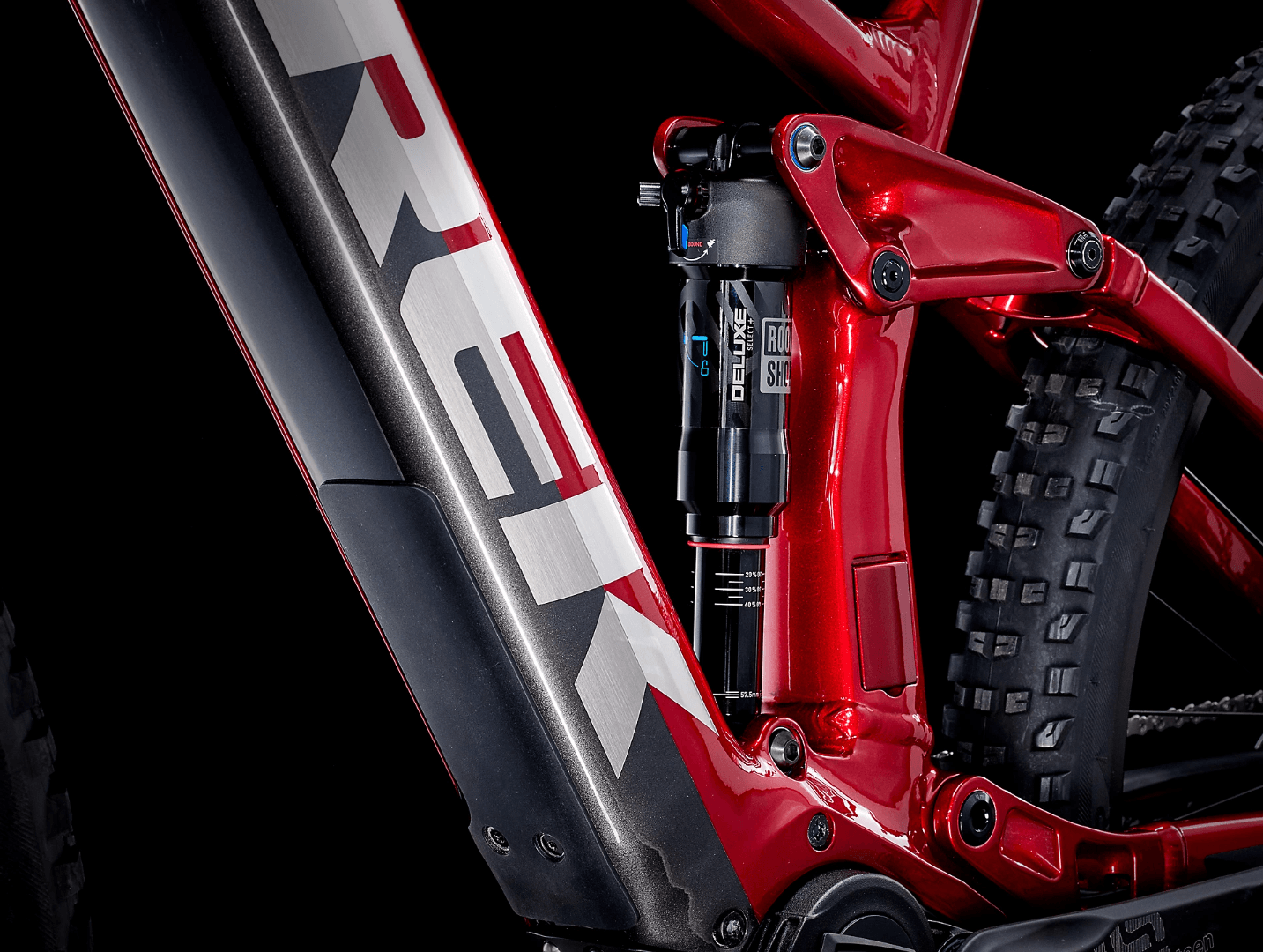

  • Rear Suspension: RockShox Deluxe Select+, 230x57.5 mm
  • Fork: RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel

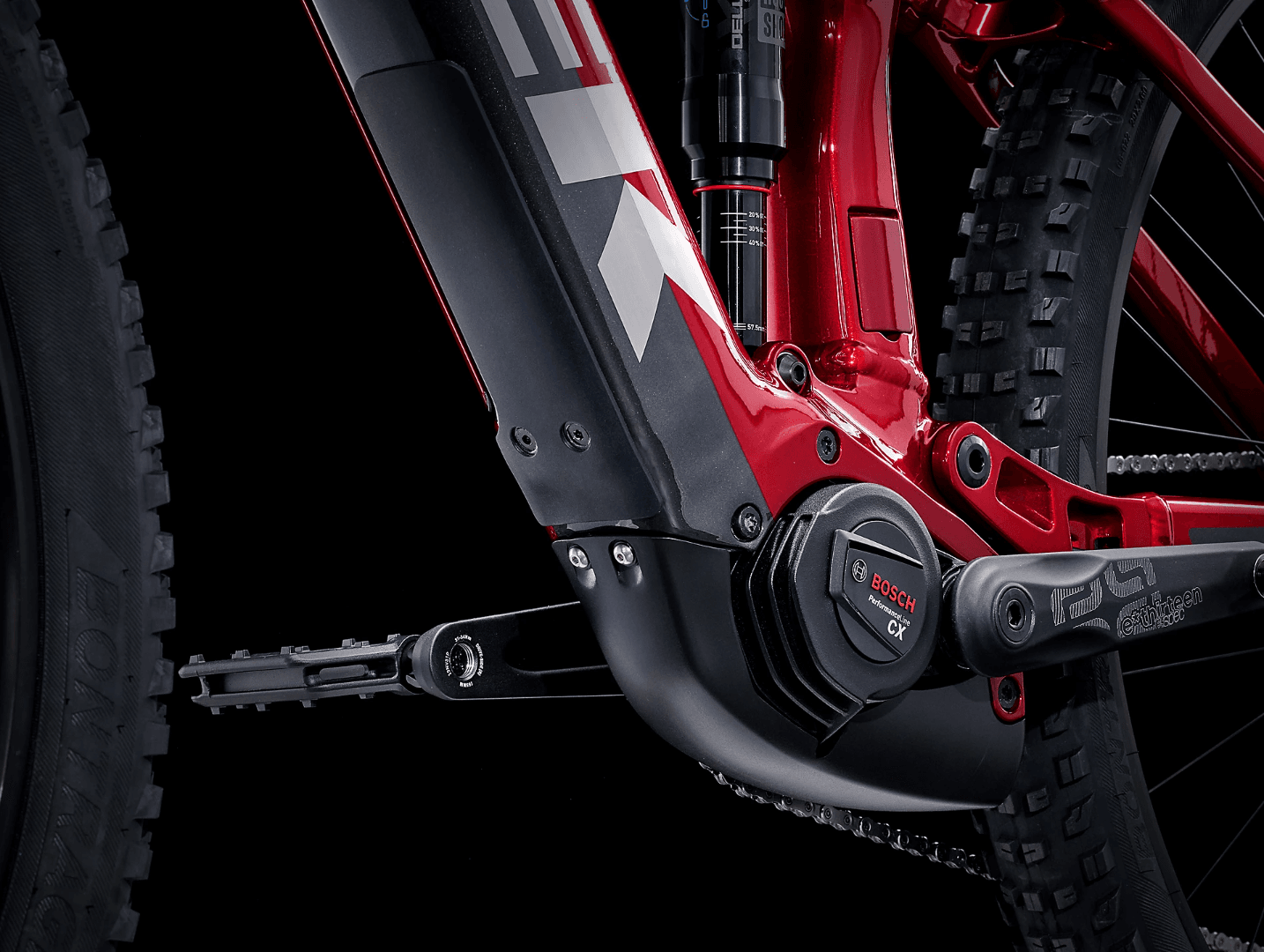

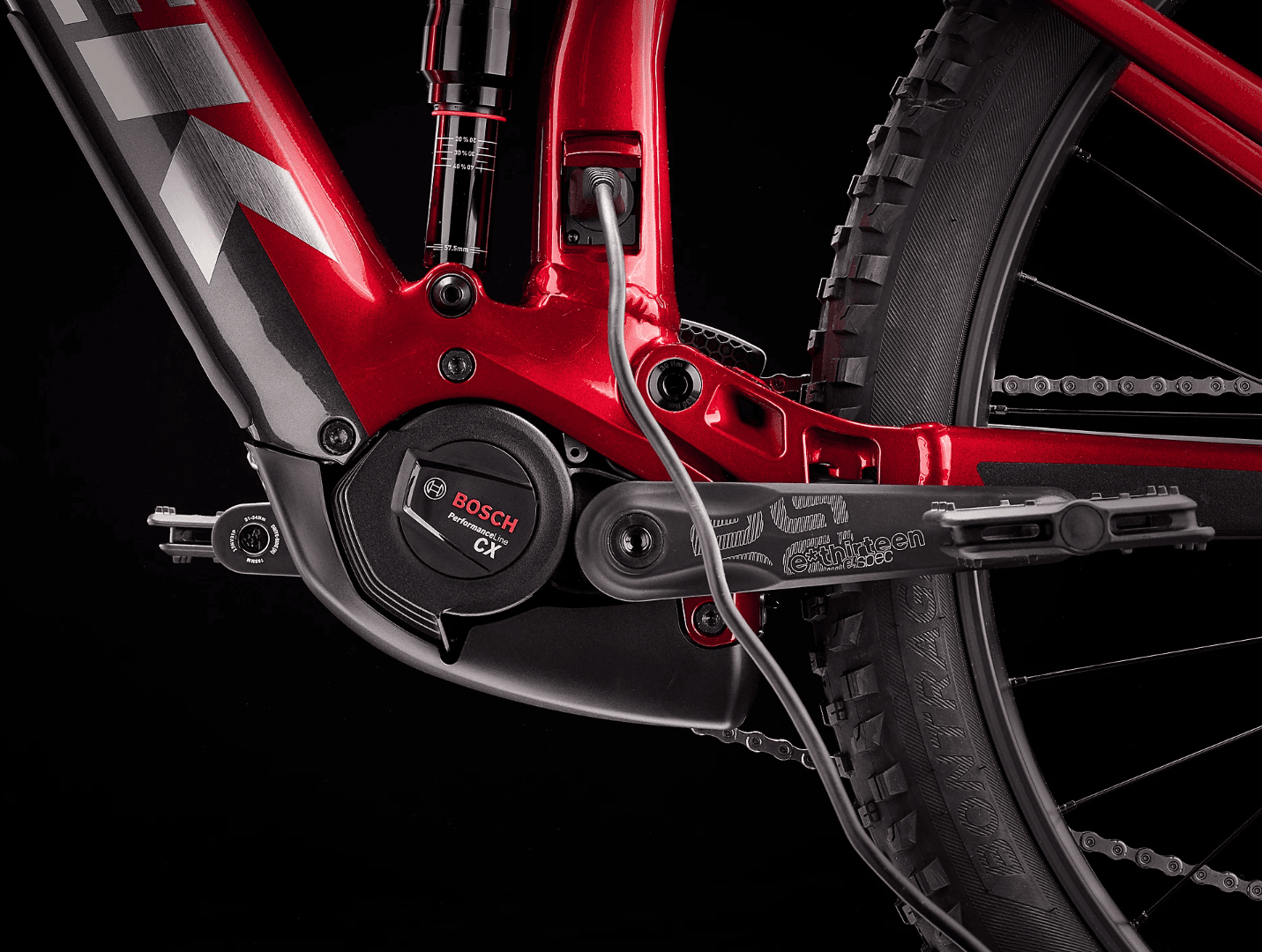

  • Motor: NEW Bosch Performance Line CX, 250 Watt, 85Nm, magnesium body, 15.5 mph / 25 km/h max assist

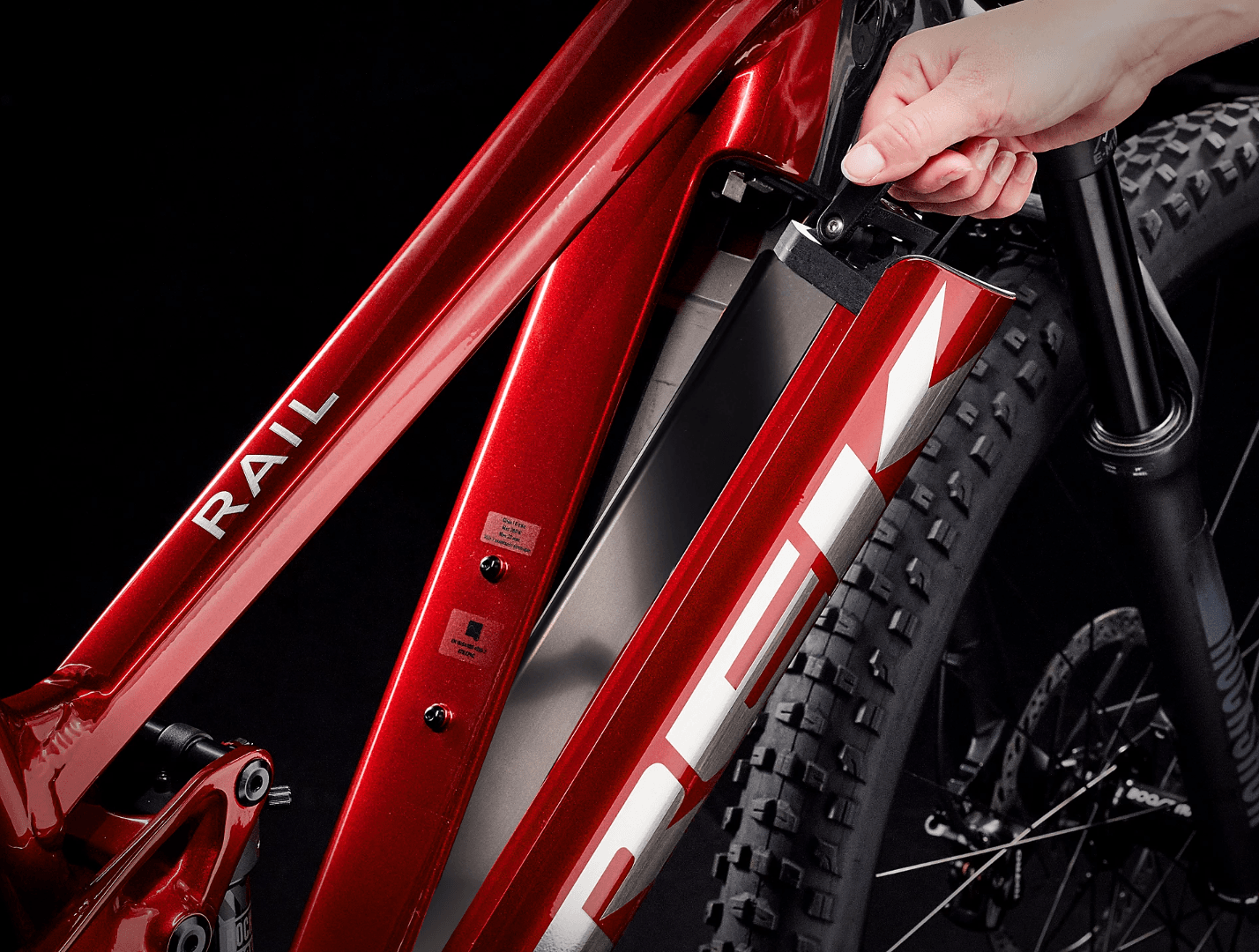

  • Battery: Bosch PowerTube 625 Wh, smart system

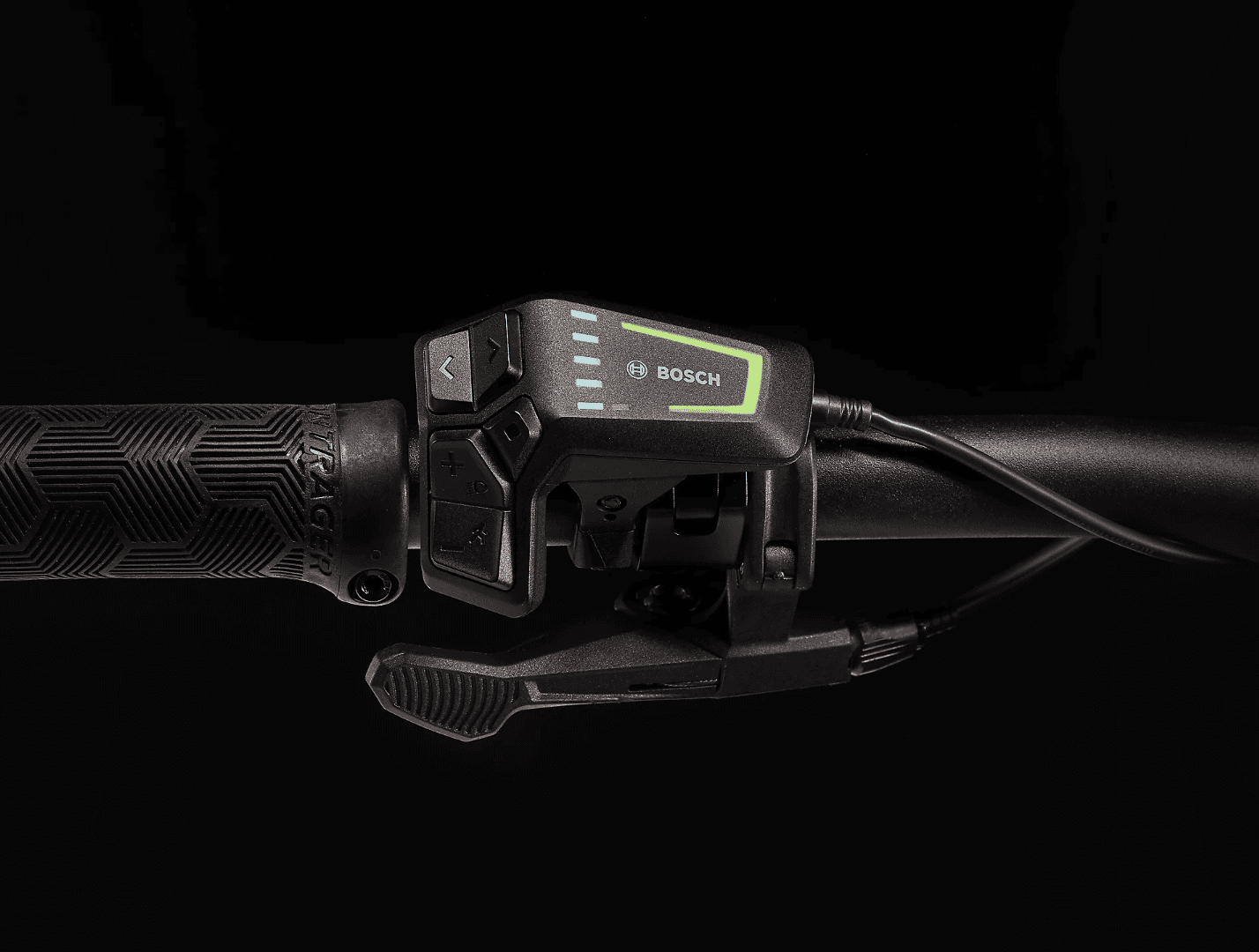

  • Controller: Led Display
  • Gear Shifters: Shimano Deore M6100, 12 speed
  • Chainset: E*thirteen E*spec Plus, 34T, 165 mm length
  • Rear Cassette: SunRace CSMZ800 11-51, 12 speed
  • Chain: Shimano Shimano Deore M6100
  • Front Derailleur: N/A

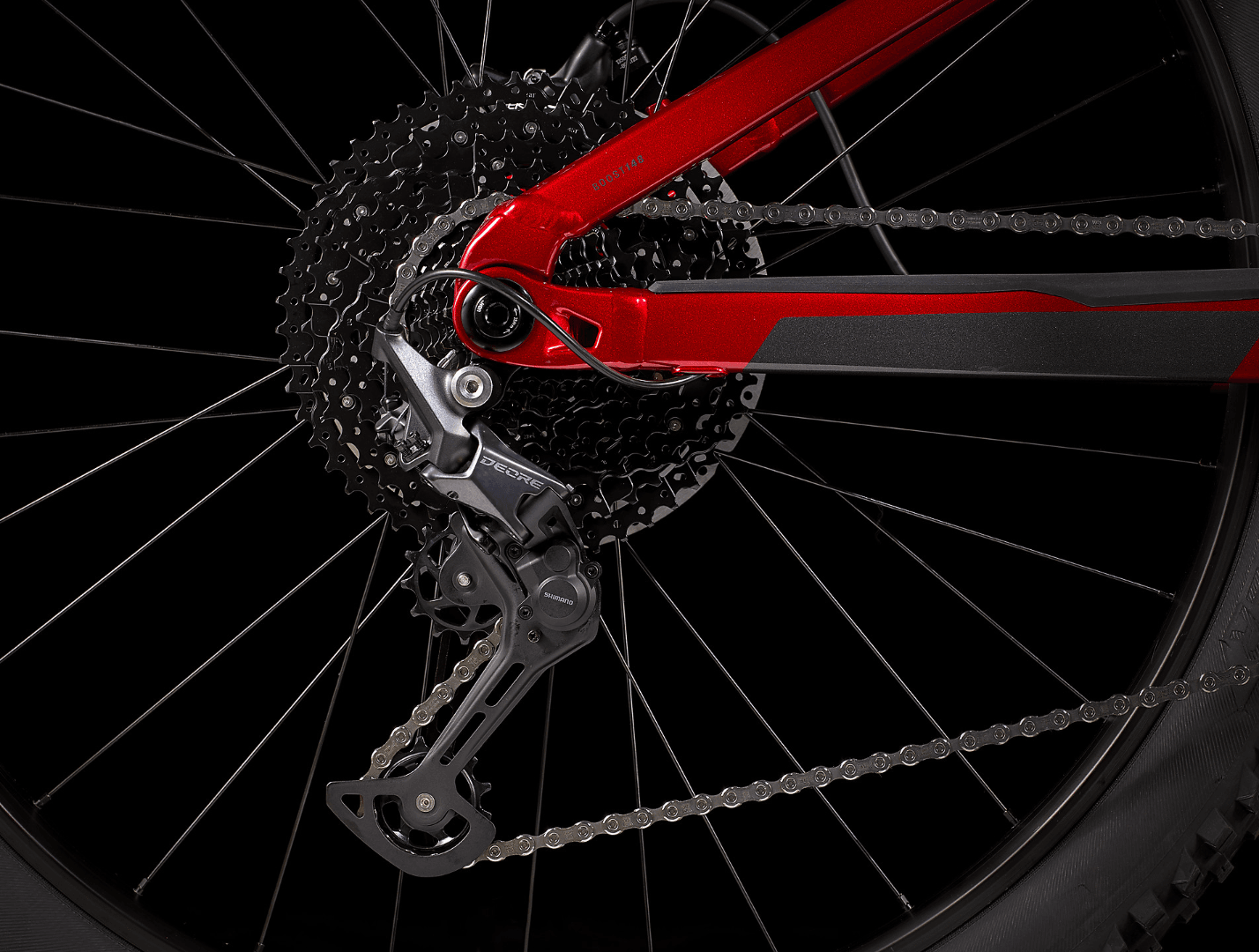

  • Rear Derailleur: Shimano Deore M6100, long cage
  • Bottom Bracket: N/A
  • Pedals: VP-536 nylon platform
  • Rims: Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
  • Front Hub: Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru-axle
  • Rear Hub: Bontrager alloy, sealed bearing, 6-bolt, Shimano, Boost148, 12 mm thru-axle

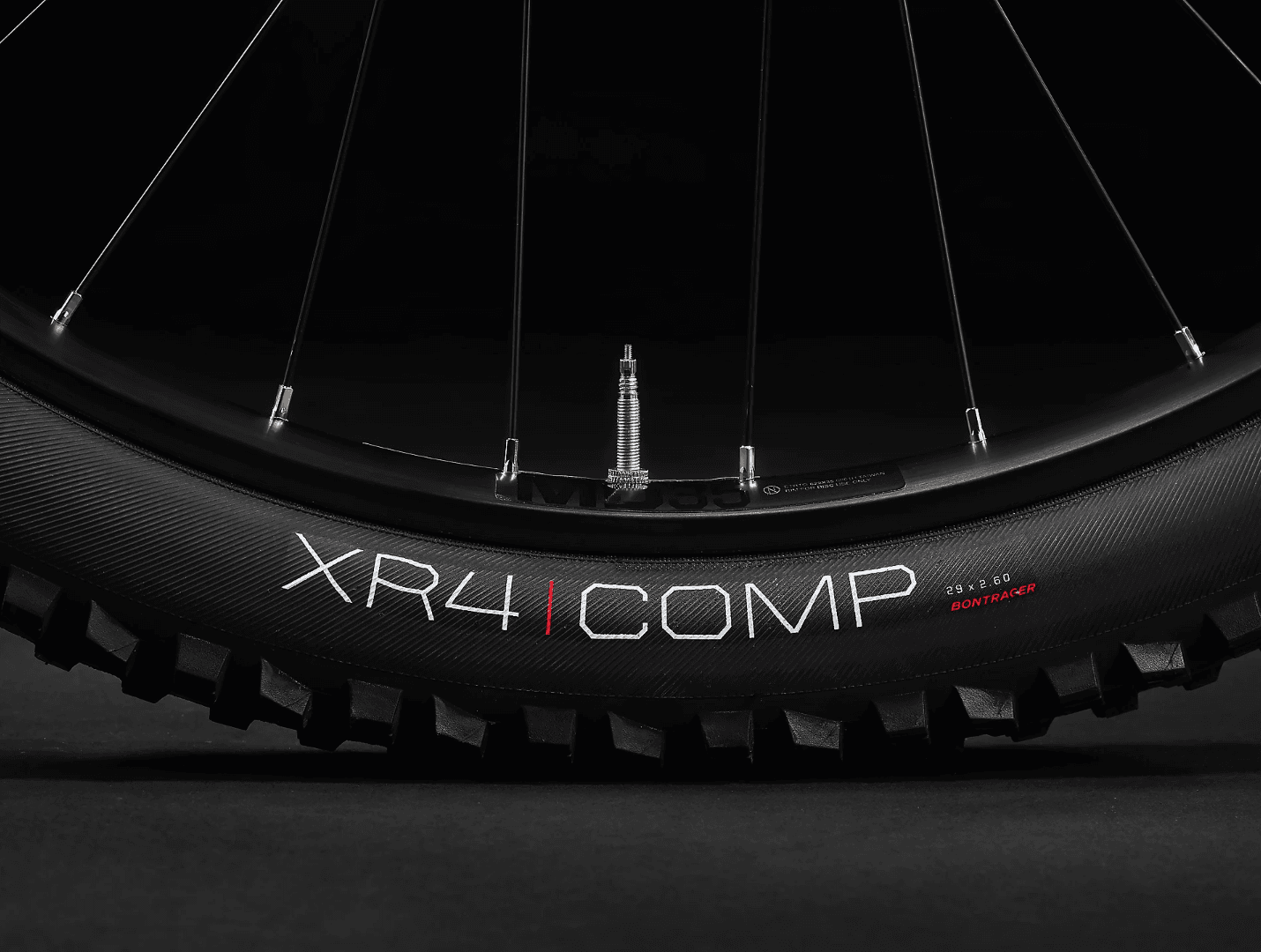

  • Front Tyre: Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60"
  • Rear Tyre: Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60"
  • Brakes: Tektro HD-M745 hydraulic disc
  • Handlebars: Bontrager alloy, 31.8 mm, 15 mm rise 750mm
  • Grips: Bontrager XR Trail Comp, nylon lock-on

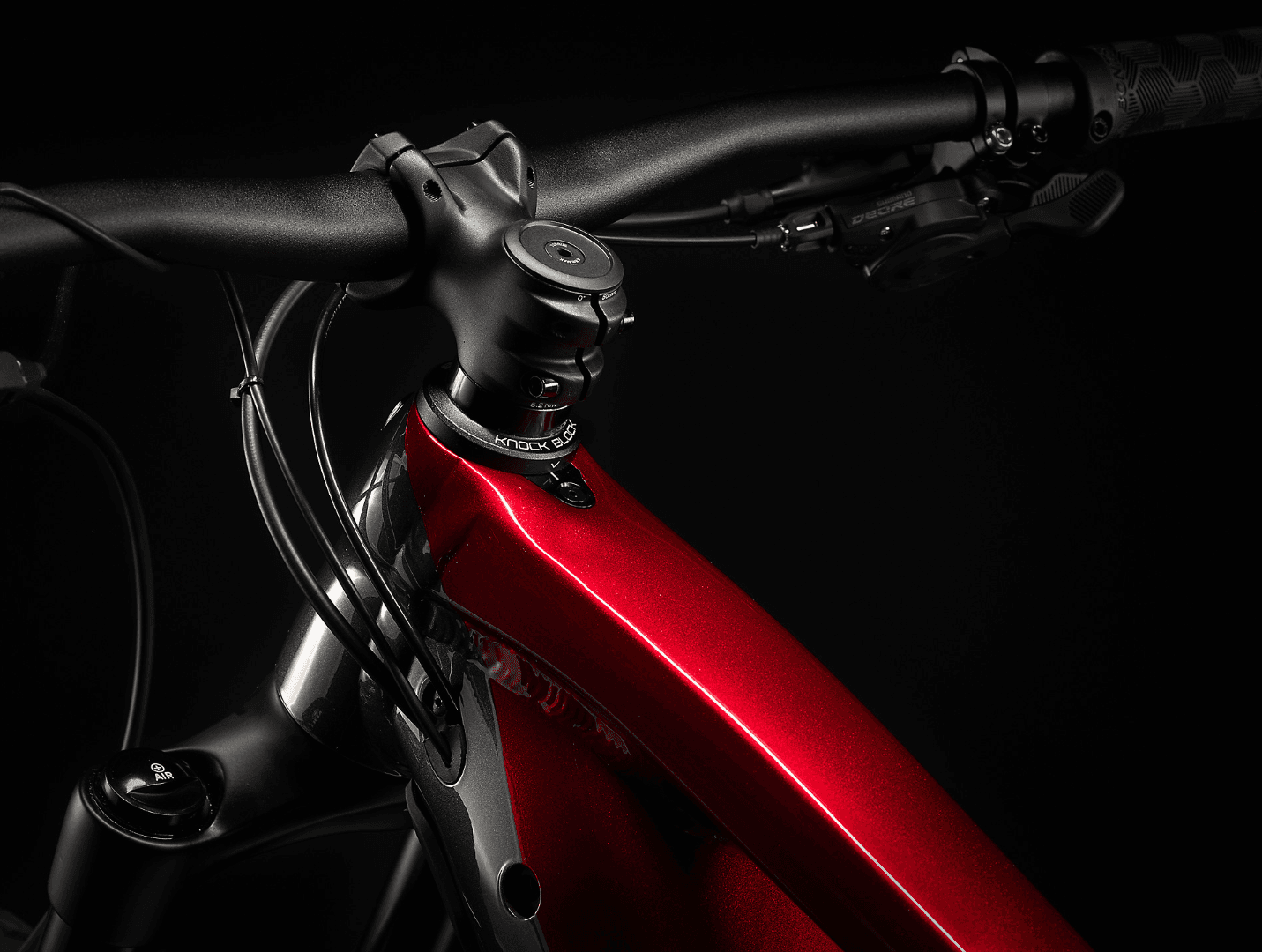

  • Stem: Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree
  • Saddle: Bontrager Arvada, steel rails, 138 mm width
  • Seatpost: TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
  • Accessories: N/A
  • Weight: M - 24.88 kg / 54.86 lbs
  • Weight limit; This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.




How to Build Your Bike

Aftercare





TREK RAIL 5 GEN 3 DEORE E-MTB BIKE 2023 - RAGE RED

Regular price £3,699.00
Save 27%
Regular price Was £5,100.00 Sale price £3,699.00

SKU: 5277859

Product ID: 160174

EPOS Code:

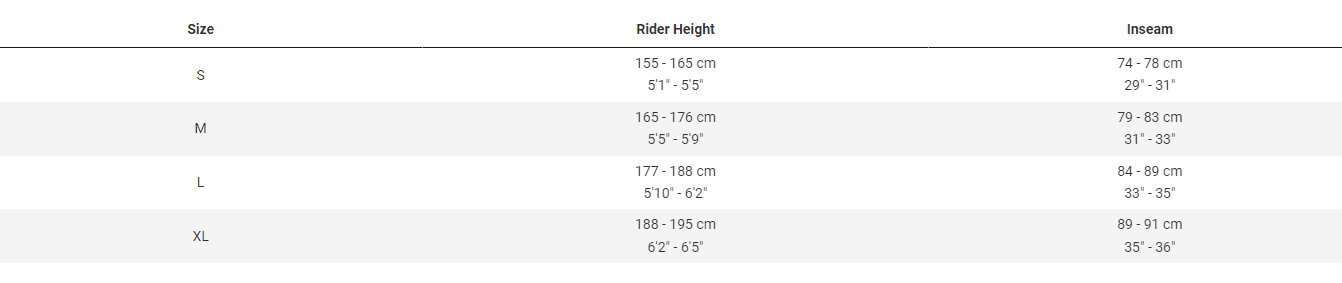

Size
Delivery From £18.99
Simple Returns
Built With Care
View full details
