TREK TOP FUEL 9.7 MTB BIKE 2023 - MATTE RAW CARBON
Skip to product information
1 of 11

Product Details

Top Fuel 9.7 is a quick and nimble full suspension carbon mountain bike that fuses the flat-out speed of a cross-country bike with the trail-munching appetite of a trail bike. It lets you fly up climbs, hammer through flat sections and keep on truckin' on rough descents.

Key Features

  • Hydraulic Disc Brakes: Accurate and powerful braking capacity to keep you in control in all weather conditions.

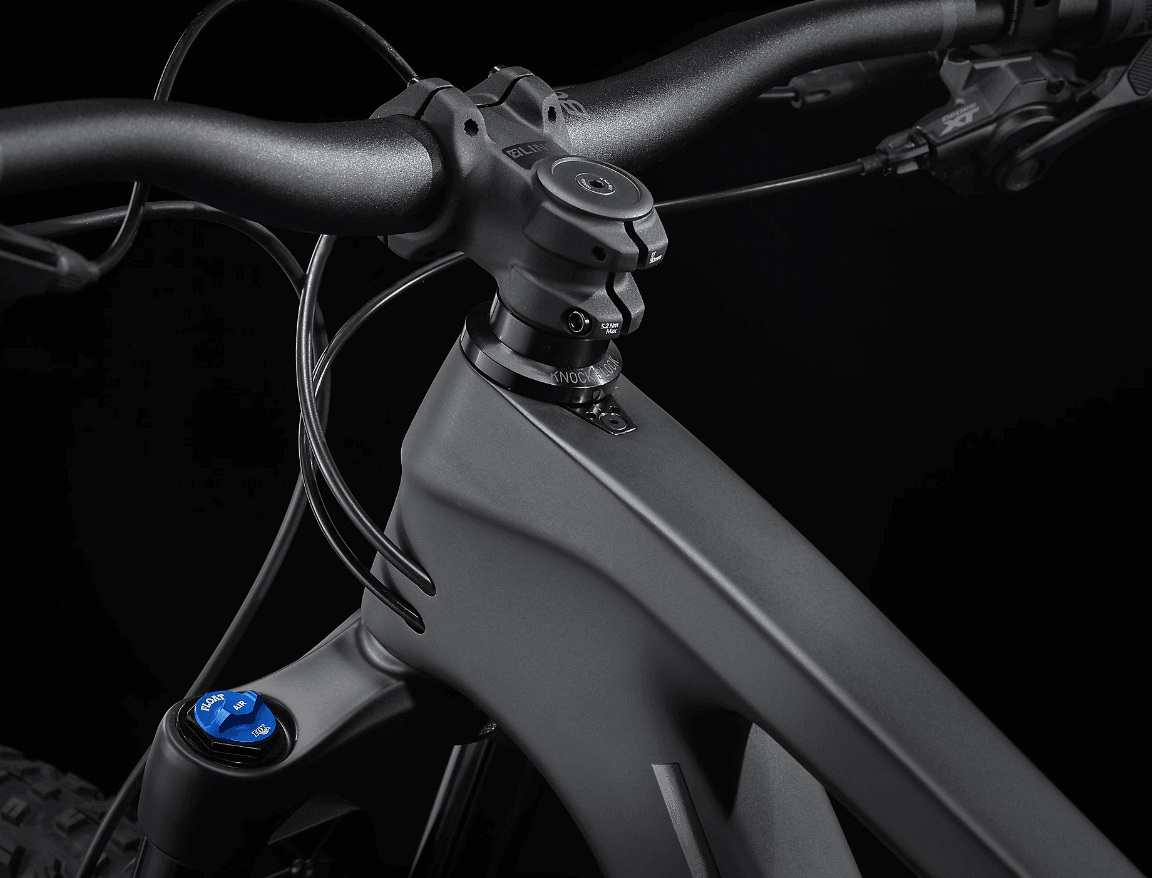

  • Knock block 2.0: New, removable knock block has a bigger steering angle to keep cables and hoses safe without sacrificing turning radius
  • Mino Link: Lets you make small adjustments to your geometry quickly and easily, even mid-ride

Full Specification

  • Frame: OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel
  • Rear Shock: Fox Performance Float DPS, 3-position damper, 185 mm x 50 mm
  • Fork: Fox Rhythm 34, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 120 mm travel
  • Number of Gears: 12
  • Gear Shifters: Shimano XT M8100, 12-speed
  • Chainset: Shimano Deore M6120, 30T ring, 55 mm chainline, 170-5 mm length
  • Chainrings: 30T
  • Rear Cassette: Shimano SLX M7100, 10-51, 12-speed
  • Chain: Shimano SLX M7100, 12-speed

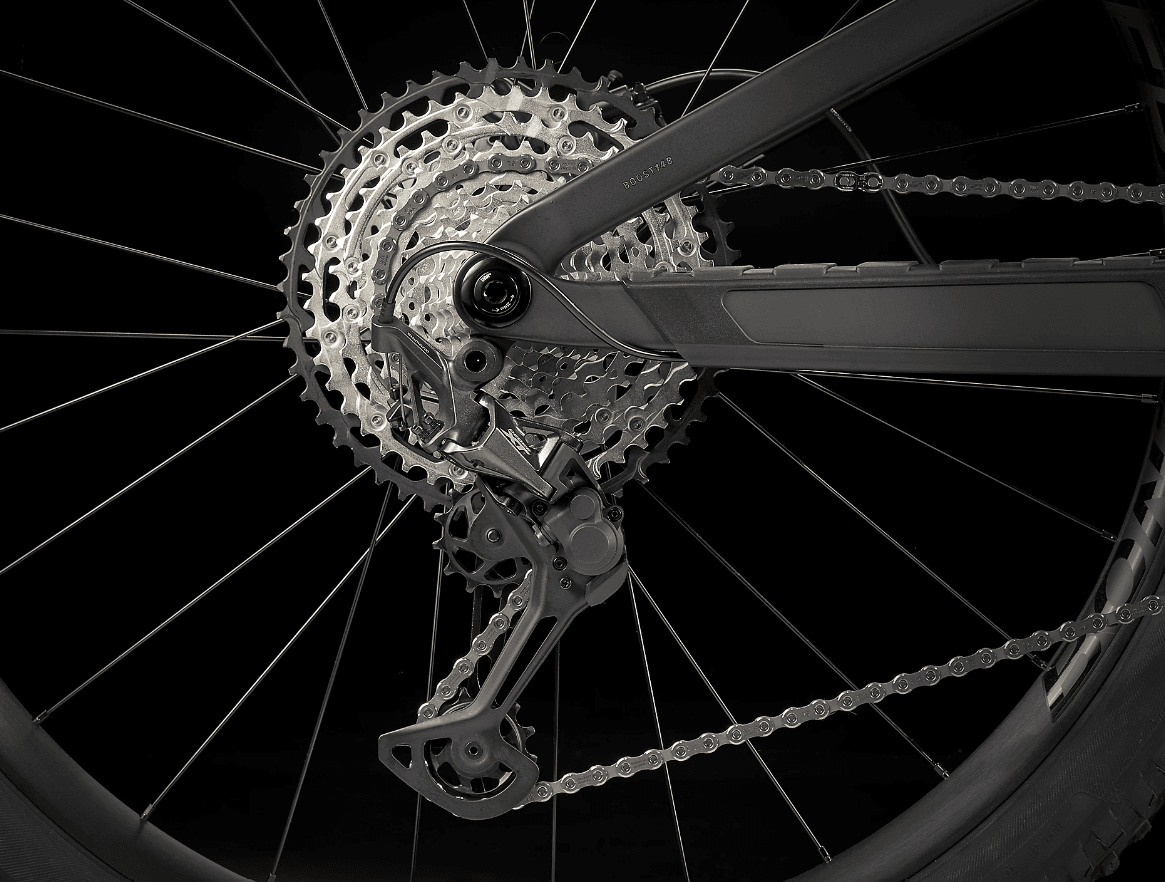

  • Rear Derailleur: Shimano XT M8100, long cage, 51T max cog
  • Bottom Bracket: Shimano BB-MT501 BSA
  • Pedals: Not Supplied
  • Rims: Bontrager Line Comp 30, Tubeless Ready, 28-hole, Presta valve
  • Front Hub: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
  • Rear Hub: Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12mm thru axle
  • Front Tyre: Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29.x2.40"
  • Rear Tyre: Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29.x2.40"
  • Brakes: Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
  • Handlebars: Bontrager Line, alloy, 35 mm, 27.5 mm rise, 750-780 mm width
  • Handlebar Grips: Bontrager XR Trail Comp, nylon lock-on
  • Stem: Bontrager Elite, 35 mm, 0-degree, 45 mm length
  • Saddle: Bontrager Arvada, steel rails, 138 mm width
  • Seatpost: TranzX JD-YSP39, 100-170 mm travel, internal routing, 34.9 mm
  • Accessories: Bontrager BITS Internal Frame Storage Bag
  • Weight: M - 13.38 kg/29.51 lb (with TLR sealant, no tubes)

 Please note the XS comes with 27.5 x 2.4 Wheels and Tyres.


 We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.




How to Build Your Bike

Aftercare





TREK TOP FUEL 9.7 MTB BIKE 2023 - MATTE RAW CARBON

Regular price £2,999.00
Save 28%
Regular price Was £4,175.00 Sale price £2,999.00

SKU: 5261037

Product ID: 160078

EPOS Code:


Size
Est. Dispatch
Delivery From £18.99
Simple Returns
Built With Care
View full details
