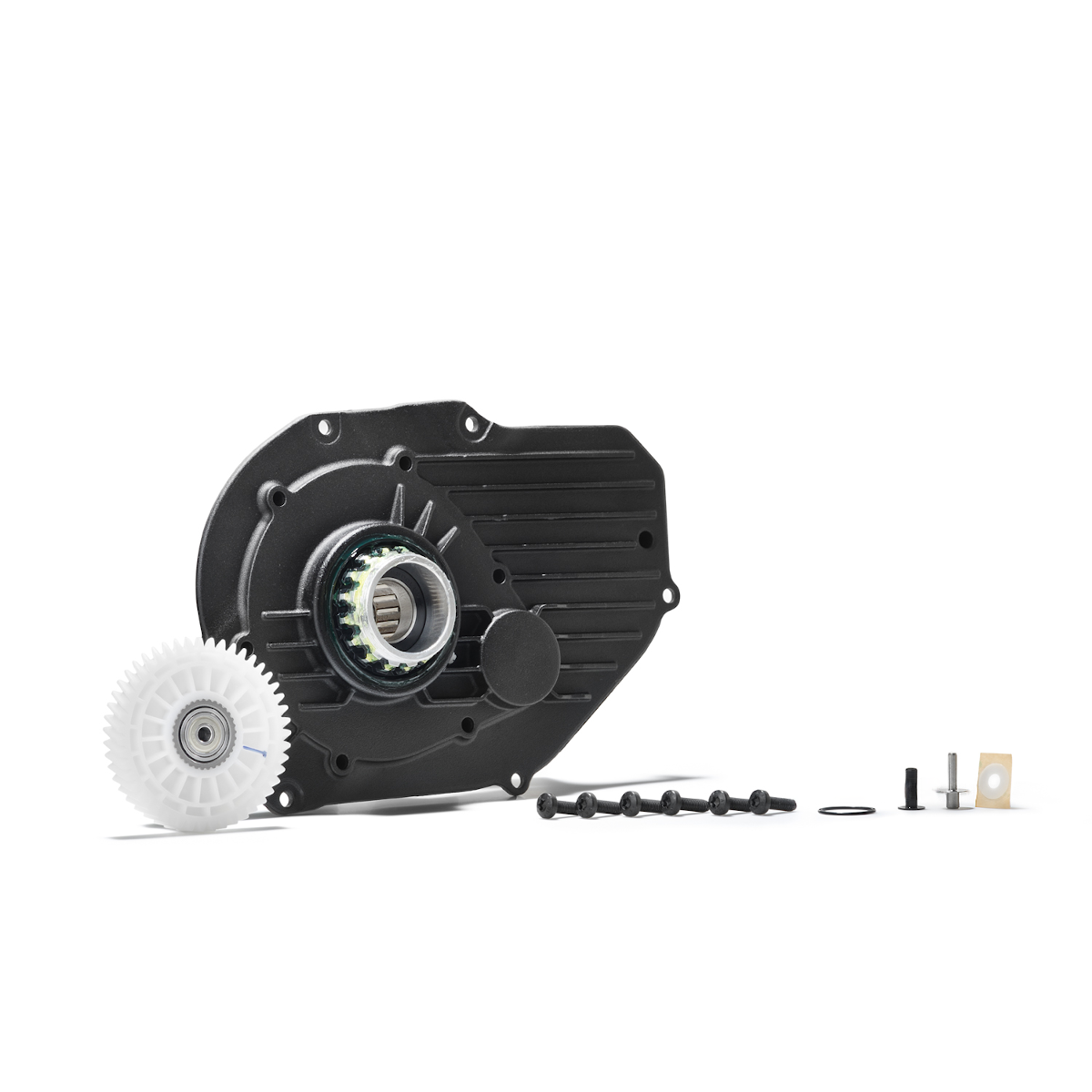

Spare parts set for the repair of Bosch Drive Units BDU2XX to repair damage to the right bottom bracket.

Features

• Contains: Cover (incl. seal, bearing, freewheel) gear, gear grease, cover screws, bearing pin with rubber collar sleeve and protective washer, repair instructions, service kit felt ring BDU2xx
• Bearing with bearing protection ring and bearing protection grease is pre-assembled
• The cover may only be replaced by qualified personnel! In the event of improper or unprofessional replacement, grease or dirt particles in particular can get into the interior of the drive, which in turn can lead to a short circuit, or a failure of the freewheels or a blockage of the drive. Leakage of the drive can also be the result. Therefore, improper replacement of the cover may result in property damage and personal injury!
• A corresponding training video is also available on the Bosch eBike dealer portal

• Active Line (BDU2XX)
• Performance Line CX (BDU2XX)
• Performance Line (BDU2XX)

- FOR SPECIALIST WORKSHOPS ONLY -

The drive unit must not be repaired if one of the following points applies:

→ BDU2xx drive units with the following TTNR (see type plate on motor):

• 0 275 007 020
• 0 275 007 021
• 0 275 007 022
• 0 275 007 023
• 0 275 007 024
• 0 275 007 025
• 0 275 007 342

→ If the eBike has a coaster brake

** Repair only outside warranty! **

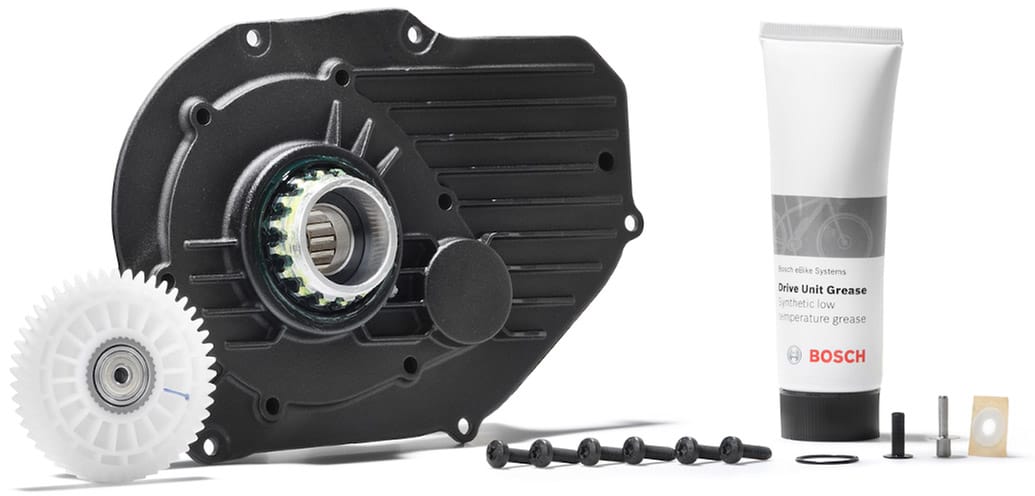

Contents

• Cover (incl. seal, bearing, freewheel)
• Gear wheel
• Gear grease
• Cover screws
• Bearing pin with rubber sleeve and protective washer
• Repair instructions
• Service kit felt ring BDU2xx
