The 30 mm inner rim width of the FR 560 rim from DT Swiss provides your tires with the support they need to roost through the berms at full speed. The FR 560 has made to withstand the nastiest of rock gardens, the roughest of roots and the sketchiest of landings.
Specification
-
Use: MTB / Freeride
-
Size: 26"
-
Reference diameter ERD: 538mm
-
Rim diameter: 559mm
-

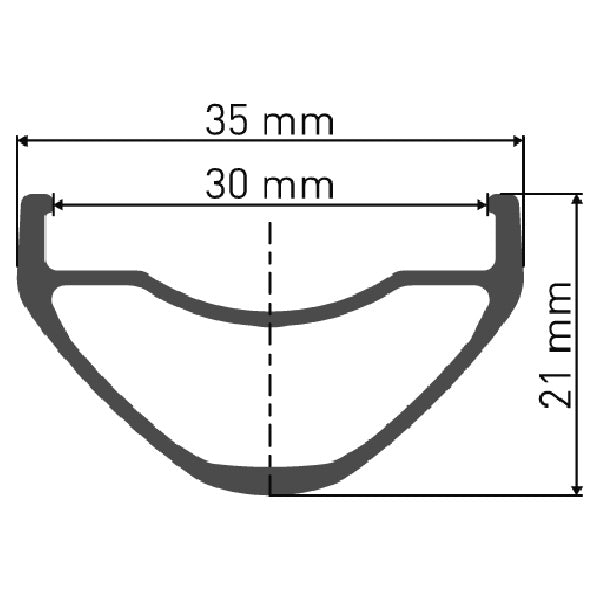

Inner width: 30mm
-
Outer width: 35mm
-
Height: 21mm
-
Hole count: 32
-
Brake type: Disc
-
Bore Type: Eyelet
-
Colour: Black
-
Material: Aluminium
-
Valve hole: Presta / SV Ø 6.5 mm
-
Max recommended system weight: 140kg (body weight + bike + equipment)
-
ASTM Classification: 5
Weight
Contents
- 1 x DT Swiss FR 560 26" Disc Rim
