Nothing is off-limits to the Embolden, a trail bike designed to conquer tricky climbs, rowdy descents, and chunky rock gardens with confidence.

Wheel Options

Available in 27.5- and 29-inch wheel size options, select the Embolden that best fits you and where you want to ride.

Trail Capability

ALUXX-Grade Aluminum frame, tubeless wheelset, dropper seatpost, Liv Sylvia trail saddle and a 1x drivetrain allow you to tackle new technical terrain with confidence.

Flexpoint Suspension

The 120mm of FlexPoint Suspension provides an effective, lightweight and durable suspension system so you have increased control while riding over rooty and rocky terrain.

Specifications

• Wheel Options: Available in 27.5- and 29-inch wheel size options, select the Embolden that best fits you and where you want to ride.
• Trail Capability: ALUXX-Grade Aluminum frame, tubeless wheelset, dropper seatpost, Liv Sylvia trail saddle and a 1x drivetrain allow you to tackle new technical terrain with confidence.
• Flexpoint Suspension: The 120mm of FlexPoint Suspension provides an effective, lightweight and durable suspension system so you have increased control while riding over rooty and rocky terrain.

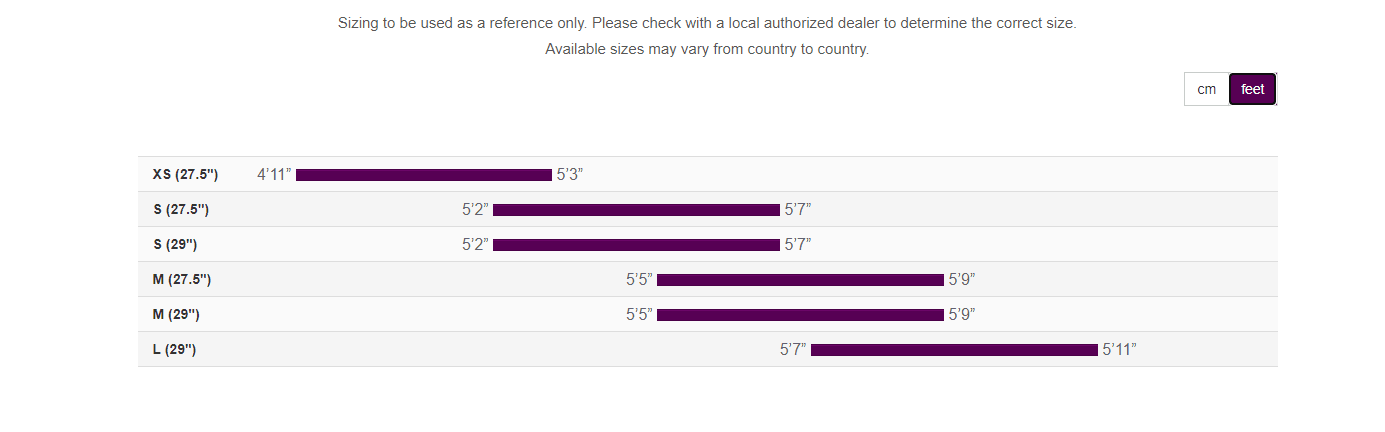

• Sizes: 27.5": XS, S, M 29": S, M, L
• Colour: Purple Ash

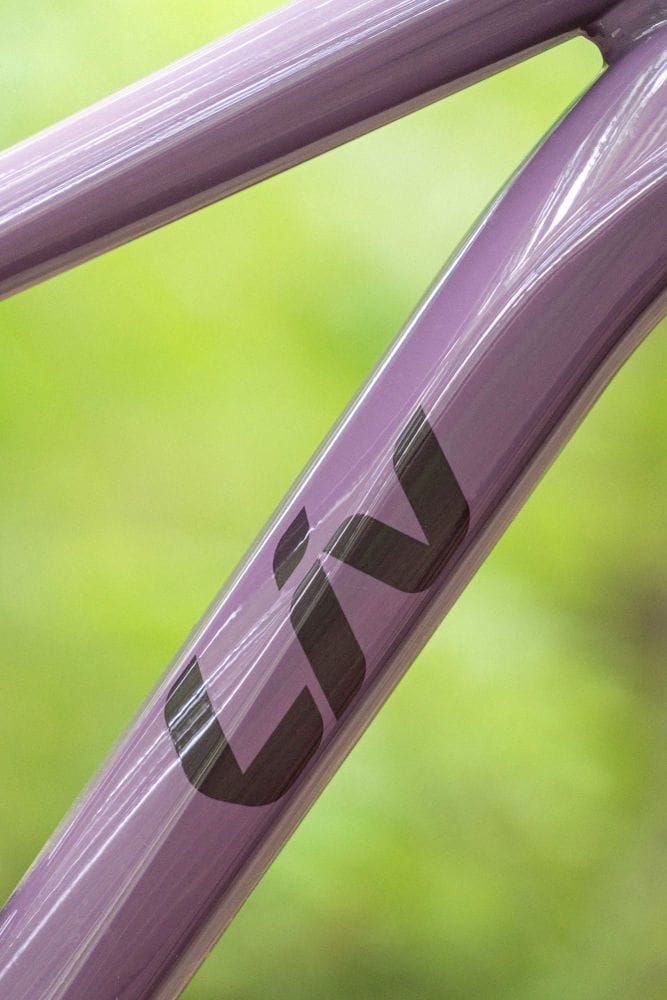

• Frame: ALUXX-Grade Aluminum, 120mm FlexPoint Suspension

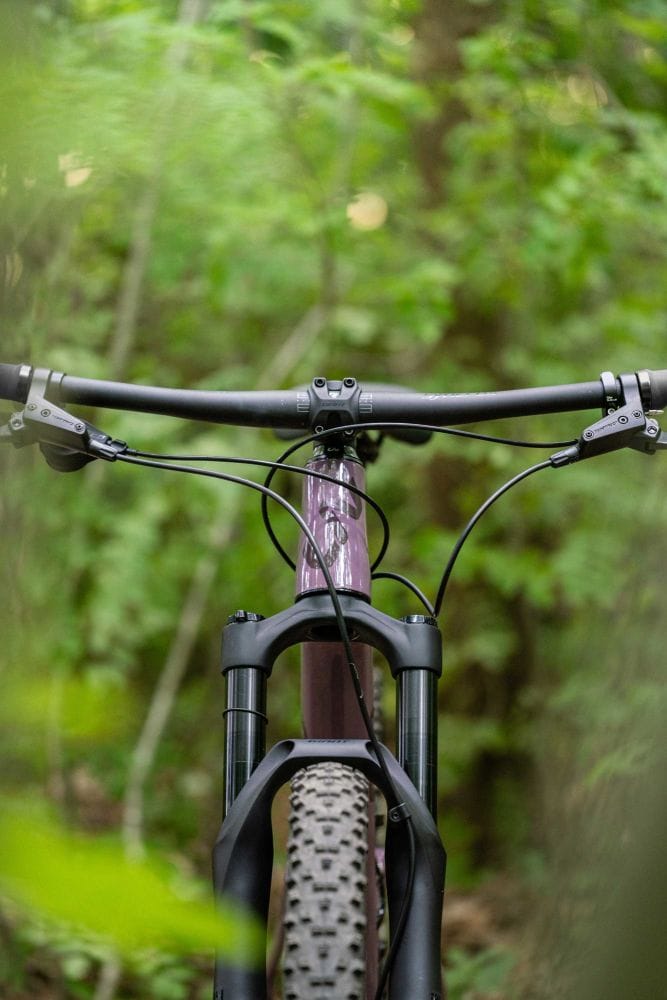

• Fork: Giant Crest 34 SL RCL, 130mm, 15x110

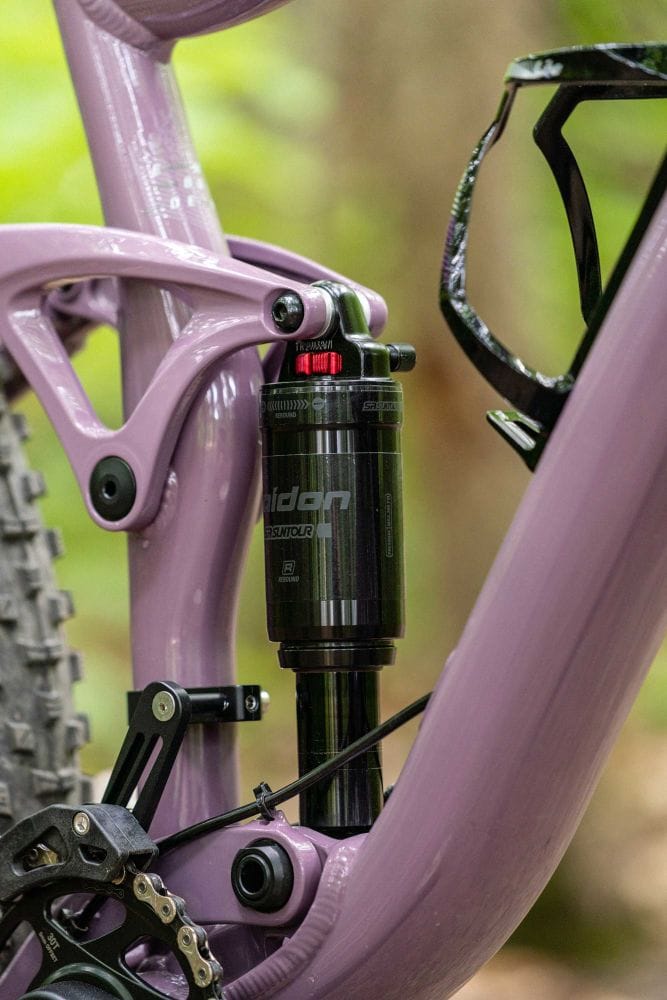

• Shock: Suntour Raidon R, 185/45, custom tuned for Liv
• Handlebar: Giant Connect Trail, Alloy For 27.5: XS:730mm, S:750mm, M:750mm For 29: S:750mm, M:750mm, L:780mm
• Grips: Giant Sole-O
• Stem: Giant Contact For 27.5: XS:40mm, S:50mm, M:50mm For 29: S:50mm, M:50mm, L:60mm
• Seatpost: Giant Contact Switch dropper, remote
  • For 27.5: XS: 75mm travel / 30.9 x 295mm S: 100mm travel / 30.9 x 345mm M: 125mm travel / 30.9 x 395mm
  • For 29: S: 100mm travel / 30.9 x 345mm M: 125mm travel / 30.9 x 395mm L: 125mm travel / 30.9 x 395mm
• Saddle: Liv Sylvia
• Shifters: Shimano Deore M4100, 1x10
• Front Derailleur: N/A
• Rear Derailleur: Shimano Deore M5120
• Brakes: Shimano BR-MT420, hydraulic, Shimano RT-26 rotors [F]180mm, [R]160mm
• Brake Levers: Shimano BL-MT201
• Cassette: Shimano Deore M4100, 11x46
• Chain: KMC X-10
• Crankset: Praxis Cadet Boost, 30t
  • For 27.5: XS:165mm, S:170mm, M:170mm
  • For 29: S:170mm, M:170mm, L:170m
• Bottom Bracket: Praxis, press fit
• Rims:
  • For 27.5: Giant AM 27.5, tubeless ready, sleeve-joint rim, 30mm inner width
  • For 29: Giant AM 29, tubeless ready, sleeve-joint rim, 30mm inner width"
• Hubs: Giant Boost, sealed
• Spokes: Sapim
• Tyres:
  • For 27.5: [F] Maxxis Rekon 27.5x2.6 WT, EXO, TR, tubeless [R] Maxxis Ardent Race 27.5x2.6 WT, EXO, TR, tubeless
  • For 29: [F/R] Maxxis Forecaster 29x2.35 WT, EXO, TR, tubeless
• Extras: For 27.5: tubeless prepared, max tire size 2.6", max chainring size 32t For 29: tubeless prepared, max tire size 2.4", max chainring size 32t
• Pedals: Platform

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
