eBikes by their very nature can in the future require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.

Your eBike will be delivered built, set up and updated.

Minimum personal assembly is required.

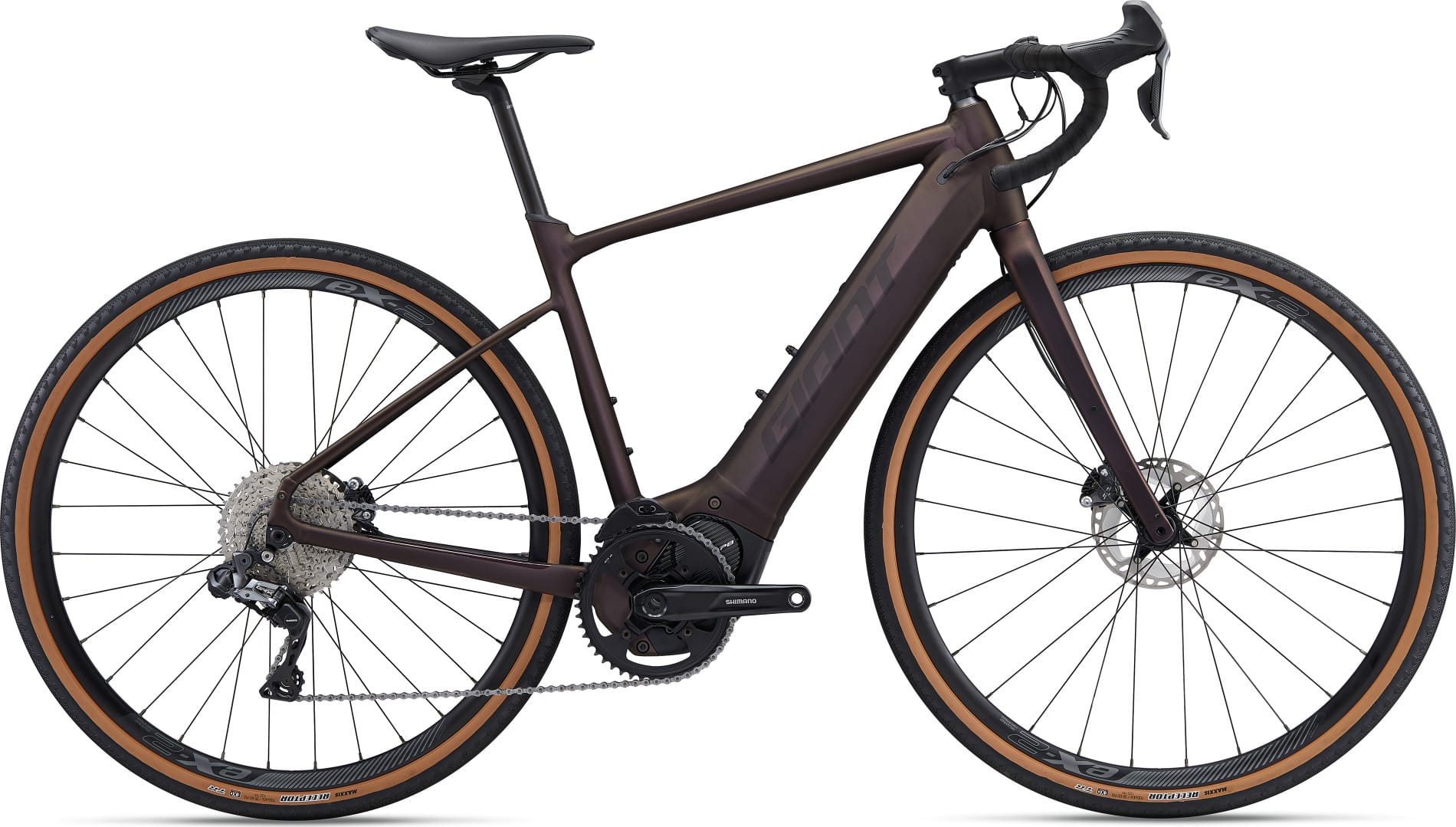

From rough roads to gravel, dirt and mixed terrain adventures, this versatile drop bar E-bike gives you the power to ride farther and faster on any route you can dream up.

Features

The reengineered frameset has a new SyncDrive Pro pedal-assist system that’s powered by a Shimano EP8 motor. This customized powertrain produces smooth acceleration on paved roads, gravel or dirt. You can switch support modes using Shimano Di2 shift levers, allowing for a clean cockpit setup without an additional control unit. The unique SmartAssist motor automatically adapts to your riding style so you don’t need to adjust support levels while riding. Wider tires and integrated rack mounts allow you to customize your adventure with fenders, racks or whatever other accessories you desire.

Full Specification

• Frame: ALUXX SL Aluminium
• Fork: Advanced-Grade Composite, full-composite OverDrive steerer
• Number of Gears: 11
• Motor: Shimano EP8, 85Nm, up to 400% asssistance
• Controller: RideControl GO top tube mounted, Assistance level can also be controlled by left hand STI buttons

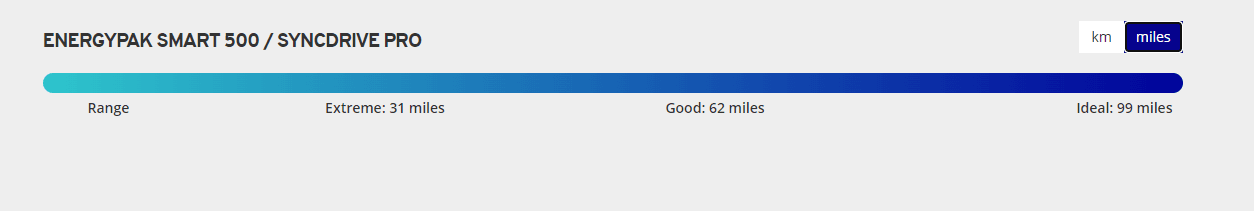

• Battery: EnergyPak Compact 500Wh EnergyPak Plus range extender compatible
• Charger: EnergyPak Smart 4A charger
• Gear Shifters: Shimano GRX Di2 ST-RX815 1x11 speed
• Chainset: Shimano FC-EM600 crankarm Shimano SM-CRE80-R, 47T chainring
• Chainrings:36T
• Rear Cassette: Shimano CS-M5100-11, 11-42, 11-speed
• Chain: KMC e.11 Turbo, EcoProteq
• Front Derailleur: NA
• Rear Derailleur: Shimano GRX Di2 RX817 (max 42T cassette size)
• Bottom Bracket:
• Pedals: Aluminum Platform
• Rims: Giant eX 2, Tubeless Ready, 700c Aluminium
• Front Hub: Giant Performance Tracker Road, Sealed Bearing, 12mm thru axle
• Rear Hub: Giant Performance Tracker Road, Sealed Bearing, 12mm thru axle
• Front Tyre: Maxxis Receptor, EXO, Skinwall, 700x40mm, Tubeless
• Rear Tyre: Maxxis Receptor, EXO, Skinwall, 700x40mm, Tubeless
• Brakes: ShimanoBR-RX810, hydraulic disc, 160mm
• Handlebars: Giant Contact XR D-Fuse, 31.8mm, 5° back sweep, flared drop
• Handlebar Tape: Giant Connect tape
• Stem: Giant Contact
• Saddle: Giant Approach
• Seatpost: Giant D-Fuse SL, composite
• Accessories: Factory tubeless set up including sealant
• Weight: N/A
• Notes: Compatible with RCX 45 Mudguard (sold separately) // needs *RGX Seat Tube Strap Mounting Kit* (part 540000042)

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
