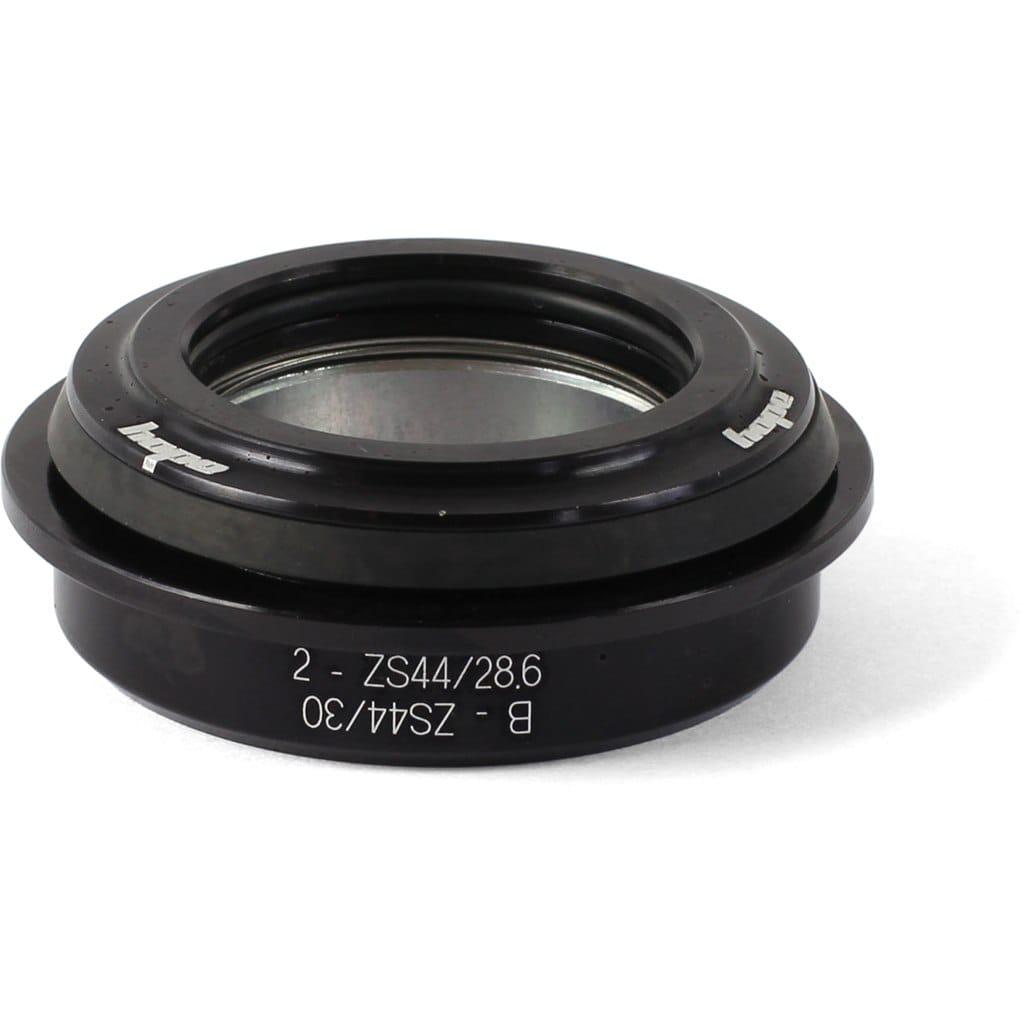

HOPE PICK'N'MIX HEADSET UPPER PART HSC2 ZS44/28.6
  • HOPE PICK'N'MIX HEADSET UPPER PART HSC2 ZS44/28.6
  • HOPE PICK'N'MIX HEADSET UPPER PART HSC2 ZS44/28.6
1 2

Product Details

The Hope Pick And Mix Headset contains Individual headset cups/bearings to fit the vast majority of modern Alloy/carbon road and mountain bikes. They are the highest quality replacement or new build components.

Features

Hope Pick and Mix headset cups and bearings are sold as individual top or bottom components.

They are ideal for building up frames with tapered head tubes, converting frames with larger head tubes to fit standard fork steerers or for replacing damaged cups/bearings individually.

There are 6 top cup options and 8 bottom cup options to choose from, these are designed to fit modern road and mountain bike frames; older 1” and threaded standards are not included.

Hope Pick And Mix Headset cups/bearings are available for three headset standards; External, Integral and Integrated. Please refer to the guide below to choose the right size and standard for your frame and fork.

Guide

  • Type 1: EC34/28.6 1 1/8" Traditional Top
  • Type 2: ZS44/28.6 1 1/8" Integral Top
  • Type 3: IS41/28.6 1 1/8" Integrated Top
  • Type 4: ZS49/28.6 1.5" to 1 1/8" Step-down Integral Top
  • Type 5: ZS56/38.1 1.5" Integral Top
  • Type 6: EC49/38.1 1.5" External Top
  • Type 8: IS42/28.6 1 1/8" Integrated Top
  • Type A: EC34/30 1 1/8" Traditional Bottom
  • Type B: ZS44/30 1 1/8" Integral Bottom
  • Type C: IS41/30 1 1/8" Integrated Bottom
  • Type D: ZS49/30 1.5" to 1 1/8" Step-down Low Stack Integral Bottom
  • Type E: ZS56/40 1.5" Integral Bottom
  • Type F: EC49/40 1.5" Integral/External Bottom - (49mm internal headtube diameter)
  • Type G: ZS55/40 1.5" Integral Bottom - (Scott/Lapierre)
  • Type H: EC44/40 1.5" Traditional Bottom - (44mm internal headtube diameter)
Material
  • Cup, cone: 2014 T6 aluminium | cartridge bearing: stainless steel
Contents
  •  1 headset upper part

Without star nut and ahead cap

 We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

HOPE PICK'N'MIX HEADSET UPPER PART HSC2 ZS44/28.6

£42.74
Save 5%
Was £44.99 £42.74

SKU: HSC2

Product ID: 152102

EPOS Code:

View full details
