The hydraulic CUES BR-U8000 2-piston disc brake with BL-U8000 3-finger brake lever from Shimano fits seamlessly into the strong line-up of the trekking CUES U8000 group. The new shape of the brake lever increases the ease of use thanks to optimized ergonomics.
Confidently control your speed with this lightweight 2-piston hydraulic disc brake calliper with ICE TECHNOLOGIES. E-bikers will also benefit from its superior modulation and excellent braking control.
Features
- Ergonomics enhanced by moving the brake lever's centre of rotation closer to the handlebar
- Superior modulation proves excellent braking power for e-trekking bikes
- Excellent brake modulation provides finer braking control throughout the full range of the brake lever
- High braking power instills greater confidence and control while riding at high speeds
- Quick and easy assembly
- Banjo type connection and inside hose routing
- 4-Piston Caliper Brake
- Caliper for Postmount Brake
- Optimized ergonomic 3-finger brake lever
- One-Way bleeding
- Easy hose joint system (J-kit)
- I-Spec II compatible - securing the shift lever on the brake lever
- RT-MT800 Centerlock rotor in 140, 160, 180, 203mm are available separately!
Specification
-
Use: Trekking / E-Bike
-
Group: CUES U8000
-

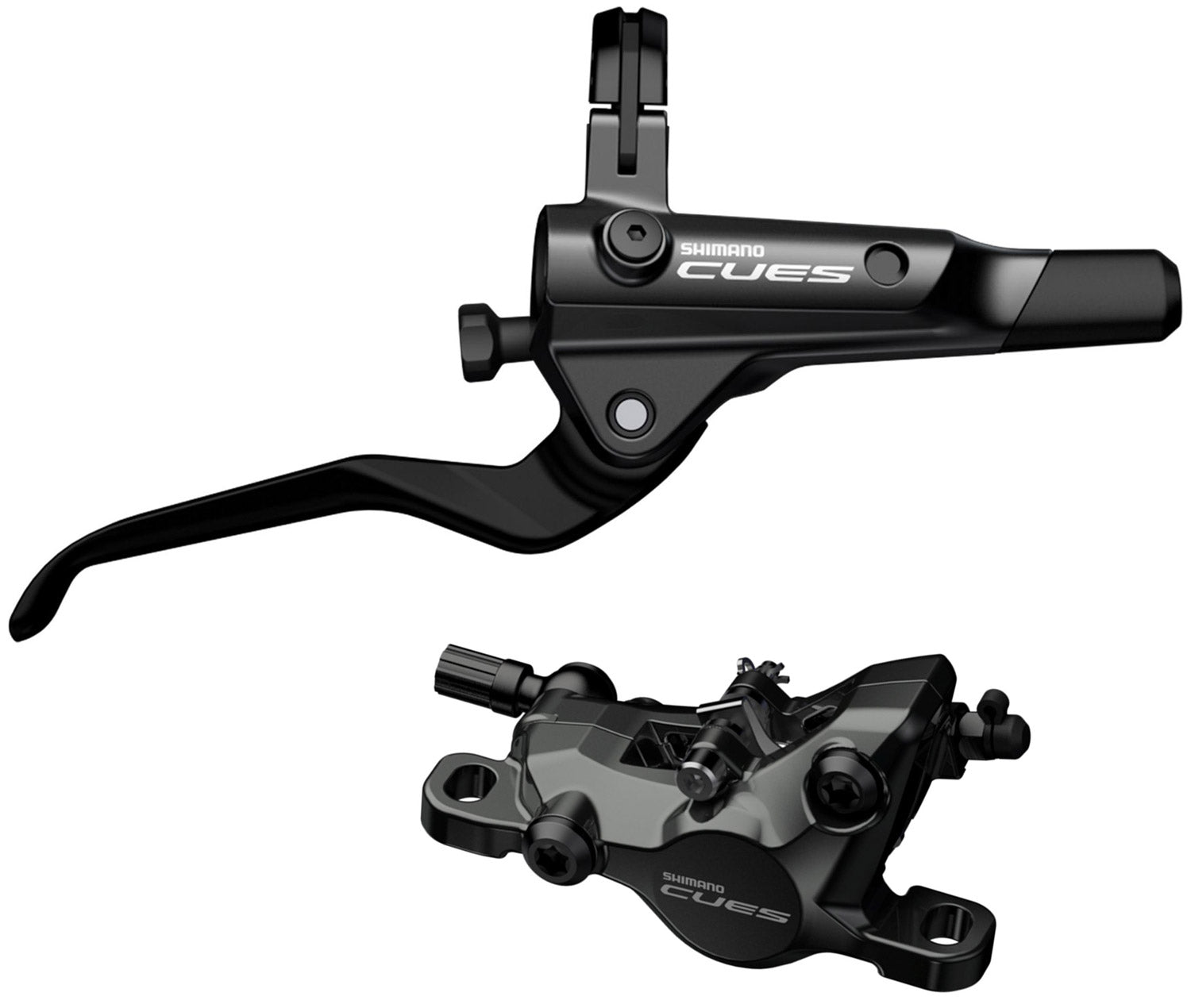

Model: BL-U8000+BR-U8000 (rear)
-
Brake type: Hydraulic Disc-Brake
-

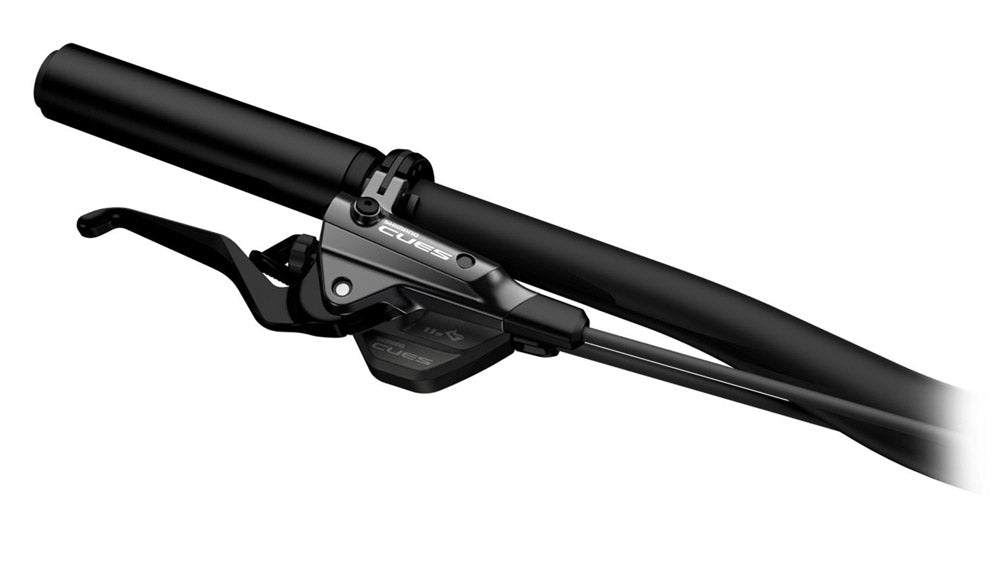

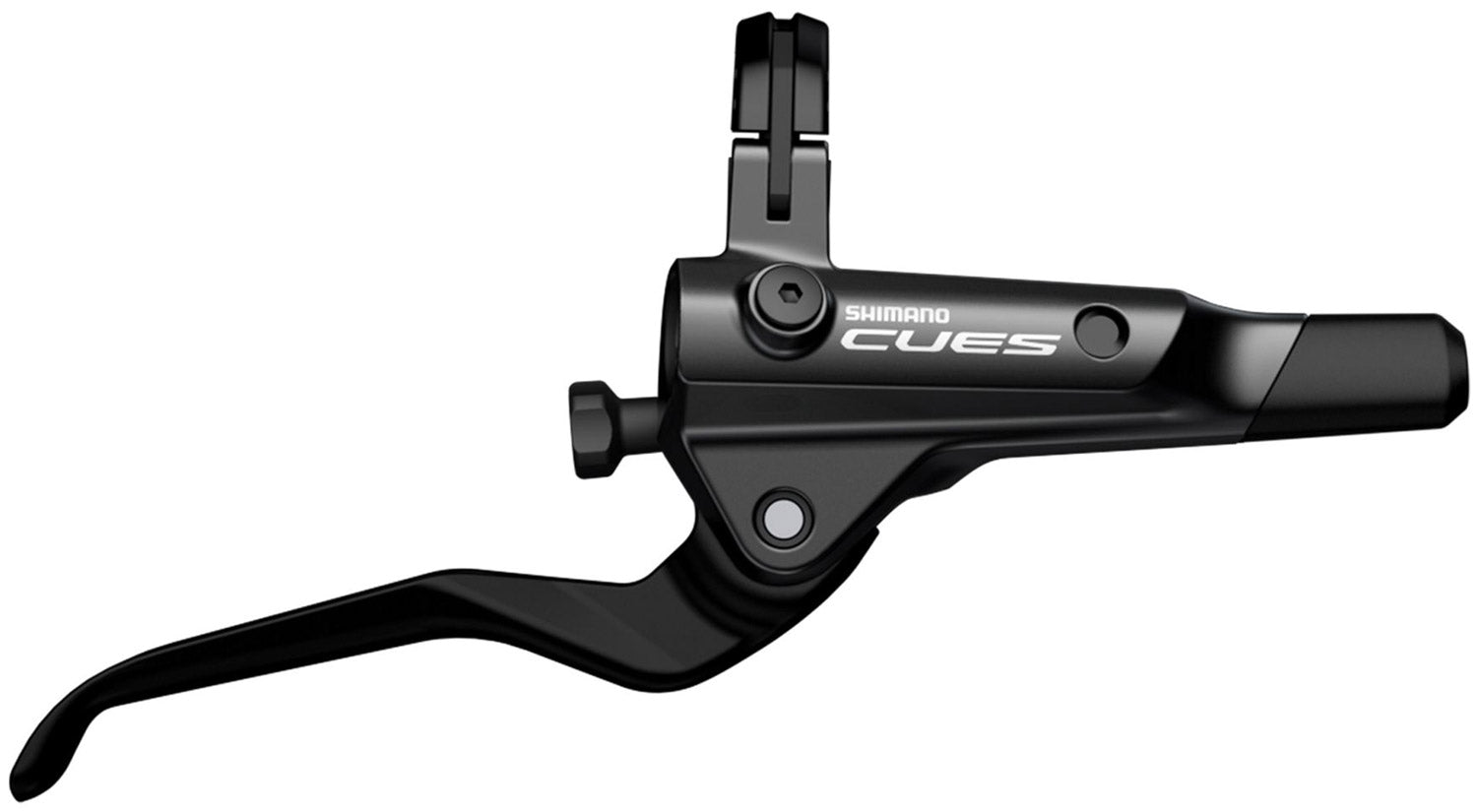

Brake lever: BL-U8000
-
Lever length: 3-Finger
-
Mount: right
-
Clamp: open
-
Mounting system: I-Spec II (I-Spec II is not compatible with I-Spec and I-Spec B shifters!)
-
Reach adjustment: Yes, without tool
-

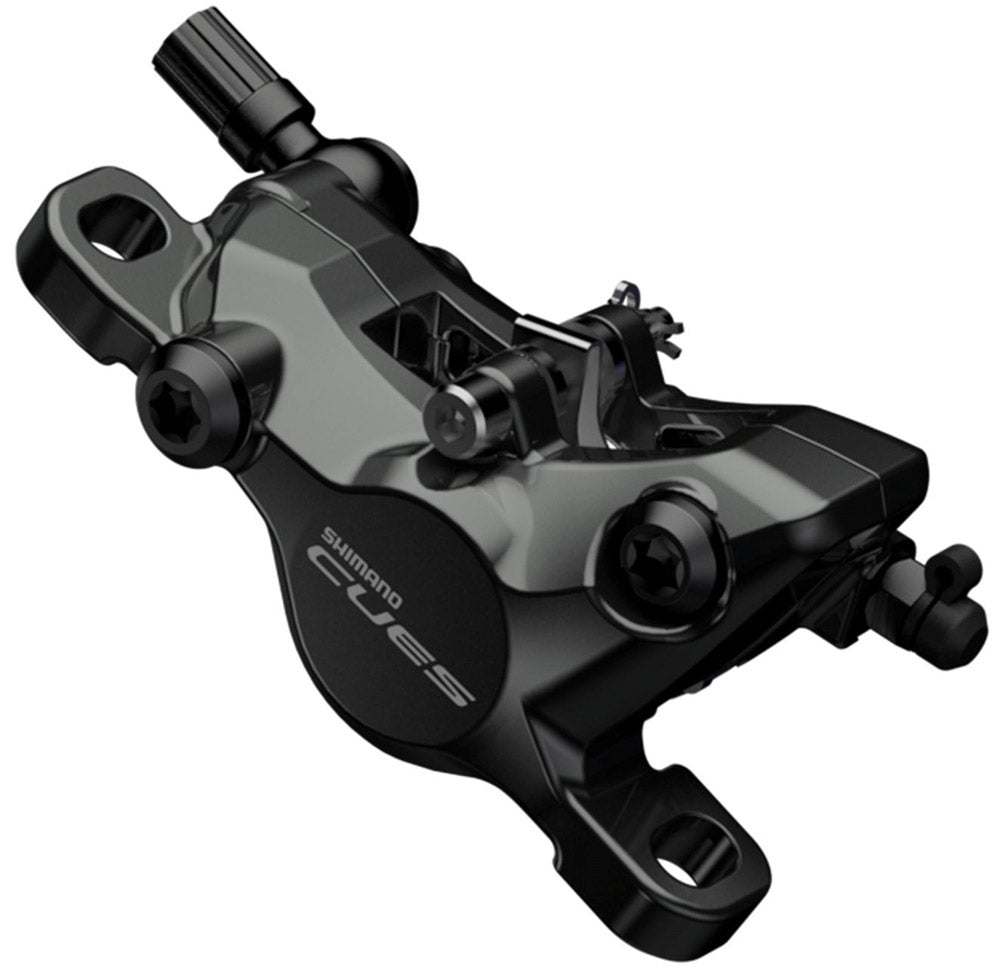

Caliper: BR-U8020 (4-Piston)
-
Brake mounting: Postmount
-
Brake pads: G05A-RX Resin without Fin
-
Brake hose: SM-BH90-SBM
-
Brake hose length: rear 1700mm (shortable)
-
Cable connection: Straight brake lever / Straight caliper
-
One-Way bleeding: Yes
-
Brake fluid: Mineral oil
-
Recommended brake rotor: RT-MT800
Material
-
Lever: Aluminium
-
Calliper: Aluminium
Contents
- 1 x Brake lever CUES BL-U8000 right
- 1 x Brake caliper CUES BR-U8000 (2-Piston)
- 1 x Brake hose SM-BH90-SBM 1700mm long (shortable)
- 1 x Brake pads N03A-RF Resin with Fin
- 2 x Screw for brake calliper
Rotor and Adapter not included!
