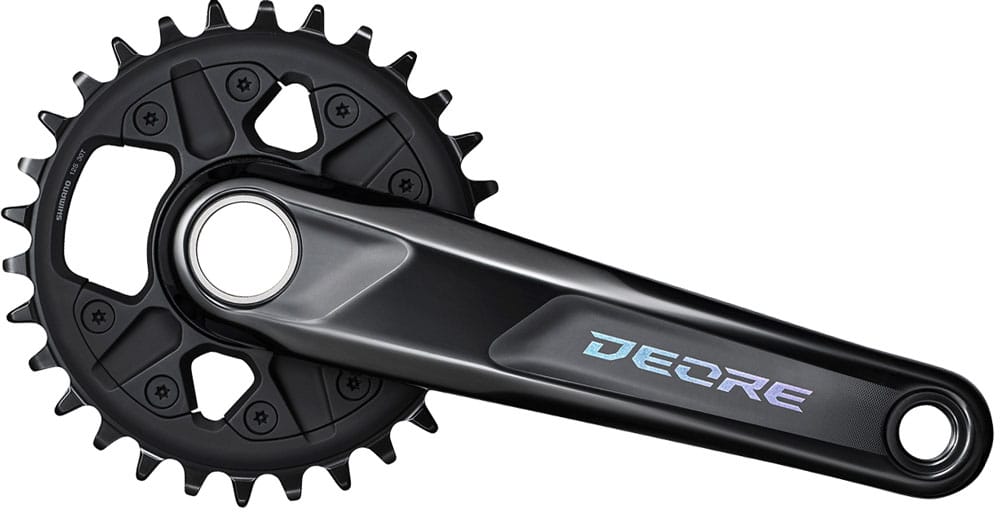

The Shimano DEORE FC-M6100 1 x 12-speed crank with 172 mm Q-factor, 52 mm chainline and 142 / 148 mm O.L.D stands for highest drive efficiency. It offers optimum power transmission and maximum speed for the new DEORE system, which only use 1 chainring.
Molded from the same DNA as XTR, DEORE XT and SLX, the new M6100 series delivers Shimano’s proven 12-speed technologies at DEORE level.
In addition to a new special 12-speed chain (CN-M6100) with the corresponding new 12-speed QUICK LINK lock, SHIMANO is also equipping the DEORE M6100 with new cranksets for 12-speed (FC-M6100/6120/6130-1). Most of them use 1-speed systems.
The sleek metallic colour shift DEORE crankset comes in single-only (1x12) configuration for drivetrain simplicity. It features the same Dynamic Chain Engagement+ technology as XTR, DEORE XT and SLX cranksets, which with its narrow/wide tooth profile is key to the improved chain retention, smoothness and quietness of the drivetrain. For secure and fast mounting of the chainring, the crank is equipped with a direct mount system, making chainring changes a breeze.
Features
-
FC-M6100-1 Q-Factor 172mm
-
Chain line 52mm
-
O.L.D 142mm / 148mm (Boost)
-
Compatibility 1x12-speed with CS-M6100 cassette 10-51
-
Mounting system Direct mount (Lighter and stiffer design & easy exchangeable chainring by direct mount and one key release)
Specification
-
Use: MTB
-
Group: DEORE M6100
-
Model: FC-M6100-1
-
Gradation: 30T
-
Q-Factor: 172mm
-
Threaded BB shell width: 68 / 73mm
-
Gear rear: 12-speed
-
Construction: 2-Piece
-
Compatible Chain: CN-M6100 12-speed
-
Crank arms: 4 arm
-
O.L.D: 142mm / 148mm (Boost)
-
Chain line: 52mm
Crank arm length
Material
-
Crank arm: Aluminum Anodized
-
Crank axle: Steel Plated
Colour
Contents
- 1 x Shimano DEORE FC-M6100-1 12-speed Crank 30
Bottom Bracket SM-BB52 / Pressfit BB-MT500-PA not included!
