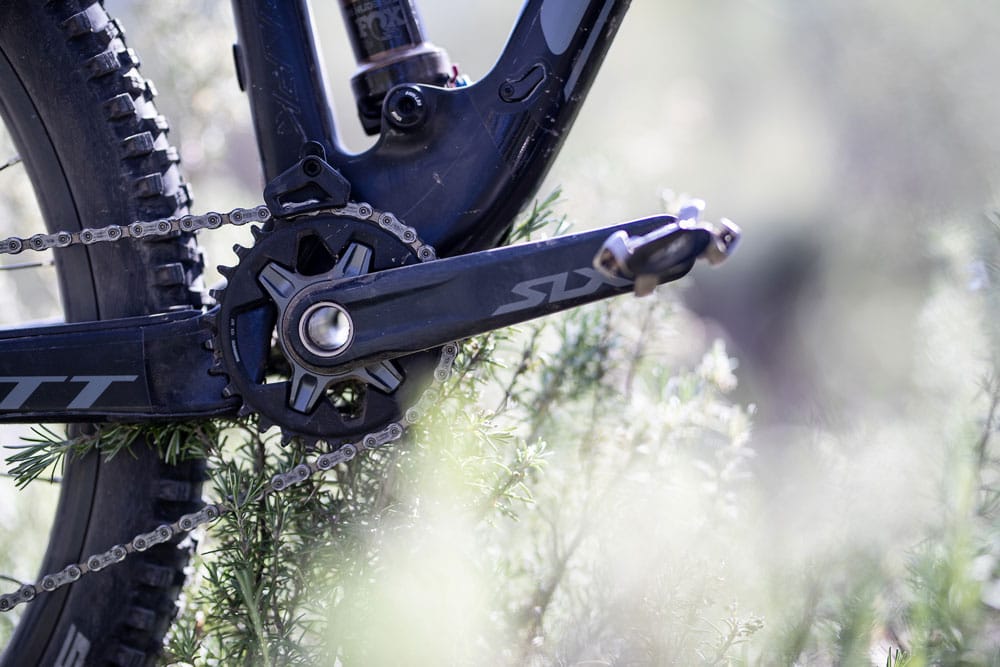

The Shimano SLX FC-M7100 1 x 12-speed crank with 172 mm Q-factor, 52 mm chainline and 142 / 148 mm O.L.D stands for highest drive efficiency at low weight. It offers optimum power transmission and maximum speed for the new SLX system, which only use 1 chainring. In addition to a new special 12-speed chain (CN-M7100) with the corresponding new 12-speed QUICK LINK lock, SHIMANO is also equipping the SLX M7100 with new cranksets for 12-speed (FC-M7100/7120/7130-1). Most of them use 1-speed systems and a range of chainrings (30T to 34T) is available.
The new SLX 1x12-speed cranks are characterised by DYNAMIC CHAIN ENGAGEMENT+ technology, whose special high-precision tooth profile ensures that the chain finds optimum grip on the upper part of the chainring on rough terrain, but detaches equally well from the chainring at the bottom, thus ensuring efficiency, smoothness and low noise of the drive. The cranks are equipped with a direct-mount system for quick and safe assembly of the chainrings, enabling chainrings to be changed in no time at all. The crank is available in boost and non-boost specifications.
After setting the benchmark in mountain bike components with SHIMANO XTR M9100 and new DEORE XT M8100, Shimano rounds out its now entirely 12-speed performance mountain bike component lines with new SLX M7100. SLX M7100 cascades technology from new XTR M9100 and DEORE XT M8100 - namely Shimano’s signature premium shifting and braking performance - while maintaining the SLX hallmark of value and durability.
Features
-
FC-M7100-1 Q-Factor 172mm
-
Chain line: 52mm
-
O.L.D 142mm / 148mm (Boost)
-
Compatibility 1x12-speed with CS-M7100 cassettes 10-45 and 10-51
-
Mounting system Direct mount (Lighter and stiffer design & easy exchangeable chainring by direct mount)
-
Chainring SM-CRM75 Available in different gradations (30-32-34) - Chainring is not included!
Specification
-
Use: MTB
-
Group: SLX M7100
-
Model: FC-M7100-1
-
Gradation: Chainring is not included!
-
Q-Factor: 172mm
-
Threaded BB shell width: 68 / 73mm
-
Gear rear: 12-speed
-
Construction: Hollowtech II
-
Compatible Chain: CN-M7100 12-speed
-
Crank arms: 4 arm
-
O.L.D: 142mm / 148mm (Boost)
-
Chain line: 52mm
Crank Arm Length
Material
-
Crank arm: Aluminum Anodized
-
Crank axle: Steel Plated
Weight
- Approx 631g with chainring
Contents
- 1 x Shimano SLX FC-M7100-1 12-speed Crank without Chainring
For suitable SM-CRM75 Chainring
Shimano TL-FC41 Front Chainring Direct Mount Tool and Bottom Bracket BB-MT800 / Pressfit BB-MT800-PA not included!
