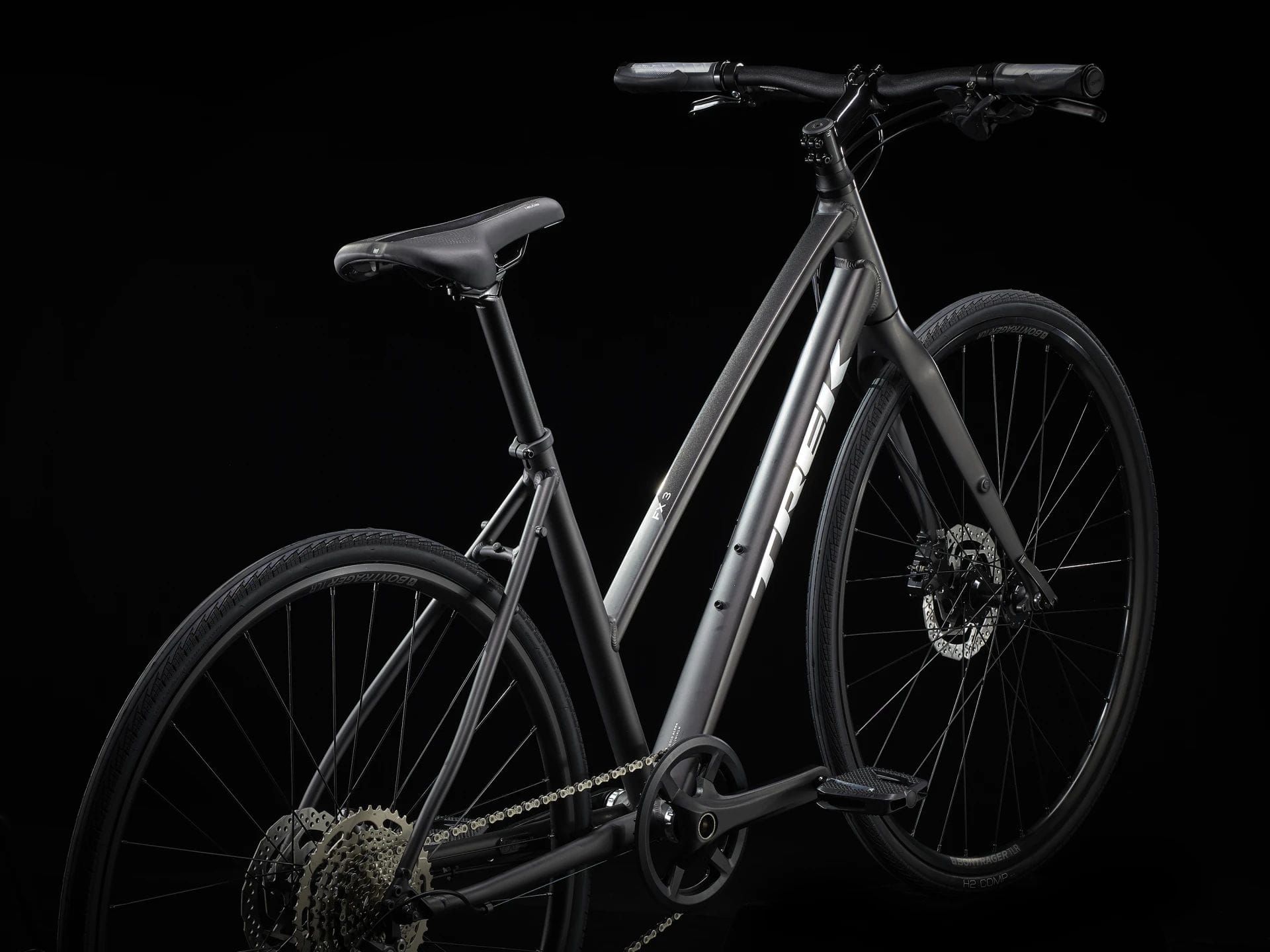

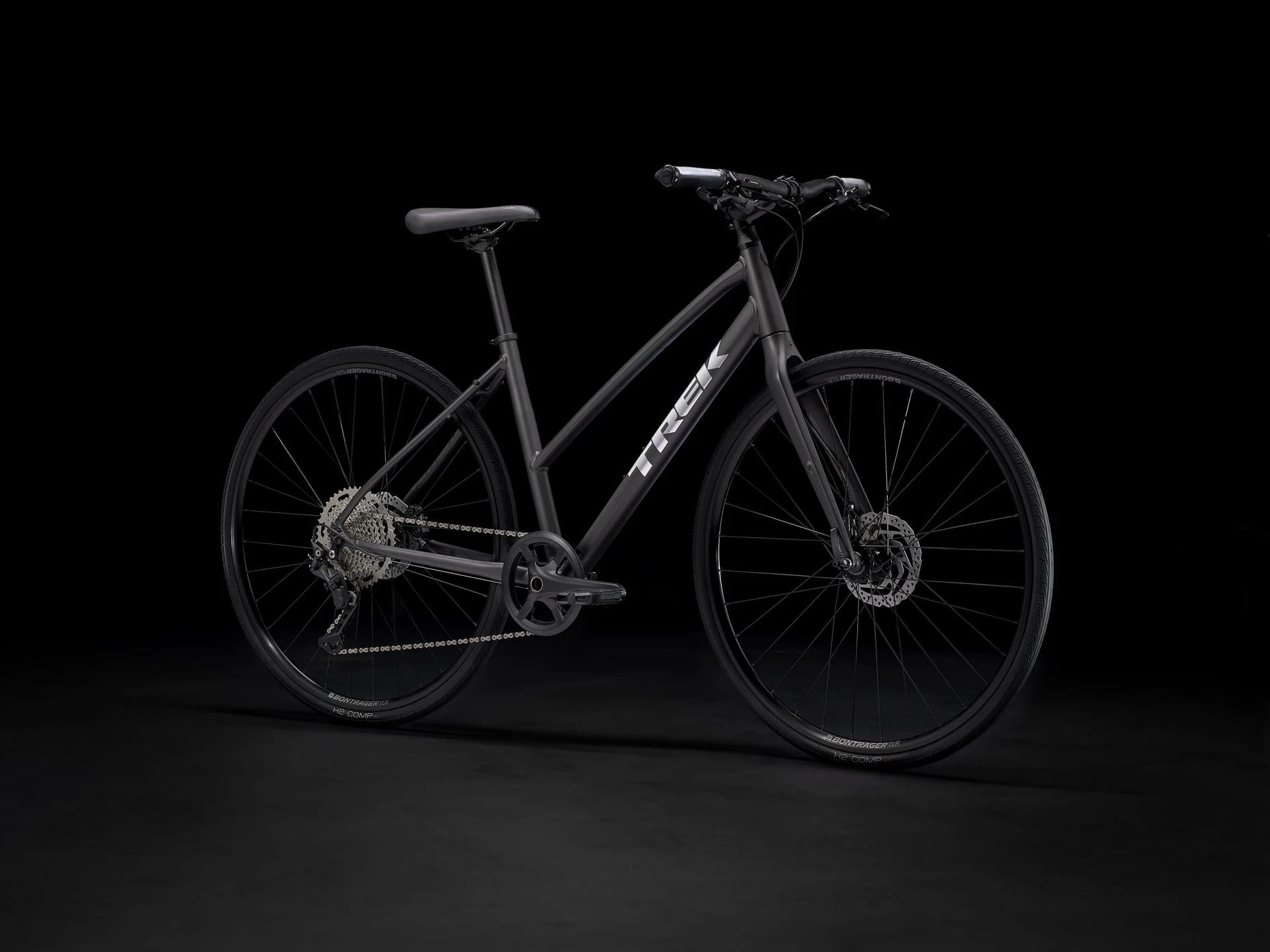

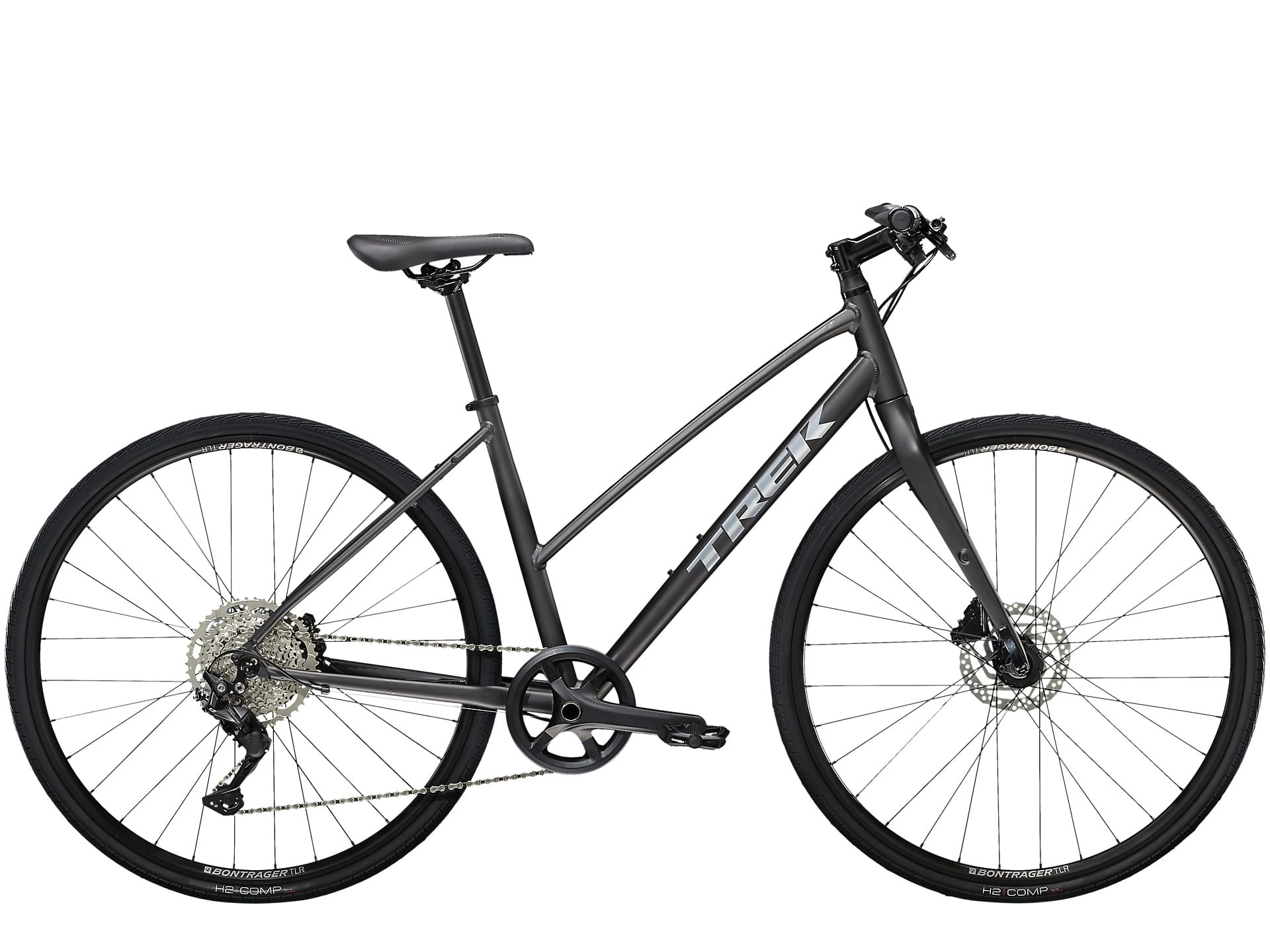

The FX 3 Disc Stagger is a versatile hybrid bike made for performance, comfort and utility. It has a lightweight aluminium frame, a classic step-through geometry that's easier to mount and dismount, a carbon fork, a performance 1x drivetrain and powerful disc brakes that stop in any weather.

Key Features

• Hydraulic Disc Brakes: Accurate and powerful braking capacity to keep you in control in all weather conditions.
• Aluminium Frame: Lightweight & durable.
• 10 Shimano Gears: Reliable, efficient, and great for conquering hills.

Full Specification

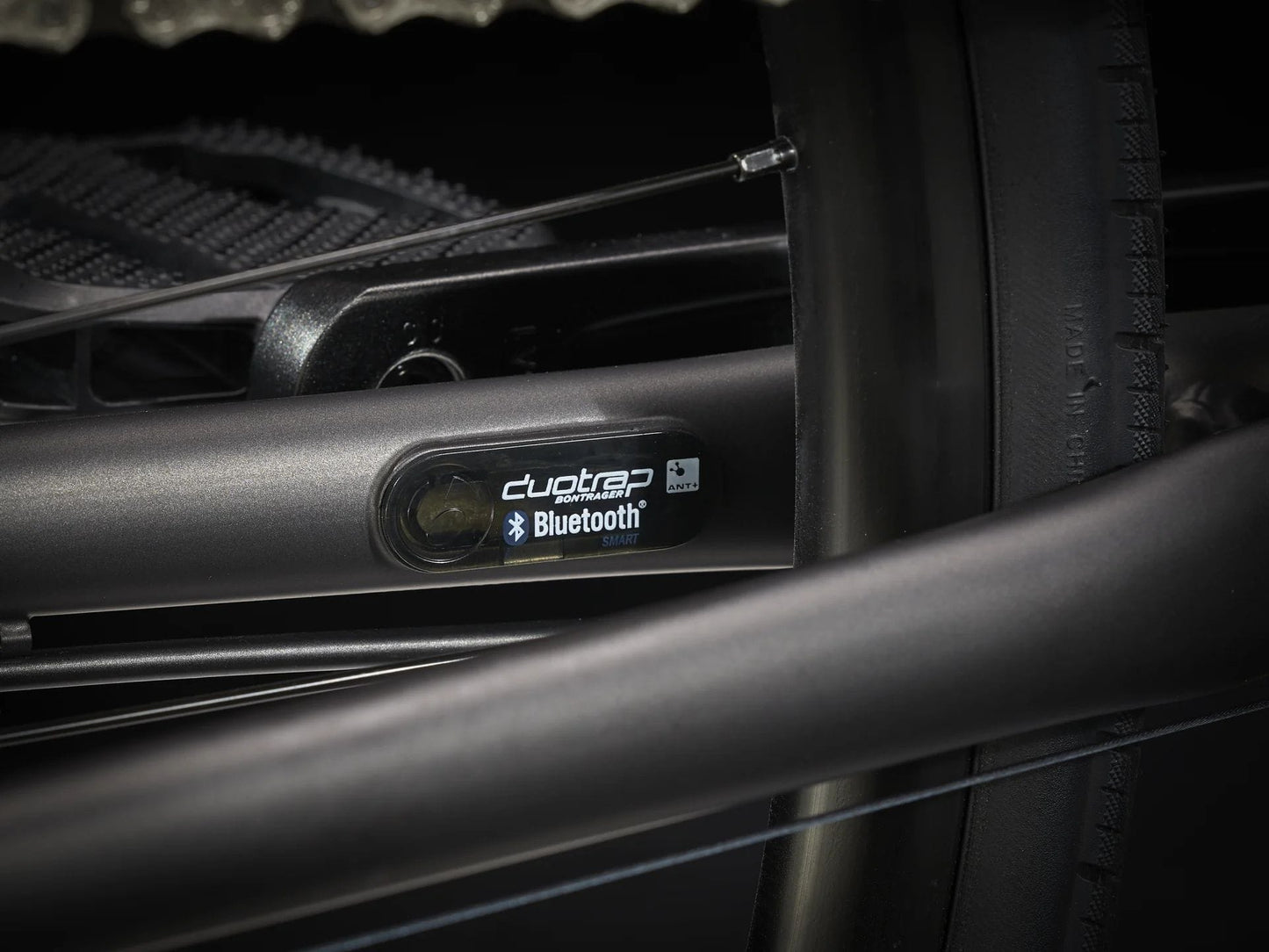

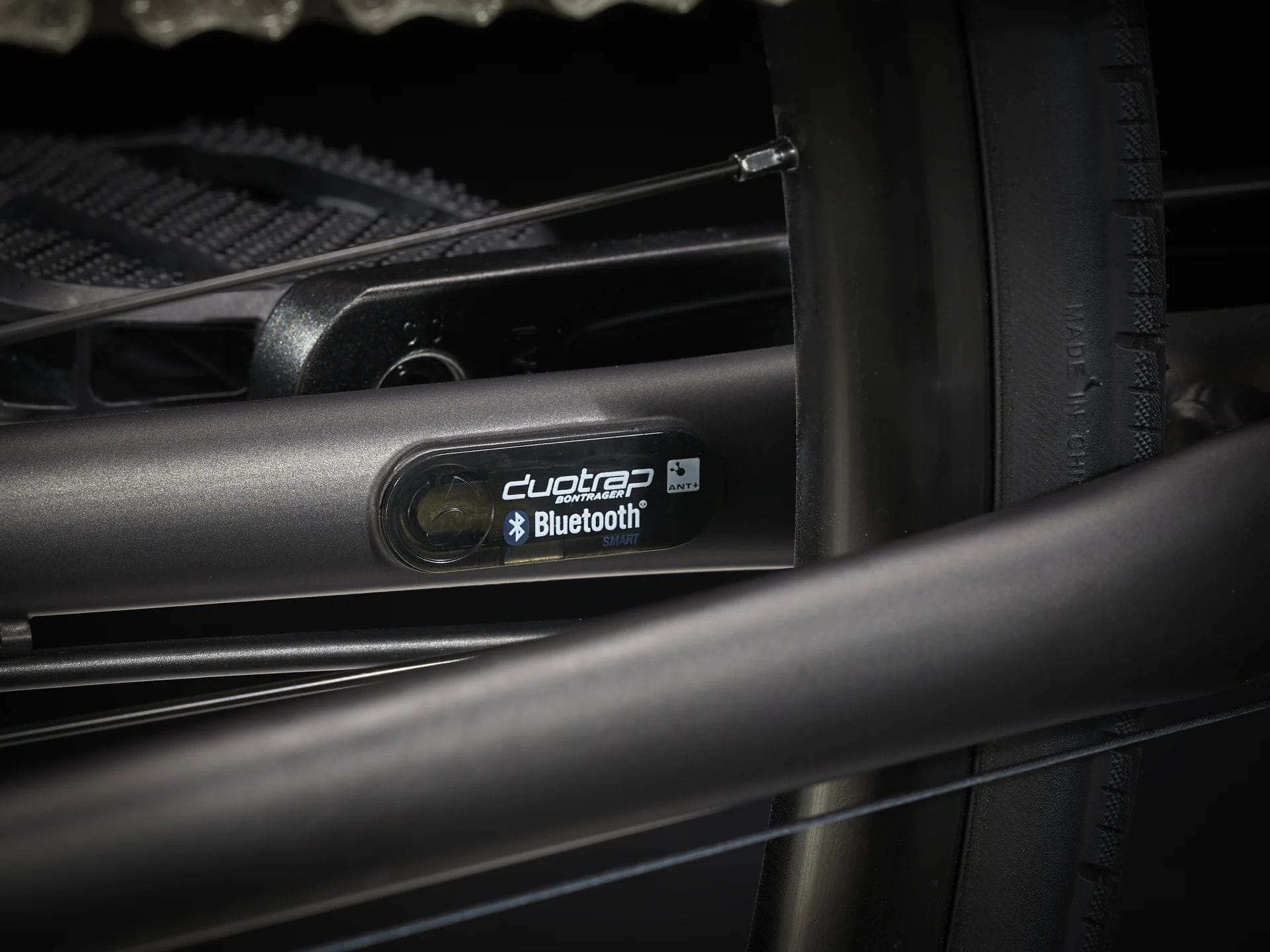

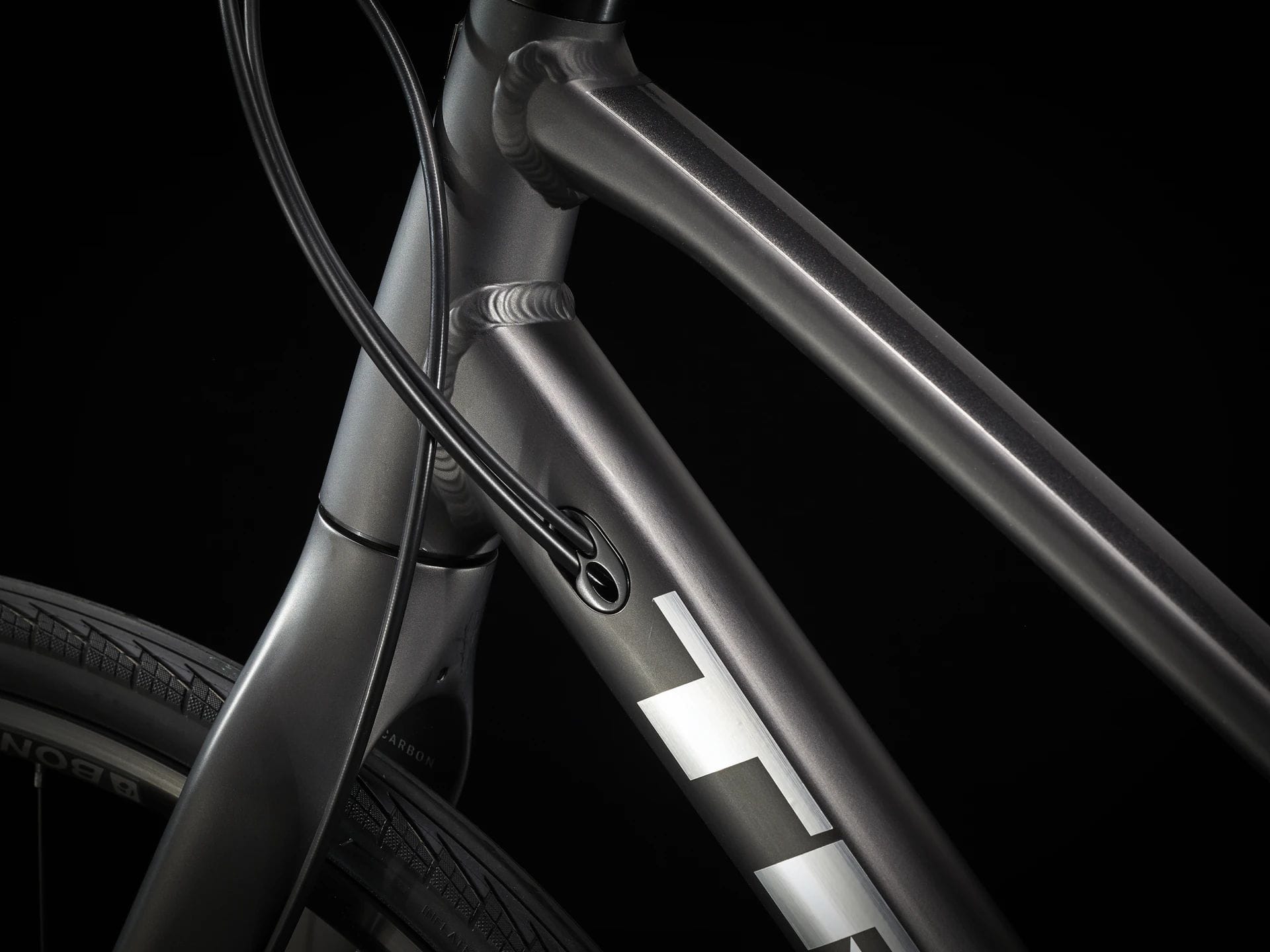

• Frame: Alpha Gold Aluminium, DuoTrap S compatible, internal cable routing, flat mount disc, rack & fender mounts, 135x5mm QR
• Fork: FX Carbon, rack and fender mounts, flat mount disc, 405mm axle-to-crown. ThruSkew 5mm QR

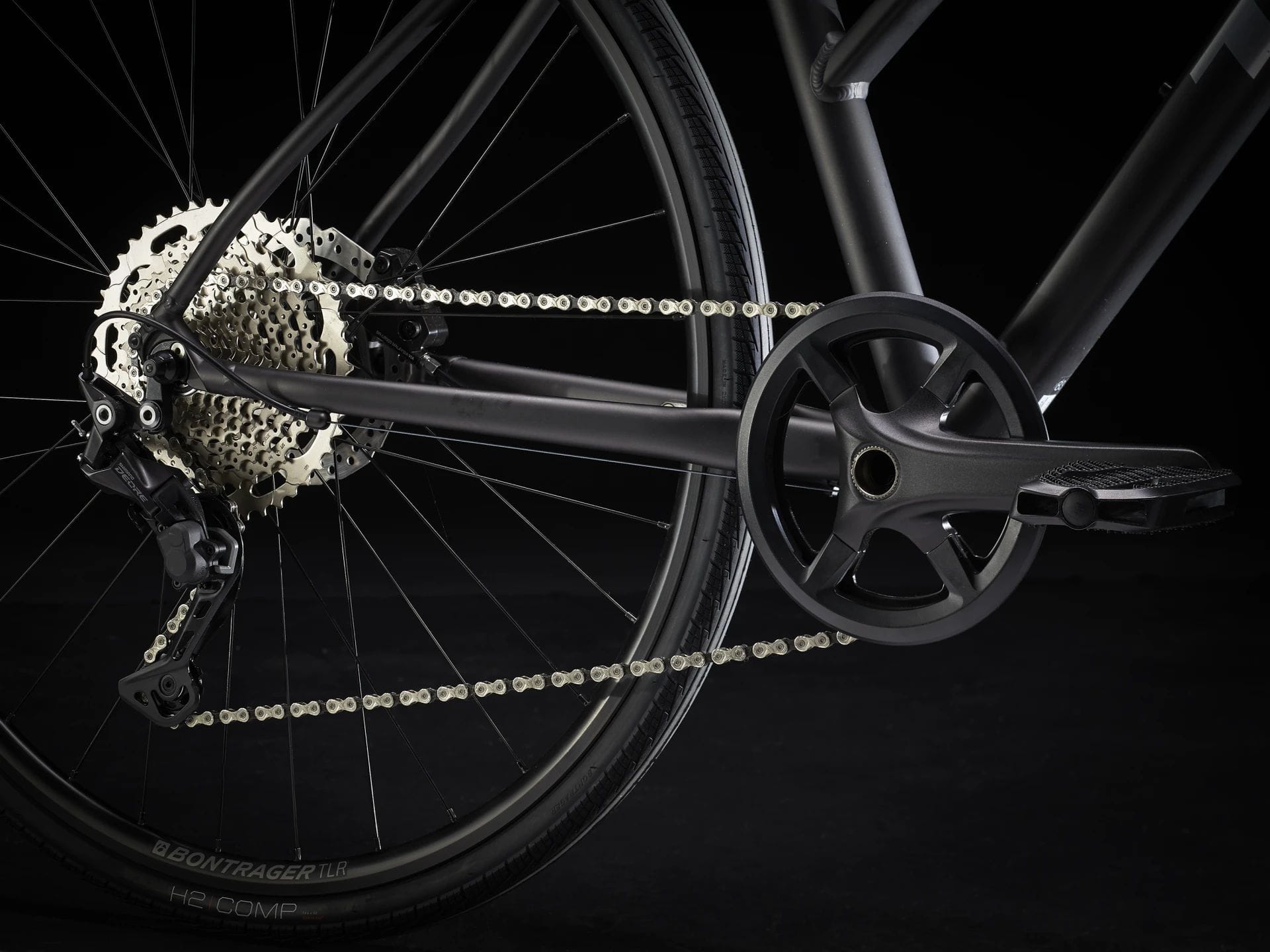

• Gear Shifters: Shimano Deore M4100, 10 speed
• Chainset: Prowheel Alloy, narrow wide ring, S-M:170mm, L-XL:175mm
• Rear Cassette: Shimano HG200, 11-36, 10 speed
• Chain: KMC X10, 10-speed
• Rear Derailleur: ShimanDeore M5120, long cage
• Bottom Bracket: Not Available
• Pedals: Bontrager City pedal

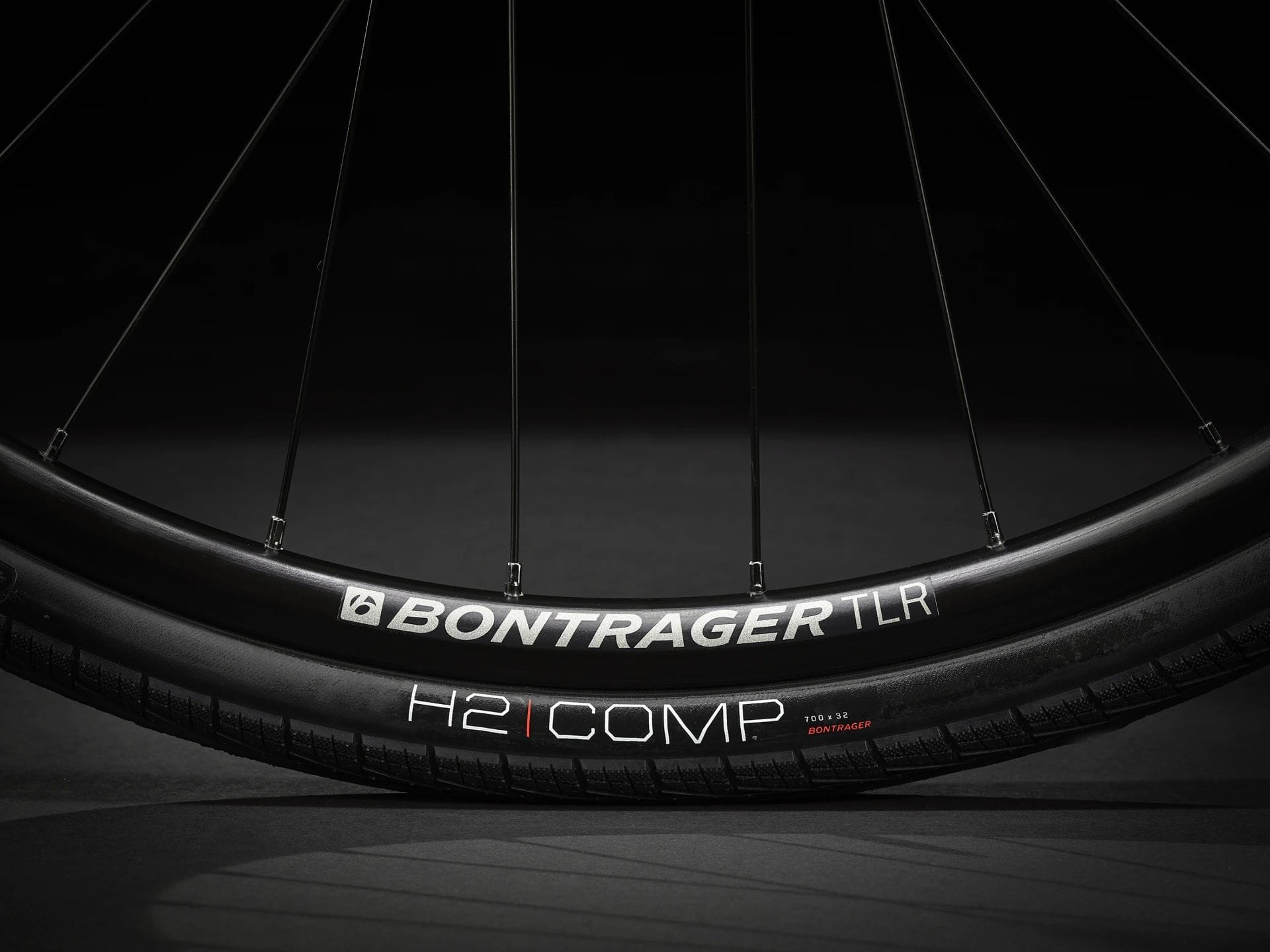

• Rims: Bontrager Tubeless Ready Disc, 32-hole, Presta valve
• Front Hub: Formula DC-20, alloy, 6-bolt, 5x100 mm QR
• Rear Hub: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
• Tyres: Bontrager H2 Hard-Case Lite, wire bead, 30 tpi, 700x32c

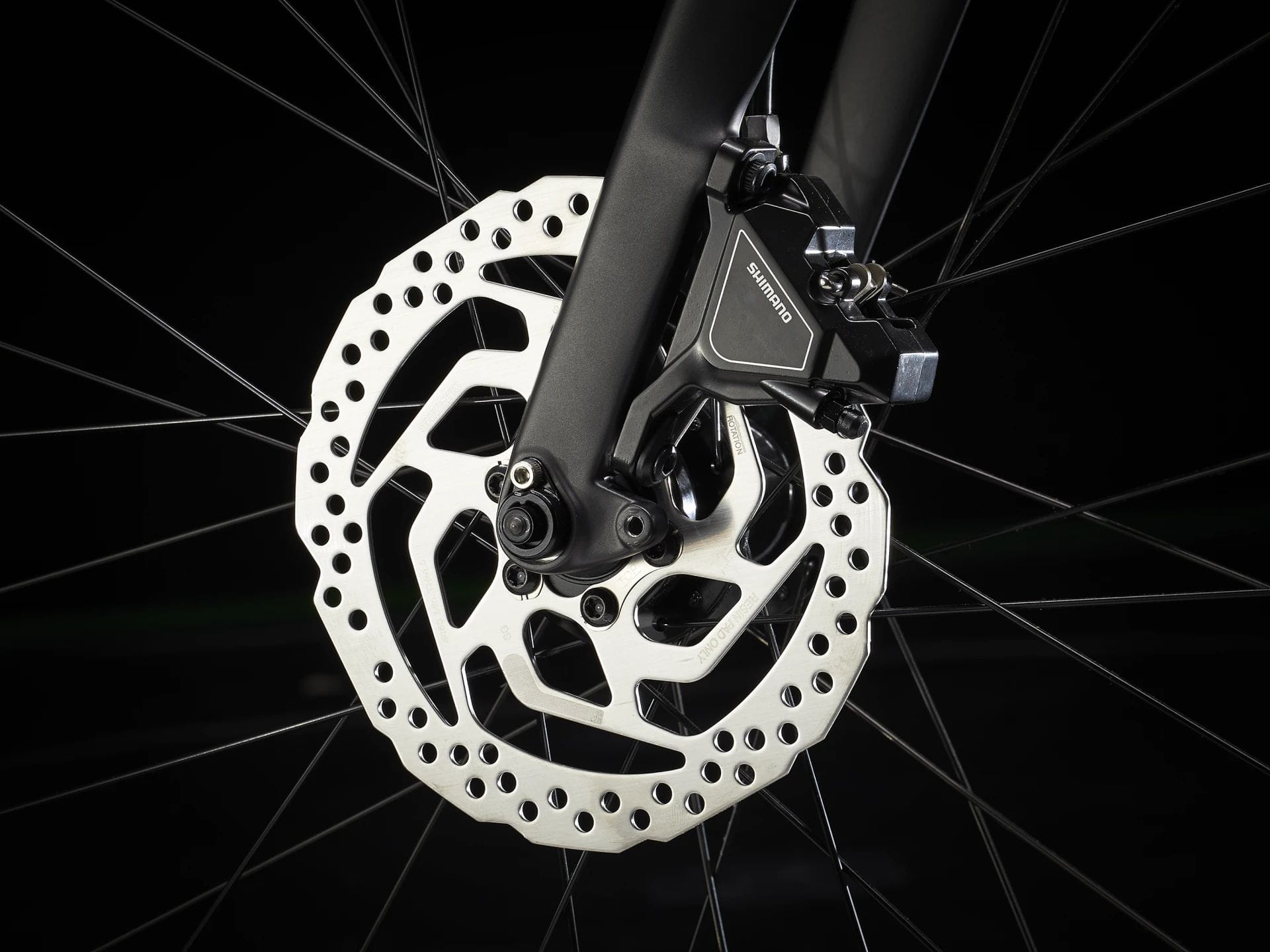

• Brakes: Shimano MT201 hydraulic disc, flat mount, (160/160)

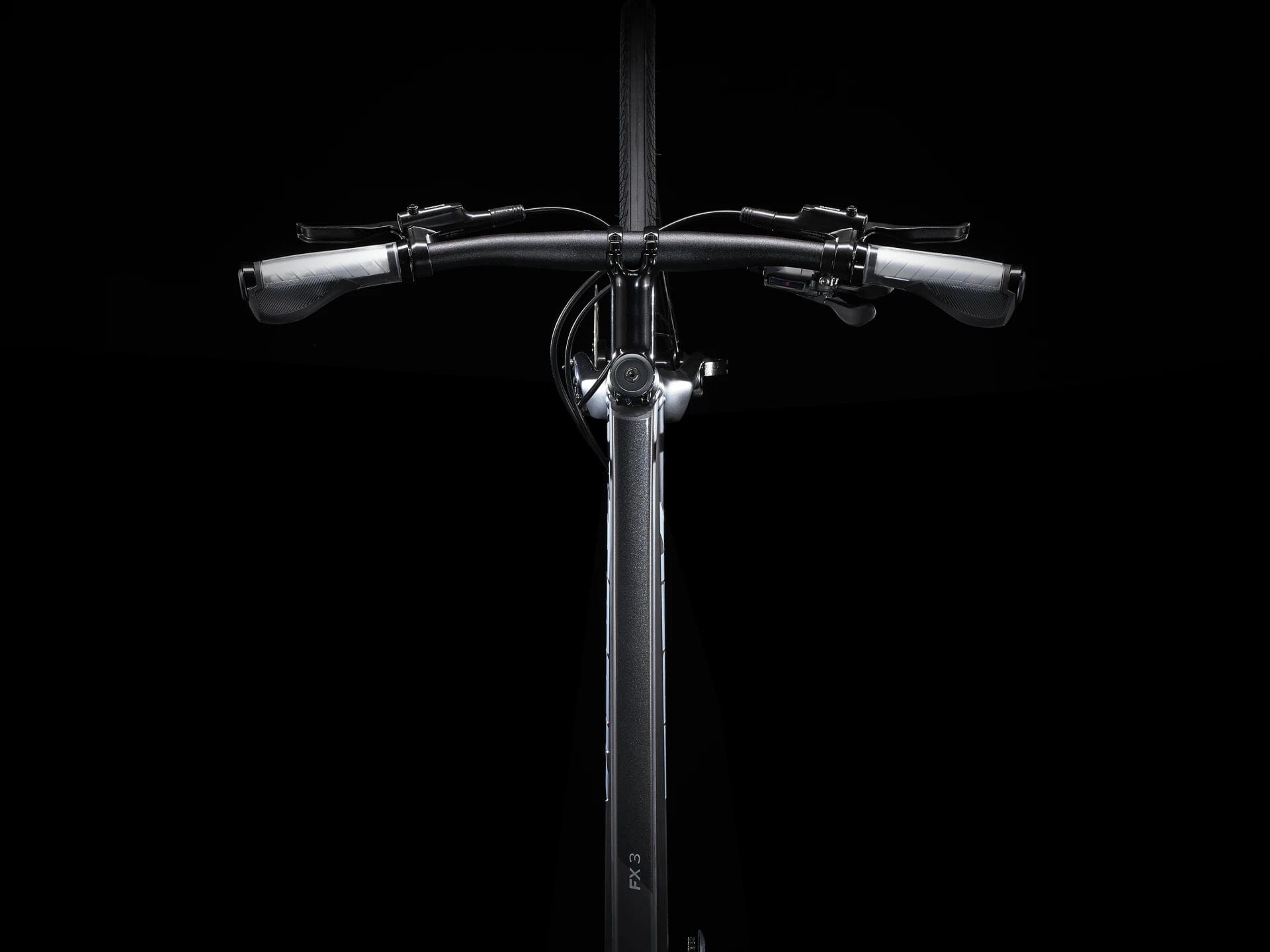

• Handlebars: Bontrager Satellite Plus IsoZone, 31.8mm, 15mm rise,S-M:600mm, L-XL:660mm

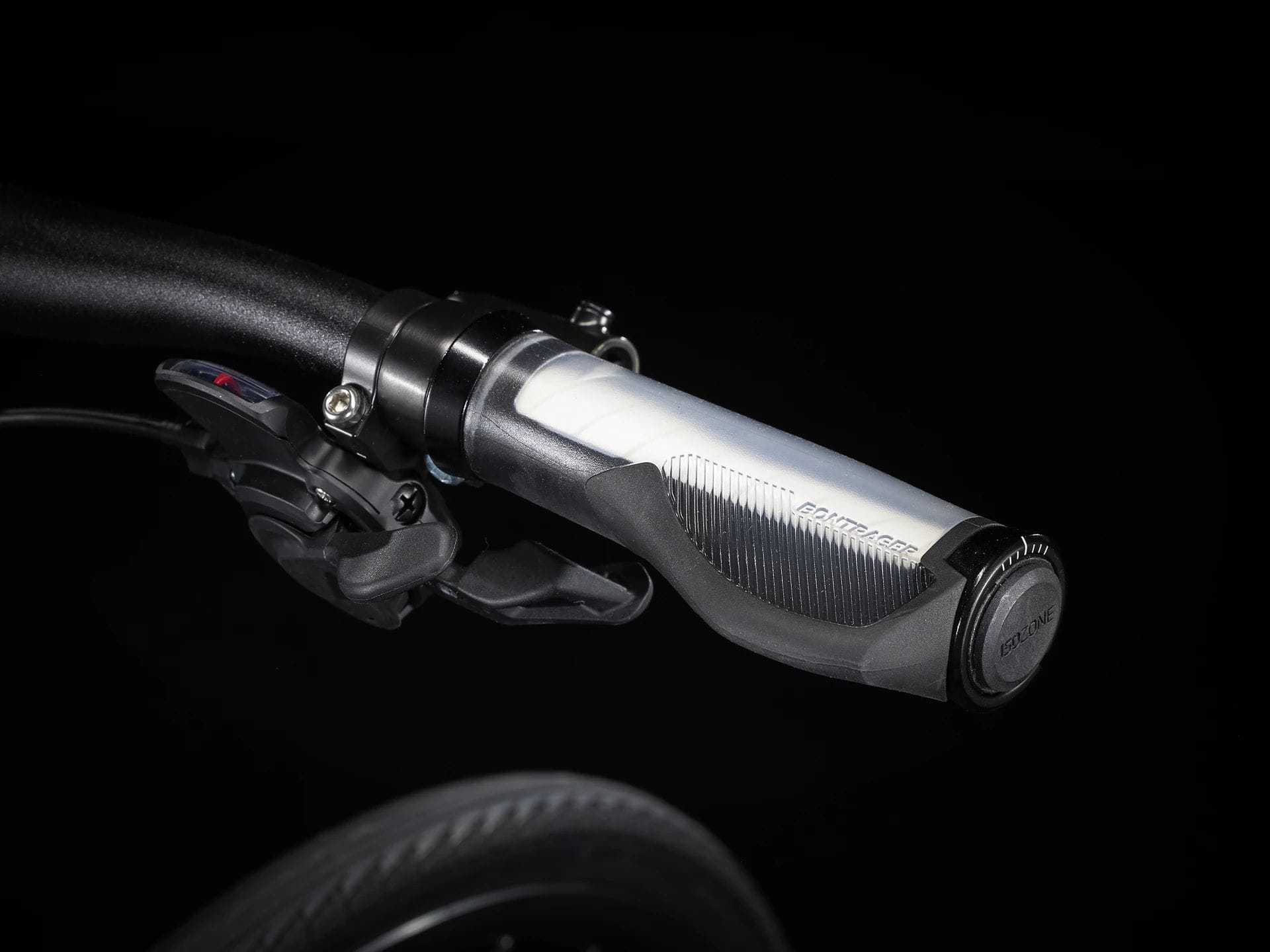

• Grips: Bontrager Satellite IsoZone Plus, lock-on, ergonomic
• Headset: 1-1/8"" threadless, sealed cartridge bearings
• Stem: Bontrager Elite, 31.8mm, Blendr compatible, 7 degree,S-M:90mm, L-XL:100mm

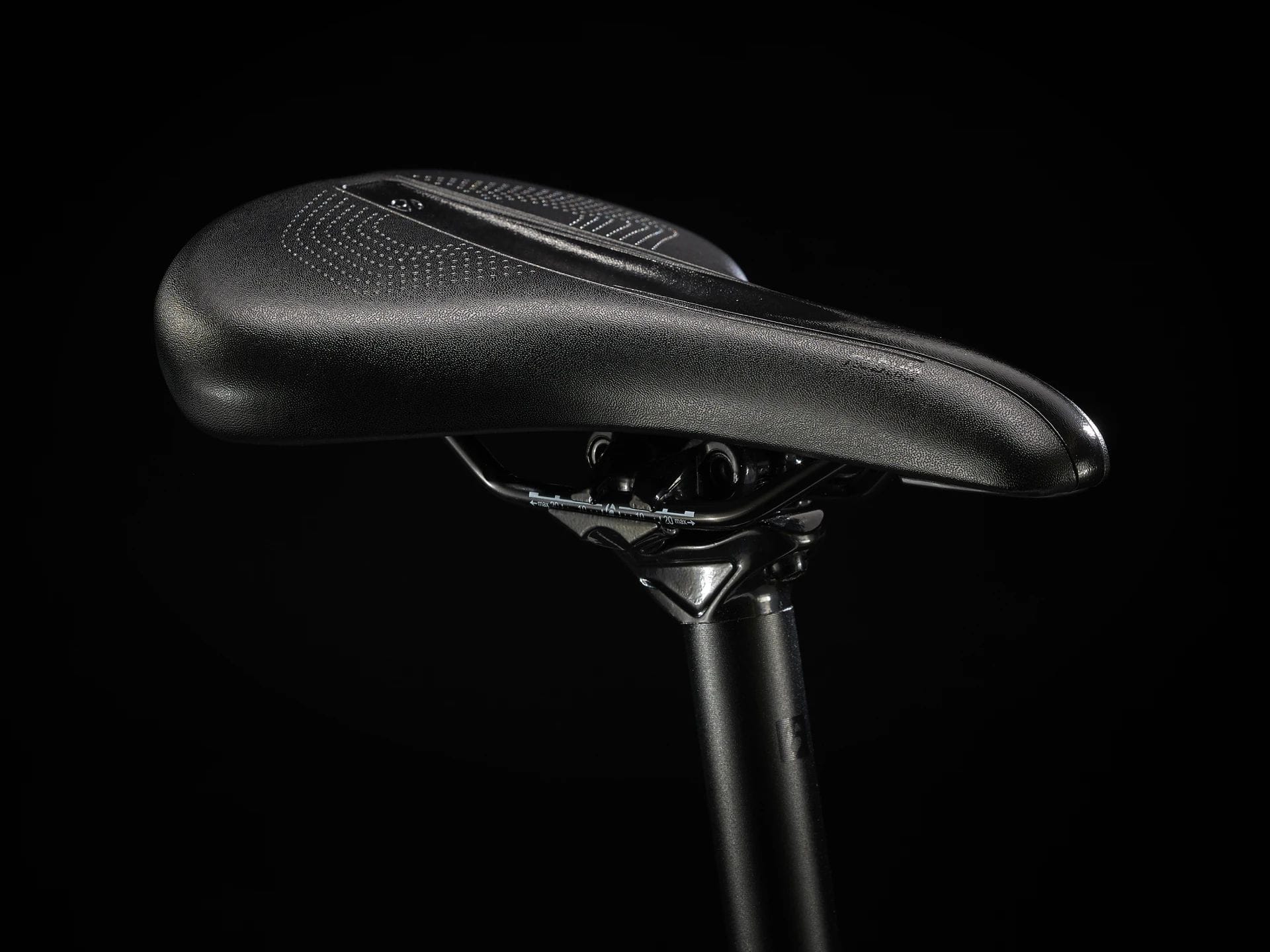

• Saddle: Bontrager H1
• Seatpost: Bontrager alloy, 27.2mm, 12mm offset
• Weight: M - 24.82 lb / 11.26 kg

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
