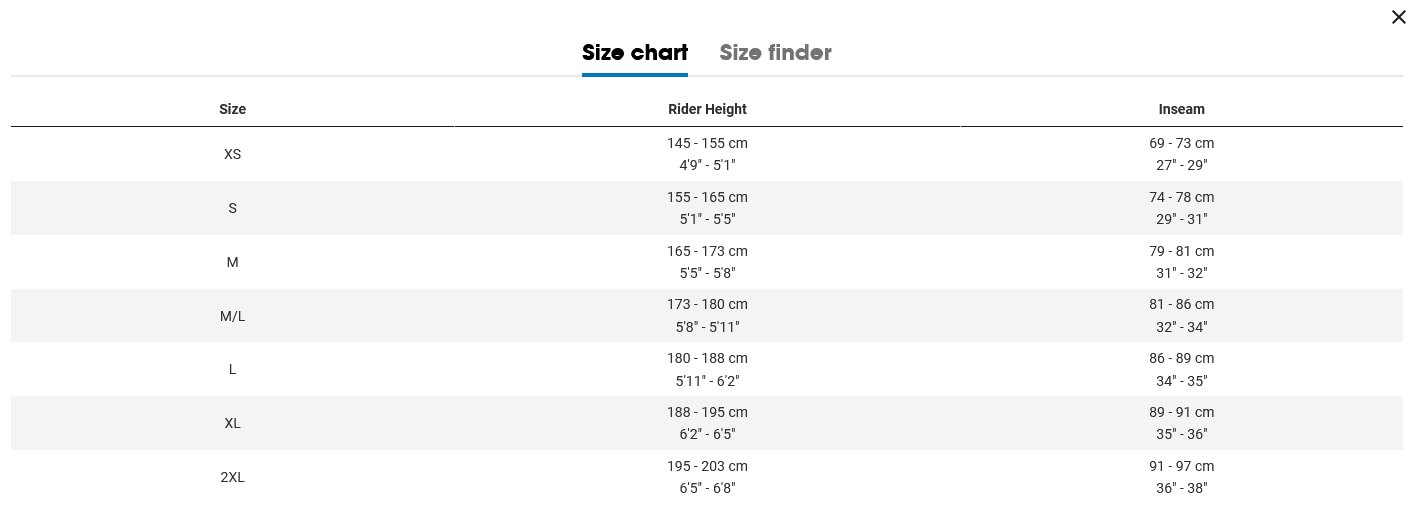

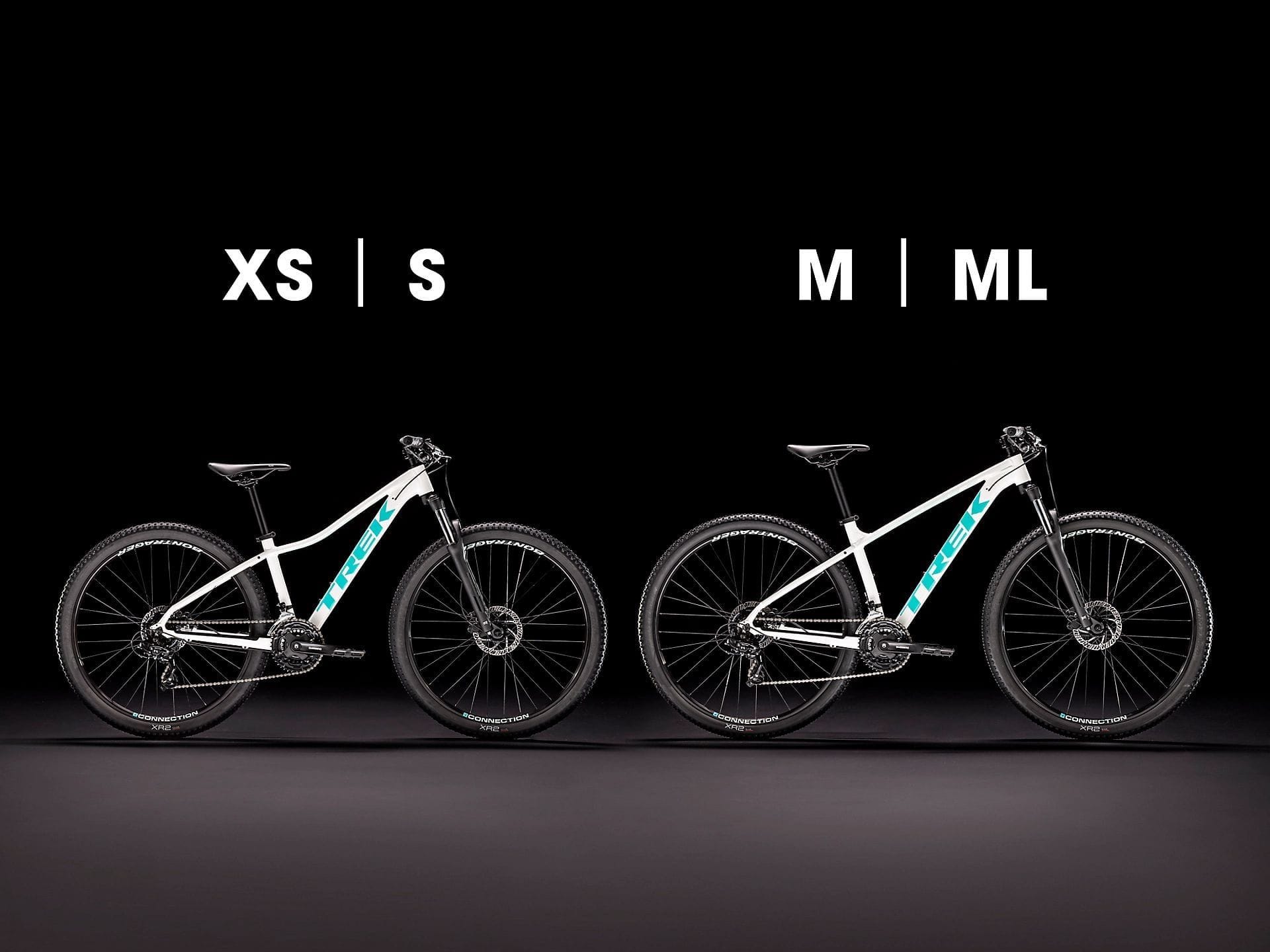

The smaller frame sizes (XXS, XS and S) have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount, so you get a bike perfectly moulded to your size.

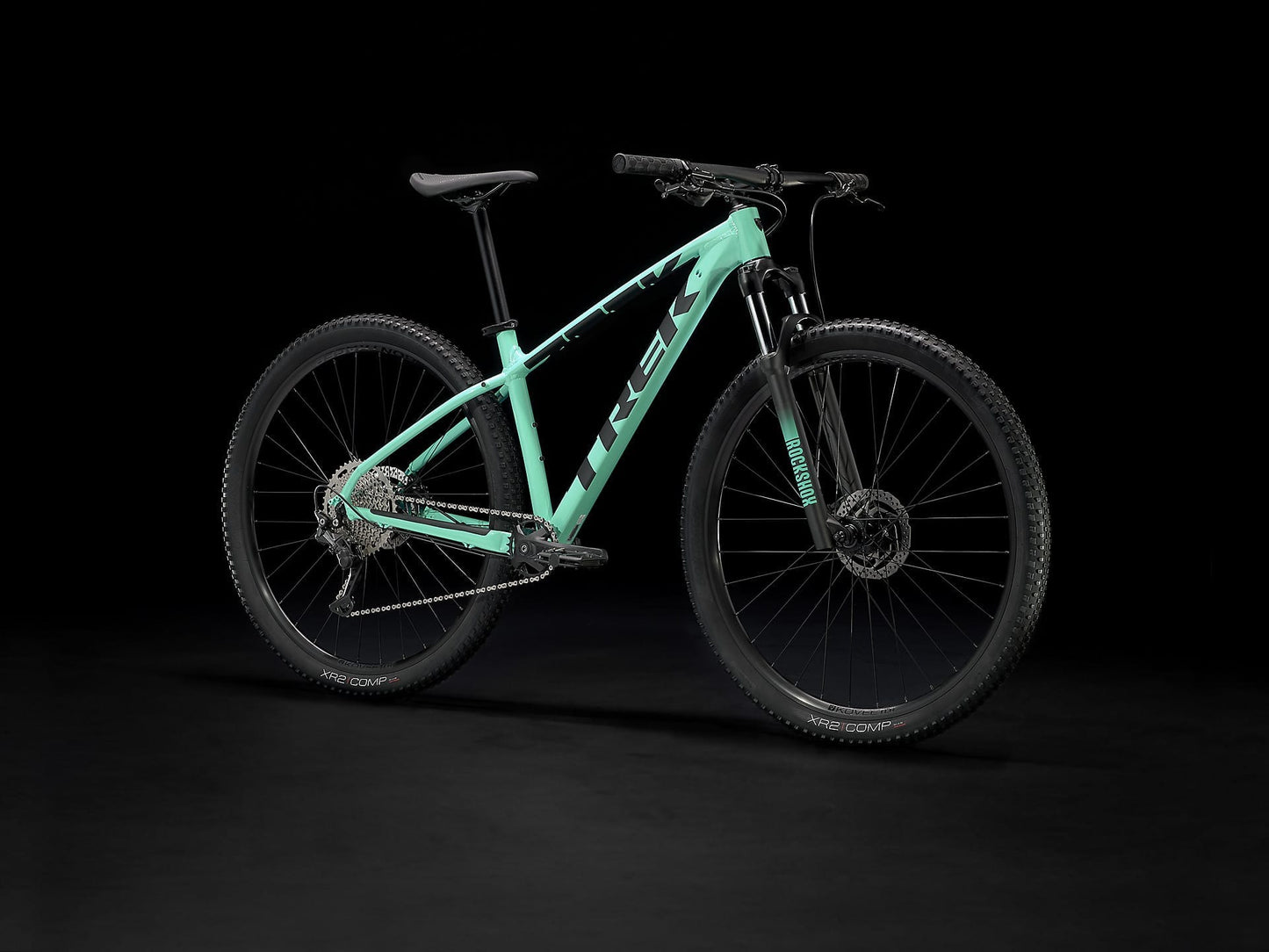

Marlin 7 is where race-worthy mountain bikes begin. The smooth, lightweight RockShox fork and upgraded parts make this model the best choice for new riders who want a fast cross country hardtail that will hold its own against our higher-end race bikes.

Key Features:

• Aluminium Frame: Lightweight & Durable
• Hydraulic Disc brakes: Reliable stopping in all weather conditions.
• Shimano Deore 10 Speed Gears: Ditches the front derailleur for less clutter and easier operation.

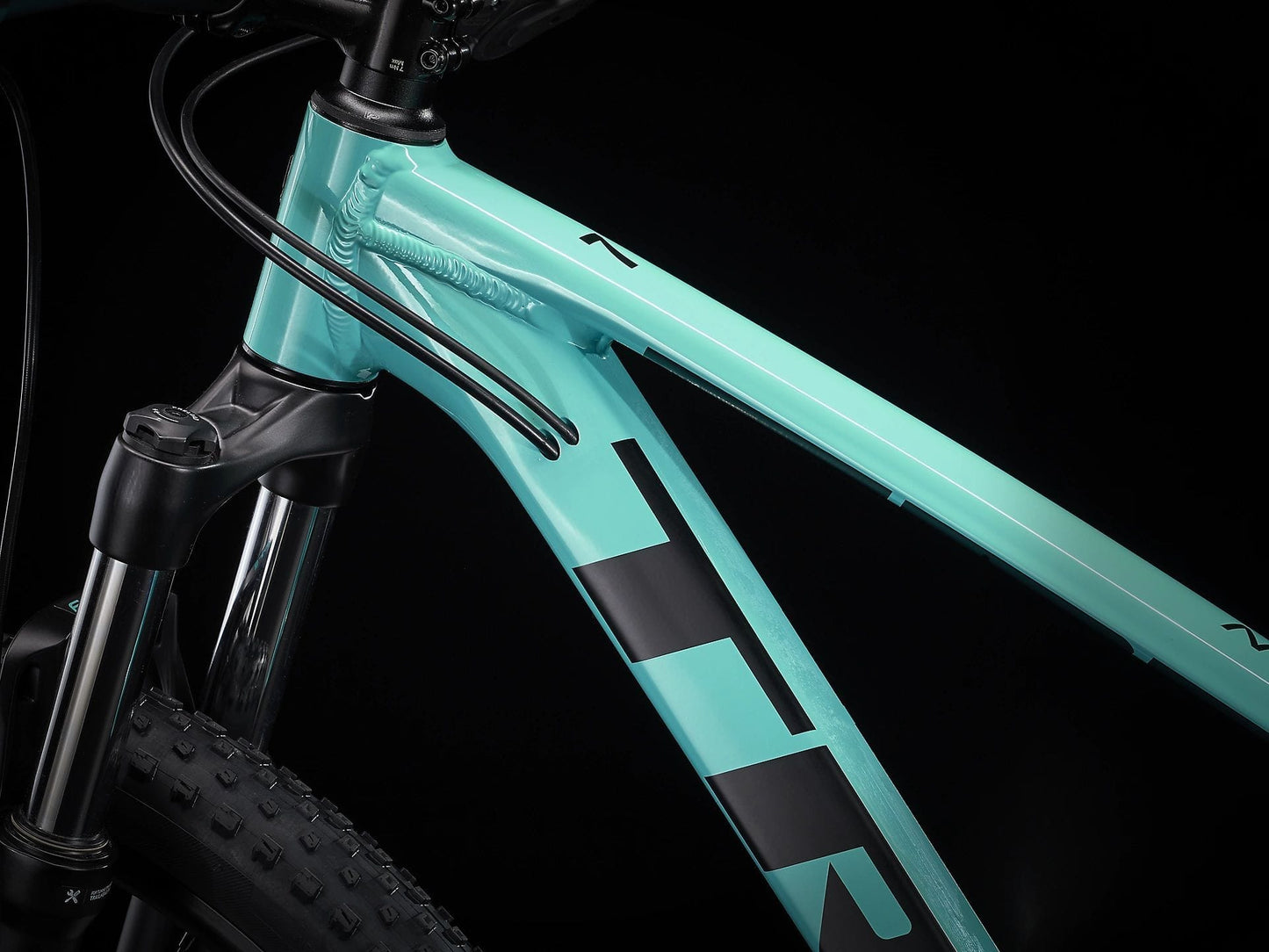

• Frame: Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR
• Rear Shock (If Applicable): N/A

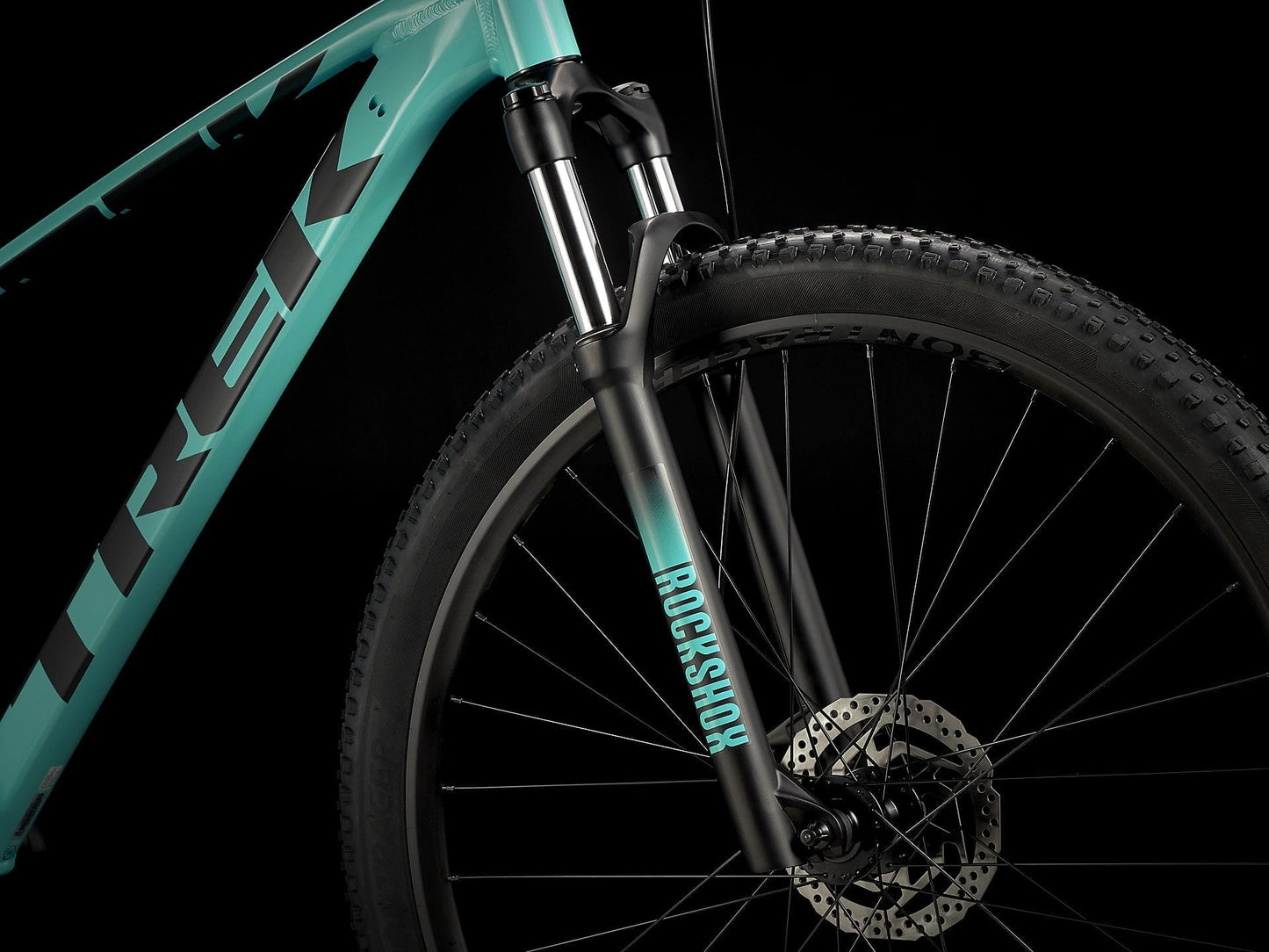

• Fork: RockShox Judy, coil spring, preload, TurnKey lockout, 100 mm QR, 80mm travel on the XS all other sizes 100 mm travel
• Number of Gears: 10
• Gear Shifters: Shimano Deore M4100, 10 speed

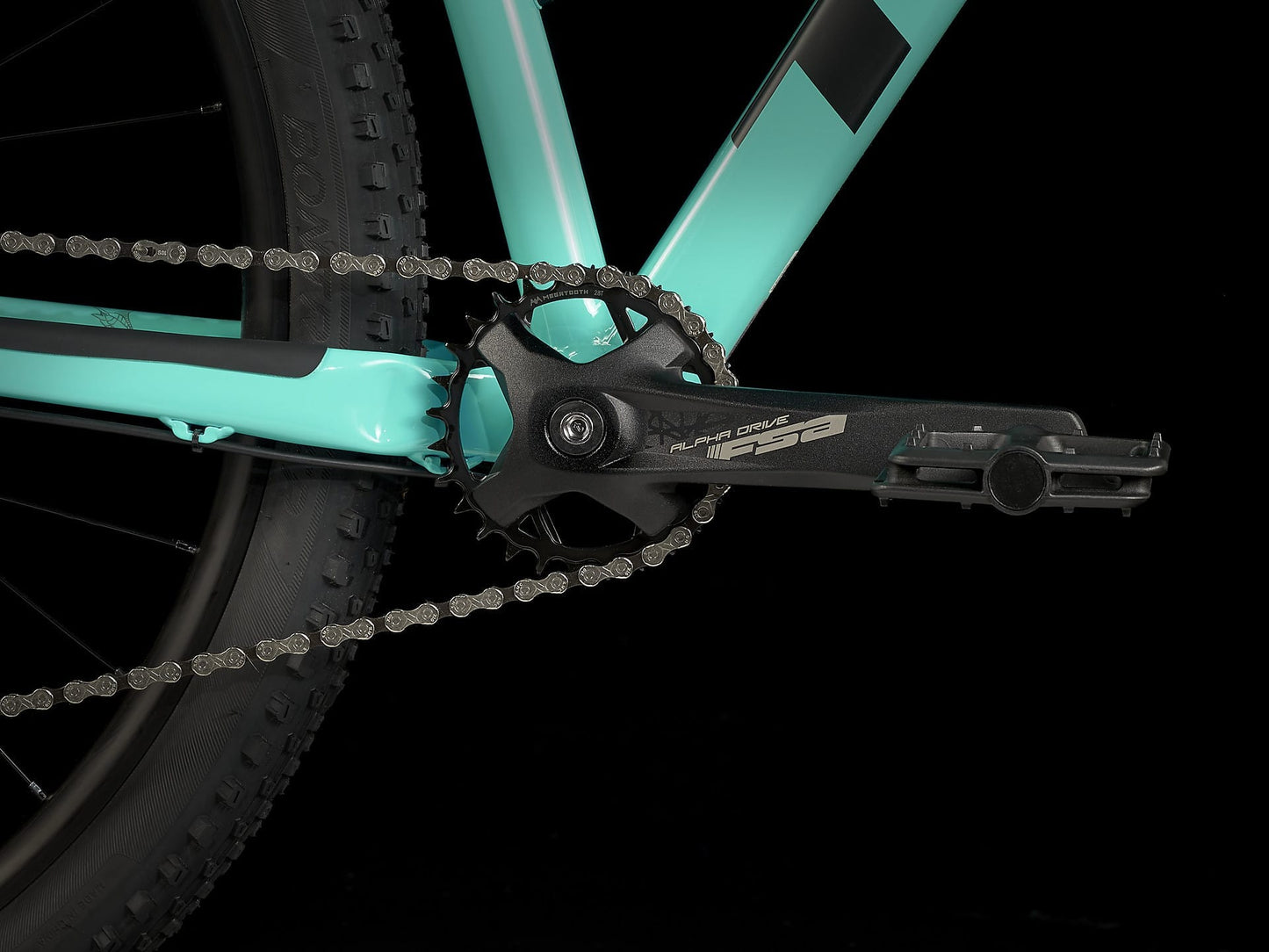

• Chainset: FSA Alpha Drive, Boost, XS, S, M 170mm length, ML, L, XL, XXL 175mm length
• Chainrings: 28T
• Rear Cassette: Shimano Deore M4100, 11-46, 10-speed
• Chain: KMC X10, 10-speed
• Front Derailleur: N/A

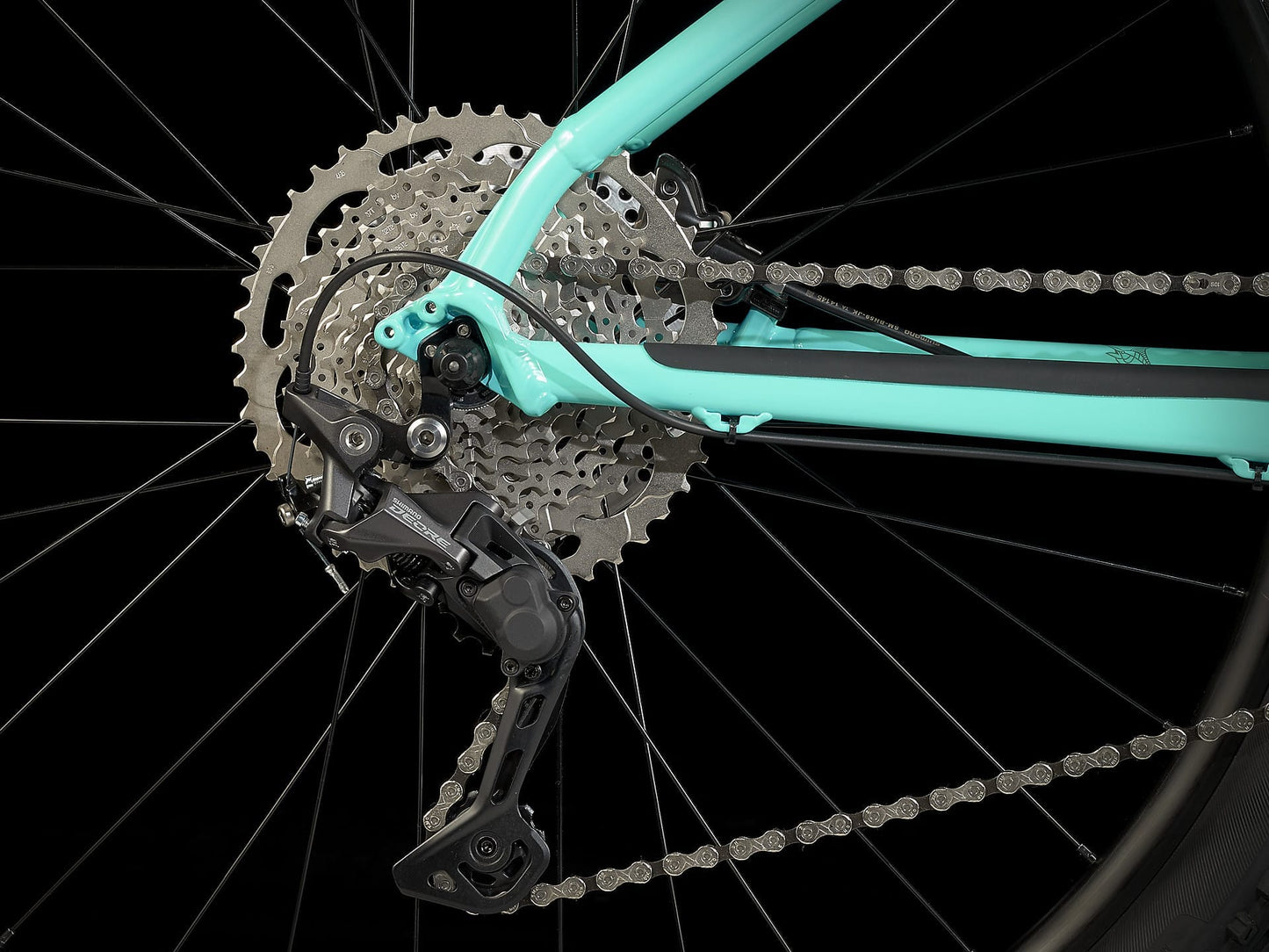

• Rear Derailleur: Shimano Deore M5120, long cage
• Bottom Bracket: FSA, 73 mm, threaded cartridge, 122.5 mm spindle
• Pedals: VP-536 nylon platform
• Rims: Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
• Front Hub: Formula DC-20, alloy, 6-bolt, 5x100 mm QR
• Rear Hub: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR

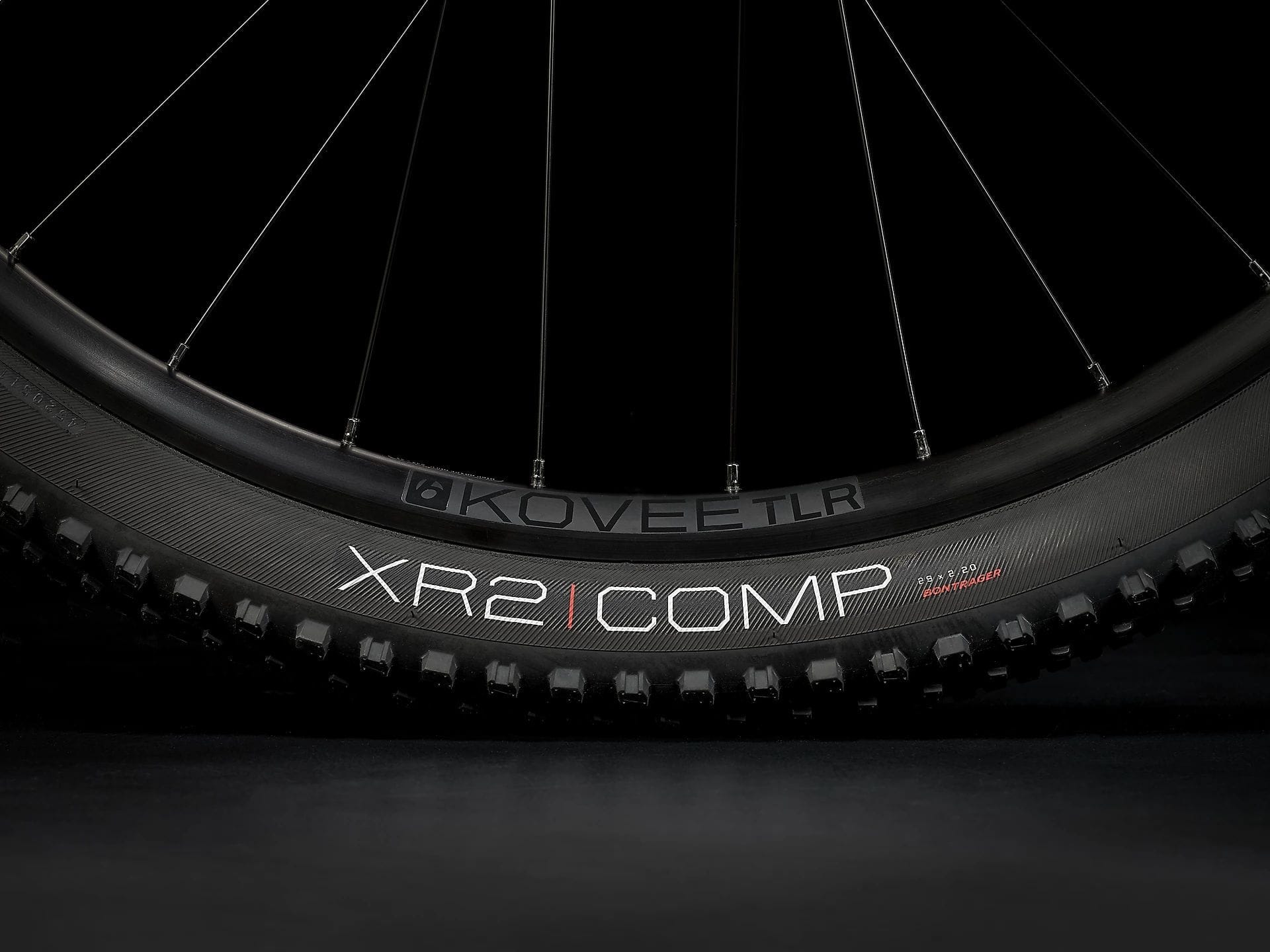

• Front Tyre: Bontrager XR2 Comp Size XS, S 27.5x2.2", Sizes M, ML, L, XL, XXL 29x2.2"
• Rear Tyre: Bontrager XR2 Comp Size XS, S 27.5x2.2", Sizes M, ML, L, XL, XXL 29x2.2"
• Brakes: Shimano MT200 hydraulic disc

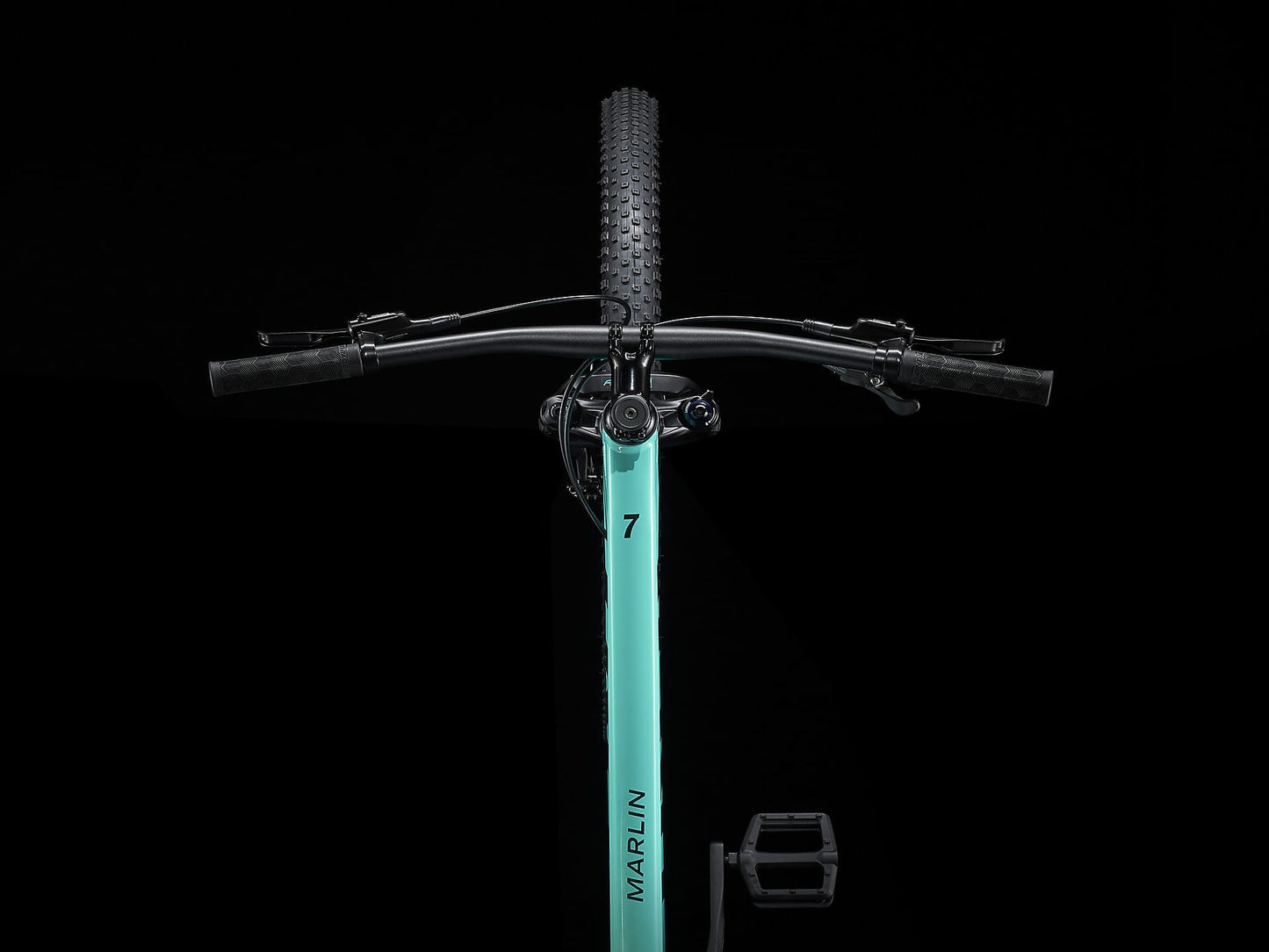

• Handlebars: Bontrager alloy, 31.8 mm, 5 mm rise, XS 690 mm width, all other sizes 720mm width
• Handlebar Grips: Bontrager XR Trail Comp Nylon Lock-on
• Headset: Semi-integrated, 1-1/8"
• Stem: Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, XS 50mm length, S 60mm, M 70mm, ML, L 80mm, XL, XXL 90mm

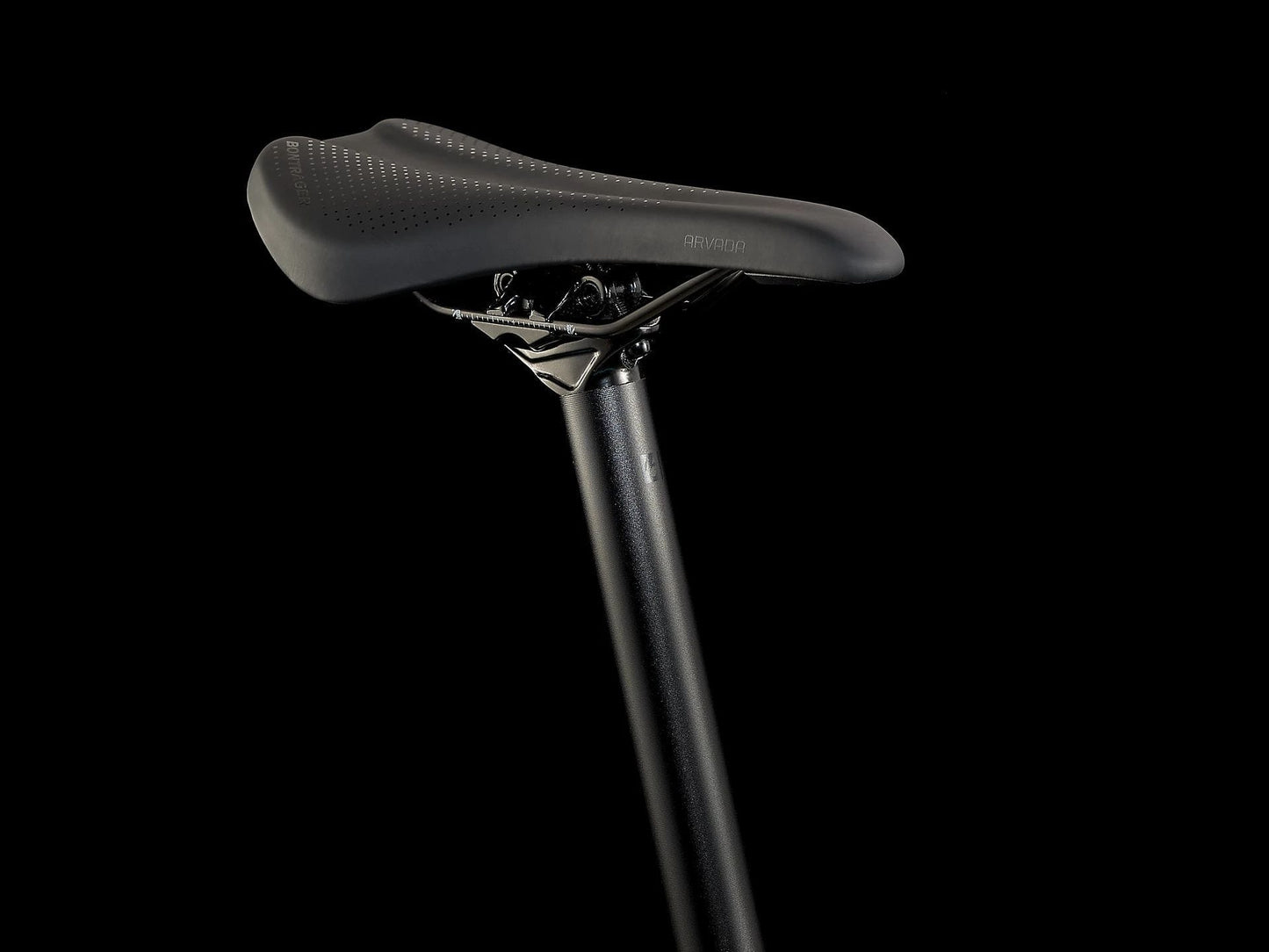

• Saddle: Bontrager Arvada, steel rails, 138 mm width
• Seatpost: Bontrager alloy, 31.6 mm, 12 mm offset, XS, S, M 330mm length, ML, L, XL, XXL 400mm
• Accessories: N/A
• Weight: M 13.77kg/30.35ib (with tubes)

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
