GIANT REVOLT ADVANCED PRO 1 GRAVEL BIKE 2024 - GLOSS BLUE DRAGONFLY/CHROME
GIANT REVOLT ADVANCED PRO 1 GRAVEL BIKE 2024 - GLOSS BLUE DRAGONFLY/CHROME
Product Details
Product Details
Fast gravel is fun gravel. The bike of choice for giant gravel racing pros, this superlight speedster delivers a smooth ride over rugged roads, and is adaptable to all types of conditions and riding styles.
Advanced composite frame and Advanced SL composite fork save a combined 200g compared to the previous generation. Updated geometry includes a lower bottom bracket, longer reach, and steeper head tube angle for improved acceleration and climbing.

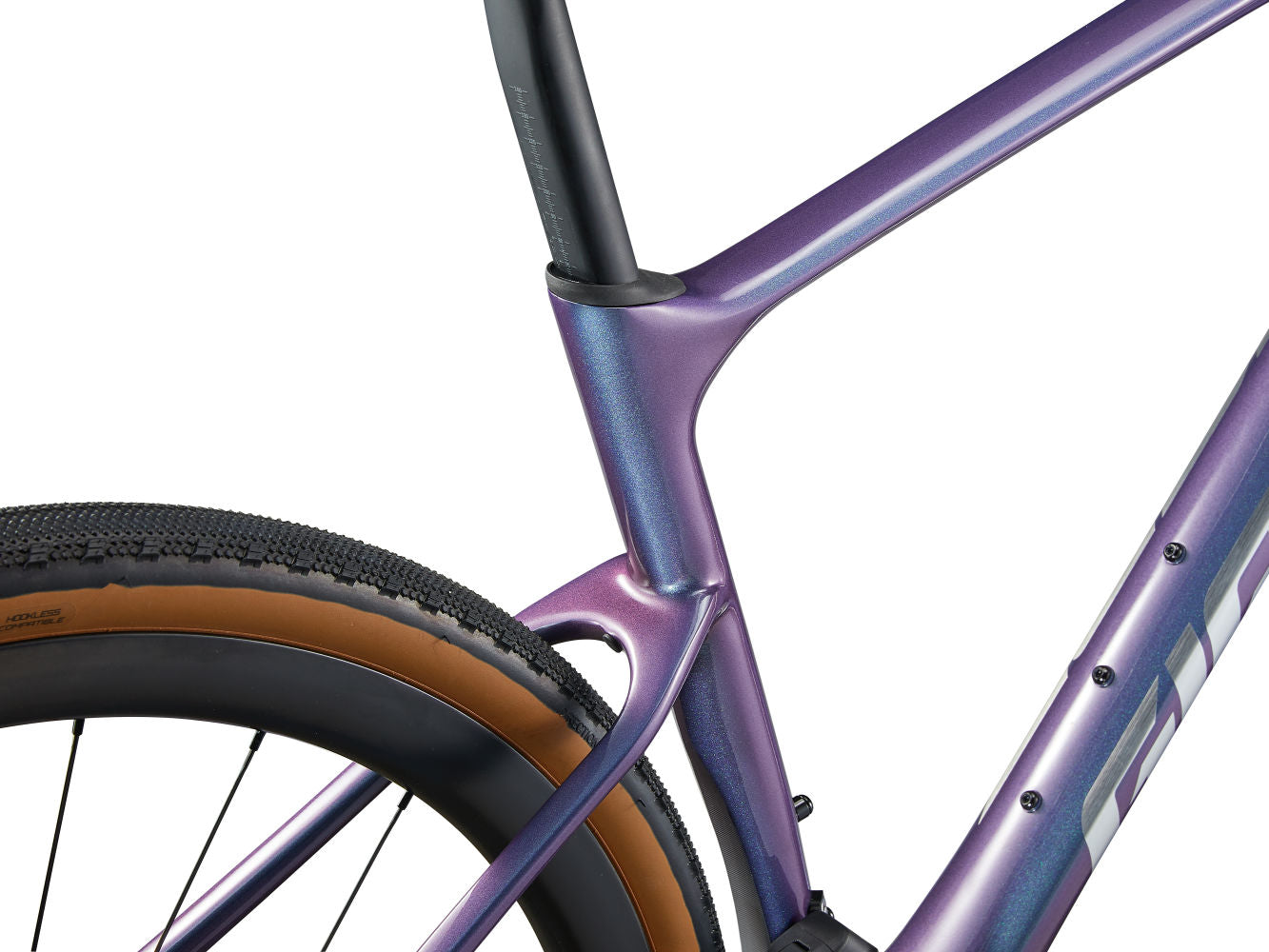

A lowered seatstay junction with smaller diameter tubes absorbs road shocks and vibrations. The Contact SLR D-Fuse carbon handlebar and D-Fuse seatpost work as a system to optimise compliance without sacrificing stiffness while cornering, sprinting and climbing.
A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tyres up to 53mm.
Features
- Advanced-grade Carbon Fibre Frame: Super lightweight & durable.
- SRAM Force eTap AXS 12 Speed: Quality wireless shifting with a wide range for all terrain.
- Giant Carbon Wheelset: With tubeless technology for increased grip & reduced risk of punctures.
- Frame: Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout
- Fork: Advanced SL-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
- Gear Shifters: SRAM Rival eTap AXS, 2x12
- Chainset: SRAM Rival D1 DUB, 30/43 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
- Rear Cassette: SRAM Rival, 12-speed, 10x36
- Chain: SRAM Rival D1
- Front Derailleur: SRAM Rival eTap AXS
- Rear Derailleur: SRAM Rival eTap AXS
- Bottom Bracket: SRAM DUB, press fit
- Pedals: Not supplied
- Rims: Giant CXR 1 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm
- Front Hub: Giant AR alloy, CenterLock, 12mm thru-axle
- Rear Hub: Giant AR alloy, DT350 36t ratchet driver, CenterLock, 12mm thru-axle
- Tyres: CADEX AR, 700x40c, tubeless
- Brakes: SRAM Rival eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
- Handlebars: Giant Contact SLR XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
- Handlebar Tape: Stratus Lite 3.0
- Stem: Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
- Saddle: Giant Approach SL
- Seatpost: Giant D-Fuse SLR, composite, -5/+15mm offset
- Accessories: Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
- Weight: Not Available
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
How to Build Your Bike
How to Build Your Bike
Aftercare
Aftercare
After the first few weeks of use, the whole bike will settle down. As a result, the gears may need tweaking, some nuts and bolts may need tightening and you may well need to check the adjustment of the saddle and handlebars.
CABLE STRETCH
Gears
Cable stretch tends to occur shortly after a new bike has been ridden a few times. A rear derailleur that we have tuned to hit every gear, nicely and quietly, may now not be making each shift causing a sensation and sound of “being in between gears”. Generally you may have to shift up, or shift down a couple times to quiet it down and settle the derailleur into a “happy gear”. A front derailleur may no longer want to shift all the way onto the big ring or will require a much firmer push to get it there. It is advisable to get the cable tension adjusted as soon as this happens either by your local bike shop. This tune up is considered a necessary part of any bicycles maintenance schedule and as such should not be ignored.
Brakes
Your brakes will also be affected by cable stretch (provided of course that they are NOT hydraulic in which case this does not apply). The symptom here is that they usually start to feel quite loose. i.e. you have to pull the lever much further back or harder in order to get the same stopping power you once had. This is partly why new bikes come with a first free service. If your brakes start feeling a little spongy after a few weeks, you can adjust them at the barrel or the clamp or ask a mechanic at your local bike shop to do it for you.
DISC BRAKES
New disc brakes won’t deliver their full power until the rotor and pads have bedded in. SRAM has a really good guide for bedding in disc brakes: “Accelerate the bike to a moderate speed and then firmly applying the brakes until you are at walking speed. Repeat this process 20 times. Then accelerate the bike to a faster speed and apply the brakes until you are at walking speed. Repeat this process ten times. It’s important that during this process you never come to a complete stop or lock up the wheels at any point.” Doing this process should drastically improve the performance of your brakes and prepare them for many happy rides.
CRANKS
Check the cranks and crank bolts or nut for tightness; grab a crank arm in each hand and try to wiggle them to check for looseness. If there is play in the cranks, the nuts or bolts may need to be tightened. Cranks should be checked after every ride for the first week.
HEADSET
A loose headset can be diagnosed by turning the front wheel to point left or right, holding the front brake on, and then rocking the bike backwards and forwards. Hold your fingers between the stem and the frame. Any movement indicates that you need to tighten the headset.
SADDLE
Check your seat post is not loose and that you have not exceeded the limit marked on the seat post. Once you have checked these, use an allen key to tighten the seat post clamp. Check the seat is secure by giving it another check once you have finished.
STEM
Check that your front wheel and stem do not move independently, and that your handlebar clamp bolts are tight. Perform this check by standing in front of the bike, holding the front wheel between your knees, and twisting the handlebars. You can prevent any movement by tightening the stem bolts and the handlebar clamp with an allen key.
SUSPENSION FORKS
Keeping your mountain bike’s suspension maintained is one of the best ways to ensure you’re getting all the performance you can out of your bike. Plus, giving your fork and shock a few seconds of attention here and there can prevent costly repairs or even replacements.
Dirt is the number one enemy of suspension. After every ride make sure to wipe the seal area and stanchions of your fork and shock. Wipe in a horizontal motion, not vertical as you don’t want to force any debris towards the seals.
Every few rides double check that your suspension sag is correct, as well as your rebound and compression adjustments. If something has changed, or the adjustments aren’t working as before, some maintenance is likely due.
Working on your bike at home can seem daunting, and we'd always recommend you take your bike to a qualified mechanic if possible.
