You don't ever want to miss a shift again, and you value the predictability, smoothness and lightning-fast shifting of a wireless Di2 electronic drivetrain. You want an ultra-light, ultra-fast carbon frame and carbon wheels, plus the power and confidence of hydraulic disc brakes.

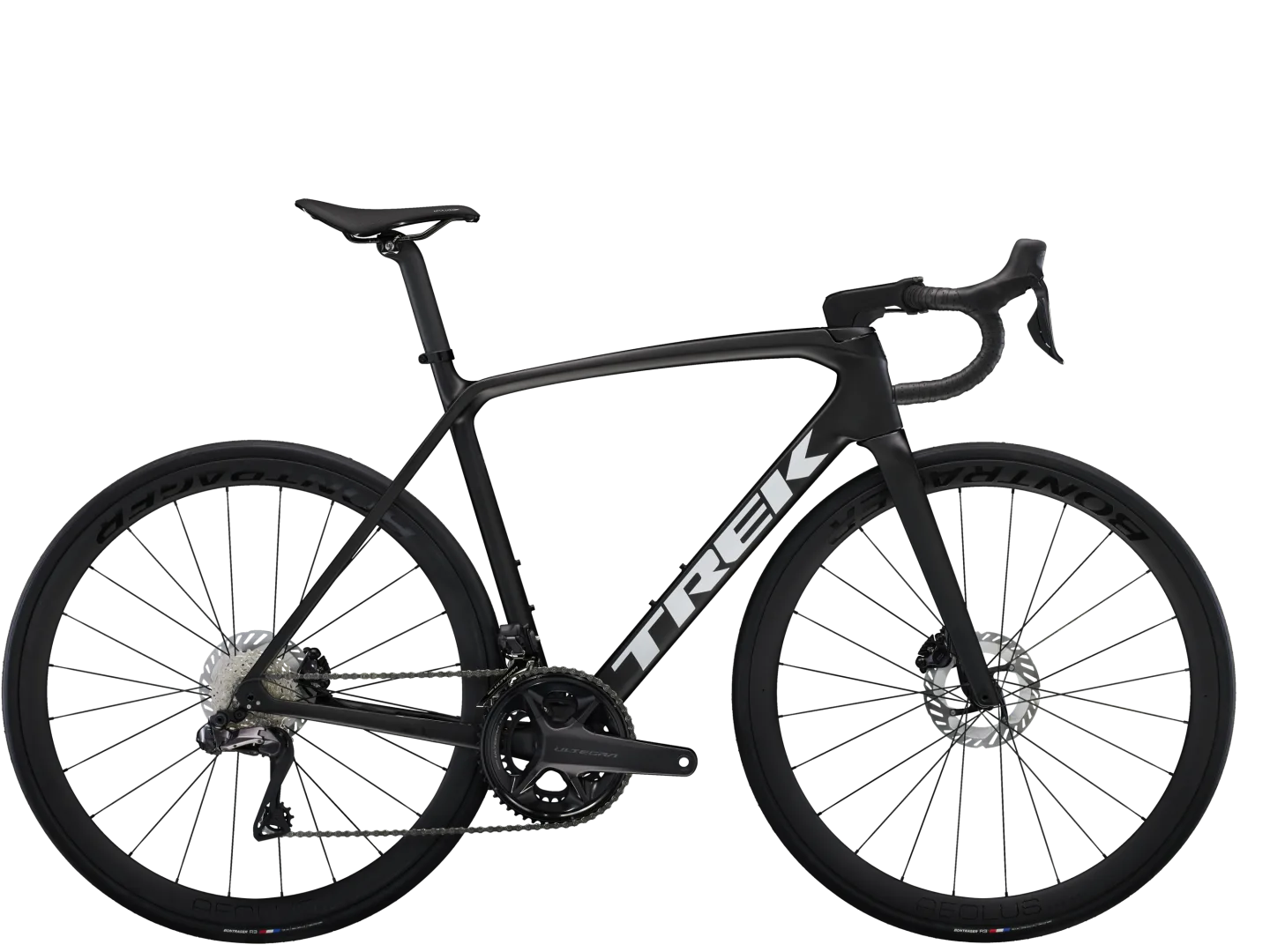

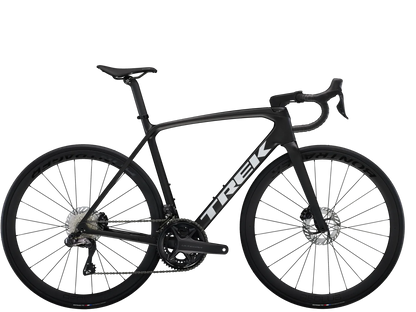

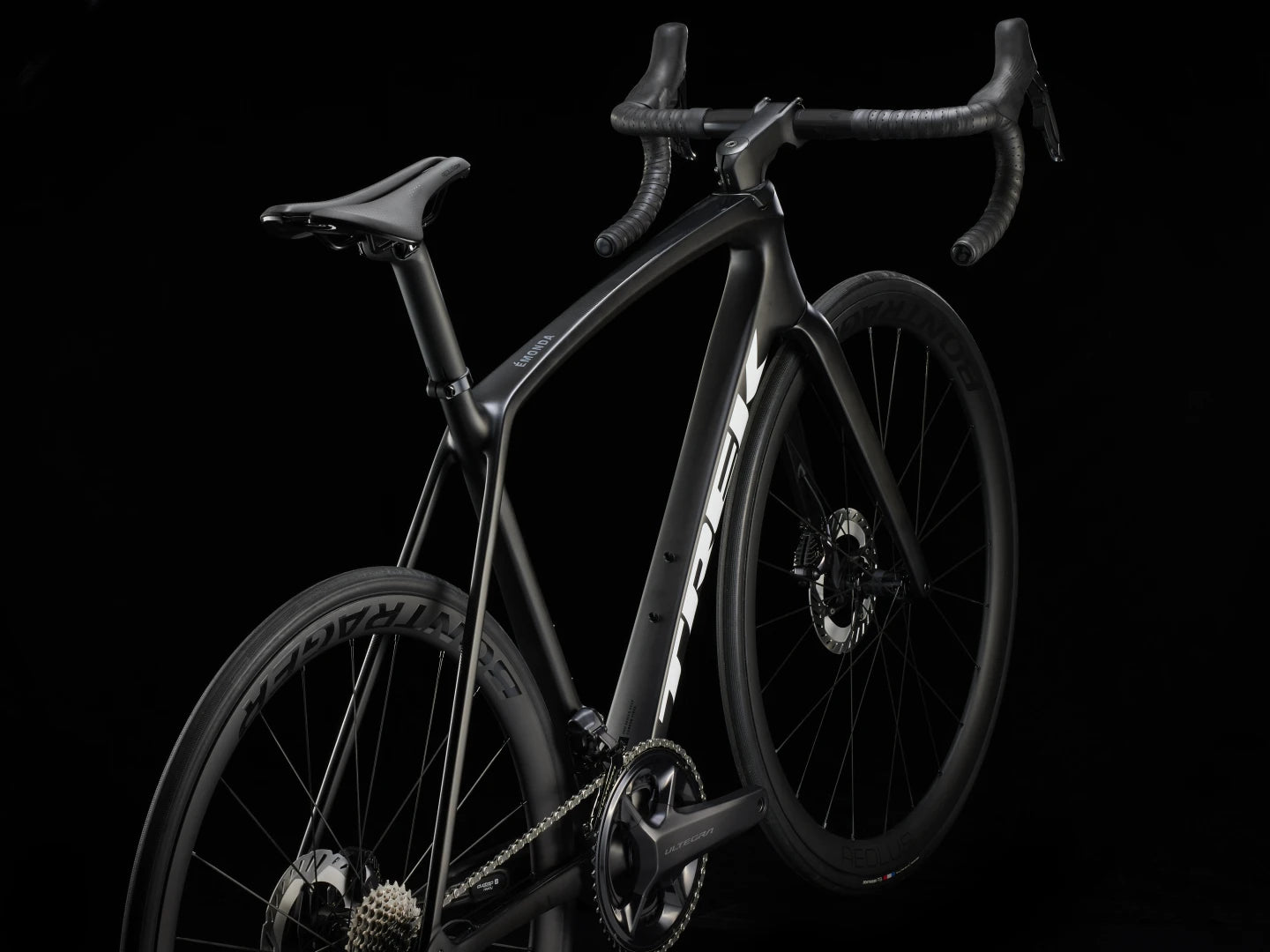

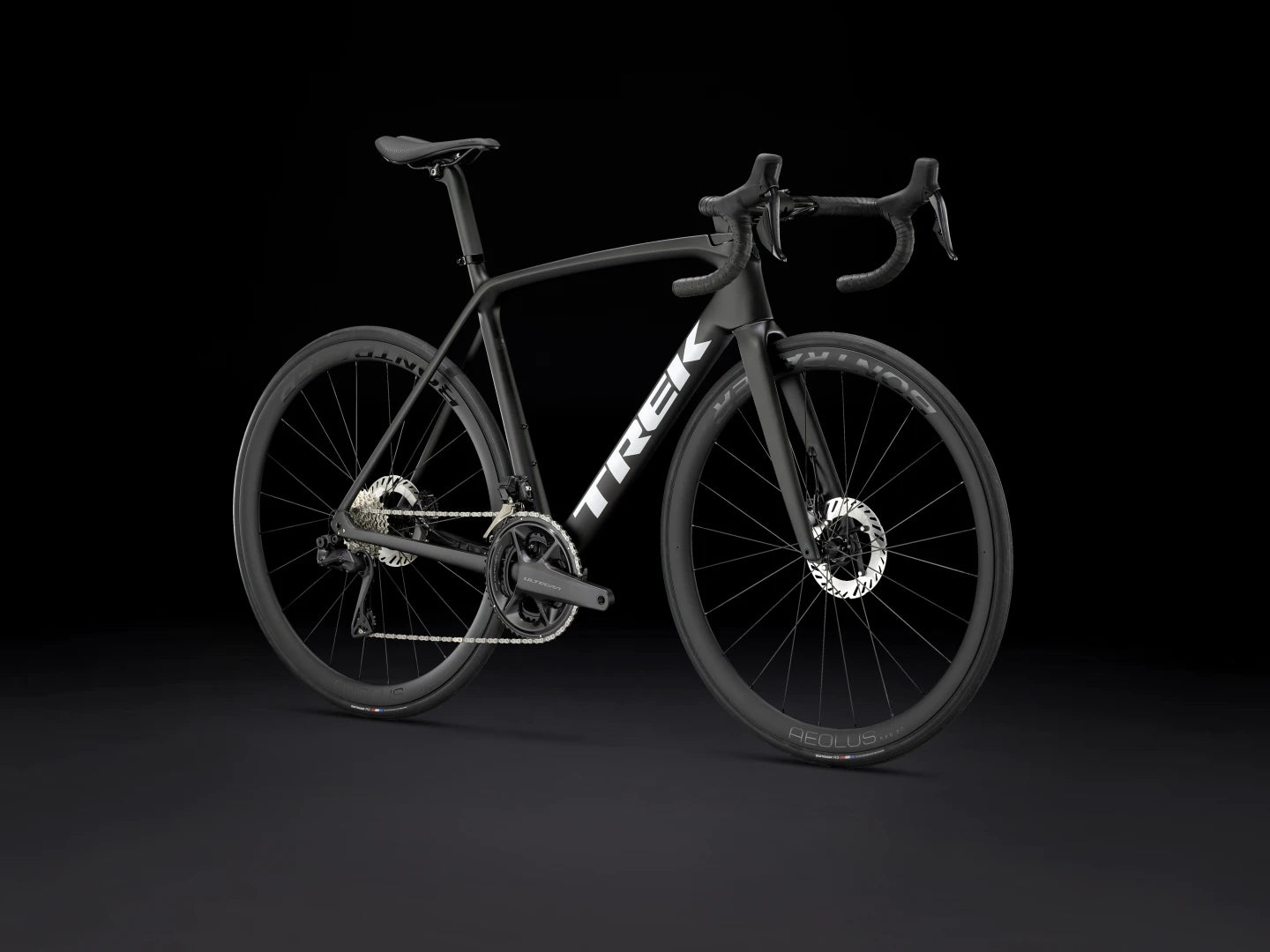

A lightweight and aerodynamic 500 Series OCLV Carbon frame and fork, a wireless Shimano Ultegra Di2 2x12 electronic drivetrain, Bontrager Aeolus Pro 37 carbon wheels and Shimano Ultegra hydraulic flat-mount disc brakes.
Our ultra-light aero carbon frame, electronic shifting, carbon wheels and hydraulic disc brakes make this bike an outstanding choice for the rider who wants a speedy, lightweight race bike that beats everyone up massive climbs and down epic descents.
Key Features
- Carbon Fibre Frame: Ultra light and fast – and it's backed by Trek's lifetime warranty.
- Shimano Ultegra Di2 Drivetrain: Delivers faster, smoother and more responsive shifts than ever.
- Hydraulic Disc Brakes: Consistent braking performance for better control and confidence in race conditions.
Full Specification

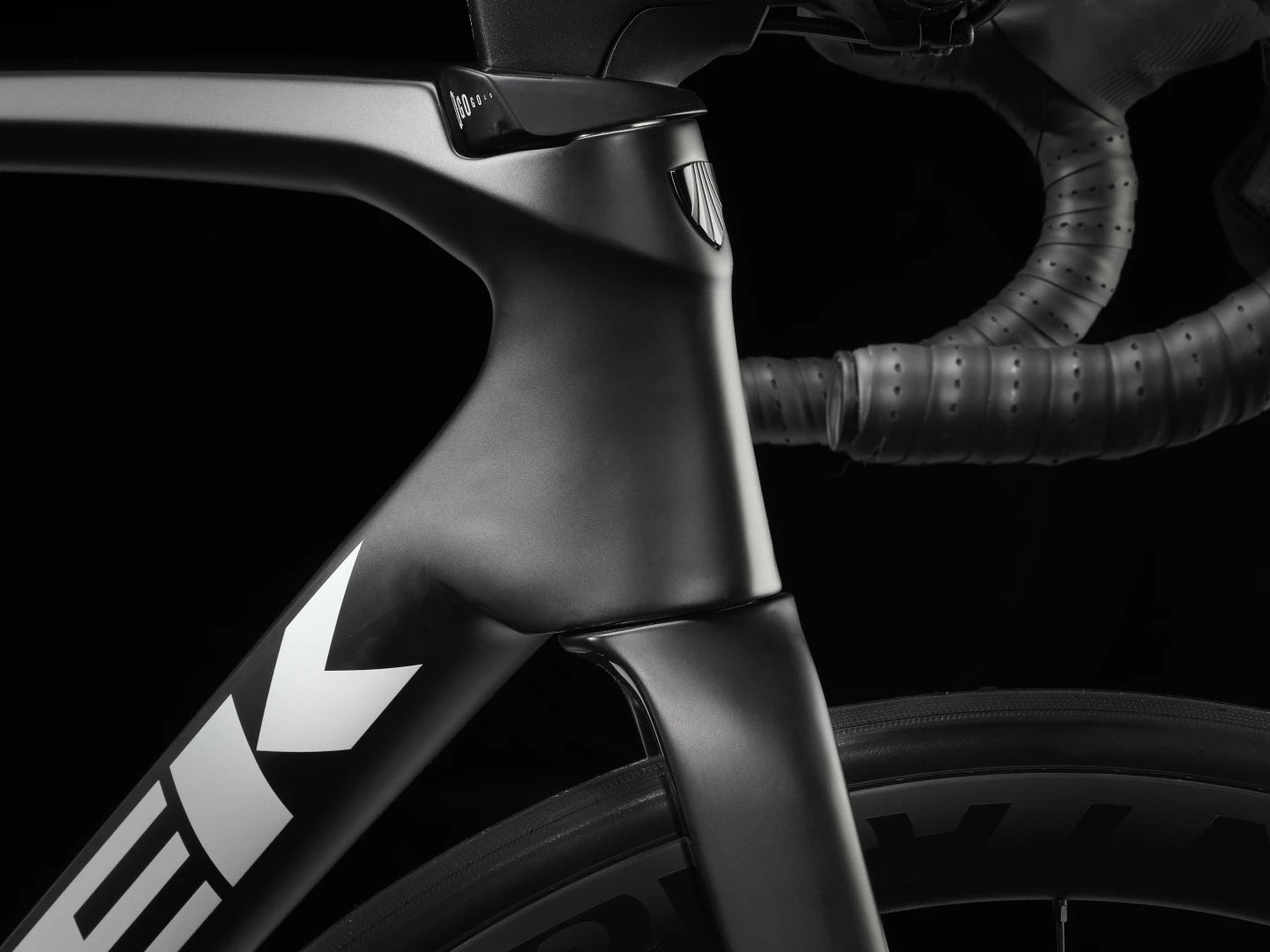

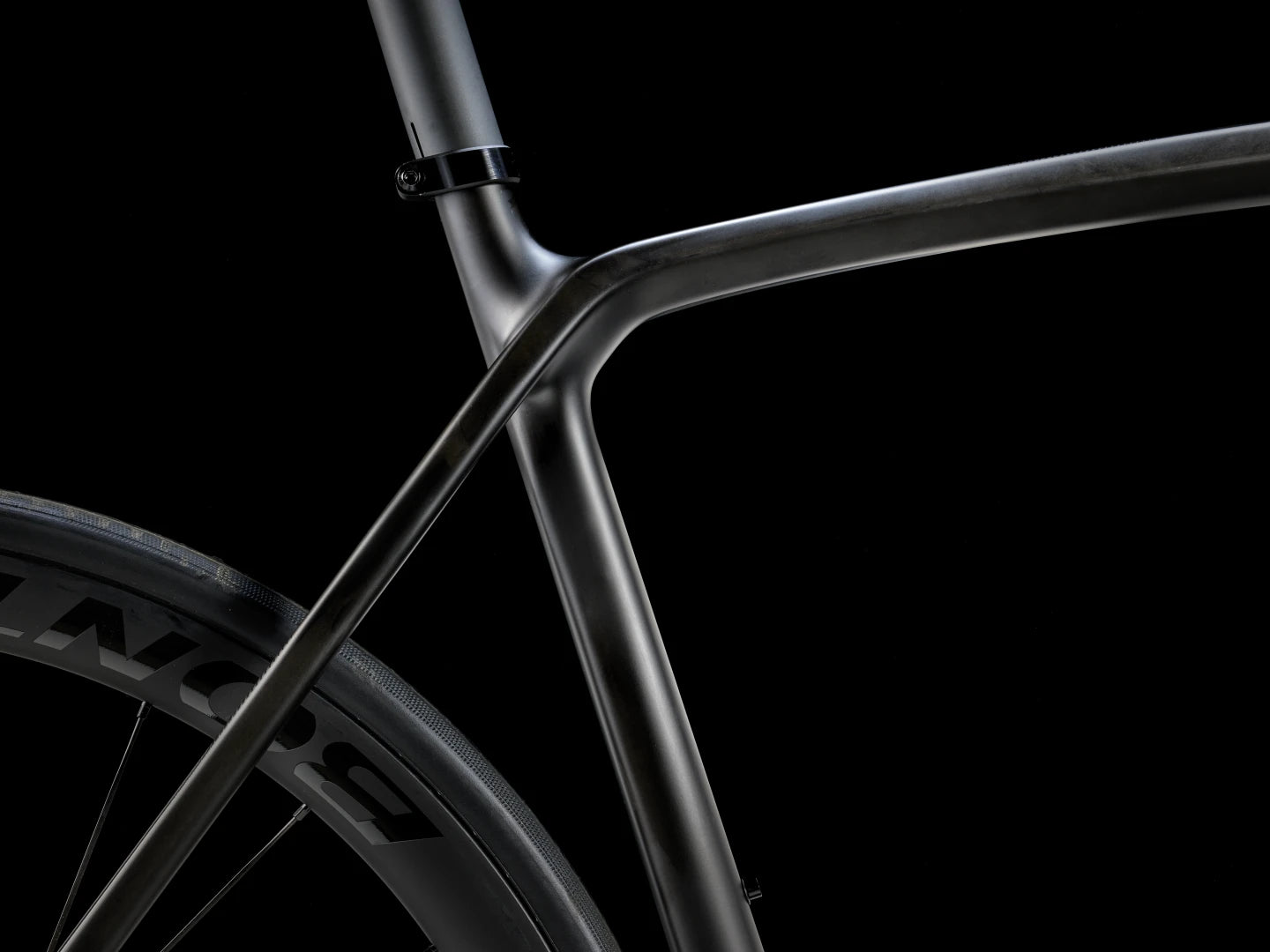

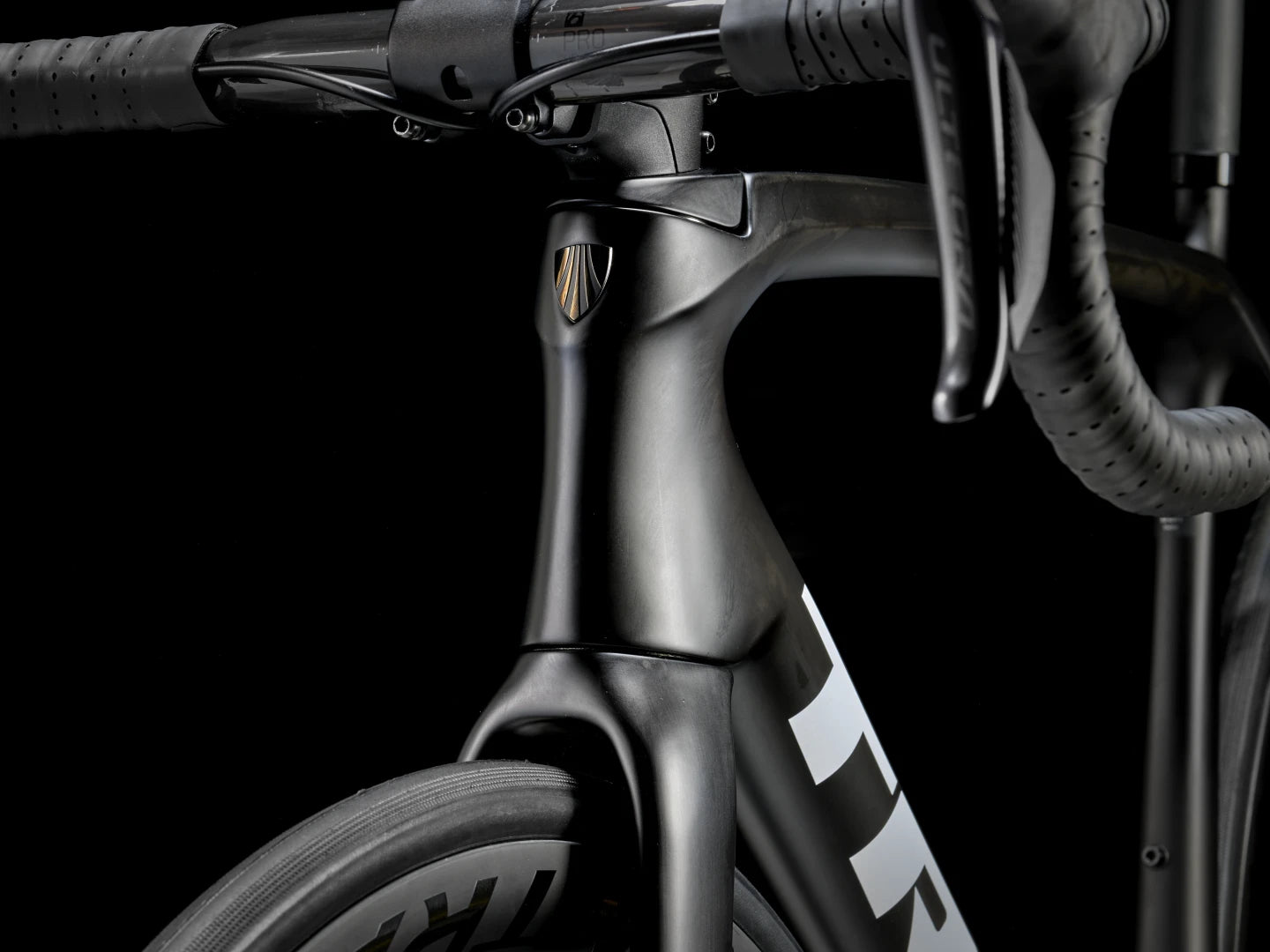

- Frame: Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, internal routing, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
- Fork: Emonda SL full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle

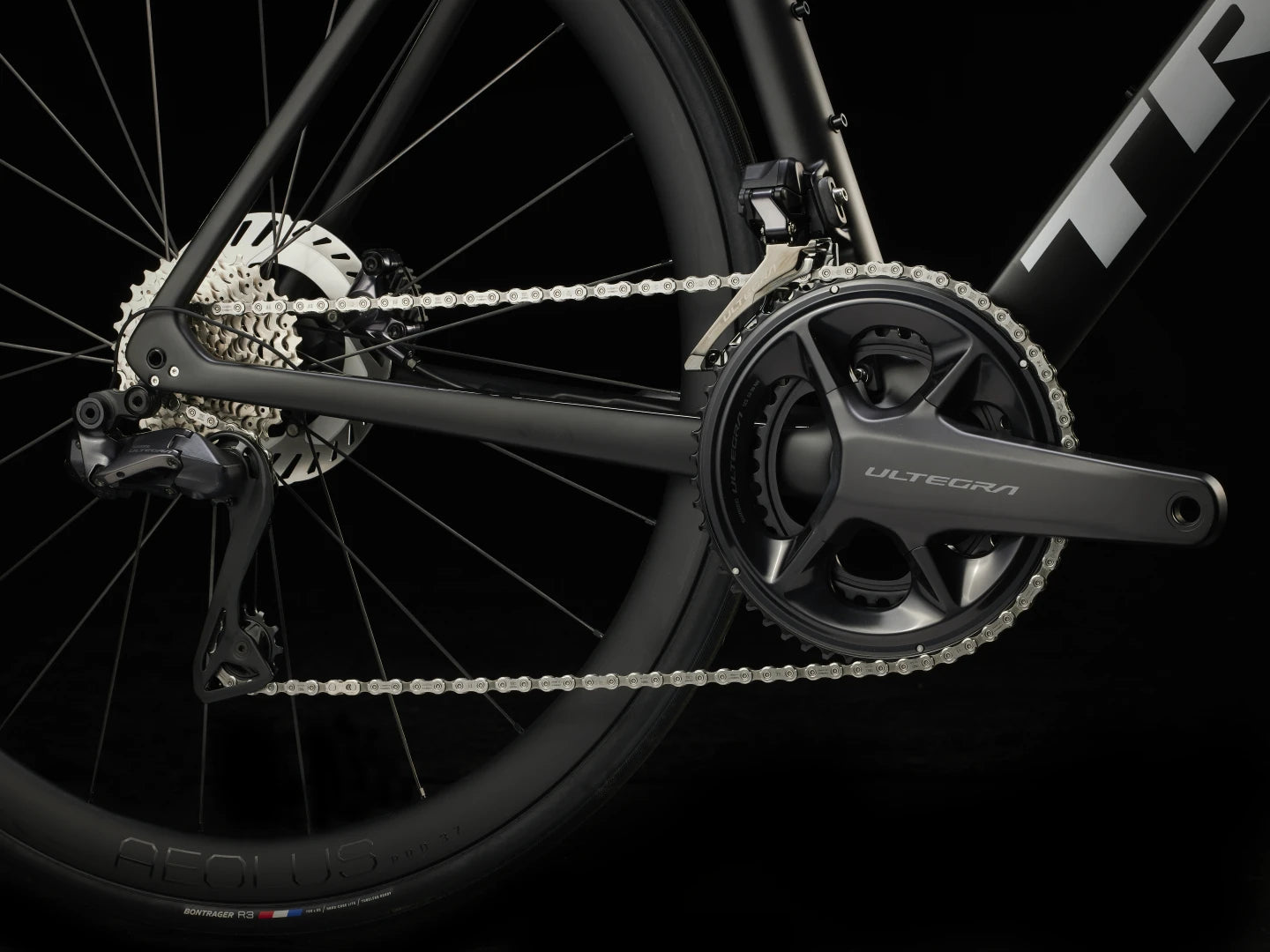

- Gear Shifters: Shimano Ultegra R8170 Di2, 12-speed
- Chainset: Shimano Ultegra R8100, 52/36, 165 - 175 mm length
- Rear Cassette: Shimano Ultegra R8100, 11-30, 12 speed
- Chain: Shimano XT M8100, 12-speed
- Front Derailleur: Shimano Ultegra R8150 Di2, braze-on, down swing
- Rear Derailleur: Shimano Ultegra R8150 Di2, 34T max cog
- Bottom Bracket: Praxis, T47 threaded, internal bearing
- Pedals: Not supplied
- Rims: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth
- Front Hub: Bontrager Aeolus Pro 37, 100x12 mm thru axle
- Rear Hub: Bontrager Aeolus Pro 37, Shimano 11/12-speed freehub, 142x12 mm thru axle
- Tyres: Bontrager R3 Hard-Case Lite, carbon bead, 60 tpi, 700x25 c

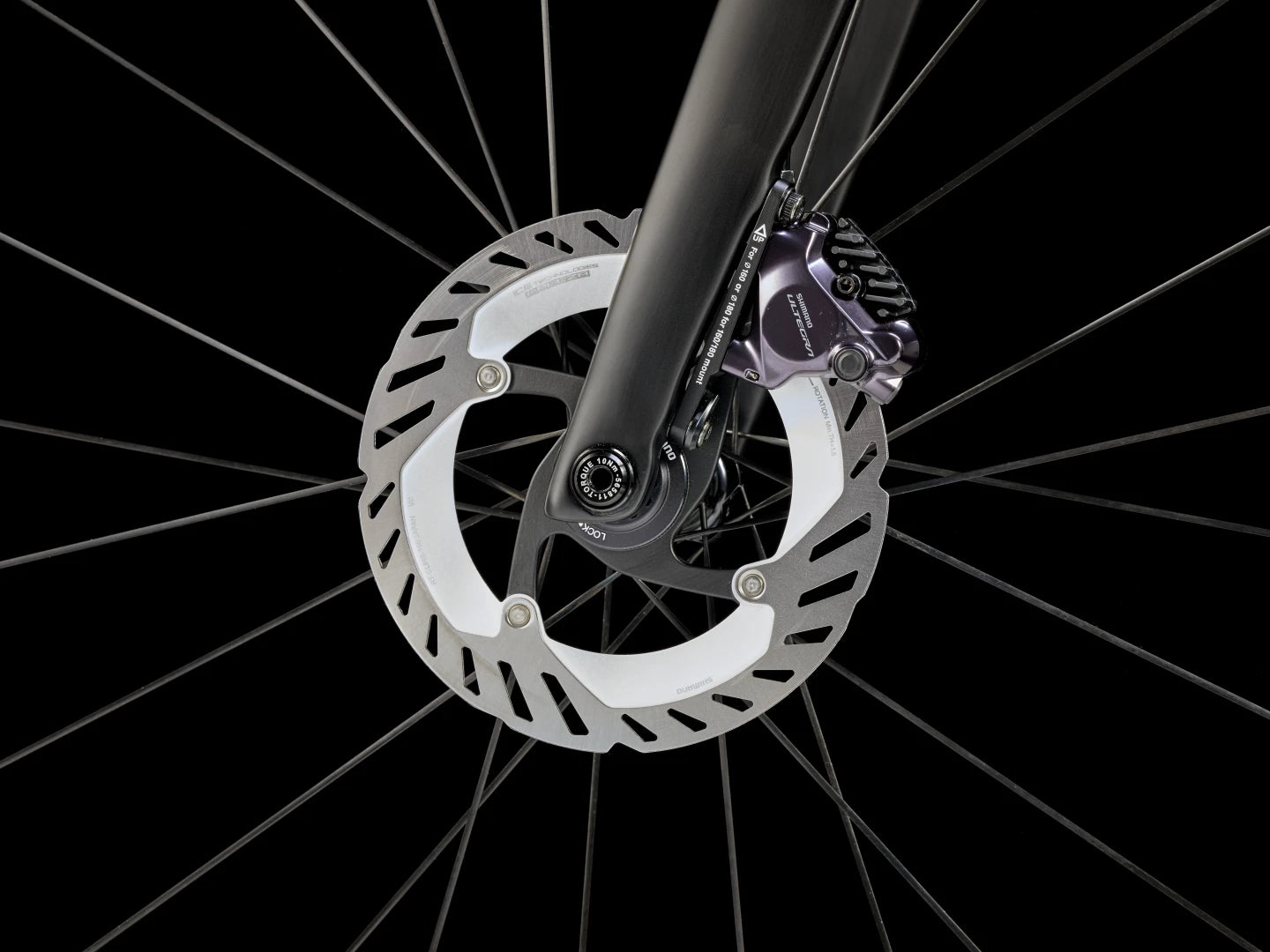

- Brakes: Shimano Ultegra hydraulic disc

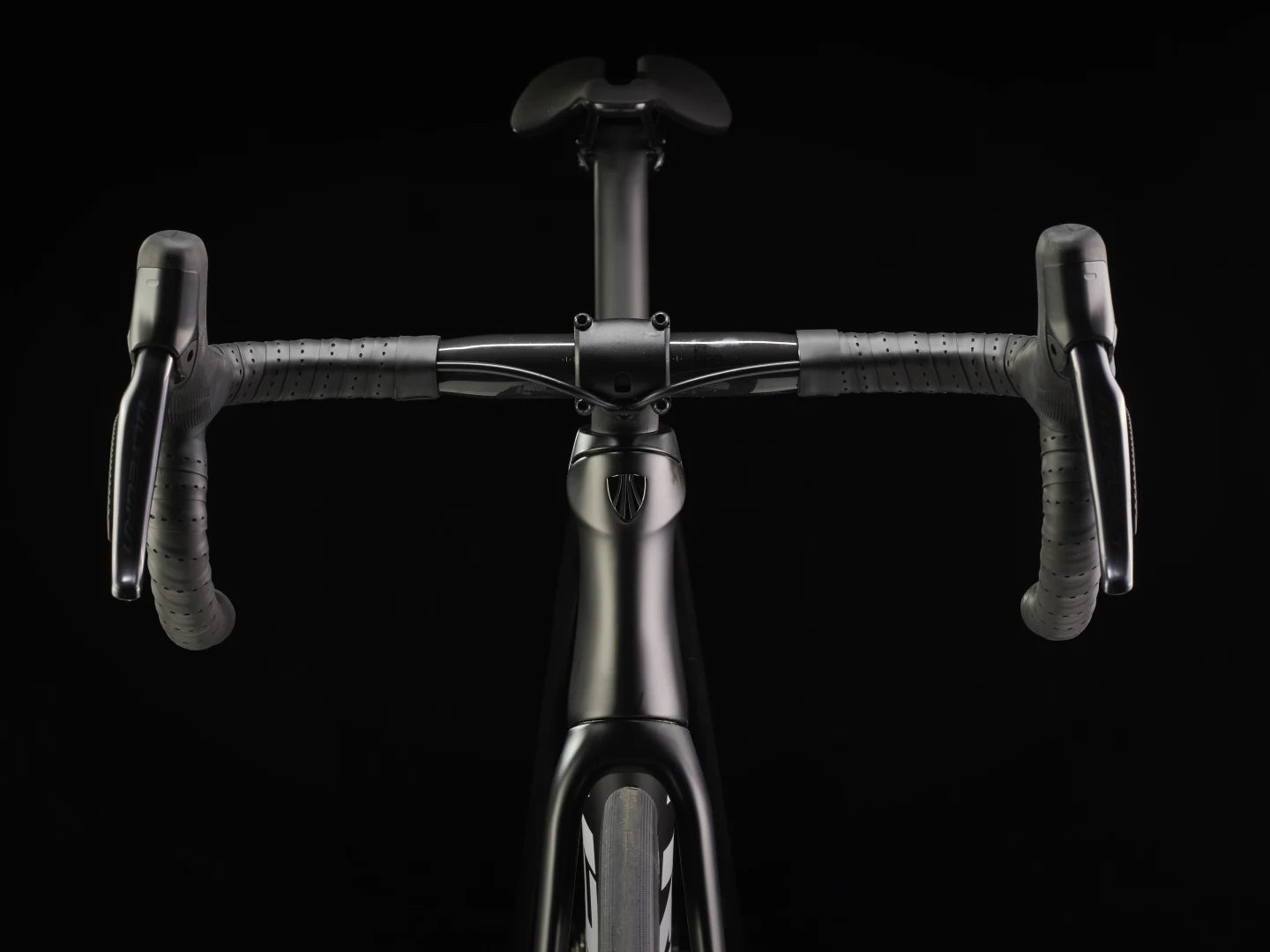

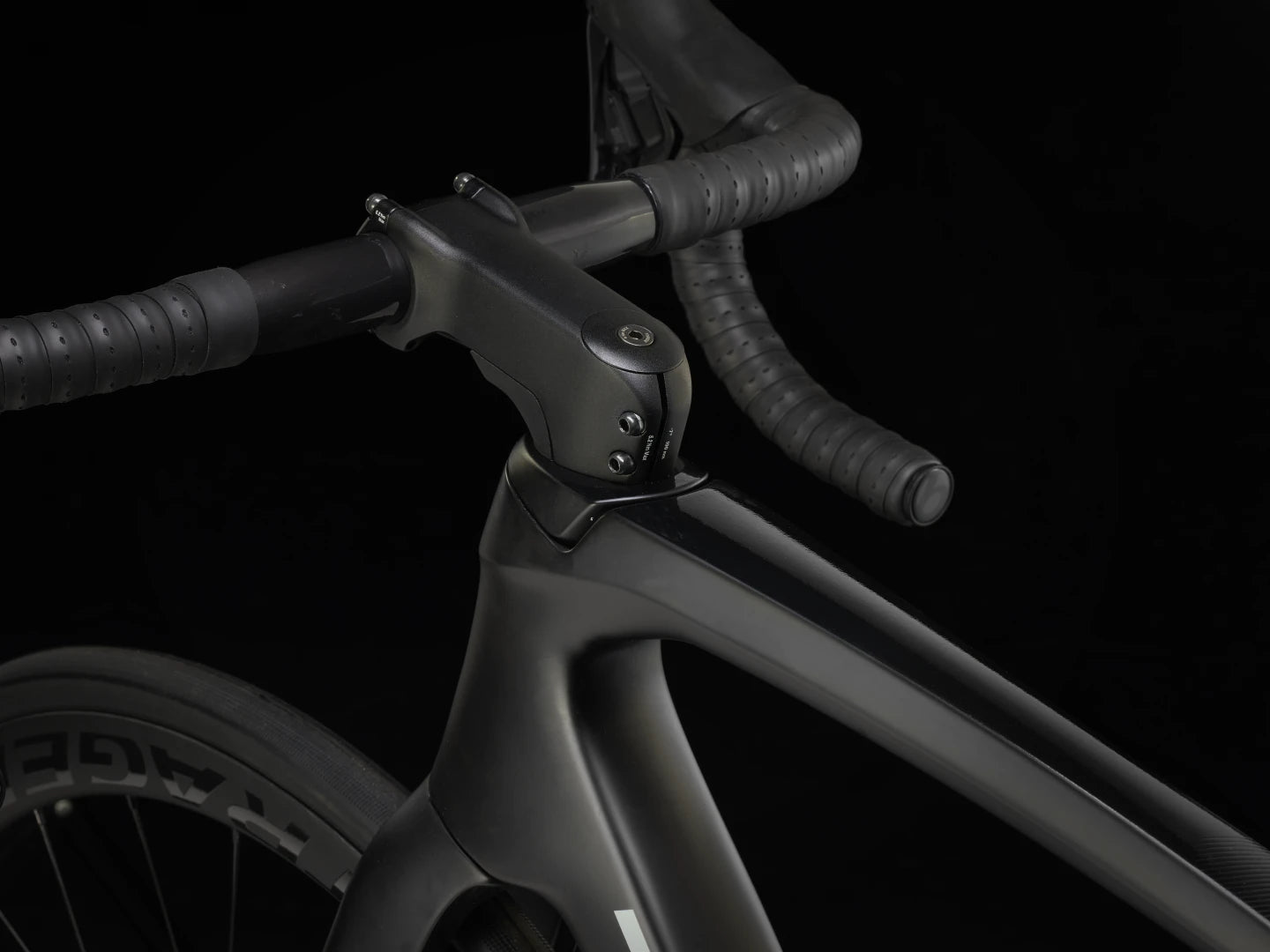

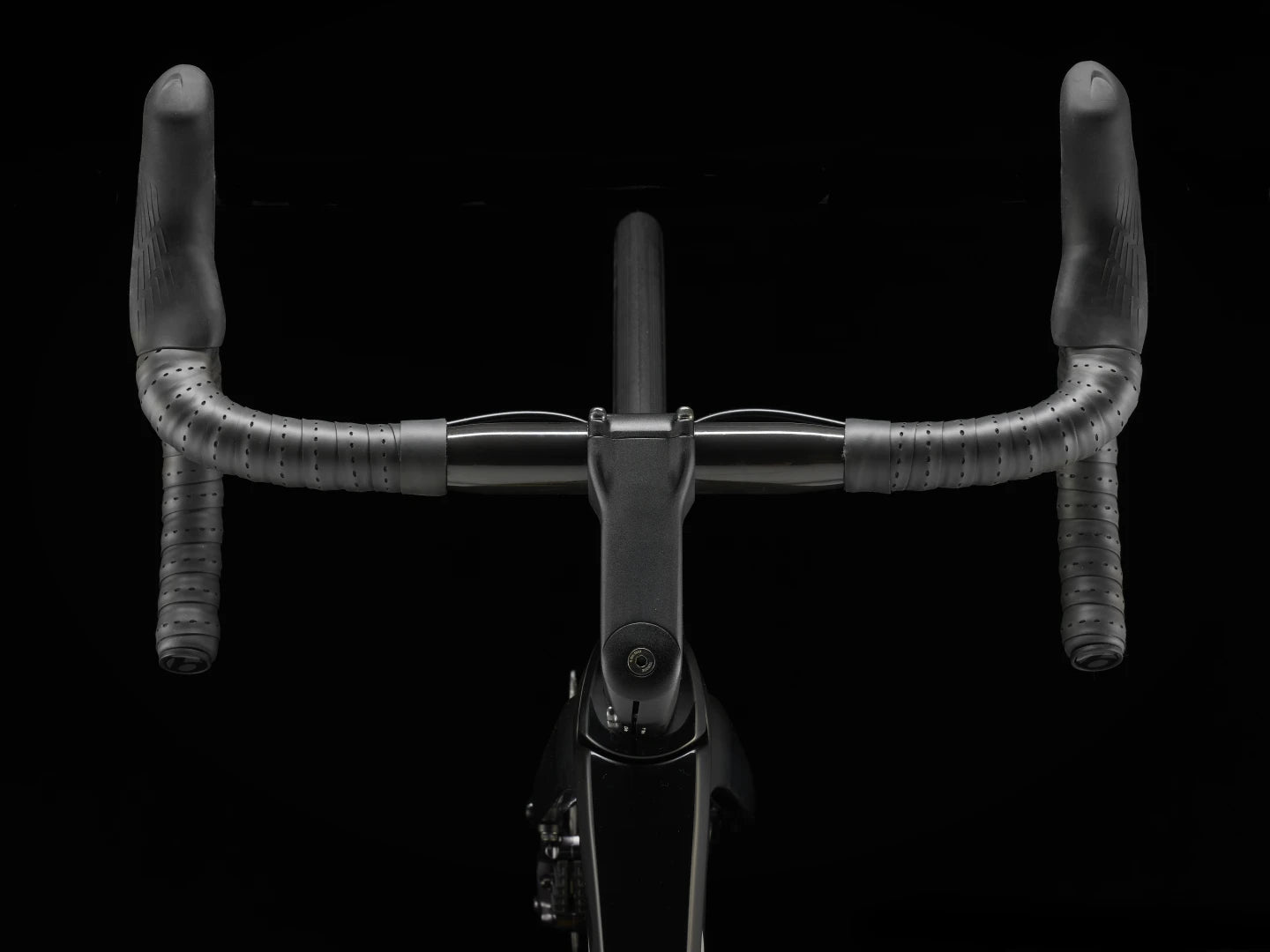

- Handlebars: Bontrager Aeolus RSL integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop
- Bar Tape: Bontrager Supertack Perf tape
- Headset: Integrated
- Stem: Bontrager Aeolus RSL integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop
- Saddle: Bontrager Aeolus Comp, steel rails, 155 - 145 mm width
- Seatpost: Bontrager carbon seat mast cap, 20 mm offset
- Accessories: Di2 Charging cable included
- Weight: 56 - 7.90 kg / 17.42 lbs
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
