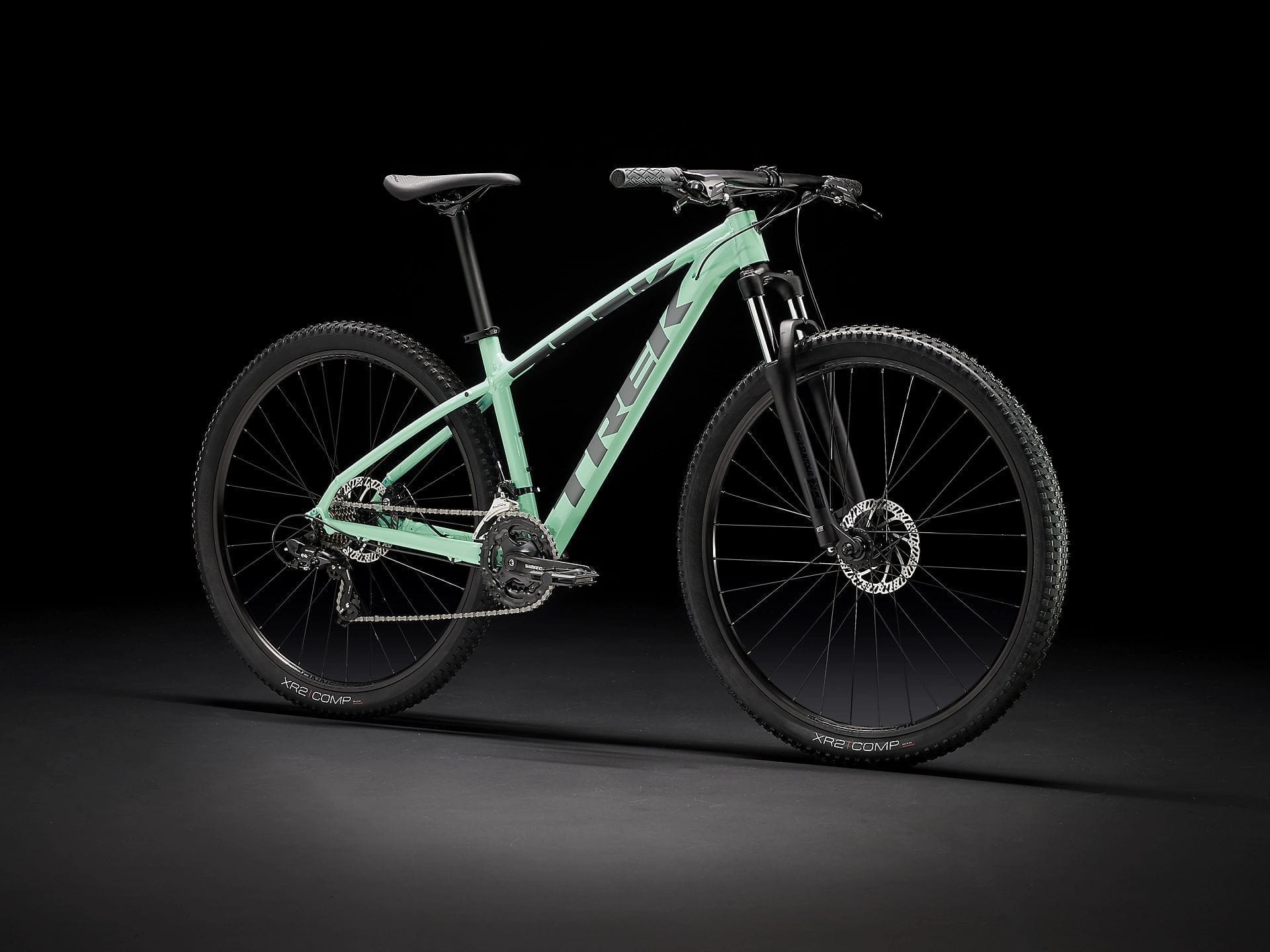

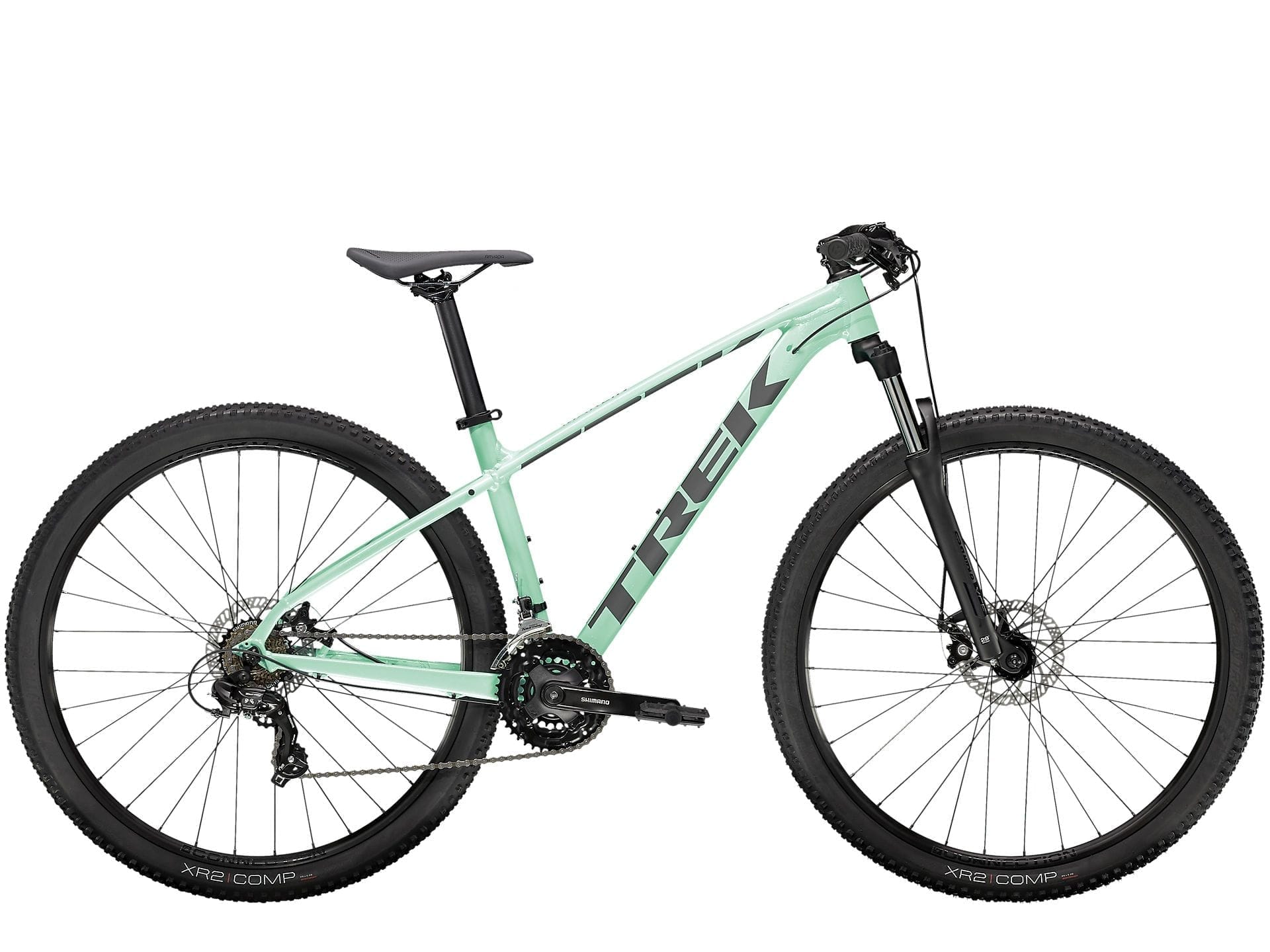

TREK MARLIN 4 GEN 2 MTB BIKE 2023 - VOODOO ALOHA GREEN
TREK MARLIN 4 GEN 2 MTB BIKE 2023 - VOODOO ALOHA GREEN
Product Details
Product Details
Marlin 4 is the perfect gateway to trail riding. It's ideal for new riders who want a mountain bike with knobby tyres, that can double as a rugged commuter. Disc brakes, front suspension, 21 speeds and mounts for a rack and mudguards make this a great bike for new trail riders and campus commuters alike.
Features
- SR Suntour suspension fork: For comfort and control.
- Mechanical disc brakes: For reliable stopping in all conditions.
- Shimano 21 speed gears: To get you up the steepest of hills.
Please Note:

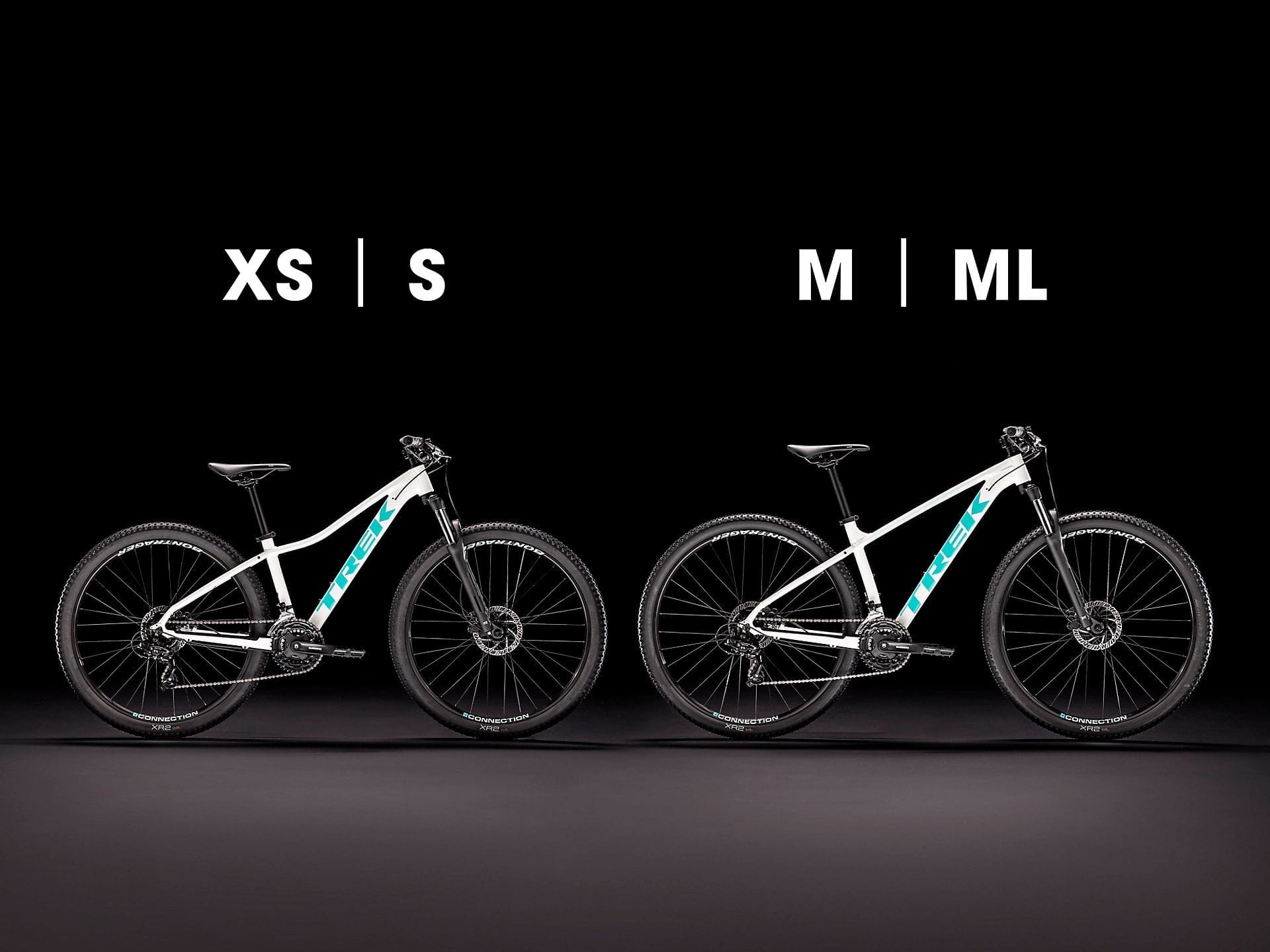

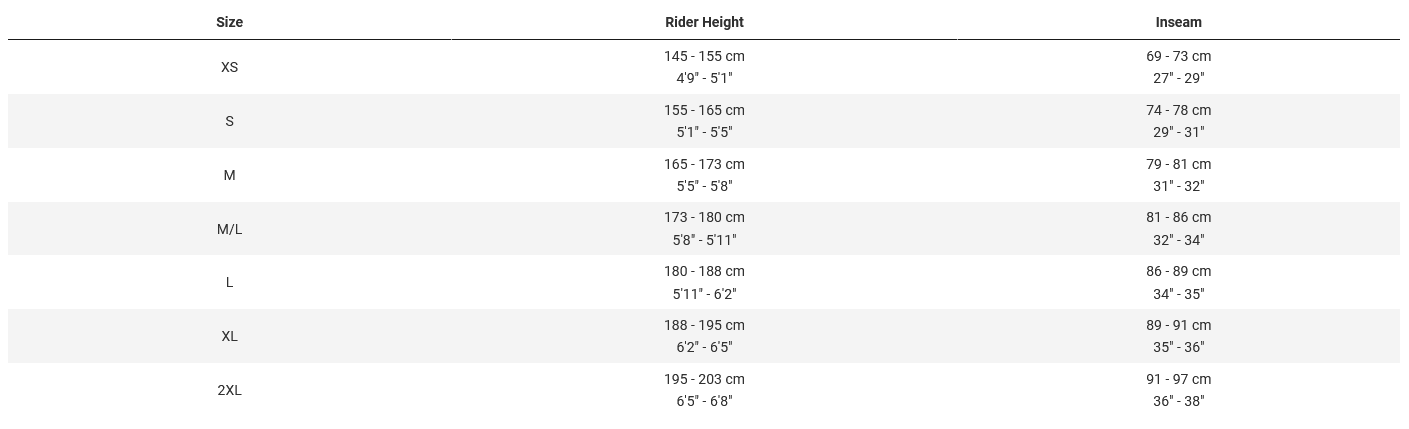

- Marlin models in XXS, XS and S frame sizes have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount.
- The Marlin 4 is a Leisure Bike MTB Styled if you are looking for a more serious off road specification consider Marlin 6 or above
- Frame: Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR
- Rear Shock (If Applicable): N/A

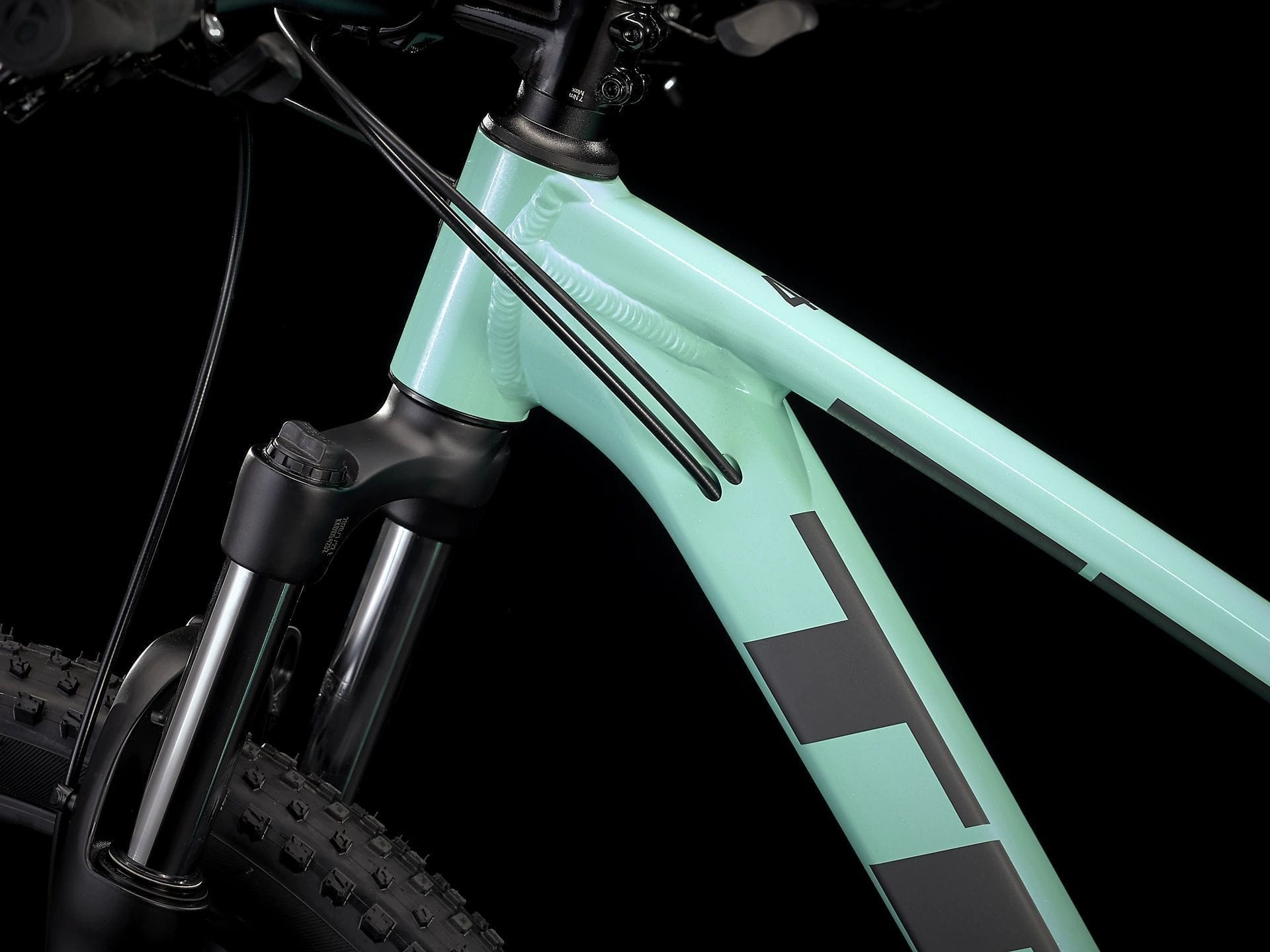

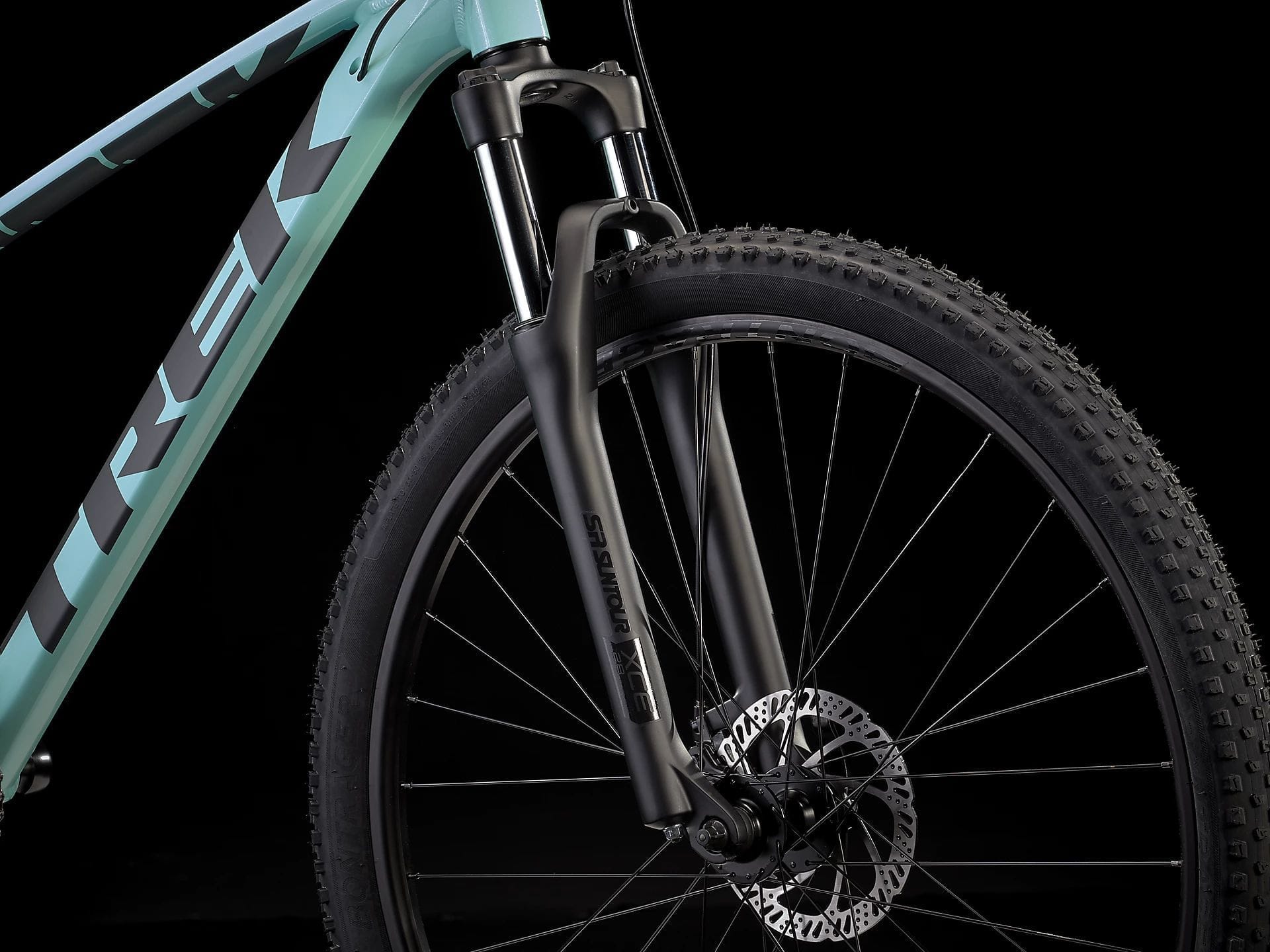

- Fork: SR Suntour XCE 28, coil spring, preload, 80 or 100 mm travel, depensing on wheel size
- Number of Gears: 21
- Gear Shifters: Shimano Altus EF500, 7-speed

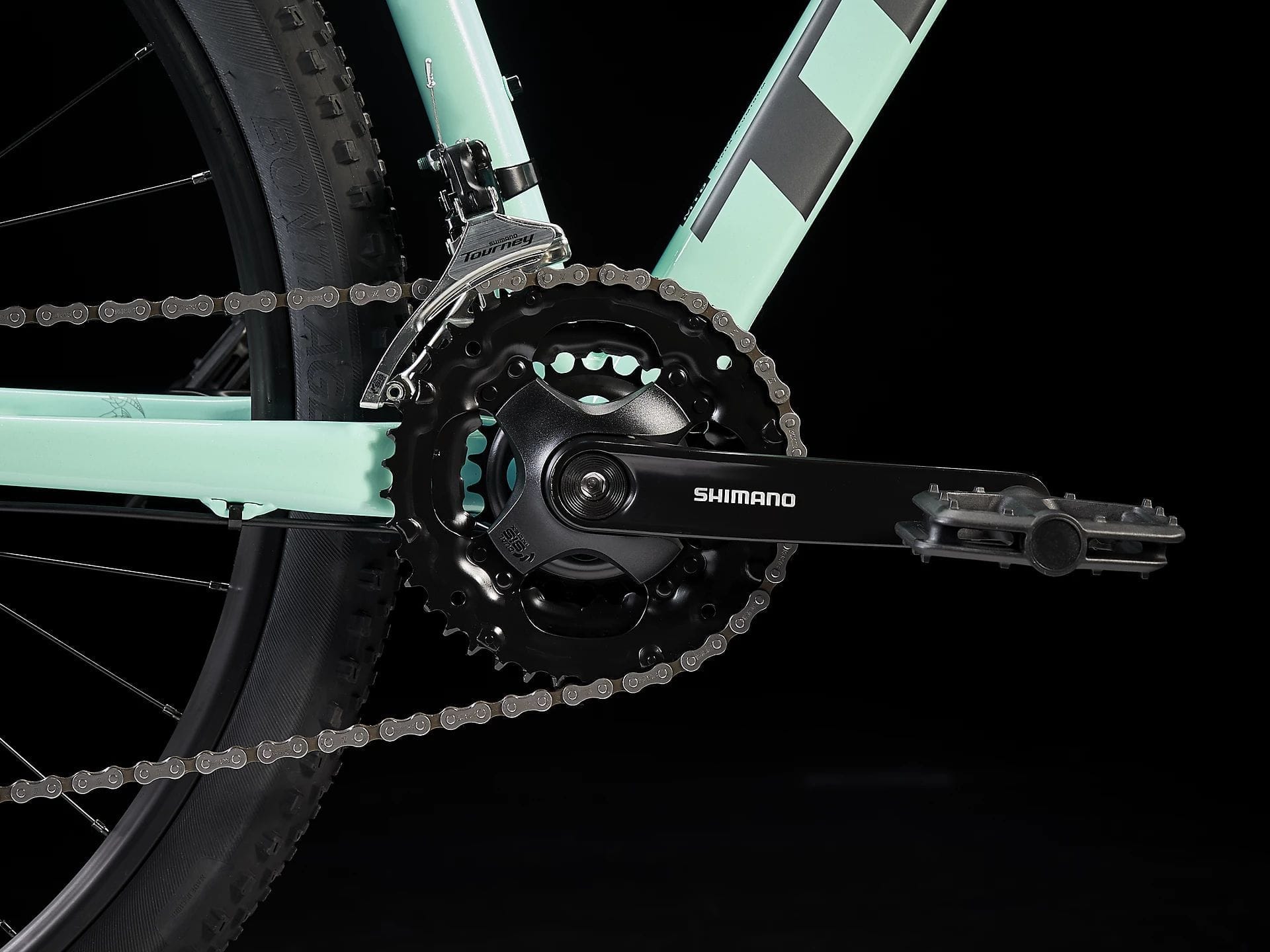

- Chainset: Shimano Tourney TY301
- Chainrings: 42/34/24
- Rear Cassette: Shimano TZ500, 14-28, 7-speed
- Chain: KMC Z7, 7-speed
- Front Derailleur: Shimano Tourney TY300, 34.9 mm clamp, down swing, down pull

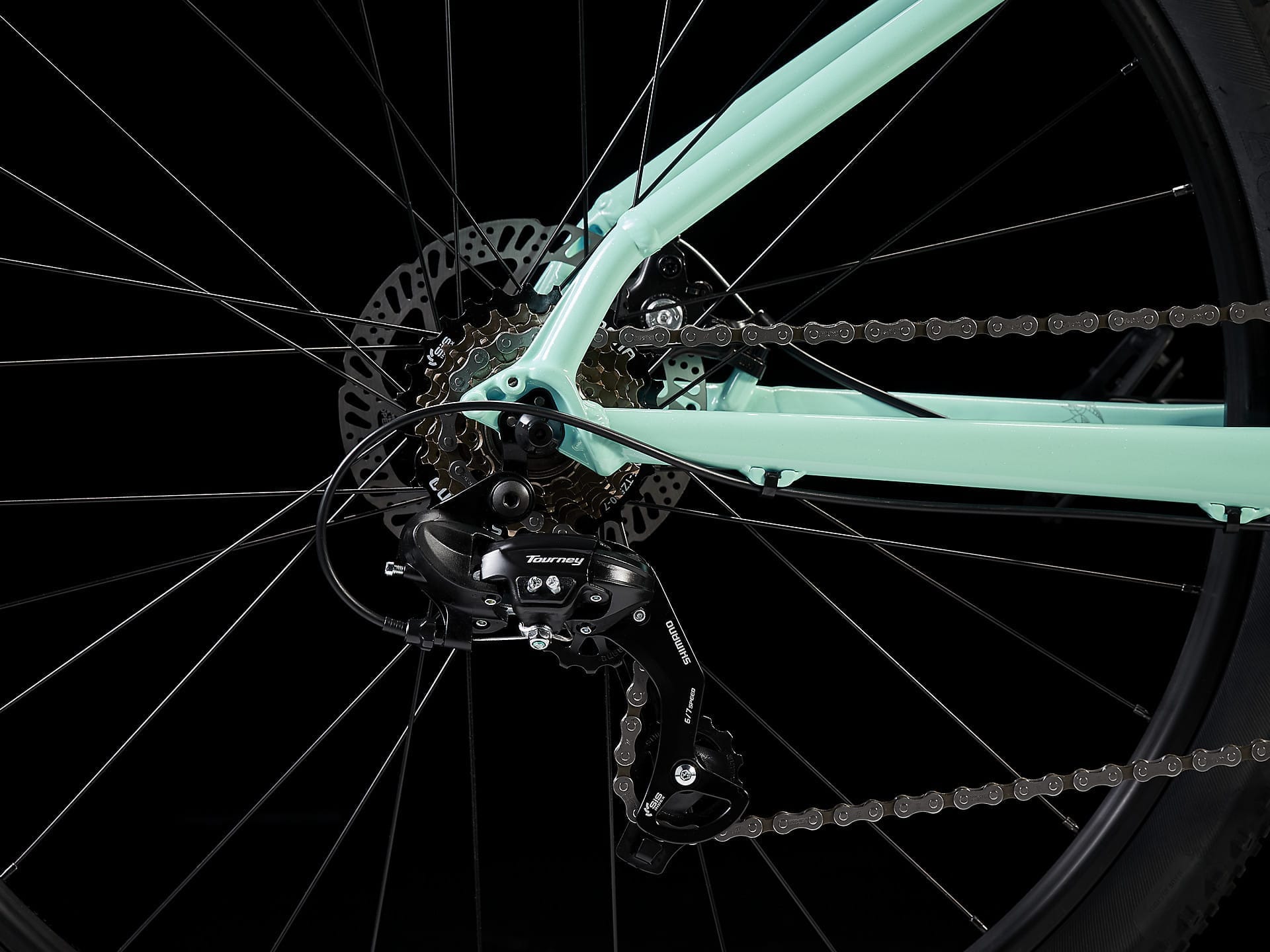

- Rear Derailleur: Shimano Tourney TY300, long cage, 34T max cog
- Bottom Bracket: VP BC73, 73 mm, threaded cartridge
- Pedals: VP-536 nylon platform
- Rims: Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
- Front Hub: Formula DC-20, alloy, 6-bolt, 5x100 mm QR
- Rear Hub: Formula DC-27, alloy, 6-bolt, 7sp freehub, 135x5 mm QR

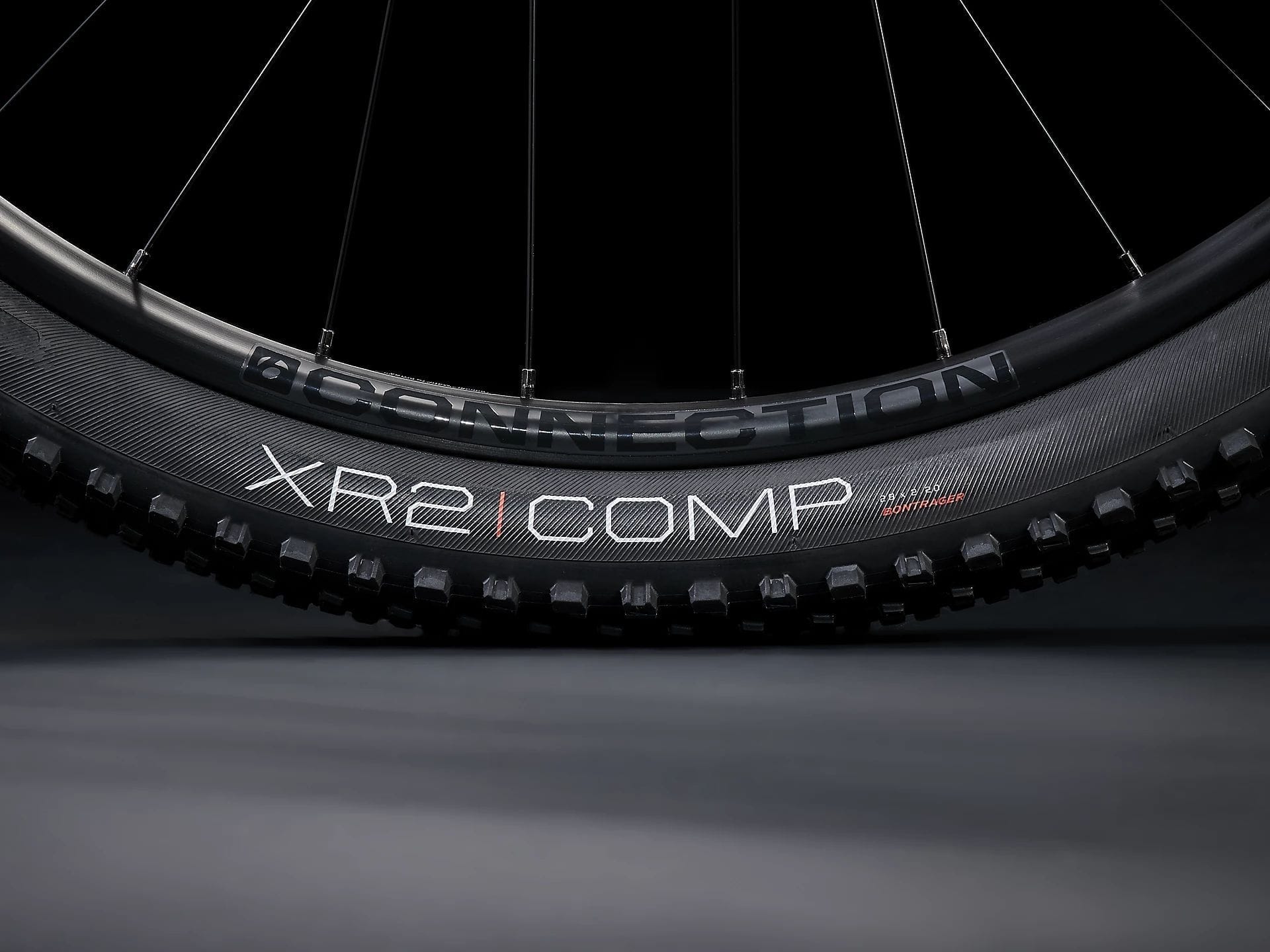

- Front Tyre: Bontrager XR2 Comp Size XS, S 27.5x2.2", Sizes M, ML, L, XL, XXL 29x2.2"
- Rear Tyre: Bontrager XR2 Comp Size XS, S 27.5x2.2", Sizes M, ML, L, XL, XXL 29x2.2"

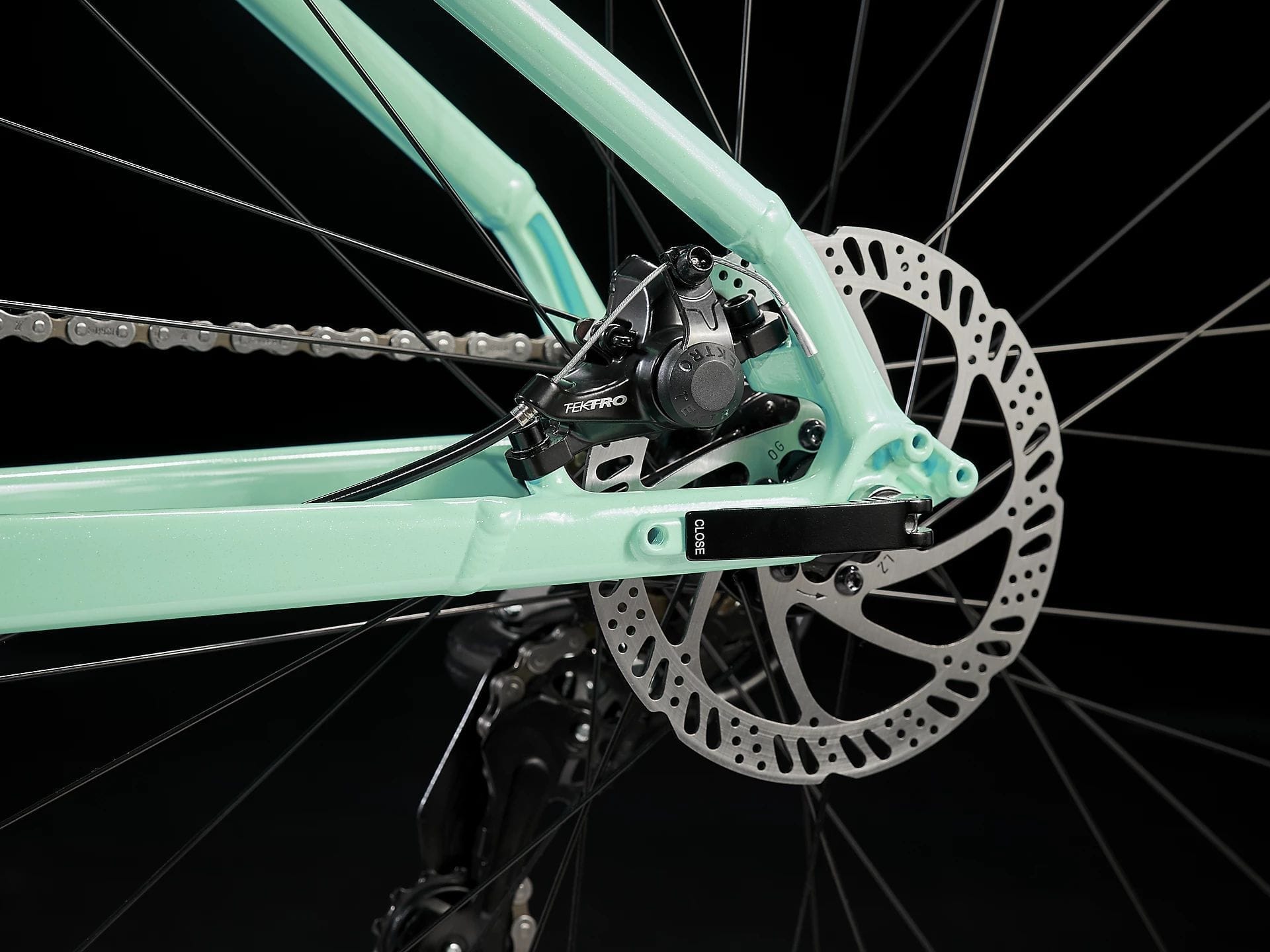

- Brakes: Tektro Mechanical disc

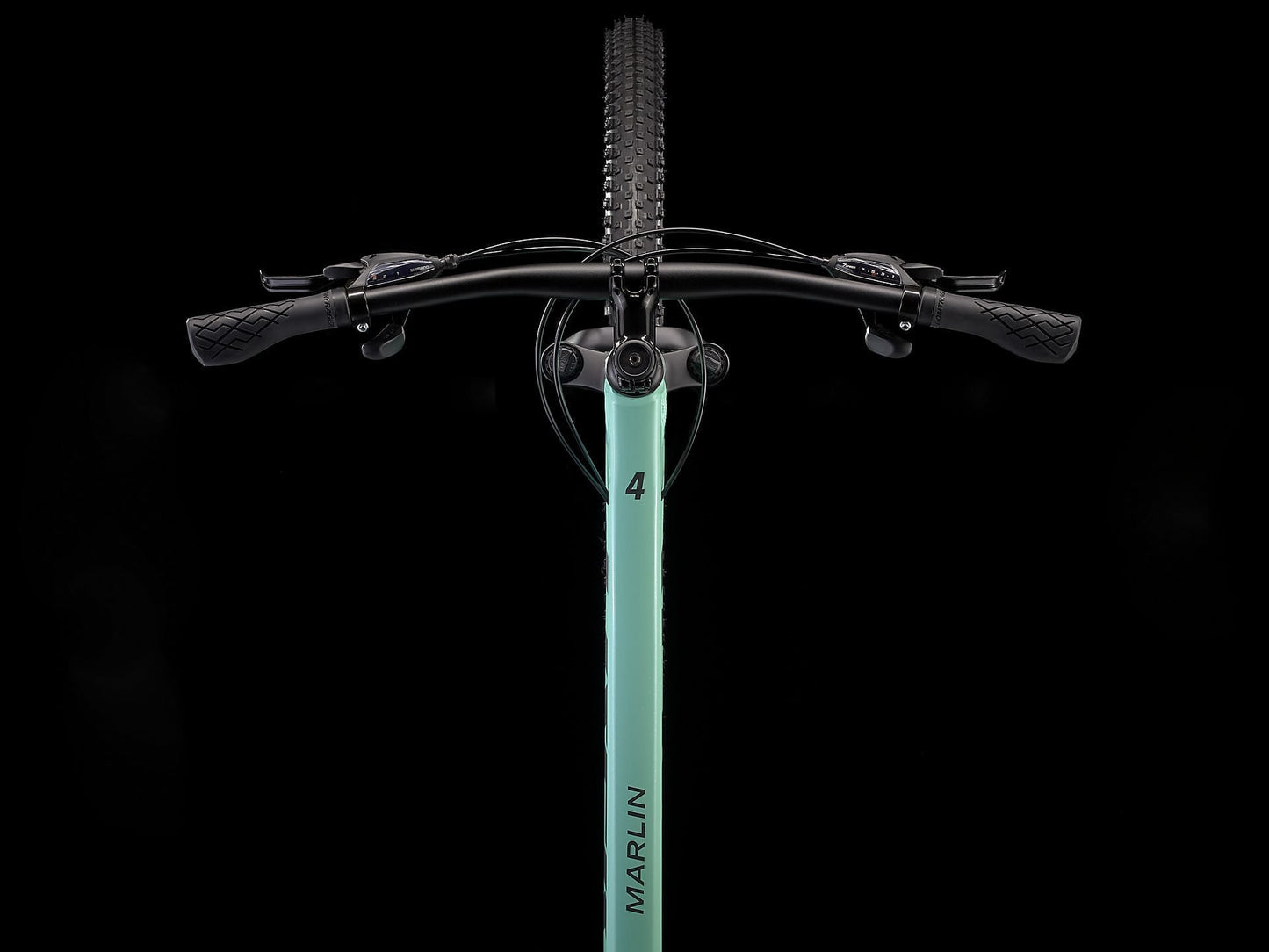

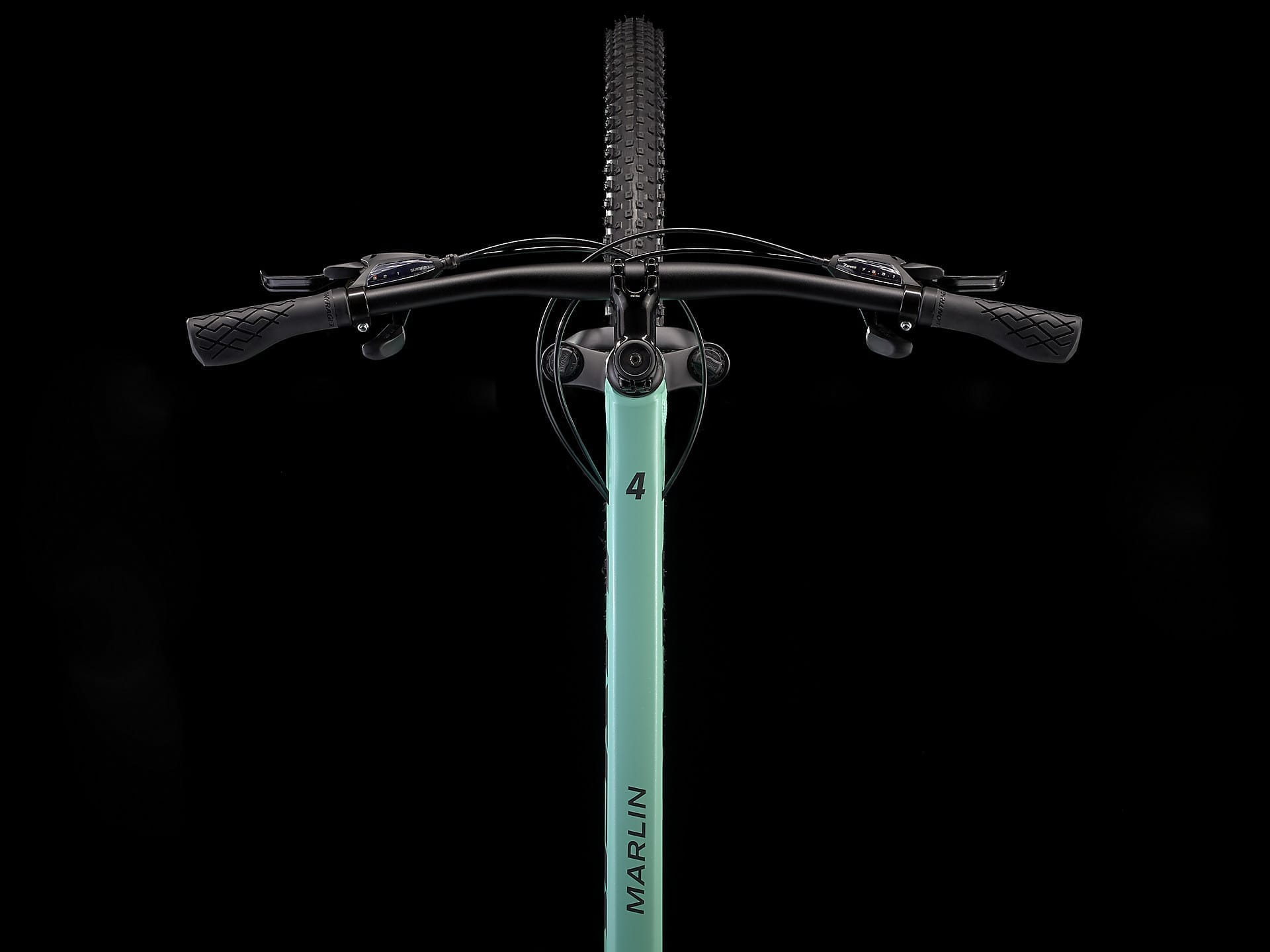

- Handlebars: Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
- Handlebar Grips: Bontrager XR Endurance Comp
- Headset: Semi-integrated, 1-1/8"
- Stem: Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree

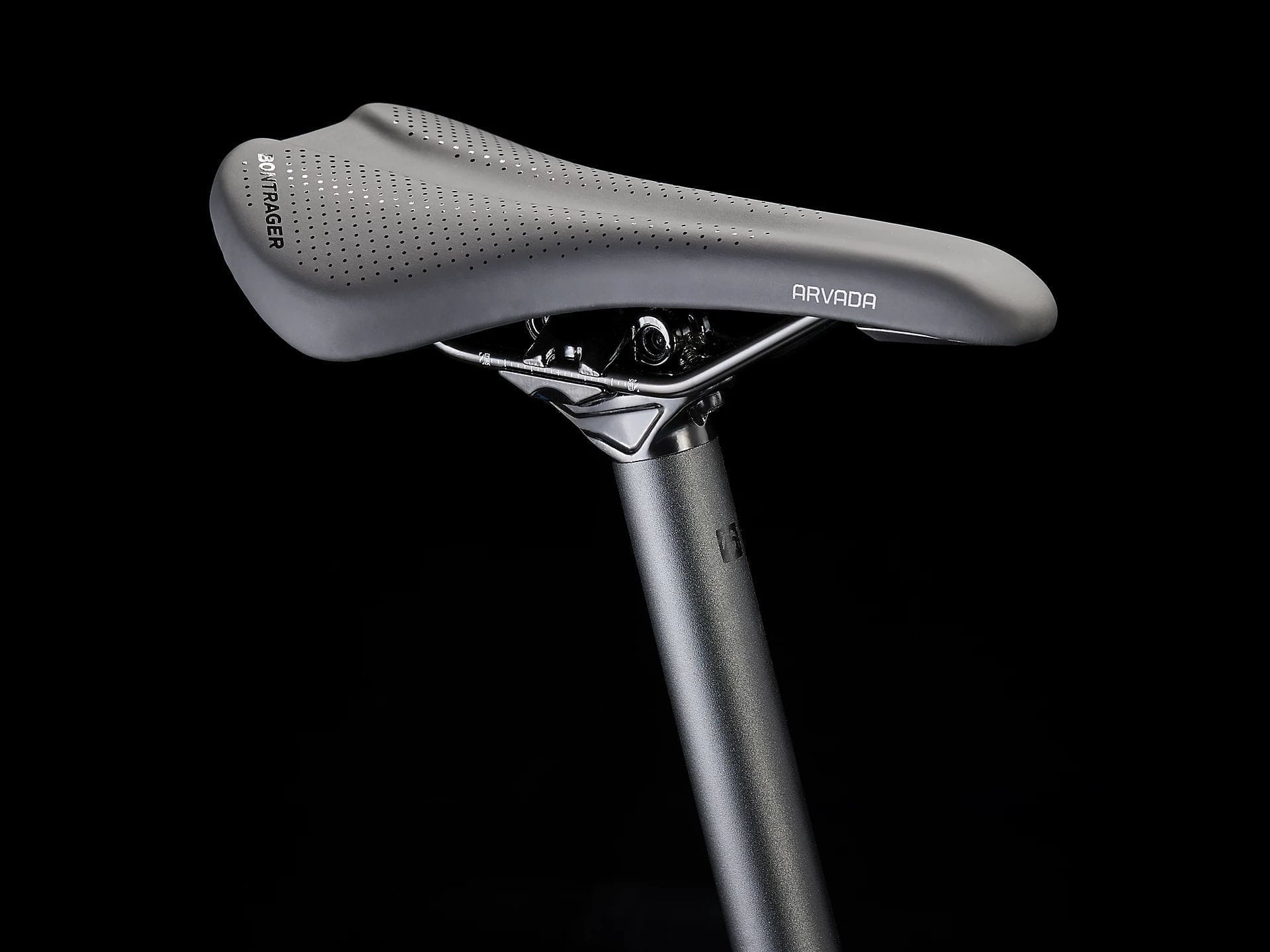

- Saddle: Bontrager Arvada, steel rails, 138 mm width
- Seatpost: Bontrager alloy, 31.6 mm, 12 mm offset
- Accessories: N/A
- Weight: M - 13.98 kg / 30.82 lb
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
How to Build Your Bike
How to Build Your Bike
Aftercare
Aftercare
After the first few weeks of use, the whole bike will settle down. As a result, the gears may need tweaking, some nuts and bolts may need tightening and you may well need to check the adjustment of the saddle and handlebars.
CABLE STRETCH
Gears
Cable stretch tends to occur shortly after a new bike has been ridden a few times. A rear derailleur that we have tuned to hit every gear, nicely and quietly, may now not be making each shift causing a sensation and sound of “being in between gears”. Generally you may have to shift up, or shift down a couple times to quiet it down and settle the derailleur into a “happy gear”. A front derailleur may no longer want to shift all the way onto the big ring or will require a much firmer push to get it there. It is advisable to get the cable tension adjusted as soon as this happens either by your local bike shop. This tune up is considered a necessary part of any bicycles maintenance schedule and as such should not be ignored.
Brakes
Your brakes will also be affected by cable stretch (provided of course that they are NOT hydraulic in which case this does not apply). The symptom here is that they usually start to feel quite loose. i.e. you have to pull the lever much further back or harder in order to get the same stopping power you once had. This is partly why new bikes come with a first free service. If your brakes start feeling a little spongy after a few weeks, you can adjust them at the barrel or the clamp or ask a mechanic at your local bike shop to do it for you.
DISC BRAKES
New disc brakes won’t deliver their full power until the rotor and pads have bedded in. SRAM has a really good guide for bedding in disc brakes: “Accelerate the bike to a moderate speed and then firmly applying the brakes until you are at walking speed. Repeat this process 20 times. Then accelerate the bike to a faster speed and apply the brakes until you are at walking speed. Repeat this process ten times. It’s important that during this process you never come to a complete stop or lock up the wheels at any point.” Doing this process should drastically improve the performance of your brakes and prepare them for many happy rides.
CRANKS
Check the cranks and crank bolts or nut for tightness; grab a crank arm in each hand and try to wiggle them to check for looseness. If there is play in the cranks, the nuts or bolts may need to be tightened. Cranks should be checked after every ride for the first week.
HEADSET
A loose headset can be diagnosed by turning the front wheel to point left or right, holding the front brake on, and then rocking the bike backwards and forwards. Hold your fingers between the stem and the frame. Any movement indicates that you need to tighten the headset.
SADDLE
Check your seat post is not loose and that you have not exceeded the limit marked on the seat post. Once you have checked these, use an allen key to tighten the seat post clamp. Check the seat is secure by giving it another check once you have finished.
STEM
Check that your front wheel and stem do not move independently, and that your handlebar clamp bolts are tight. Perform this check by standing in front of the bike, holding the front wheel between your knees, and twisting the handlebars. You can prevent any movement by tightening the stem bolts and the handlebar clamp with an allen key.
SUSPENSION FORKS
Keeping your mountain bike’s suspension maintained is one of the best ways to ensure you’re getting all the performance you can out of your bike. Plus, giving your fork and shock a few seconds of attention here and there can prevent costly repairs or even replacements.
Dirt is the number one enemy of suspension. After every ride make sure to wipe the seal area and stanchions of your fork and shock. Wipe in a horizontal motion, not vertical as you don’t want to force any debris towards the seals.
Every few rides double check that your suspension sag is correct, as well as your rebound and compression adjustments. If something has changed, or the adjustments aren’t working as before, some maintenance is likely due.
Working on your bike at home can seem daunting, and we'd always recommend you take your bike to a qualified mechanic if possible.
