TREK CHECKPOINT ALR 5 GRAVEL BIKE 2025 - LAVA
Skip to product information
1 of 10

Product Details

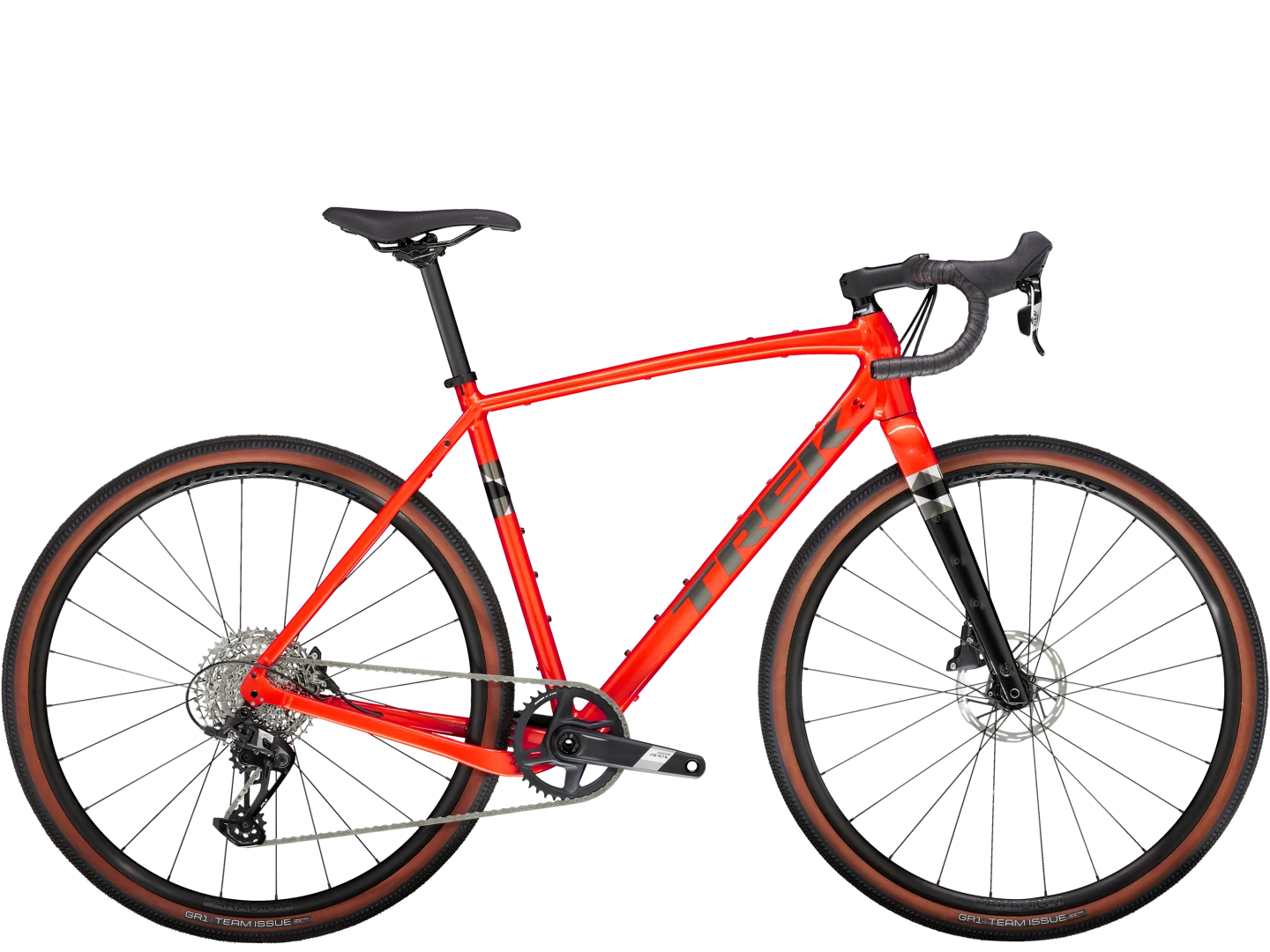

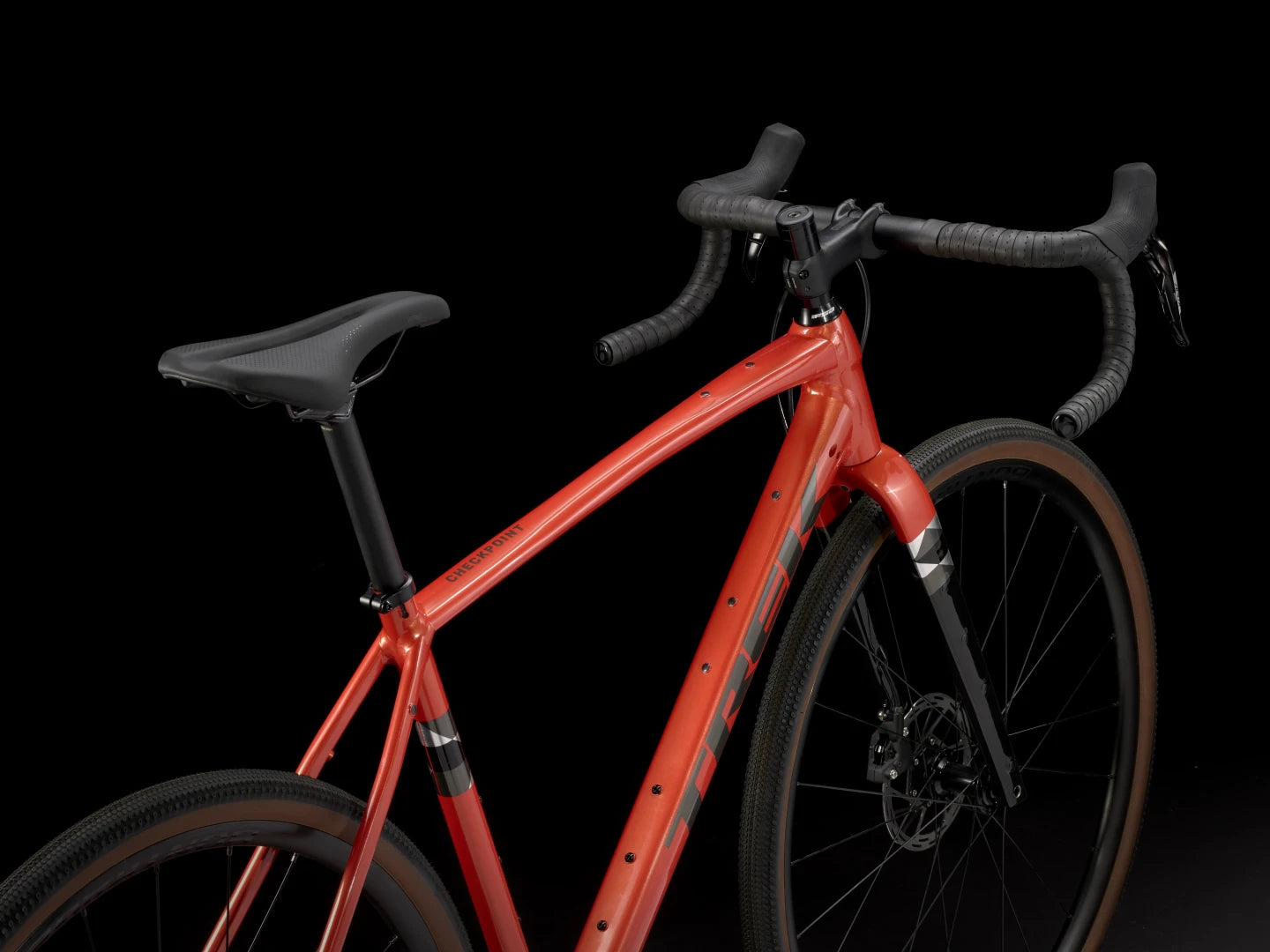

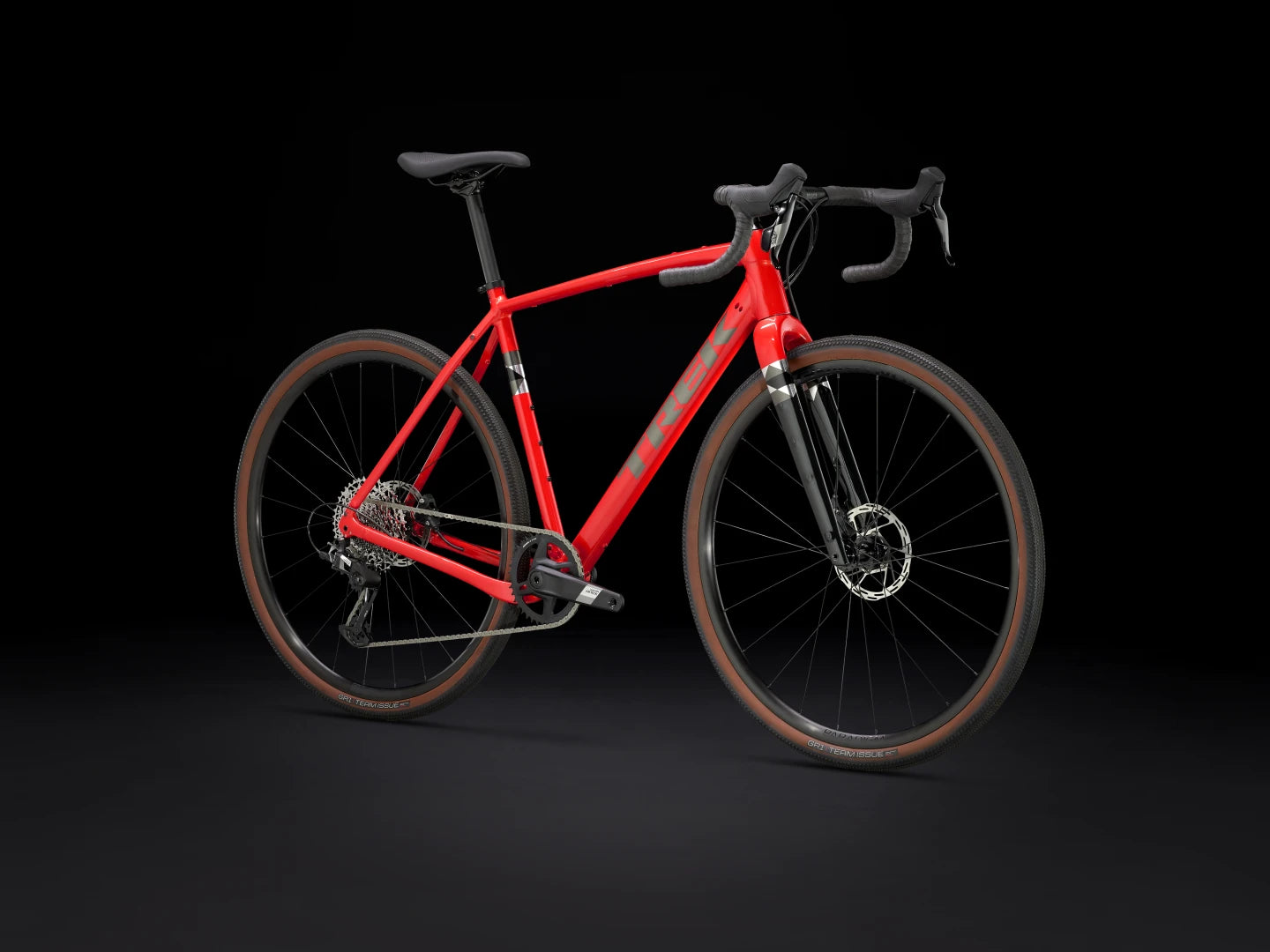

The Checkpoint ALR 5 is a high-value alloy gravel bike that's kitted out with quality parts for long, rugged, miles on anything from chunky gravel to smooth road surfaces. A wealth of features like nimble yet stable progressive geometry, loads of mounts for epic bikepacking adventures, plus a SRAM Apex 1x12-speed drivetrain makes customising for any adventure easy.

Key Features

  • Hydraulic Disc Brakes: Accurate and powerful braking capacity to keep you in control in all weather conditions.
  • Integrated Mounts: Allow for frame bags, rack and mudguard mounts to make it easy to carry gear and water
  • SRAM Apex 12 speed: Reliable, with a wide range of gears for all-terrain – even the biggest of hills.
Full Specification
  • Frame: 300 Series Alpha Aluminum, tapered head tube, Internal cable routing, 3S chain keeper, T47 BB, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle

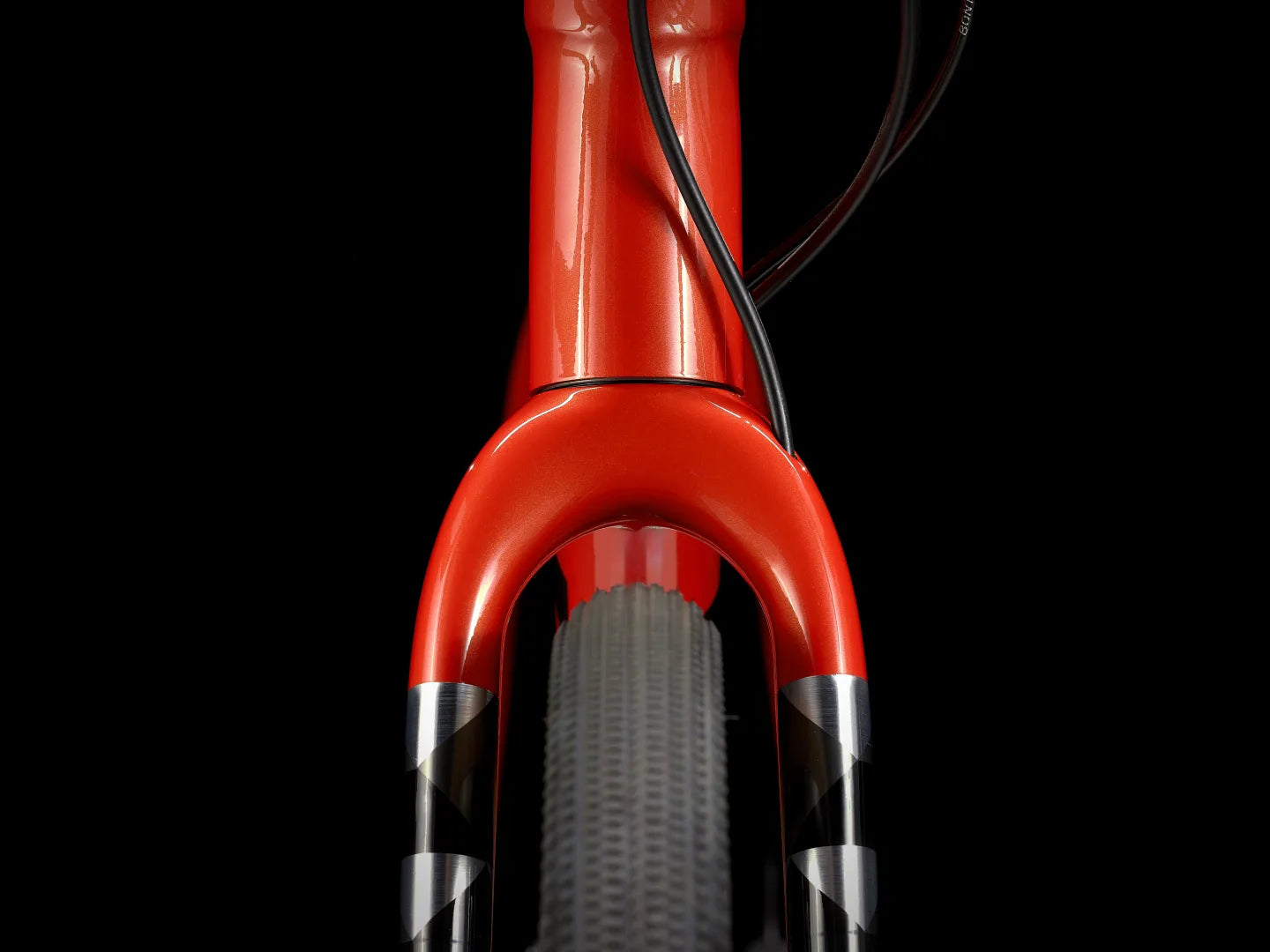

  • Fork: Checkpoint, carbon legs, tapered alloy steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle
  • Gear Shifters: SRAM Apex, 12-speed

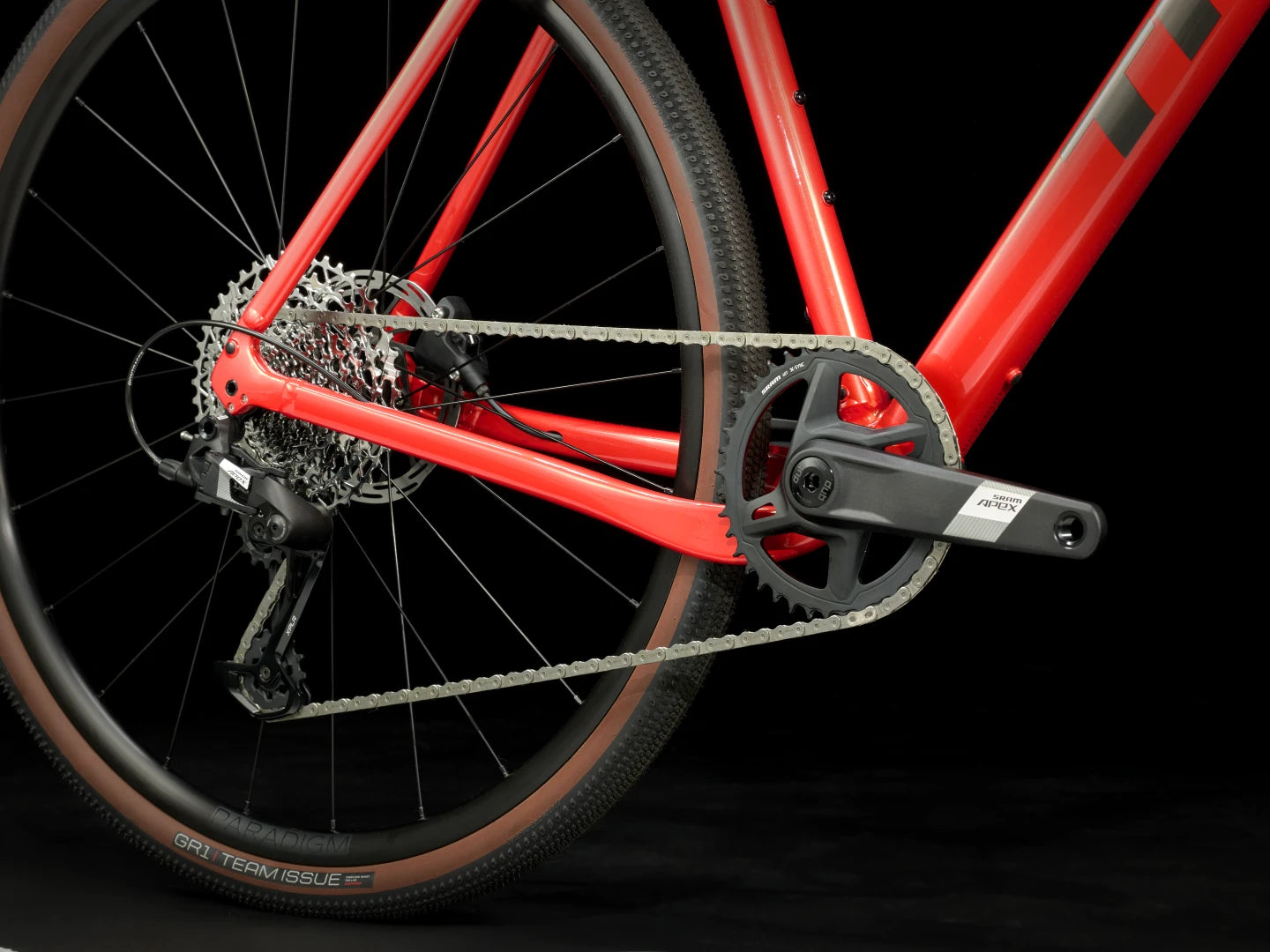

  • Chainset: SRAM Apex 1, 40T, DUB Wide, 165 - 175 mm length

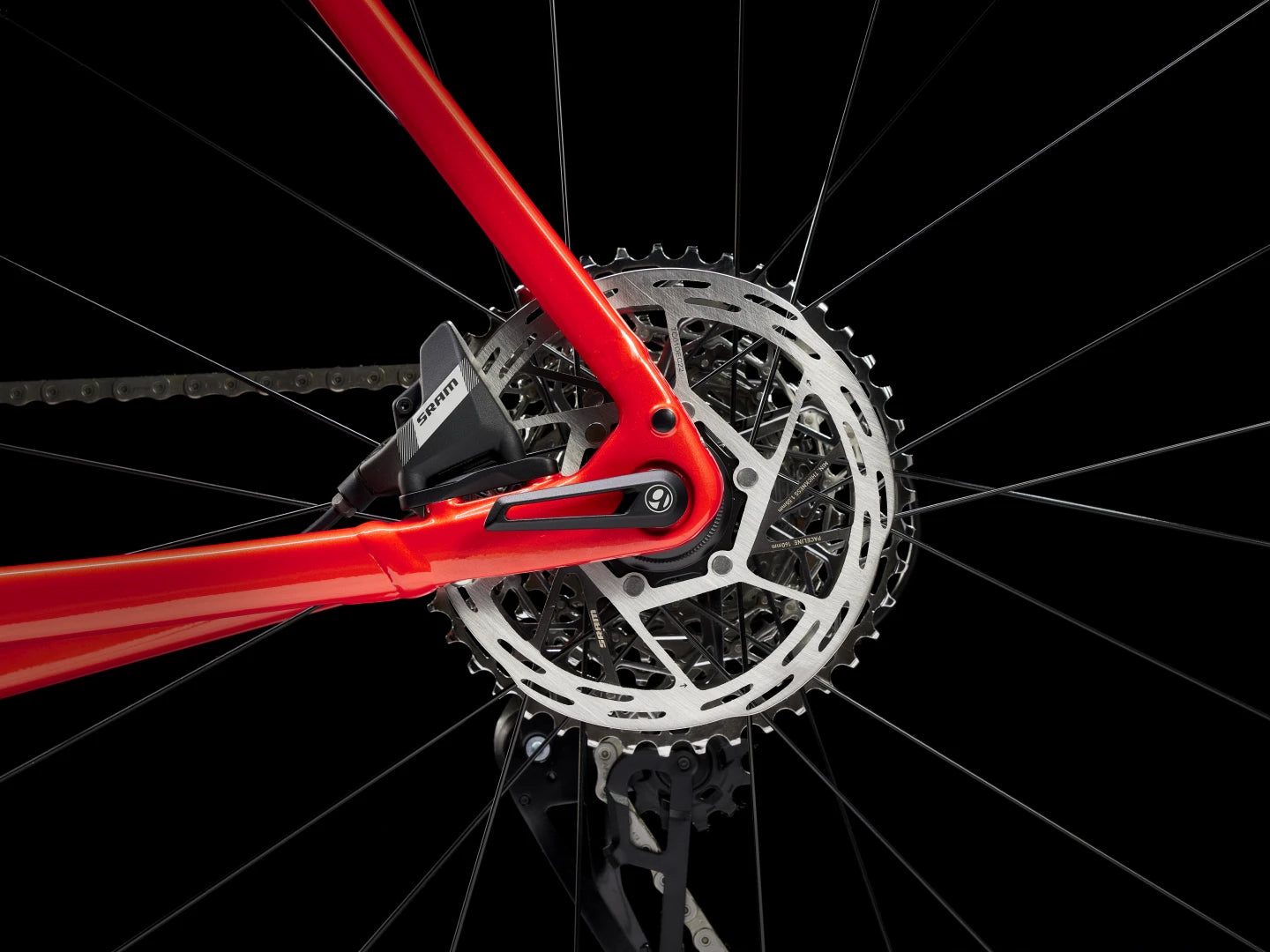

  • Rear Cassette: SRAM XG-1230, 11-44, 12-speed
  • Chain: SRAM Apex, 12-speed
  • Front Derailleur: N/A
  • Rear Derailleur: SRAM Apex XPLR, 44T max cog
  • Bottom Bracket: SRAM DUB, T47 threaded, internal bearing
  • Pedals: Not supplied
  • Rims: Bontrager Paradigm, Tubeless Ready, 24-hole, 21 mm width, Presta valve
  • Front Hub: Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
  • Rear Hub: Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
  • Tyres: Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 c

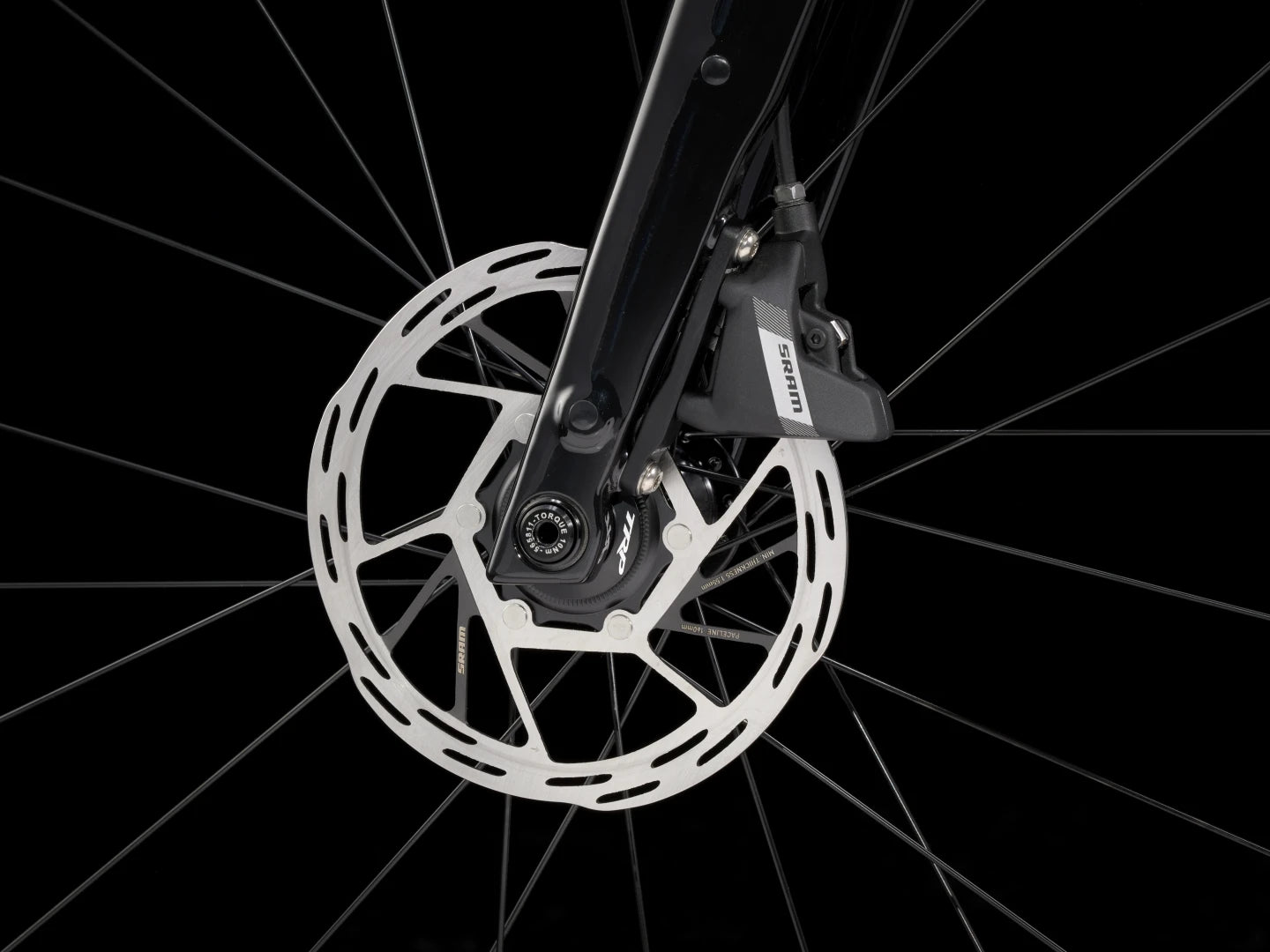

  • Brakes: SRAM Apex hydraulic disc, flat mount

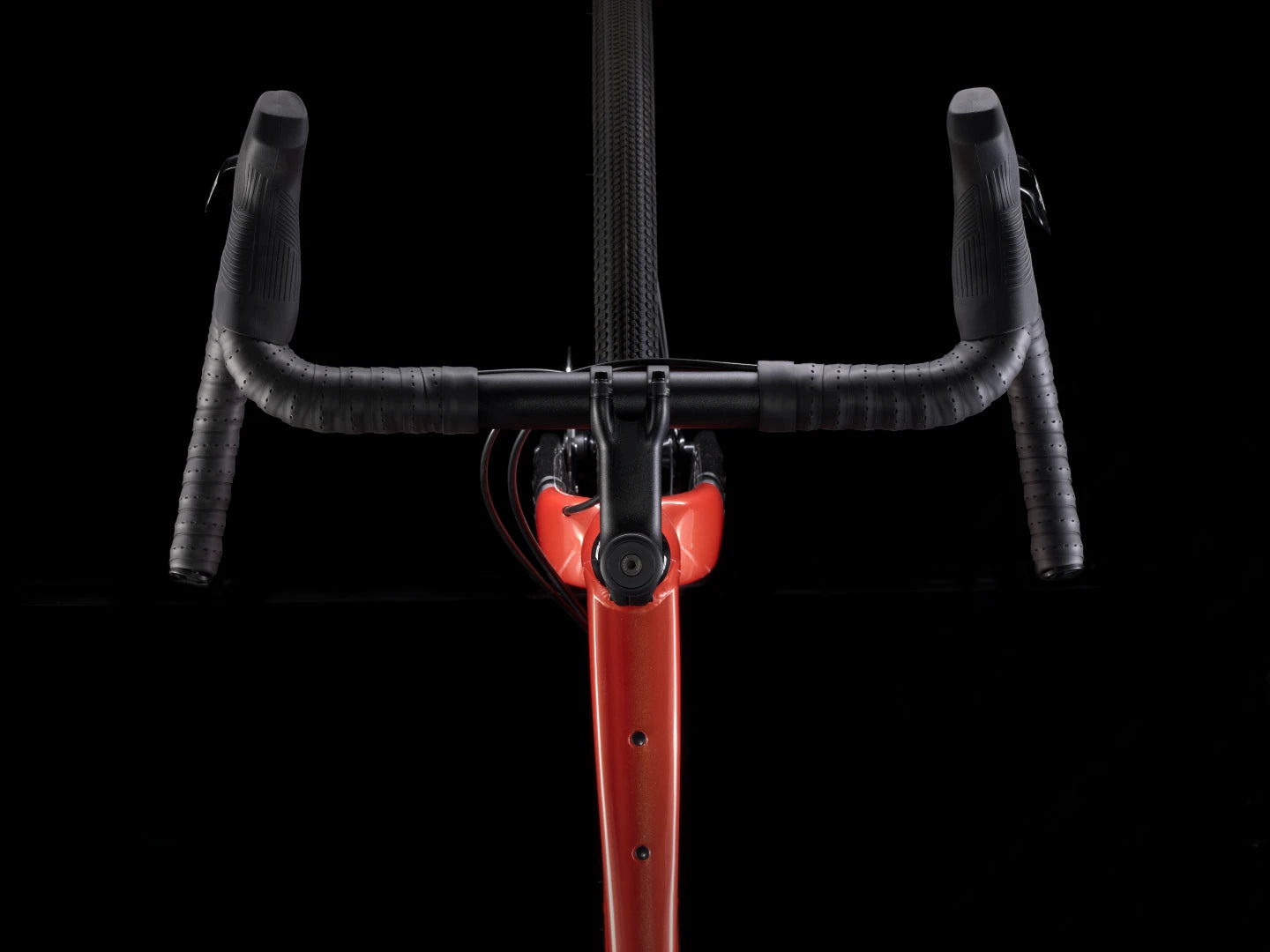

  • Handlebars: Bontrager Elite Gravel
  • Handlebar Grips: Bontrager Supertack Perf tape

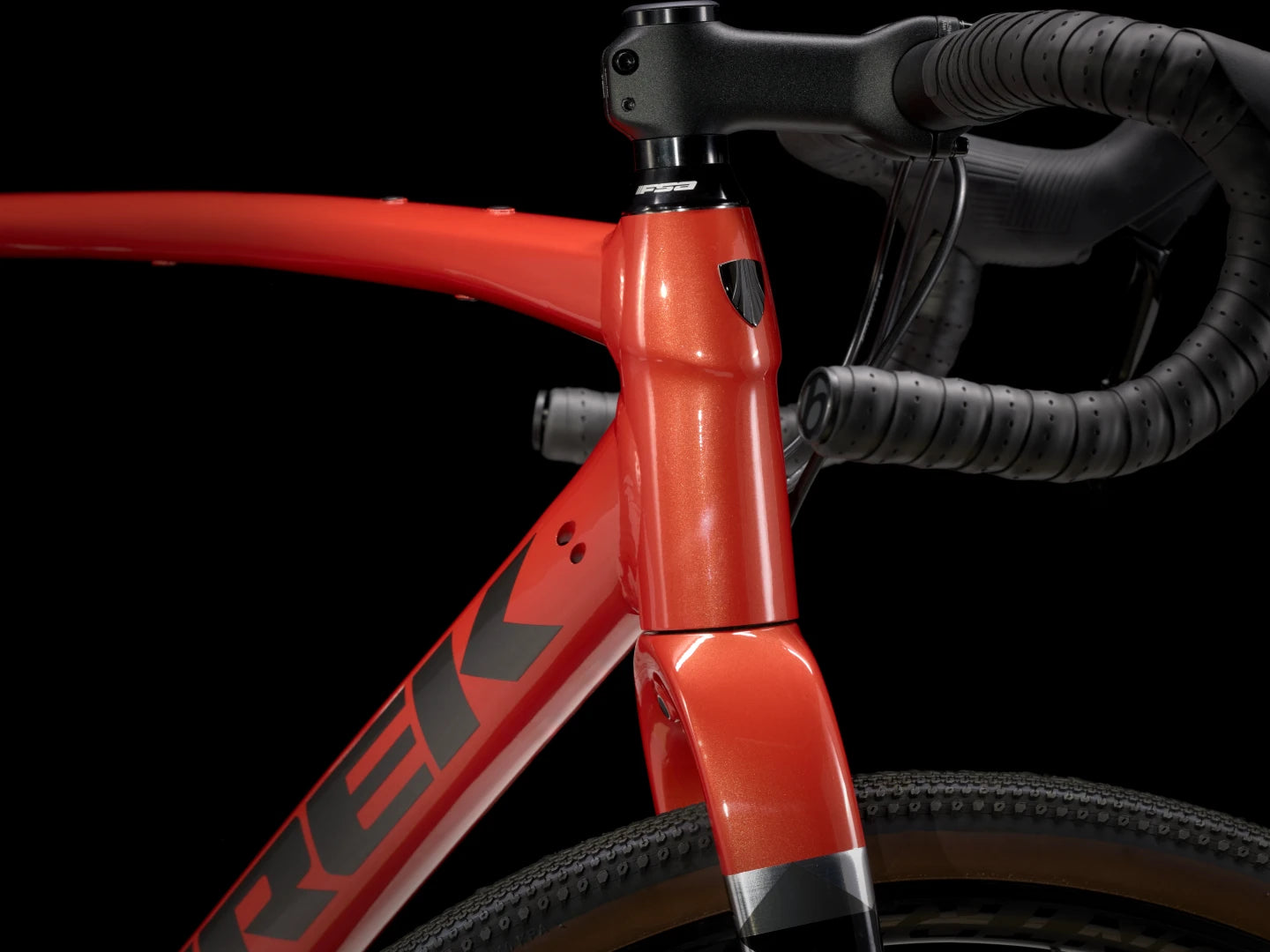

  • Headset: FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
  • Stem: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree
  • Saddle: Bontrager Verse Comp, steel rails
  • Seatpost: Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
  • Weight: N/A

 We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.




How to Build Your Bike

Aftercare





TREK CHECKPOINT ALR 5 GRAVEL BIKE 2025 - LAVA

Regular price £2,350.00
Regular price Was £2,350.00 Sale price £2,350.00

SKU: 5304201

EPOS Code:


Size
Est. Dispatch
Delivery From £18.99
Simple Returns
Built With Care
View full details
