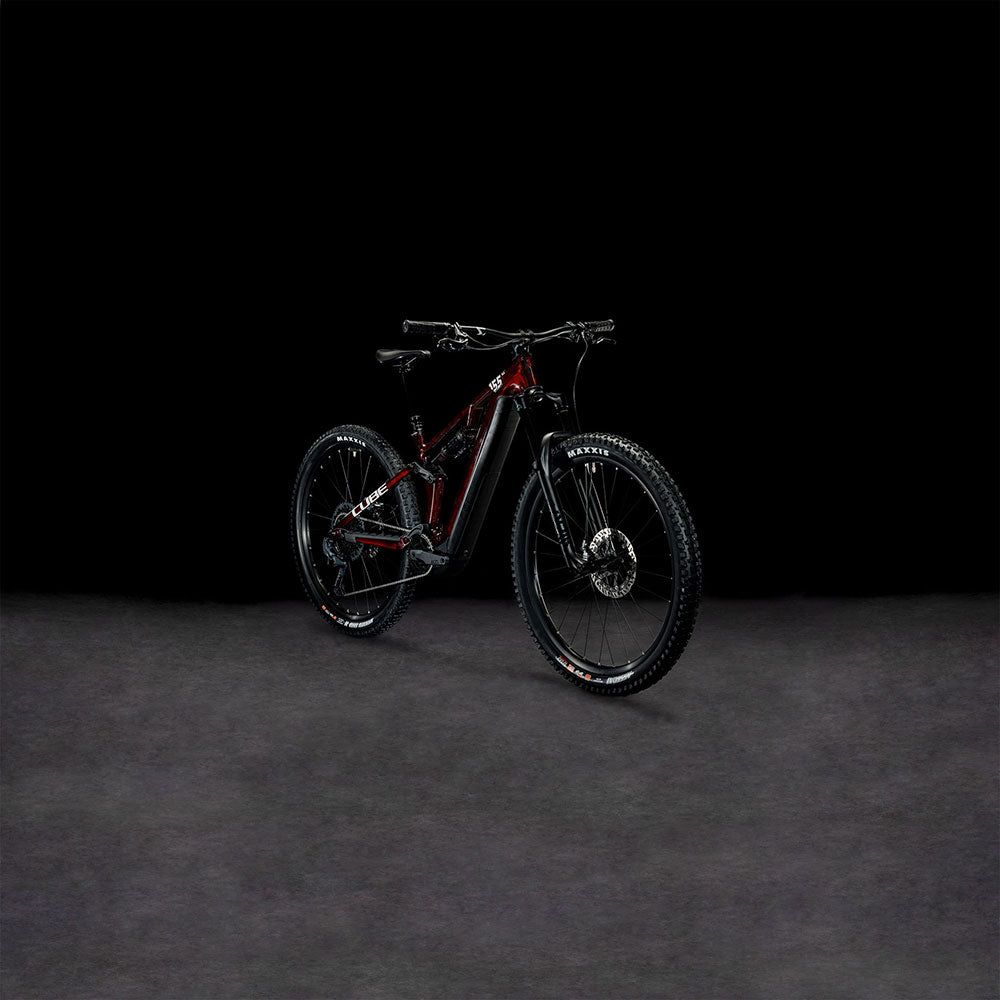

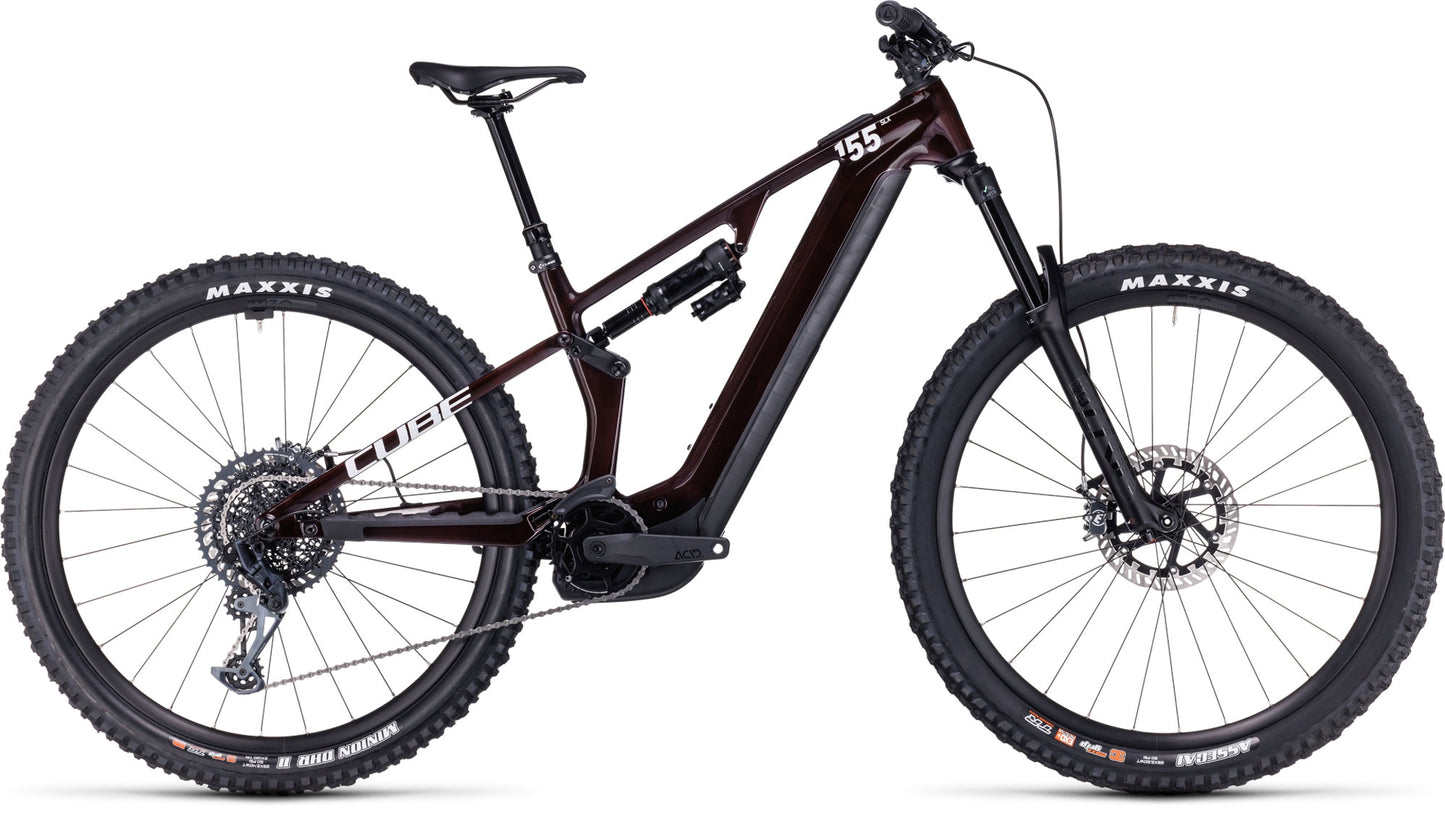

CUBE STEREO HYBRID ONE55 C:68X SLX 750 29 e-MTB BIKE 2024 - LIQUIDRED 'N' CARBON
Skip to product information
1 of 9

Product Details


eBikes by their very nature can require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.

Your eBike will be delivered built, set up and updated in two boxes.

Minimum personal assembly is required.

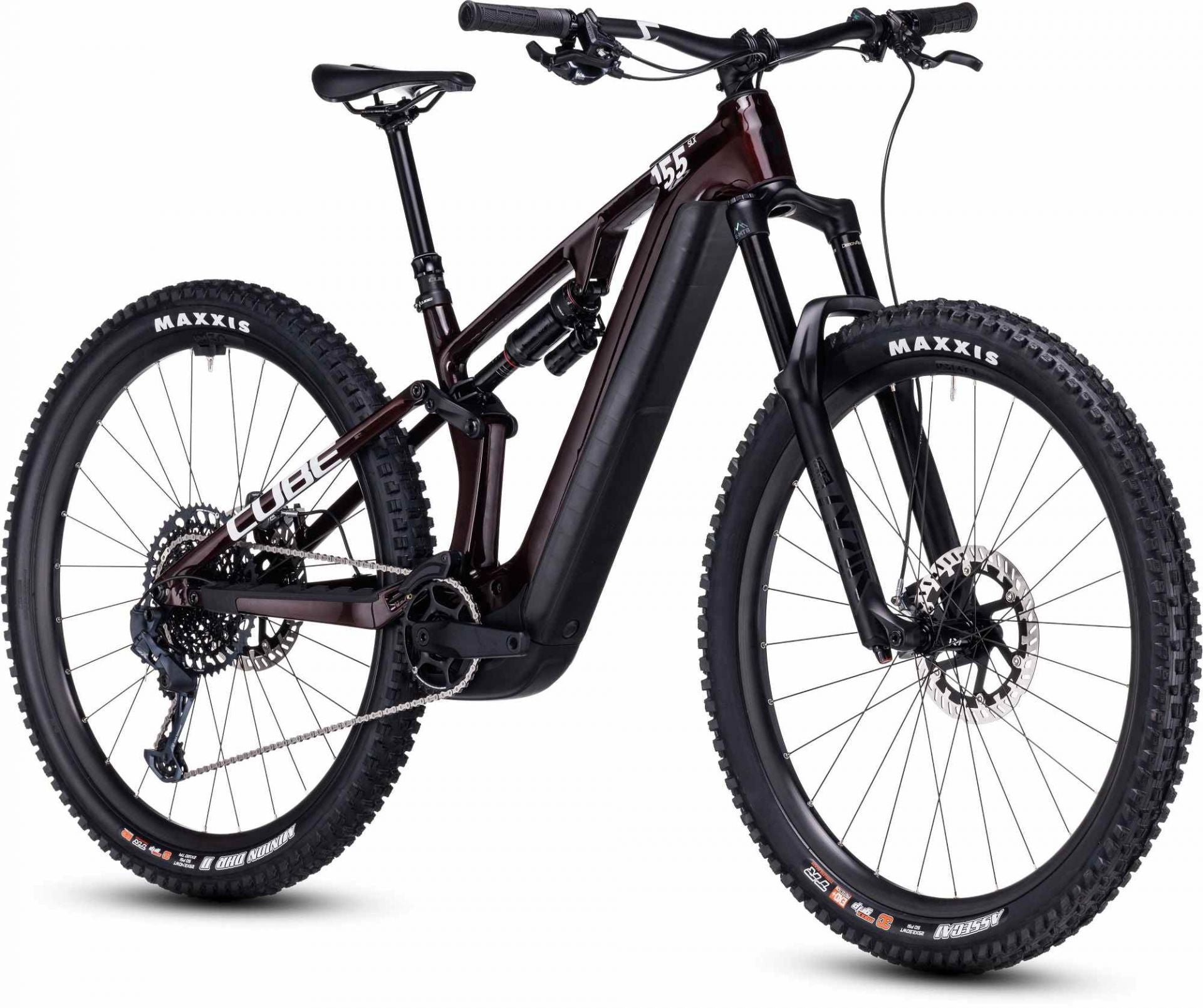

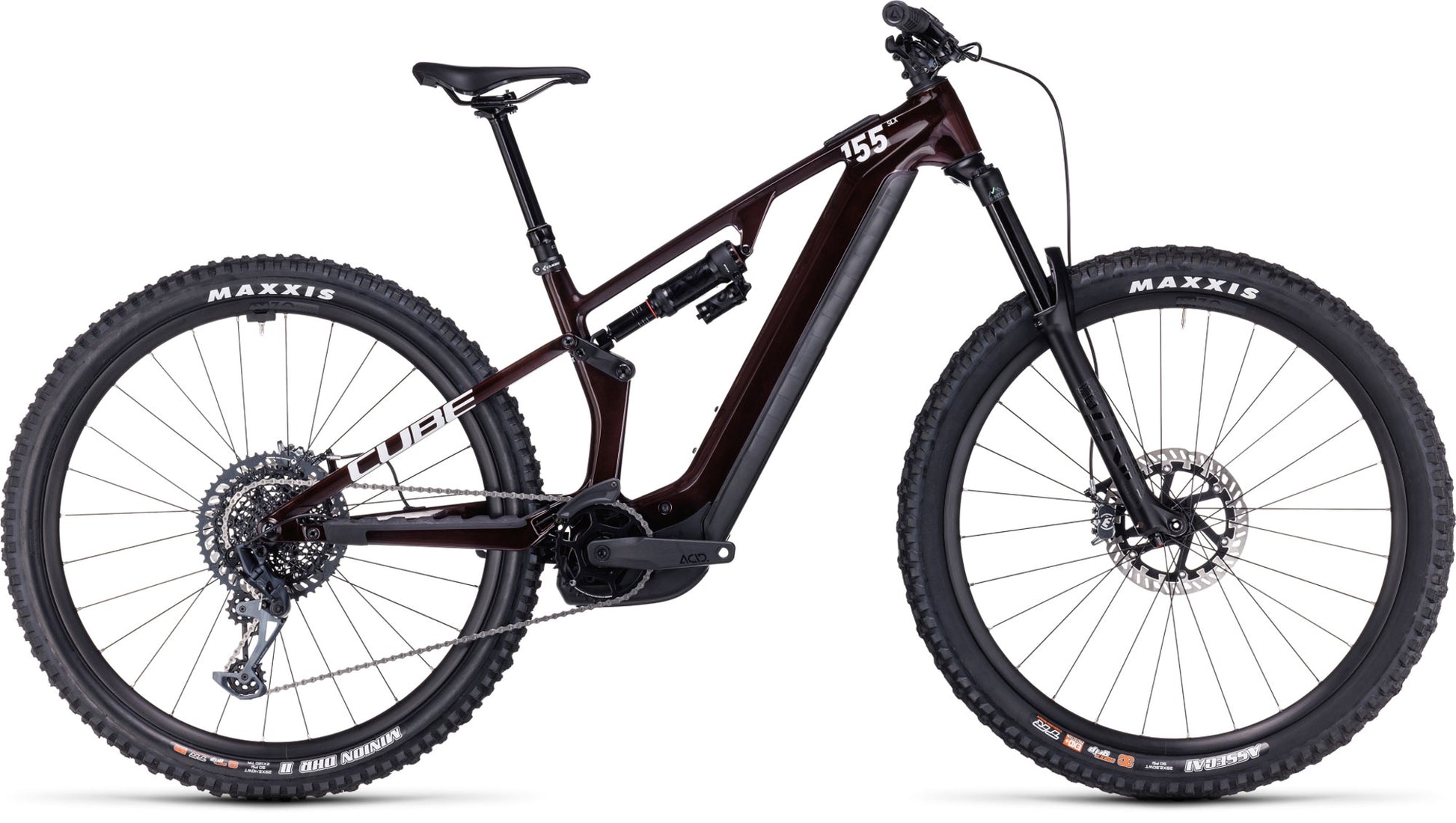

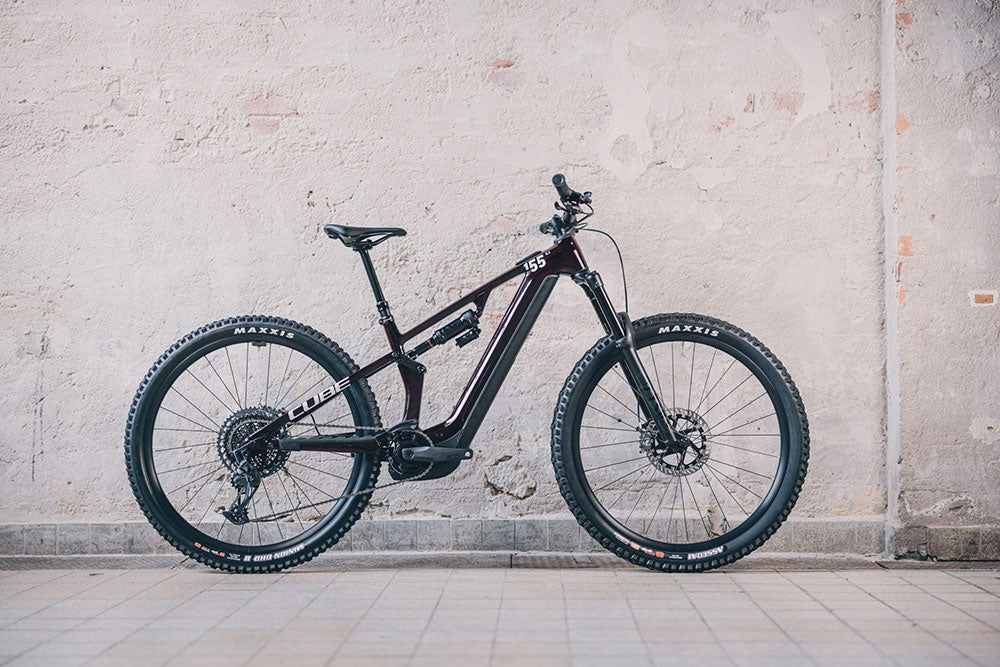

Less weight, more speed, more ability: that's the idea behind the new CUBE Stereo Hybrid ONE55 C:68X SLX 750 29. Using the most advanced C:68X® carbon frame-building techniques and borrowing from the experience building ultra-capable enduro race bikes, it's got the power to move (over) mountains.


Open 360° view


Faster, lighter, more capable: the Stereo Hybrid ONE55 C:68X SLX 750 29 blends the mountain-taming capability of a downhill-oriented machine with the speed and agility of the lightest-ever carbon hybrid intube full-suspension frame to create a versatile all-rounder. With up to 85Nm of torque from the proven fourth-generation Bosch CX drive, a 750Wh battery and intuitive control from the built-in controller and optional remote, it's got the power to take on any trail. Up front there's a 160mm RockShox Lyrik Select+ fork, and we fitted a Super Deluxe Select+ shock at the rear for 150mm of progressive travel. Fast-rolling Newmen Performance wheels are shod with Maxxis Assegai 2.5in and Minion DHR II 2.4in tyres and brought to a halt with Magura's powerful four-piston hydraulic disc brakes and oversize rotors at both ends. And Sram GX Eagle 1x12 gears get your power to the trail, for miles of effortless shifting. It's ready. Are you?


Please note that pedals are not included!

Key Features:

  • 250W Bosch Motor: Most reliable pedal-assist motor in e-bike industry, capable of sustaining speeds up to 25 km/h
  • Hydraulic Disc Brakes: Reliable braking performance to keep you in control, whatever the weather.
  • 12 SRAM Gears: Wide range of gears suitable for a range of terrain, with the simplicity of a single shifter.
Full Specification:

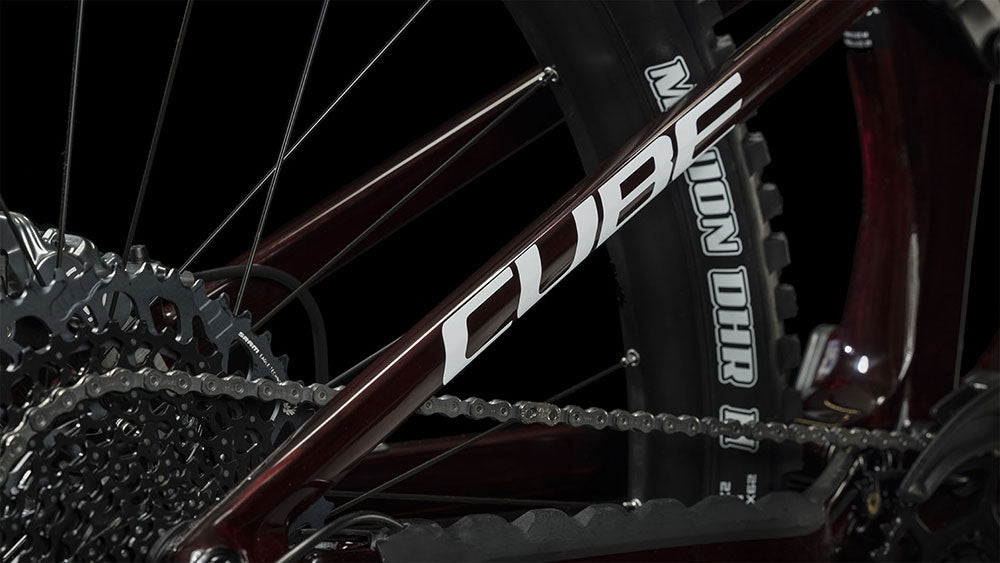

  • Frame: C:68X® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing

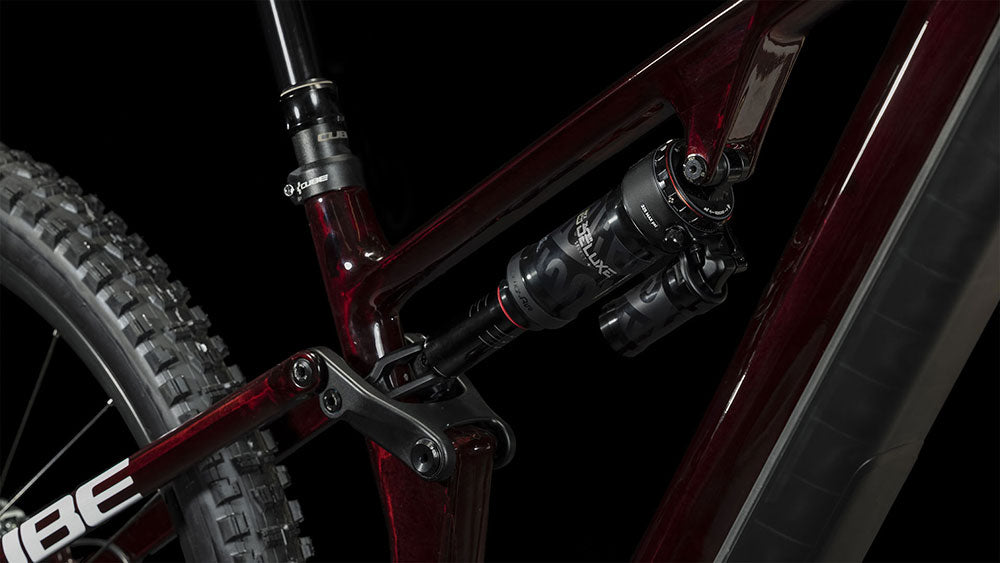

  • Rear Shock: RockShox Super Deluxe Select+ DebonAir, 230x60mm

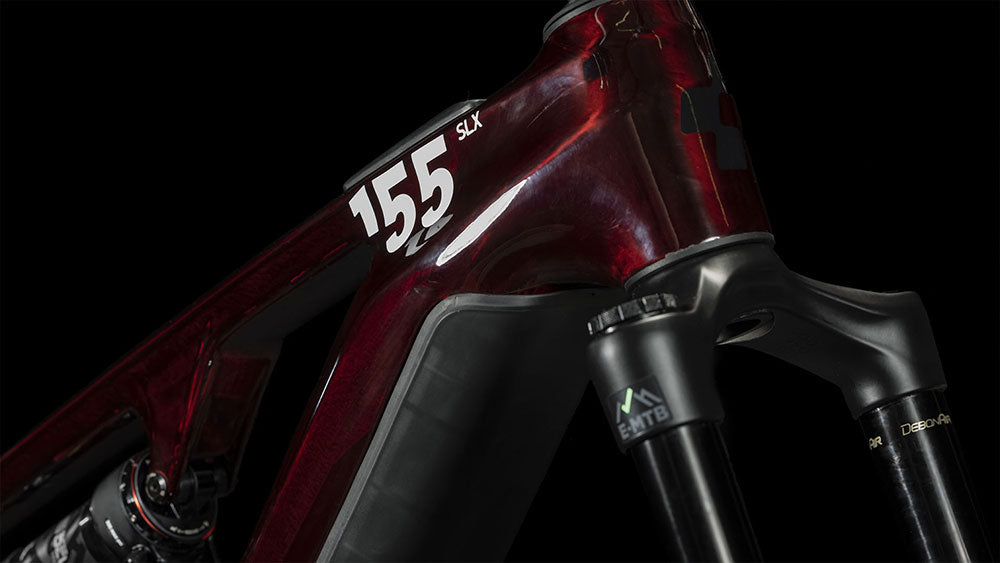

  • Fork: RockShox Lyrik Select+ Charger 2 RC DebonAir, Tapered, 15x110mm, eMTB Approved, 160mm
  • Motor: Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
  • Battery: Bosch PowerTube 750

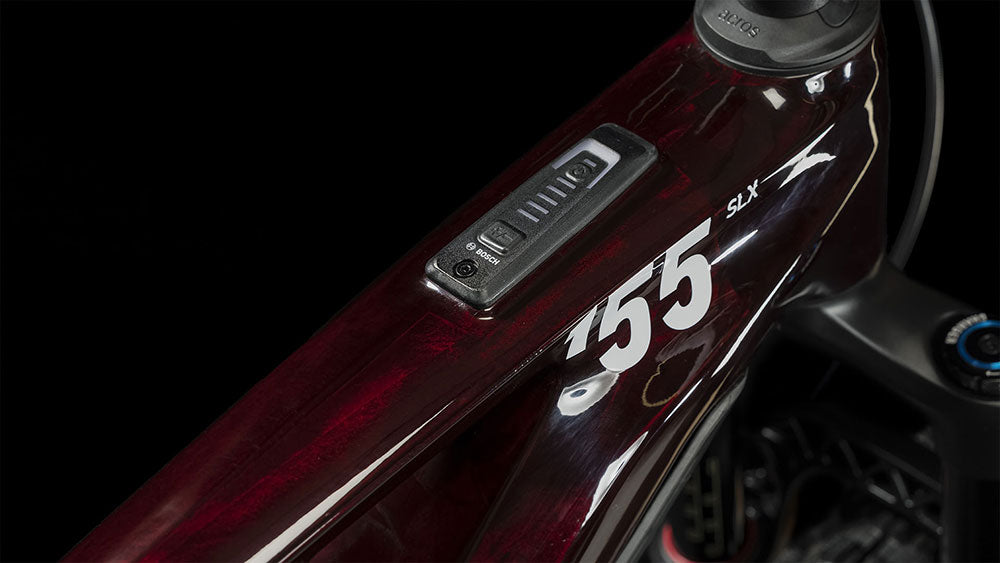

  • Controller: Bosch System Control, Mini Remote
  • Charger: Bosch 4A
  • Gear Shifters: Sram GX Eagle™ Trigger, Single Click
  • Chainset: ACID E-Crank, 34T, 165mm
  • Rear Cassette: Sram XG-1275 Eagle™, 10-52T
  • Chain: Sram NX Eagle™
  • Front Derailleur: N/A

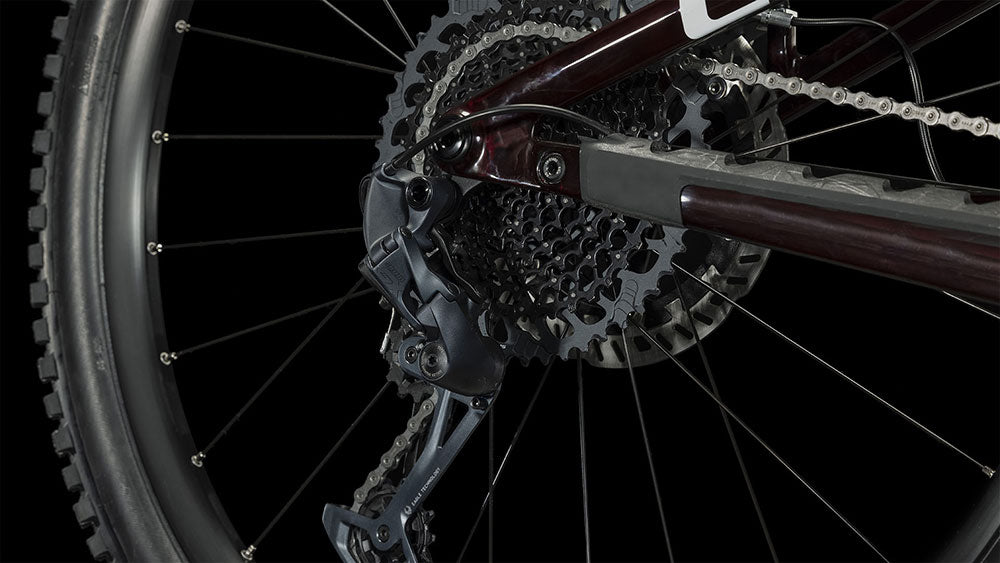

  • Rear Derailleur: Sram GX Eagle™, 12-Speed
  • Pedals: Not supplied
  • Wheelset: Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
  • Front Tyre: Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT
  • Rear Tyre: Maxxis Minion DHR II, MaxxGrip/DoubleDown, Tubeless Ready, 2.4 WT
  • Brakes: Magura MT7, Hydr. Disc Brake
  • Handlebars: Newmen Evolution SL 318.25, 780mm
  • Grips: ACID Disrupt, Soft Compound
  • Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fibre Inserts for Angle Adjustment
  • Stem: Newmen Evolution SL 318.4, 31.8mm
  • Saddle: Natural Fit Venec
  • Seatpost: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
  • Weight: Starting from 22.6 kg

Light weight. Speed. Integration. These are the defining qualities of the new Stereo Hybrid ONE55 C:68X, which makes use of up to six different fibre types to meet the specific demands of each part of the frame. The result is a chassis that's the lightest e-mtb intube frame CUBE has ever built – up to 20% lighter compared to the Stereo Hybrid 140 frame – combined with best-ever stiffness and, as you'd expect, a superior ride. An adjustable head angle and longer reach contribute to handling that more confident riders will love, serving up a cut-and-paste feel that enables tricky line choices even at speed thanks to 150mm of progressive rear wheel travel. Full internal cable routing reduces clutter and maintenance, and Bosch's new controller is neatly housed inside the top tube and can be controlled via Bluetooth from the optional remote. It's the complete package.


We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.




Size Guide

Cube Bikes Size Guide

How to Build Your Bike

Aftercare





CUBE STEREO HYBRID ONE55 C:68X SLX 750 29 e-MTB BIKE 2024 - LIQUIDRED 'N' CARBON

Regular price £5,414.05
Save 9%
Regular price Was £5,999.00 Sale price £5,414.05

SKU: 73650020

EPOS Code:


Save 10% on pedals with this purchase.Shop Pedals
Size
Delivery From £18.99
Simple Returns
Built With Care
View full details
