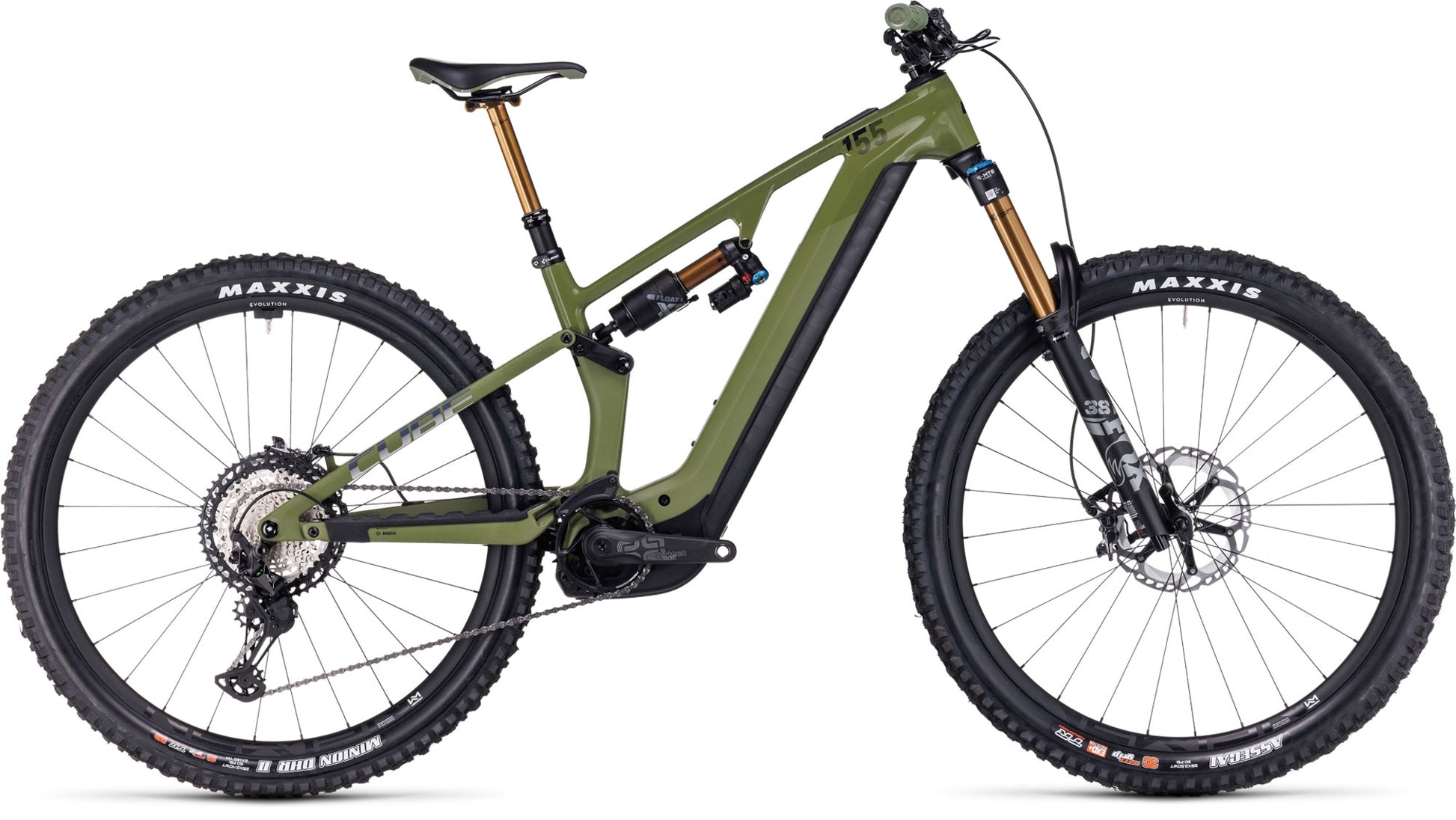

CUBE STEREO HYBRID ONE55 C:68X TM 750 29 e-MTB BIKE 2024 - OLIVE 'N' CHROME

CUBE STEREO HYBRID ONE55 C:68X TM 750 29 e-MTB BIKE 2024 - OLIVE 'N' CHROME

Skip to product information
1 of 8

Product Details


eBikes by their very nature can require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.

Your eBike will be delivered built, set up and updated in two boxes.

Minimum personal assembly is required.


Can a full-suspension hybrid combine low weight and true descending ability? You'd better believe it. With its advanced C:68X® carbon frame and careful component selection, the fourth-generation Bosch-powered CUBE Stereo Hybrid ONE55 C:68X TM 750 29 re-writes the rulebook for enduro-capable e-mtbs.


Open 360° view


Less is more, except when more is more. Confused? Don't be. The new Stereo Hybrid ONE55 C:68X TM 750 29 has its lightest-ever hybrid full-suspension intube frame, thanks to advanced C:68X® carbon technology. But its agile geometry, combined with a 160mm Fox 38 Factory Grip2 fork up front and Float X2 Factory shock at the rear, is also designed to take on any alpine descent, at any speed. A 750Wh battery, integrated Bosch System controller and fourth-generation Bosch CX drive unit with up to 85Nm of torque work seamlessly with Shimano's legendary XT 1x12 transmission to make light work of whatever route you've chosen for the day. Keeping it all under control is a pair of Shimano XT hydraulic disc brakes with 203mm rotors front and rear. And a Newmen Evolution wheelset, Maxxis Assegai 2.5in and Minion DHR II 2.4in tyres and a remote dropper post ensure you'll always have the rubber side down on the trail, where it should be.


Please note that pedals are not included!

Key Features:

  • 250W Bosch Motor: Most reliable pedal-assist motor in e-bike industry, capable of sustaining speeds up to 25 km/h
  • Hydraulic Disc Brakes: Reliable braking performance to keep you in control, whatever the weather.
  • 12 Shimano Gears: Wide range of gears suitable for a range of terrain, with the simplicity of a single shifter.
Full Specification:
  • Frame: C:68X® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing

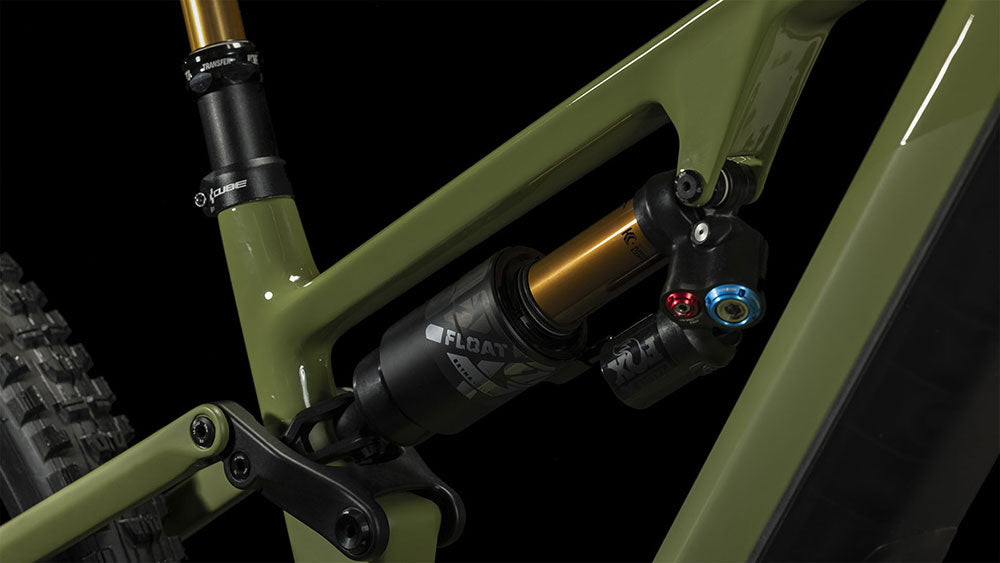

  • Rear Shock: Fox Float X2 Factory, 230x60mm, High/Low Speed Rebound & Compression w/ 2-Position Lever, Kashima Coated

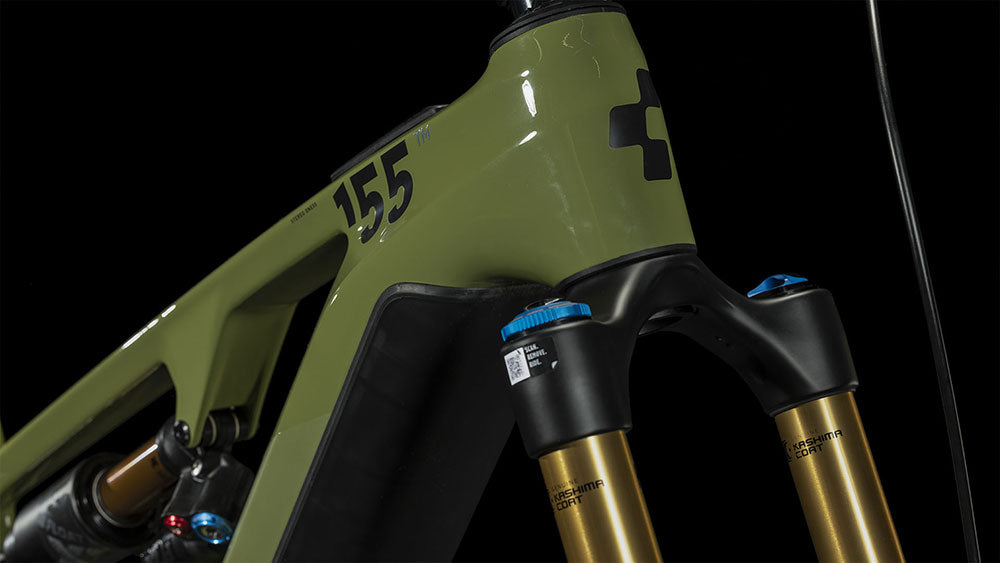

  • Fork: Fox 38 Float Factory FIT GRIP2, Tapered, 15x110mm, E-Bike Tune, 160mm, Kashima Coated
  • Motor: Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
  • Battery: Bosch PowerTube 750
  • Controller: Bosch System Control, Mini Remote
  • Charger: Bosch 4A
  • Gear Shifters: Shimano XT SL-M8100-IR, Direct Attach

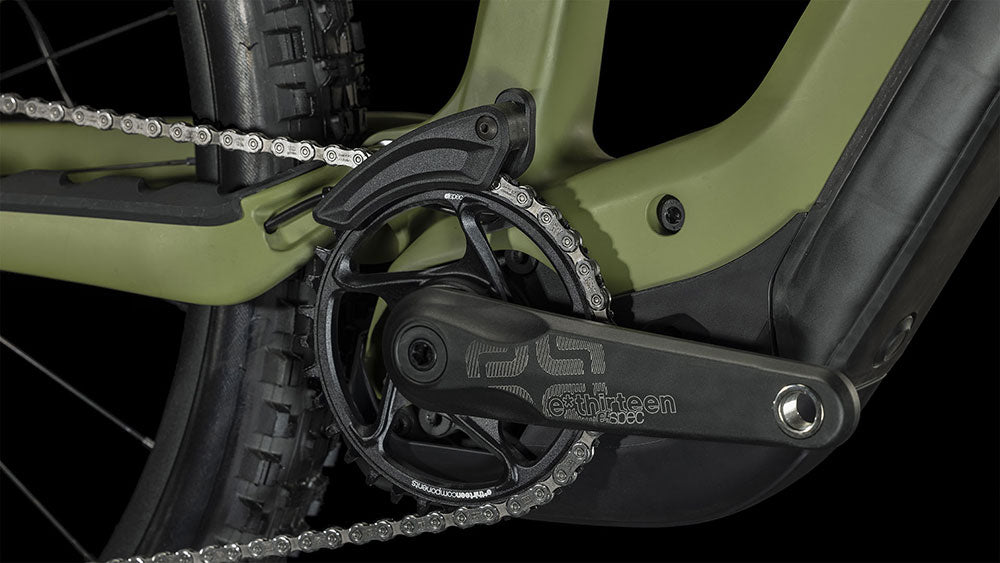

  • Chainset: ACID E-Crank, 34T, 165mm
  • Rear Cassette: Shimano XT CS-M8100, 10-51T
  • Chain: Shimano CN-M8100
  • Front Derailleur: N/A
  • Rear Derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
  • Pedals: Not supplied
  • Wheelset: Newmen Evolution SL E.G. 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
  • Front Tyre: Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT
  • Rear Tyre: Maxxis Minion DHR II, MaxxGrip/DoubleDown, Tubeless Ready, 2.4 WT
  • Brakes: Shimano XT BR-M8120, Hydr. Disc Brake
  • Handlebars: Race Face Turbine R 35, 800mm
  • Grips: ACID Disrupt, Soft Compound
  • Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
  • Stem: Newmen Evolution SL 318.4, 31.8mm

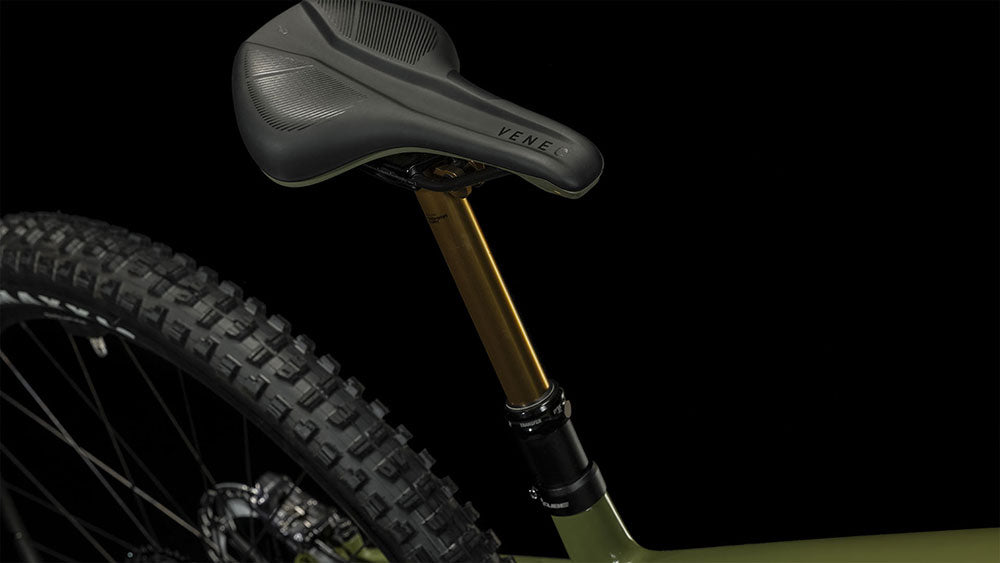

  • Saddle: Natural Fit Venec
  • Seatpost: Fox Transfer Factory 31.6mm, Kashima Coated
  • Weight: Starting from 22.9 kg

Light weight. Speed. Integration. These are the defining qualities of the new Stereo Hybrid ONE55 C:68X, which makes use of up to six different fibre types to meet the specific demands of each part of the frame. The result is a chassis that's the lightest e-mtb intube frame CUBE has ever built – up to 20% lighter compared to the Stereo Hybrid 140 frame – combined with best-ever stiffness and, as you'd expect, a superior ride. An adjustable head angle and longer reach contribute to handling that more confident riders will love, serving up a cut-and-paste feel that enables tricky line choices even at speed thanks to 150mm of progressive rear wheel travel. Full internal cable routing reduces clutter and maintenance, and Bosch's new controller is neatly housed inside the top tube and can be controlled via Bluetooth from the optional remote. It's the complete package.


We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.




Size Guide

Cube Bikes Size Guide

How to Build Your Bike

Aftercare

After the first few weeks of use, the whole bike will settle down. As a result, the gears may need tweaking, some nuts and bolts may need tightening and you may well need to check the adjustment of the saddle and handlebars.

CABLE STRETCH

Gears

Cable stretch tends to occur shortly after a new bike has been ridden a few times. A rear derailleur that we have tuned to hit every gear, nicely and quietly, may now not be making each shift causing a sensation and sound of “being in between gears”. Generally you may have to shift up, or shift down a couple times to quiet it down and settle the derailleur into a “happy gear”. A front derailleur may no longer want to shift all the way onto the big ring or will require a much firmer push to get it there. It is advisable to get the cable tension adjusted as soon as this happens either by your local bike shop. This tune up is considered a necessary part of any bicycles maintenance schedule and as such should not be ignored.

Brakes

Your brakes will also be affected by cable stretch (provided of course that they are NOT hydraulic in which case this does not apply). The symptom here is that they usually start to feel quite loose. i.e. you have to pull the lever much further back or harder in order to get the same stopping power you once had. This is partly why new bikes come with a first free service. If your brakes start feeling a little spongy after a few weeks, you can adjust them at the barrel or the clamp or ask a mechanic at your local bike shop to do it for you.

DISC BRAKES

New disc brakes won’t deliver their full power until the rotor and pads have bedded in. SRAM has a really good guide for bedding in disc brakes: “Accelerate the bike to a moderate speed and then firmly applying the brakes until you are at walking speed. Repeat this process 20 times. Then accelerate the bike to a faster speed and apply the brakes until you are at walking speed. Repeat this process ten times. It’s important that during this process you never come to a complete stop or lock up the wheels at any point.” Doing this process should drastically improve the performance of your brakes and prepare them for many happy rides.

CRANKS

Check the cranks and crank bolts or nut for tightness; grab a crank arm in each hand and try to wiggle them to check for looseness. If there is play in the cranks, the nuts or bolts may need to be tightened. Cranks should be checked after every ride for the first week.

HEADSET

A loose headset can be diagnosed by turning the front wheel to point left or right, holding the front brake on, and then rocking the bike backwards and forwards. Hold your fingers between the stem and the frame. Any movement indicates that you need to tighten the headset.

SADDLE

Check your seat post is not loose and that you have not exceeded the limit marked on the seat post. Once you have checked these, use an allen key to tighten the seat post clamp. Check the seat is secure by giving it another check once you have finished.

STEM

Check that your front wheel and stem do not move independently, and that your handlebar clamp bolts are tight. Perform this check by standing in front of the bike, holding the front wheel between your knees, and twisting the handlebars. You can prevent any movement by tightening the stem bolts and the handlebar clamp with an allen key.

SUSPENSION FORKS

Keeping your mountain bike’s suspension maintained is one of the best ways to ensure you’re getting all the performance you can out of your bike. Plus, giving your fork and shock a few seconds of attention here and there can prevent costly repairs or even replacements.

Dirt is the number one enemy of suspension. After every ride make sure to wipe the seal area and stanchions of your fork and shock. Wipe in a horizontal motion, not vertical as you don’t want to force any debris towards the seals.

Every few rides double check that your suspension sag is correct, as well as your rebound and compression adjustments. If something has changed, or the adjustments aren’t working as before, some maintenance is likely due.

Working on your bike at home can seem daunting, and we'd always recommend you take your bike to a qualified mechanic if possible.
