Product Details - Marin Dsx Fs Gravel Bike 2025 Gloss Blue

LONG DISTANCE MIXED SURFACE COMMUTING

GRAVEL RIDING

ADVENTURE ON AND OFF-ROAD RIDING

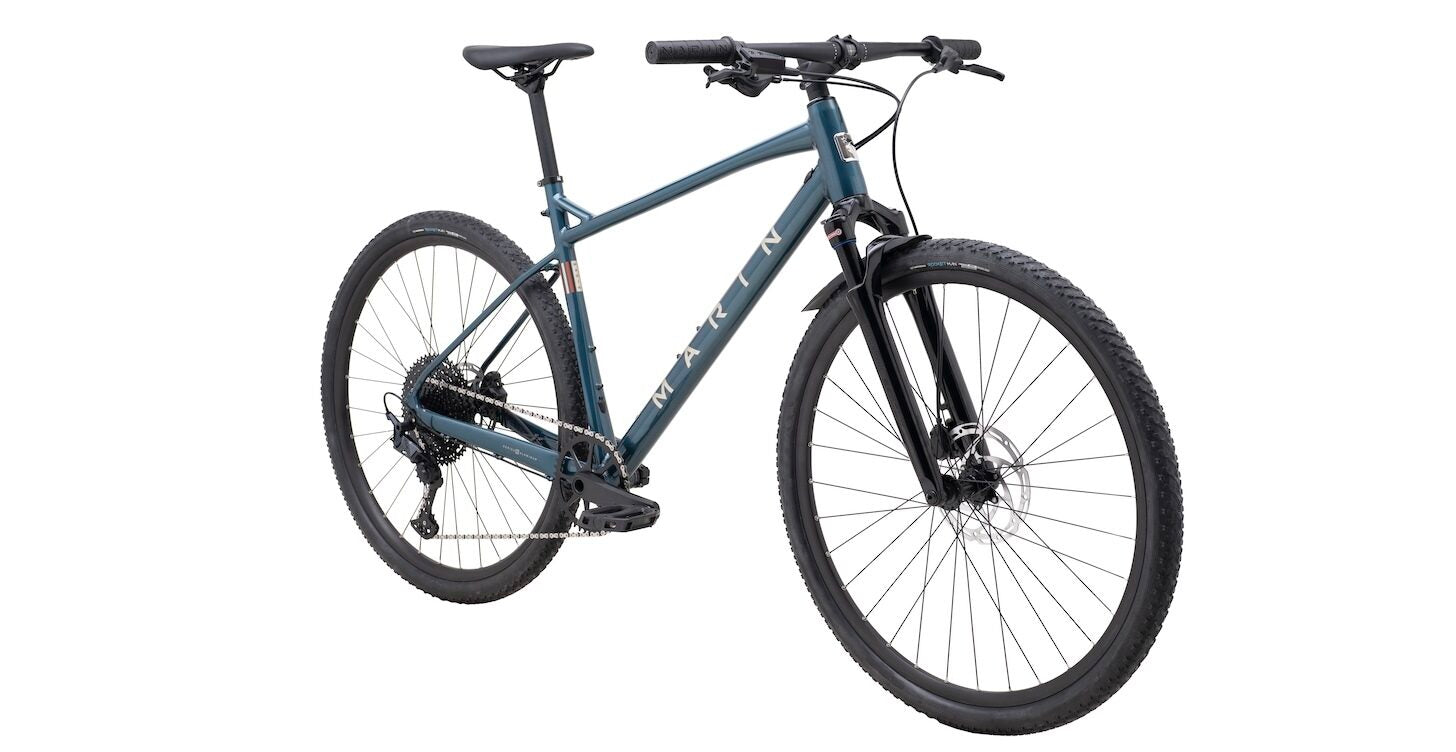

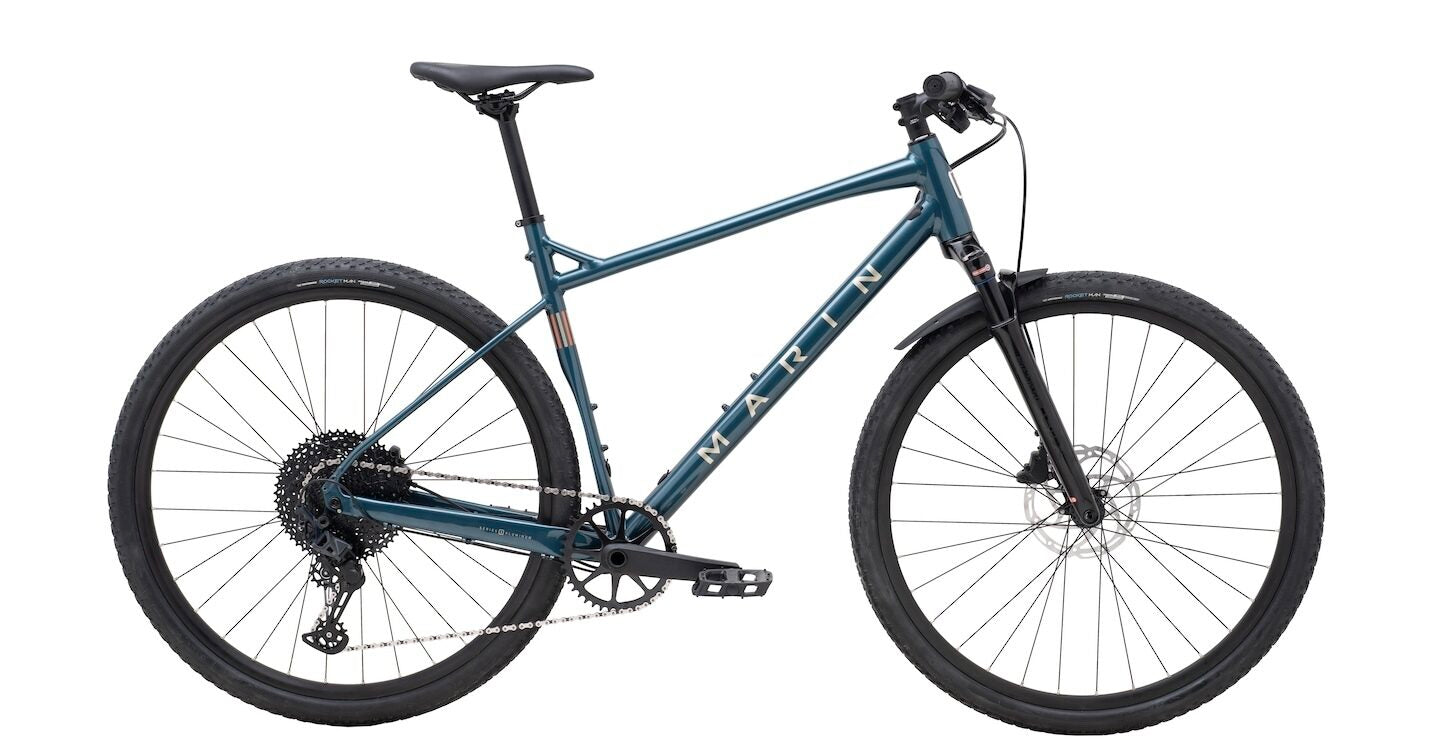

Is it a gravel bike? Is it a mountain bike? We’ve got no idea - we just know that it’s a whole mountain of fun. The Marin DSX FS breaks the gravel bike mold even further by adding a 60mm SR/Suntour front suspension fork for hard-charging, off-road adventures. There’s also a 12-speed 1X Shimano SLX drivetrain, Vee Tire Co tires, Shimano hydraulic brakes and plenty of reliable Marin components.

Key Upgrades from the DSX 2

  • SR/Suntour GVX LOR suspension fork with 60mm travel & air spring
  • Shimano SLX 12-speed drivetrain

Key Features

  • Series 3 6061 Aluminium Frame: With internal cable routing, and rack and fender eyelets.
  • Powerful Disc Brakes: For minimal maintenance and all-conditions stopping power.
  • Adventure-ready Tyre Clearance: The DSX comes stock with 700x45mm tyres, with room for 29x2.1” knobbies.

Full Specification

  • Frame: Series 3 DSX, Supension Adjusted Geometry, 6061 Aluminium, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
  • Fork: SR Suntour GVX LOR, 60mm Travel, Air Spring, Rebound Adjust, Lockout, Integrated Fender Mounts
  • Shifters: Shimano Deore 12-Speed
  • Crankset: Forged Aluminium, 42T Steel Narrow Wide Chainring
  • Cassette: SunRace, 12-Speed, 11-51T
  • Chain: KMC X12
  • Front Derailleur: N/A
  • Rear Derailleur: Shimano SLX 12-Speed
  • Bottom Bracket: Sealed Outboard Bearing
  • Pedals: Commute Platform
  • Rims: Marin Aluminium Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible
  • Front Hub: Forged Aluminium, 100x12mm, Disc, 32H
  • Rear Hub: Shimano Forged Aluminium, 142x12mm, Microspline, Disc, 32H
  • Tyres: Vee Tire Co. Rocket Man, 700Cx44mm
  • Brakes: Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor
  • Handlebar Grips: Marin MTB
  • Handlebar: Marin MiniRiser
  • Headset: FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
  • Stem: Marin 3D Forged Alloy
  • Saddle: Marin DSX
  • Seatpost: Marin Alloy
  • Extras: Bolt-On Thru-Axles F and R
  • Weight: N/A

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.


How we Build & Pack Your Bike

Aftercare

At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.

Bicycle Safety

Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.

Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.

Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.

Follow road rules – Ride responsibly and remain aware of your surroundings.

Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)

Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.

Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.

Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.

Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine Maintenance (Every Few Weeks)

Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.

Brake Safety – Check brake pads and responsiveness before each ride.

Tyre Inspection – Look for punctures and ensure correct air pressure.

Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.

Frame Safety Check – Look for any signs of damage or cracks.

Pedals - Ensure pedals are still tight and correctly fitted.

Professional Check-Ups

Have your bike serviced at least once a year, or more frequently if you ride often.

Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)

Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.

Avoid Overcharging – Unplug the charger once fully charged to extend battery life.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine e-Bike Maintenance (Every Few Weeks)

Motor Inspection – Listen for unusual noises and ensure smooth operation.

Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.

Pedals - Ensure pedals are still tight and correctly fitted.

Seasonal e-Bike Maintenance

Check Electrical Components – Ensure wires and connections are clean and secure.

Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.

By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!

Read our full advice

If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk

MARIN DSX FS GRAVEL BIKE 2025 GLOSS BLUE
0 (0 Reviews)
Regular price £1,399.00
Save 6%
Regular price £1,499.00 Sale price £1,399.00
Price Match
If you find the same bike cheaper, we'll try to match the price.
More information

Size
  • SKU: 739067001
  • EPOS Code:
Est. Dispatch
Delivery Available
Finance Available
Family Owned Independent
Built by Cytech Mechanics
10% Off Accessories
We Accept Cyclescheme
View full details
