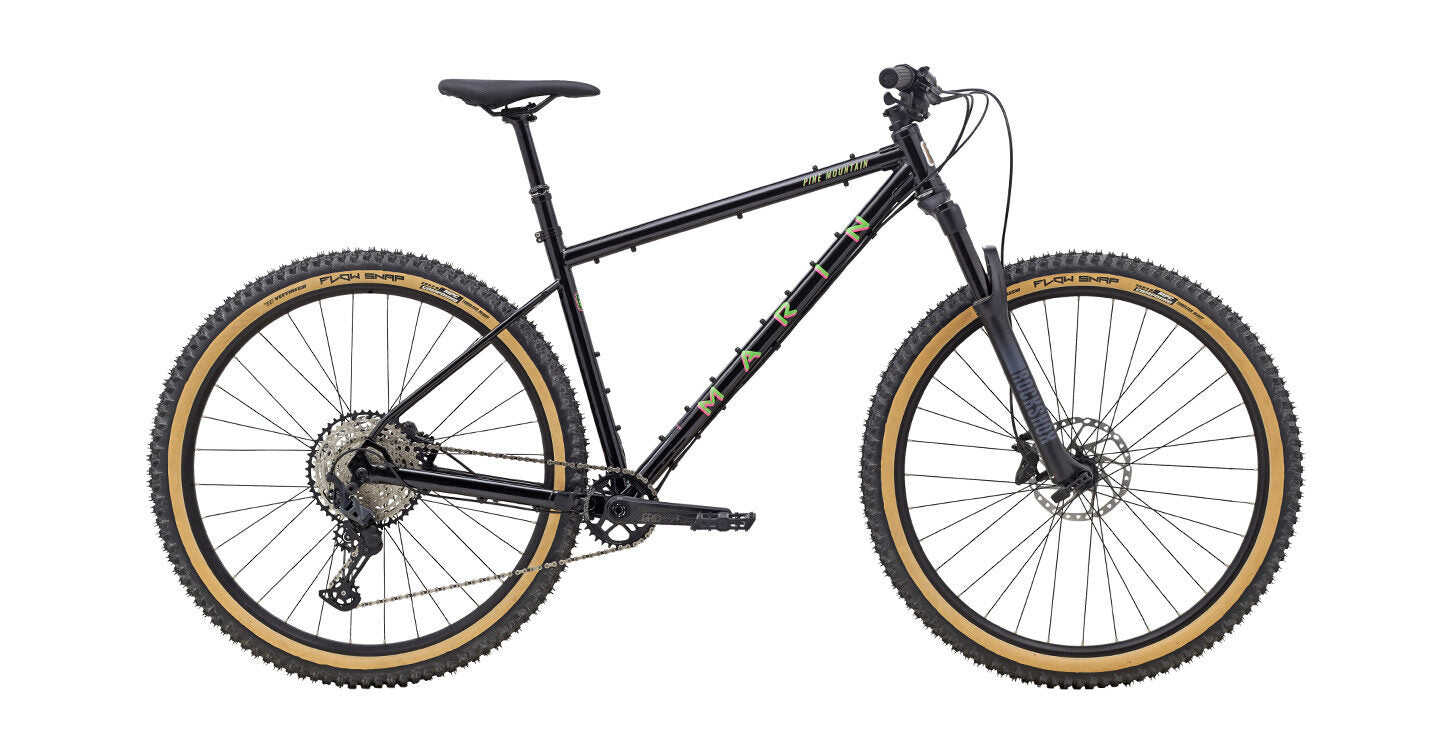

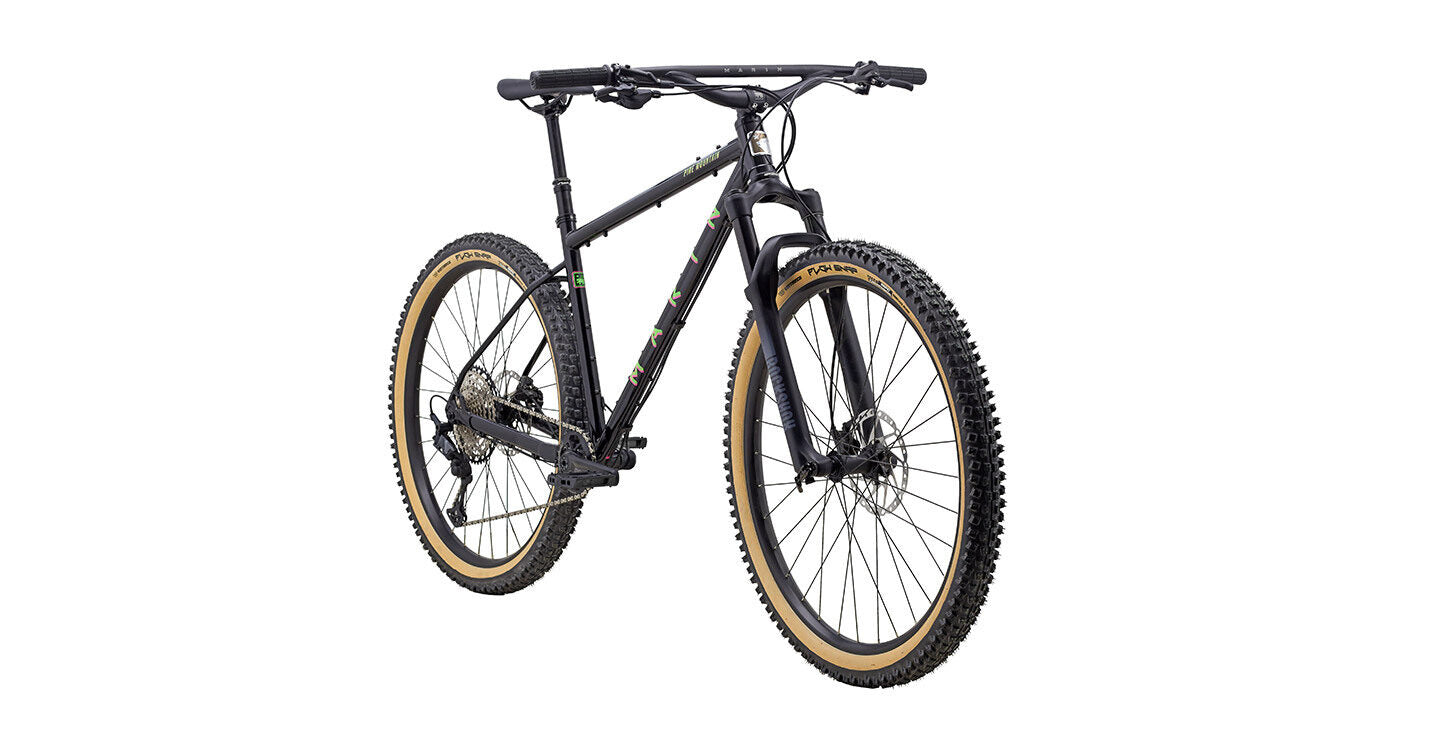

MARIN PINE MOUNTAIN 2 HARDTAIL MTB BIKE 2025 BLACK
Product Details - Marin Pine Mountain 2 Hardtail Mtb Bike 2025 Black
Product Details - Marin Pine Mountain 2 Hardtail Mtb Bike 2025 Black
The Marin Pine Mountain 2 is our high-end, high-performance steel bikepacking mountain bike hardtail.
Our Series 3 CrMo version of the frame upgrades to higher-grade CrMo for a lively, zippier ride and has a bolt-through rear axle for a little added stiffness where it matters.
It’s built up with a RockShox FS 35 fork, Shimano SLX 12-speed drivetrain, Vee Tire Flow Snap 2.6” tires, powerful Shimano brakes and a super-useful dropper post for added comfort and speed. Last but not least, you’ve got our much-loved Marin Bedroll handlebar.
Key Upgrades from the Pine Mountain 1
- Series 3 CrMo frame w/12x148mm custom cast thru-axle dropouts
- RockShox FS 35 fork
- Shimano SLX 12-speed drivetrain & FSA Grid crankset
- TRP Slate EVO 4-piston disc brakes
Key Features
- Bikepacking Abilities: Brazed-in cargo attachment points throughout the front triangle for carrying all of the water and gear one needs for a proper adventure. The Marin-designed Bedroll Bar features a 50mm rise and a long, straight top bar for cleanly mounting handlebar packs away from cables and controls
- Trail Geometry: The Pine Mountain Trail Geometry is a mix between agility for trail riding, and all day comfort for bikepacking. Short chainsstays keep a shorter wheelbase for that active ride, while a 66.5 degree head angle makes for confident steering with or without the weight of gear.
-
Steel is Real: The Pine Mountain 1 uses a butted and formed Series 2 4130 CrMo frame with Boost 141mm dropouts, full fender and rack mounts, and tons of bosses for a wide variety of gear mounting options.
Full Specification
- Frame: Series 3 Double Butted and Heat Treated CrMo, 29" Wheels, Custom Cast Boost 148x12mm Dropouts, 148x12mm Thru-Axle, 73mm Threaded BB, Plentiful Gear Mounts
- Fork: RockShox 35 Gold RL, 120mm Travel, DebonAir, Alloy Tapered Steerer, 110x15mm Boost Spacing, Maxle Lite, 44mm Offset
- Shifters: Shimano SLX, SL7100, 12-Speed
- Crankset: FSA Grid, Modular 1x, 32T Direct Mount MegaTooth Chainring
- Cassette: SunRace, 12-Speed, MicroSpline, 10-51T
- Chain: KMC X12
- Rear Derailleur: Shimano SLX, RD7100, 12-Speed
- Bottom Bracket: FSA Outboard Cartridge Bearings
- Pedals: Nylon Platform
- Rims: Alloy Double-Wall, Offset Spoke, 32mm ID, Tubeless Compatible
- Front Hub: Forged Alloy, 110x15mm, Sealed Cartridge Bearings, Disc, 32H
- Rear Hub: Forged Aluminium, 148x12mm, Centerlock Disc, 32H
- Tyres: Vee Tire Co. Flow Snap, 29x2.6", Folding Bead, Tubeless Ready
- Front Brakes: TRP Slate EVO, 4-Piston, Hydraulic, 180mm Rotor
- Rear Brakes: TRP Slate EVO, 4-Piston, Hydraulic, 180mm Rotor
- Handlebars: Marin Bedroll Bar, 50mm Rise, 780 Width, 10˚ Backsweep, 6˚ Upsweep
- Handlebar Grips: Marin Bear Paw Locking
- Stem: Marin 3D Forged Alloy, 35mm
- Saddle: Marin Pine Mountain Trail
- Seatpost: TranzX Dropper Post, YSP23 w/ 1x Remote, Size S 150mm Travel, All Other Sizes: 170mm Travel, 30.9mm
- Accessories: Bolt-On Thru-Axle
-
Weight: N/a
Size Guide for Marin Pine Mountain 2025
Size | Rider height range |
S | 5'3" - 5'6" |
M | 5'6" - 5'9" |
L | 5'9" - 6' |
XL | 6' - 6'4" |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
How we Build & Pack Your Bike
How we Build & Pack Your Bike
Aftercare
Aftercare
At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.
Bicycle Safety
Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.
Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.
Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.
Follow road rules – Ride responsibly and remain aware of your surroundings.
Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)
Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.
Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.
Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.
Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine Maintenance (Every Few Weeks)
Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.
Brake Safety – Check brake pads and responsiveness before each ride.
Tyre Inspection – Look for punctures and ensure correct air pressure.
Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.
Frame Safety Check – Look for any signs of damage or cracks.
Pedals - Ensure pedals are still tight and correctly fitted.
Professional Check-Ups
Have your bike serviced at least once a year, or more frequently if you ride often.
Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)
Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.
Avoid Overcharging – Unplug the charger once fully charged to extend battery life.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine e-Bike Maintenance (Every Few Weeks)
Motor Inspection – Listen for unusual noises and ensure smooth operation.
Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.
Pedals - Ensure pedals are still tight and correctly fitted.
Seasonal e-Bike Maintenance
Check Electrical Components – Ensure wires and connections are clean and secure.
Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.
By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk
