MARIN RIFT ZONE E FULL SUSPENSION eMTB BIKE 2025 GREY/BLUE
Product Details - Marin Rift Zone E Full Suspension Emtb Bike 2025 Grey/blue
Product Details - Marin Rift Zone E Full Suspension Emtb Bike 2025 Grey/blue
eBikes by their very nature can require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.
Your eBike will be delivered built, set up and updated in two boxes.
Minimum personal assembly is required.
MOUNTAIN BIKING WITH A BOOST
THE JACK-OF-ALL-TRADES MTB, ELECTRIFIED
MAXIMIZING FUN
One of the very best value eMTB’s around, the base model Marin Rift Zone E packs a crazy-powerful punch without busting the bank. RockShox and X-Fusion handle the suspension, Shimano Deore brings a tough, reliable 10-speed drivetrain and Shimano’s STEPS EP6 drive unit powers you up, along and down. A 504WH battery is supplied as standard, with the option to upgrade to a beefy 630WH for even more range.
Key Features
- Hydraulic Disc Brakes: Accurate and powerful braking capacity to keep you in control in all weather conditions.
- Long, low and slack trail geo and 29” wheels: The Rift Zone E features the same great, proven MultiTrac suspension technology, but optimized for the Shimano STEPS system, with 140mm of suspension for the best on-trail experience.
- Shimano Motor: Shimano’s STEPS system is both powerful and lightweight, with the mid-drive motor with a 250W boost.
Full Specification

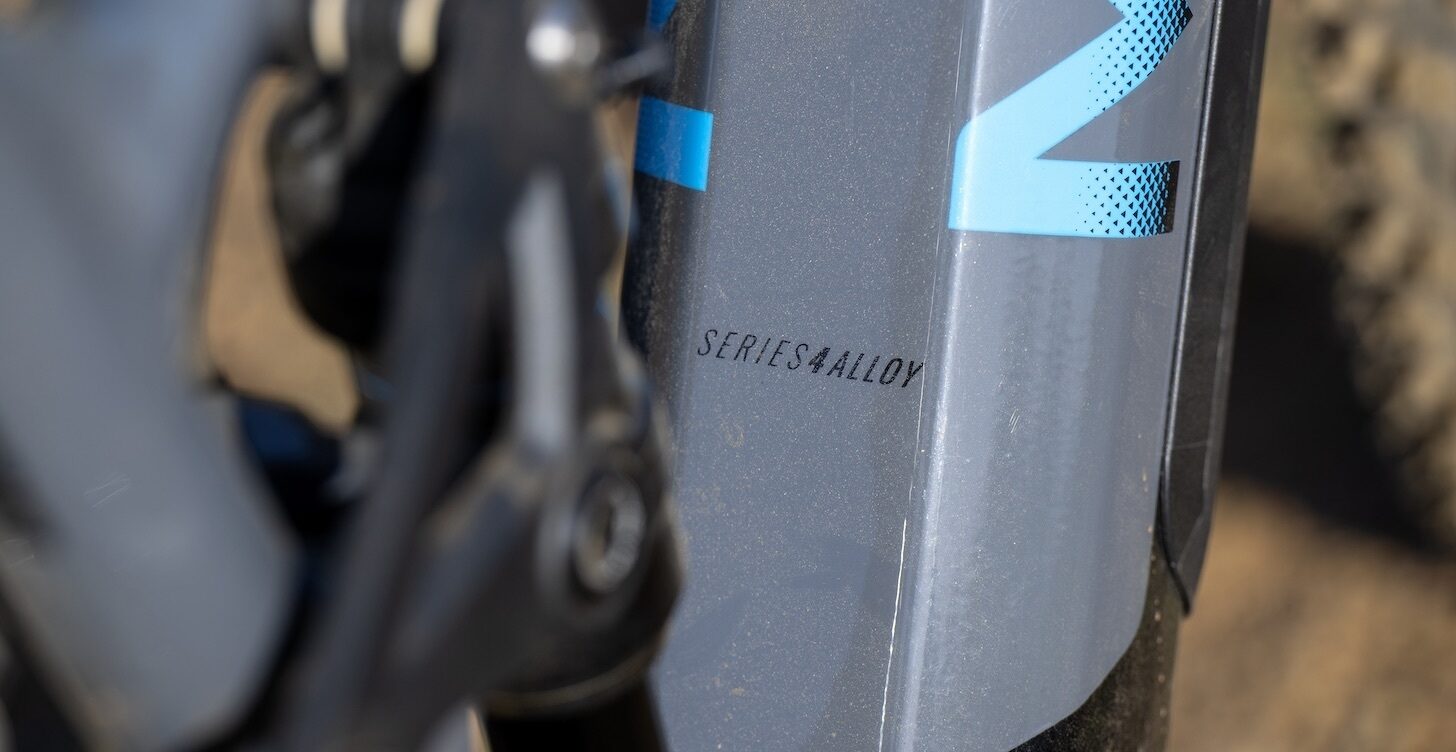

- Frame: All New Series 4 Alloy Frame, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor

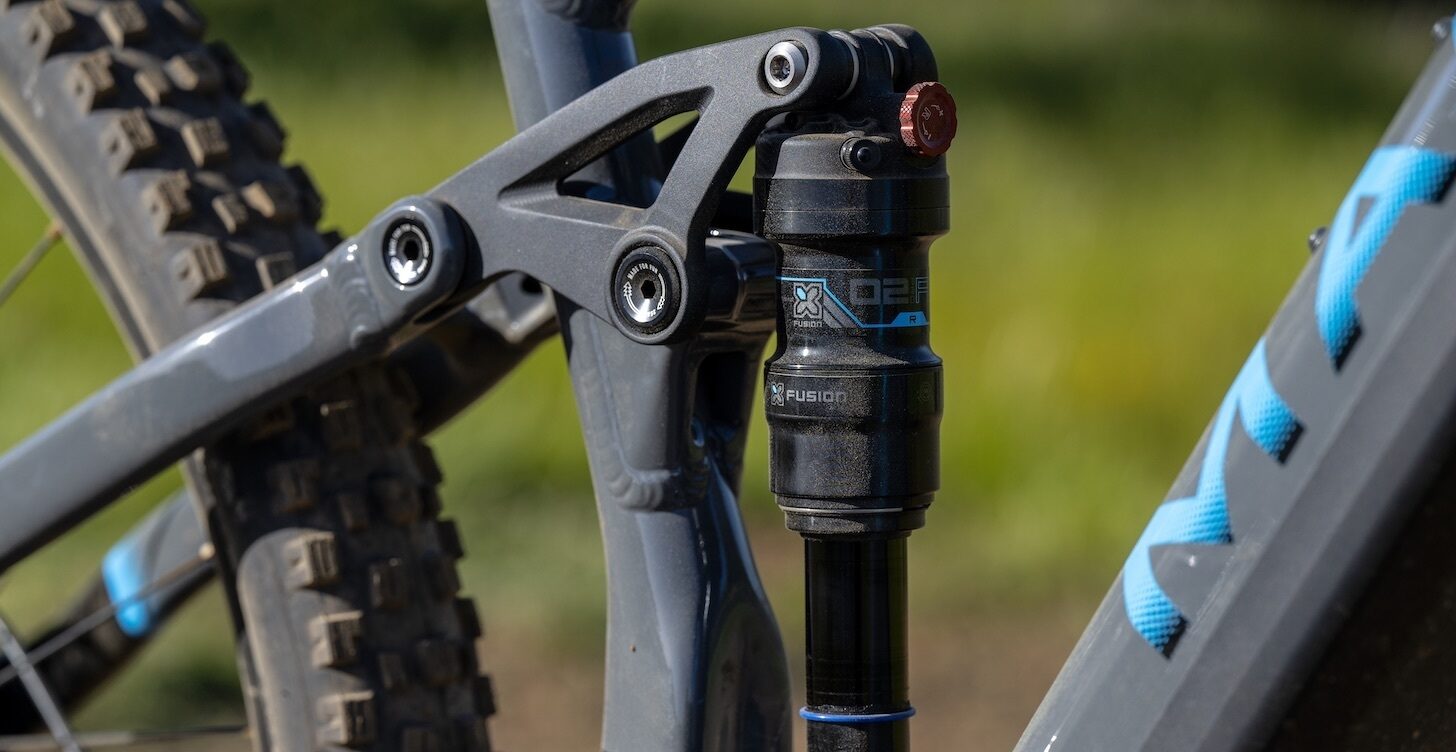

- Rear Shock: X-Fusion 02 PRO R, Compression and Rebound Adjustment, Custom Tune, 210x50 25xM8 Lower Mount & Upper Mount
- Fork: RockShock 35 Silver R 29", Motion Control Damper, 140mm Travel, Maxle Stealth Axle, 42mm Offset
- Motor: Shimano Steps EP6 Drive Unit, 250W, 85Nm

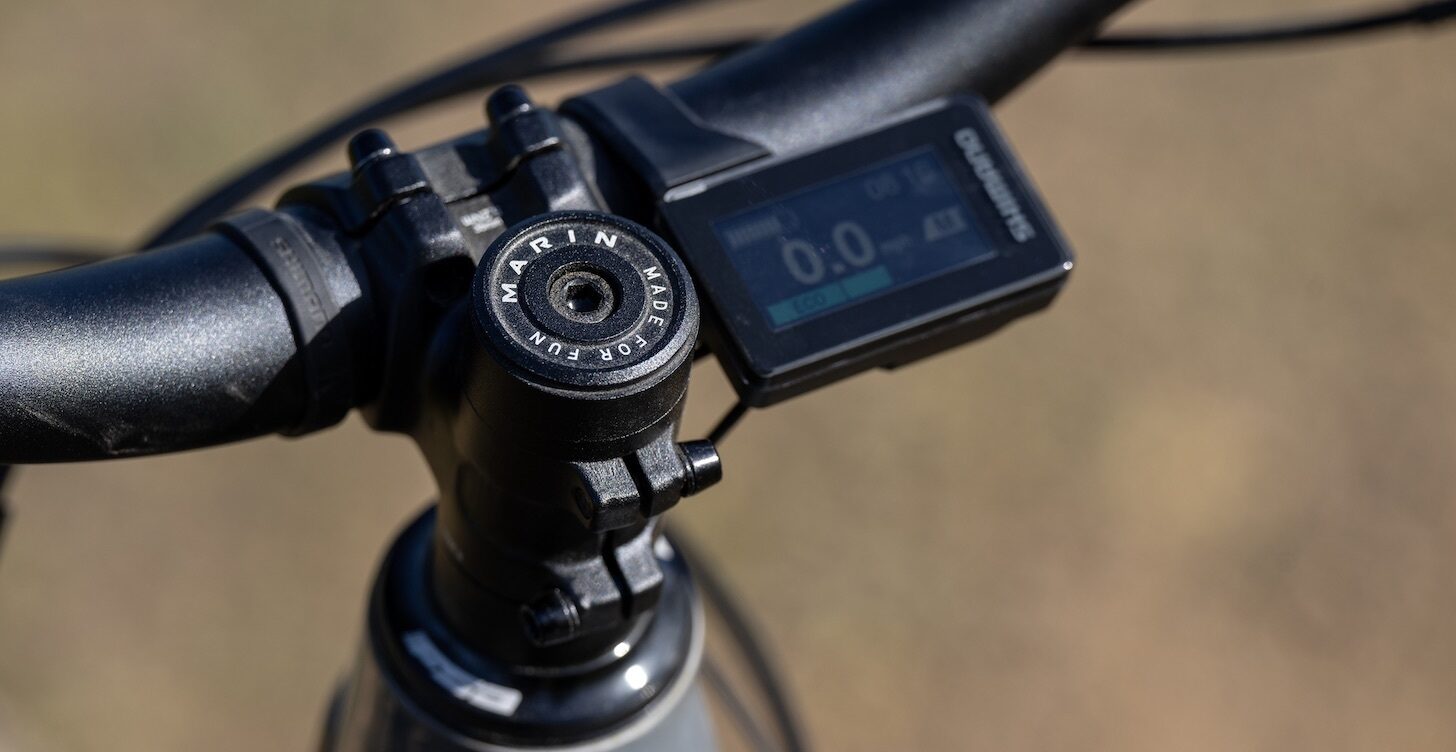

- Controller: Shimano SC-E600 Display, Shimano SW-EN600L Left Hand Switch for Assist Mode Change
- Battery: Shimano BT-EN805L, Internal 504Wh
- Charger: Shimano Battery Charger EC-E6002
- Shifters: Shimano Deore, 10-Speed, I-Spec EV
- Crankset: Shimano EM600, 160mm Length, 38t Chainring
- Cassette: Shimano Deore 10-speed 11-46T
- Chain: KMC X-10E
- Front Derailleur: N/A
- Rear Derailleur: Shimano Deore, Direct Attachment, 10-Speed SGS
- Bottom Bracket: Integrated
- Pedals: Marin MTB Plastic
- Rims: Marin Aluminum Double Wall, 29" Diameter, 29mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
- Front Hub: Shimano FH-TC500, 110x15mm, Centerlock, 32H
- Rear Hub: Shimano HB-TC500, 148x12mm, Centerlock, Standard Freehub Body
- Front Tyre: Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Override E-Specific Casing
- Rear Tyre: Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Override E-Specific Casing
- Brakes: TRP Slate EVO 4-Piston Hydraulic, 203mm Rotor, 2.3mm Thick
- Handlebars: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
- Handlebar Grips: Marin Grizzly Single Clamp Locking
- Stem: Marin 3D Forged Alloy, 35mm
- Saddle: Marin eMTB Saddle
- Seatpost: TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm
- Extras: Shimano Battery Charger EC-E6002, 2A; Shimano CS-EN800 Chainguide
- Weight: N/a
- Range, Charging Time: 25-70km (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 11 Hours (estimated, under ideal conditions)
Size Guide for Marin Rift Zone E
| Size | Rider height range |
| S | 5'3" - 5'6" |
| M | 5'6" - 5'10" |
| L | 5'10" - 6'2" |
| XL | 6'2" - 6'4" |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
How we Build & Pack Your Bike
How we Build & Pack Your Bike
Aftercare
Aftercare
At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.
Bicycle Safety
Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.
Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.
Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.
Follow road rules – Ride responsibly and remain aware of your surroundings.
Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)
Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.
Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.
Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.
Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine Maintenance (Every Few Weeks)
Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.
Brake Safety – Check brake pads and responsiveness before each ride.
Tyre Inspection – Look for punctures and ensure correct air pressure.
Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.
Frame Safety Check – Look for any signs of damage or cracks.
Pedals - Ensure pedals are still tight and correctly fitted.
Professional Check-Ups
Have your bike serviced at least once a year, or more frequently if you ride often.
Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)
Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.
Avoid Overcharging – Unplug the charger once fully charged to extend battery life.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine e-Bike Maintenance (Every Few Weeks)
Motor Inspection – Listen for unusual noises and ensure smooth operation.
Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.
Pedals - Ensure pedals are still tight and correctly fitted.
Seasonal e-Bike Maintenance
Check Electrical Components – Ensure wires and connections are clean and secure.
Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.
By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk
