Product Details - Raleigh Motum 20/40cm Compact Ebike

eBikes by their very nature can require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.

Your eBike will be delivered built, set up and updated in two boxes.

Minimum personal assembly is required.

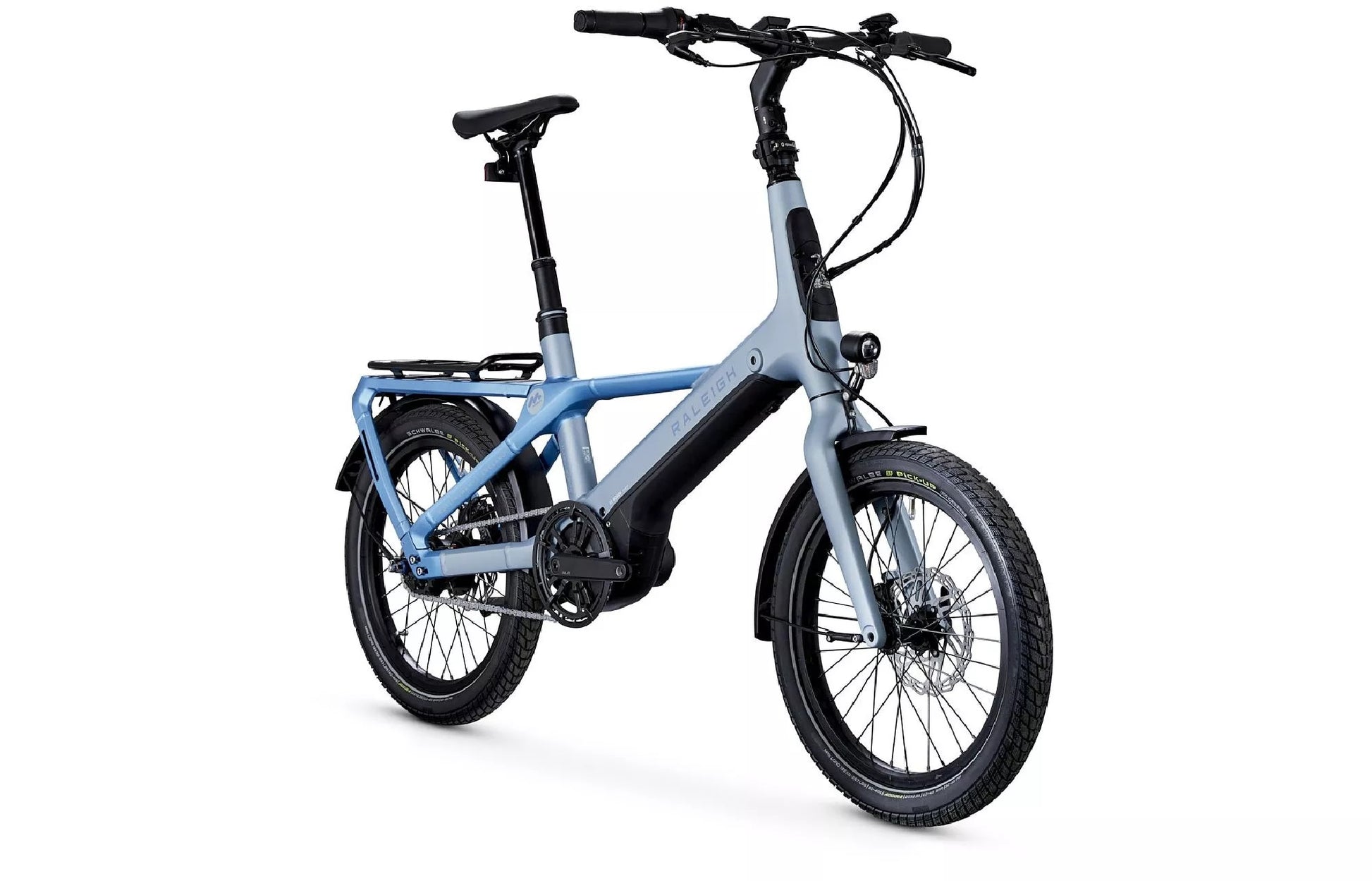

Meet the new Raleigh Modum: the ultimate e-bike for urban riding.

This powerful utility e-bike is designed for easy storage with adjust and twist handlebars for a slimline profile. Complete with hub gears, full mudguards, cargo-rated puncture resistant tyres, hydraulic disc brakes, and a 150mm travel dropper seatpost; the Modum has everything you need to speed through your commutes – in sleek, city style. And with a range of up to 70 miles, this is a bike that’ll keep going (and going).

Key Features Raleigh Modum 20/40cm Compact eBike

  • Bosch Performance Line Motor: Means the Modum will see you through even the most gruelling commutes – lung-busting hills and all.
  • Hydraulic Disc Brakes: Reliable braking performance to keep you in control, whatever the weather.
  • Hub Gears: Enable you to shift while standing still. and require very little maintenance. They are known for their practicality and durability in all conditions.

Full Specification:

  • Size: One Size
  • Fork Type: Rigid 20" fork with thru axle M15xP1.5
  • Frame Material: Aluminium 6061
  • Front Light: Litemove SE90 front light
  • Max permissible weight (Rider, Cargo and Bike): 130 KG
  • Mudguards: SKS full mudguard set

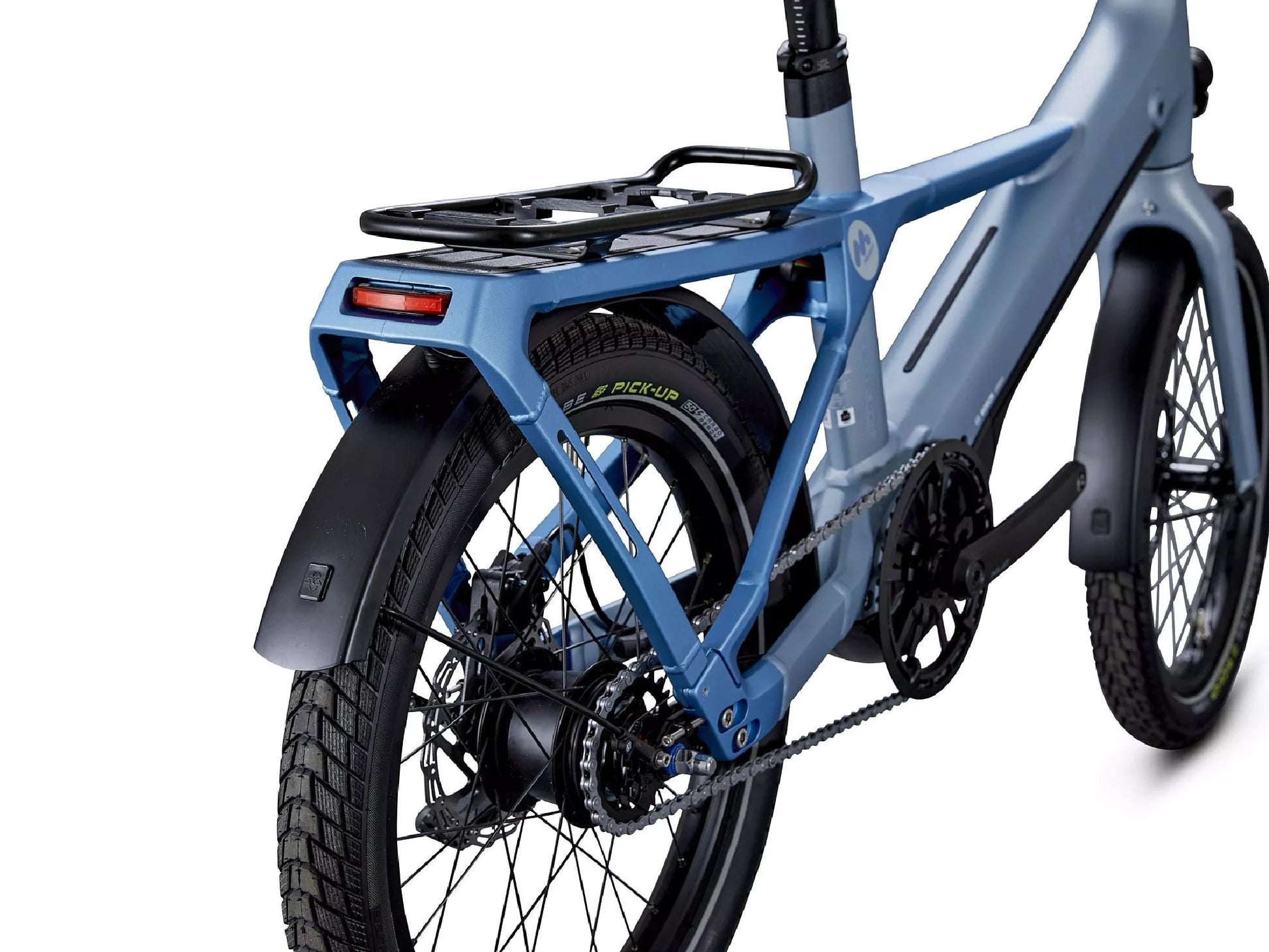

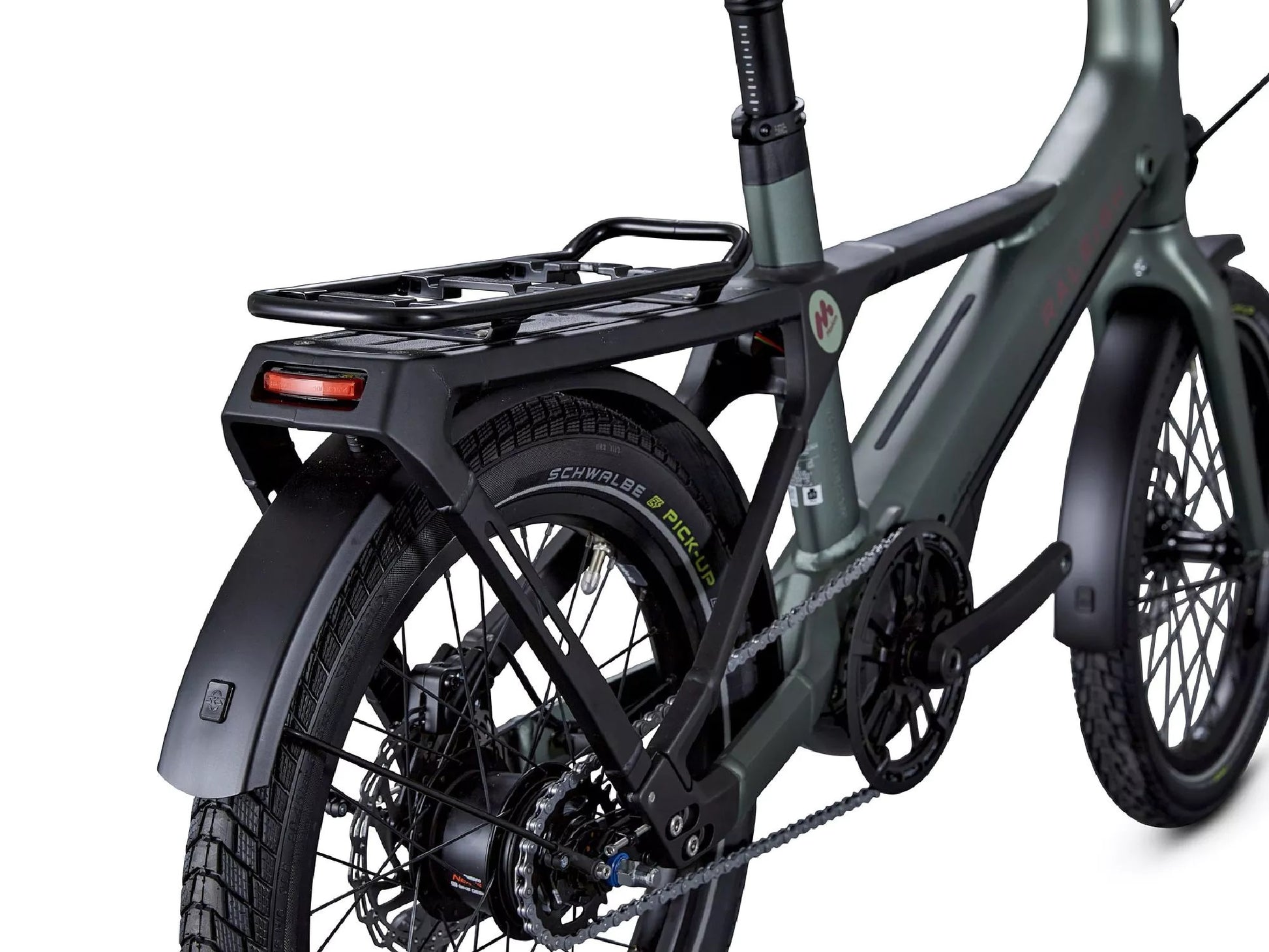

  • Rear Carrier: Modum rear carrier with MIK HD adaptor
  • Rear Light: Spanninga Pimento rear light
  • Stand: Aluminium kickstand
  • Front Tyre: 20" x 60mm Schwalbe Pick-up
  • Front Wheel: 20" double side wall rim with 15mm axle aluminium hub 32H, centre lock disc
  • Hub: Shimano Nexus 5 hub gear, disc
  • Inner Tubes: 406x60 Schrader valve
  • Rear Tyre: 20" x 60mm Schwalbe Pick-up
  • Rear Wheel: 20" double side wall rim with Nexus 5 hub 32H, centre lock disc
  • Cassette: Shimano Nexus 24T sprocket
  • Chain: KMC Z1 EPT single speed chain
  • Crankset: 42T chainring with 170mm crank arm
  • Gear Shift: Hub Gear
  • Pedals: Aluminium flat pedal
  • Brake Lever: Hydraulic Disc Brake
  • Front Brake: Alhonga HT 474 Hydraulic Disc Brake, 180mm
  • Number of Gears: 5
  • Rear Brake: Alhonga HT 474 Hydraulic Disc Brake, 180mm
  • Rear Shifter: Shimano Nexus 5 speed revoshifter
  • Grips: Herrmans Click ergonomic grips
  • Handlebar: Aluminium straight handlebar 680mm
  • Seatpost: Dropper seatpost 34.9mm, 150mm travel
  • Seatpost Clamp: Aluminium clamp 38.1mm
  • Stem: Aluminium adjust and twist stem 90mm
  • Battery: Bosch Powertube 500WH
  • Battery Charger Type: Bosch 4A
  • Battery Charging Time: 4.5 hours
  • Battery Integration: Internal
  • Display: Bosch Kiox 300
  • Max Range: 70 miles
  • Motor: Bosch Performance Line BES3
  • Total Bike Weight: 25.6kg

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

How we Build & Pack Your Bike

Aftercare

At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.

Bicycle Safety

Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.

Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.

Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.

Follow road rules – Ride responsibly and remain aware of your surroundings.

Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)

Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.

Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.

Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.

Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine Maintenance (Every Few Weeks)

Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.

Brake Safety – Check brake pads and responsiveness before each ride.

Tyre Inspection – Look for punctures and ensure correct air pressure.

Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.

Frame Safety Check – Look for any signs of damage or cracks.

Pedals - Ensure pedals are still tight and correctly fitted.

Professional Check-Ups

Have your bike serviced at least once a year, or more frequently if you ride often.

Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)

Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.

Avoid Overcharging – Unplug the charger once fully charged to extend battery life.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine e-Bike Maintenance (Every Few Weeks)

Motor Inspection – Listen for unusual noises and ensure smooth operation.

Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.

Pedals - Ensure pedals are still tight and correctly fitted.

Seasonal e-Bike Maintenance

Check Electrical Components – Ensure wires and connections are clean and secure.

Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.

By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!

Read our full advice

If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk
