TREK ALLANT+ 5 545WH LOWSTEP ELECTRIC HYBRID BIKE 2023 - BLUE SAGE
Skip to product information
1 of 13

Product Details

eBikes by their very nature can require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.

Your eBike will be delivered built, set up and updated in two boxes.

Minimum personal assembly is required.

The Allant+ 5 Lowstep is the ultimate e-bike for riders looking to accelerate their commute. The frame features a step-thru design that simplifies getting on and off, and the new Bosch Smart System motor that offers more connectivity than ever before. Easily pair your smartphone with your bike to log distances and plan routes. Available with your choice of battery size, ranging from 545 to 725 watt hours, so you can take control of your commute and cruise comfortably all the way home.

Key Features

  • Bosch Performance Line CX Motor: Powerful drive system that helps you sustain speeds of up to 25km/h.
  • Hydraulic Disc Brakes: Reliable braking performance to keep you fully in control, whatever the weather.
  • 9 Shimano Gears: Wide range of gears suitable for various terrain, with the simplicity of a single shifter.

Full Specification

  • Frame: High-performance hydroformed alloy, internal cable routing, external battery mount, post-mount disc, 135x5mm QR

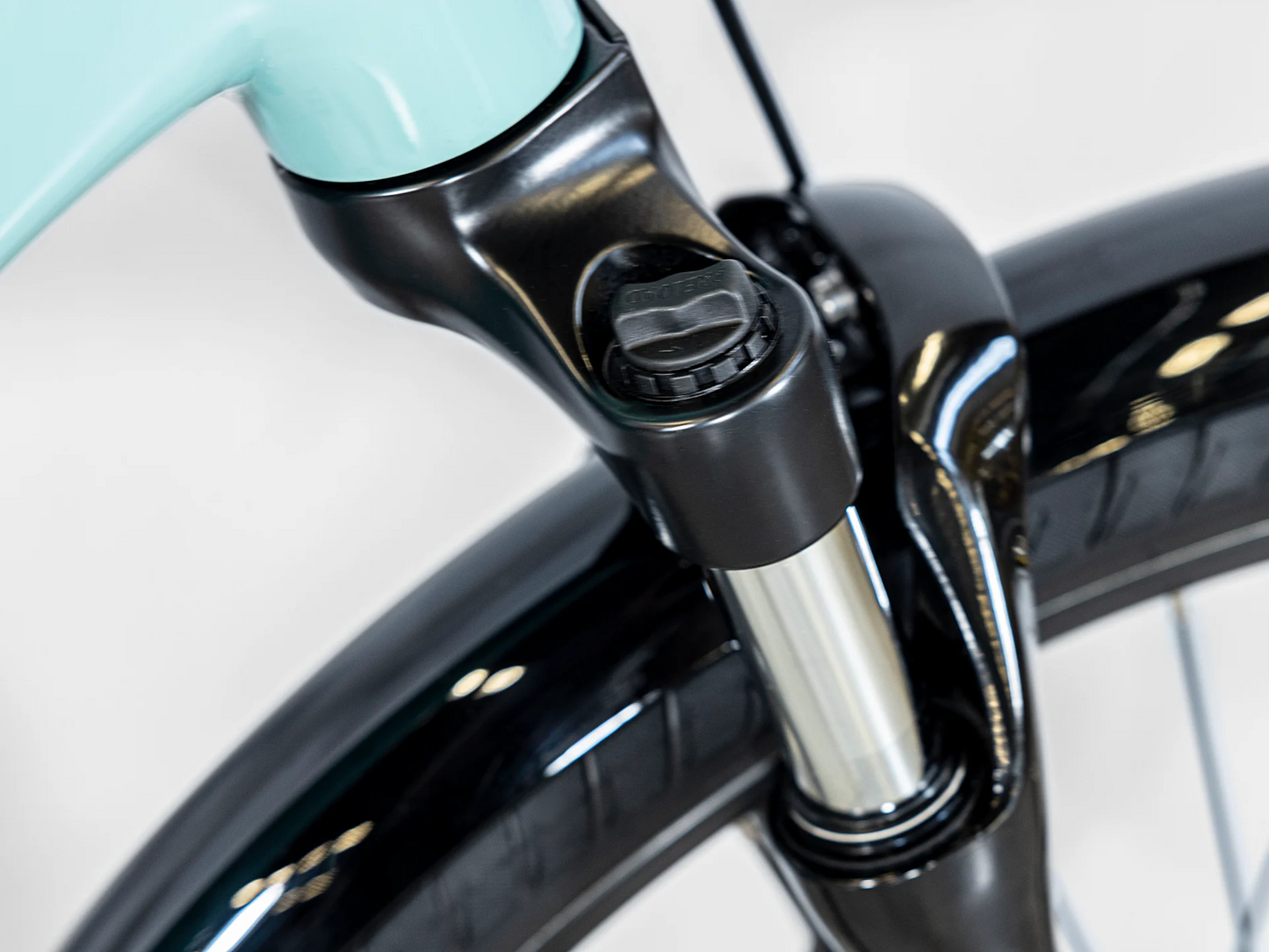

  • Fork: SR Suntour NVX30, coil spring, preload adjuster, 100 mm QR, 60 mm travel

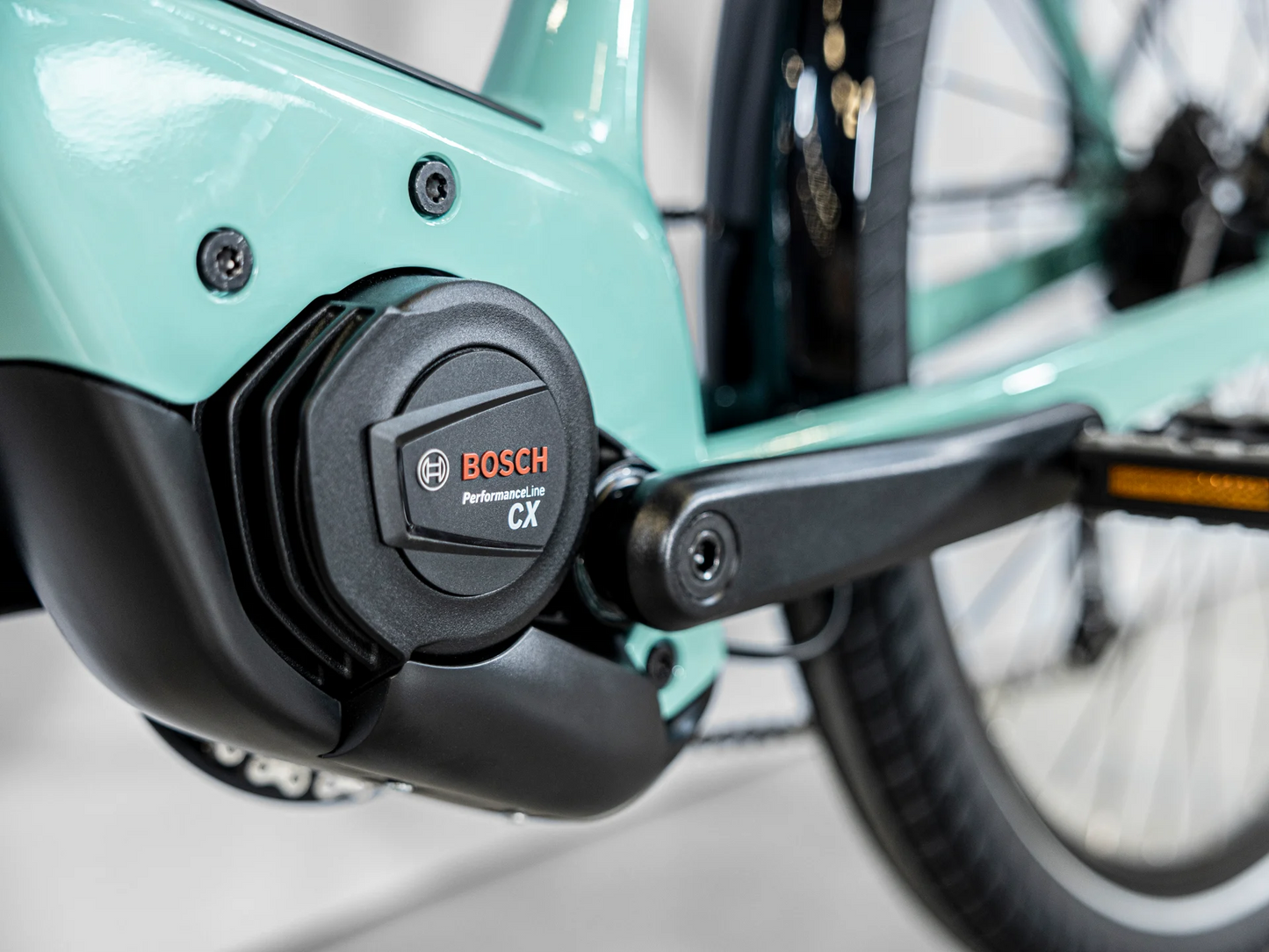

  • Motor: Bosch Performance Line CX, 20 mph (25 km/h in Europe)

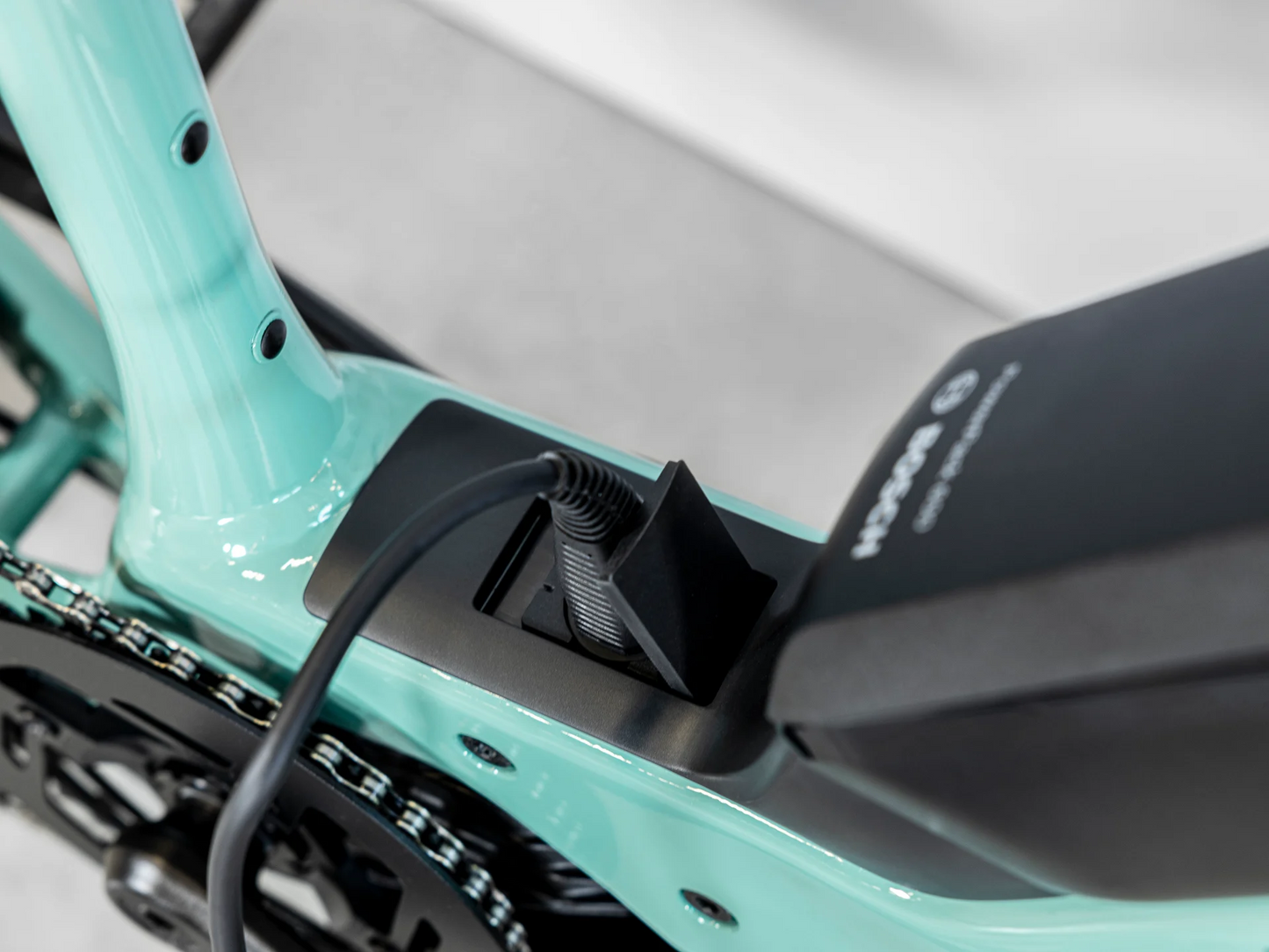

  • Battery: 545wh
  • Charger: Bosch standard 4A, 230V, smart system

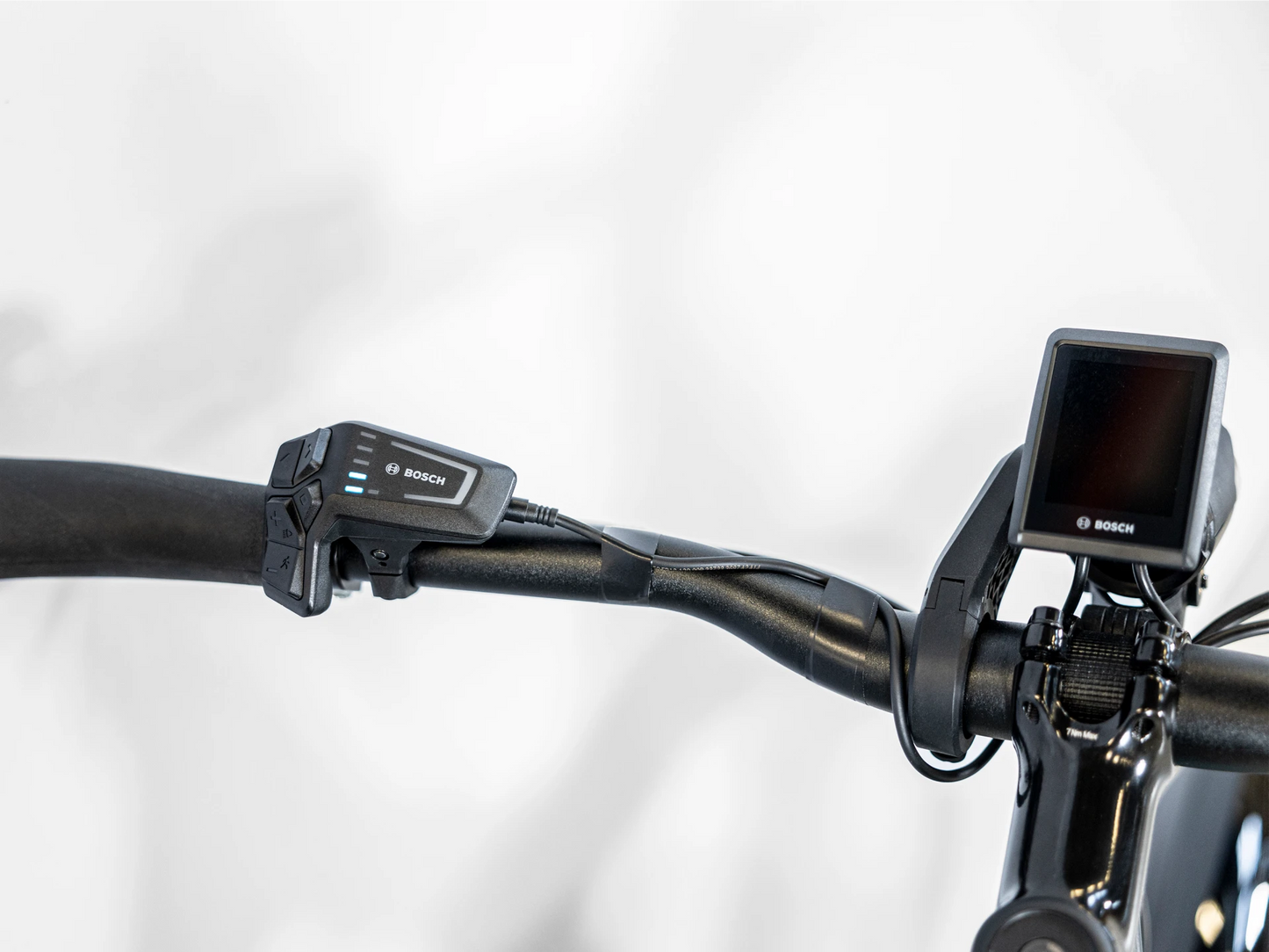

  • Controller: Bosch Intuvia 100, smart system

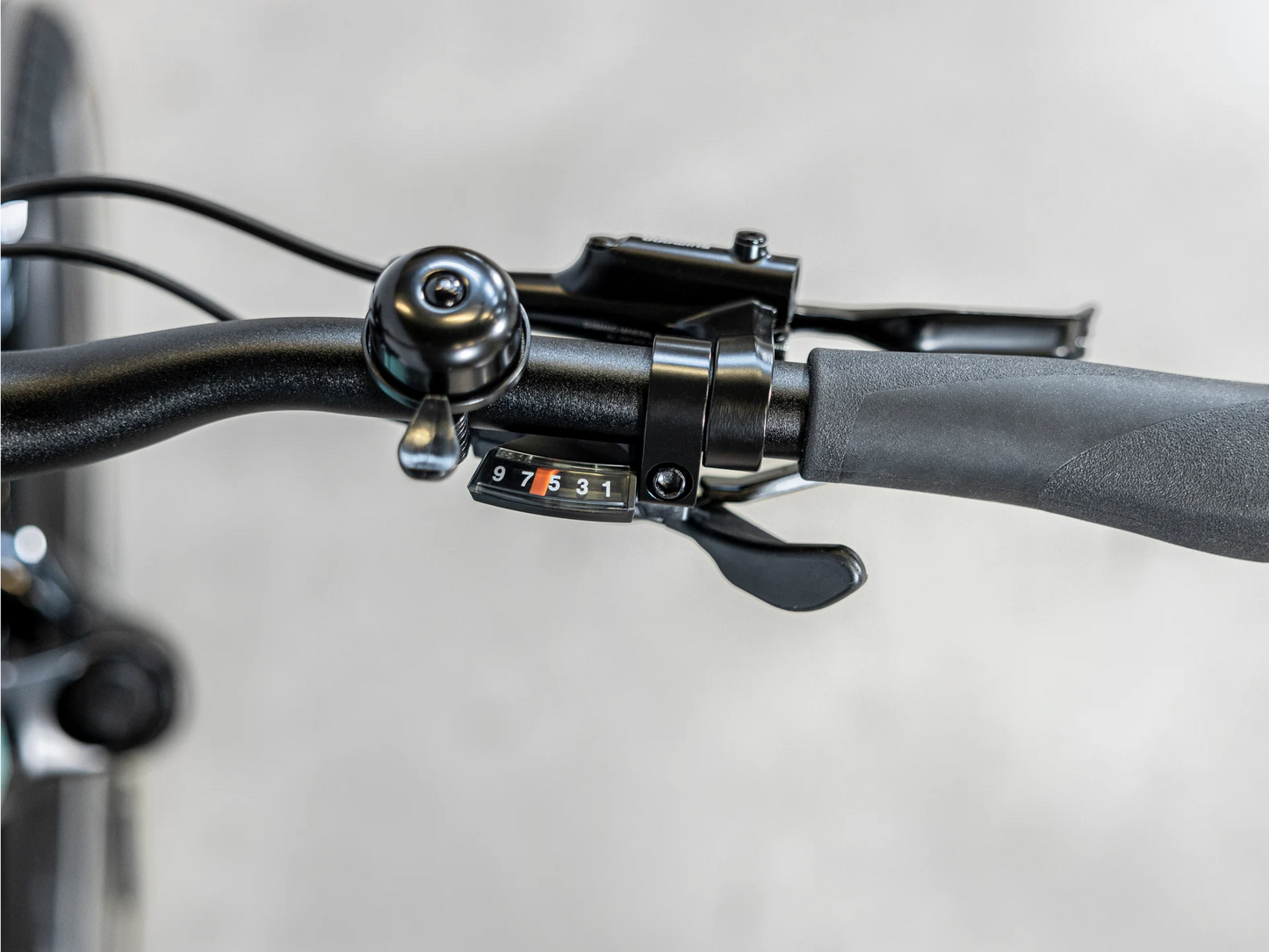

  • Gear Shifters: Shimano Altus M2010, 9-speed

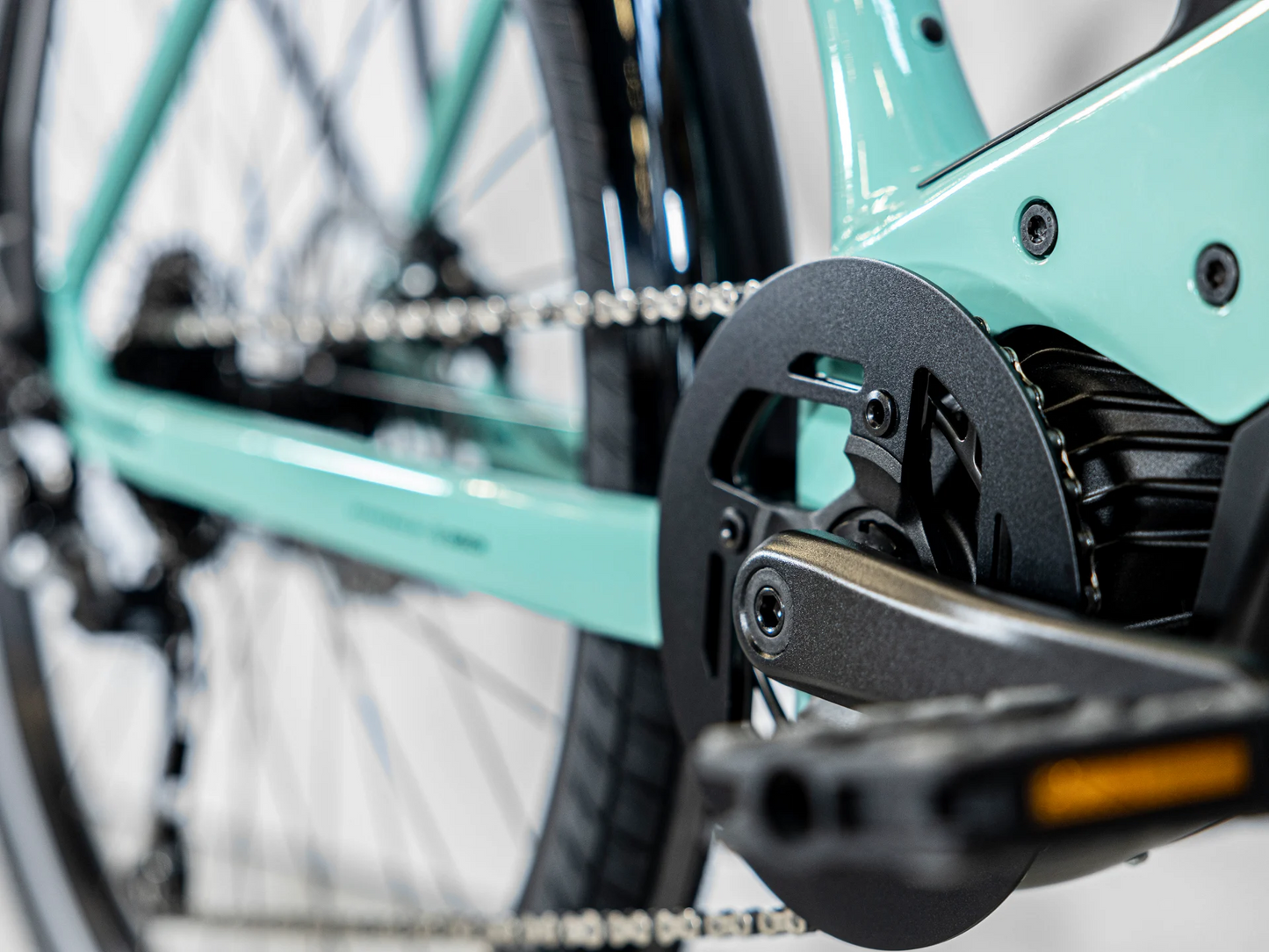

  • Chainset: ProWheel Alloy
  • Chainrings: 48T
  • Rear Cassette: Shimano LG600, 11-43, 10-speed
  • Chain/Belt: KMC E9S, 9-speed
  • Front Derailleur: N/A

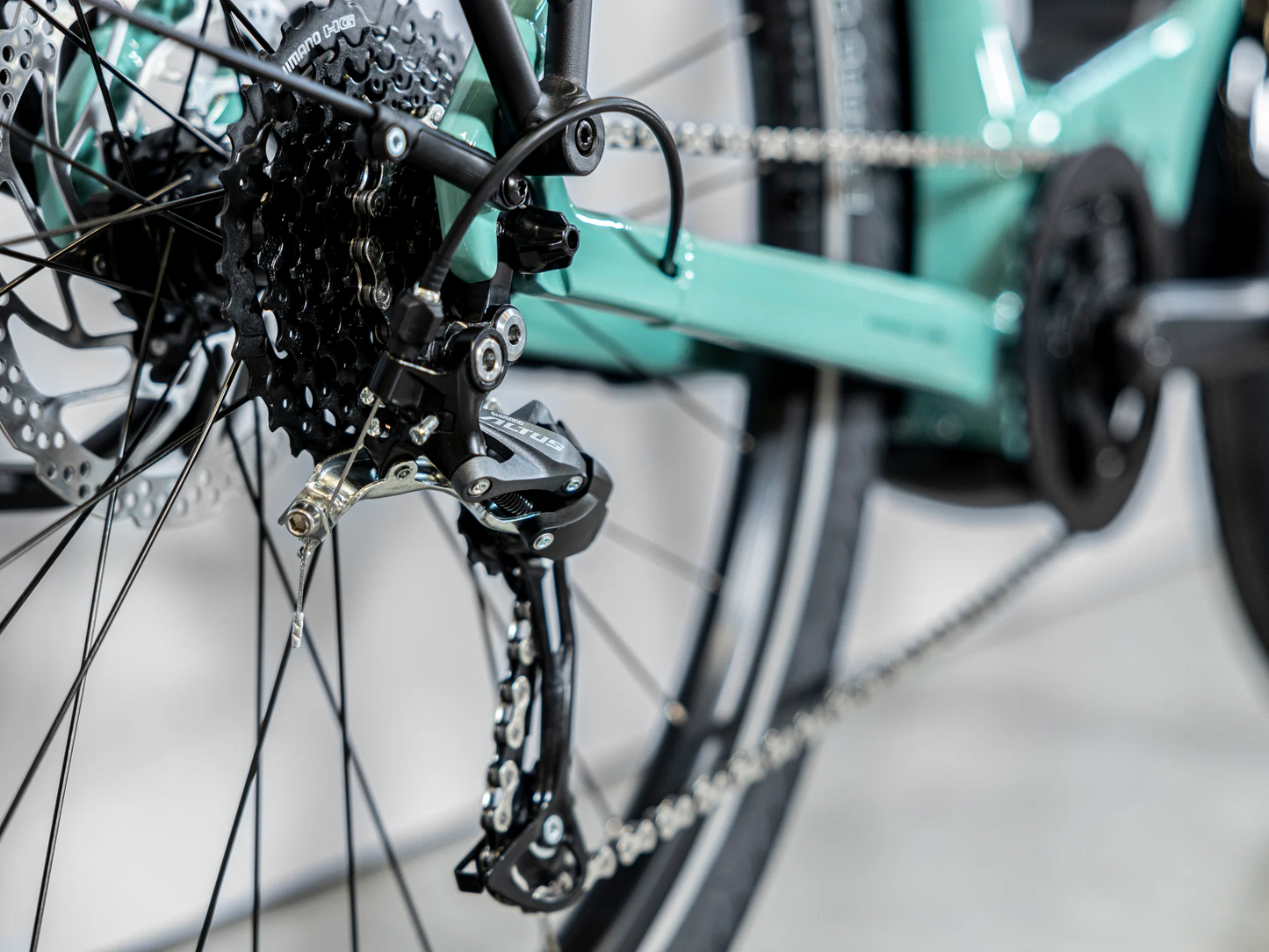

  • Rear Derailleur: Shimano Altus M2000, long cage
  • Pedals: slip-proof pedals with reflectors
  • Rims: Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
  • Front Hub: Shimano TX505, CenterLock
  • Rear Hub: Shimano TX505, CenterLock

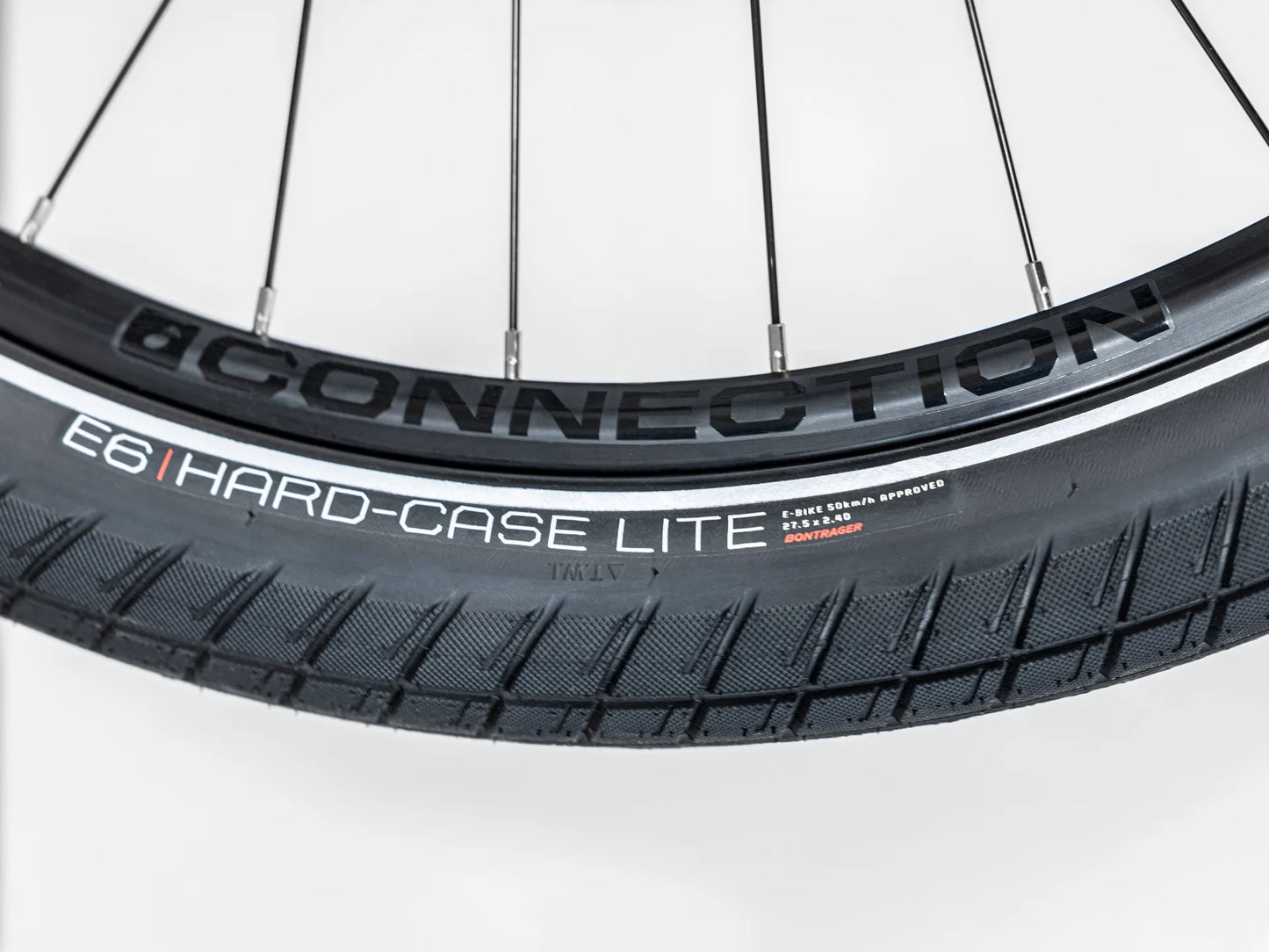

  • Front Tyre: Bontrager E6 Hard-Case Lite, reflective strip, 27.5x2.40"
  • Rear Tyre: Bontrager E6 Hard-Case Lite, reflective strip, 27.5x2.40"

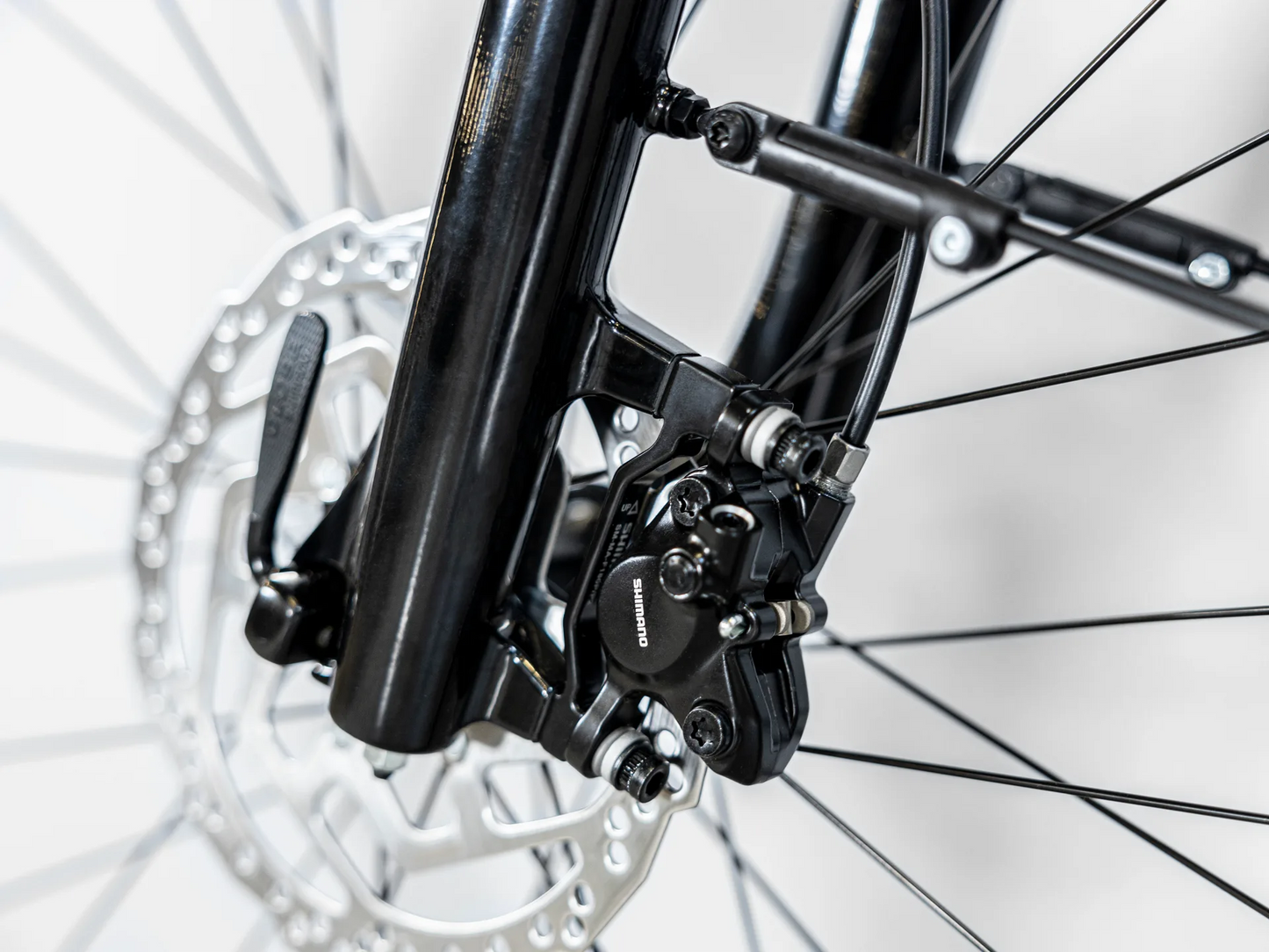

  • Brakes: Shimano MT200 hydraulic disc, RT10 180 mm rotor
  • Handlebars: Alloy low riser, 31.8mm, 25mm rise, 11 degree backsweep, 690mm width
  • Handlebar Grips: Herrmans Clik, ergonomic, lock-on
  • Stem: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree,
  • Saddle:  Selle Royal Vivo Moderate Ergo
  • Seatpost: Bontrager alloy, 31.6 mm, 12mm offset,

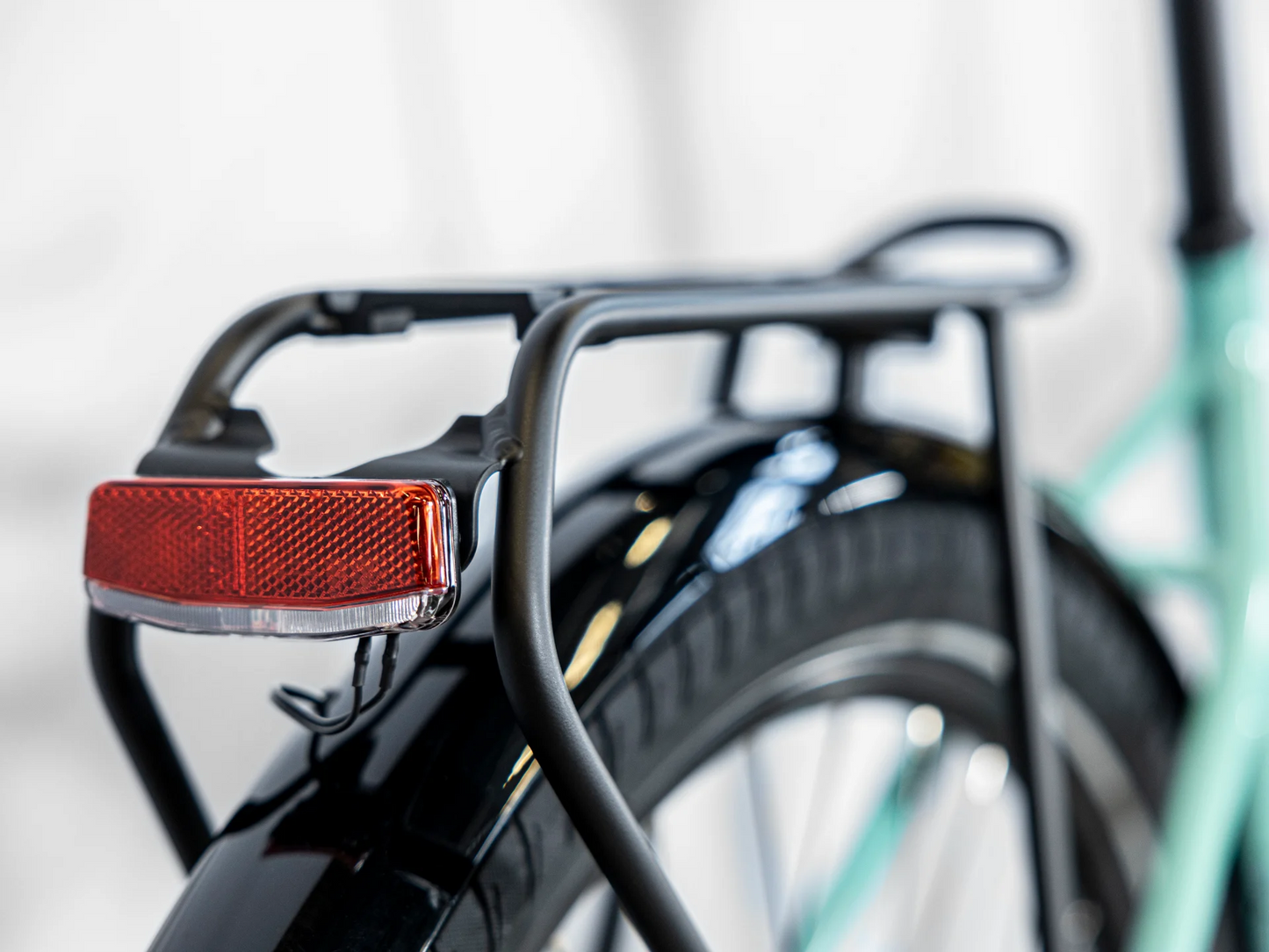

  • Accessories: Pletscher Comp Flex 18,MIK Rack, Mudguard
  • Weight: L - 26.40 kg

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.




How to Build Your Bike

Aftercare





TREK ALLANT+ 5 545WH LOWSTEP ELECTRIC HYBRID BIKE 2023 - BLUE SAGE

Regular price £2,400.00
Save 23%
Regular price Was £3,150.00 Sale price £2,400.00

SKU: 5306111

EPOS Code:

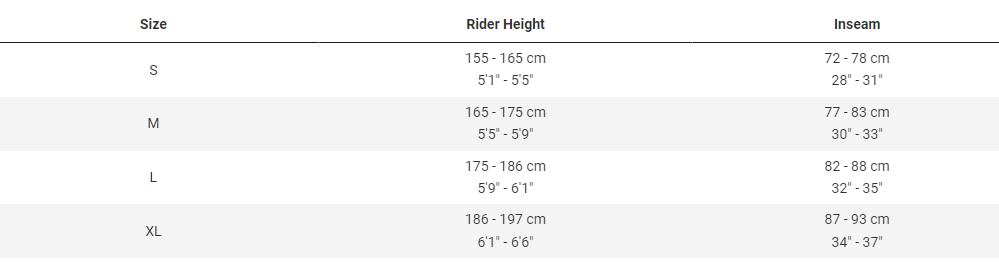

Size
