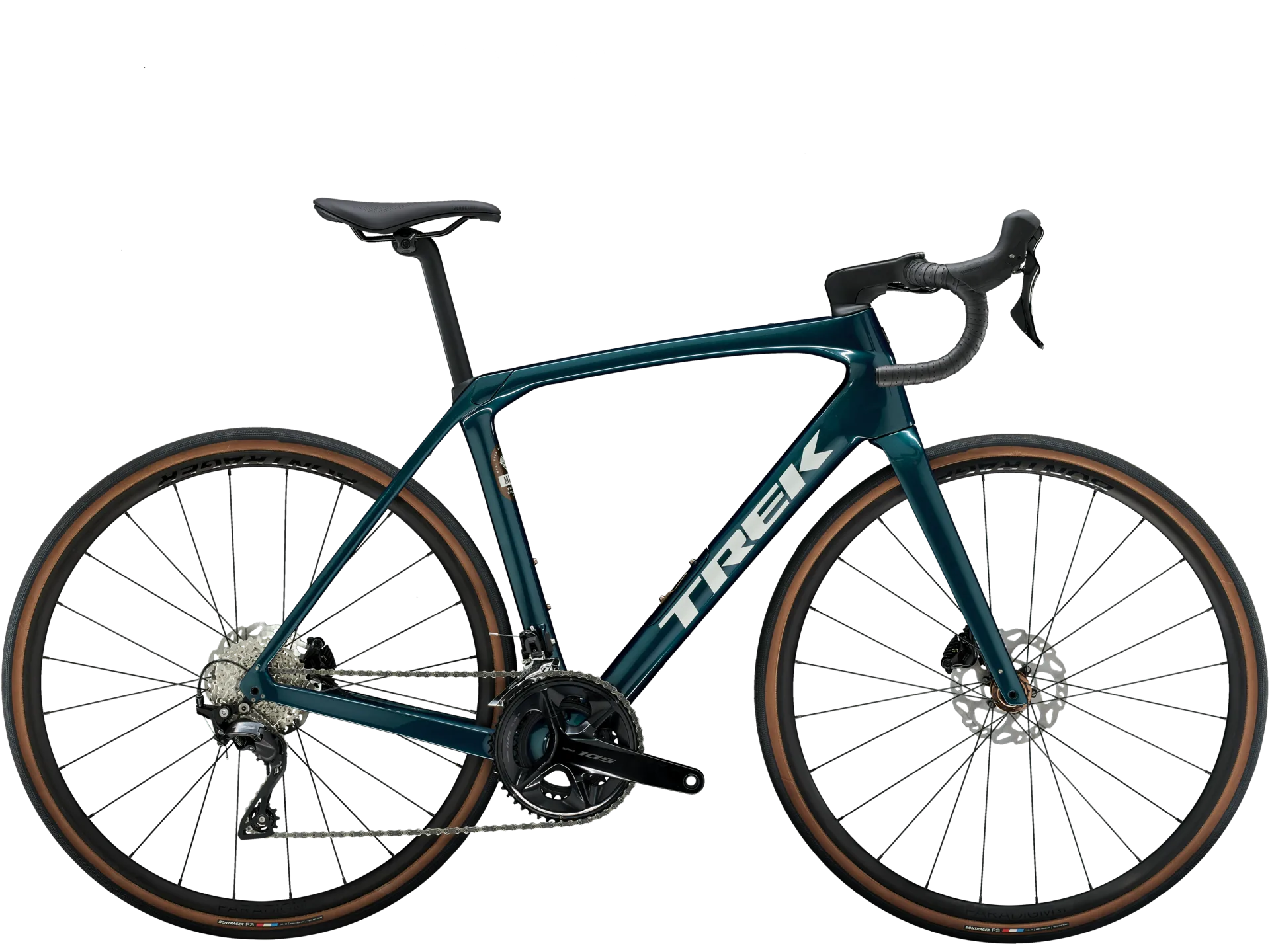

TREK DOMANE SL 5 GEN 4 ROAD BIKE 2025 DARK AQUATIC
Product Details - Trek Domane Sl 5 Gen 4 Road Bike 2025 Dark Aquatic
Product Details - Trek Domane Sl 5 Gen 4 Road Bike 2025 Dark Aquatic

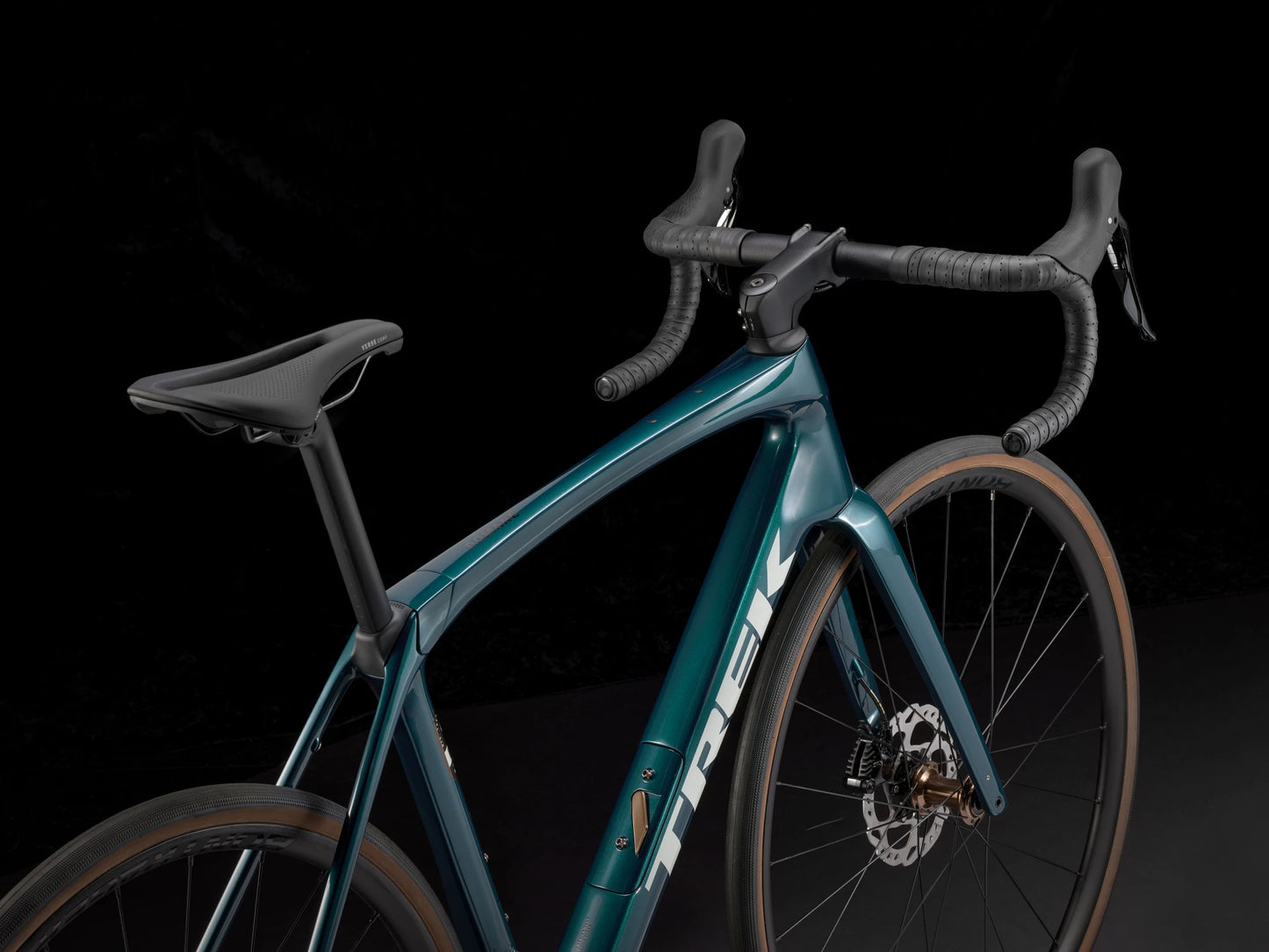

The Domane SL 5 is ready to comfortably take on rough roads and long miles in comfort.
Key Features Trek Domane SL 5 Gen 4 Road Bike 2025
- 500 Series OCLV Carbon frame: Saves weight and gives you more free speed thanks to updated Kammtail tube shapes
- Proven Componentry: Powerful Shimano hydraulic disc mount brakes and 24-speed 105 drivetrain.
- 38 mm Tyre Clearance: Absorbs fatiguing bumps in the road for a smoother, more comfortable ride.
Full Specification

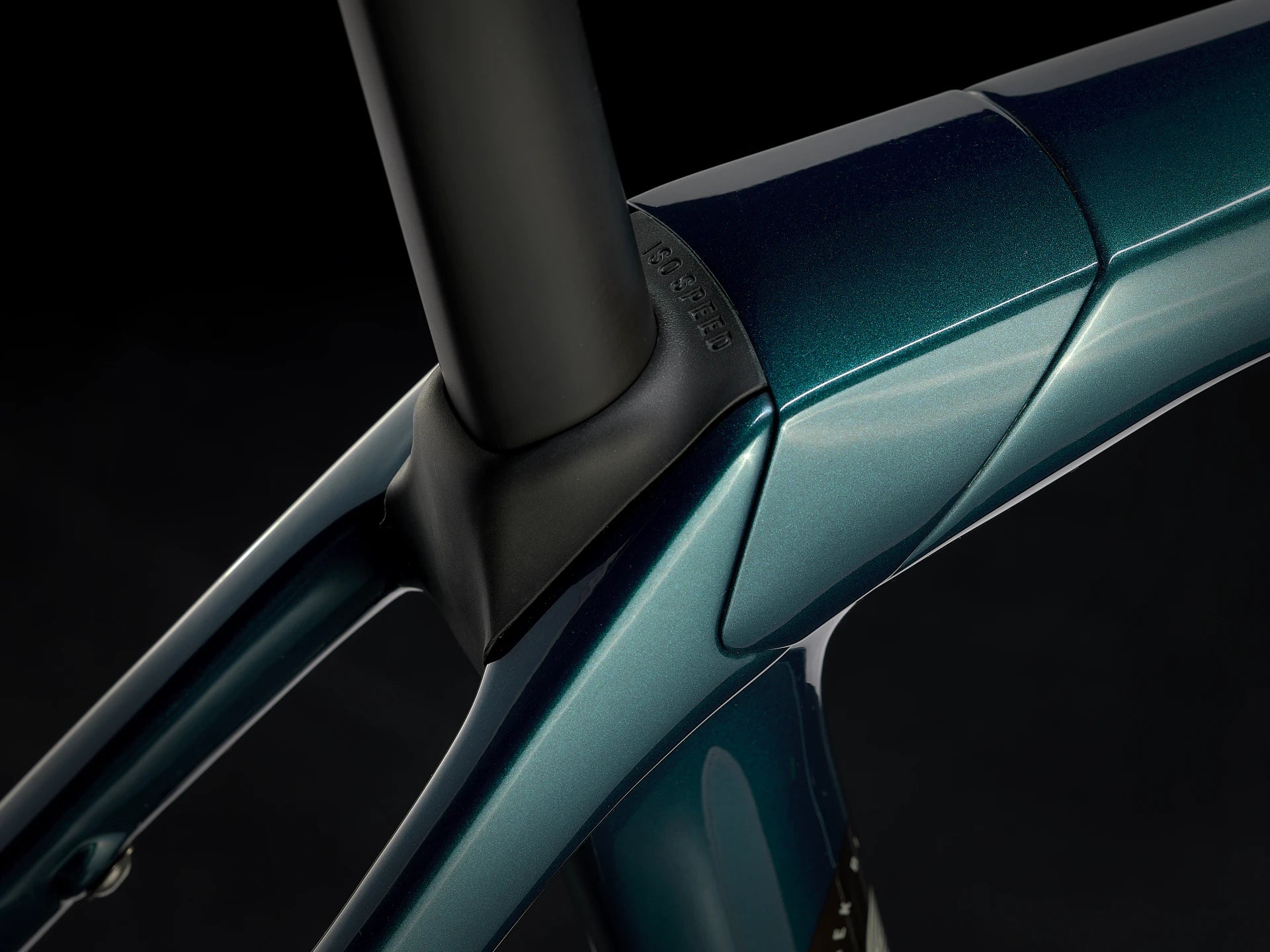

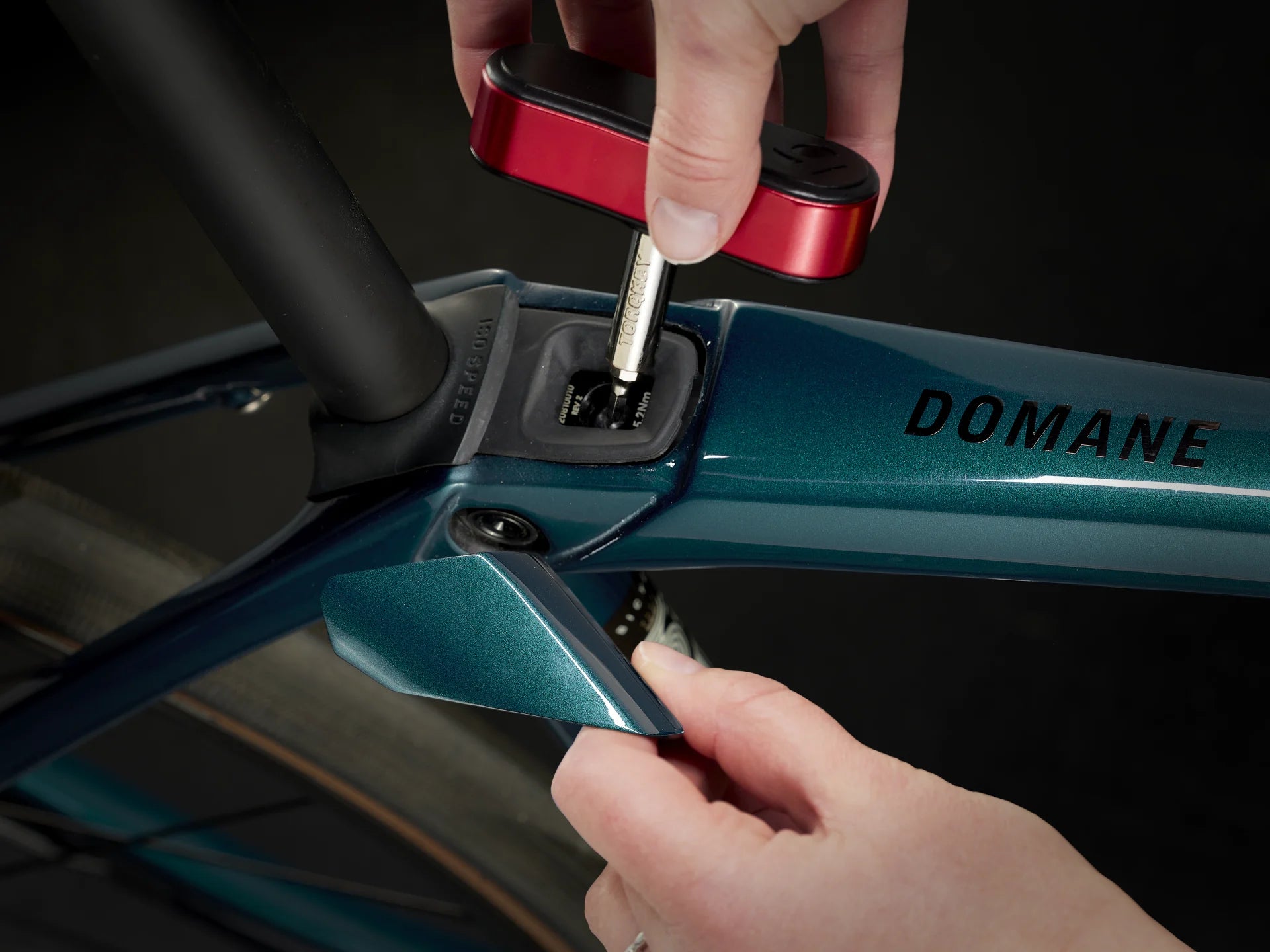

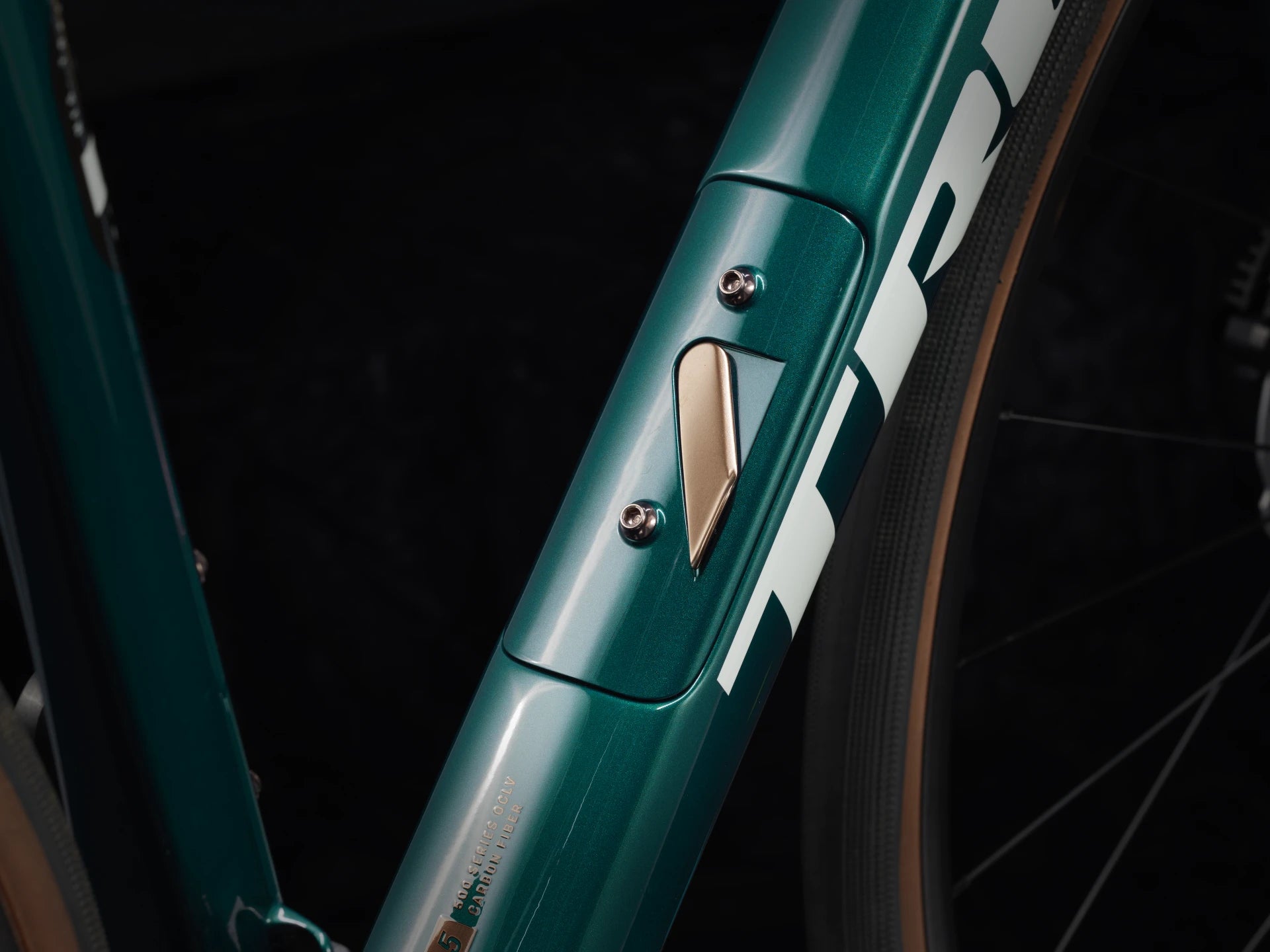

- Frame: 500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle
- Fork: Domane SL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle
- Gear Shifters: Shimano 105 R7120, 12-speed

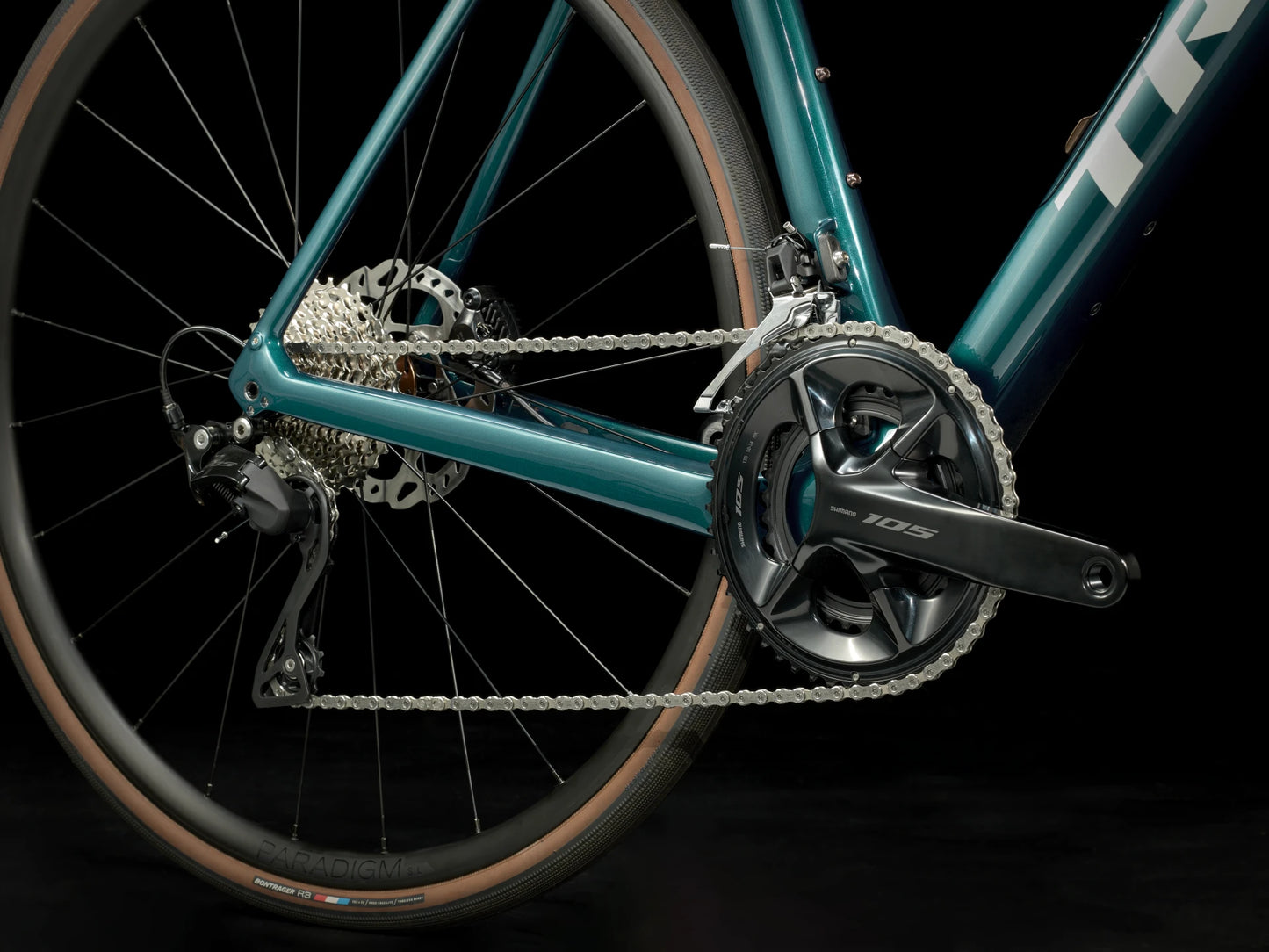

- Chainset: Shimano 105 R7100, 50/34, 165 - 175 mm length
- Rear Cassette: Shimano 105 7101, 11-34, 12-speed
- Chain: Shimano SLX M7100, 12-speed
- Front Derailleur: Shimano 105 R7100, braze-on, down swing
- Rear Derailleur: Shimano 105 R7100, 36T max cog
- Bottom Bracket: Praxis, T47 threaded, internal bearing
- Pedals: Not supplied
- Front Wheel: Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 100x12 mm thru axle
- Rear Wheel: Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 142x12 mm thru axle
- Tyres: Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32 mm

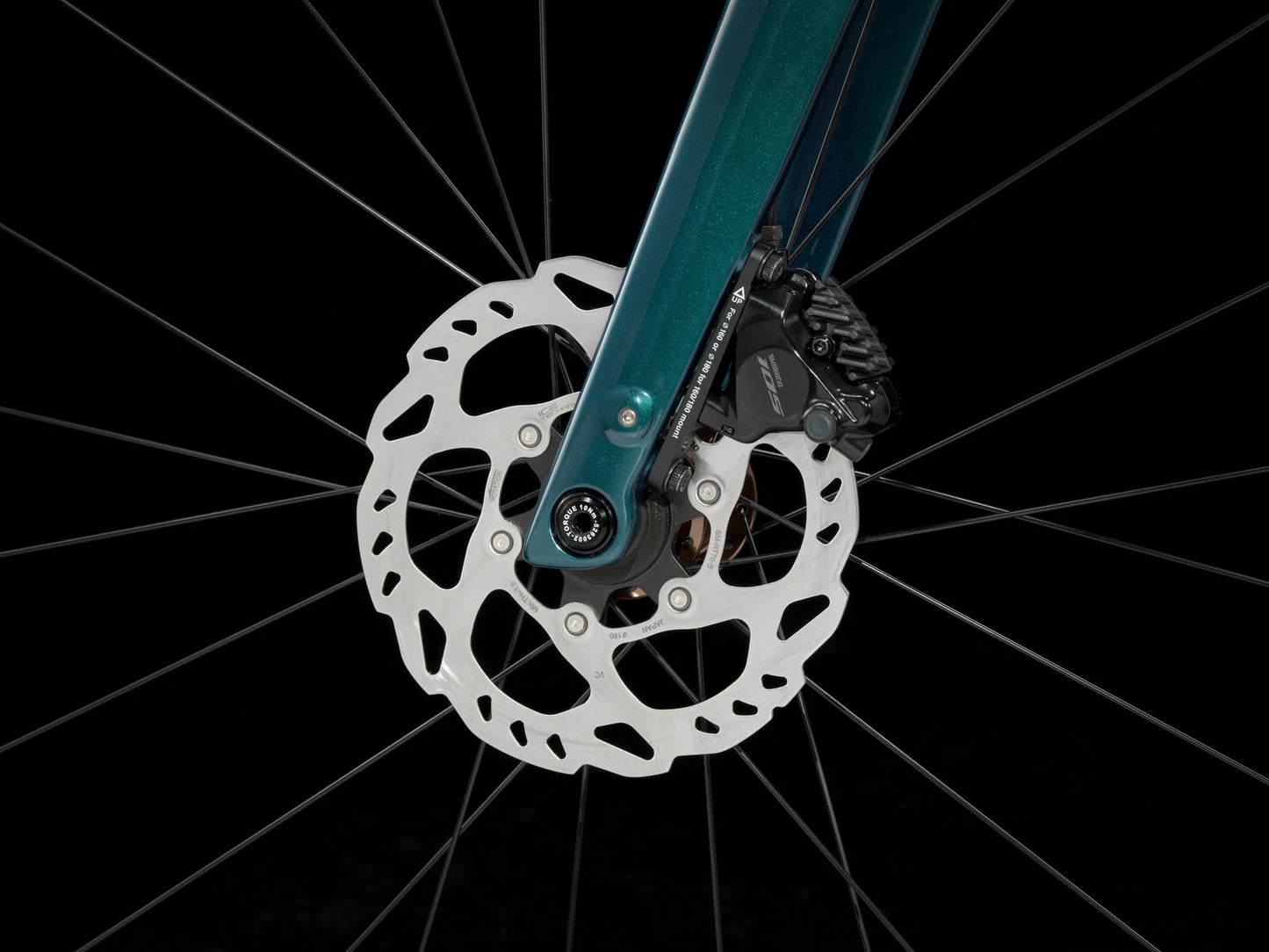

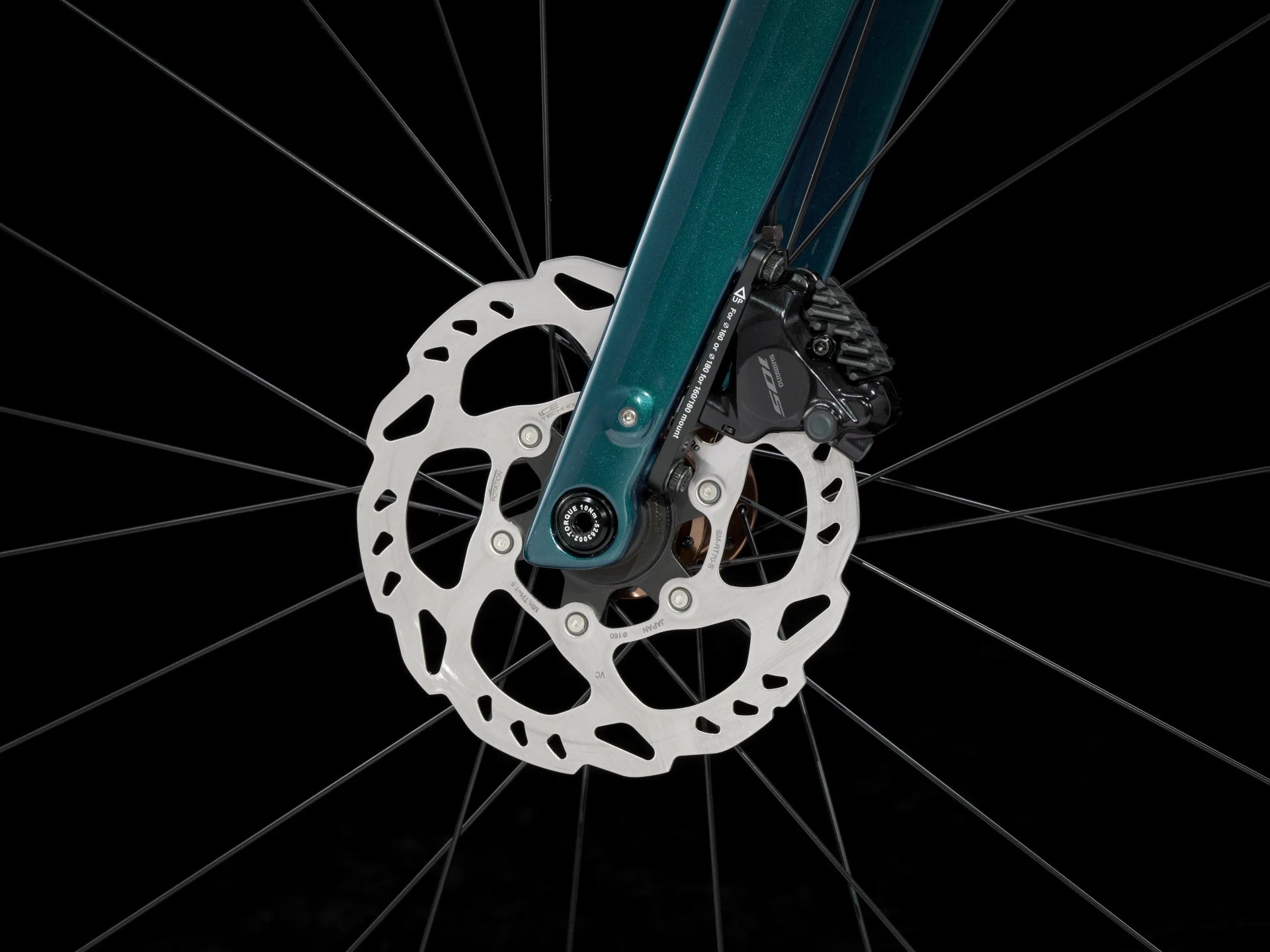

- Brakes: Shimano 105 hydraulic disc

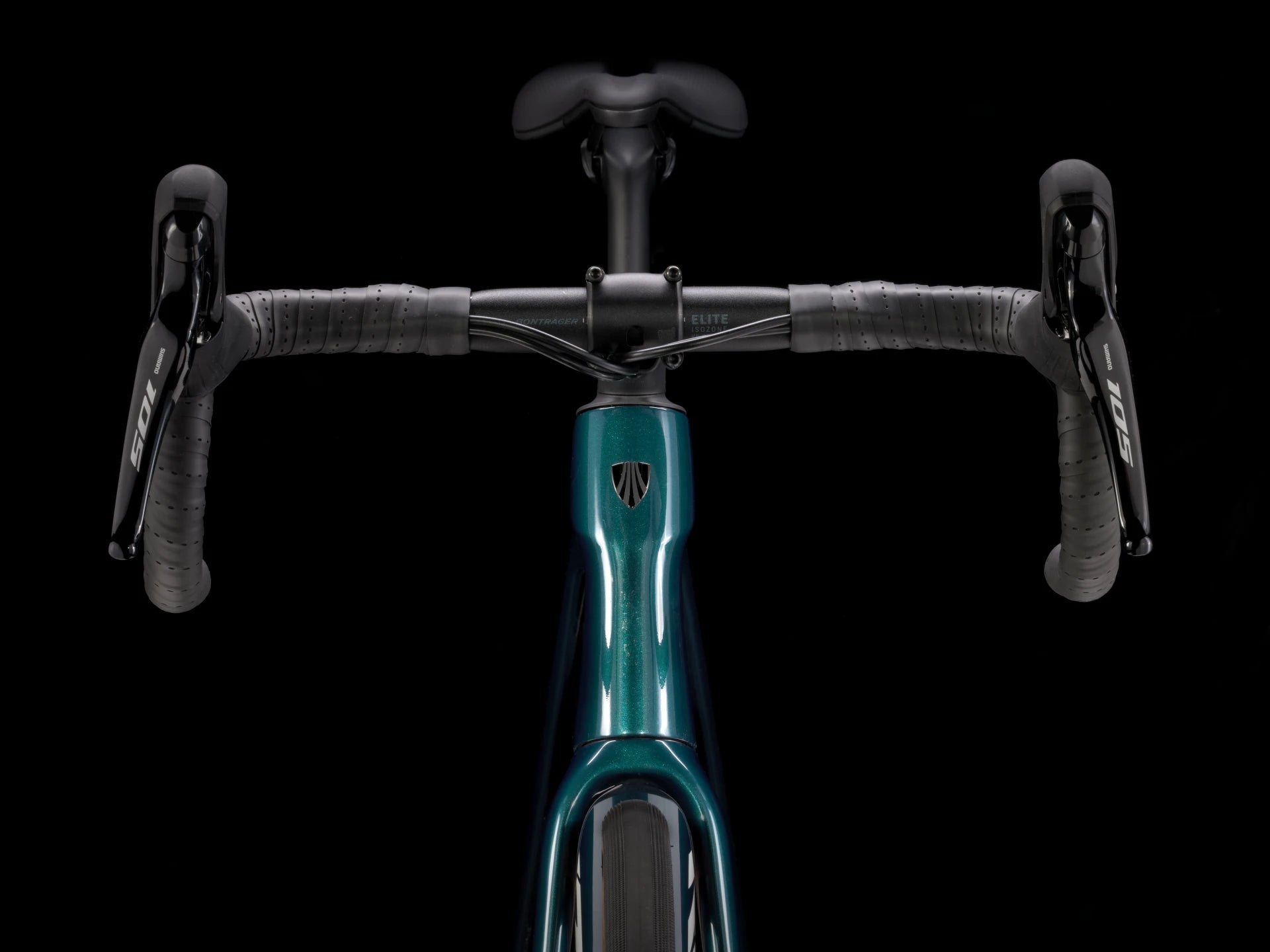

- Handlebars: Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop
- Bar Tape: Bontrager Supertack Perf tape

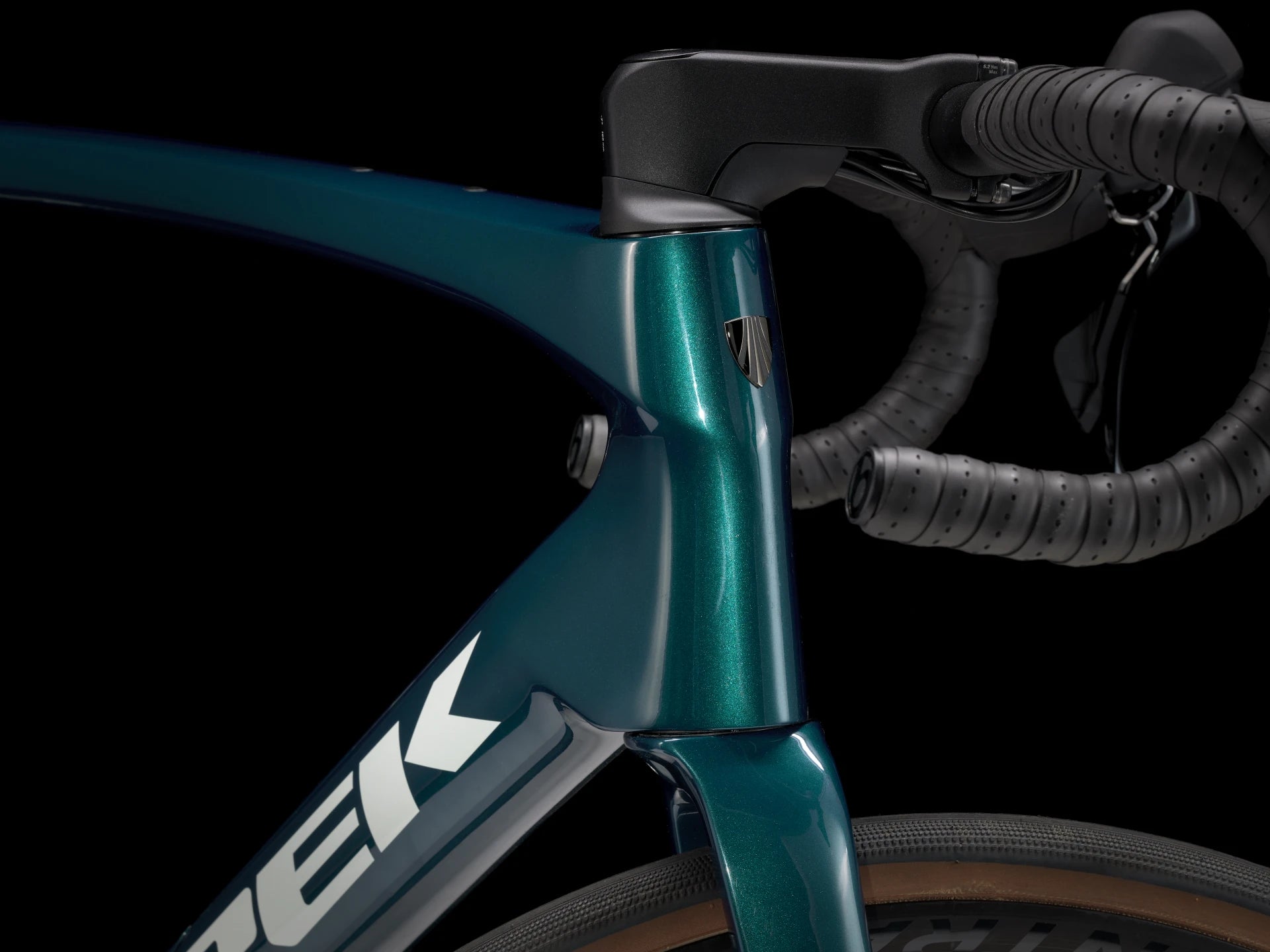

- Headset: Integrated
- Stem: Trek RCS Pro, -7-degree, 60 - 110 mm length
- Saddle: Bontrager Verse Short Comp, steel rails
- Seatpost: Domane carbon seat post, KVF shaping, 20 mm offset, 280-320mm length

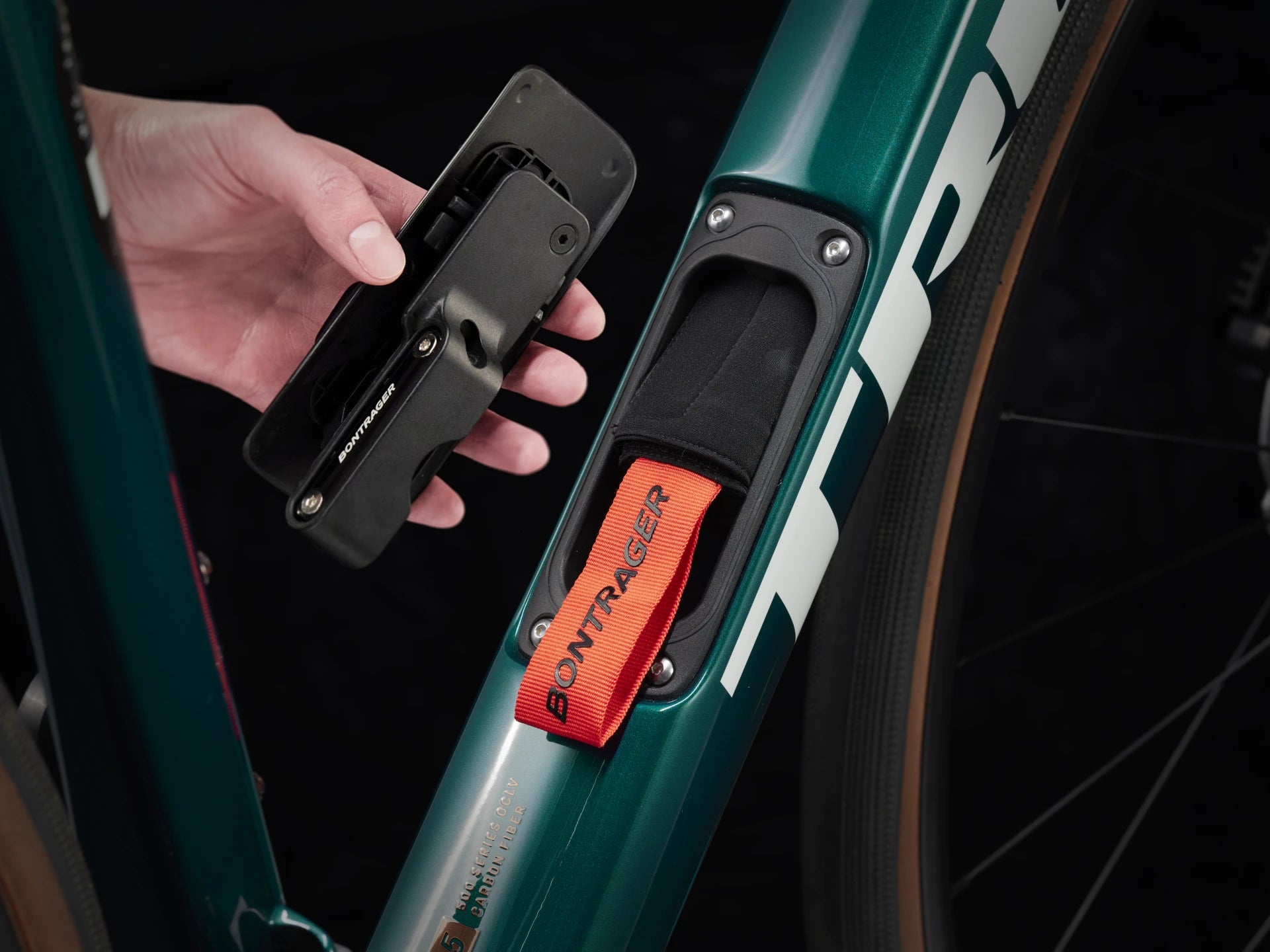

- Accessories: Bontrager BITS Internal Frame Storage Bag
- Weight: 56 - 8.93 kg / 19.69 lbs (with TLR sealant, no tubes)
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
How we Build & Pack Your Bike
How we Build & Pack Your Bike
Aftercare
Aftercare
At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.
Bicycle Safety
Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.
Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.
Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.
Follow road rules – Ride responsibly and remain aware of your surroundings.
Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)
Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.
Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.
Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.
Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.
Routine Maintenance (Every Few Weeks)
Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.
Brake Safety – Check brake pads and responsiveness before each ride.
Tyre Inspection – Look for punctures and ensure correct air pressure.
Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.
Frame Safety Check – Look for any signs of damage or cracks.
Professional Check-Ups
Have your bike serviced at least once a year, or more frequently if you ride often.
Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)
Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.
Avoid Overcharging – Unplug the charger once fully charged to extend battery life.
Routine e-Bike Maintenance (Every Few Weeks)
Motor Inspection – Listen for unusual noises and ensure smooth operation.
Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.
Seasonal e-Bike Maintenance
Check Electrical Components – Ensure wires and connections are clean and secure.
Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.
By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk
