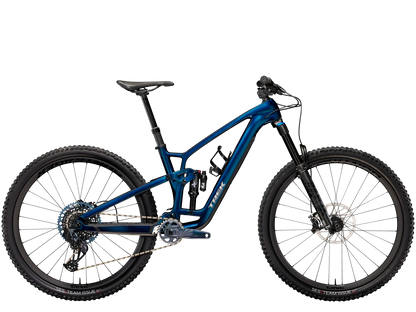

TREK FUEL EX 9.8 GX AXS GEN 6 MTB BIKE 2023 MULSANNE BLUE

Skip to product information
1 of 12

Product Details - Trek Fuel Ex 9.8 Gx Axs Gen 6 Mtb Bike 2023 Mulsanne Blue

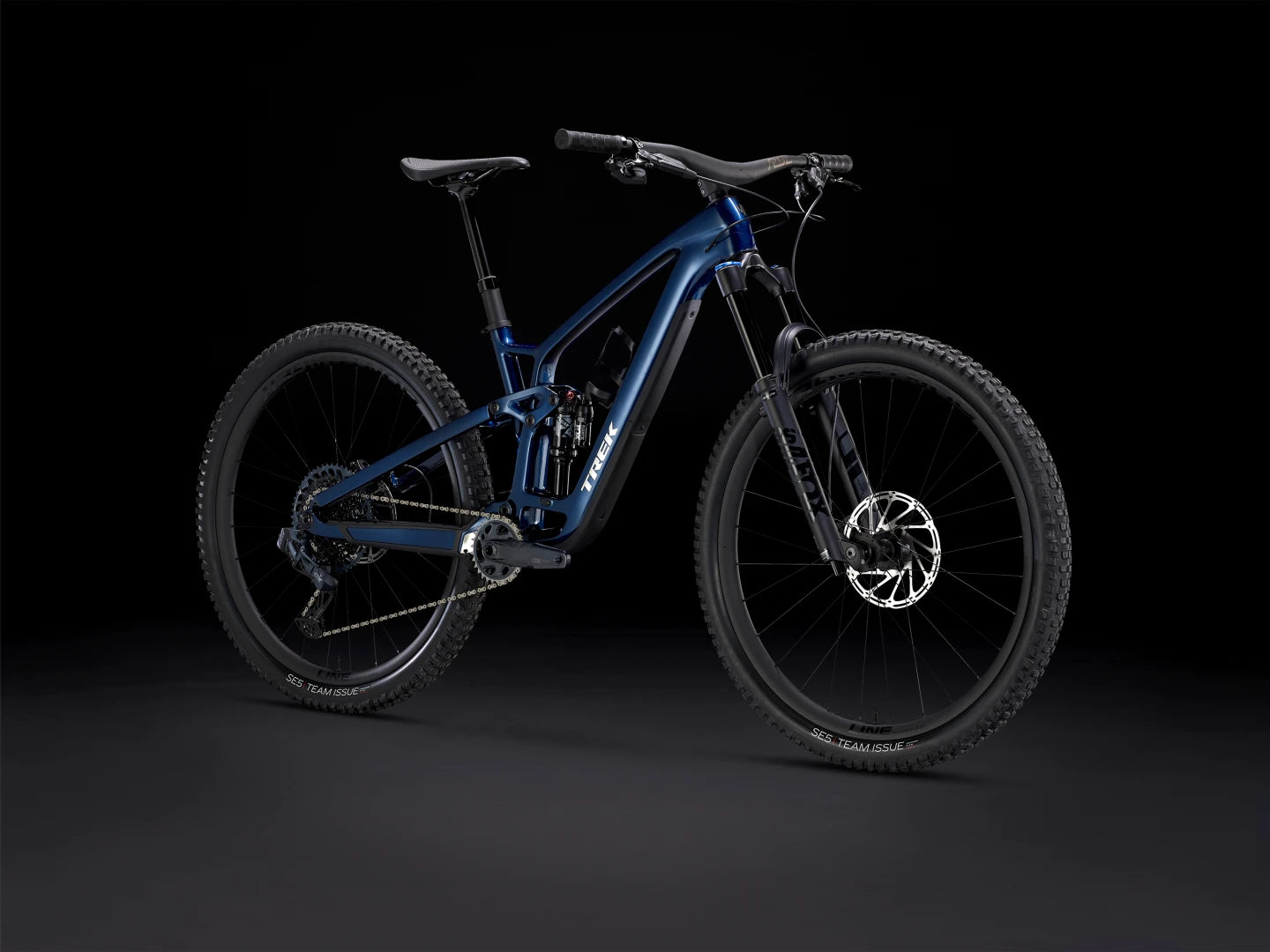

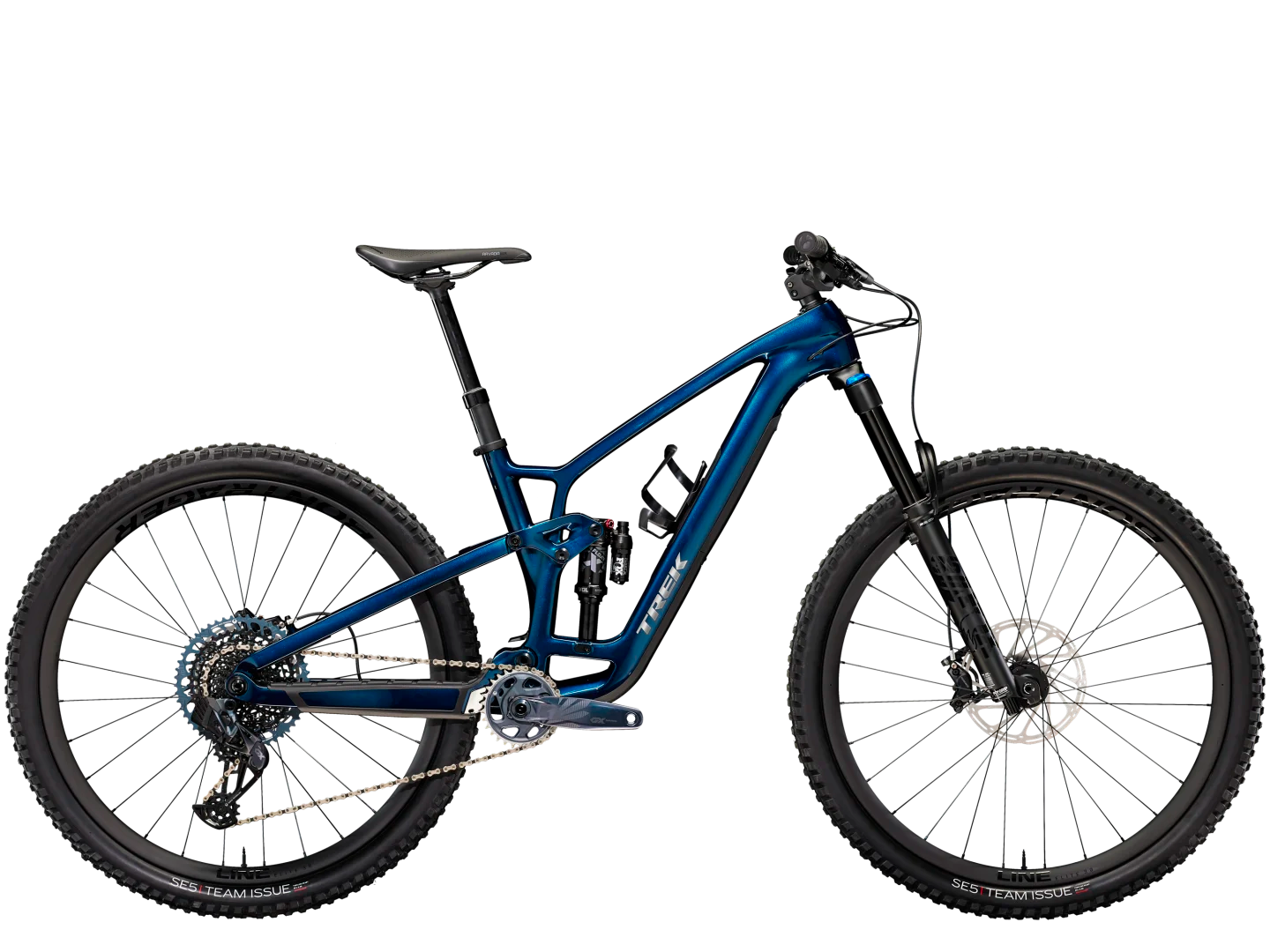

The Fuel EX 9.8 is a hard-charging trail bike with a light and stiff carbon frame that's smooth and quiet, and holds its own when you pick a line.

It's loaded with the latest tech like a wireless SRAM GX AXS drivetrain that's super clean-looking and customisable. 150 mm front and 140 mm rear suspension keep you in control on the roughest trails and it's all topped off with carbon Bontrager wheels with a quick-engaging hub.

Key Features Trek Fuel EX 9.8 GX AXS Gen 6 MTB Bike 2023

  • Fox Rhythm 36 fork: 150mm Suspension with 36mm stanchions for greater steering precision

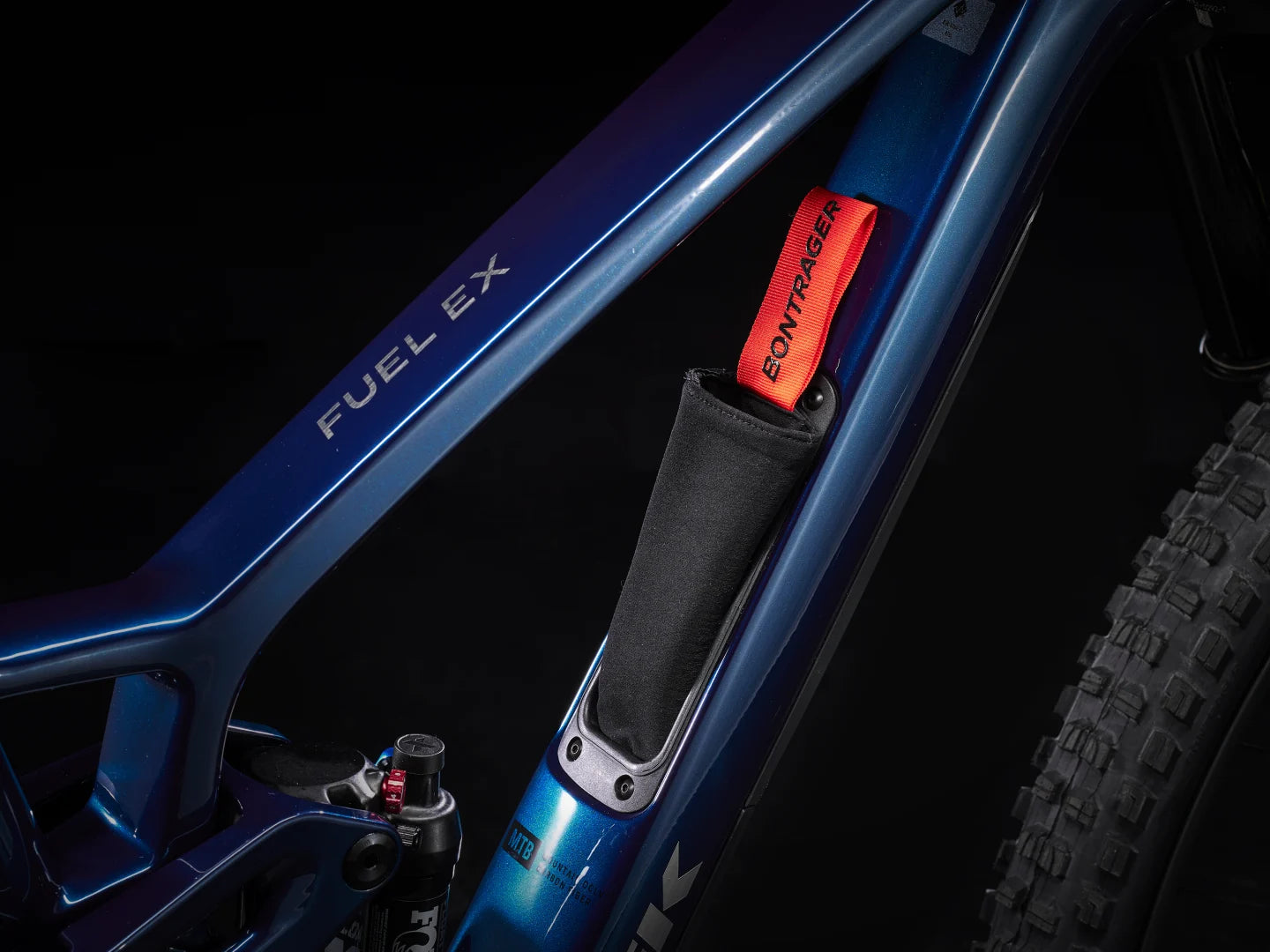

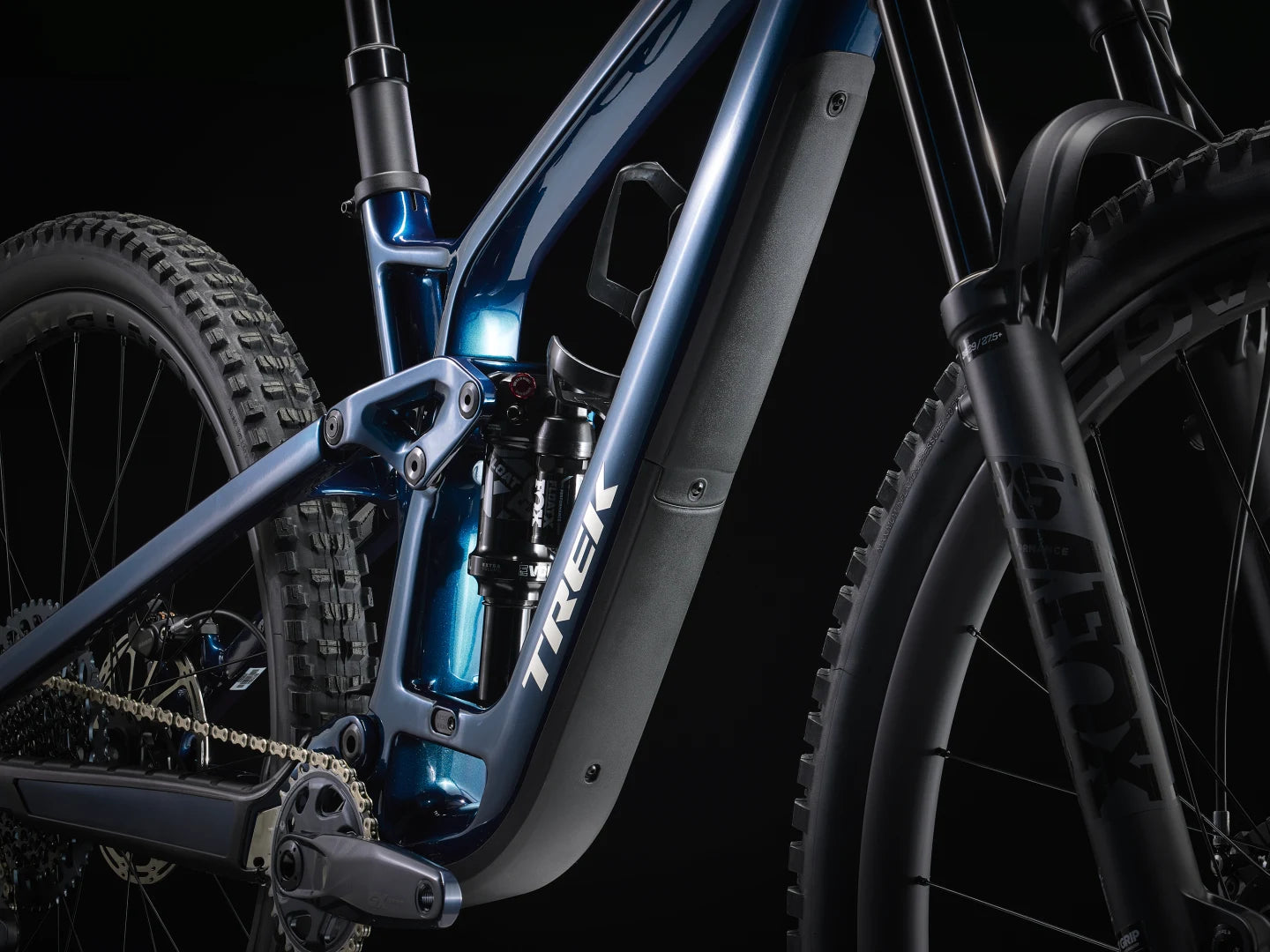

  • Carbon fibre 140mm travel Frame with downtube storage: Progressive geometry built to tackle steep and gnarly descents and punchy climbs alike
  • 12-Speed SRAM GX AXS Gears: SRAM's workhorse GX group set, with wireless AXS shifting

Full Specification

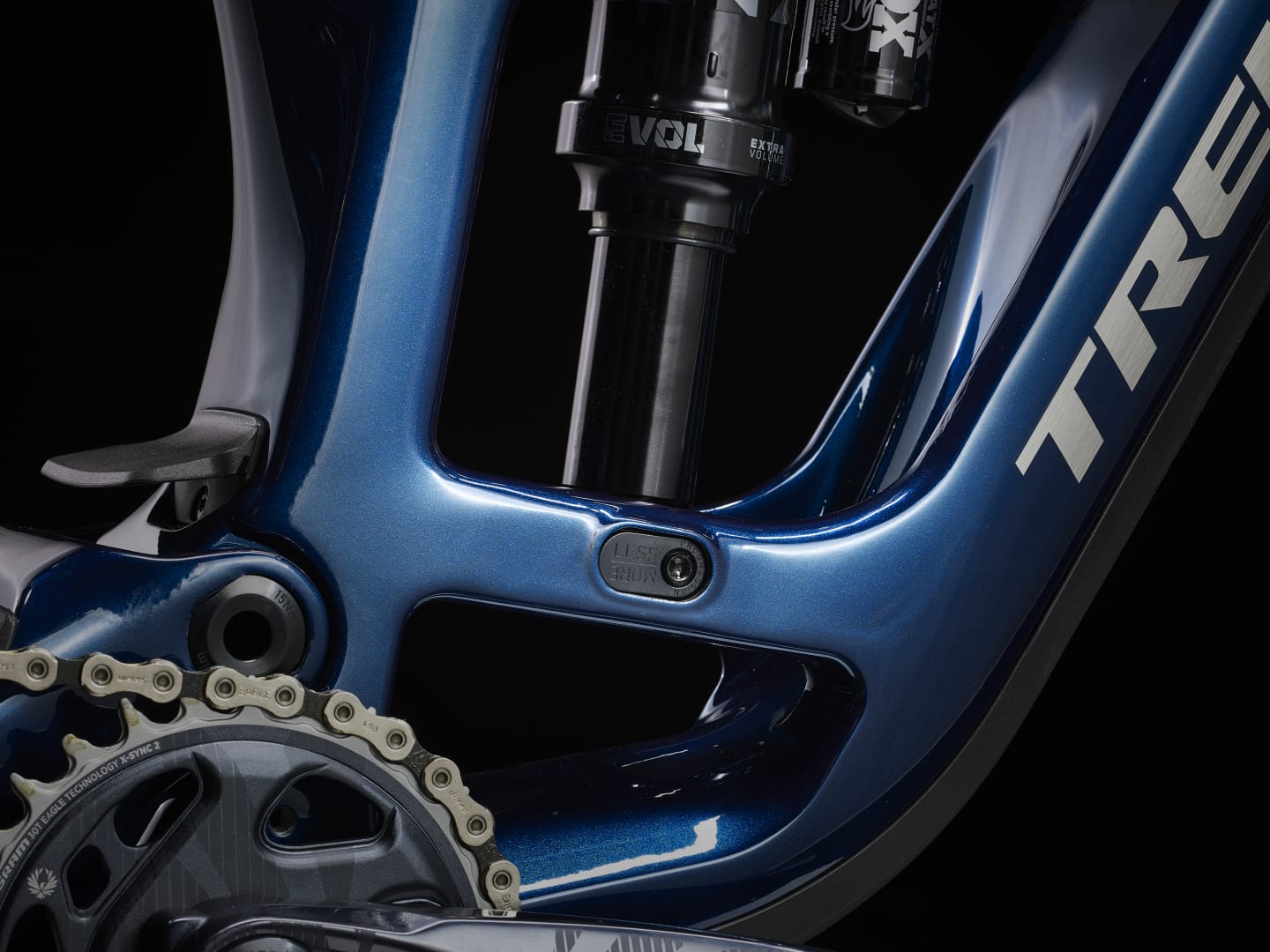

  • Frame: OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel

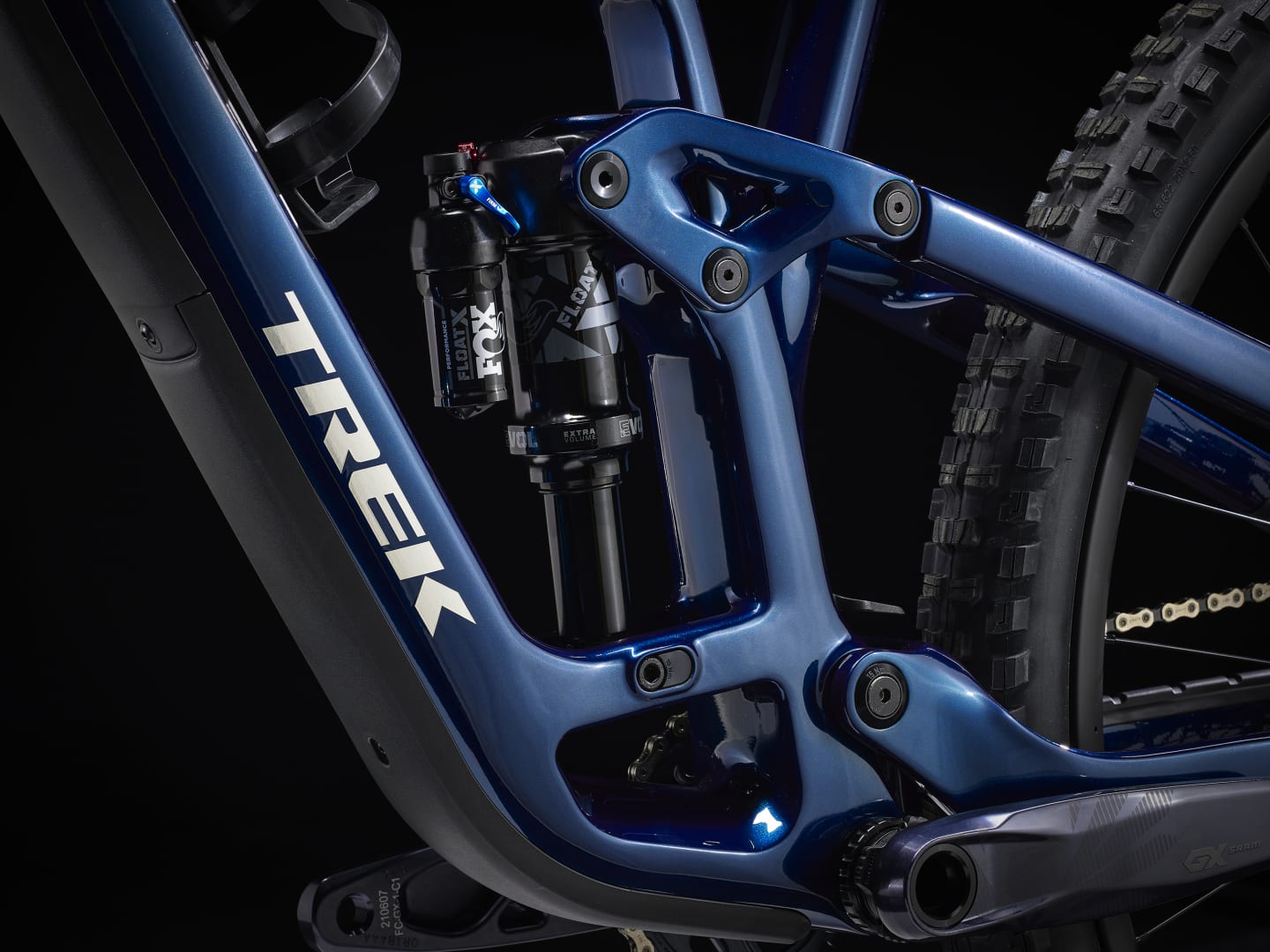

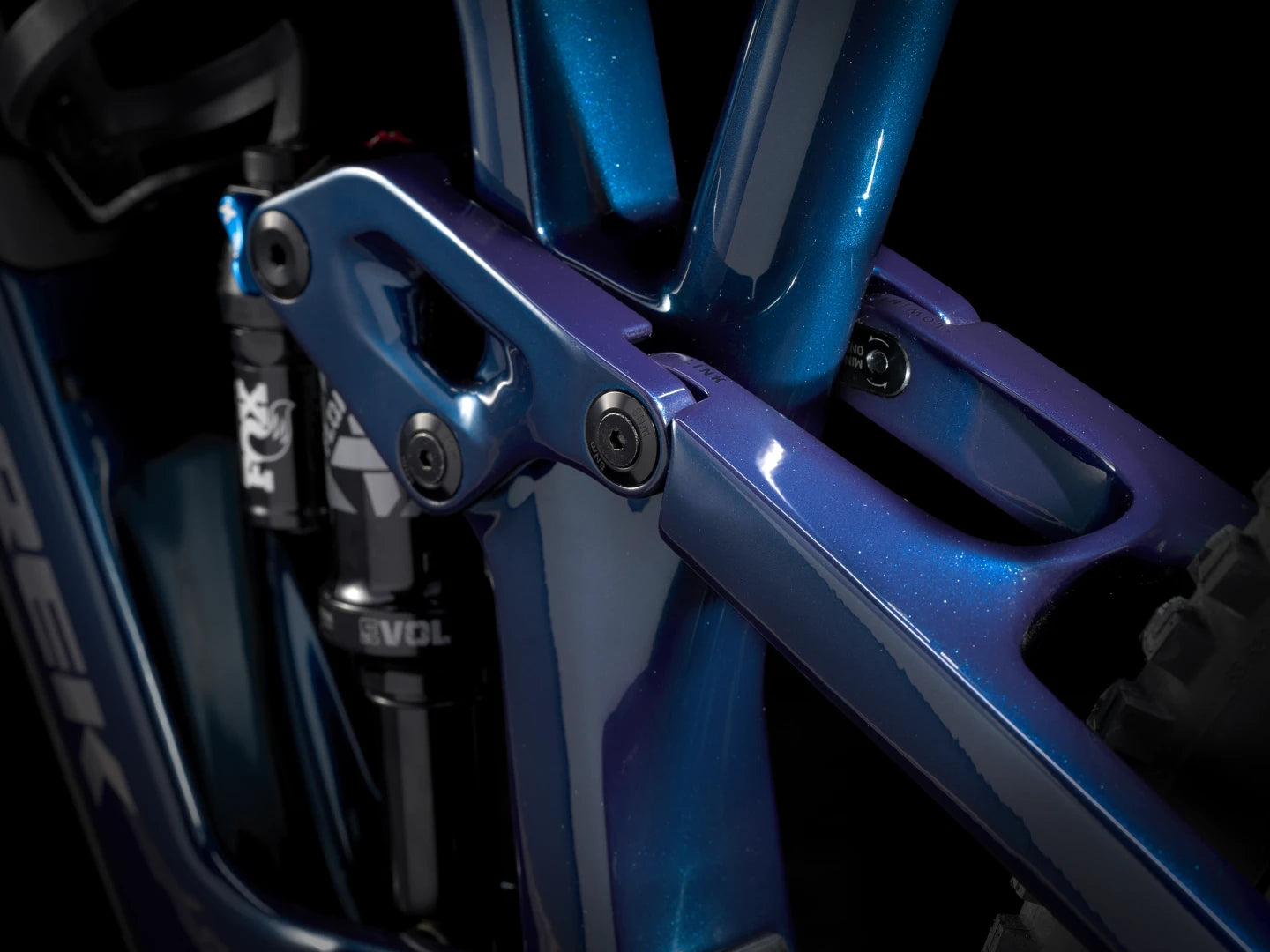

  • Rear Shock: Fox Performance Float X, 2-position damper, 185mm x 55mm
  • Fork: Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel
  • Gear Shifters: SRAM GX Eagle AXS, 12-speed
  • Chainset: SRAM GX Eagle, DUB MTB Wide, 30T, 55mm chainline, 170 length
  • Rear Cassette: SRAM Eagle XG-1275, 10-52, 12-speed
  • Chain: SRAM GX Eagle, 12-speed
  • Front Derailleur: N/A

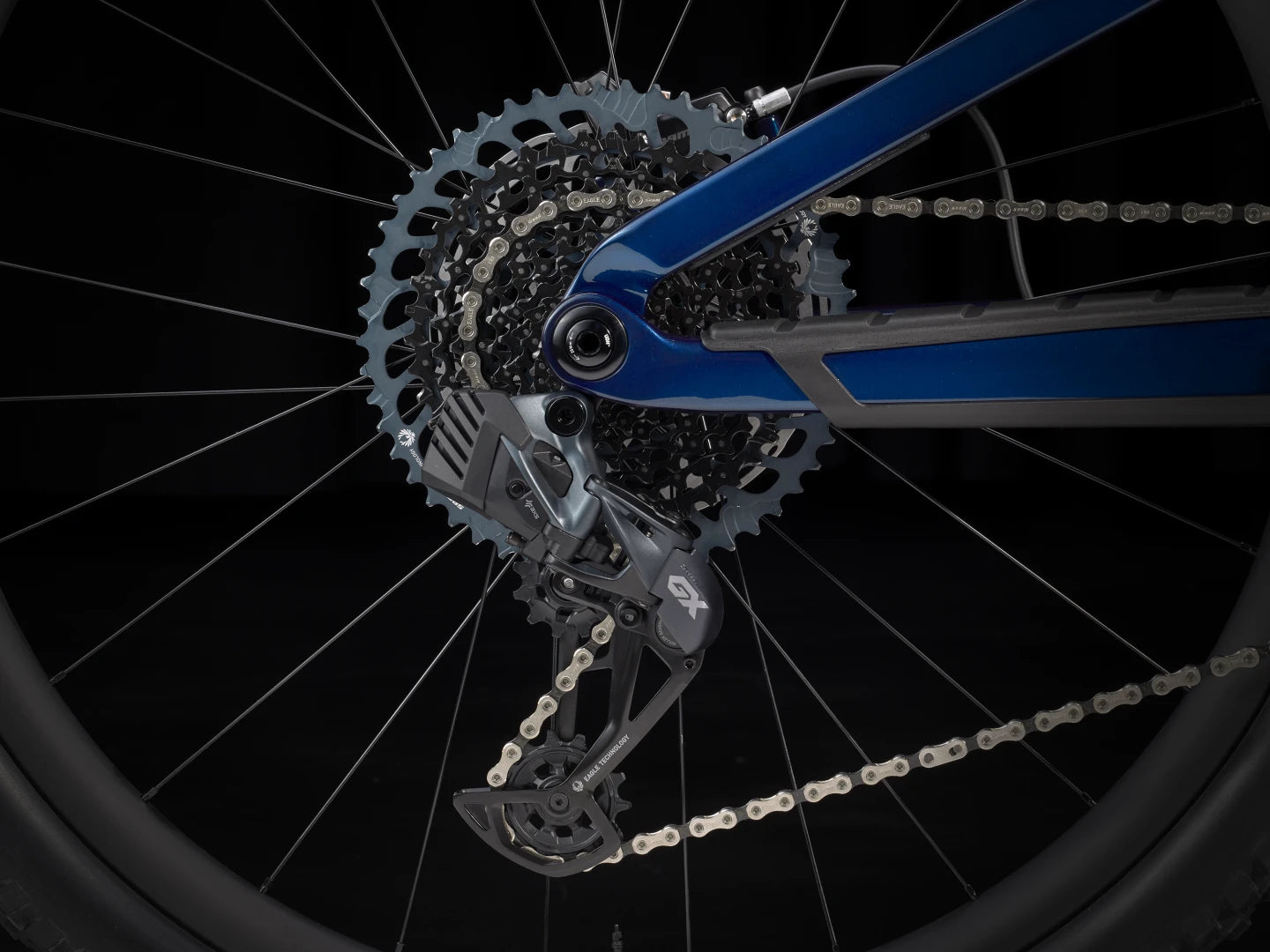

  • Rear Derailleur: SRAM GX Eagle AXS
  • Bottom Bracket: SRAM DUB MTB Wide, 73 m, BSA threaded
  • Pedals: Not Included
  • Rims: Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
  • Front Hub: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
  • Rear Hub: Bontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, SRAM XD driver, Boost148, 12 mm thru axle

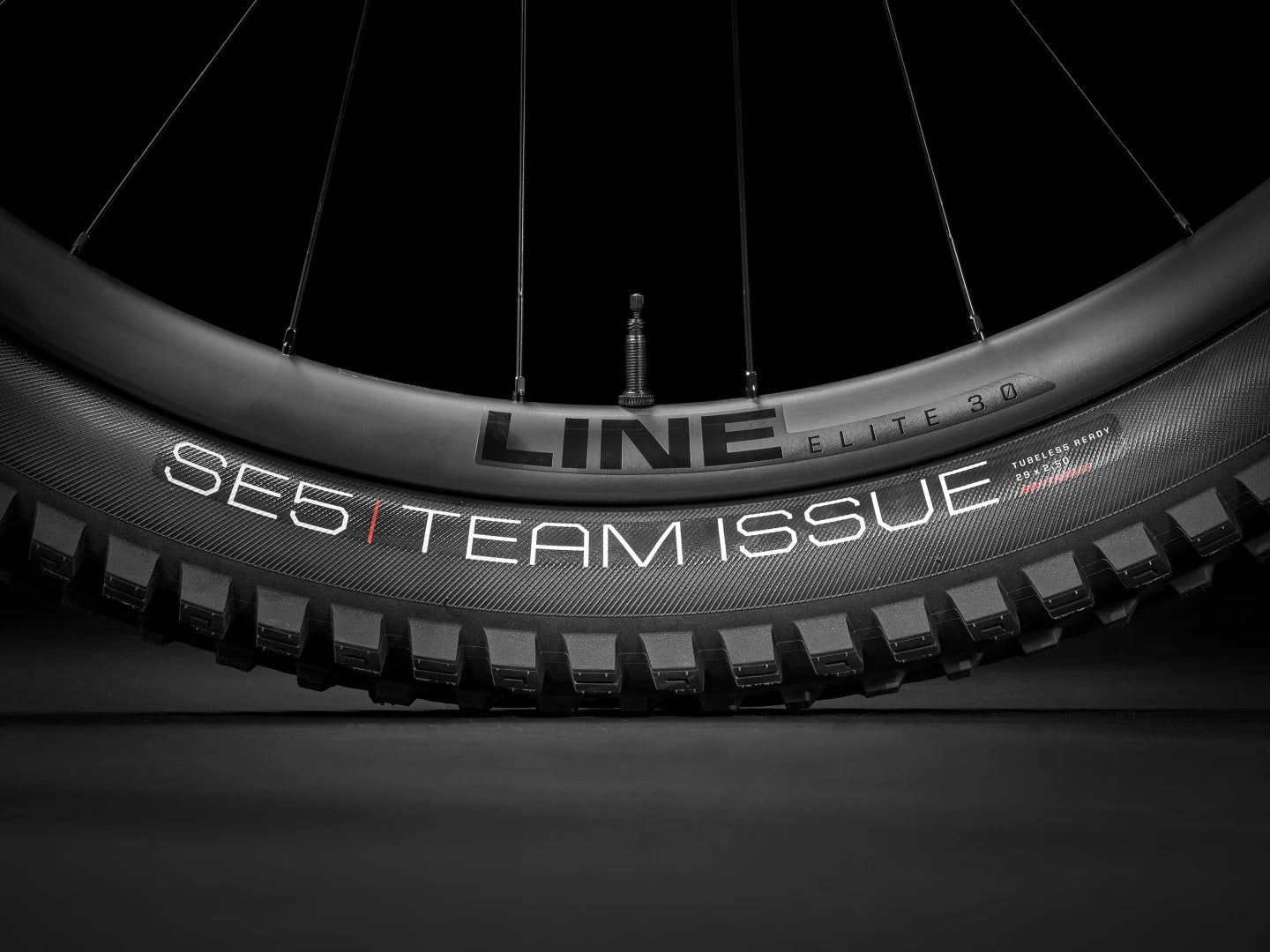

  • Tyres: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50" or 27.5x2.50"(Size small and Xsmall)

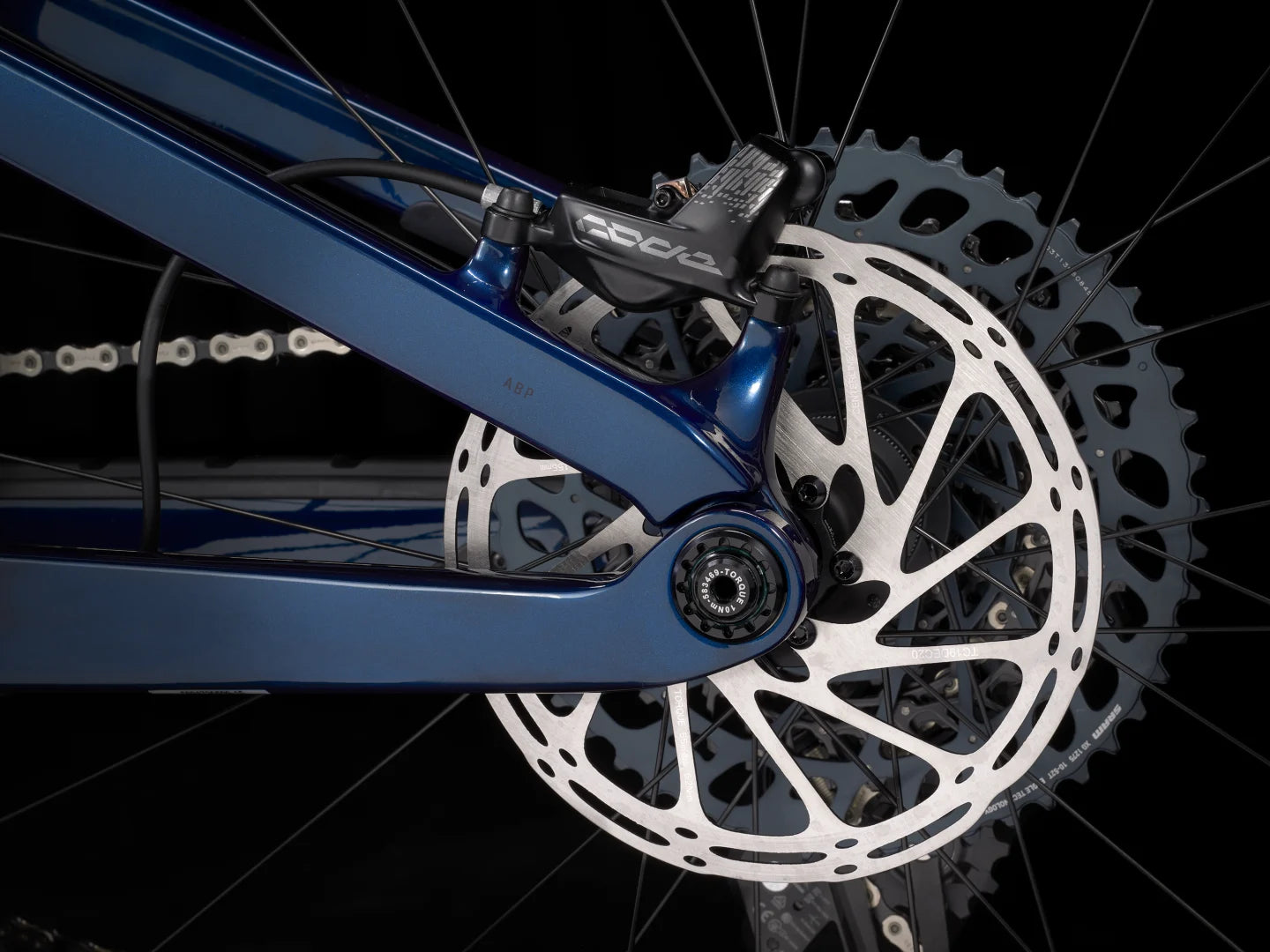

  • Brakes: SRAM Code R 4-piston hydraulic disc, SRAM CenterLine, 6-bolt, round edge, 180/200 mm
  • Handlebars: Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35-45mm stem length
  • Handlebar Grips: Bontrager XR Trail Elite, lock-on

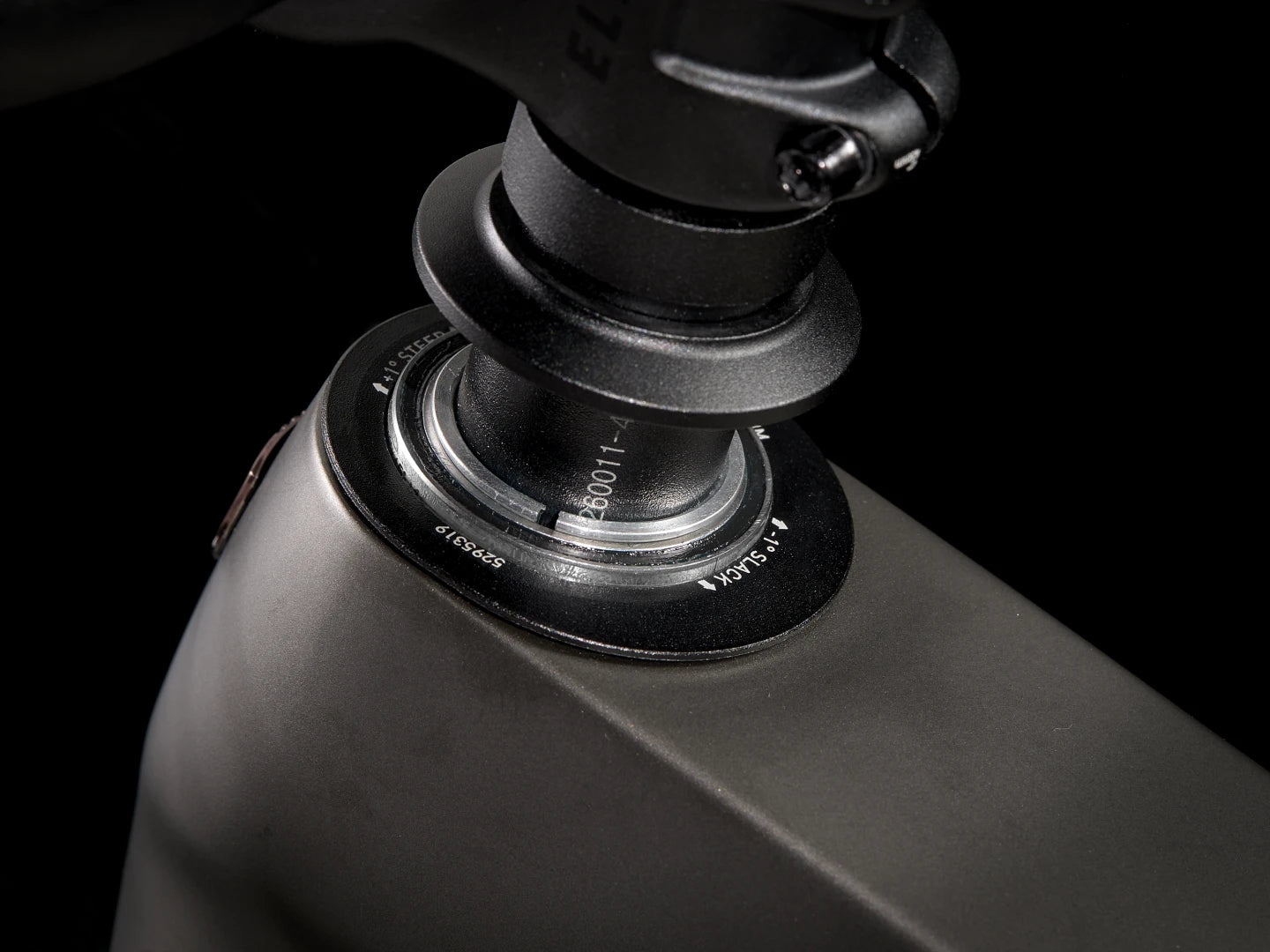

  • Headset: Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
  • Saddle: Bontrager Arvada, austenite rails
  • Seatpost: Bontrager line dropper 100-200 mm travel, internal routing, 34.9 mm
  • Accessories: Bontrager Bits frame storage bag
  • Weight: M – 14.15 kg/31.21 lb (with TLR sealant, no tubes)

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

How we Build & Pack Your Bike

Aftercare

At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.

Bicycle Safety

Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.

Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.

Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.

Follow road rules – Ride responsibly and remain aware of your surroundings.

Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)

Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.

Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.

Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.

Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.

Routine Maintenance (Every Few Weeks)

Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.

Brake Safety – Check brake pads and responsiveness before each ride.

Tyre Inspection – Look for punctures and ensure correct air pressure.

Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.

Frame Safety Check – Look for any signs of damage or cracks.

Professional Check-Ups

Have your bike serviced at least once a year, or more frequently if you ride often.

Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)

Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.

Avoid Overcharging – Unplug the charger once fully charged to extend battery life.

Routine e-Bike Maintenance (Every Few Weeks)

Motor Inspection – Listen for unusual noises and ensure smooth operation.

Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.

Seasonal e-Bike Maintenance

Check Electrical Components – Ensure wires and connections are clean and secure.

Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.

By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!

Read our full advice

If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk

TREK FUEL EX 9.8 GX AXS GEN 6 MTB BIKE 2023 MULSANNE BLUE
0 (0 Reviews)
Regular price £4,525.00
Regular price £4,525.00 Sale price £4,525.00
Price Match
If you find the same bike cheaper, we'll try to match the price.
More information

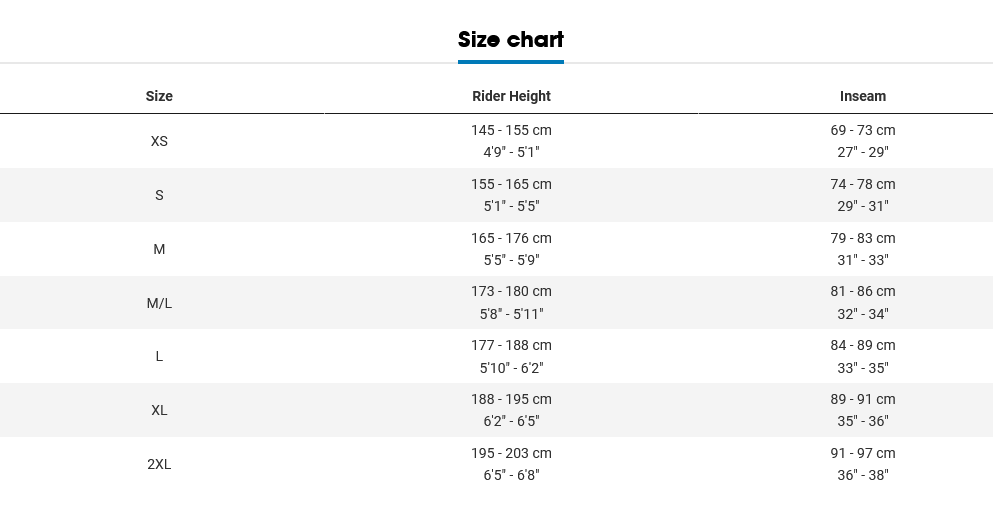

Size
  • SKU: 5276914
  • EPOS Code:
Est. Dispatch
Delivery Available
Finance Available
Family Owned Independent
Built by Cytech Mechanics
10% Off Accessories
We Accept Cyclescheme
View full details
