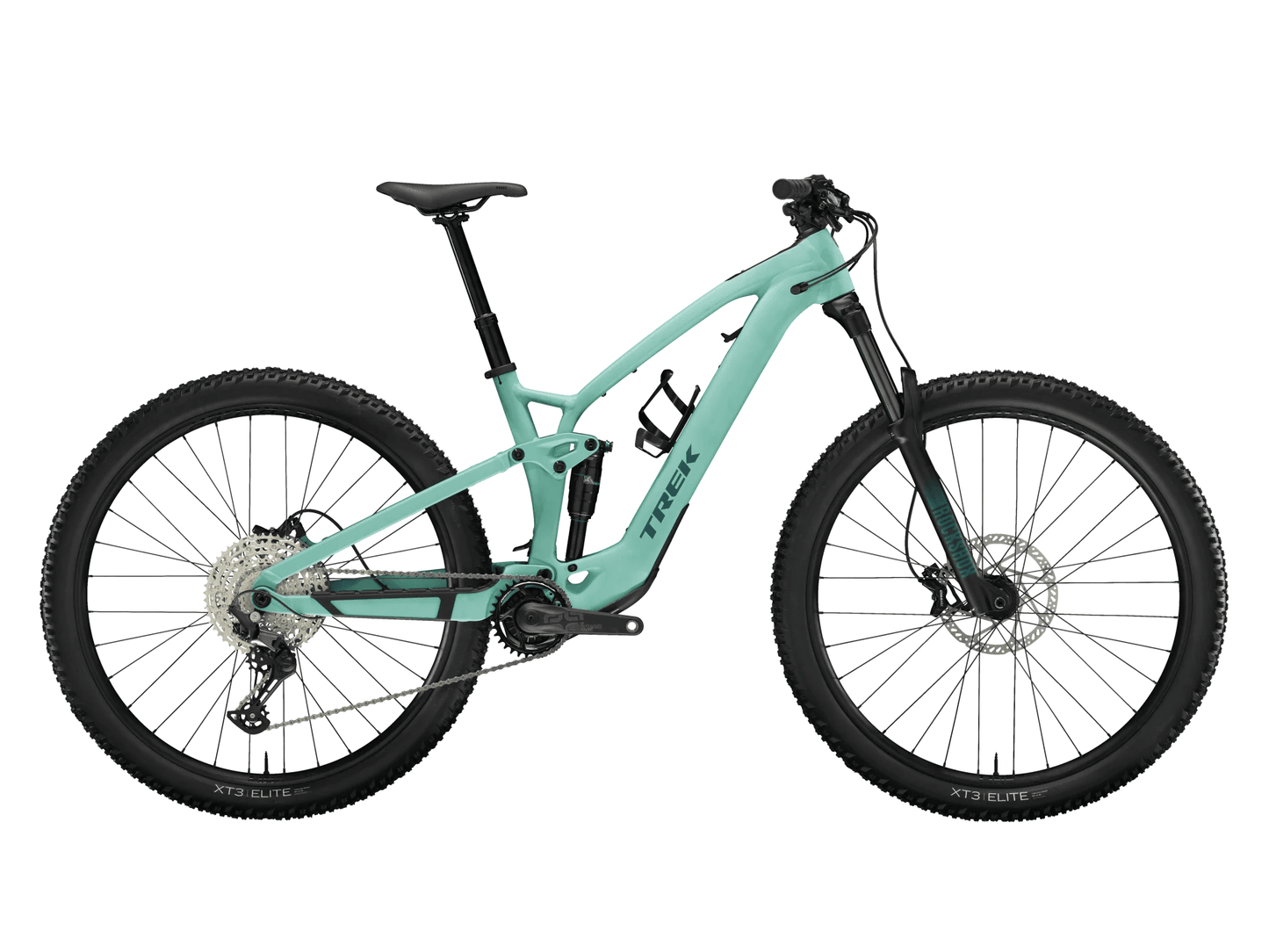

TREK FUEL EXe 5 E-MTB BIKE 2025 MATTE BLUE SAGE
Skip to product information
1 of 11

Product Details


eBikes by their very nature can in the future  require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.

Your eBike will be delivered built, set up and updated.

Minimum personal assembly is required.

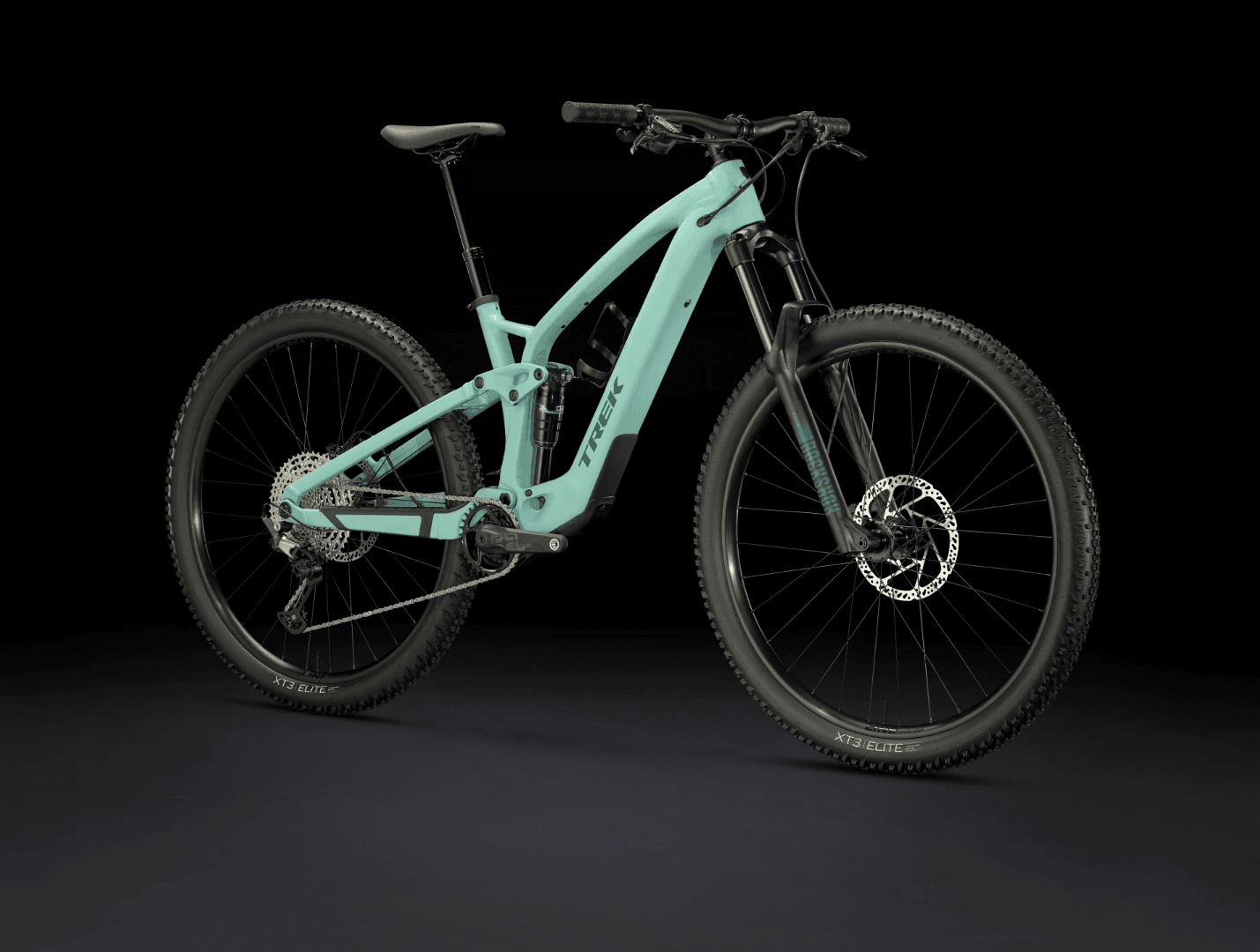

The Fuel EXe 5 is an aluminium electric mountain bike that brings all the tech of its carbon counterpart into a pocket-friendly package. It boasts the same tiny-but-mighty drive system that quietly disappears under you, plus a sleek display and remote. But what really makes this bike excel is its true trail bike feel that handles just like a traditional mountain bike, just with a little extra power.

Key Features

  • Brand New TQ Battery and Motor: The tiny-but-mighty TQ motor is tuned for the trail, keeping things quiet so you can stay in the moment

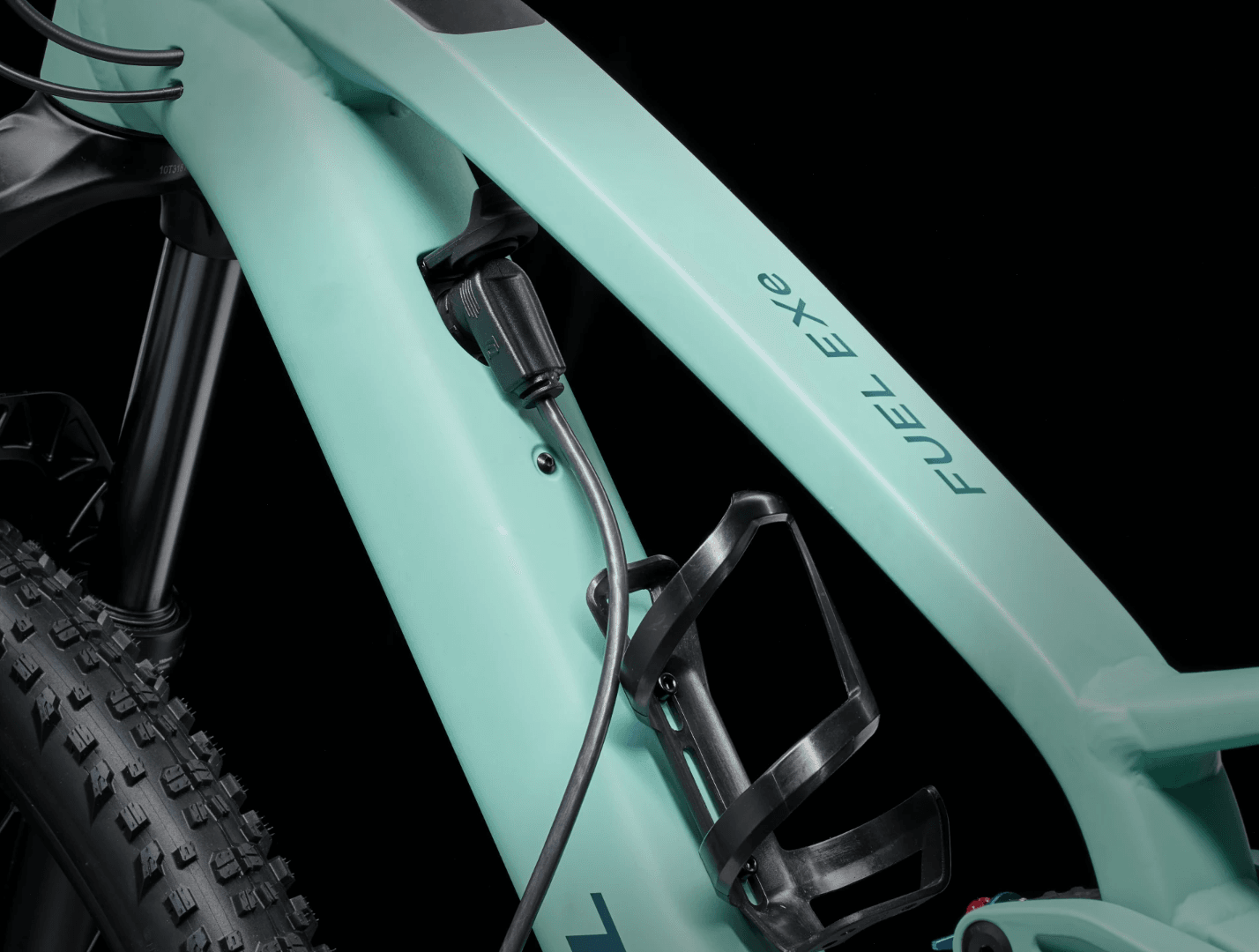

  • Range-extender compatibility: If you want to ride further you can easily add a range extender that fits neatly in your bottle cage
  • 12-Speed Shimano Deore Gears: Perfect for all terrain
Full Specification:

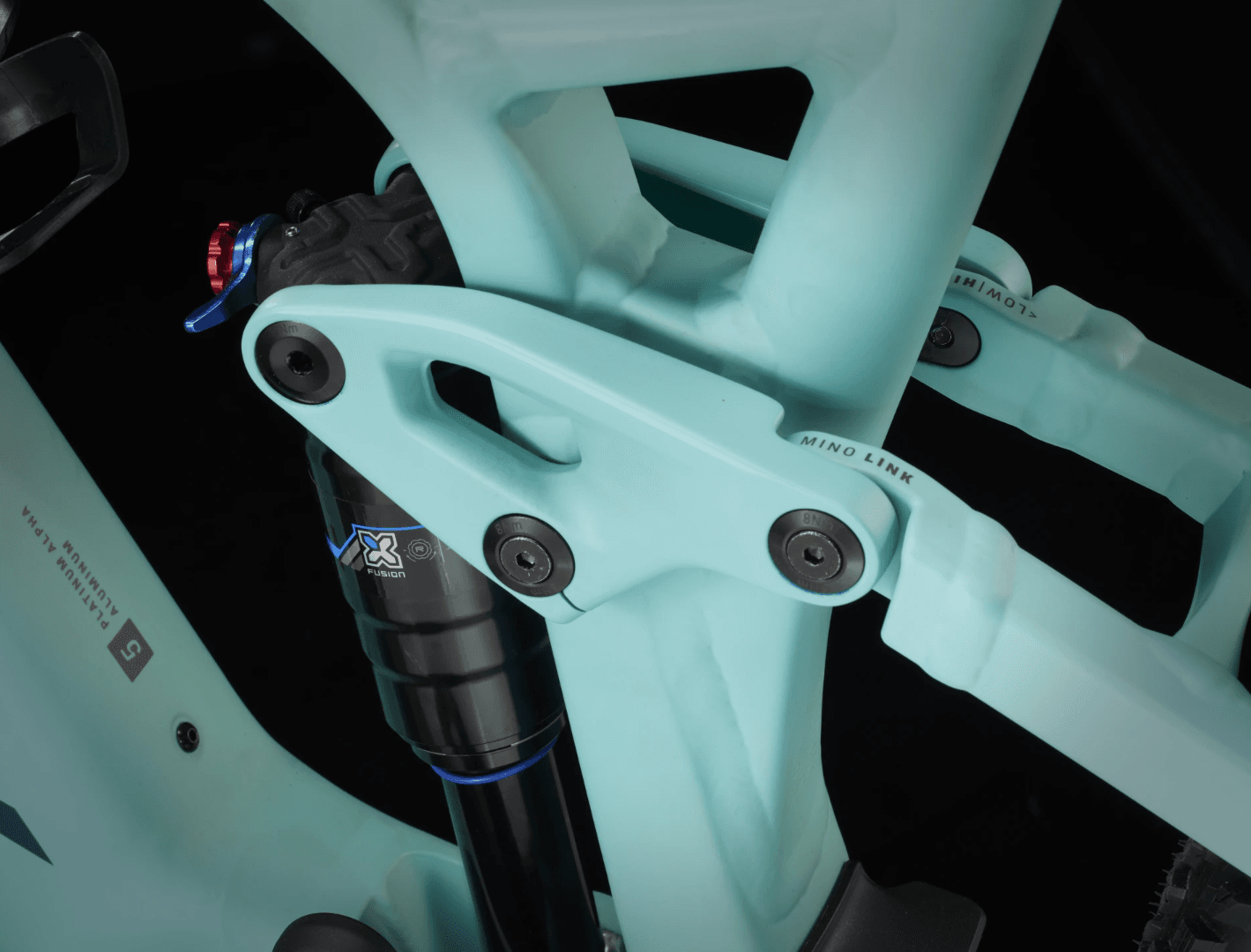

  • Frame: Alpha Platinum Aluminium, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chain line, Mino Link, ABP, Boost148, UDH, 140 mm travel

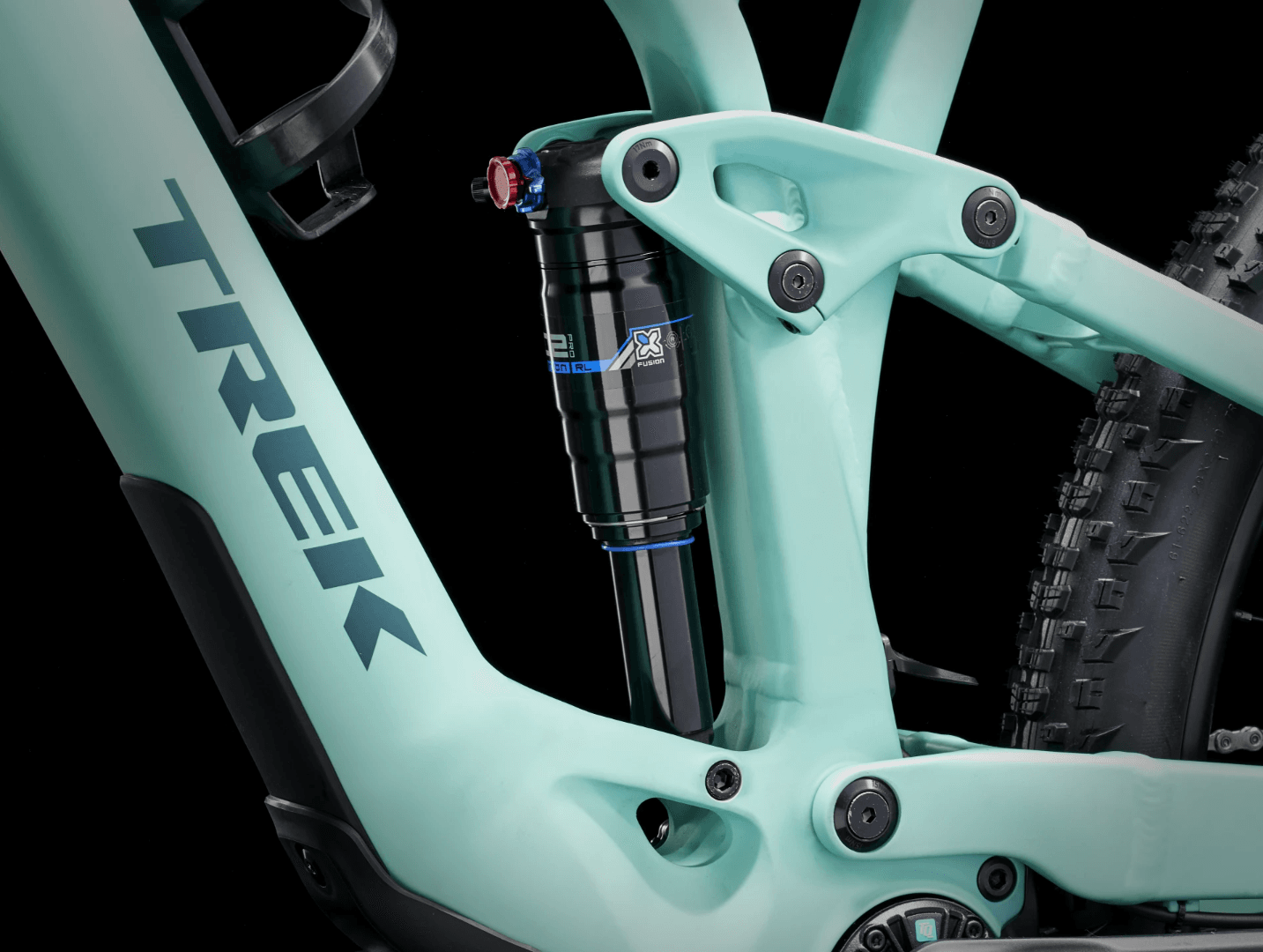

  • Rear Shock: X-Fusion Pro 2, 2-position damper, 205 mm x60 mm
  • Fork: RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 150 mm travel

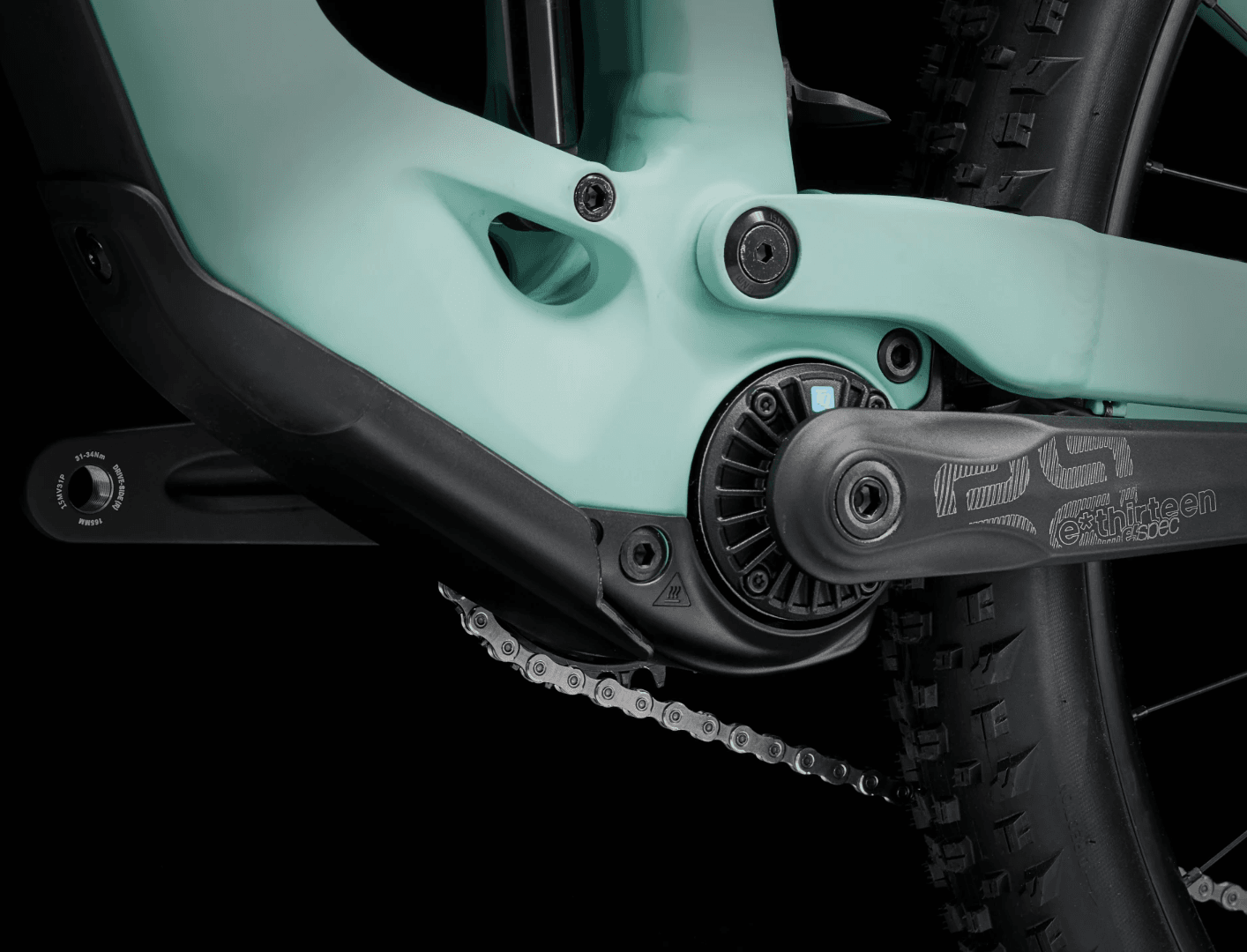

  • Motor: TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power

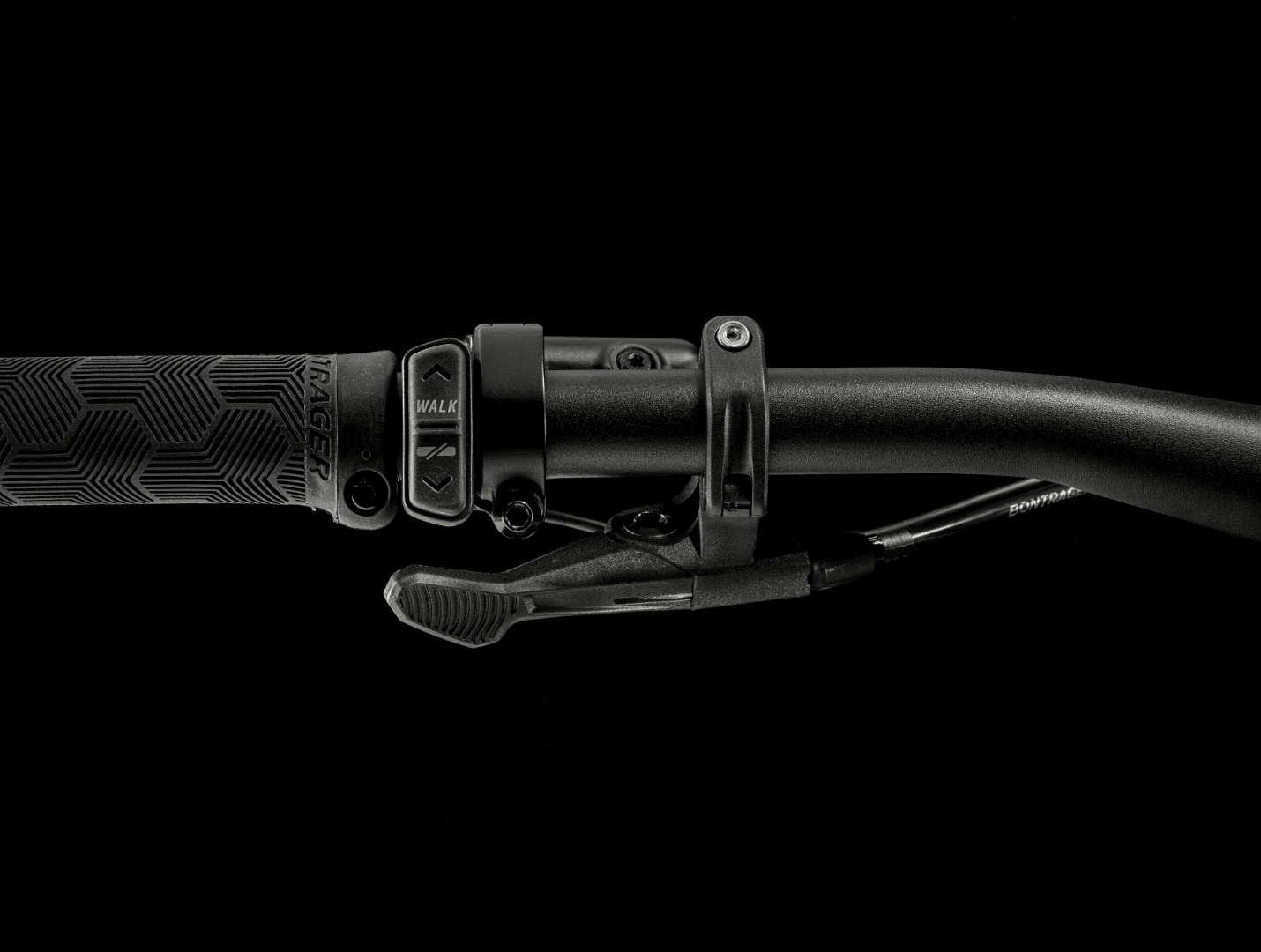

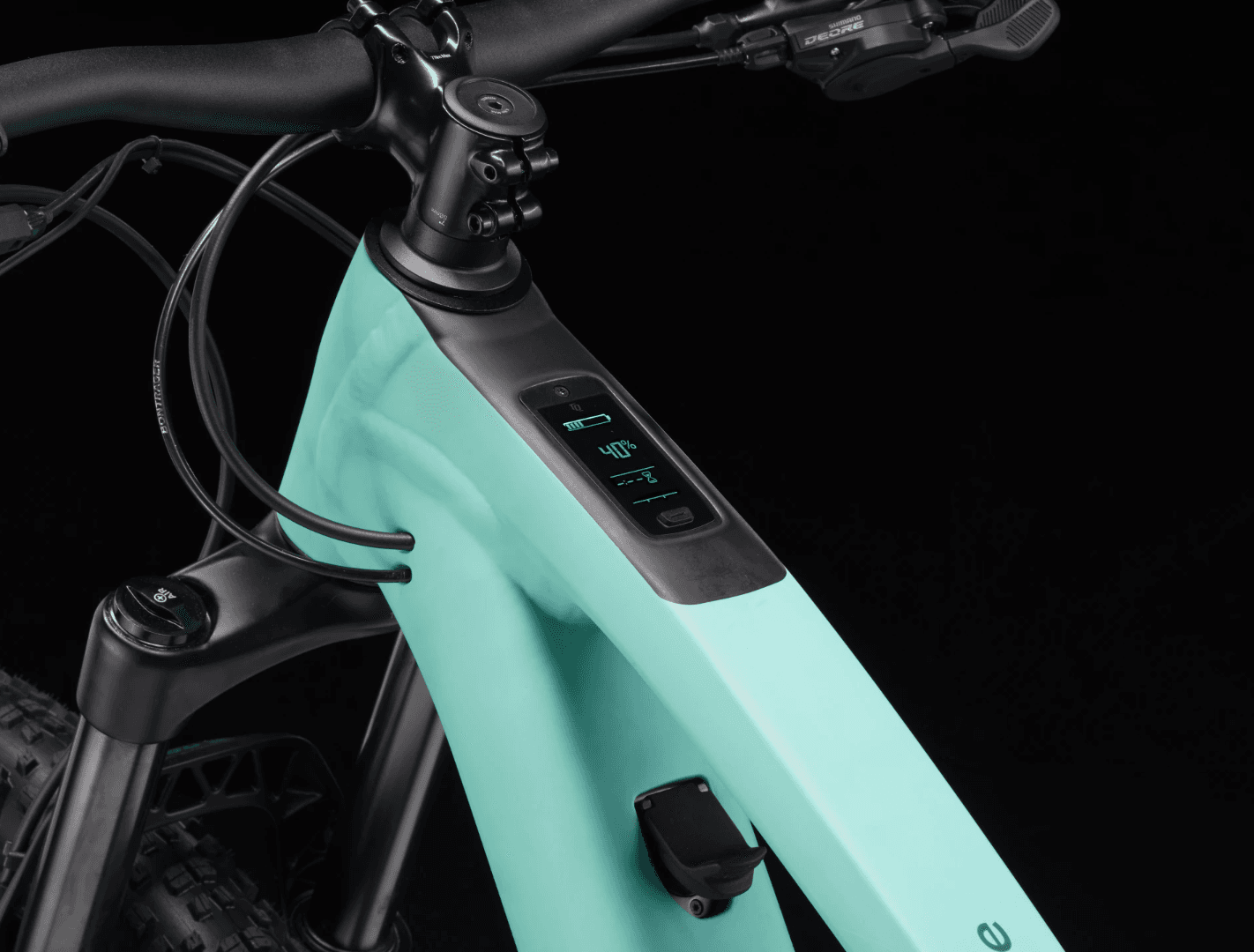

  • Controller: TQ LED display with Bluetooth & ANT+ connectivity

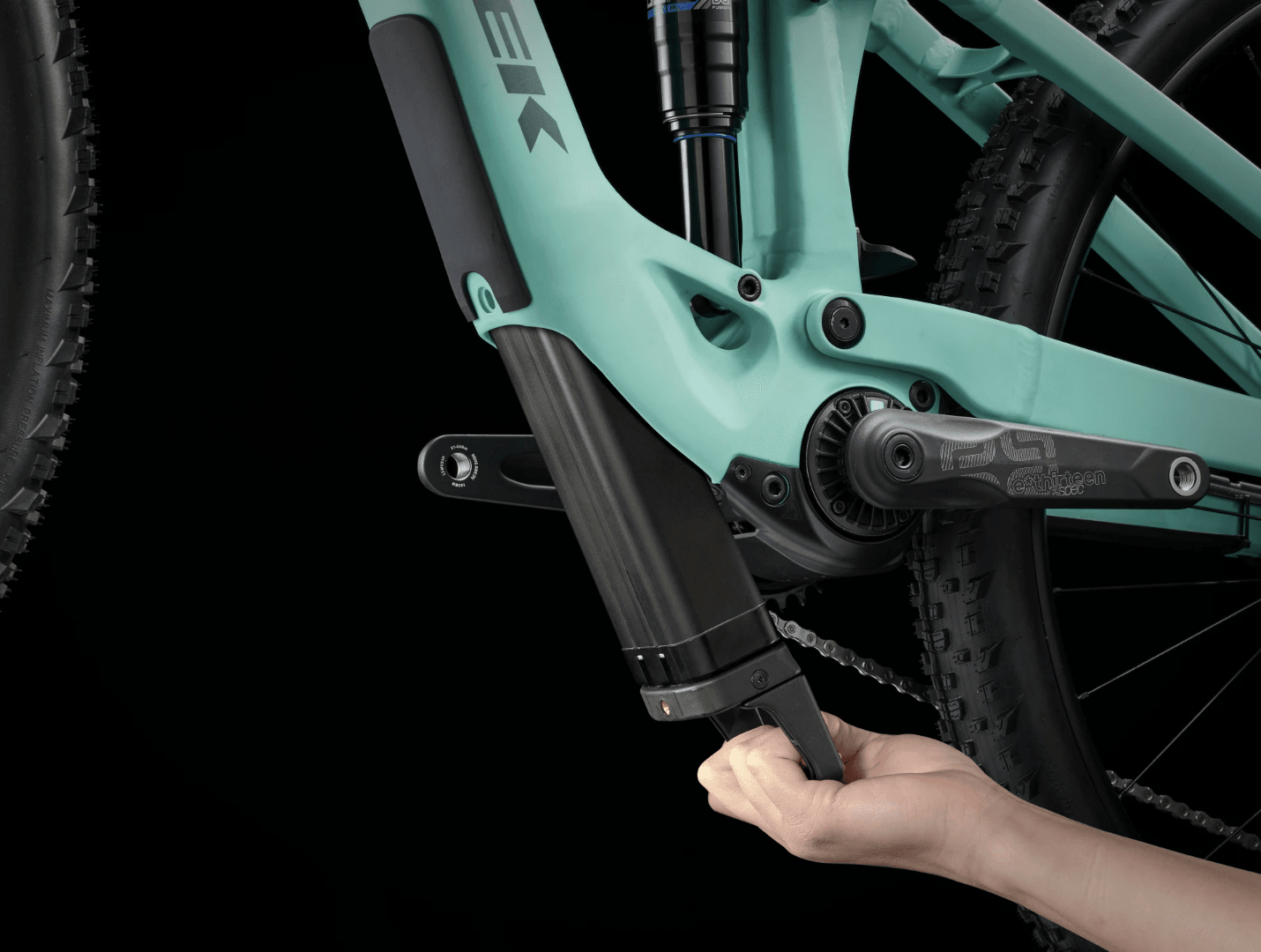

  • Battery: TQ 360Wh
  • Charger: TQ
  • Gear Shifters: Shimano Deore M6100, 12-speed
  • Chainset: E*thirteen E*spec Plus, 32T, 165 mm length
  • Chainrings: E*thirteen E*spec, 32T steel ring, 55 mm chain line
  • Rear Cassette: Shimano Deore M6100, 10-51, 12-speed
  • Chain: Shimano Deore M6100, 12-speed
  • Front Derailleur: N/A
  • Rear Derailleur: Shimano Deore M6100, long cage
  • Bottom Bracket: N/A
  • Pedals: Not supplied
  • Rims: Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
  • Front Hub: Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
  • Rear Hub: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
  • Front Tyre: Bontrager XT3 Elite, wire bead, 60 tpi, 29 x 2.40"
  • Rear Tyre: Bontrager XT3 Elite, wire bead, 60 tpi, 29 x 2.40"

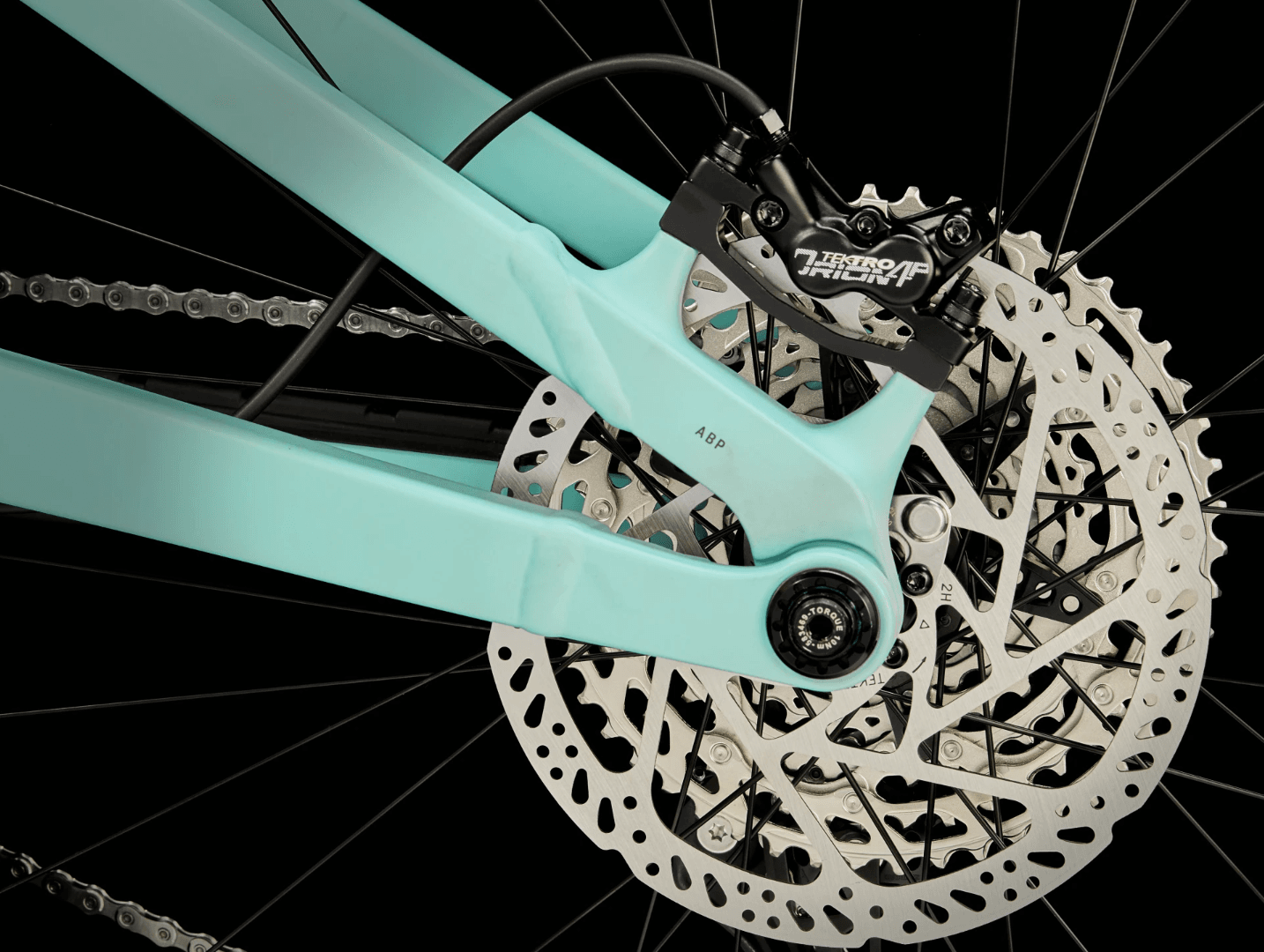

  • Brakes: Tektro HD-M745 4-piston hydraulic disc
  • Handlebars: Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750mm width
  • Handlebar Grips: Bontrager XR Trail Comp, nylon lock-on
  • Headset: Knock Block Integrated, cartridge bearing, 1-1/8"" top, 1.5"
  • Stem: Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
  • Saddle: Bontrager Arvada, steel rails, 138 mm width
  • Seatpost: TranzX JD-YSI-22PLQ, 100 - 170 mm travel, internal routing, 34.9 mm, 346 - 497mm length
  • Accessories: N/A
  • Weight: M- 20.80 kg / 45.86 lbs (with TLR sealant, no tubes)

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.




How to Build Your Bike

Aftercare





TREK FUEL EXe 5 E-MTB BIKE 2025 MATTE BLUE SAGE

Regular price £5,175.00
Regular price Was £5,175.00 Sale price £5,175.00
Price Match
If you find the same bike cheaper, we'll try to match the price.
More information

  • Here to help 6 days a week, online, on phone, and in store
  • A true independent, family-owned business since 1907
  • 10% Off accessories with every bike

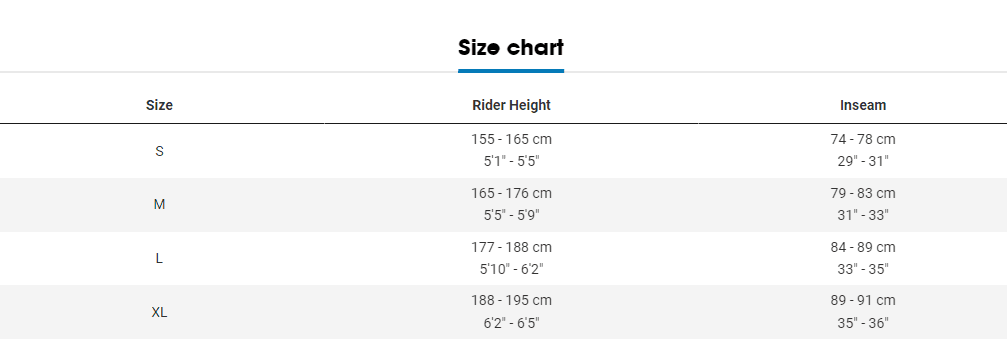

Size
  • SKU: 5297853
  • EPOS Code:
Est. Dispatch
Delivery From £18.99
Simple Returns
Built With Care
View full details
