Product Details


eBikes by their very nature can in the future require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.

Your eBike will be delivered built, set up and updated.

Minimum personal assembly is required.

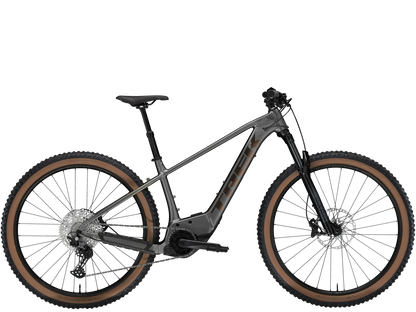

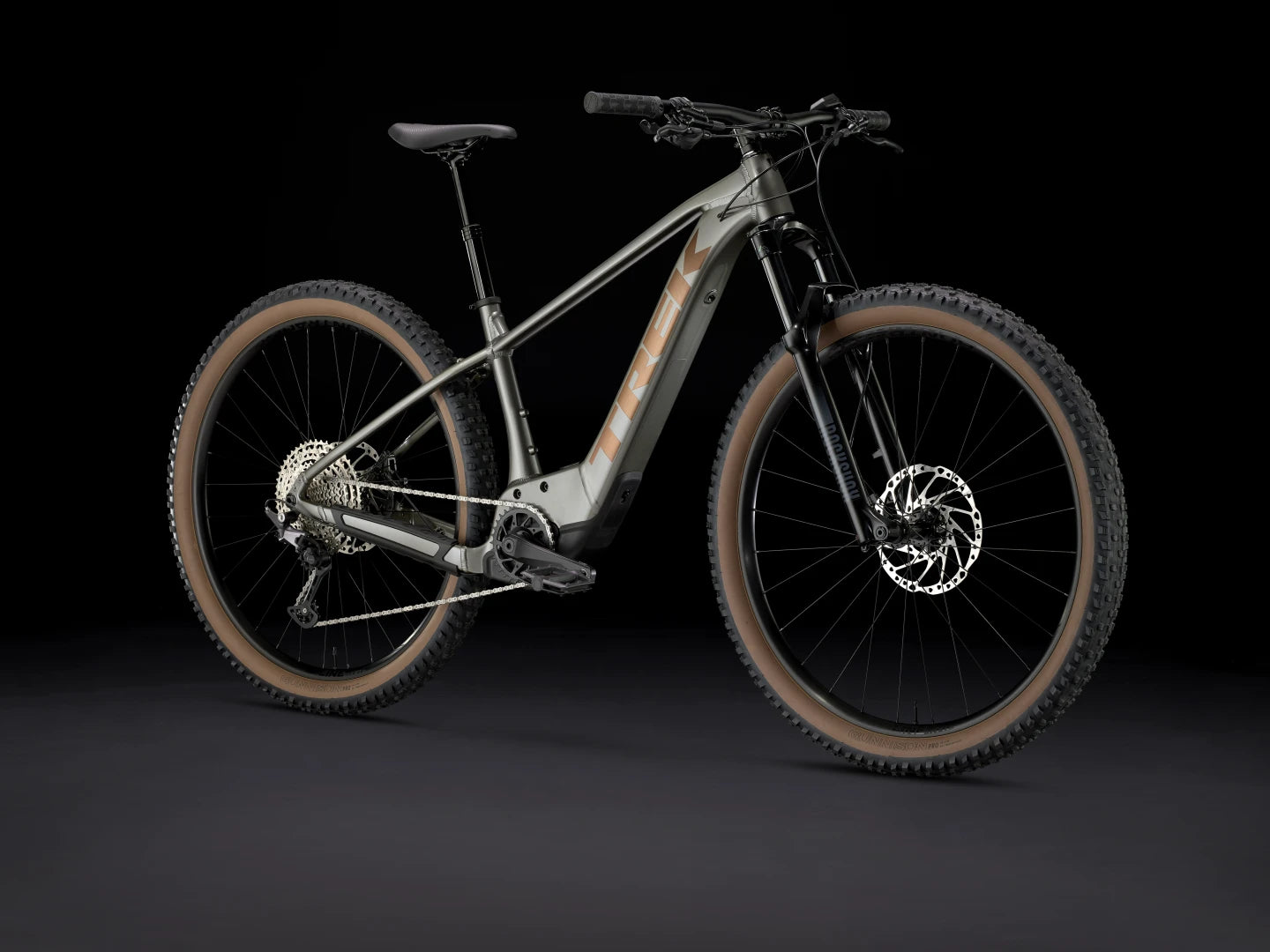

The Marlin+ 8 is an electric mountain bike that's ready to up your game on the trail. Its Bosch Active Line Plus motor gives you just the boost you need for getting up steep climbs and riding further, and doesn't break the bank, and a 120 mm suspension fork keeps handling smooth through the rough stuff. Upgraded components, like wide tubeless-ready wheels and tyres and a 12-speed Shimano drivetrain make this a trail-savvy ride that's ready to go anywhere.

Features

  • Bosch Active Line Plus Motor: With AUTO mode adaptive motor support which recognises speed reductions and adjusts assistance automatically
  • 120 mm suspensionKeeps your ride feeling smooth through bumps, roots and rough stuff.
  • Shimano Deore 12 Speed Drivetrain: Quality shifting with a wide range of gears to help tackle the hills.
Full Specification

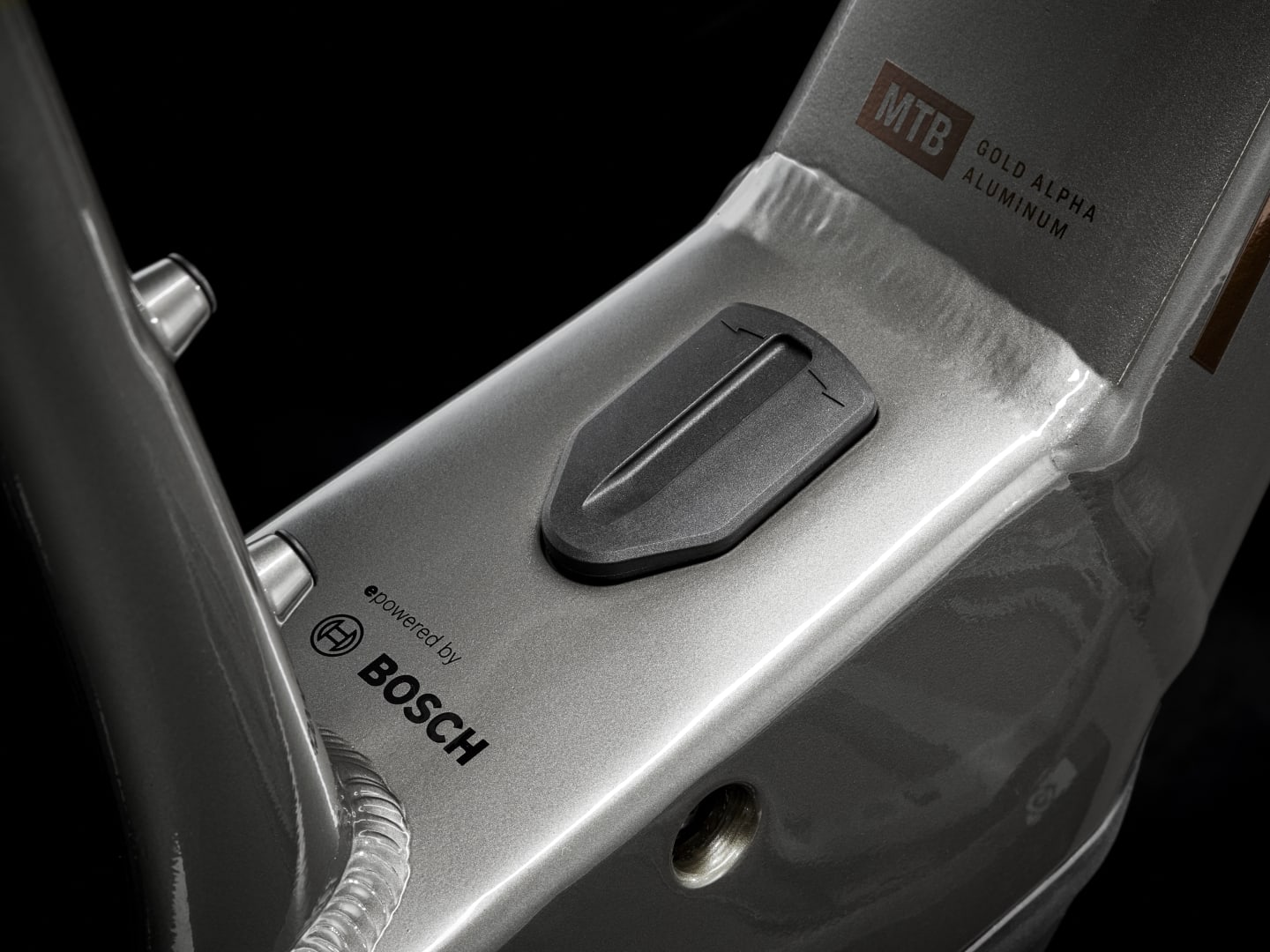

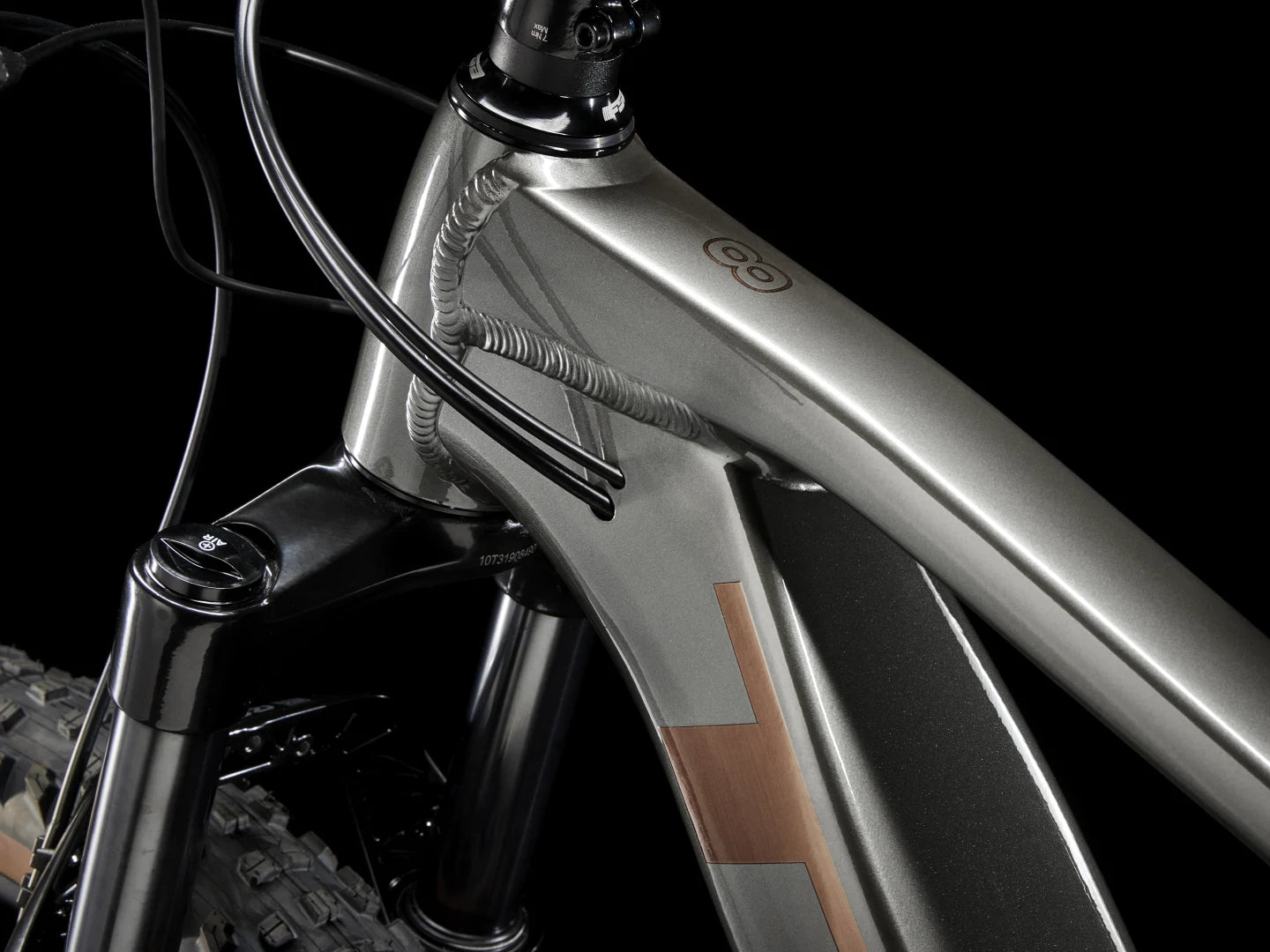

  • Frame: Alpha Platinum Aluminium, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle

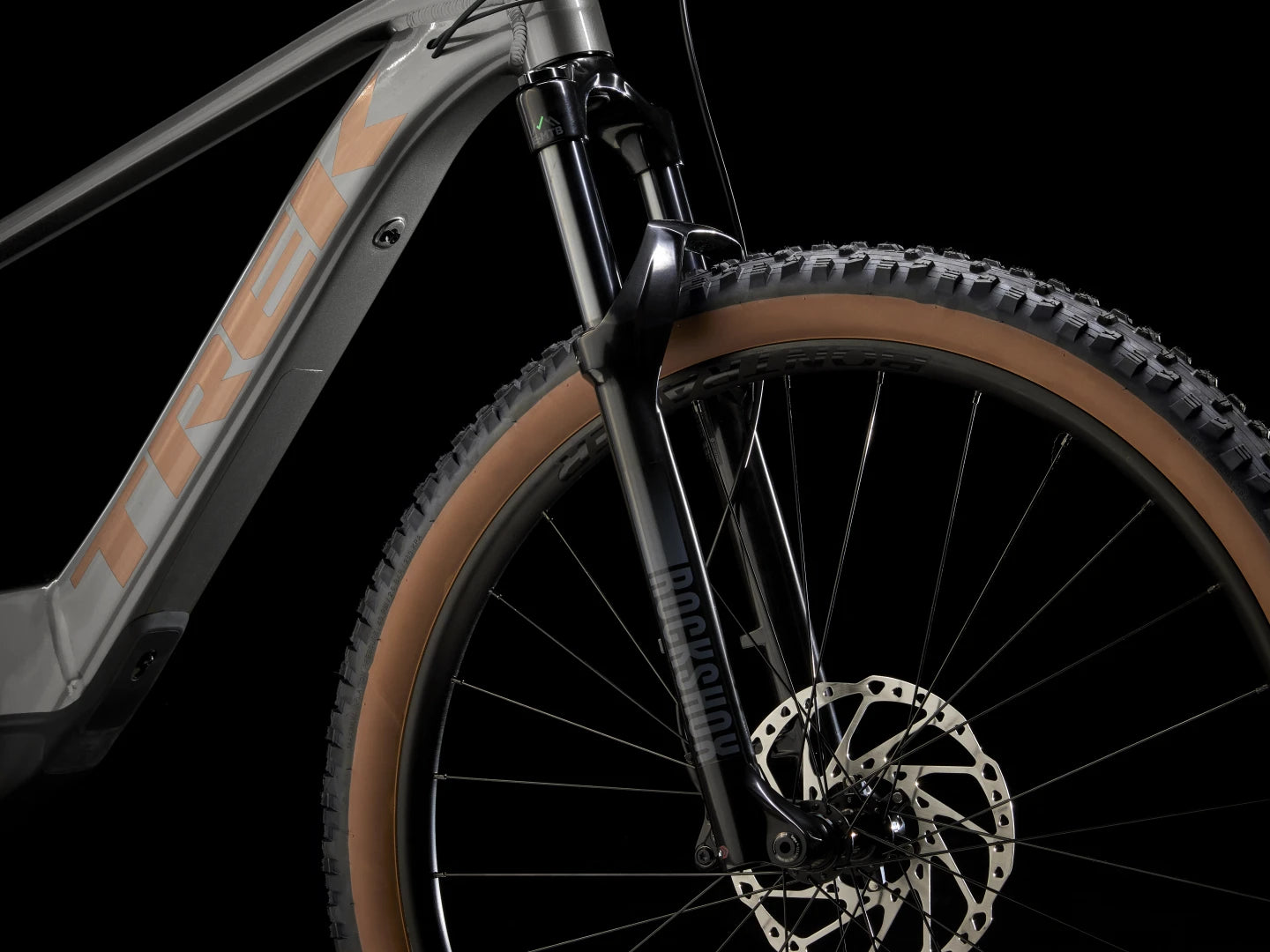

  • Fork: RockShox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, Maxle Stealth, 120 mm travel (XS model: SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm thru axle, 100 mm travel)

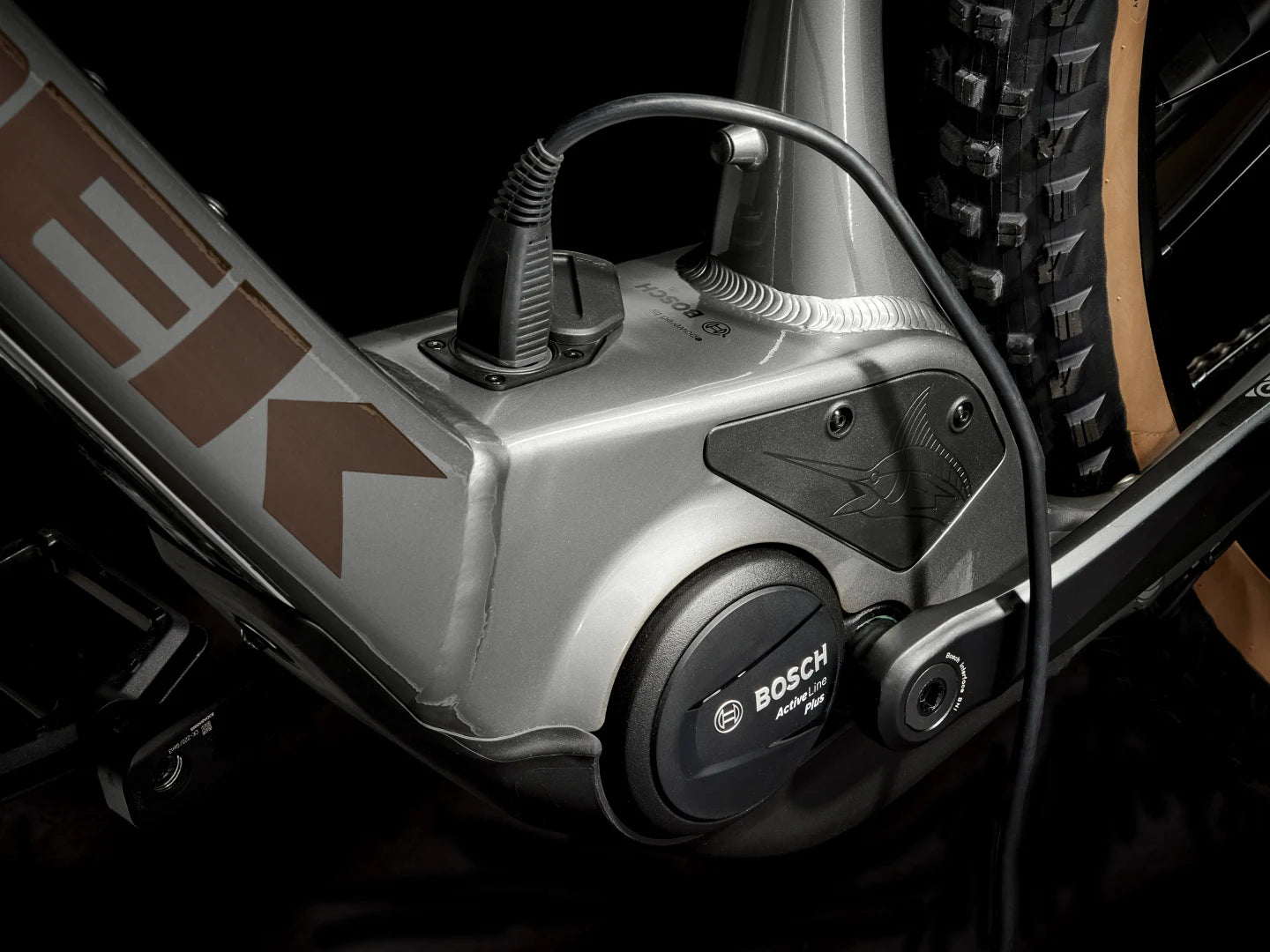

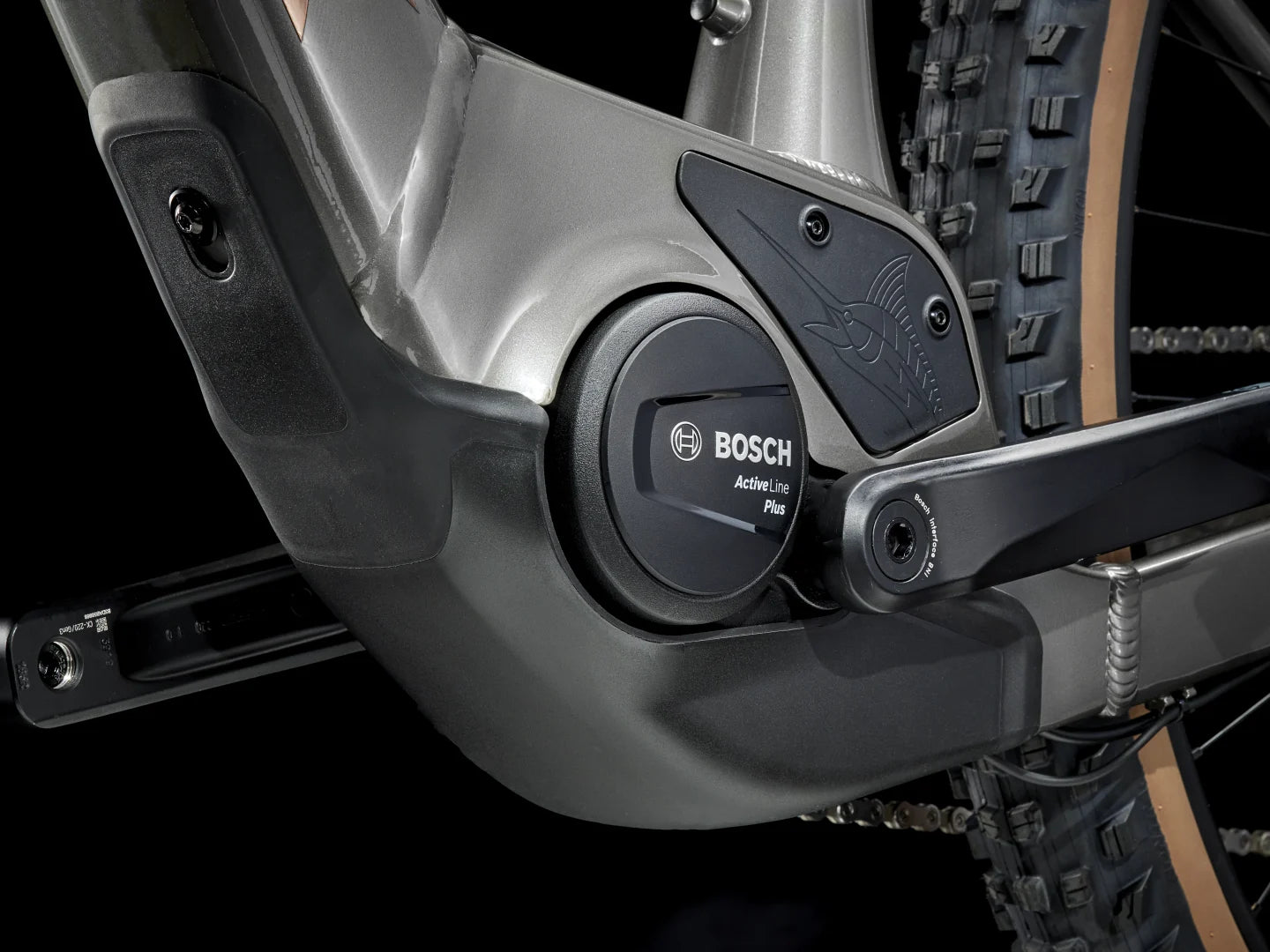

  • Motor: Bosch Active Line Plus
  • Battery: Bosch Compact Tube 400 Wh

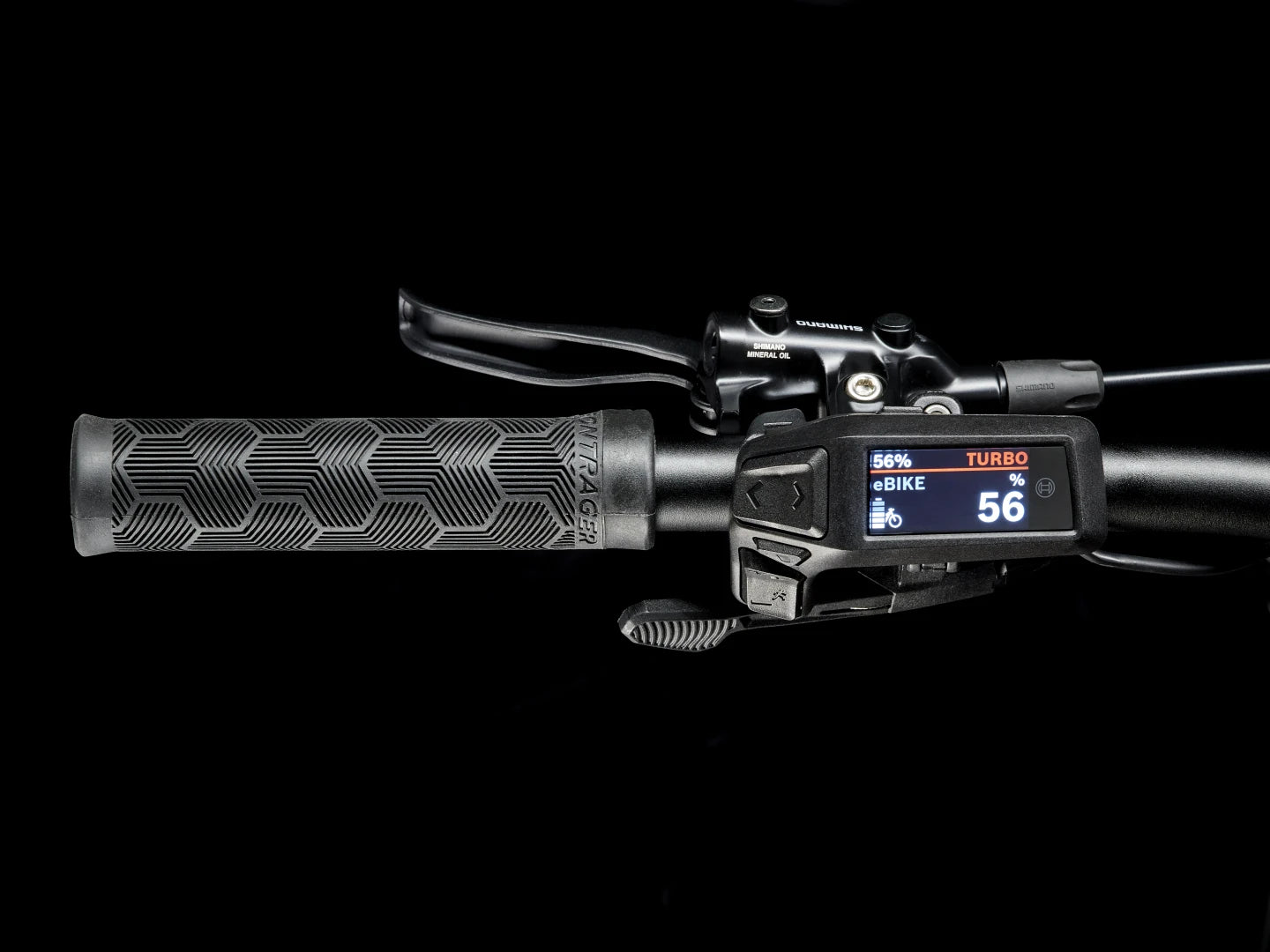

  • Controller: Bosch Purion 200
  • Charger: Bosch standard 2A, 230V, smart system
  • Gear Shifters: Shimano Deore M6100, 12-speed
  • Chainset: FSA CK-220, 165 mm length
  • Chainrings: 32T
  • Rear Cassette: Shimano Deore M6100, 10-51, 12-speed
  • Chain: Shimano Deore M6100, 12-speed
  • Front Derailleur: N/A

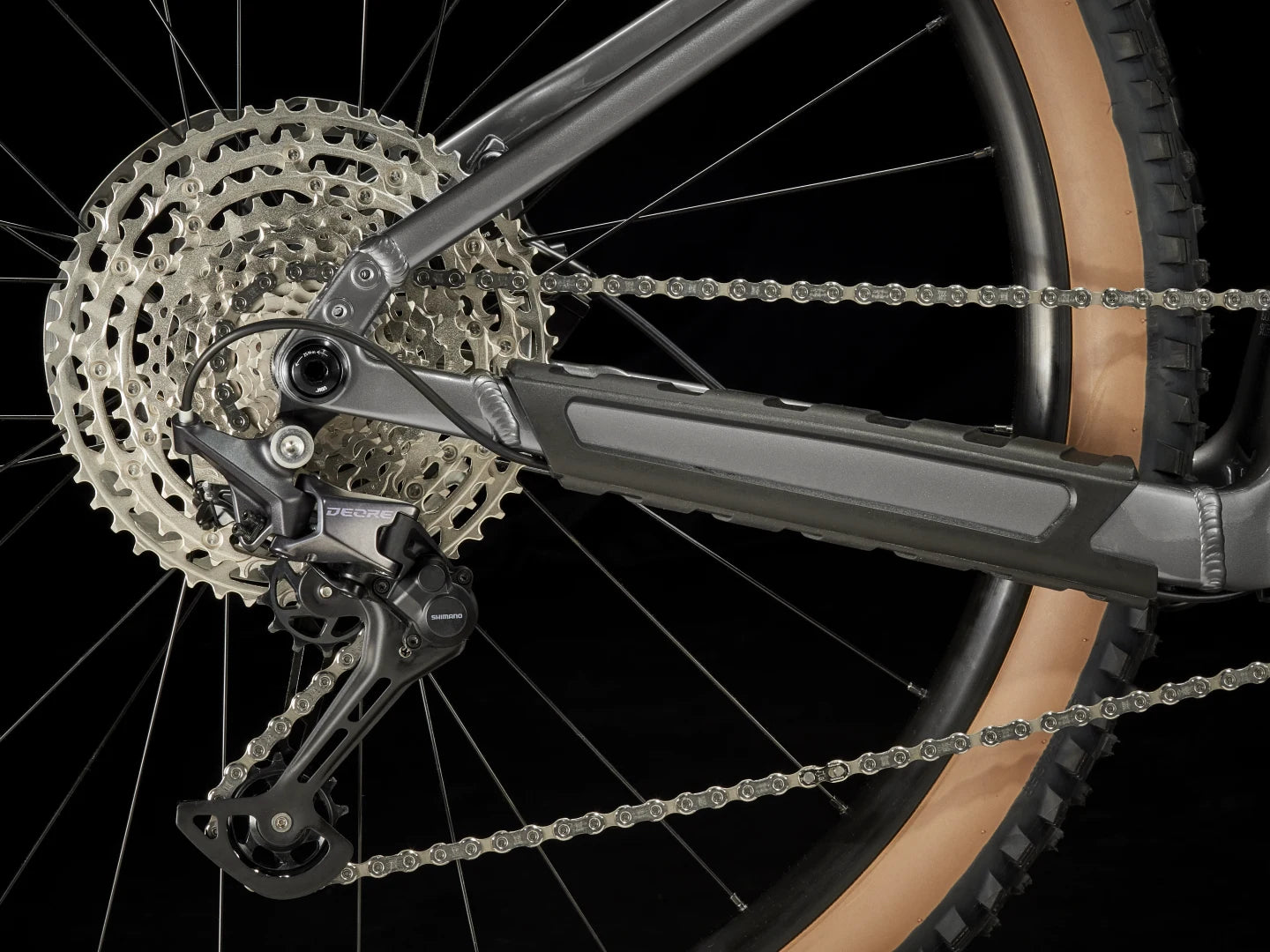

  • Rear Derailleur: Shimano Deore M6100, long cage
  • Pedals: VP-536 nylon platform
  • Rims: Bontrager Line TLR 30, Tubeless-Ready, 28/32-hole, Presta valve
  • Front Hub: Bontrager alloy, sealed bearing, alloy axle, CenterLock, Boost110, 15 mm thru axle
  • Rear Hub: Formula CL-3348 Rear Hub, 32h, 12x148mm (Boost), CL Disc, Micro Spline
  • Front Tyre: Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40" (XS - SM: 27.5x2.4˝)
  • Rear Tyre: Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40" (XS - SM: 27.5x2.4˝)
  • Brakes: Tektro HD-M275 hydraulic disc
  • Handlebars: Bontrager alloy, 31.8 mm, 15 mm rise, 720 - 750 mm width
  • Grips: Bontrager XR Endurance Comp, lock-on
  • Headset: Semi-integrated, loose ball bearing, 1-1/8" top, 1.5" bottom
  • Stem: Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 35 - 60 mm length

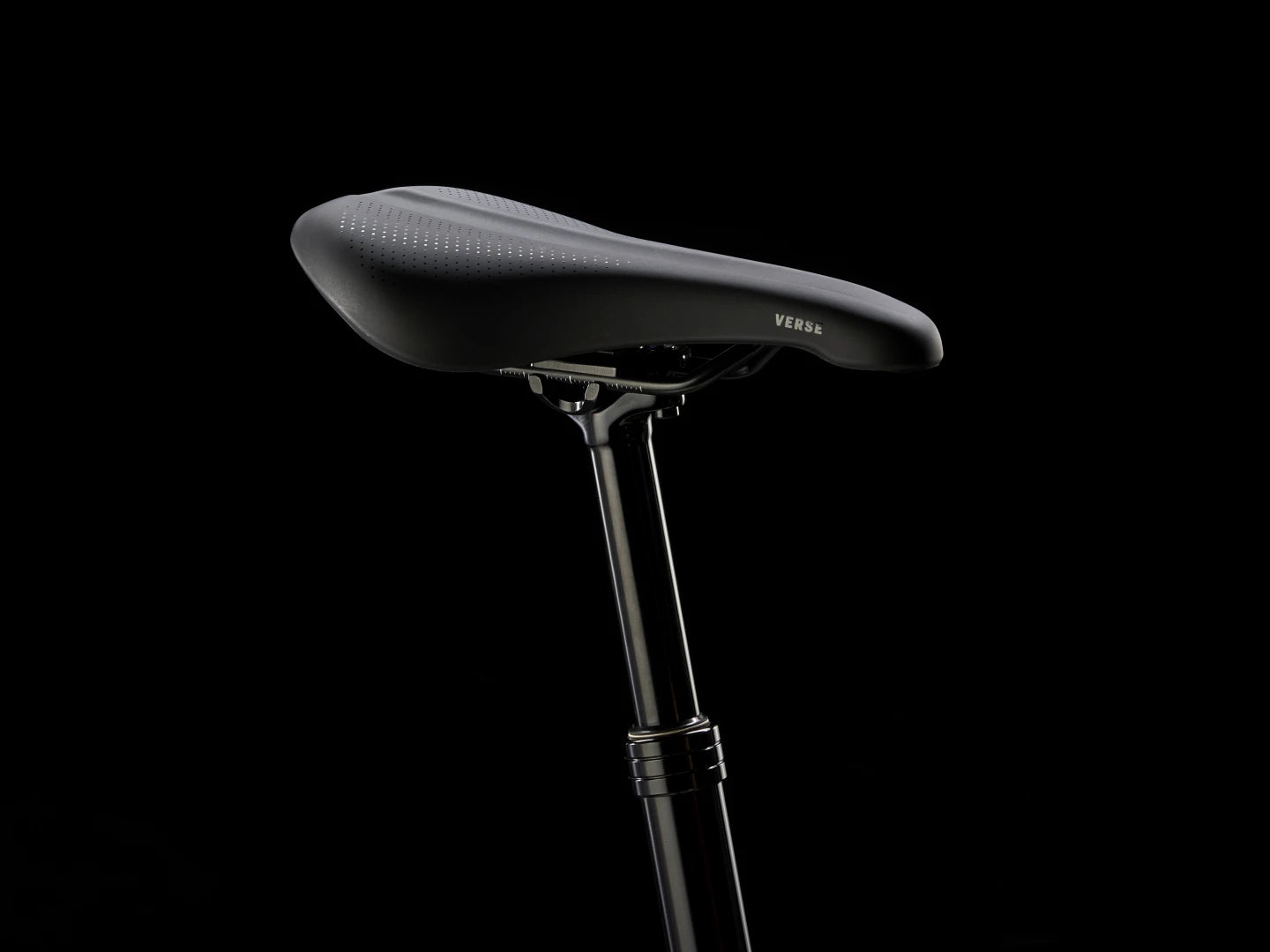

  • Saddle: Bontrager Arvada, steel rails, 138 mm width
  • Seatpost: Bontrager alloy, 31.6 mm, 12 mm offset, 330 - 400 mm length
  • Accessories: Bosch standard 2A Charger, 230V, smart system
  • Weight: M- 22.45 kg / 49.5 lbs (with tubes)

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
