Product Details
Product Details

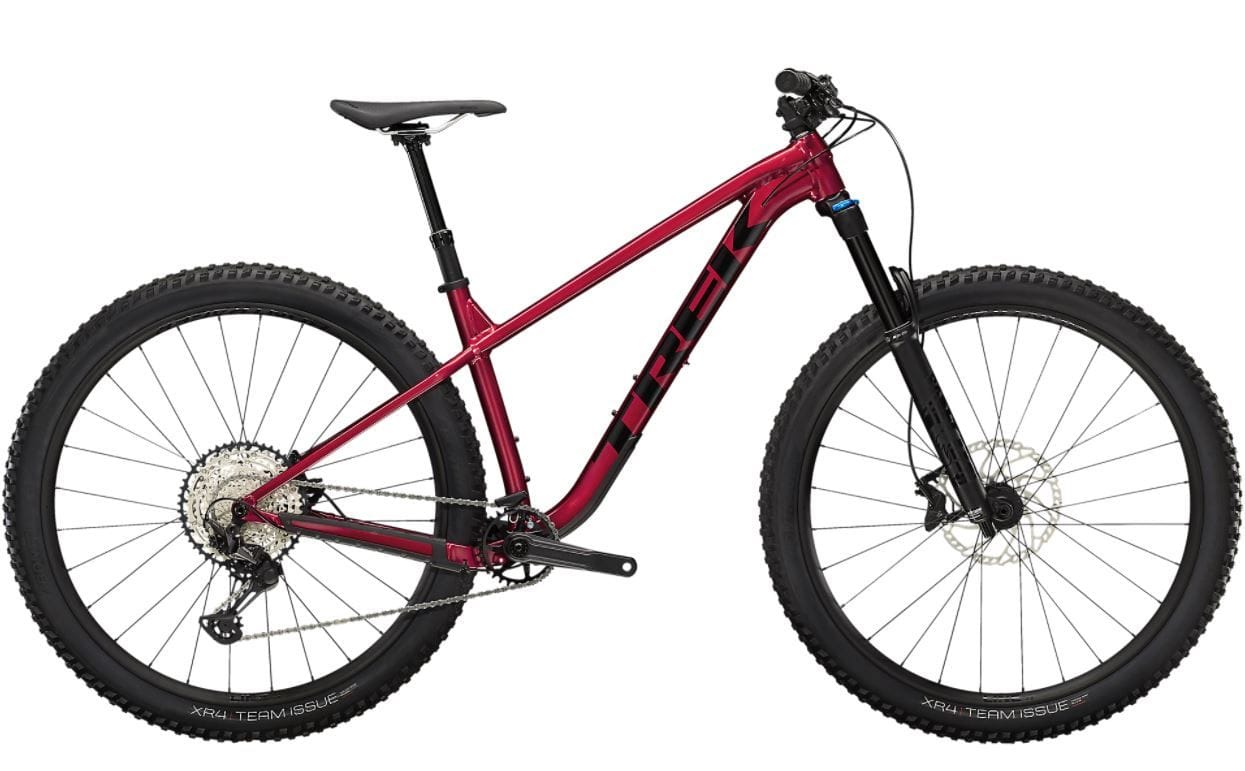

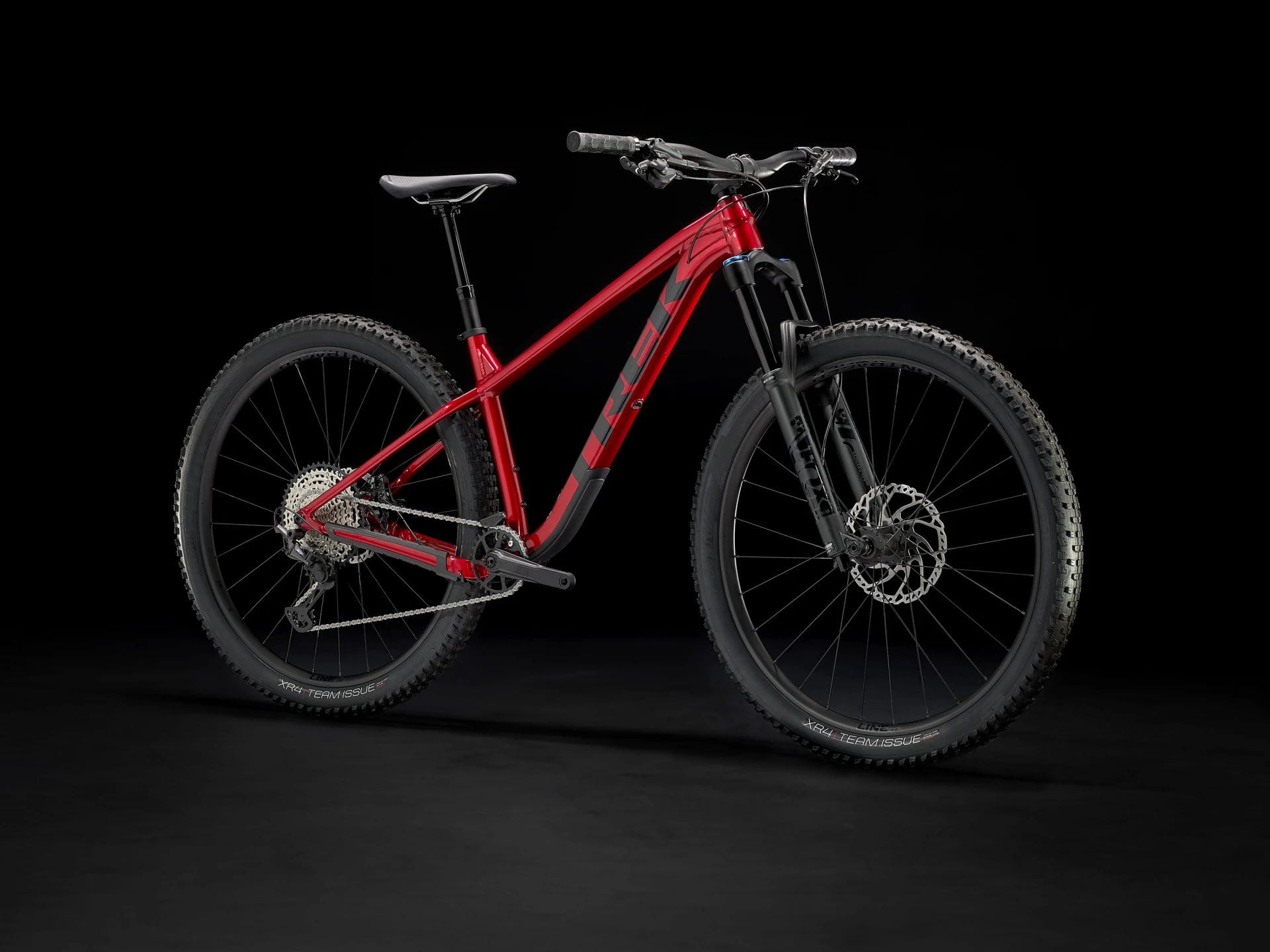

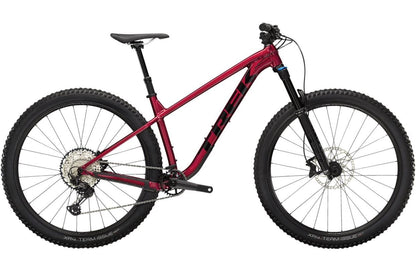

The Roscoe 9 is our best all-mountain alloy hardtail, built for lap after lap of grin-inducing fun. A 140 mm FOX Rhythm 36 fork, powerful 4-piston brakes and a fast-and-grippy wheel and tyre combo deliver incredible capability whether you're nailing jumps or picking through gnarly rock gardens.
Key Features
- Aluminium Frame: Lightweight & Durable.
- Shimano 1x12 Drivetrain: Delivers a wide range of gearing with the simplicity of a single shifter.
- Hydraulic Disc Brakes: Powerful braking capacity to keep you in control.
Full Specification:

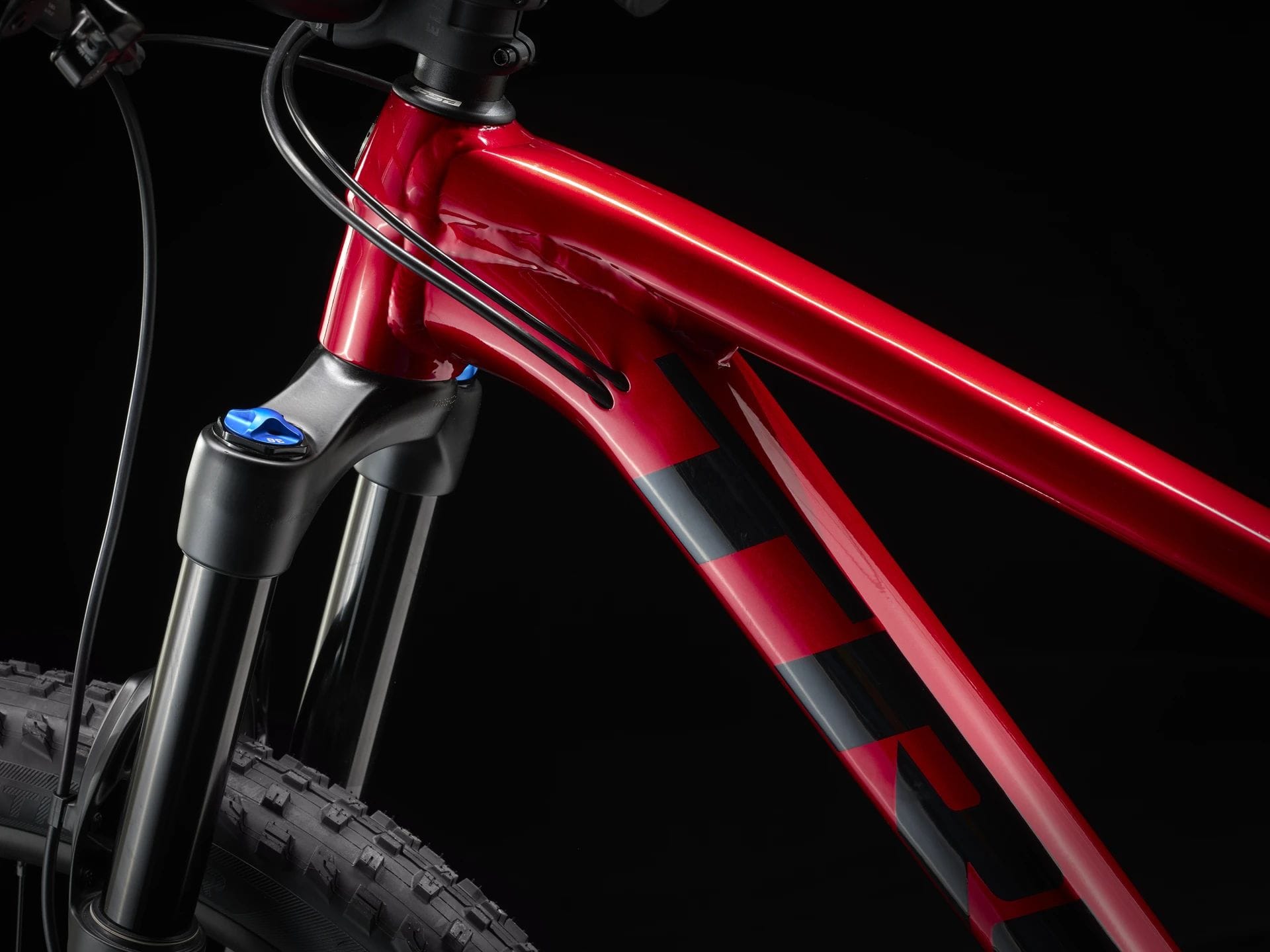

- Frame: Alpha Gold Aluminium, tapered head tube, internal derailleur and dropper post routing, rack and kickstand mount, Boost141, 5 mm QR
- Rear Shock (If Applicable): N/A

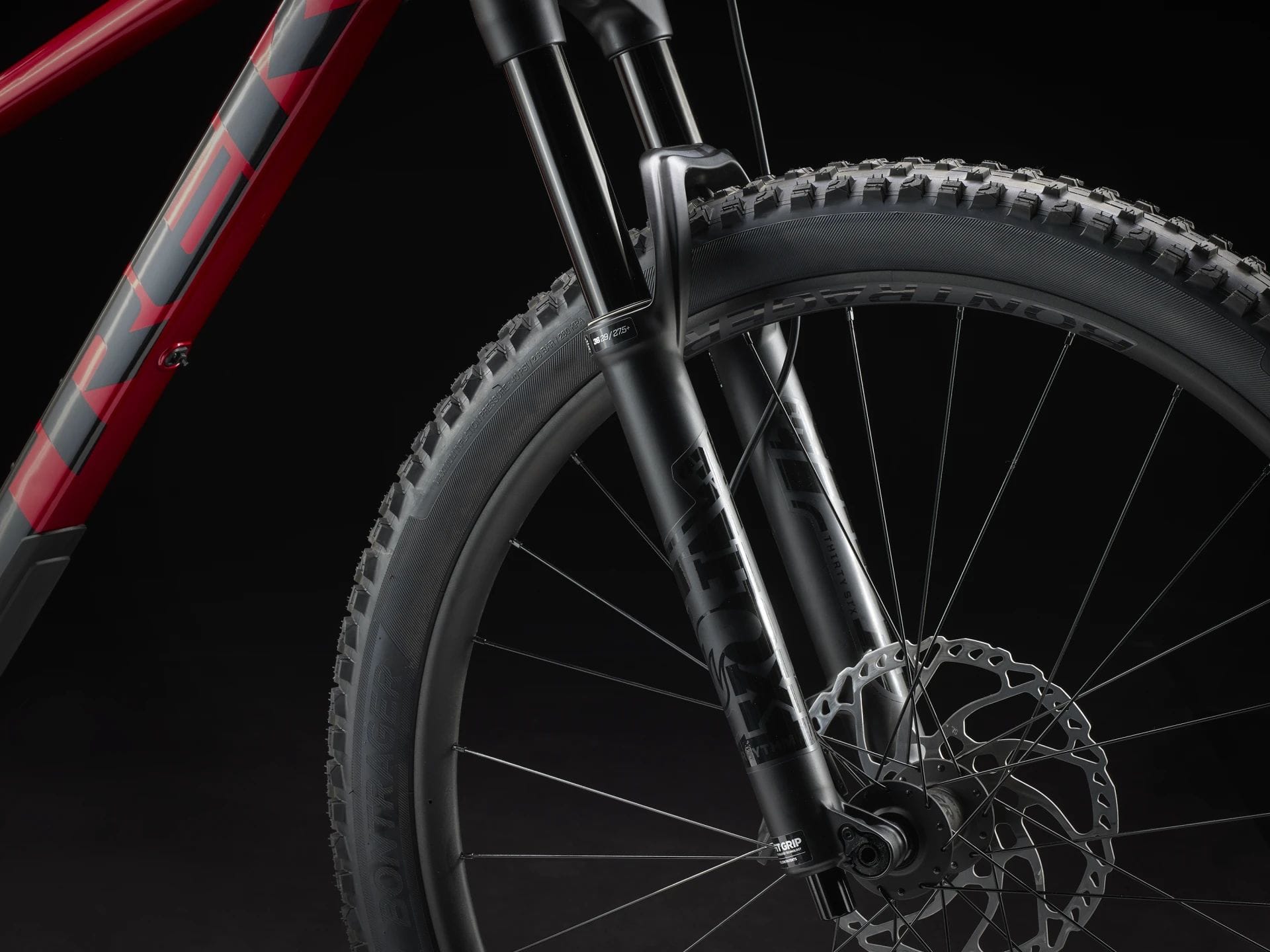

- Fork : Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 mm travel
- Gear Shifters: Shimano SLX M7100, 12-speed

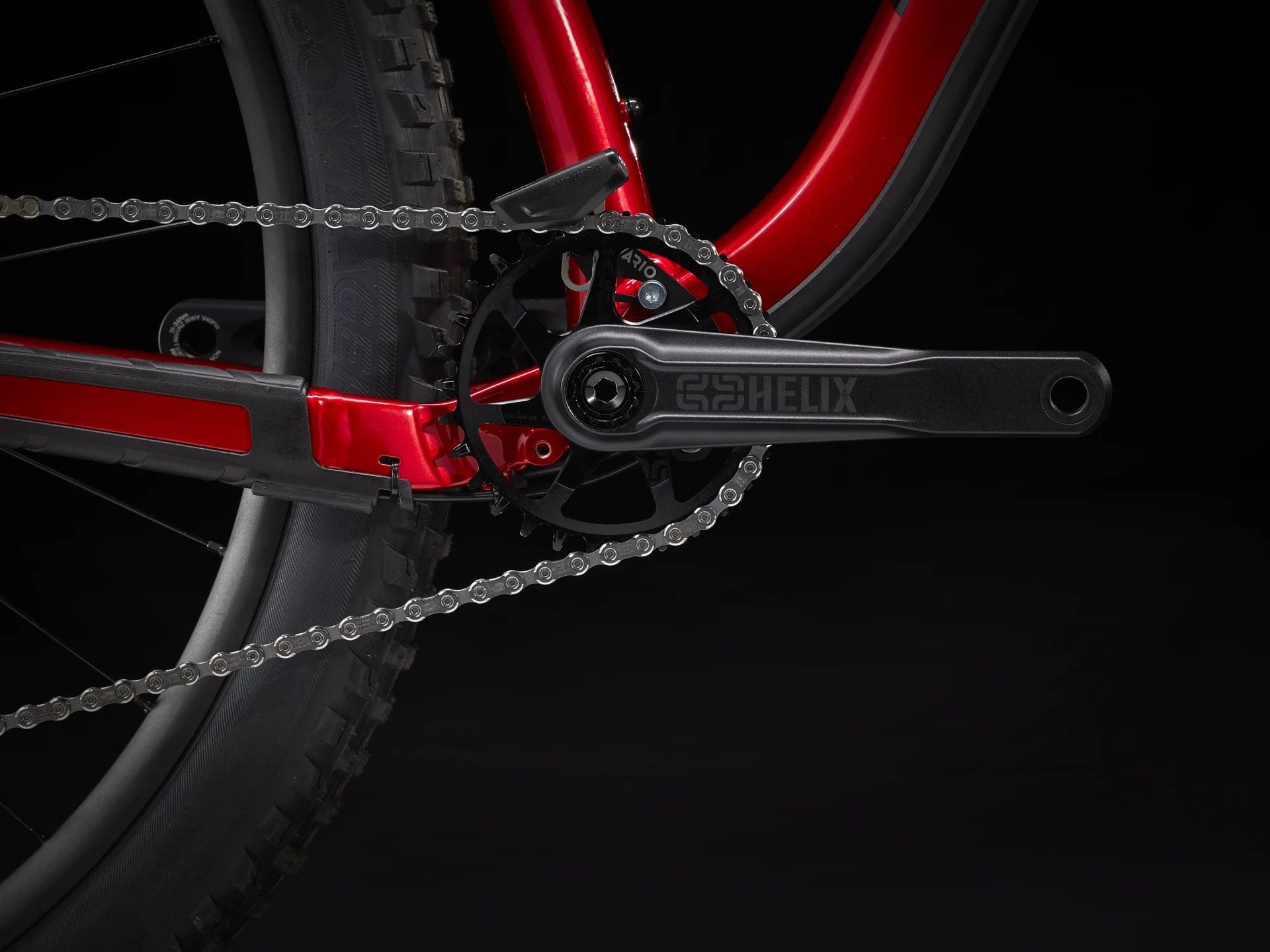

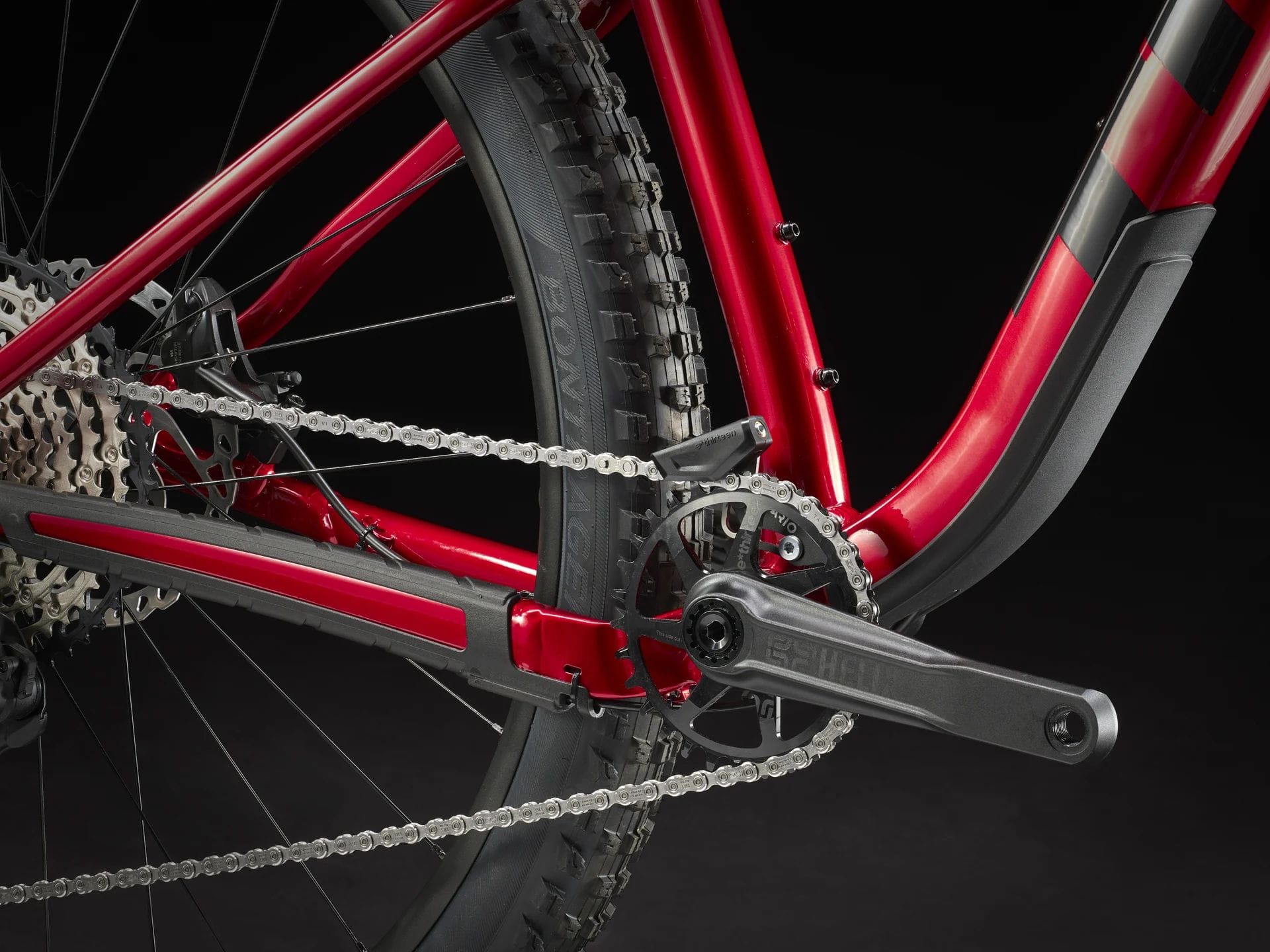

- Chainset: E*thirteen Helix, 30T steel ring, 73 mm spindle length, 52 mm chain line,170-5 mm length
- Rear Cassette: Shimano SLX M7100, 10-51, 12-speed
- Chain: Shimano Deore M6100, 12-speed
- Front Derailleur: N/A

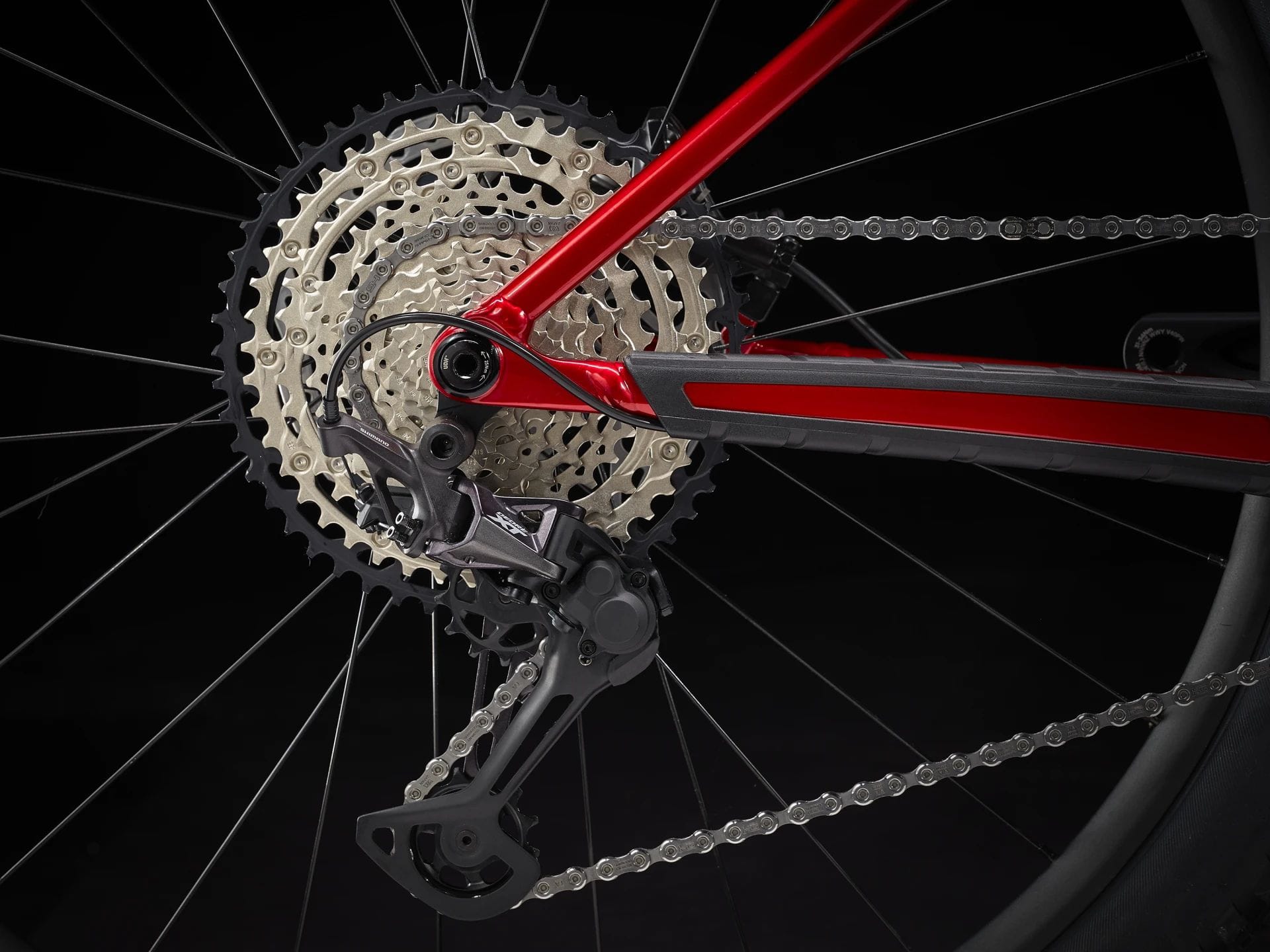

- Rear Derailleur: Shimano XT M8100, long cage, 51T max cog
- Bottom Bracket: Shimano SM-BB52, 73 mm, threaded external bearing
- Pedals: Not included
- Rims: Bontrager Line 30, Tubeless Ready, 28-hole, Presta valve
- Front Hub: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru-axle
- Rear Hub: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru-axle

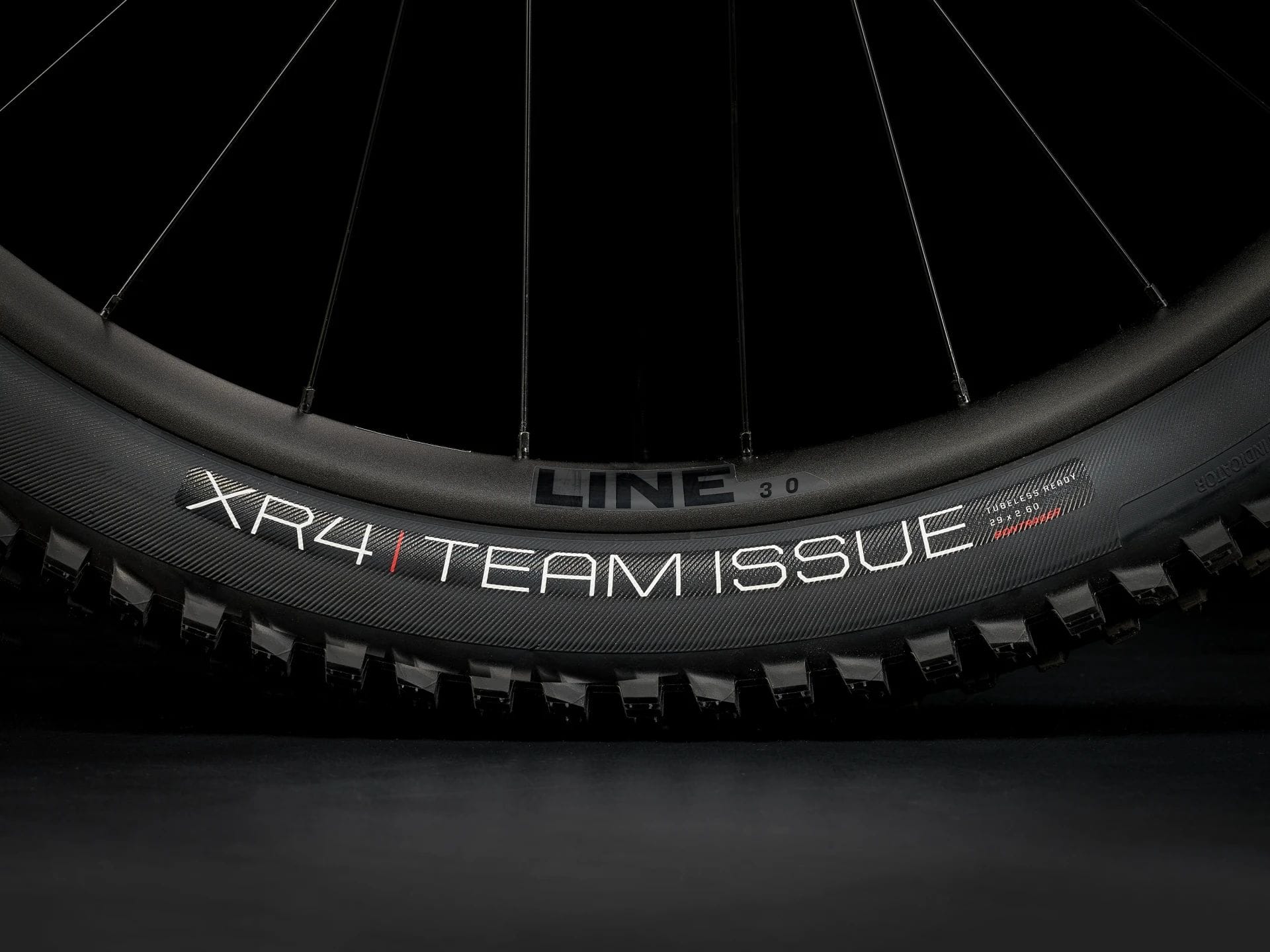

- Tyres: Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 TPI, 29x2.60"

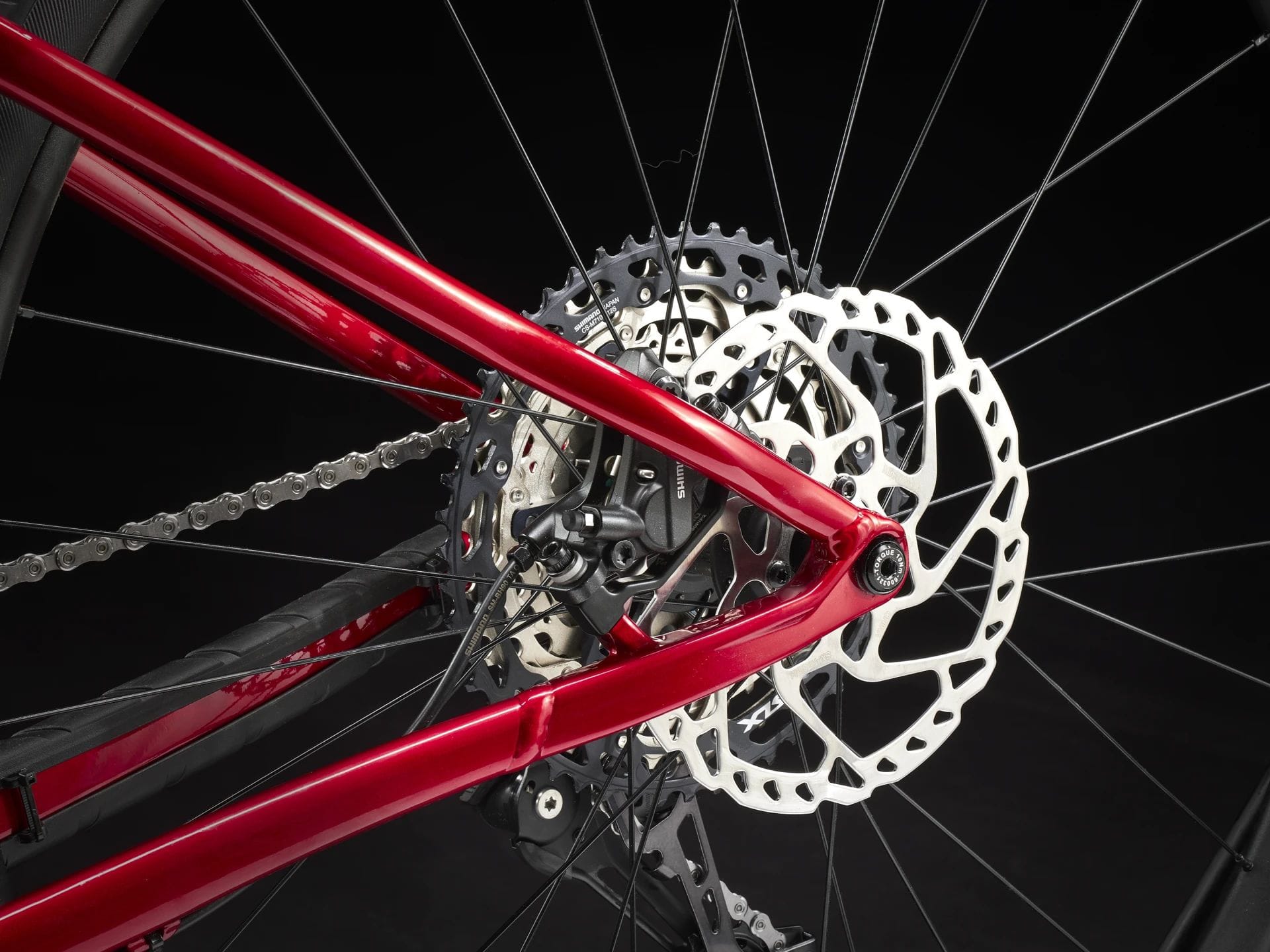

- Brakes: Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper

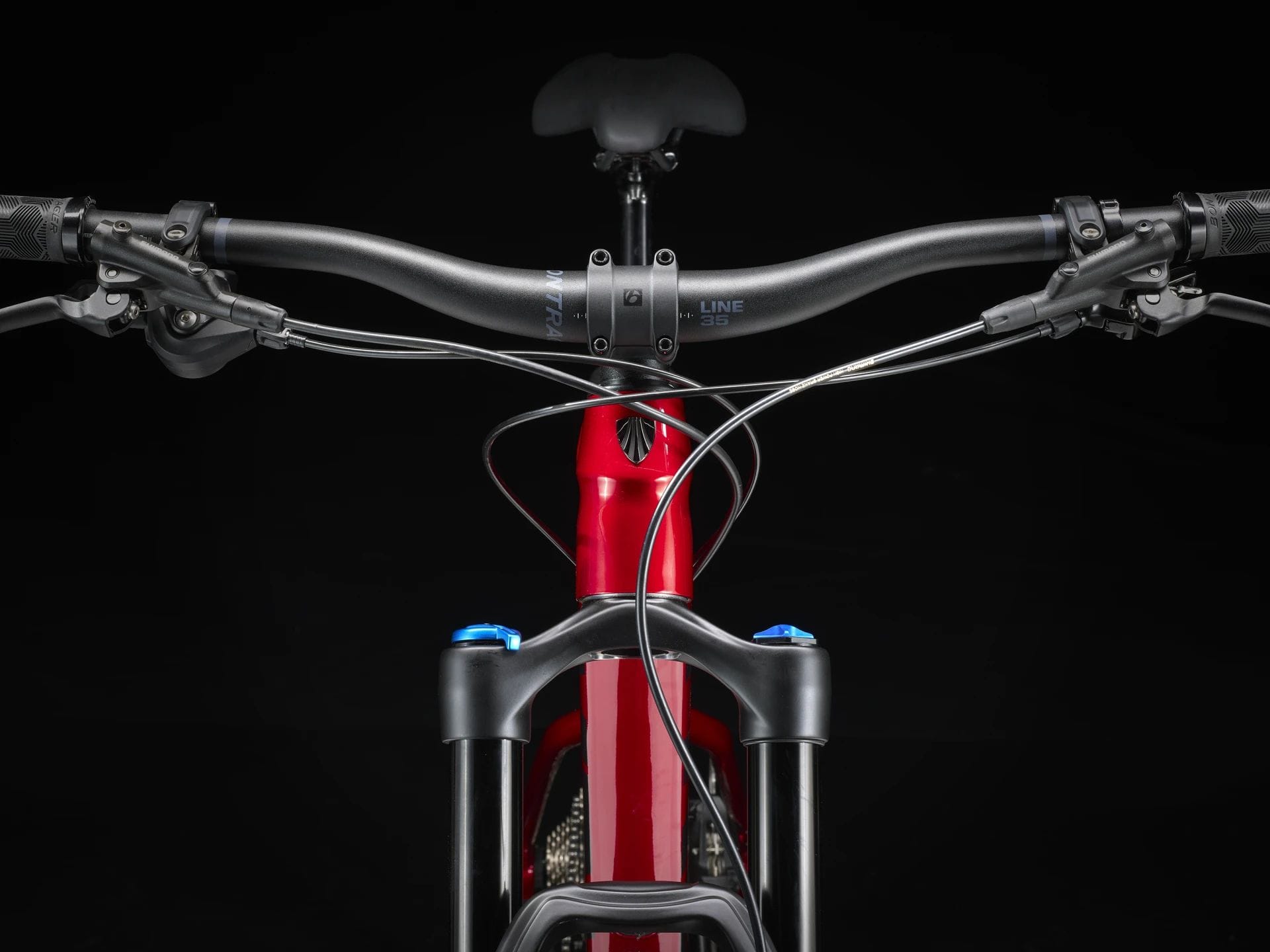

- Handlebars: Bontrager alloy, 31.8 mm, 15 mm rise
- Grips: Bontrager XR Trail Comp, nylon lock-on
- Headset: FSA IS-2, 1-1/8" top, 1.5" bottom
- Stem: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree

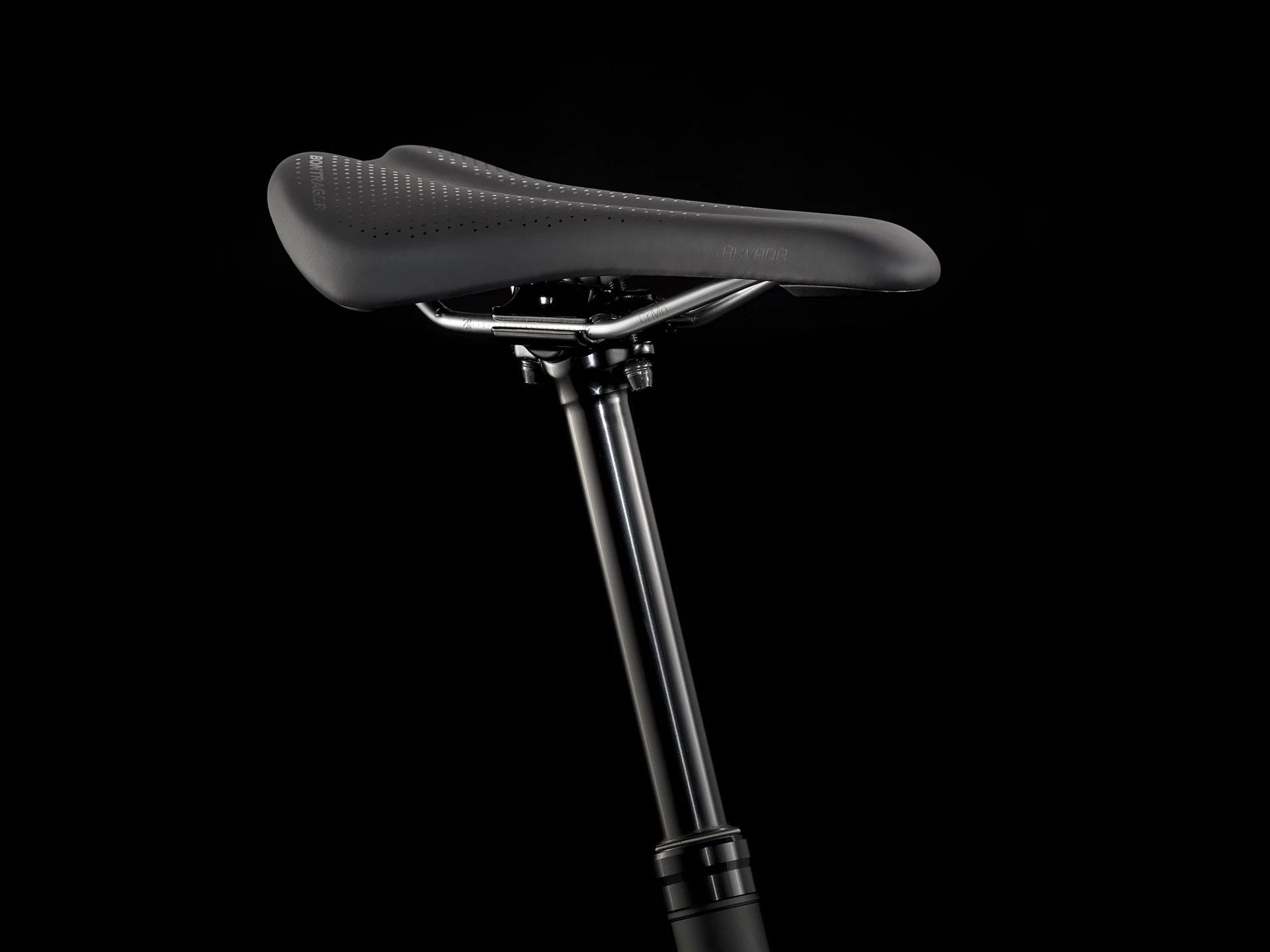

- Saddle: Bontrager Arvada, hollow Chromoly rails, 138 mm width
- Seatpost: TranzX JD-YSP18, 100-150 mm travel, internal routing, 31.6 mm
- Weight: M – 28.95 lb / 13.13 kg (with TLR sealant, no tubes)
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
How to Build Your Bike
How to Build Your Bike
Aftercare
Aftercare
You Might Be Interested In
TREK ROSCOE 9 HARDTAIL MTB BIKE 2023 CRIMSON
- SKU: 5260387
- Product ID: 160072
