- Fox Rhythm 36 Fork: 150mm travel suspension with 36mm stanchions for greater steering precision.
- TranzX JD-YSP39 Dropper Post: Lets you lower your saddle on the fly so it's out of the way on descents.
- SRAM GX Eagle AXS 12 Speed: Snappy wireless shifting performance.
Full Specification

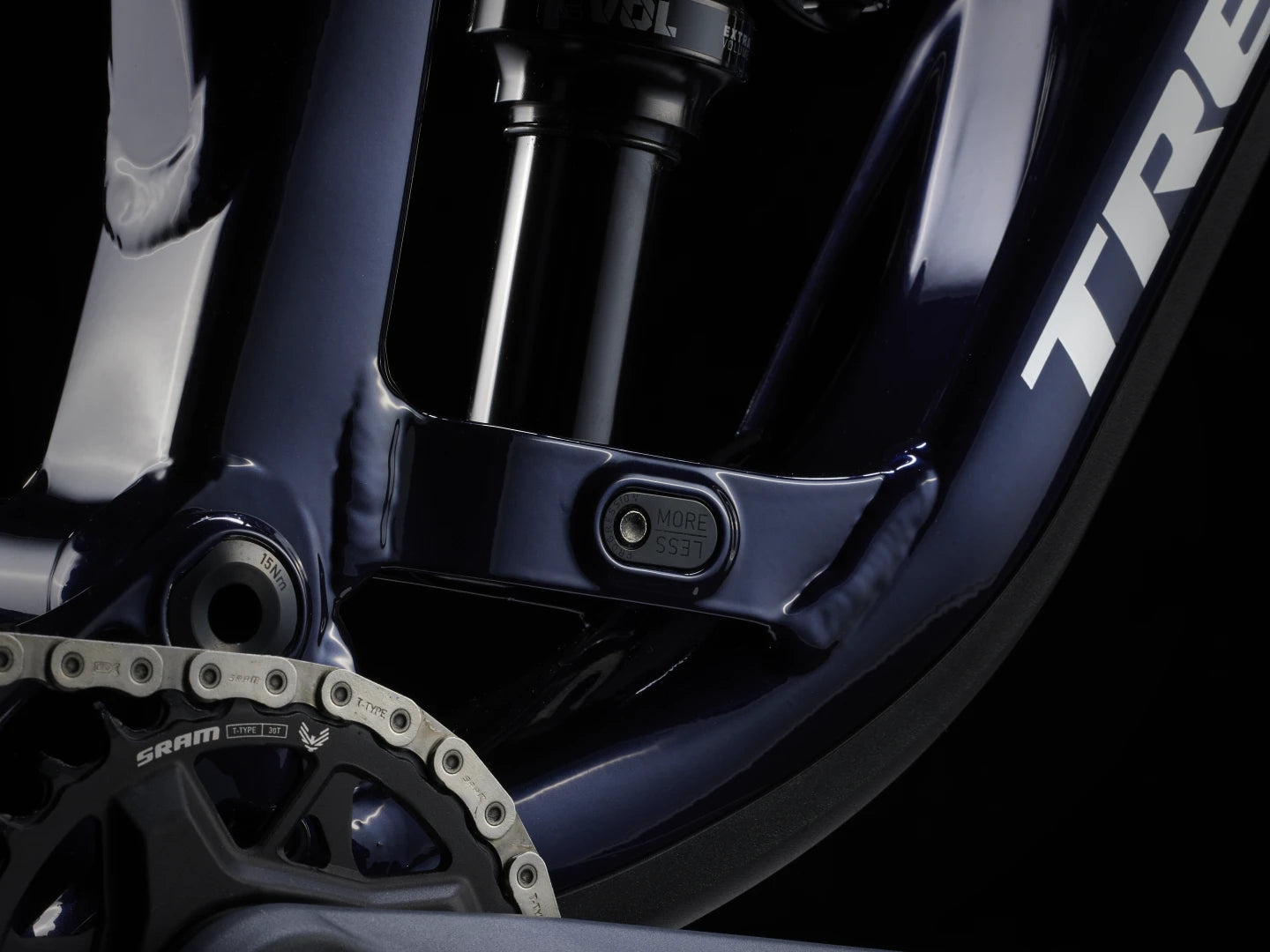

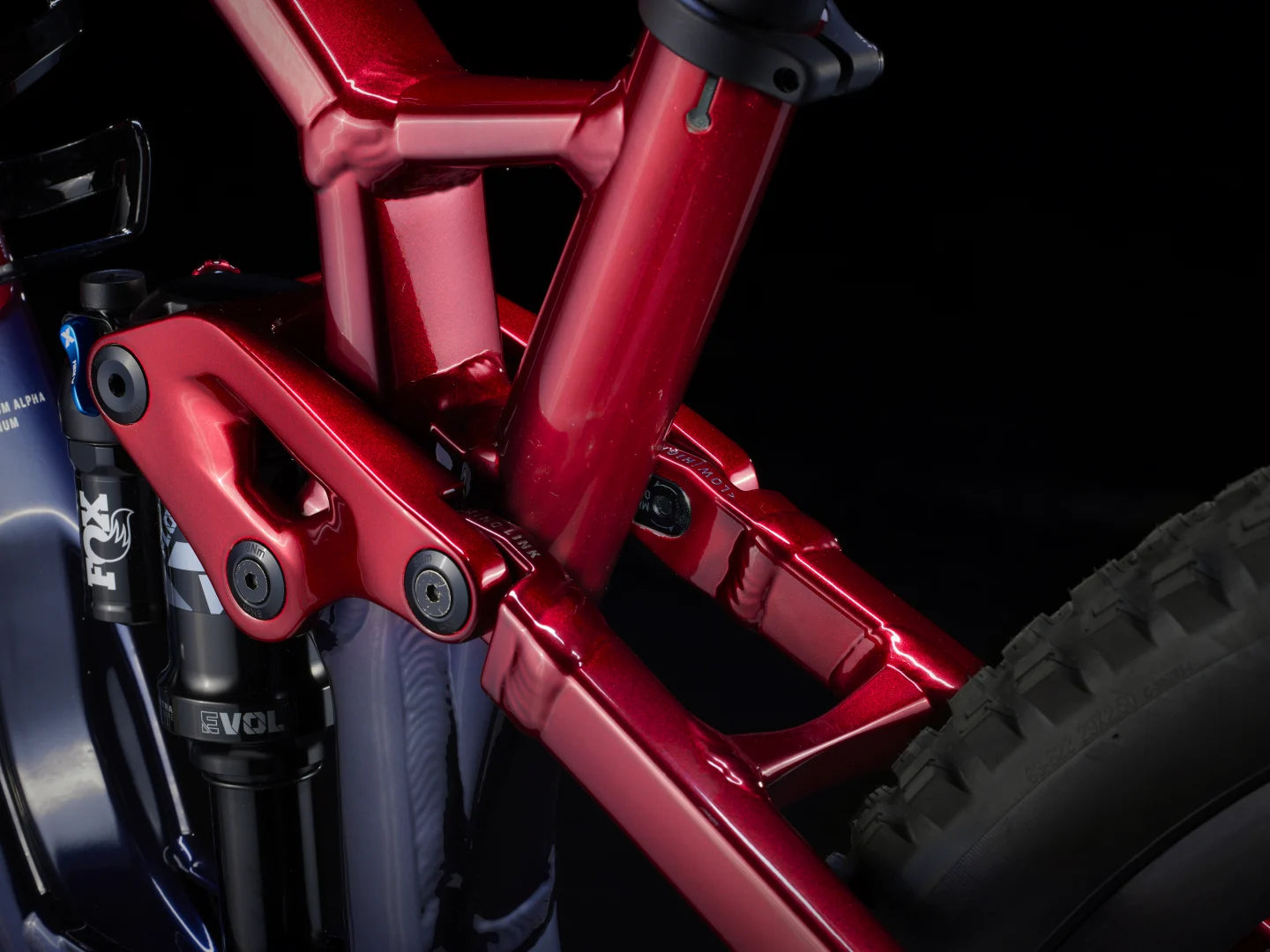

- Frame: Alpha Platinum Aluminium, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel

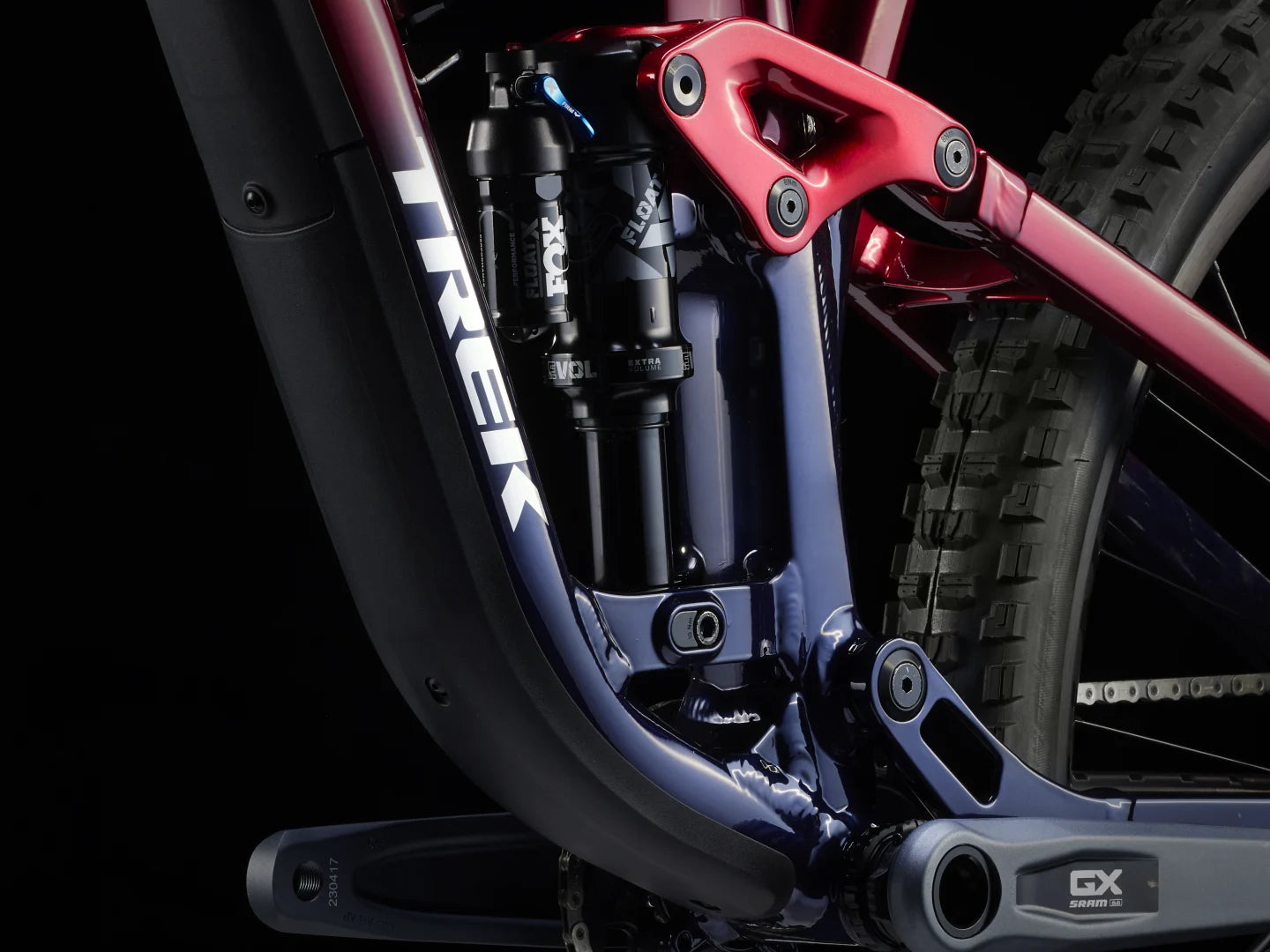

- Rear Shock: Fox Performance Float X, 2-position damper, 185 mm x 55 mm

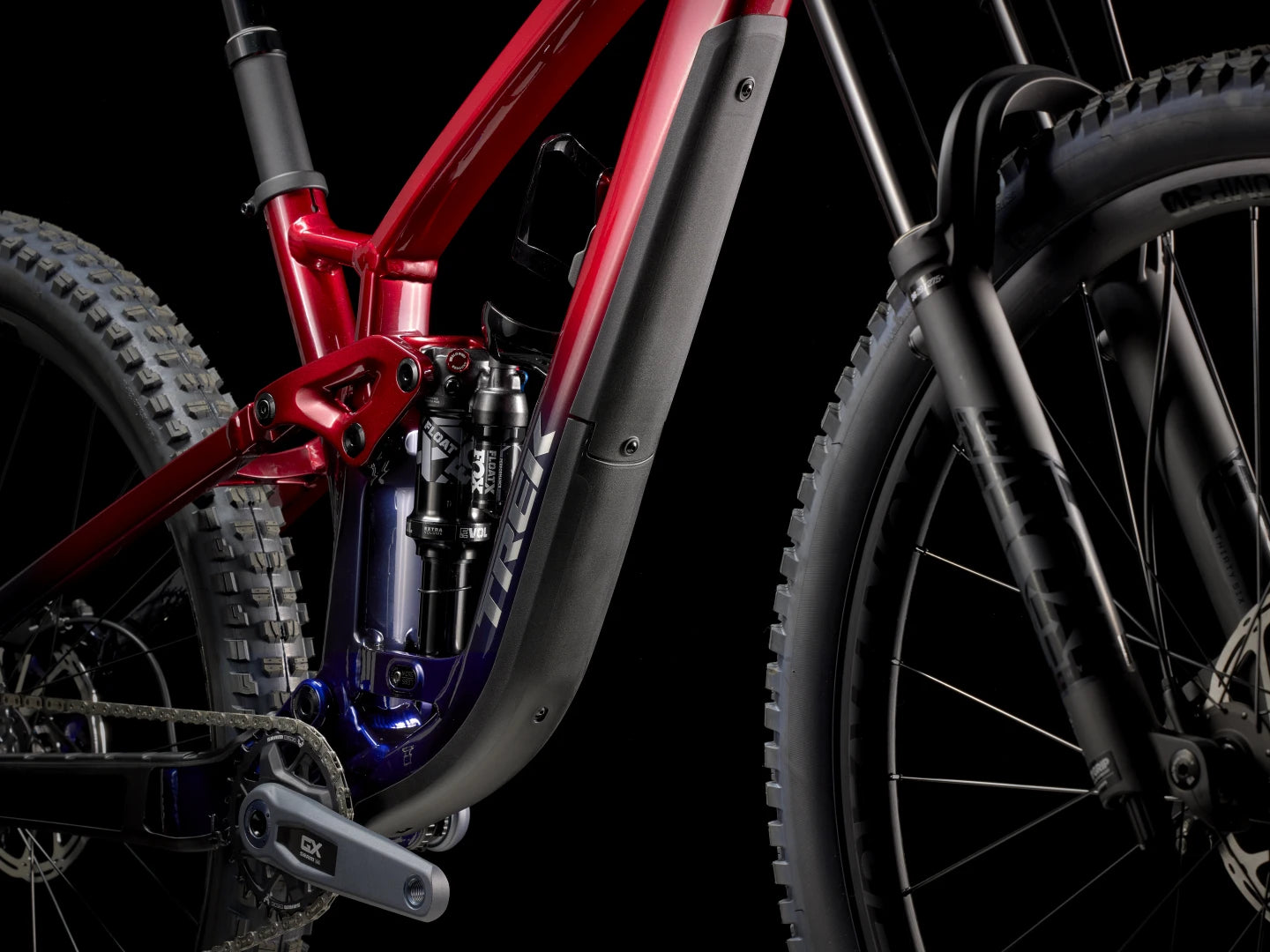

- Fork: Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 140 - 150 mm travel
- Gear Shifters: SRAM Eagle AXS POD
- Chainset: SRAM GX Eagle, T-Type, DUB, 30T, 55 mm chain line, 170 mm length
- Rear Cassette: SRAM Eagle XS-1275, T-Type,10-52, 12-speed
- Chain: SRAM GX Eagle, T-Type, 12-speed
- Front Derailleur: N/A

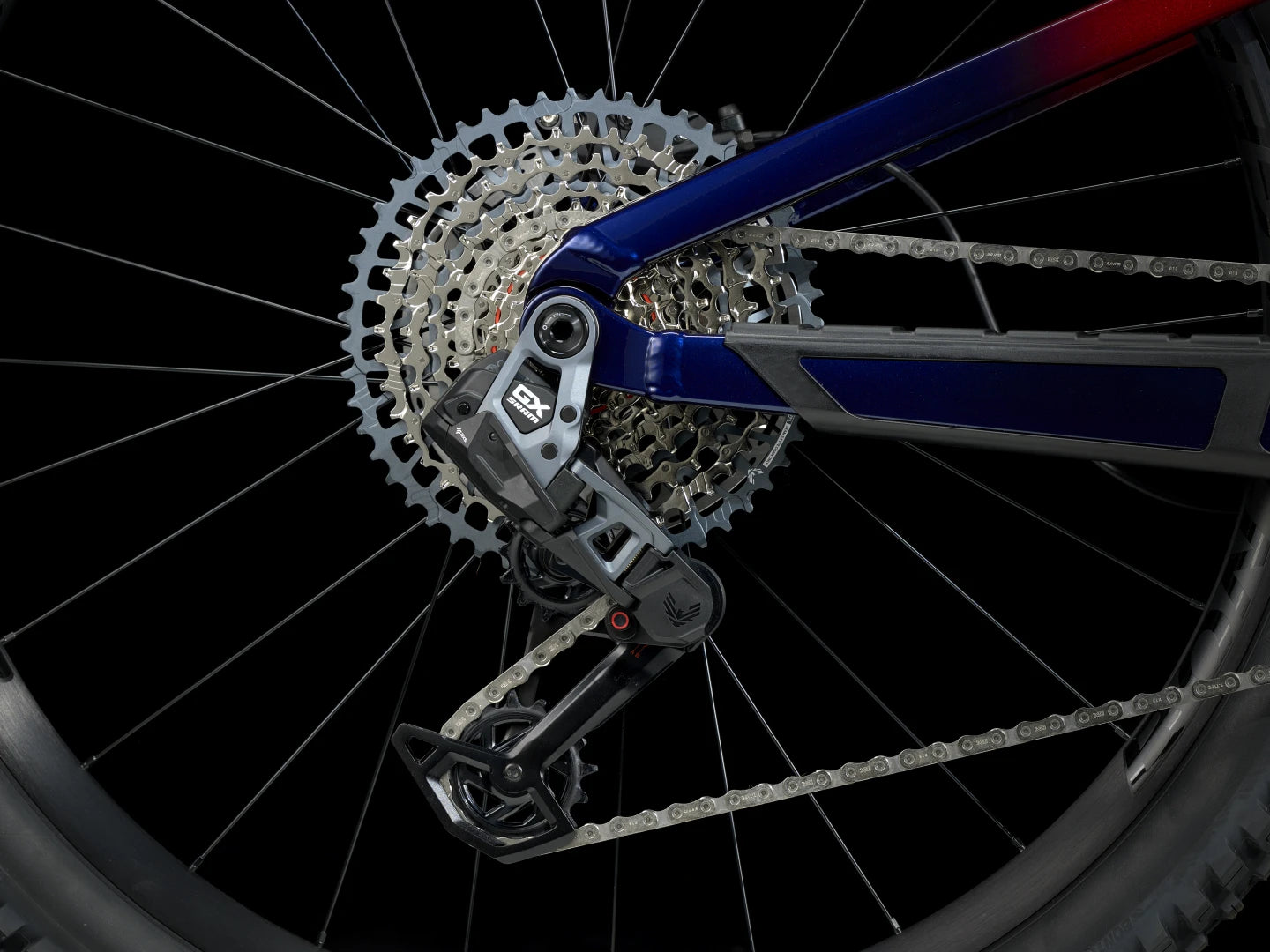

- Rear Derailleur: SRAM GX Eagle AXS, T-Type
- Bottom Bracket: SRAM DUB MTB Wide, 73 m, BSA threaded
- Pedals: Not supplied
- Rims: Bontrager Line Comp 30, Tubeless Ready
- Front Hub: Bontrager Line Comp 30, 6-bolt, Boost110, 15 mm thru axle
- Rear Hub: Bontrager Line Comp 30, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle

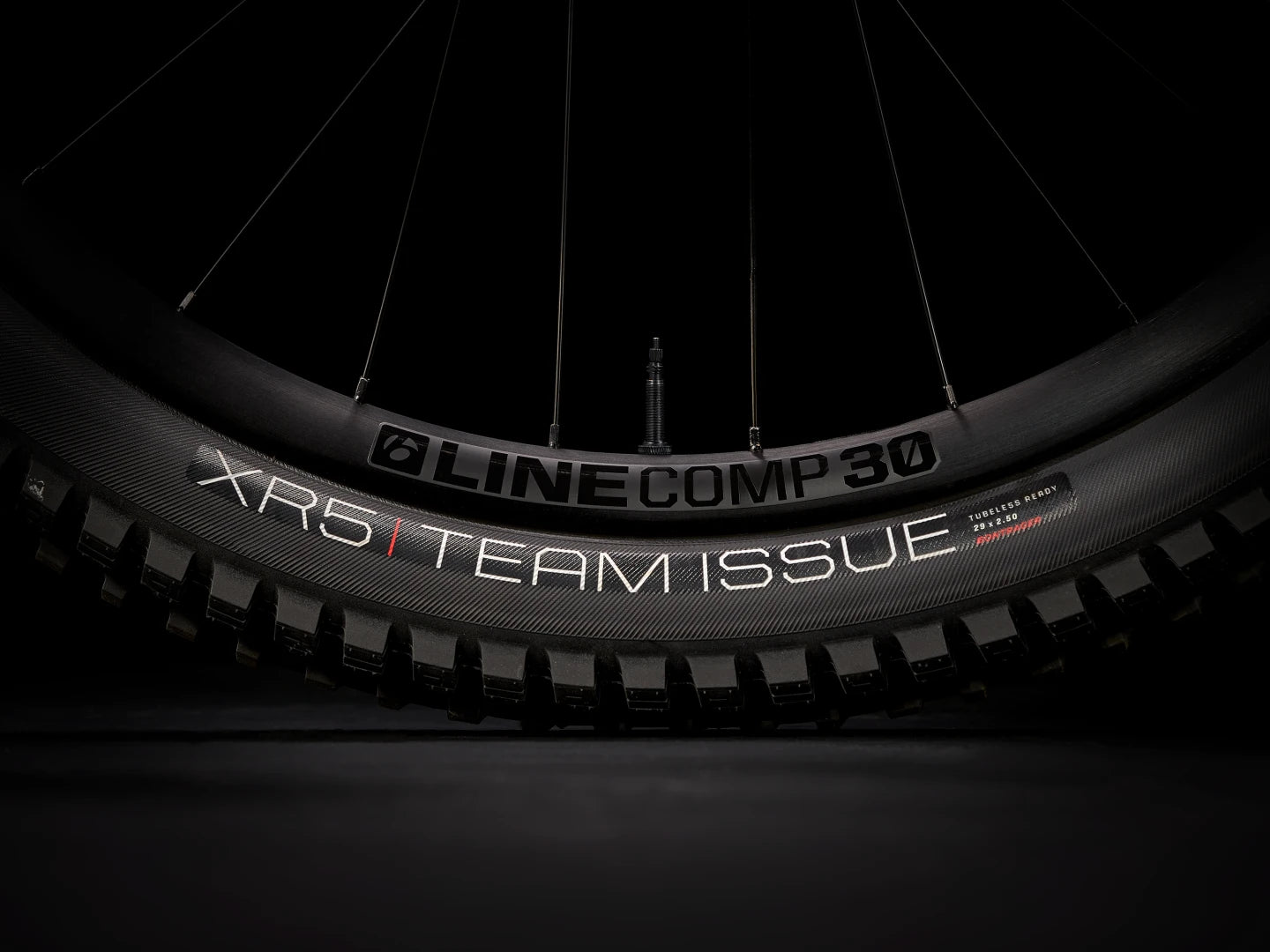

- Tyres: Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50" or 27.5x2.50"(Size small and Xsmall)

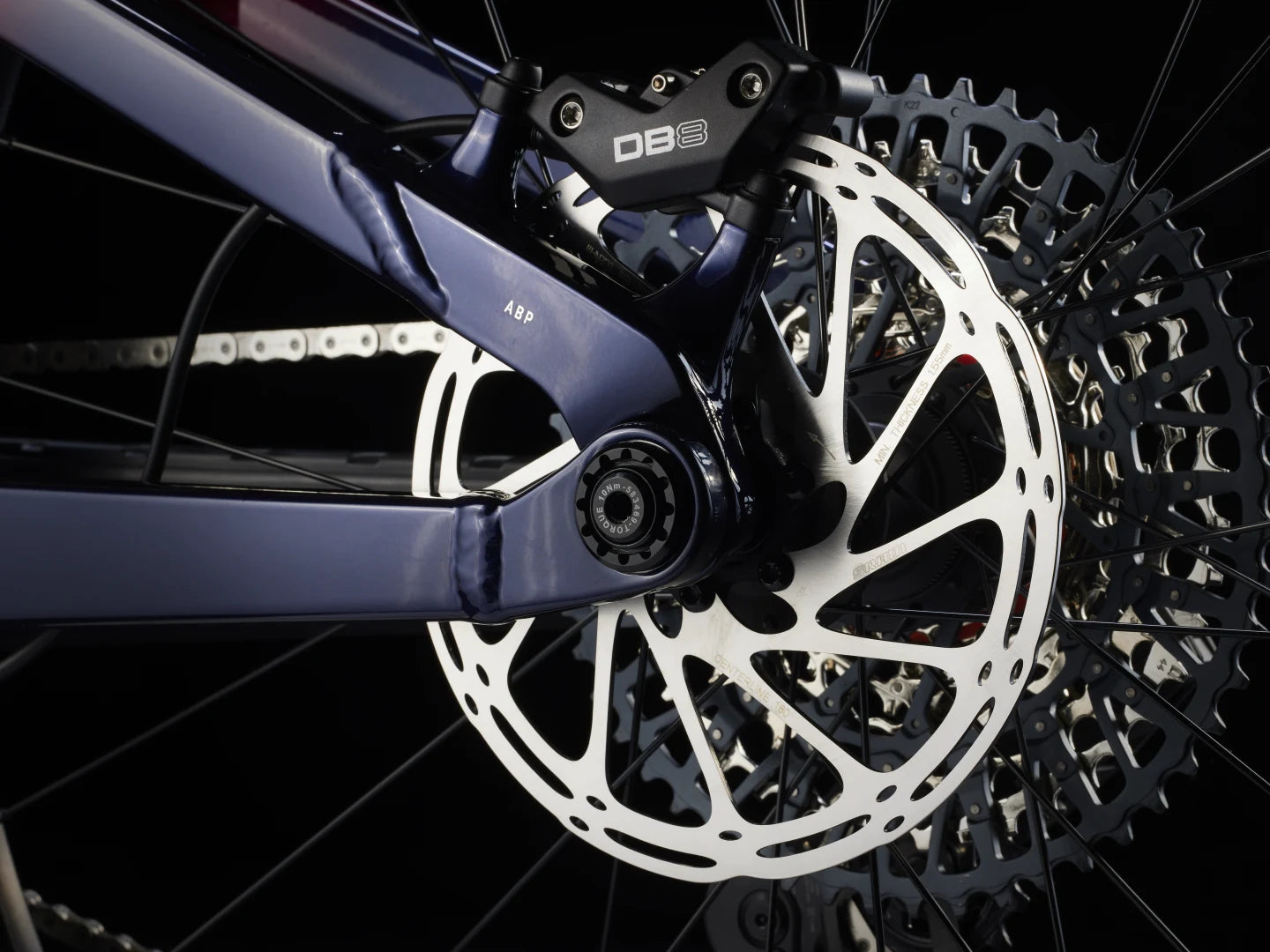

- Brakes: SRAM DB 8 4-piston hydraulic disc
- Handlebars: Bontrager Line, alloy, 35 mm, 27.5 mm rise, 750 - 780 mm width
- Bar Grips: Bontrager XR Trail Elite, nylon lock-on
- Stem: Bontrager Elite, 35 mm, 0-degree, 35 - 45 mm length
- Saddle: Bontrager Arvada, hollow chromoly rails, 138 mm width
- Seatpost: TranzX JD-YSP39, 100 - 170 mm travel, internal routing, 34.9 mm

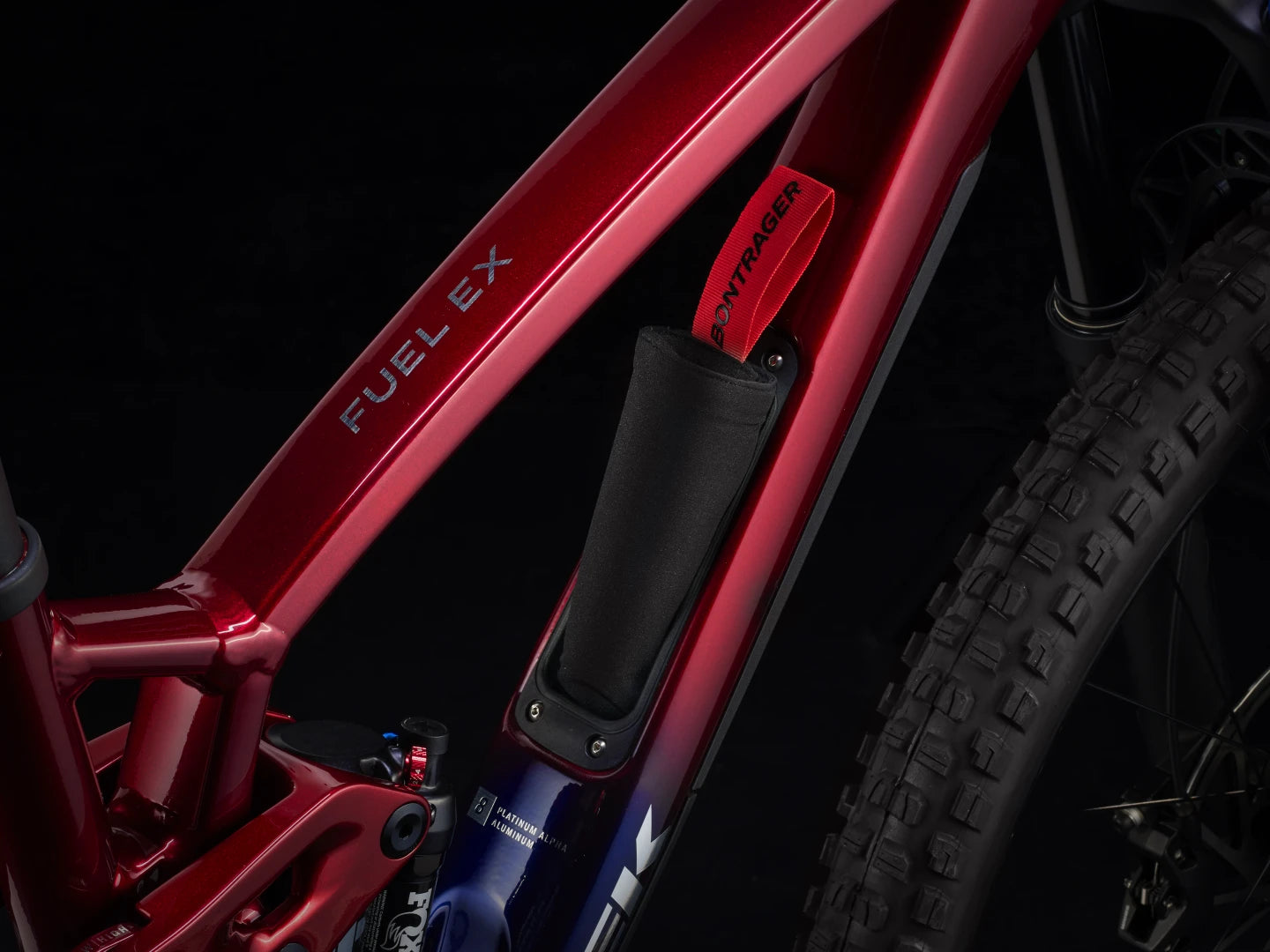

- Accessories: Bontrager Bits frame storage bag, SRAM eTap battery pack (with charger)
- Weight: M- 15.70 kg / 34.62 lbs (with TLR sealant, no tubes)
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
How to Build Your Bike
How to Build Your Bike
Aftercare
Aftercare
You Might Be Interested In

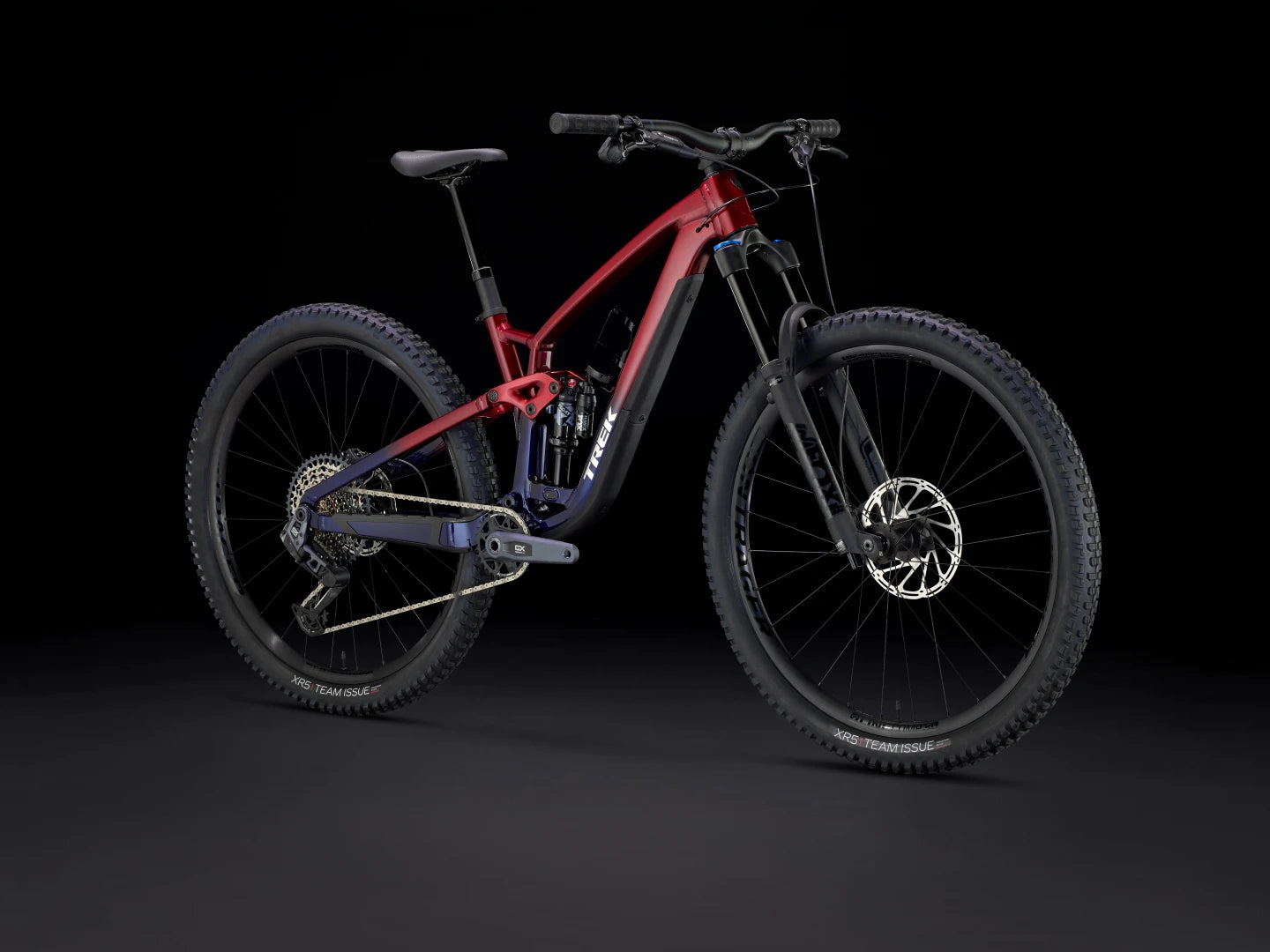

TREK FUEL EX 8 GX AXS T-TYPE GEN 6 BIKE 2025 RAGE RED
