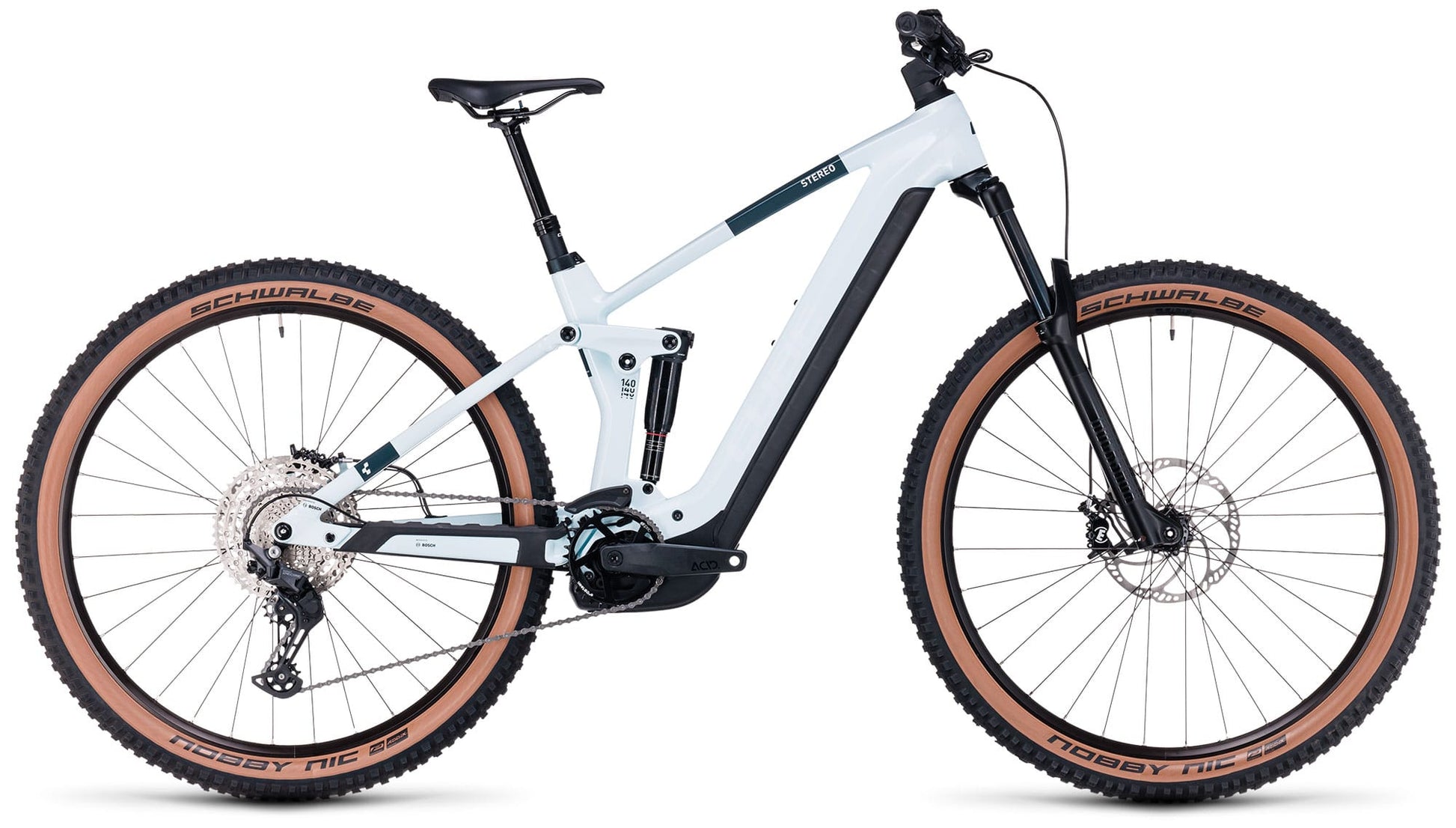

CUBE STEREO HYBRID 140 HPC PRO 750 E-MTB BIKE 2023 - FROST WHITE´N´GREY
CUBE STEREO HYBRID 140 HPC PRO 750 E-MTB BIKE 2023 - FROST WHITE´N´GREY
Product Details
Product Details
eBikes by their very nature can in the future require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.
Your eBike will be delivered built, set up and updated.
Minimum personal assembly is required.
The hills are calling, and you need a bike that's up to the challenge. The CUBE Stereo Hybrid 140 HPC Pro 750's fourth-generation Bosch CX drive unit and 750Wh battery won't let you down.
Paired with the smooth shifting and wide range of Shimano's Deore 1x11 gears, it'll make light work of any climb. And for the way back down, you've got 140mm of RockShox travel, with a Recon Silver Air fork up front and a Deluxe Select shock at the rear. Grippy 2.6in Schwalbe tyres hook you up to the trail, while powerful Magura MT Thirty hydraulic disc brakes with four-piston calipers and oversize rotors ensure you're always in full control. It's up for it. Are you?
Frame size S (16") comes with 27.5" wheels, sizes M (18"), L (20") and XL (22") are 29ers.
Please note that pedals are not included!
Key Features:
- 250W Bosch Motor:Most reliable pedal-assist motor in e-bike industry, capable of sustaining speeds up to 25 km/h
- Hydraulic Disc Brakes:Reliable braking performance to keep you in control, whatever the weather.
- 11 Shimano Gears:Wide range of gears suitable for a range of terrain, with the simplicity of a single shifter.
- Frame: C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing

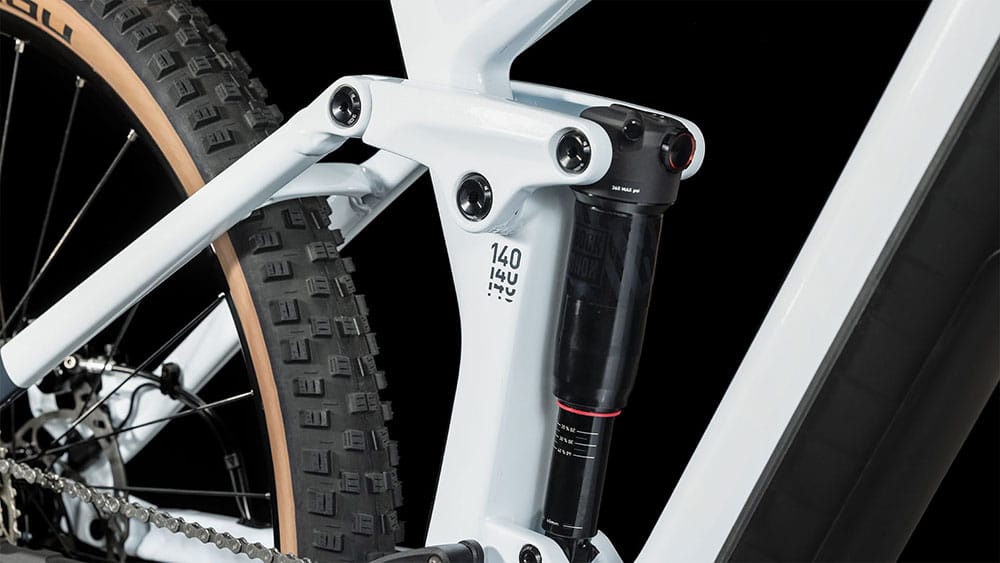

- Rear Shock: RockShox Deluxe Select, 205x60mm (27.5: 185x55mm), Rebound Adjust, Trunnion Mount
- Fork: RockShox Recon Silver RL Air, Tapered, 15x110mm, eMTB Approved, 150mm, Lockout
- Motor: Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
- Battery: Bosch PowerTube 750
- Controller: Bosch LED Remote
- Charger: Bosch 4A
- Number of Gears: 11
- Gear Shifters: Shimano Deore SL-M5100, Rapidfire-Plus
- Chainset: ACID E-Crank, 165mm (27.5: 36T // 29: 34T)
- Chainrings: 27.5/36T - 29/34T
- Rear Cassette: Shimano Deore CS-M5100, 11-51T
- Chain: KMC X11
- Front Derailleur: N/A
- Rear Derailleur: Shimano Deore RD-M5100-SGS, 11-Speed
- Pedals: Not supplied:
- Rims: Rodi Tryp 30, 32H, Disc, Tubeless Ready
- Front Hub: Shimano HB-MT400-B, 15mm, Boost, Centerlock
- Rear Hub: Shimano FH-MT400-B, 12mm, Boost, Centerlock
- Front Tyre: Schwalbe Nobby Nic, PerfL, 2.6
- Rear Tyre: Schwalbe Nobby Nic, PerfL, 2.6
- Brakes: Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
- Handlebars: Newmen Evolution SL 318.25, 760mm
- Grips or Bar Tape: ACID React Pro
- Headset: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
- Stem: CUBE Performance Stem E-MTB, 31.8mm

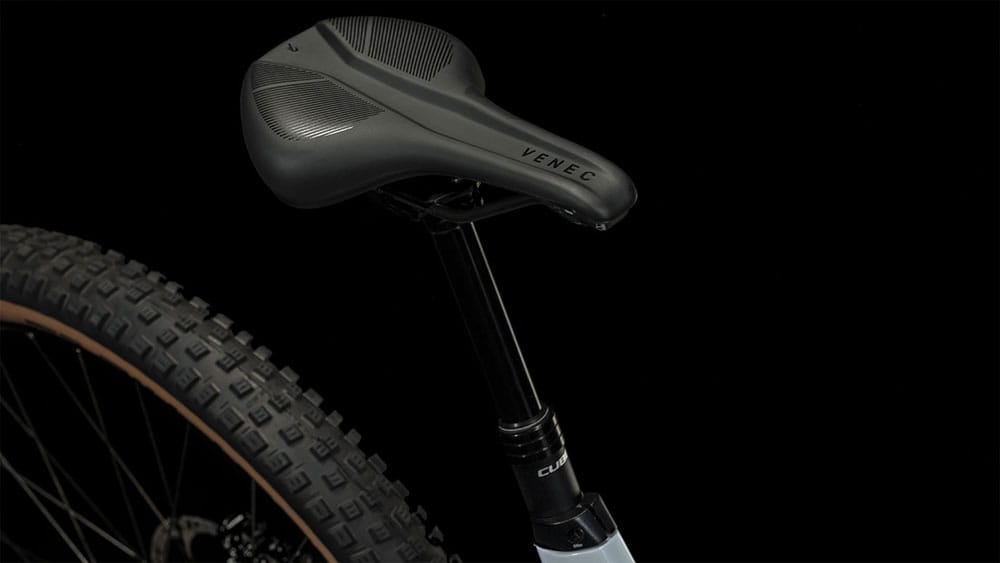

- Saddle: Natural Fit Venec
- Seatpost: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
- Weight: 24.6Kg
Cube´s versatile trail-tamer needs strength and agility in equal measure. Built around the CUBE Modular Battery System, the Stereo Hybrid 140 HPC 750's frame incorporates Bosch's fourth-generation CX motor and a 750Wh battery in an elegant structure that protects all its crucial components from dust and moisture. With a Boost 148 rear axle, large pivot bearings and internal cable routing, you're assured of great handling and lower maintenance, too. The Size Split system makes it easy to find the perfect fit for any rider. And the All Mountain Geometry is carefully designed to work with both the suspension kinematics and Bosch's drive system, so you end up with a bike that's stable, confidence-inspiring and fun.
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
How to Build Your Bike
How to Build Your Bike
Aftercare
Aftercare
After the first few weeks of use, the whole bike will settle down. As a result, the gears may need tweaking, some nuts and bolts may need tightening and you may well need to check the adjustment of the saddle and handlebars.
CABLE STRETCH
Gears
Cable stretch tends to occur shortly after a new bike has been ridden a few times. A rear derailleur that we have tuned to hit every gear, nicely and quietly, may now not be making each shift causing a sensation and sound of “being in between gears”. Generally you may have to shift up, or shift down a couple times to quiet it down and settle the derailleur into a “happy gear”. A front derailleur may no longer want to shift all the way onto the big ring or will require a much firmer push to get it there. It is advisable to get the cable tension adjusted as soon as this happens either by your local bike shop. This tune up is considered a necessary part of any bicycles maintenance schedule and as such should not be ignored.
Brakes
Your brakes will also be affected by cable stretch (provided of course that they are NOT hydraulic in which case this does not apply). The symptom here is that they usually start to feel quite loose. i.e. you have to pull the lever much further back or harder in order to get the same stopping power you once had. This is partly why new bikes come with a first free service. If your brakes start feeling a little spongy after a few weeks, you can adjust them at the barrel or the clamp or ask a mechanic at your local bike shop to do it for you.
DISC BRAKES
New disc brakes won’t deliver their full power until the rotor and pads have bedded in. SRAM has a really good guide for bedding in disc brakes: “Accelerate the bike to a moderate speed and then firmly applying the brakes until you are at walking speed. Repeat this process 20 times. Then accelerate the bike to a faster speed and apply the brakes until you are at walking speed. Repeat this process ten times. It’s important that during this process you never come to a complete stop or lock up the wheels at any point.” Doing this process should drastically improve the performance of your brakes and prepare them for many happy rides.
CRANKS
Check the cranks and crank bolts or nut for tightness; grab a crank arm in each hand and try to wiggle them to check for looseness. If there is play in the cranks, the nuts or bolts may need to be tightened. Cranks should be checked after every ride for the first week.
HEADSET
A loose headset can be diagnosed by turning the front wheel to point left or right, holding the front brake on, and then rocking the bike backwards and forwards. Hold your fingers between the stem and the frame. Any movement indicates that you need to tighten the headset.
SADDLE
Check your seat post is not loose and that you have not exceeded the limit marked on the seat post. Once you have checked these, use an allen key to tighten the seat post clamp. Check the seat is secure by giving it another check once you have finished.
STEM
Check that your front wheel and stem do not move independently, and that your handlebar clamp bolts are tight. Perform this check by standing in front of the bike, holding the front wheel between your knees, and twisting the handlebars. You can prevent any movement by tightening the stem bolts and the handlebar clamp with an allen key.
SUSPENSION FORKS
Keeping your mountain bike’s suspension maintained is one of the best ways to ensure you’re getting all the performance you can out of your bike. Plus, giving your fork and shock a few seconds of attention here and there can prevent costly repairs or even replacements.
Dirt is the number one enemy of suspension. After every ride make sure to wipe the seal area and stanchions of your fork and shock. Wipe in a horizontal motion, not vertical as you don’t want to force any debris towards the seals.
Every few rides double check that your suspension sag is correct, as well as your rebound and compression adjustments. If something has changed, or the adjustments aren’t working as before, some maintenance is likely due.
Working on your bike at home can seem daunting, and we'd always recommend you take your bike to a qualified mechanic if possible.
