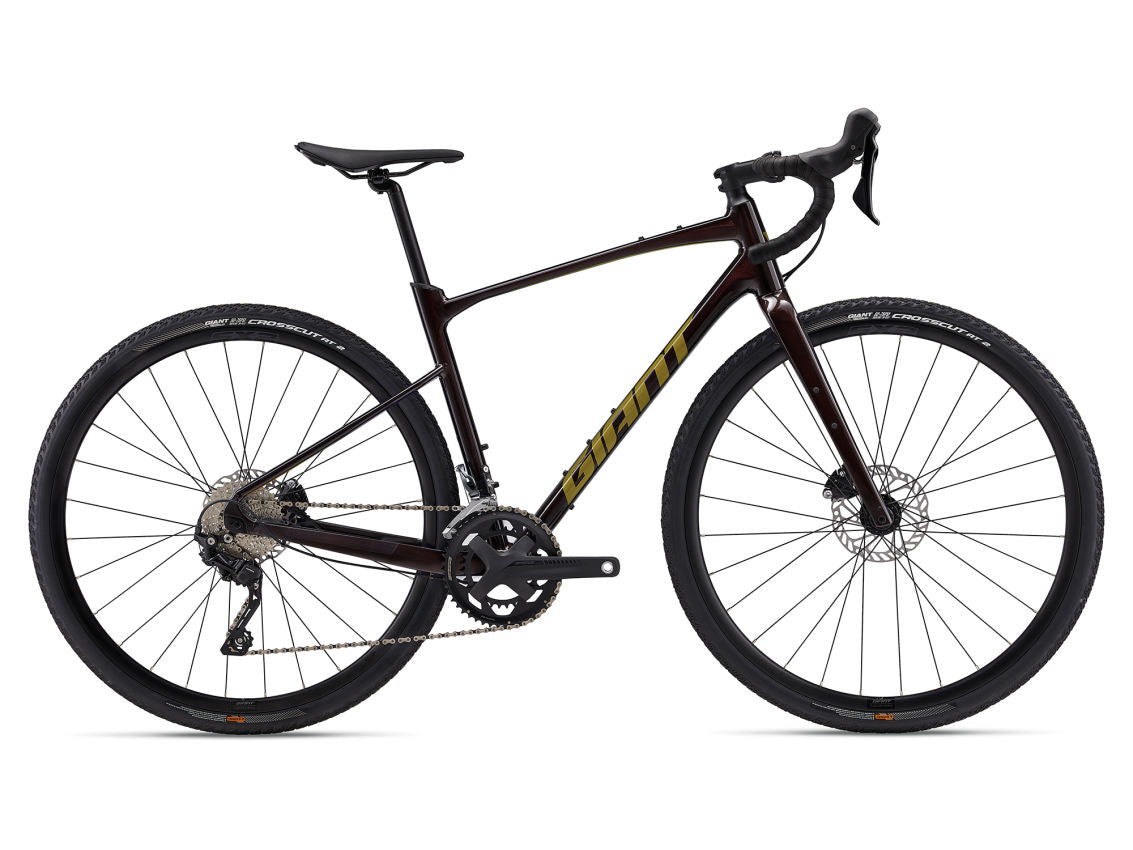

GIANT REVOLT 1 GRAVEL BIKE 2024 GLOSS CORDOVAN/DRIED HERB

Ride roads, gravel or dirt with this all-new aluminium all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tyre clearance.

The all-new Revolt features a lightweight ALUXX aluminum frame with updated gravel geometry including a longer reach and lower bottom bracket for added stability. A flip chip on the rear dropout adjusts wheelbase and tire clearance, and you can choose the included D-Fuse seatpost for maximum compliance or switch to a 30.9mm round or dropper post. The frame is integrated for disc brakes and it has clearance for larger tires up to 53mm.

Key Features Giant Revolt 1 Gravel Bike 2024

• Confident handling: Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.
• Tuned compliance: New frame features thinner, dropped seatstays to absorb road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
• Adaptable to the terrain: A flip chip on the rear dropout adjusts the wheelbase short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Specification

• Frame: ALUXX-Grade Aluminium, 12x142mm thru-axle, disc, flip chip dropout
• Fork: Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
• Gear Shifters: Shimano GRX RX-400, 2x10

• Chainset: FSA Omega Adventure, 32/48
• Rear Cassette: Shimano HG500, 11x34
• Chain: KMC X10 with Missing Link
• Front Derailleur: Shimano Tiagra
• Rear Derailleur: Shimano GRX RX-400
• Bottom Bracket: FSA Mega EXO
• Pedals: Not Included
• Rims: Giant S-X2 Disc wheelset, alloy, 25mm inner rim width
• Hubs: Giant alloy, 12mm thru-axle
• Tyres: Giant Cross Cut AT 2, 700x38c, tubeless
• Brakes: Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
• Handlebars: Giant Contact XR D-Fuse, 31.8mm
• Handlebar Tape: Velo cork tape with gel
• Stem: Giant Contact, 8-degree
• Saddle: Giant Approach
• Seatpost: Giant D-Fuse, Alloy, 14mm offset
• Extras: Factory tubeless set up, 53mm max tyre size in "long" flip chip position, 42mm max tyre size in "short" flip chip position
• Weight: N/A

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

We offer several delivery options:

Store Collection: Pick up your order at our Salts Mill store, located at BD17 7EH.

Standard Delivery We partner with APC Euro-Tran for deliveries. Once your bike is dispatched, it typically arrives within 1 to 3 working days for Mainland UK. All bikes are fully built, checked, set up and then packed back down into a standard size bike box. Please note that electric bikes will be shipped in two boxes due to weight and size restrictions. We recommend our premium delivery service for electric bikes.

Premium Delivery We partner with DX's two-person delivery team. After dispatch, your bike usually arrives within 2 to 4 working days for Mainland UK. DX will contact you before delivery to schedule a convenient delivery date. All bikes come fully built, checked, set up and with both wheels attached. Trek bikes can only be sent via our premium delivery service.

Check out our video for more information on how your bike is assembled and packaged.

At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.

Bicycle Safety

Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.

Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.

Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.

Follow road rules – Ride responsibly and remain aware of your surroundings.

Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)

Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.

Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.

Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.

Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine Maintenance (Every Few Weeks)

Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.

Brake Safety – Check brake pads and responsiveness before each ride.

Tyre Inspection – Look for punctures and ensure correct air pressure.

Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.

Frame Safety Check – Look for any signs of damage or cracks.

Pedals - Ensure pedals are still tight and correctly fitted.

Professional Check-Ups

Have your bike serviced at least once a year, or more frequently if you ride often.

Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)

Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.

Avoid Overcharging – Unplug the charger once fully charged to extend battery life.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine e-Bike Maintenance (Every Few Weeks)

Motor Inspection – Listen for unusual noises and ensure smooth operation.

Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.

Pedals - Ensure pedals are still tight and correctly fitted.

Seasonal e-Bike Maintenance

Check Electrical Components – Ensure wires and connections are clean and secure.

Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.

By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
