Product Details
Product Details

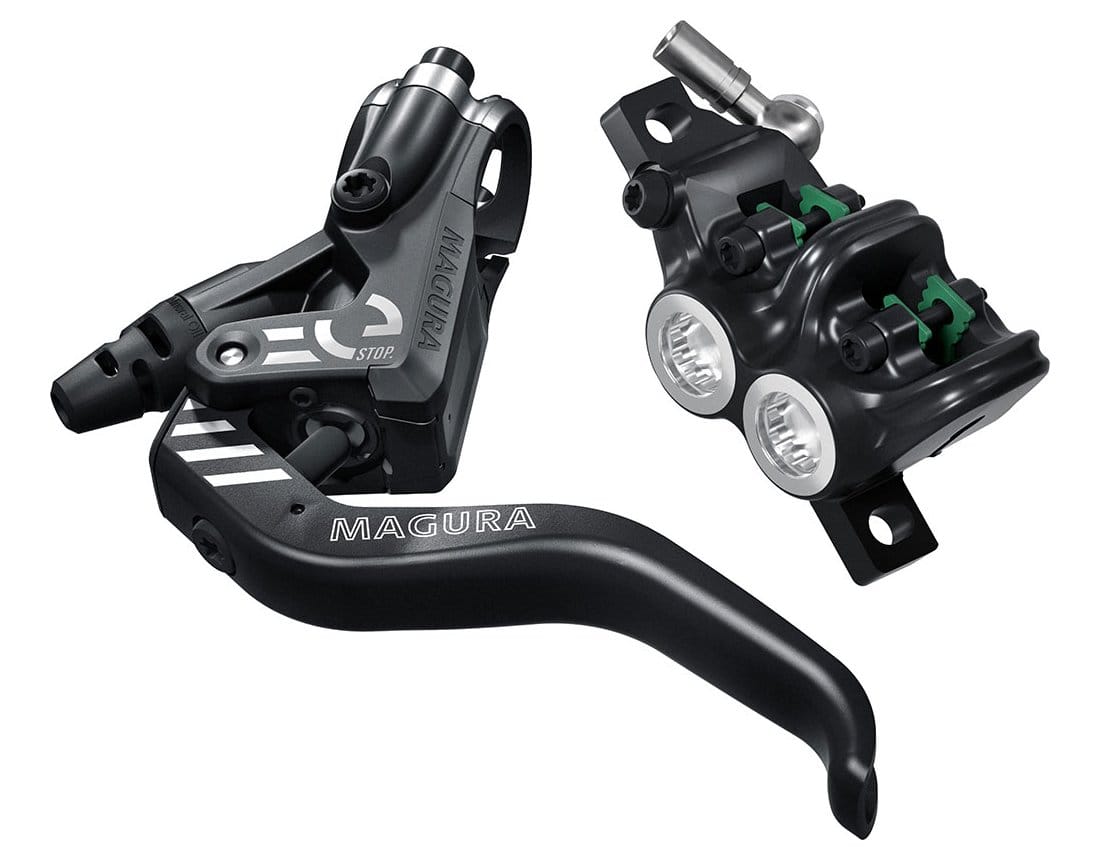

This is MAGURA’s top model for more demanding e-bike use. With its powerful 4-pistons calipers, the MT5 eSTOP offers safe performance at high speeds, even on heavy e-bikes. You can apply just as much or as little braking power as you require, thanks to the adjustable lever reach setting and the ergonomically matched, two-finger brake lever.
The eSTOP system is based on the MAGURA MT features. Due to the combination with SPORT brake pads and the MDR-C or MDR-P rotors it even offers higher braking forces and stability.
Features
- Optimized for the requirements of modern e-bikes
- Controlled power for off-road and city tours
- 4-piston brake calliper with banjo
- magnetiXchange brake pistons for easy brake pad replacement

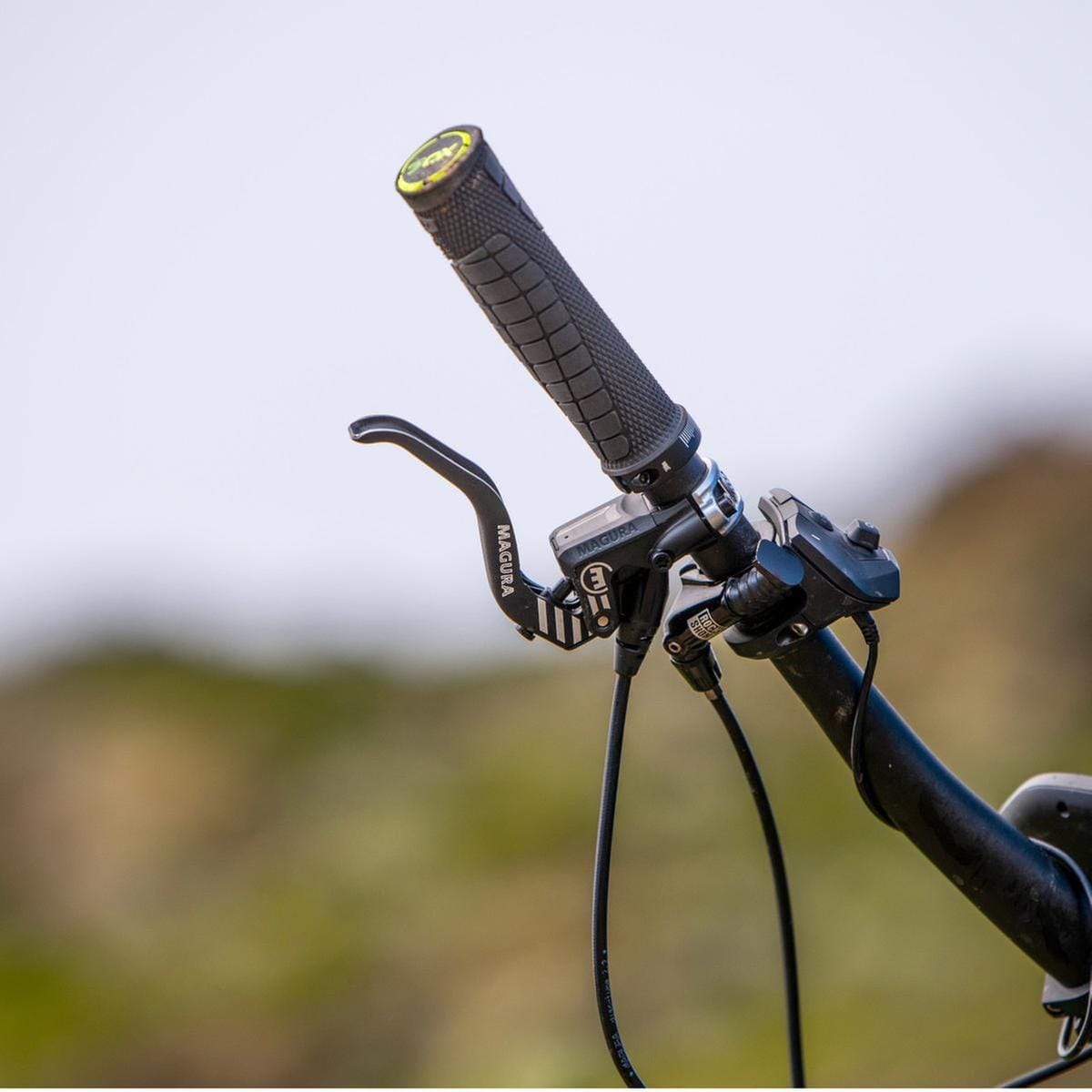

- Ergonomic, 2-finger, aluminium brake lever
- Carbotecture® master keeps the entire weight to 230 grams
- 2-finger aluminium light-weight-lever blade
- Adjustable lever reach
- All screws with Torx T25
- Suitable for mounting left or right
Specification
- Use: E-MTB / E-Trekking / E-City
- Technical features: Full hydraulic four piston floating caliper
- Pad wear adjustment: Automatic
- Brake pads: Organic 8.S Sport
- Hose fitting caliper: RHR - Rotateable hose routing
- Brake hose: MAGURA disc tube easily shortened
- Transmission medium: MAGURA Royal Blood mineral oil
- Hydraulic system: Open, with expansion chamber
- Intern. standard mounting (IS): Yes, adaptor
- Centerlock compatible: Yes, with adaptor
- EBT (Easy Bleed Technology): Yes
- Feel-Safety-Ergonomic: Yes
- Dual Docking for trigger shifters: Yes
- Reach adjust: Yes (with tool T25)
- BAT (bite point adjuster): No
- magnetiXchange: Yes
- OPD (caliper in one-piece design): Yes
- Postmount mounting (PM): Yes, direct mount
- 2-Piece Lever Clamp: Yes
- Material fitting bolts: Steel
- Brake lever and caliper: Carbotecture (Master), Aluminium forged (caliper)
- Lever blade: Aluminium
- Hose length: 2200mm (shortable)
- Rotor diameter: MDR-P 203 / 220 mm
Colour
- Black (Master & Lever)
- Polished Black Anodized / Silver (Caliper)
Weight
- 255g
Contents
- 1 MT5 eSTOP Disc Brake
- 2 Fastening screws
- 1 Insertpin
- 1 Olive
- 1 Transport safety
- Disc brake is ready-to-install, filled and bleed!
Rotor and Adapter not included!
