Product Details

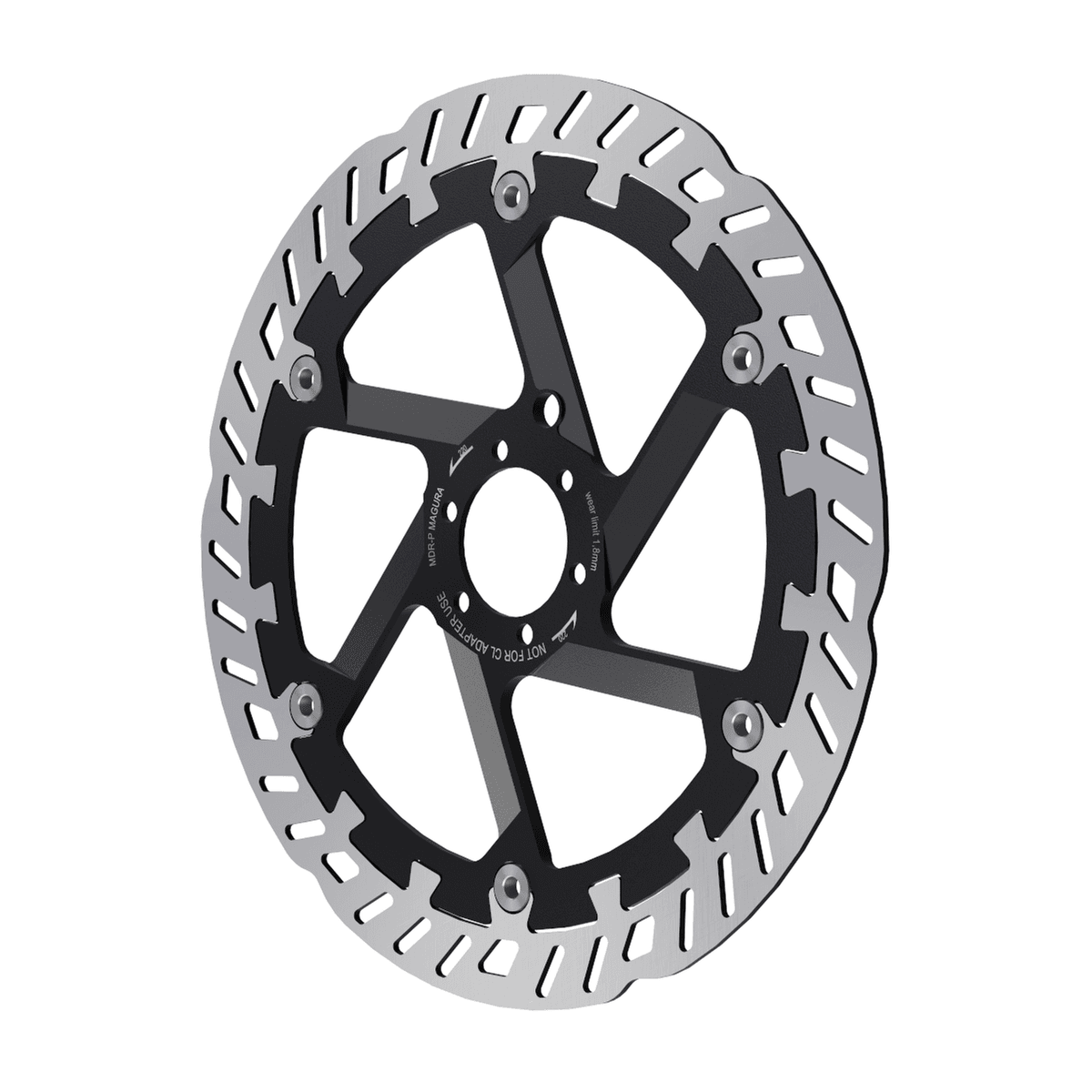

Magura's MDR-P is a brake disc for performance-oriented riders and tough applications - from downhill and e-bikes to heavy load bikes. It offering a special patented interlocking of the outer and inner rings (Dovetail Interlink Technology) giving optimum braking performance even under heavy loads. In addition, maximum heat resistance and stability.

For the first time, the two-piece disc is also available in a diameter of 220 mm. With the same manual force, the 220 mm brake disc generates around 10% more braking force than a 203 mm model and 20% more than a 180 mm model. In addition, the higher mass reduces the risk of fading.

Features

  • E-Bike optimized
  • Offering a special patented interlocking of the outer and inner rings (Dovetail Interlink Technology) giving optimum braking performance even under heavy loads
  • In addition, maximum heat resistance and stability

Note: Never use rotor with centerlock adapter!

Specification

  • Material: Steel
  • Rotor thickness: 2mm
  • Mounting: 6-Hole
  • Rotor diameter: 220 mm

Application

  • Gravity
  • Downhill
  • Enduro
  • Trail
  • All Mountain
  • eMTB
  • eMobility
  • S-Pedelec
  • Cargo Bike
  • E-Cargo Bike
  • Dirt Jump
  • Allroad
  • E-Allroad

Weight

  • 241g

Brake compatibility

  • MT series except MT SPORT, Not for Flatmount brakes, MT C series, CMe series

Contents

  • 1 rotor
  • 6 steel mounting screws

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
