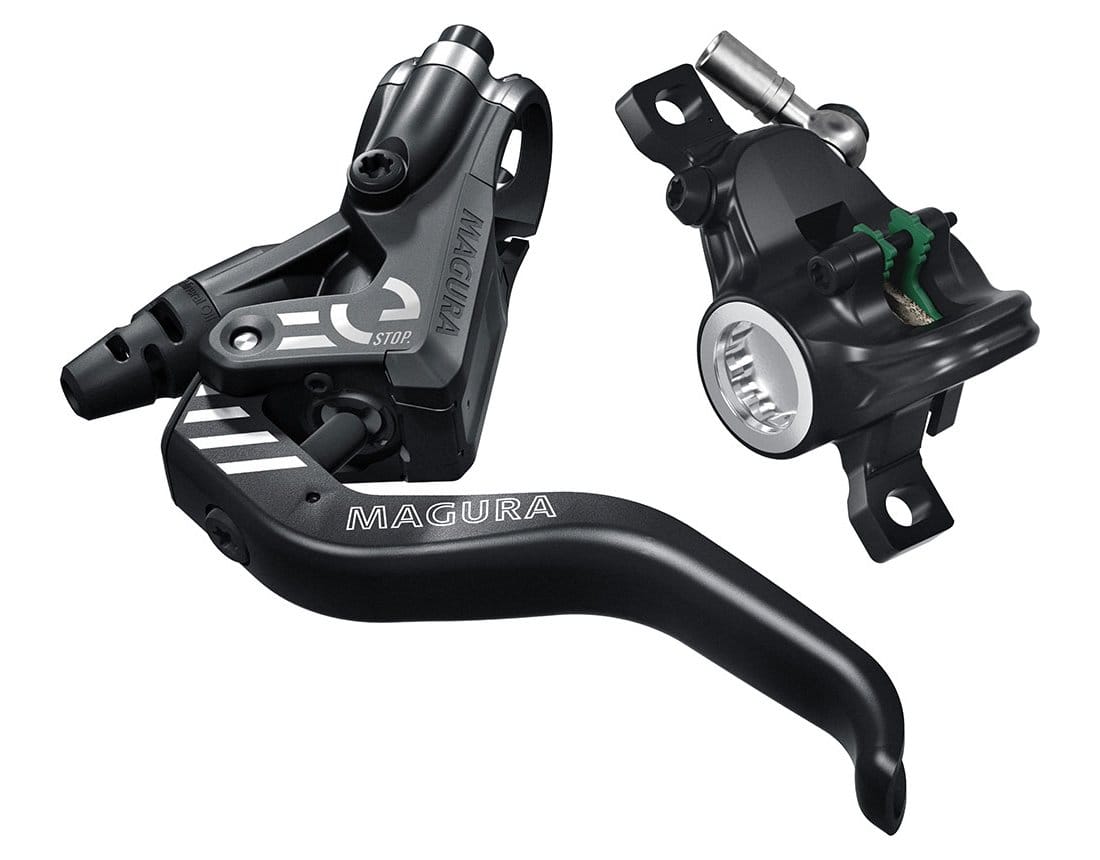

The Magura MT4 eSTOP has been optimized for the requirements of modern e-bikes. You can apply just as much or as little braking power as you require, thanks to the adjustable lever reach setting and the ergonomically matched, two-finger brake lever. The lightweight Carbotecture® brake lever keeps the total weight of the brake system at only 230g.
The eSTOP system is based on the MAGURA MT features. Due to the combination with SPORT brake pads and the MDR-C or MDR-P rotors it even offers higher braking forces and stability.
Features
- Optimized for the requirements of modern e-bikes
- Controlled power for off-road and city tours
- Forged, 2-piston brake calliper with banjo
- magnetiXchange brake pistons for easy brake pad replacement
- Ergonomic, 2-finger, aluminium brake lever
- Carbotecture® master keeps the entire weight to 230 grams
- 2-finger aluminium light-weight-lever blade
- Adjustable lever reach
- All screws with Torx T25
- Suitable for mounting left or right
Specification
- Use: E-City / E-Trekking
- Technical features: Full hydraulic dual piston floating caliper
- Pad wear adjustment: Automatic
- Brake pads: Organic 7.S Sport
- Hose fitting caliper: RHR - Rotateable hose routing
- Brake hose: MAGURA disc tube easily shortened
- Transmission medium: MAGURA Royal Blood mineral oil
- Hydraulic system: Open, with expansion chamber
- Intern. standard mounting (IS): Yes, adaptor
- Centerlock compatible: Yes, with adaptor
- EBT (Easy Bleed Technology): Yes
- Feel-Safety-Ergonomic: Yes
- Dual Docking for trigger shifters: Yes
- Reach adjust: Yes (with tool T25)
- BAT (bite point adjuster): No
- magnetiXchange: Yes
- OPD (caliper in one-piece design): Yes
- Postmount mounting (PM): Yes, direct mount
- 2-Piece Lever Clamp: Yes
- Material fitting bolts: Steel
- Brake lever and caliper: Carbotecture (Master), Aluminium forged (caliper)
- Lever blade: Aluminium
- Hose length: 2200mm (shortable)
- Rotor diameter: MDR-C 180 / 203 mm
Colour
- Black (Master & Lever)
- Polished Black Anodized / silver (Caliper)
Weight
- 230g
Contents
- 1 x MT4 eSTOP Disc Brake
- 2 x Fastening screws
- 1 x Insertpin
- 1 x Olive
- Disc brake is ready-to-install, filled and bled!
Rotor and Adapter not included!
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
