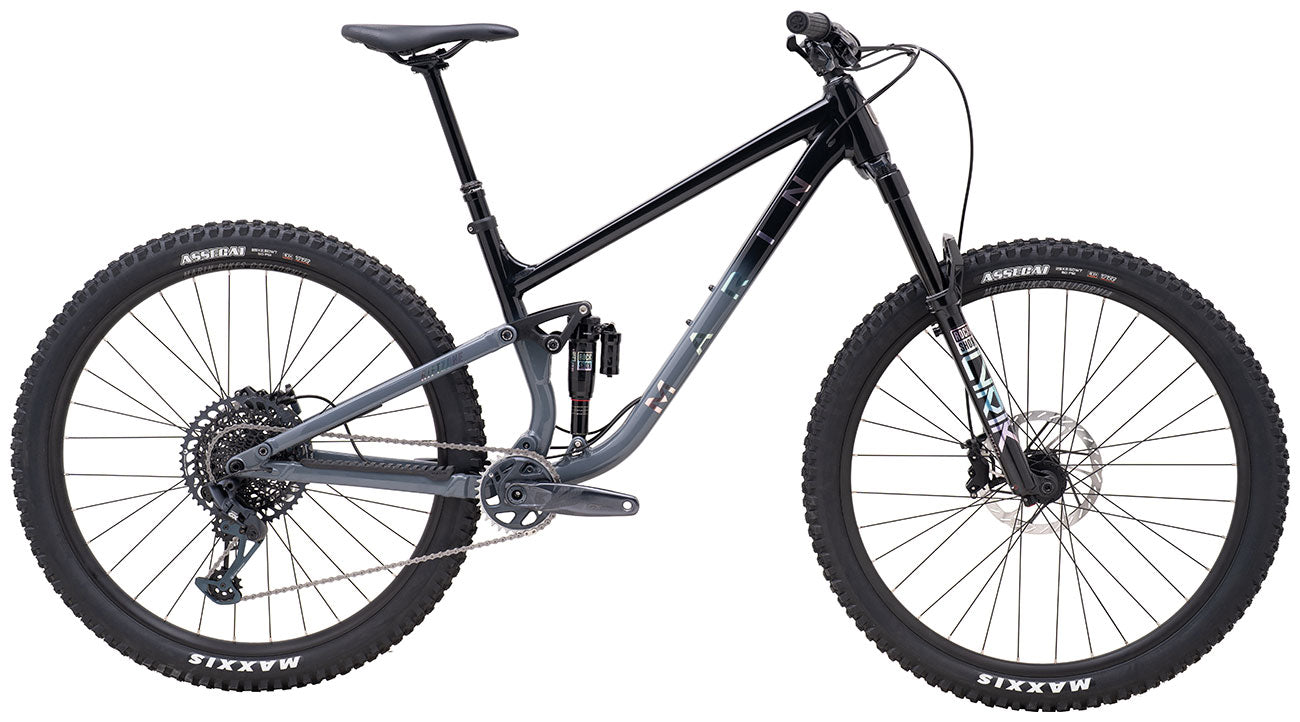

MARIN RIFT ZONE XR FS MTB BIKE 2025 BLACK/GREY
Product Details - Marin Rift Zone Xr Fs Mtb Bike 2025 Black/grey
Product Details - Marin Rift Zone Xr Fs Mtb Bike 2025 Black/grey
The rift zone represents the most modern 29 short travel trail bike possible featuring 125mm of multitrack suspension and progressive geometry that takes full advantage of decades of trail riding experience to create best-in-class handling, both in and out of the saddle.
Key Features
- Hydraulic Disc Brakes: Accurate and powerful braking capacity to keep you in control in all weather conditions.
- Long, low and slack trail geo and 29” wheels: Make for a fast and quick-handling bike.
-
RockShox/Fox front and rear suspension: Pedal-friendly suspension that soaks up the bumps and delivers power to the ground.
Full Specification
- Frame: Series 3 6061 Aluminium, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
- Rear Shock: RockShox Super Deluxe Select+, 210x55mm, 25xM8 Hardware, Custom Tune
- Fork: RockShox Lyrik Select+, 150mm Travel, 29" wheels, 110x15 Maxle Stealth, 42mm Offset
- Gear Shifters: SRAM GX Eagle Lunar MMX Mount
- Chainset: SRAM GX Eagle, 32T, 55MM CL, 170MM Length
- Rear Cassette: SRAM XG 1275 Eagle Cassette 10-52T
- Chain: SRAM NX Eagle
- Rear Derailleur: SRAM GX Eagle Lunar
- Bottom Bracket: SRAM DUB MTB 73
- Pedals: Not supplied
- Rims: Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
- Front Hub: Formula, DC-711, 110x15mm, 6-Bolt Disc, 32h
- Rear Hub: Formula, DCL-3482, 148x12, 4 Sealed Bearings, 6-Bolt Disc, XD Driver, 32H
- Tyres: Maxxis Assegai, 29x2.5", MAXX TERAA, EXO, Tubeless Compatible
- Brakes: SRAM DB8 4-Piston Hydraulic Disc, HSC 200/180mm Rotors
- Handlebars: Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
- Handlebar Grips: Marin Grizzly Lock On
- Stem: Marin 3D Forged Alloy, 35mm
- Saddle: Marin Speed Concept
- Seatpost: TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm
- Extras: Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head
-
Weight: N/a
Size Guide: Marin Rift Zone 2025 Trail Bike
Frame Size | Rider Height Guidance |
Small | 5'3" to 5'6" |
Medium | 5'6" to 5'10" |
Large | 5'10" to 6'1" |
X Large | 6'1" to 6'4" |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
How we Build & Pack Your Bike
How we Build & Pack Your Bike
Delivery
Delivery
We offer several delivery options:
Store Collection: Pick up your order at our Salts Mill store, located at BD17 7EH.
Standard Delivery We partner with APC Euro-Tran for deliveries. Once your bike is dispatched, it typically arrives within 1 to 3 working days for Mainland UK. All bikes are fully built, checked, set up and then packed back down into a standard size bike box. Please note that electric bikes will be shipped in two boxes due to weight and size restrictions. We recommend our premium delivery service for electric bikes.
Premium Delivery We partner with DX's two-person delivery team. After dispatch, your bike usually arrives within 2 to 4 working days for Mainland UK. DX will contact you before delivery to schedule a convenient delivery date. All bikes come fully built, checked, set up and with both wheels attached. Trek bikes can only be sent via our premium delivery service.
Check out our video for more information on how your bike is assembled and packaged.
Aftercare
Aftercare
At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.
Bicycle Safety
Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.
Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.
Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.
Follow road rules – Ride responsibly and remain aware of your surroundings.
Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)
Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.
Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.
Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.
Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine Maintenance (Every Few Weeks)
Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.
Brake Safety – Check brake pads and responsiveness before each ride.
Tyre Inspection – Look for punctures and ensure correct air pressure.
Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.
Frame Safety Check – Look for any signs of damage or cracks.
Pedals - Ensure pedals are still tight and correctly fitted.
Professional Check-Ups
Have your bike serviced at least once a year, or more frequently if you ride often.
Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)
Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.
Avoid Overcharging – Unplug the charger once fully charged to extend battery life.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine e-Bike Maintenance (Every Few Weeks)
Motor Inspection – Listen for unusual noises and ensure smooth operation.
Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.
Pedals - Ensure pedals are still tight and correctly fitted.
Seasonal e-Bike Maintenance
Check Electrical Components – Ensure wires and connections are clean and secure.
Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.
By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
