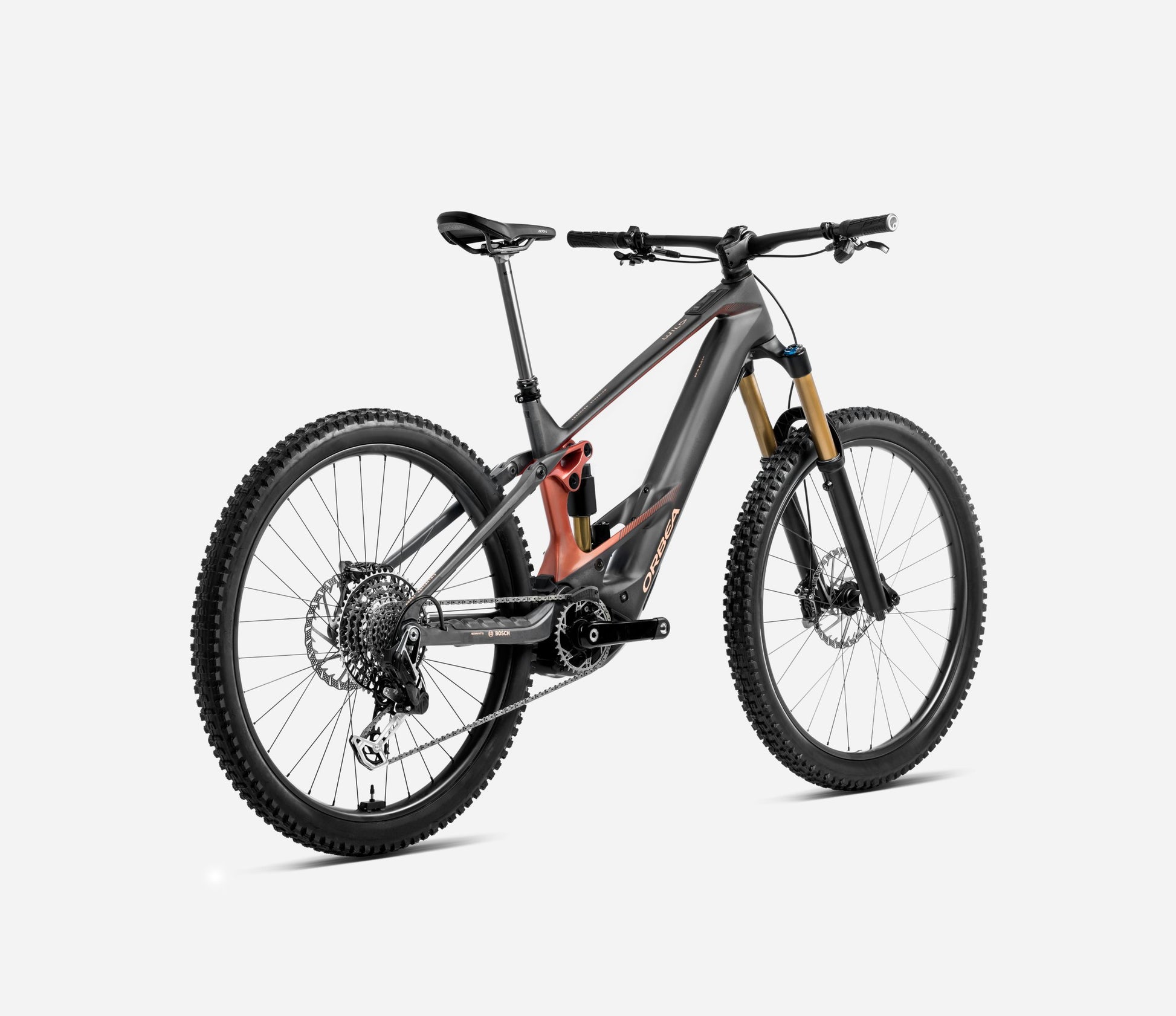

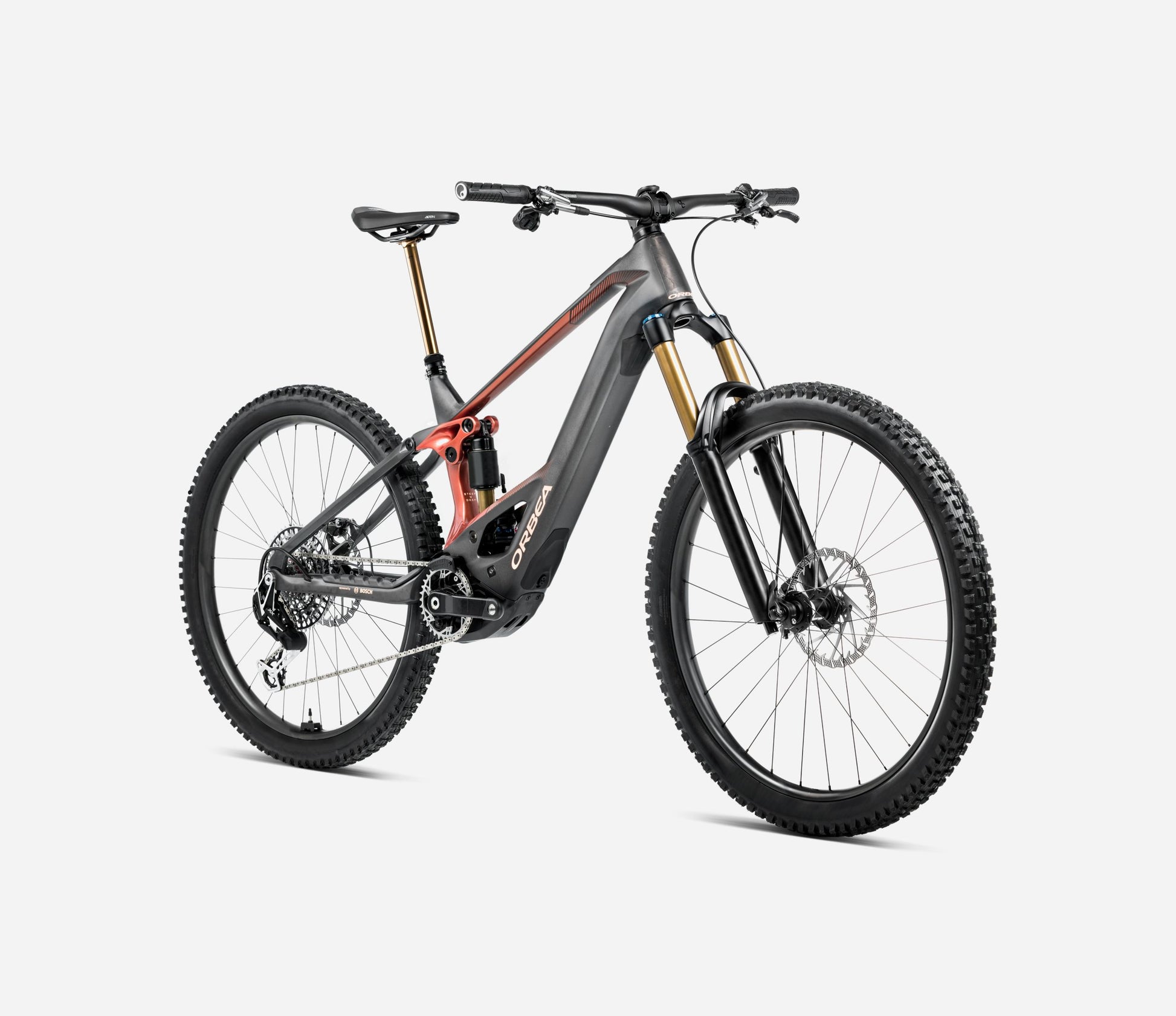

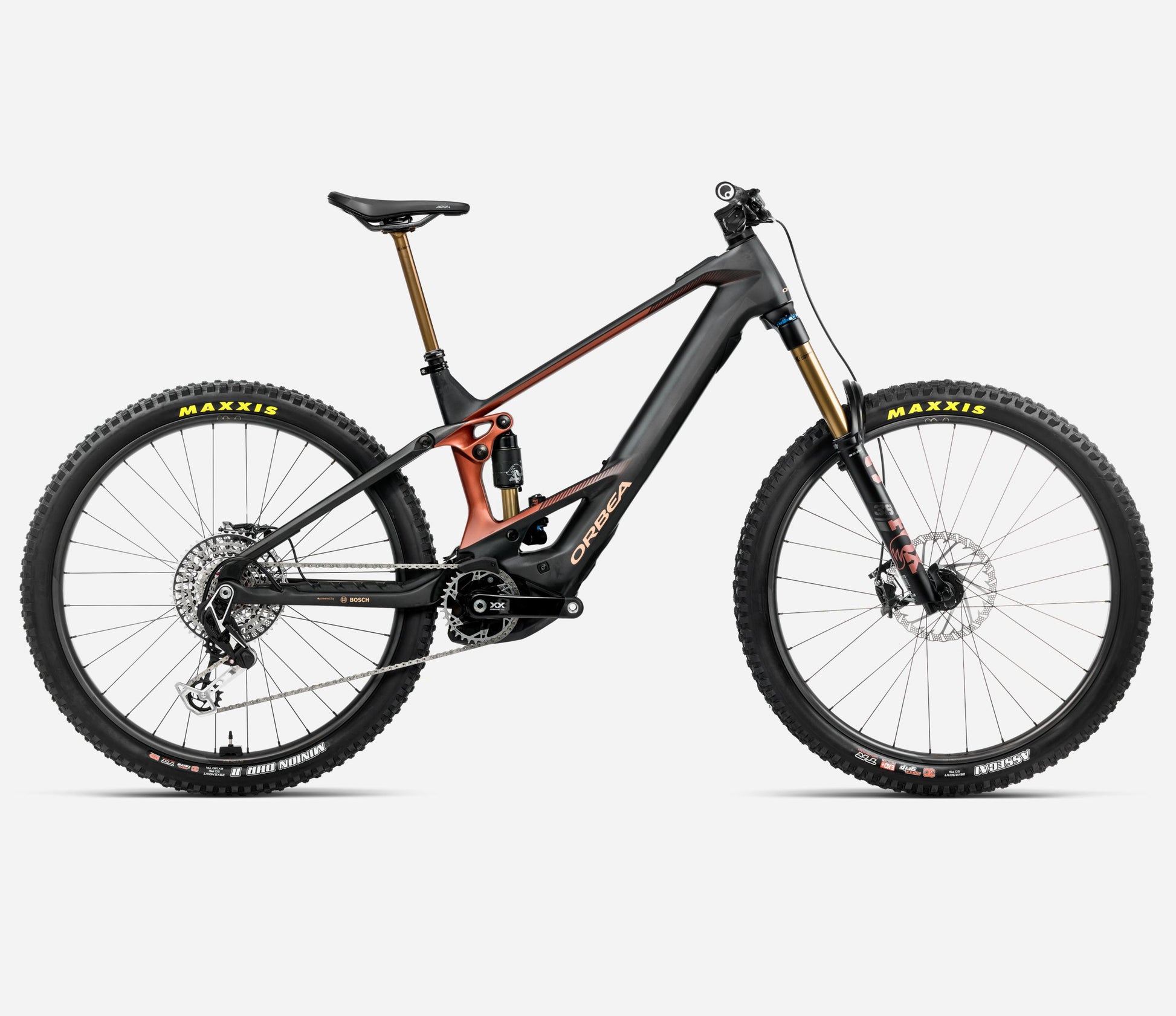

ORBEA WILD M-LTD FULL SUSPENSION eMTB BIKE 2025 DIAMOND CARBON VIEW (MATT) - MARS RED GLOSS
Product Details - Orbea Wild M-ltd Full Suspension Emtb Bike 2025 Diamond Carbon View (matt) - Mars Red Gloss
Product Details - Orbea Wild M-ltd Full Suspension Emtb Bike 2025 Diamond Carbon View (matt) - Mars Red Gloss
eBikes by their very nature can require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.
Your eBike will be delivered built, set up and updated in two boxes.
Minimum personal assembly is required.
The Yes Machine
Wild is a bike built without compromises. Lightweight and fully optimised, it leaves our factory ready for action with the latest Bosch motor and race-ready build kits. With 170mm of travel front and rear, and angles designed to go fast you know that no matter what the challenge, Wild is prepared to perform.
Welcome to a world beyond power. Wild offers the ultimate in eBike performance, developed in the toughest races.
Key Features
- 170mm of Gravity-Tuned Suspension: Wild offers 170mm of travel front and back, with custom-tuned Fox Float or Float X2 shocks and the 38 fork.
-
Mullet Ready: Whether you want maximum speed with 29" or to focus on fun with 27", Wild has you covered.
- Modular Battery System: Wild comes with 600Wh as standard. This lighter battery offers the ultimate in handling. For those looking for longer rides the 750Wh battery, and the 250Wh range extender are options (Contact sales@allterraincycles.co.uk to discuss).
- Bosch CX Performance Motor: Bosch's 85 Nm motor needs no introduction, with endless power and controlled responses. The updated motor gives more precise control, is quieter and lighter, and offers less pedal resistance.
- OMR Carbon: High Modulus, high strength fibres, and advanced carbon manufacturing techniques let us use less carbon while maintaining strength and rigidity.
- Fox 38 Fork: Full power eBikes need stiffer, more burly forks. Wild counts on the benchmark Fox 38.
Full Specification
- Frame: Orbea Wild OMR 2025, 29" wheels, Concentric Boost 12x148
- Fork: Fox 38 Float Factory 170 Grip X2 QR15x110 Kashima
- Shock: Fox Float X2 Factory Trunnion 2-Pos Adjust Kashima custom tune 205x65mm
- Motor: Bosch Performance Line CX BDU3840
-
Display: Bosch System Controller BRC3100
- Battery: Bosch Powertube 600Wh Horizontal BBP3860
- Remote: Bosch Mini Remote BRC3300
- Charger: Bosch Charger 4A (230V) BPC3400
- Brakes: Shimano XTR M9120Hydraulic Disc
- Rear derailleur: Sram XX Eagle AXS
- Crankset: Sram XX for Bosch
- Cassette: Sram XX-1297 Eagle 10-52t 12-Speed
- Chain: Sram XX Eagle 12-Speed
- Chainguide: e*thirteen Plus Bosch CX Gen4 CL 55 32-36t
- Shifter: Sram AXS Pod Ultimate
- Handlebar: OC Mountain Control MC10 Carbon, Rise 20, Width 800
- Stem: OC Mountain Control MC11 Alu SL, 0º
- Computer mount: OC Computer Mount CM-05, Garmin/Sigma
- Grips: Ergon GE10
- Seatpost: Fox Transfer Factory Kashima Dropper 31.6
- Pedals: N/A
- Saddle: Fizik Terra Aidon X1 145mm
- Wheels: Oquo Mountain Control MC32LTD POWER
- Tyres: Maxxis Minion 2.40" 120 TPI 3CT/DD/TR MaxxTerra
- Permitted total weight: 150 kg
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
How we Build & Pack Your Bike
How we Build & Pack Your Bike
Delivery
Delivery
We offer several delivery options:
Store Collection: Pick up your order at our Salts Mill store, located at BD17 7EH.
Standard Delivery We partner with APC Euro-Tran for deliveries. Once your bike is dispatched, it typically arrives within 1 to 3 working days for Mainland UK. All bikes are fully built, checked, set up and then packed back down into a standard size bike box. Please note that electric bikes will be shipped in two boxes due to weight and size restrictions. We recommend our premium delivery service for electric bikes.
Premium Delivery We partner with DX's two-person delivery team. After dispatch, your bike usually arrives within 2 to 4 working days for Mainland UK. DX will contact you before delivery to schedule a convenient delivery date. All bikes come fully built, checked, set up and with both wheels attached. Trek bikes can only be sent via our premium delivery service.
Check out our video for more information on how your bike is assembled and packaged.
Aftercare
Aftercare
At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.
Bicycle Safety
Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.
Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.
Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.
Follow road rules – Ride responsibly and remain aware of your surroundings.
Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)
Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.
Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.
Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.
Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine Maintenance (Every Few Weeks)
Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.
Brake Safety – Check brake pads and responsiveness before each ride.
Tyre Inspection – Look for punctures and ensure correct air pressure.
Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.
Frame Safety Check – Look for any signs of damage or cracks.
Pedals - Ensure pedals are still tight and correctly fitted.
Professional Check-Ups
Have your bike serviced at least once a year, or more frequently if you ride often.
Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)
Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.
Avoid Overcharging – Unplug the charger once fully charged to extend battery life.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine e-Bike Maintenance (Every Few Weeks)
Motor Inspection – Listen for unusual noises and ensure smooth operation.
Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.
Pedals - Ensure pedals are still tight and correctly fitted.
Seasonal e-Bike Maintenance
Check Electrical Components – Ensure wires and connections are clean and secure.
Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.
By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk
