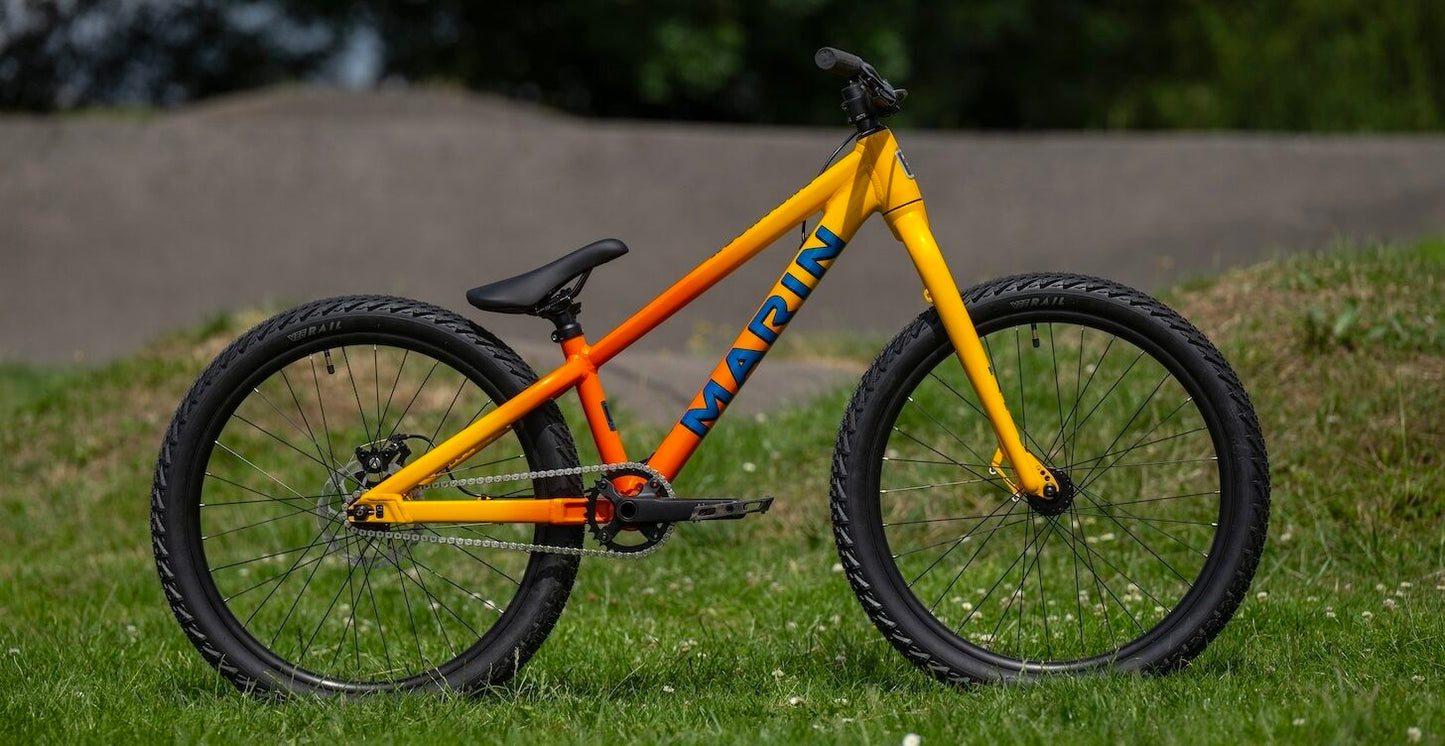

MARIN ALCATRAZ 24" DIRT JUMP HARDTAIL MTB BIKE 2025 YELLOW FADE

Skip to product information
1 of 7

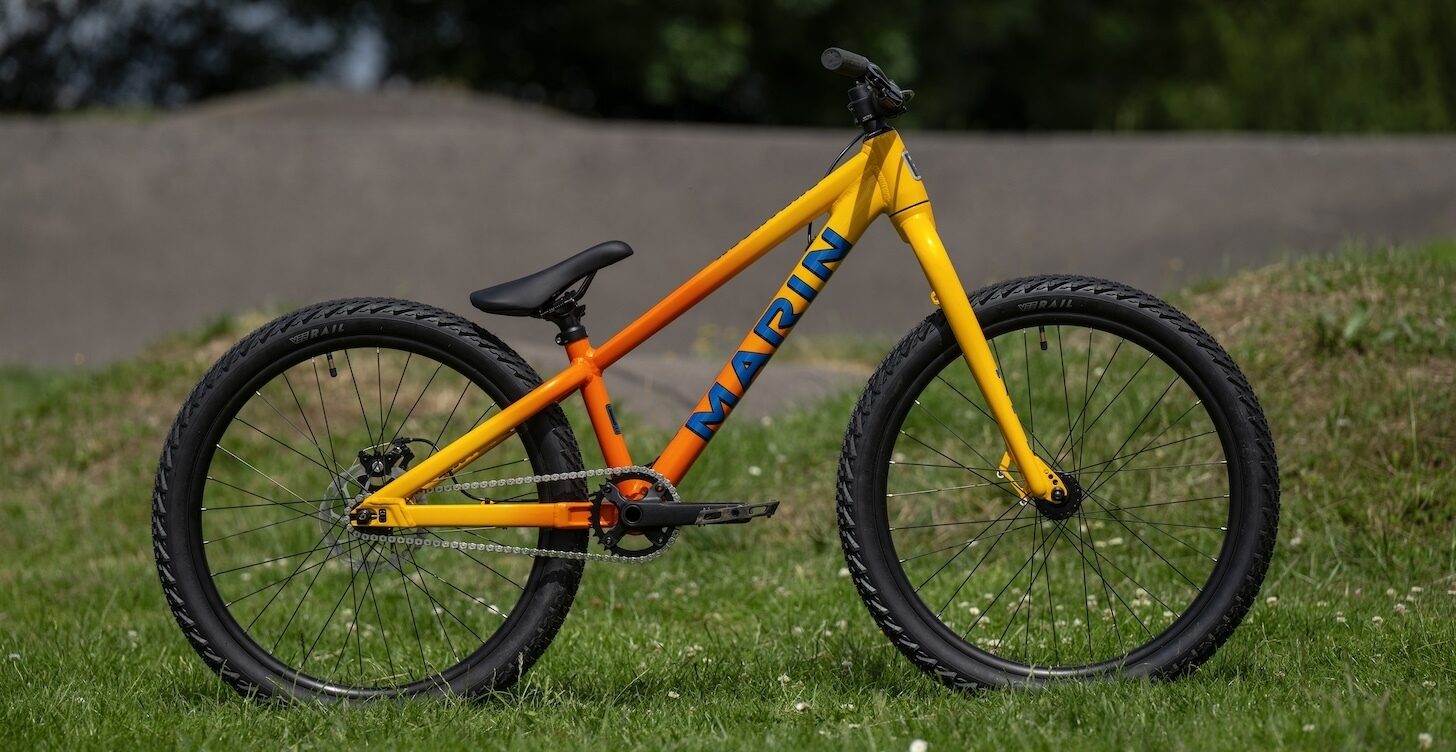

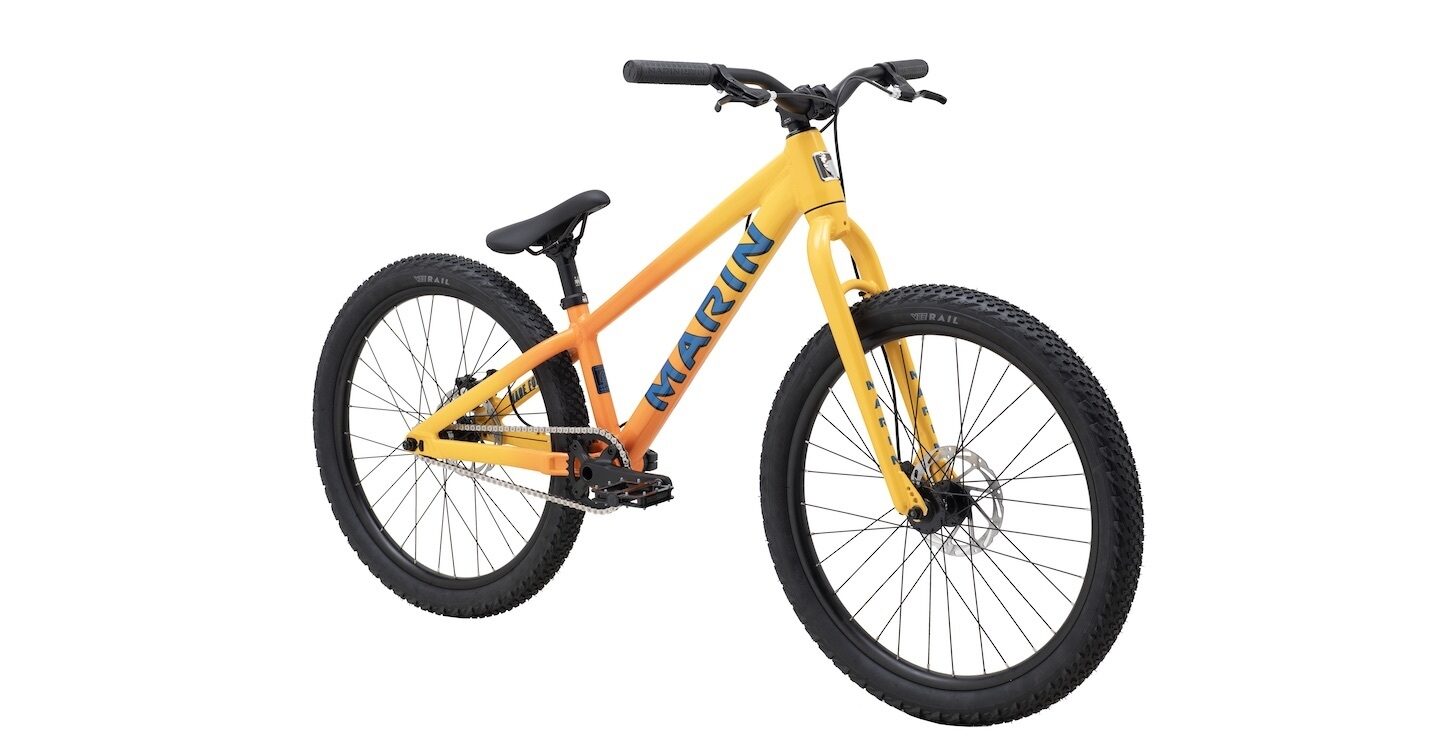

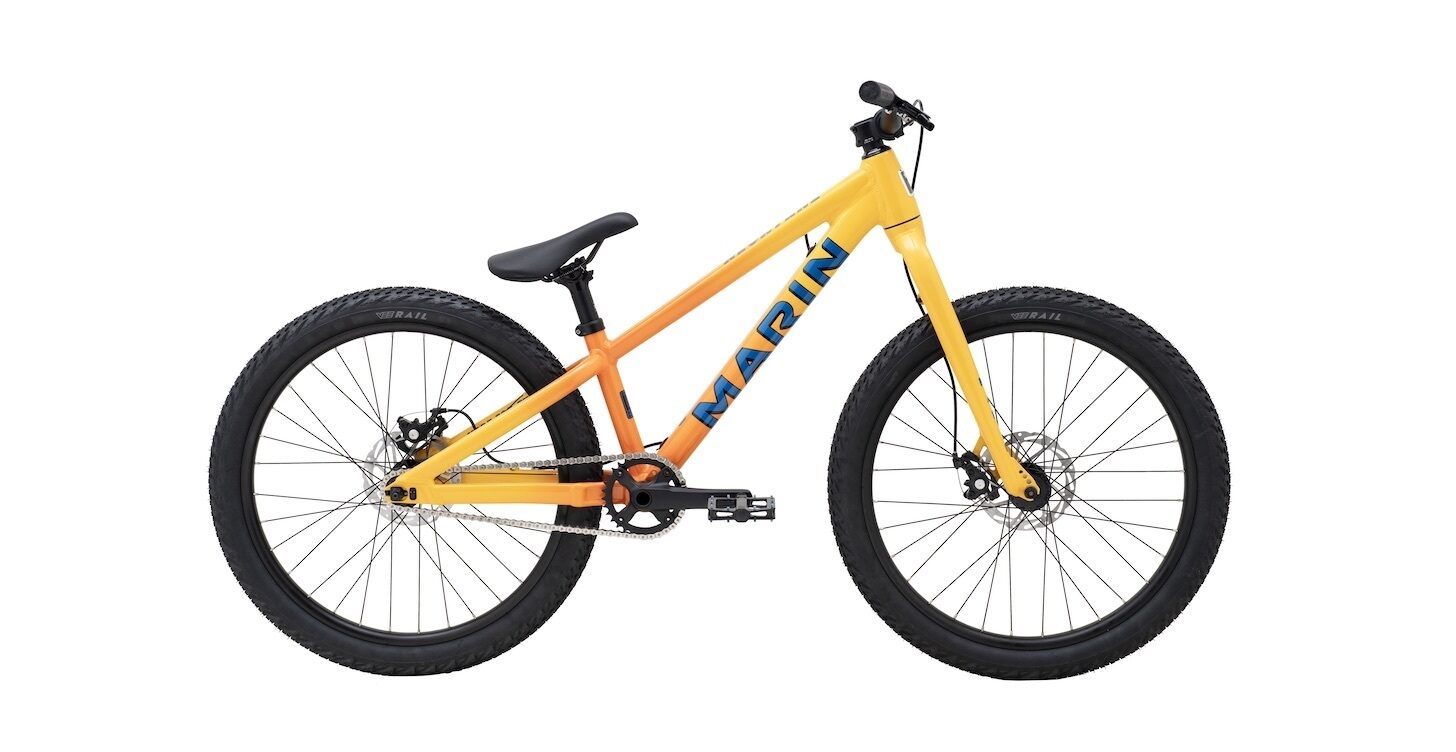

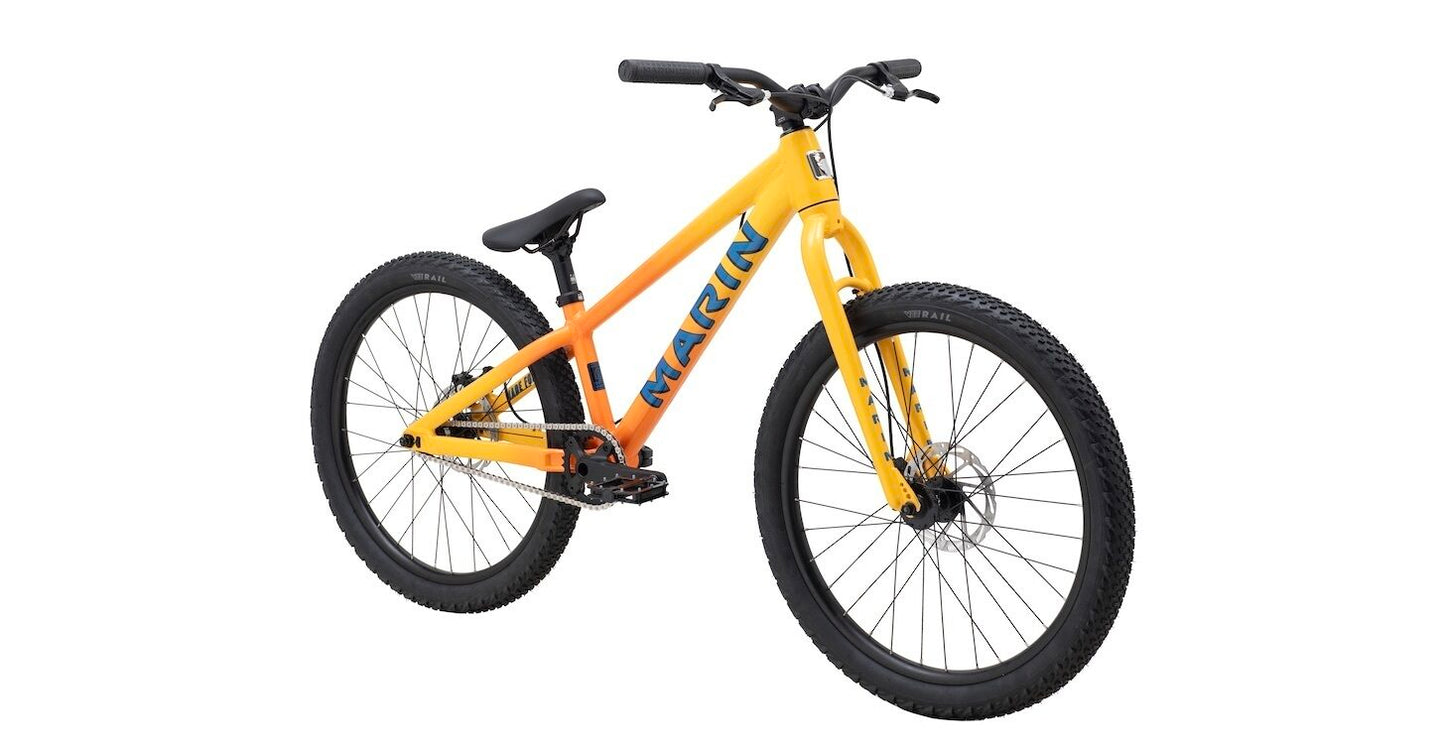

Product Details - Marin Alcatraz 24" Dirt Jump Hardtail Mtb Bike 2025 Yellow Fade

We've taken the Alcatraz 1 and scaled it down for smaller riders.

Built upon the same tubing as the larger models, it features a 360mm reach, 69° headtube angle, and 72° seattube angle, with 369mm chainstays. A suspension-corrected rigid CrMo fork is designed to handle rough-and-rowdy riding, and a simple and stout single-speed drivetrain and Tektro mechanical disc brakes ensure a fun and safe ride.

Key Features

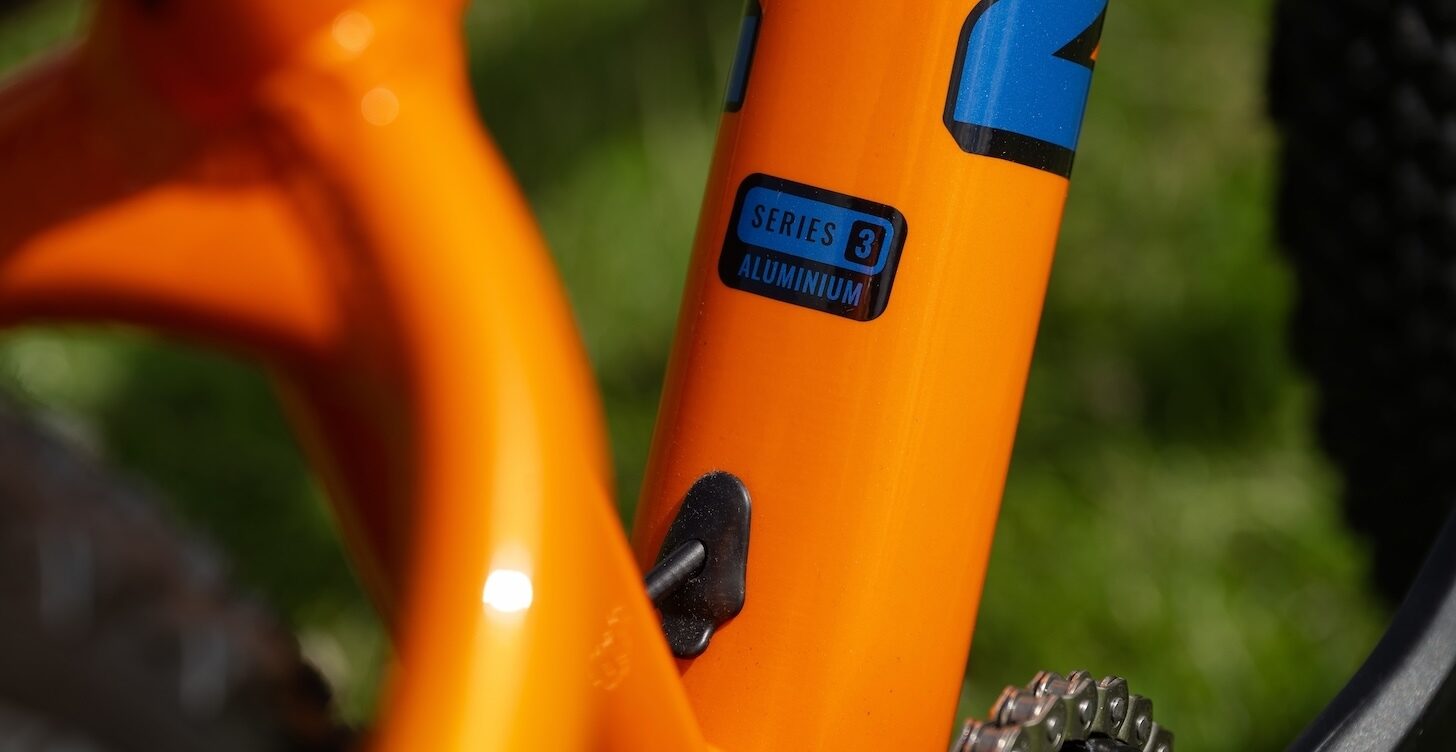

  • 6061 Series 3 Aluminium frame: With a burly double butted tubesets for the best ride quality and stiffness
  • Dirt Jump Specific Manutou: The Circus Expert, 26" has 100mm Travel, Coil Spring, Taper Steerer Tube, 20x110mm Thru Axle
  • 135x10mm horizontal dropouts: The standard in dirt jump technology for axle and dropout strength.

Full Specification

    • Frame: Series 3 6061 Aluminum, 26” Wheels, 135x10mm Horizontal Single Speed Dropouts, 73mm Threaded BB, ISCG 05 Tabs
    • Front Suspension: Marin Series 2 CroMo 24", Suspension Corrected, 100x9mm Dropouts
    • Shifters: N/A
    • Crankset: Marin Forged Alloy, Alloy 32T DM Chainring, 155mm Length
    • Cassette: 14T Single Speed Cog
    • Chain: KMC HL-1
    • Front Derailleur: N/A
    • Rear Derailleur: N/A
    • Bottom Bracket: External Sealed Cartridge Bearings
    • Pedals: Alloy Platform
    • Rims: Marin Custom Extrusion, 27mm Inner, Pinned Joint
    • Front Hub: Forged Alloy, Bolt On 3/8" Axle, 100mm Spacing
    • Rear Hub: Forged Alloy, 135x10mm, Bolt-On, Quad Sealed Bearings, Disc, 32H
    • Tyres: Vee Tire, Rail 24x2.25”, LSG Compound, Wire Bead
    • Brakes: Tektro HDM275 Hydraulic Disc, 160mm Rotor
    • Handlebar Grips: Marin MTN, Closed End
    • Handlebar: Marin Riser, 6061 Double Butted Aluminium, 31.8mm at centre bulge, 38mm Rise, 700mm Width, 4º Up, 9º Back
    • Headset: FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
    • Stem: Marin 3D Forged Alloy, 31.8mm clamp, 35mm extension
    • Saddle: Marin DJ Saddle
    • Seatpost: Marin Alloy, 30.9mm
    • Accessories: Marin Chain Tension Device
    • Weight: N/A

    Size Guide for Marin Alcatraz

    Size Rider height range
    XS 24" >5'1"
    S 5'1" - 5'9"
    L 5'6" - 6'3"

    We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

    Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

    How we Build & Pack Your Bike

    Aftercare

    At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.

    Bicycle Safety

    Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.

    Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.

    Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.

    Follow road rules – Ride responsibly and remain aware of your surroundings.

    Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)

    Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.

    Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.

    Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.

    Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.

    Pedals - Ensure pedals are still tight and correctly fitted.

    Routine Maintenance (Every Few Weeks)

    Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.

    Brake Safety – Check brake pads and responsiveness before each ride.

    Tyre Inspection – Look for punctures and ensure correct air pressure.

    Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.

    Frame Safety Check – Look for any signs of damage or cracks.

    Pedals - Ensure pedals are still tight and correctly fitted.

    Professional Check-Ups

    Have your bike serviced at least once a year, or more frequently if you ride often.

    Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)

    Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.

    Avoid Overcharging – Unplug the charger once fully charged to extend battery life.

    Pedals - Ensure pedals are still tight and correctly fitted.

    Routine e-Bike Maintenance (Every Few Weeks)

    Motor Inspection – Listen for unusual noises and ensure smooth operation.

    Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.

    Pedals - Ensure pedals are still tight and correctly fitted.

    Seasonal e-Bike Maintenance

    Check Electrical Components – Ensure wires and connections are clean and secure.

    Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.

    By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!

    Read our full advice

    If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk
