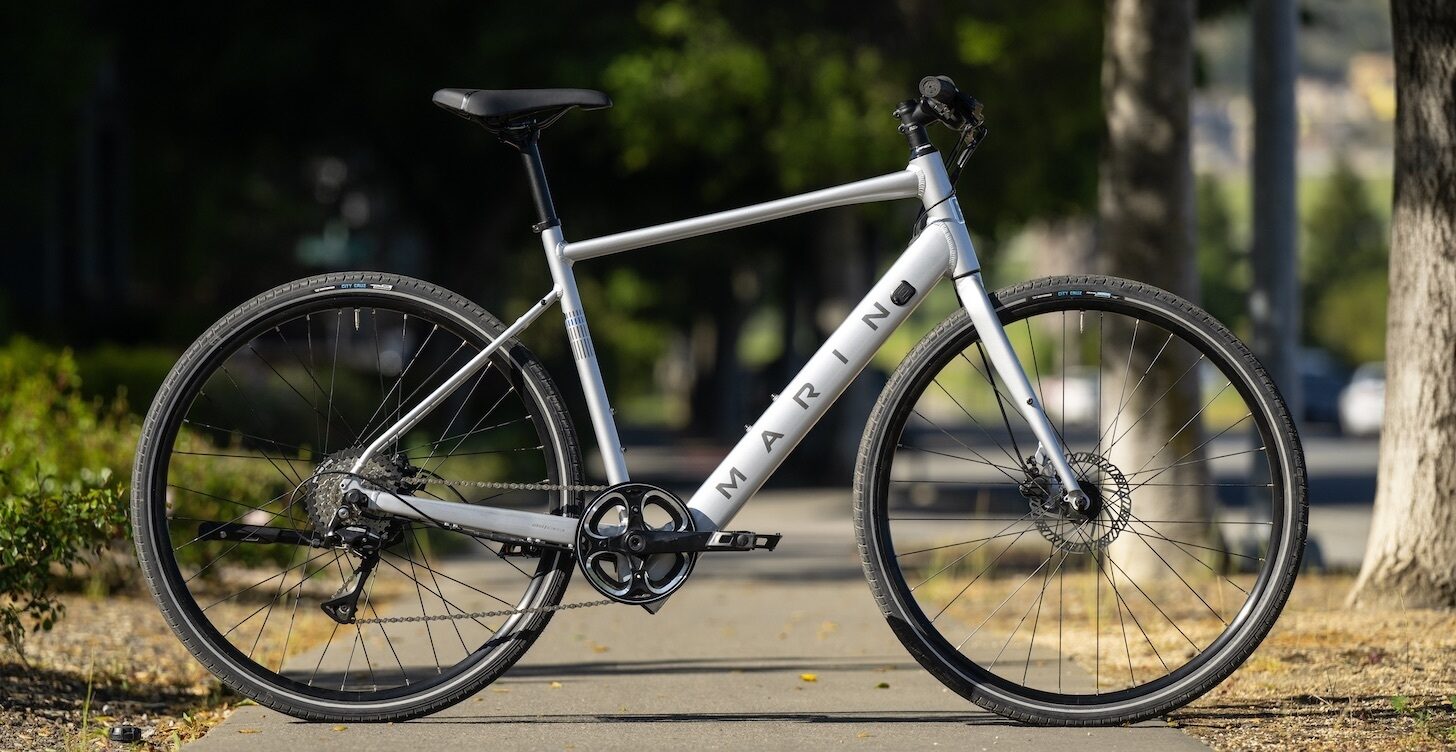

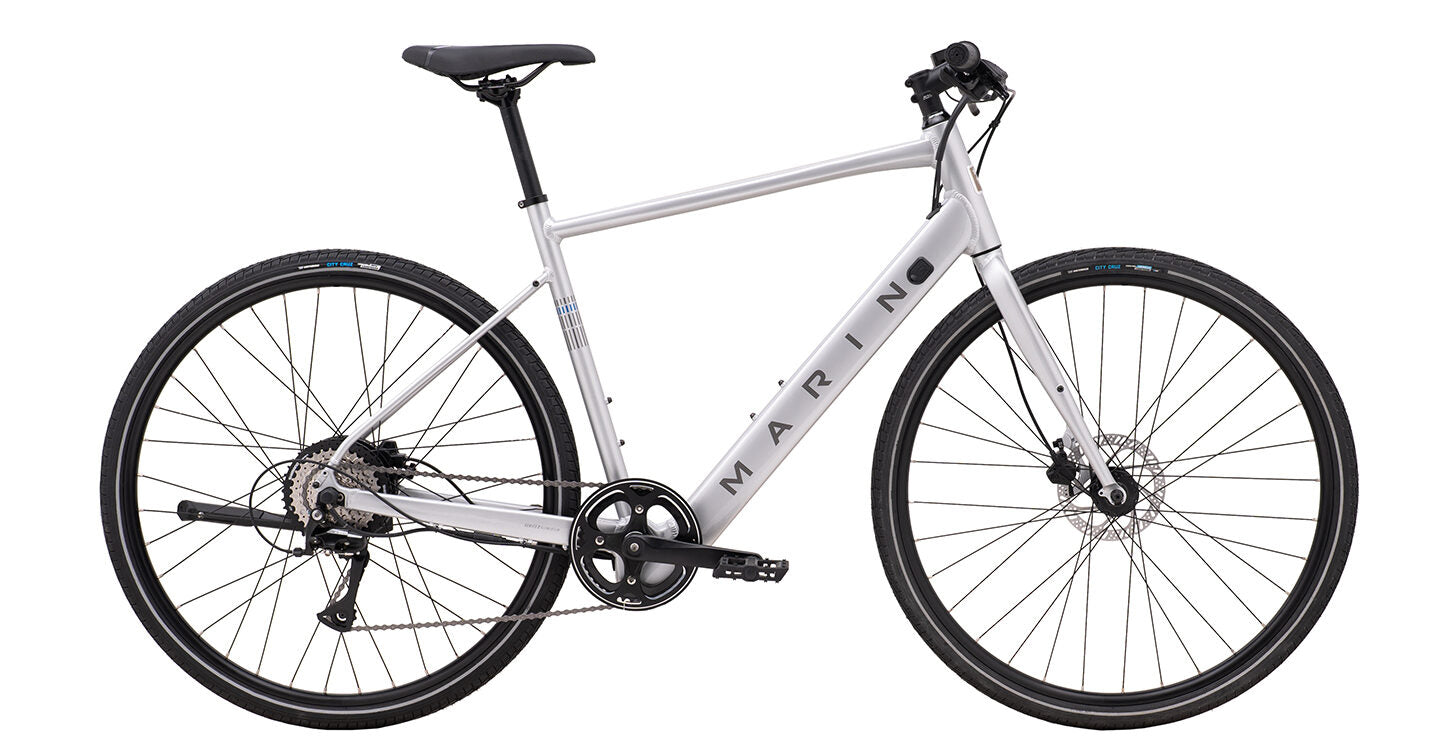

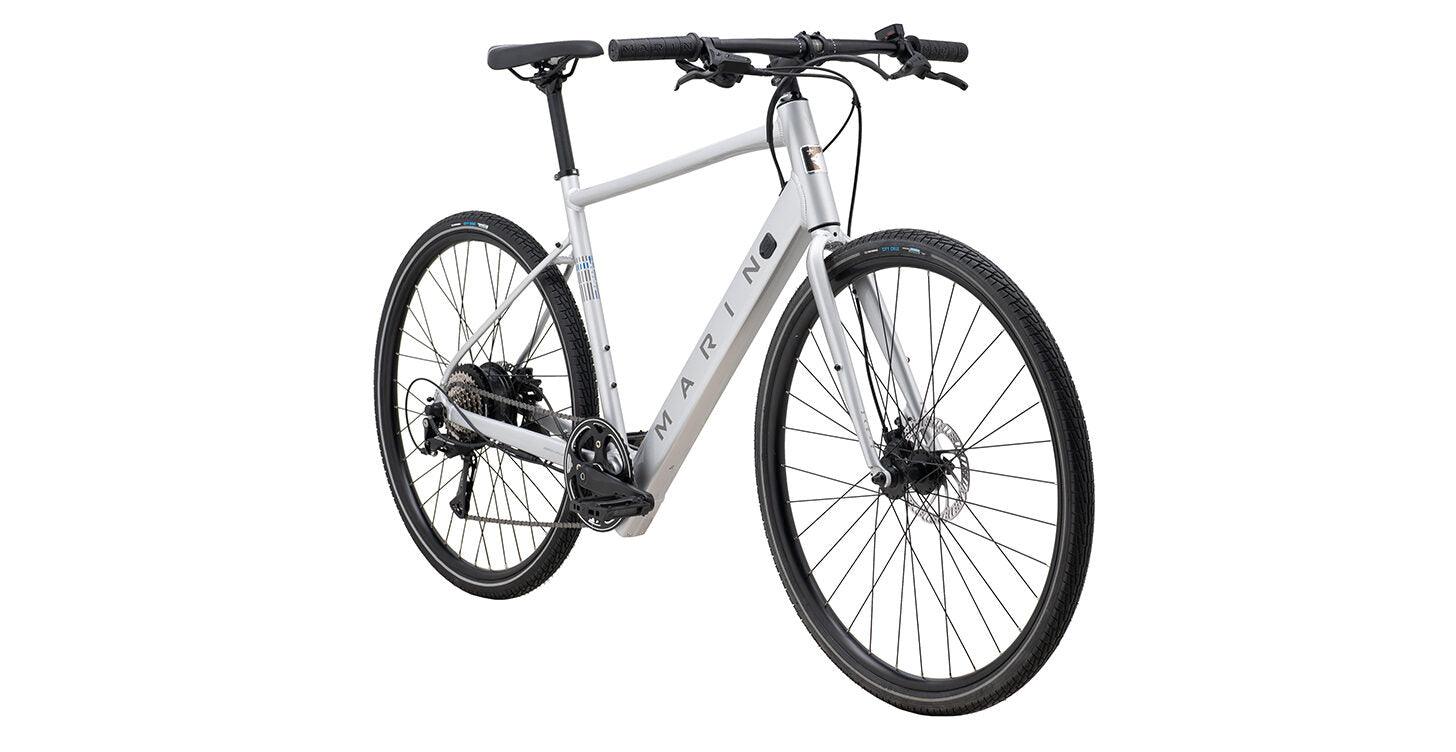

MARIN FAIRFAX E ELECTRIC HYBRID BIKE 2025 GLOSS SILVER
Product Details - Marin Fairfax E Electric Hybrid Bike 2025 Gloss Silver
Product Details - Marin Fairfax E Electric Hybrid Bike 2025 Gloss Silver
eBikes by their very nature can require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.
Your eBike will be delivered built, set up and updated in two boxes.
Minimum personal assembly is required.
Urban Electric
Zippy and affordable
Marin's critically acclaimed and best-selling Fairfax has gone electric. The all-new Fairfax E brings the power to scoot you along with 40Nm of torque from the rear hub, quietly and seamlessly adding a boost to your pedaling. The 340Wh battery is cleanly integrated into the Series 2 aluminium frame's downtube, while a Shimano 8-speed Altus drivetrain provides plenty of gearing range. Finally, hydraulic disc brakes from Tektro allow for controlled and comfortable stopping power in all conditions.
The Fairfax E is equally at home whizzing to work as it is along the cycle path. Road, dirt, whatever. It’s all good.
Key Features

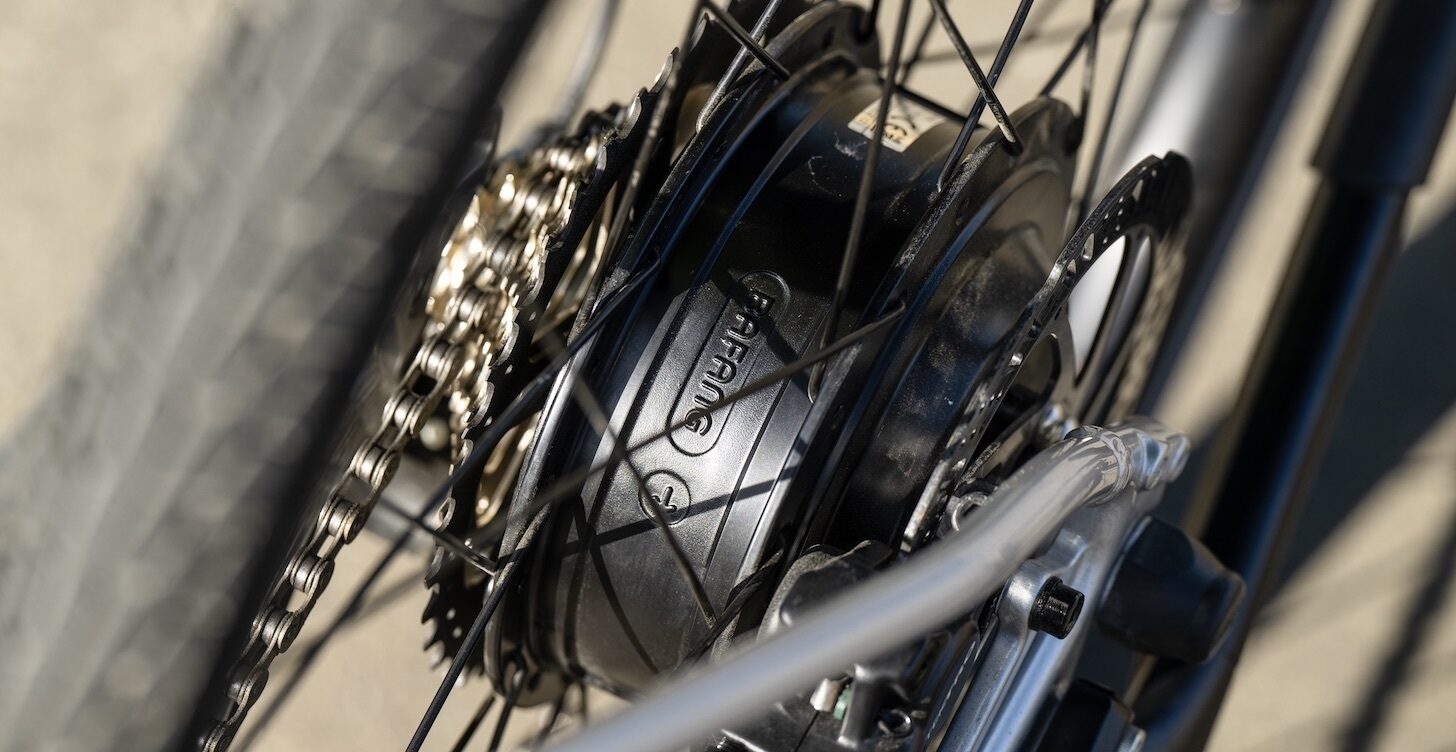

- Bafang Hub Motor: Provides 40Nm of torque in a compact and tidy package. Five levels of assist, accessed via a handlebar-mounted controller, means that riders can quickly dial in the level of assistance that best meets their needs and riding style.
-
Shimano Drivetrain: Shimano's stalwart Altus 8-speed drivetrain smoothly and reliably glides between the gearing., as well as mount a variety of commute accessories directly to the
frame. -

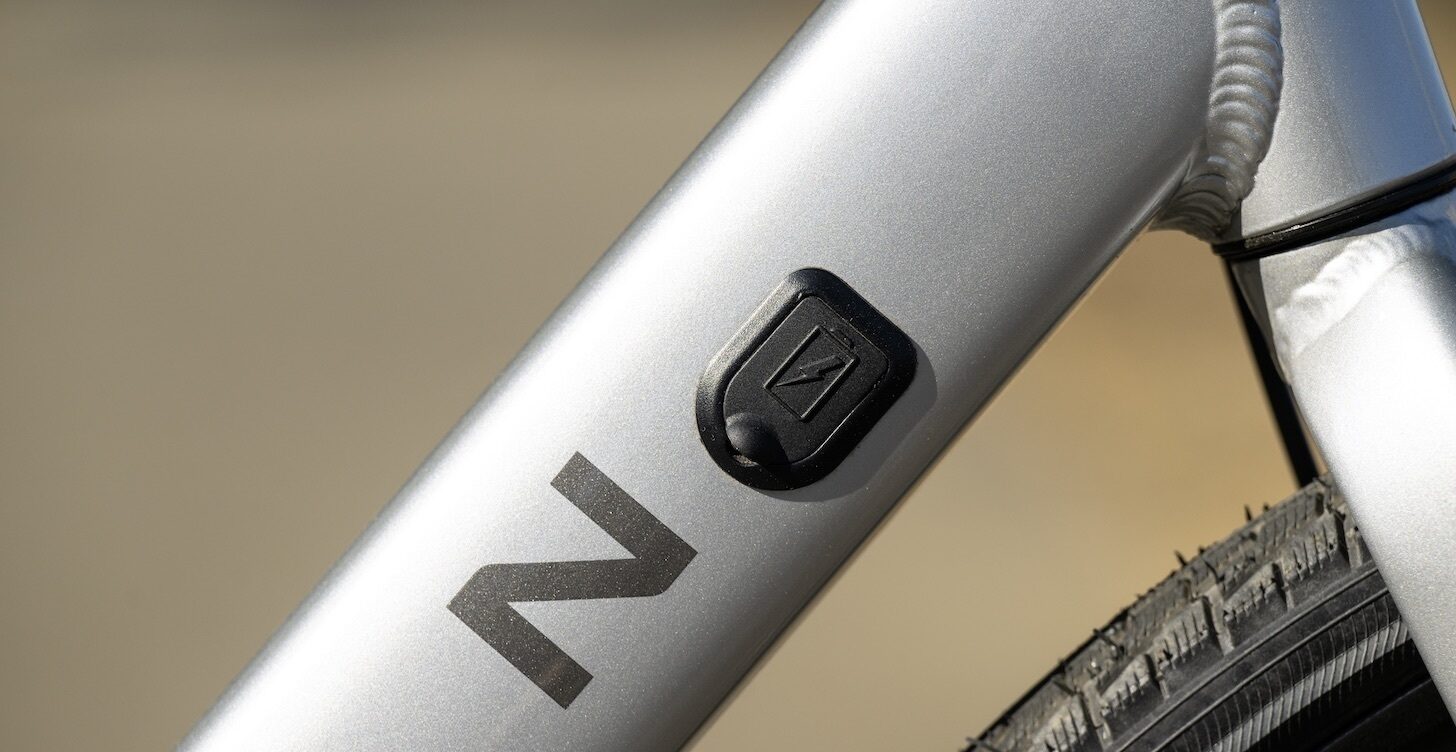

Internal Battery: The 340Wh in-tube battery is neatly integrated into the Fairfax E's downtube, protected and giving the bike a sleeker look. The charging port is easily accessible, under a weather-resistant cover.
Full Specification
- Frame: Series 2 Fitness, E-Bike Specific, 6061 Aluminium, 700c Wheels, Disc Specific, Fitness Geometry, Kickstand Mount, Fender and Rack Mounts
- Fork: 6061 Aluminium, Straight-Blade, Disc Mount, Fender and Rack Eyelets
- Motor: Rear Hub Bafang 250 Watt Hub Motor, 36H, 25km/h
- Battery: Bafang 340Wh, 36V, In-tube

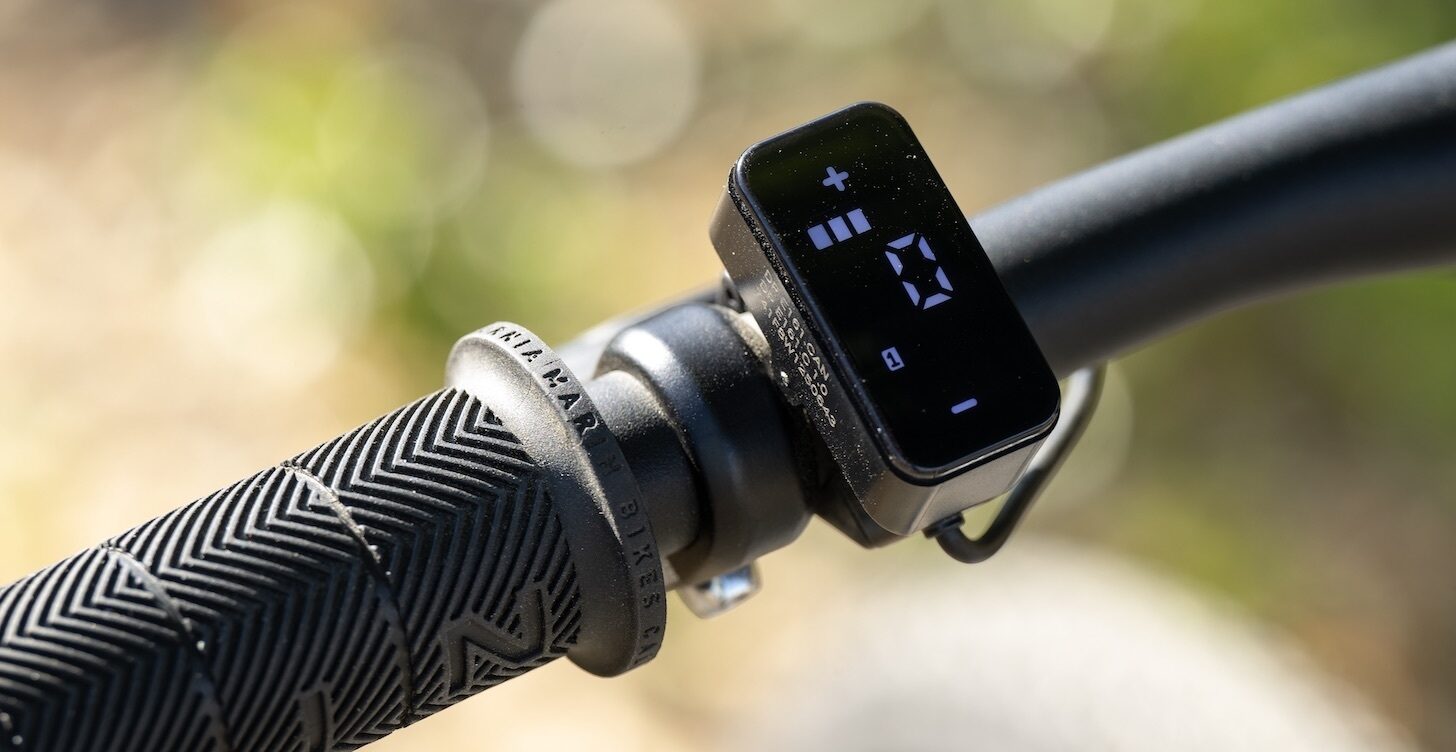

- Controller: Bafang Handlebar Mount LED Switch & Display
- Shifters: Shimano Altus 8-Speed RapidFire
- Crankset: Alloy Crank, Steel 42T Chainring, Ring Guard
- Cassette: Shimano HG-400, 8-Speed, 11-40T
- Chain: KMC X8
- Front Derailleur: N/A
- Rear Derailleur: Shimano Acera, 8-Speed, Wide Range
- Bottom Bracket: N/A
- Pedals: Marin Oso OEM Nylon Platform
- Rims: Marin Aluminium Double Wall, Disc Specific
- Front Hub: Forged Aluminium Alloy, 32H
- Rear Hub: Bafang 250 Watt Hub Motor, 36H, 25km/h
- Tyres: Vee Tire, City Cruz, 700Cx40mm, Puncture Protection, Reflective Sidewall, Wire Bead

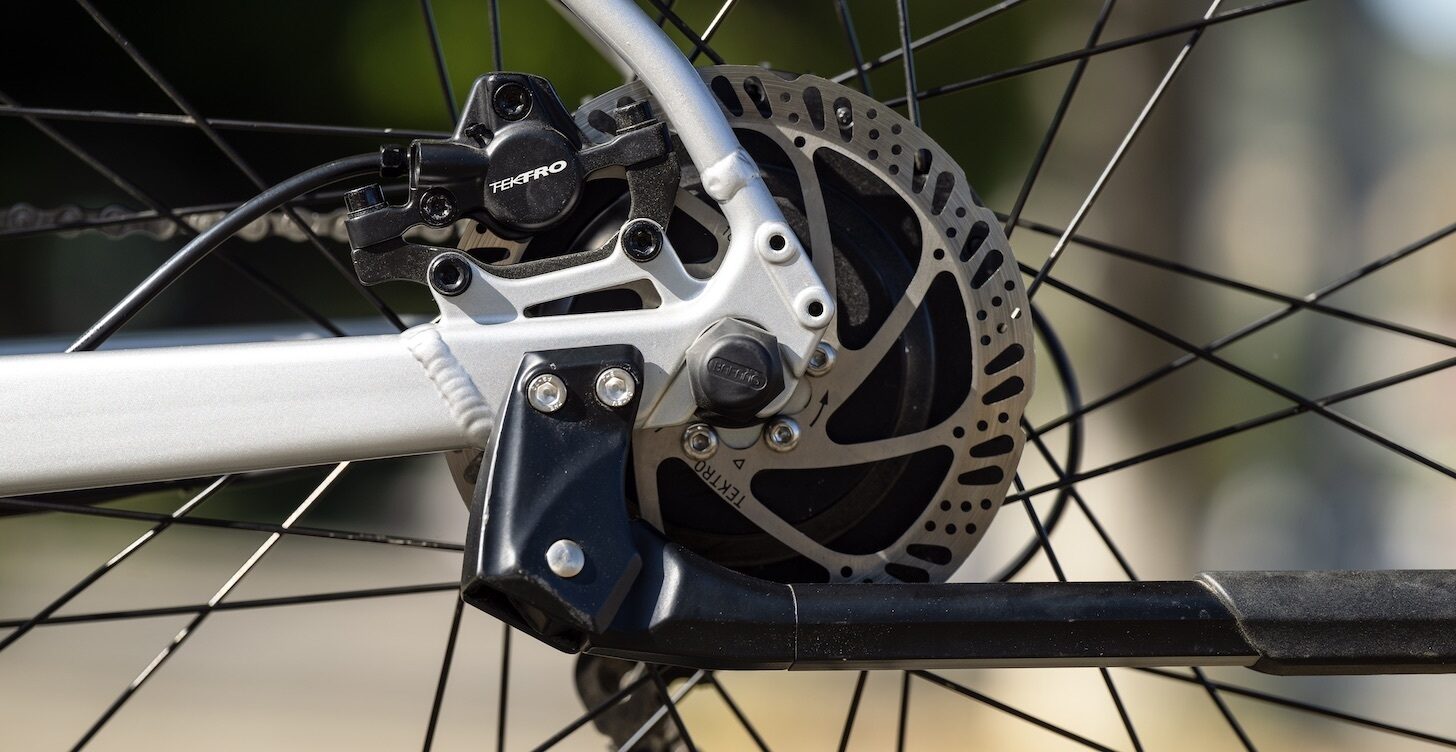

- Brakes: Tektro HDM-275 Hydraulic Disc, 160mm Rotor
- Handlebars: Marin Alloy Flat
- Handlebar Grips: Marin County
- Headset: FSA, Orbit CE No.8B
- Stem: Marin Alloy
- Saddle: Marin Fitness
- Seatpost: Marin Alloy, 27.7mm
- Accessories: Rear Mount Alloy Kickstand
- Range, Charging Time: 19-62 Miles/25-100km (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 6 Hours
-
Weight: N/A
Size Guide for Marin Fairfax E
| Frame Size | Rider Height (') |
| S | 5’1″ – 5’5″ |
| M (27.5/29) | 5’5″ – 5’9” |
| L | 5'9" – 6'1" |
| XL | 6'1" – 6'5" |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
How we Build & Pack Your Bike
How we Build & Pack Your Bike
Aftercare
Aftercare
At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.
Bicycle Safety
Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.
Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.
Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.
Follow road rules – Ride responsibly and remain aware of your surroundings.
Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)
Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.
Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.
Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.
Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine Maintenance (Every Few Weeks)
Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.
Brake Safety – Check brake pads and responsiveness before each ride.
Tyre Inspection – Look for punctures and ensure correct air pressure.
Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.
Frame Safety Check – Look for any signs of damage or cracks.
Pedals - Ensure pedals are still tight and correctly fitted.
Professional Check-Ups
Have your bike serviced at least once a year, or more frequently if you ride often.
Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)
Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.
Avoid Overcharging – Unplug the charger once fully charged to extend battery life.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine e-Bike Maintenance (Every Few Weeks)
Motor Inspection – Listen for unusual noises and ensure smooth operation.
Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.
Pedals - Ensure pedals are still tight and correctly fitted.
Seasonal e-Bike Maintenance
Check Electrical Components – Ensure wires and connections are clean and secure.
Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.
By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk
