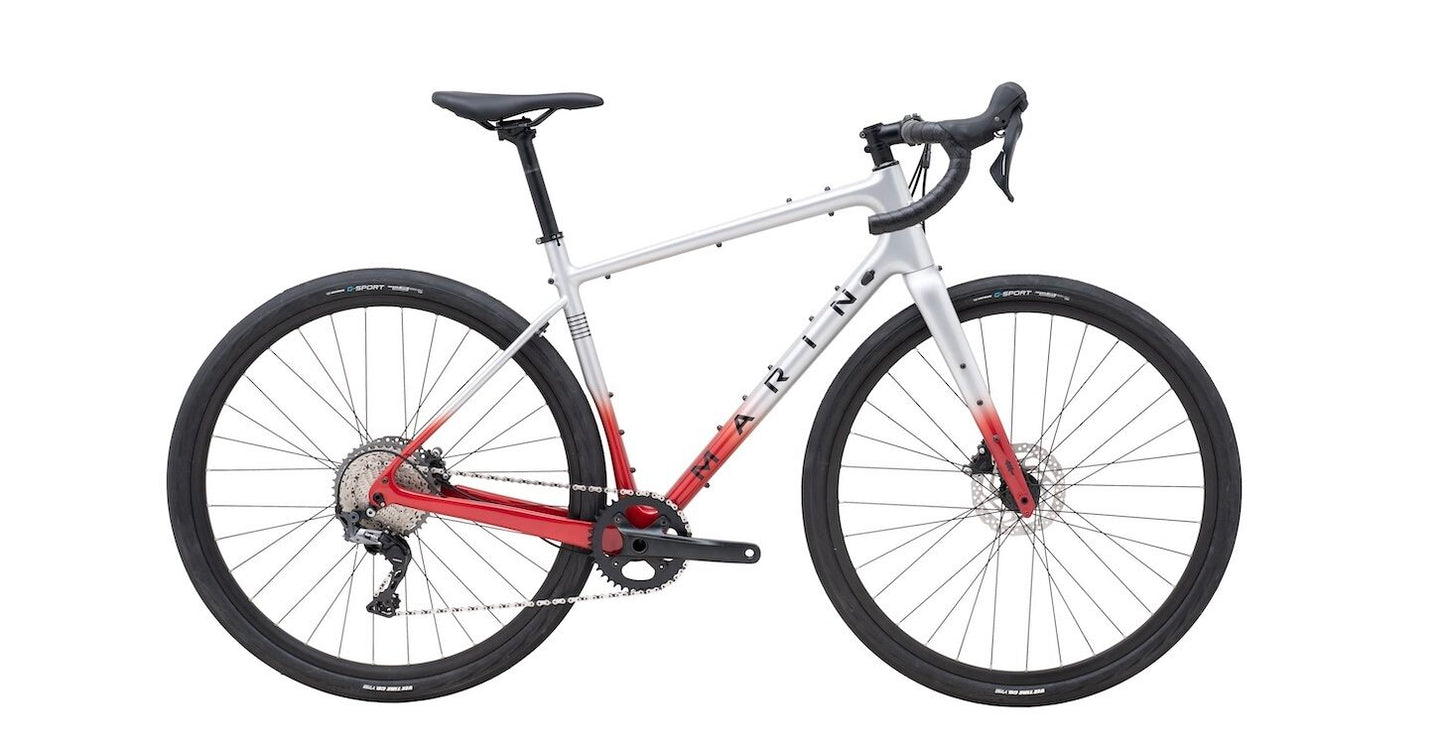

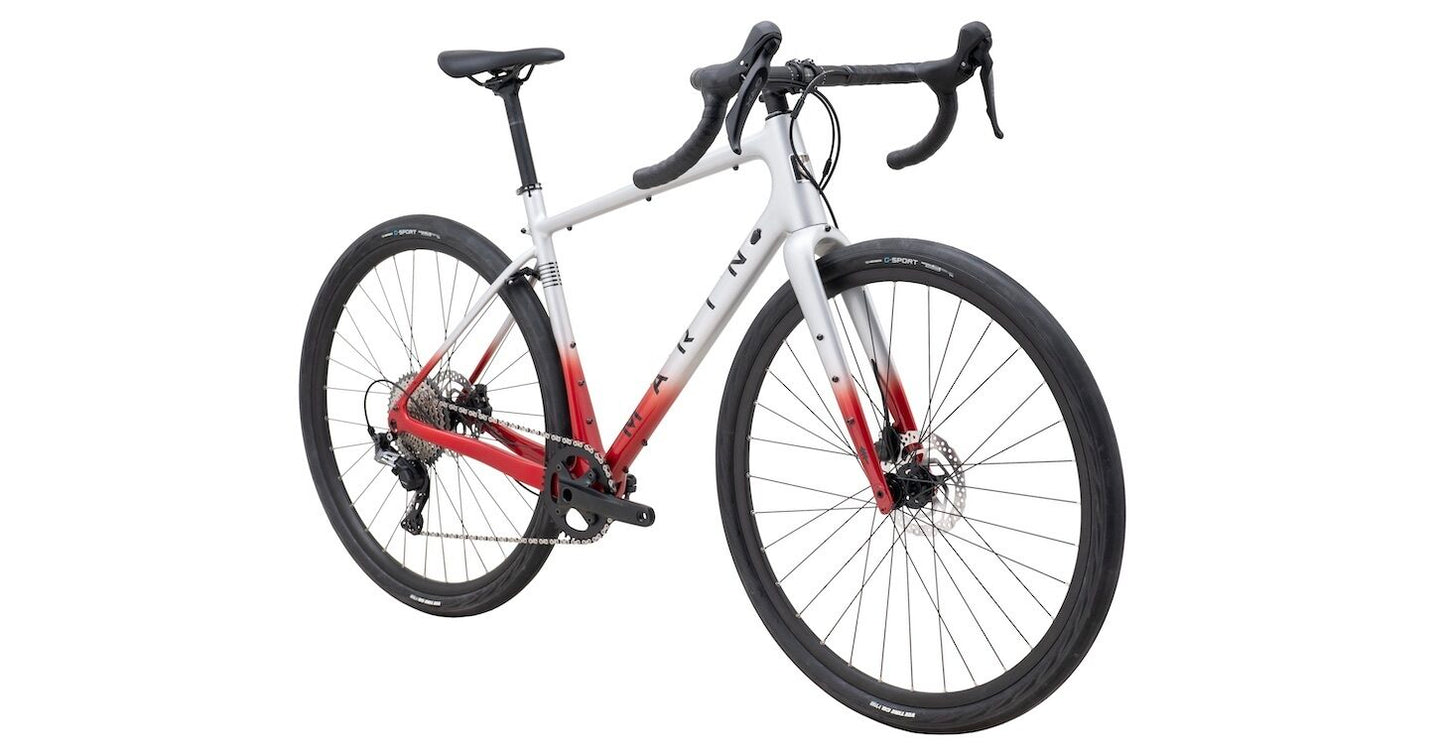

MARIN HEADLANDS 1 GRAVEL BIKE 2025 SILVER/RED
Product Details - Marin Headlands 1 Gravel Bike 2025 Silver/red
Product Details - Marin Headlands 1 Gravel Bike 2025 Silver/red
ADVENTURE ON AND OFF-ROAD RIDING
LONG DISTANCE COMMUTING
GRAVEL RIDING
Fully loaded bikepacking, fast and light off-road adventures, gravel and CX racing… or simply exploring your favourite tracks and trails. The Marin Headlands is a high tech, high-spec carbon fibber gravel and adventure bike that’s made to be lightning-fast, confidence-inspiring and super comfortable on all surfaces.
We’ve taken our own unidirectional carbon fibre frame, added mountain bike-inspired geometry, loads of tire clearance and a whole heap of mounting points for gear and fenders to create a super versatile, super capable all-terrain dart of a bike. Go 700c with room for up to 45mm tires or 650b up to 47mm.
The Marin Headlands 1 offers bags of fun, adventure and performance without the loftier price point of the mighty Headlands 2. Gravel-specific Shimano GRX groupset, GRX hydraulic brakes, Vee Tire Co tires and Marin wheels and finishing kit all add up to a whole mountain of fun and adventure.
Key Features
- Unidirectional carbon fibre frame: With a 42x12mm thru-axle, and multiple frame eyelets for customized hydration and frame bag needs.
- Powerful Disc brakes: For minimal maintenance and all-conditions stopping power.
-
Adventure ready tyre clearance: The Headlands was designed with clearance for up to 700Cx45 or 650Bx50 tires to handle even the roughest “roads.”
Full Specification
- Frame: Unidirectional Carbon Beyond Road Platform, 1x Drivetrain Specific, 700c x 45mm/650B x 50mm Compatible, Flat Mount Disc, 142x12mm Thru-Axle, Internal Dropper Post Routing, Internal Housing Routing, Mudguard and Rear Carrier Mounting, Plentiful Gear Mounts
- Fork: Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
- Shifters: Shimano GRX RX600
- Crankset: Forged Alloy 1x11, Hollow CrMo Spindle, Narrow Wide 40T
- Cassette: Shimano CS-M700 11-Speed, 11-42T
- Chain: KMC X11
- Front Derailleur: N/A
- Rear Derailleur: Shimano GRX RDX812 Shadow Plus w/ Clutch
- Bottom Bracket: External Sealed Cartridge Bearings
- Pedals: Not supplied
- Rims: Marin Aluminium Double Wall, 21mm Inner, 21mm Tall, Disc Specific, Tubeless Compatible
- Front Hub: Forged Aluminium Alloy, 32H
- Rear Hub: Forged Aluminium Alloy, 32H
- Tyres: Vee Tire Co., G-Sport, 700Cx44, Tubeless Compatible
- Brakes: Shimano GRX Hydraulic Disc, 160mm Rotors
- Handlebar Tape: Marin Shock Absorbing Tape
- Handlebar: Marin Butted Alloy, Compact 16º Flared Drop
- Headset: FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
- Stem: Marin 3D Forged Alloy
- Saddle: Marin Beyond Road Concept Elite
- Seatpost: Marin Alloy, 27.2mm
-
Extras: Bolt-On Thru-Axles F and R
- Weight: N/a
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
How we Build & Pack Your Bike
How we Build & Pack Your Bike
Delivery
Delivery
We offer several delivery options:
Store Collection: Pick up your order at our Salts Mill store, located at BD17 7EH.
Standard Delivery We partner with APC Euro-Tran for deliveries. Once your bike is dispatched, it typically arrives within 1 to 3 working days for Mainland UK. All bikes are fully built, checked, set up and then packed back down into a standard size bike box. Please note that electric bikes will be shipped in two boxes due to weight and size restrictions. We recommend our premium delivery service for electric bikes.
Premium Delivery We partner with DX's two-person delivery team. After dispatch, your bike usually arrives within 2 to 4 working days for Mainland UK. DX will contact you before delivery to schedule a convenient delivery date. All bikes come fully built, checked, set up and with both wheels attached. Trek bikes can only be sent via our premium delivery service.
Check out our video for more information on how your bike is assembled and packaged.
Aftercare
Aftercare
At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.
Bicycle Safety
Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.
Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.
Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.
Follow road rules – Ride responsibly and remain aware of your surroundings.
Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)
Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.
Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.
Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.
Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine Maintenance (Every Few Weeks)
Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.
Brake Safety – Check brake pads and responsiveness before each ride.
Tyre Inspection – Look for punctures and ensure correct air pressure.
Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.
Frame Safety Check – Look for any signs of damage or cracks.
Pedals - Ensure pedals are still tight and correctly fitted.
Professional Check-Ups
Have your bike serviced at least once a year, or more frequently if you ride often.
Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)
Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.
Avoid Overcharging – Unplug the charger once fully charged to extend battery life.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine e-Bike Maintenance (Every Few Weeks)
Motor Inspection – Listen for unusual noises and ensure smooth operation.
Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.
Pedals - Ensure pedals are still tight and correctly fitted.
Seasonal e-Bike Maintenance
Check Electrical Components – Ensure wires and connections are clean and secure.
Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.
By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk
