Product Details - Marin Pine Mountain 1 Hardtail Mtb Bike 2025 Grey

The Marin Pine Mountain 1 is our budget-friendly steel bikepacking mountain bike hardtail.

 It features fully updated geometry, a series 2 double-butted CrMo frame and all the bikepacking mounts you’ll ever need.

All that, combined with a 120mm RockShox Recon RL fork, grippy and dependable Vee Tire co. Flow Snap 2.6” tire, Shimano shifting and our much-loved Marin Bedroll handlebar.

Key Features

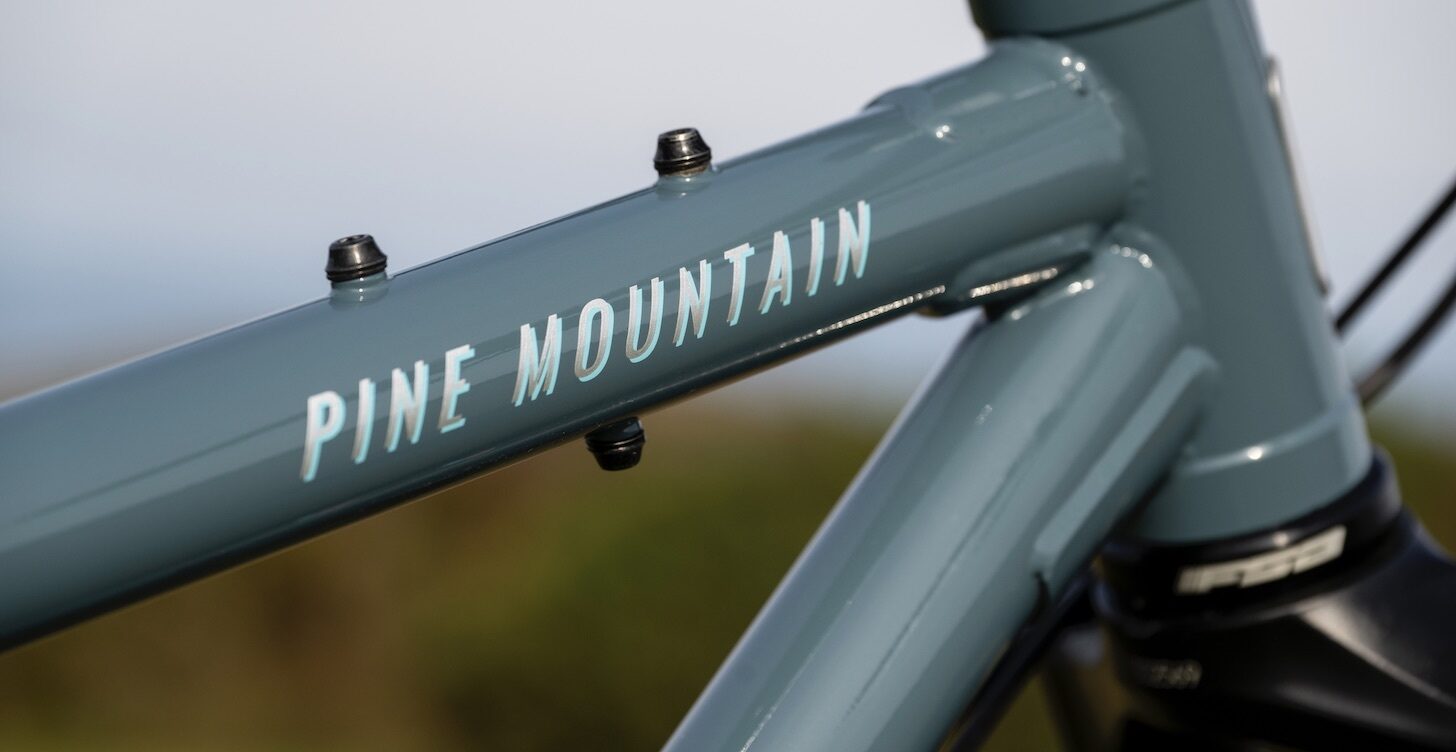

  • Series 2 4130 CrMo Steel frame: Optimised for 29" wheels, with plentiful gear mounts.
  • Powerful Disc brakes: For minimal maintenance and all-conditions stopping power.
  • Shimano Gears: Deore 11 Speed for excellent shifting and easy maintenance.

Full Specification

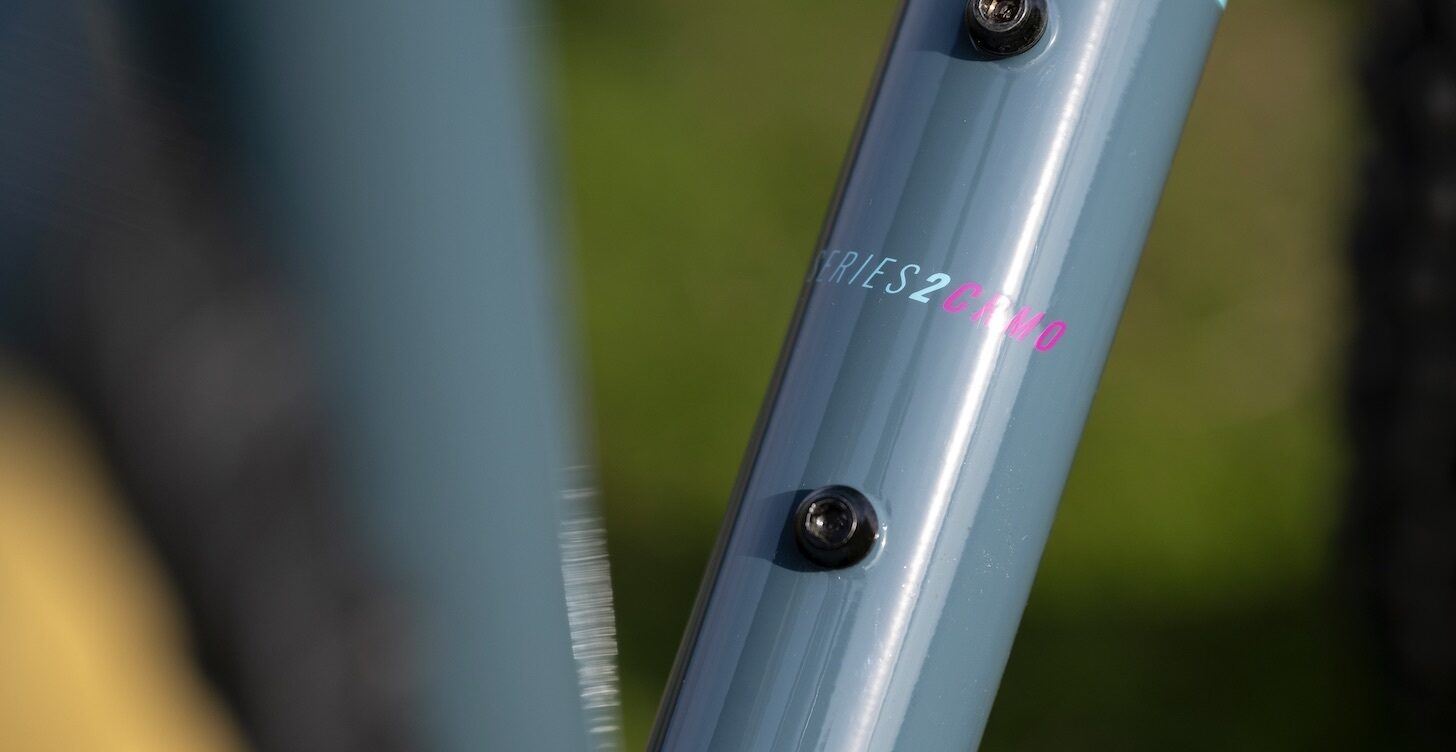

    • Frame: Series 2 Double Butted CrMo, 29" Wheels, Boost 141x9mm Open Dropout, 73mm Threaded BB, Plentiful Gear Mounts
    • Fork: RockShox Recon RL, 120mm Travel, Compression and Rebound Adjustment, Alloy Tapered Steerer, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset
    • Shifters: Shimano Deore 11-Speed
    • Crankset: Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring

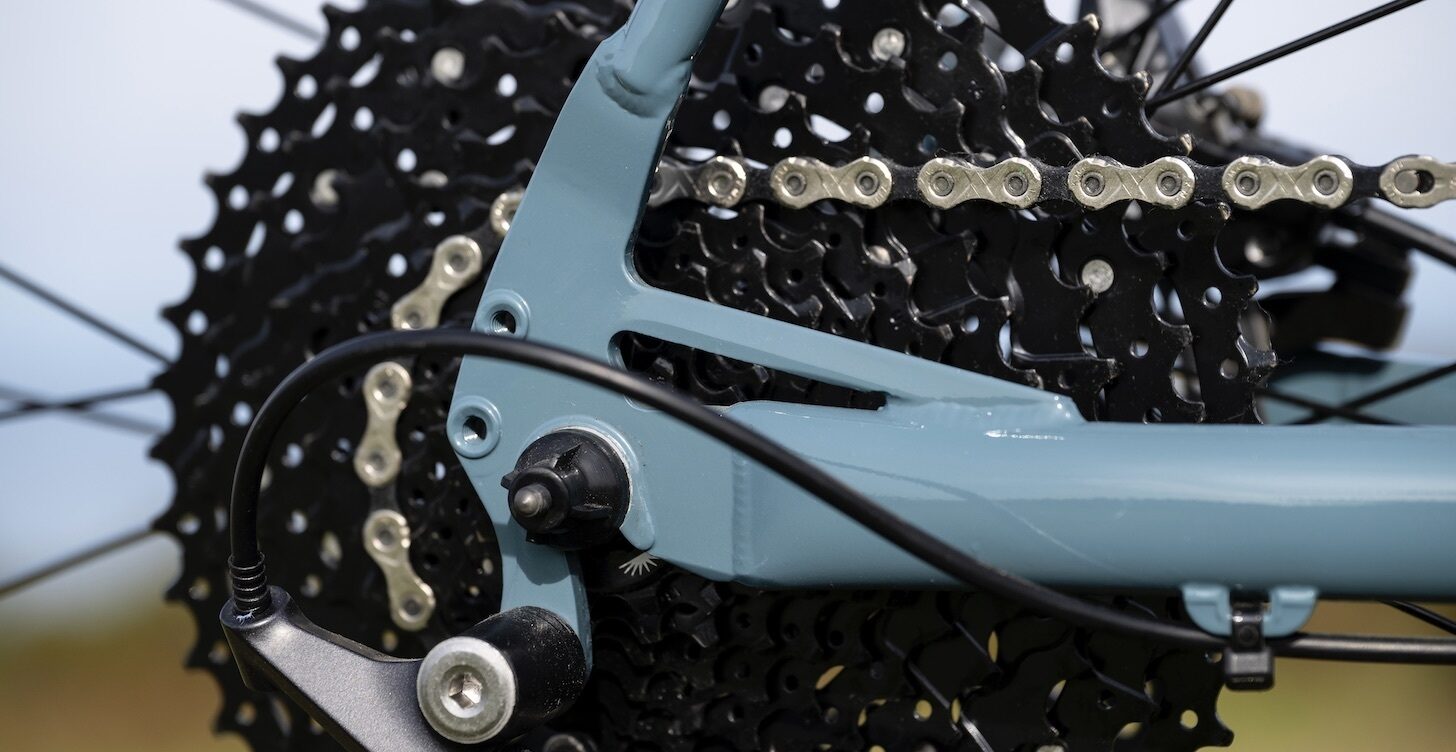

    • Cassette: SunRace 11-speed, 11-51T
    • Chain: KMC X11
    • Front Derailleur: N/A
    • Rear Derailleur: Shimano Deore 11-Speed
    • Bottom Bracket: External Sealed Cartridge Bearings
    • Pedals: Nylon Platform
    • Rims: Alloy Double-Wall, Offset Spoke, 32mm ID, Tubeless Compatible
    • Front Hub: Forged Alloy, 110x15mm, Disc, 32H
    • Rear Hub: Forged Alloy, 141x9mm, Disc, 32H
    • Tyres: Vee Tire Flow Snap, 29x2.6", Wire Bead
    • Brakes: Shimano MT400, 2-Piston, Hydraulic Disc, 160mm Rotor
    • Handlebar Grips: Marin Bear Paw Locking

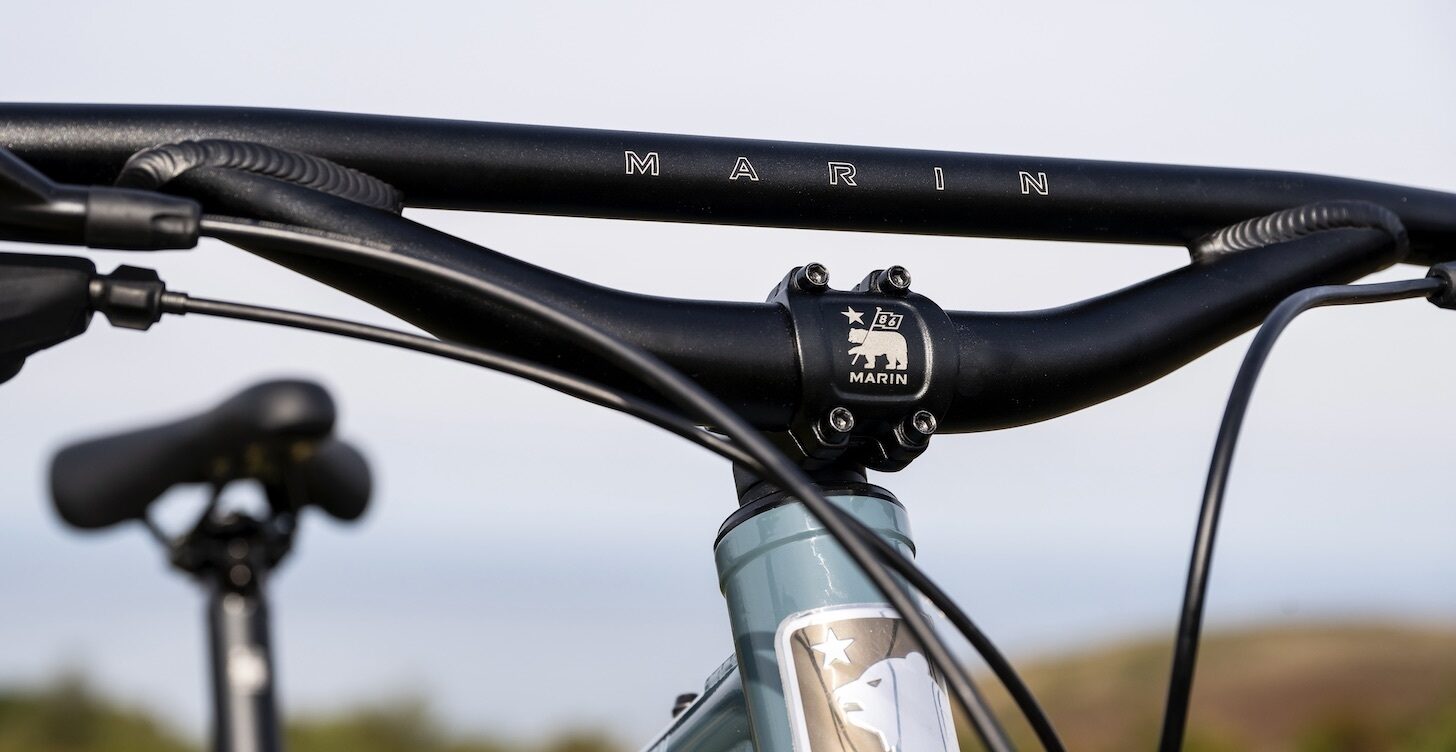

    • Handlebar: Marin Bedroll Bar, 50mm Rise, 780 Width, 10˚ Backsweep, 6˚ Upsweep
    • Headset: FSA Orbit ITA, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
    • Stem: Marin 3D Forged Alloy, 35mm
    • Saddle: Marin Pine Mountain Trail
    • Seatpost: Marin Alloy, 30.9mm
    • Accessories:
    • Weight: N/A

    Size Guide for Marin Pine Mountain 2025

    Size Rider height range
    S 5'3" - 5'6"
    M 5'6" - 5'9"
    L 5'9" - 6'
    XL 6' - 6'4"


    We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

    Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

    How we Build & Pack Your Bike

    Aftercare

    At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.

    Bicycle Safety

    Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.

    Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.

    Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.

    Follow road rules – Ride responsibly and remain aware of your surroundings.

    Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)

    Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.

    Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.

    Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.

    Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.

    Pedals - Ensure pedals are still tight and correctly fitted.

    Routine Maintenance (Every Few Weeks)

    Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.

    Brake Safety – Check brake pads and responsiveness before each ride.

    Tyre Inspection – Look for punctures and ensure correct air pressure.

    Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.

    Frame Safety Check – Look for any signs of damage or cracks.

    Pedals - Ensure pedals are still tight and correctly fitted.

    Professional Check-Ups

    Have your bike serviced at least once a year, or more frequently if you ride often.

    Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)

    Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.

    Avoid Overcharging – Unplug the charger once fully charged to extend battery life.

    Pedals - Ensure pedals are still tight and correctly fitted.

    Routine e-Bike Maintenance (Every Few Weeks)

    Motor Inspection – Listen for unusual noises and ensure smooth operation.

    Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.

    Pedals - Ensure pedals are still tight and correctly fitted.

    Seasonal e-Bike Maintenance

    Check Electrical Components – Ensure wires and connections are clean and secure.

    Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.

    By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!

    Read our full advice

    If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk

    MARIN PINE MOUNTAIN 1 HARDTAIL MTB BIKE 2025 GREY
    0 (0 Reviews)
    Regular price £1,349.00
    Save 3%
    Regular price £1,399.00 Sale price £1,349.00
    Price Match
    If you find the same bike cheaper, we'll try to match the price.
    More information

    Size
    • SKU: 735968002
    • EPOS Code:
    Est. Dispatch
    Delivery Available
    Finance Available
    Family Owned Independent
    Built by Cytech Mechanics
    10% Off Accessories
    We Accept Cyclescheme
    View full details
