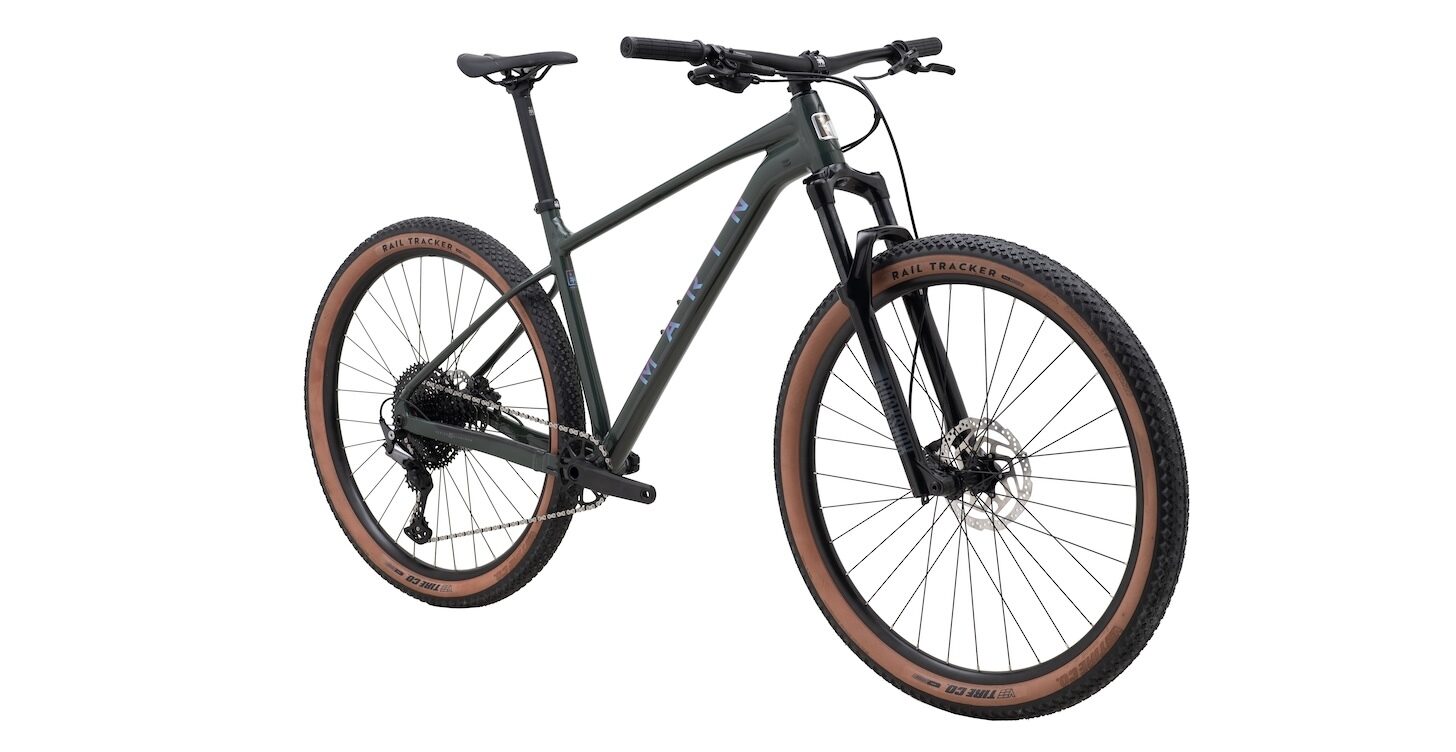

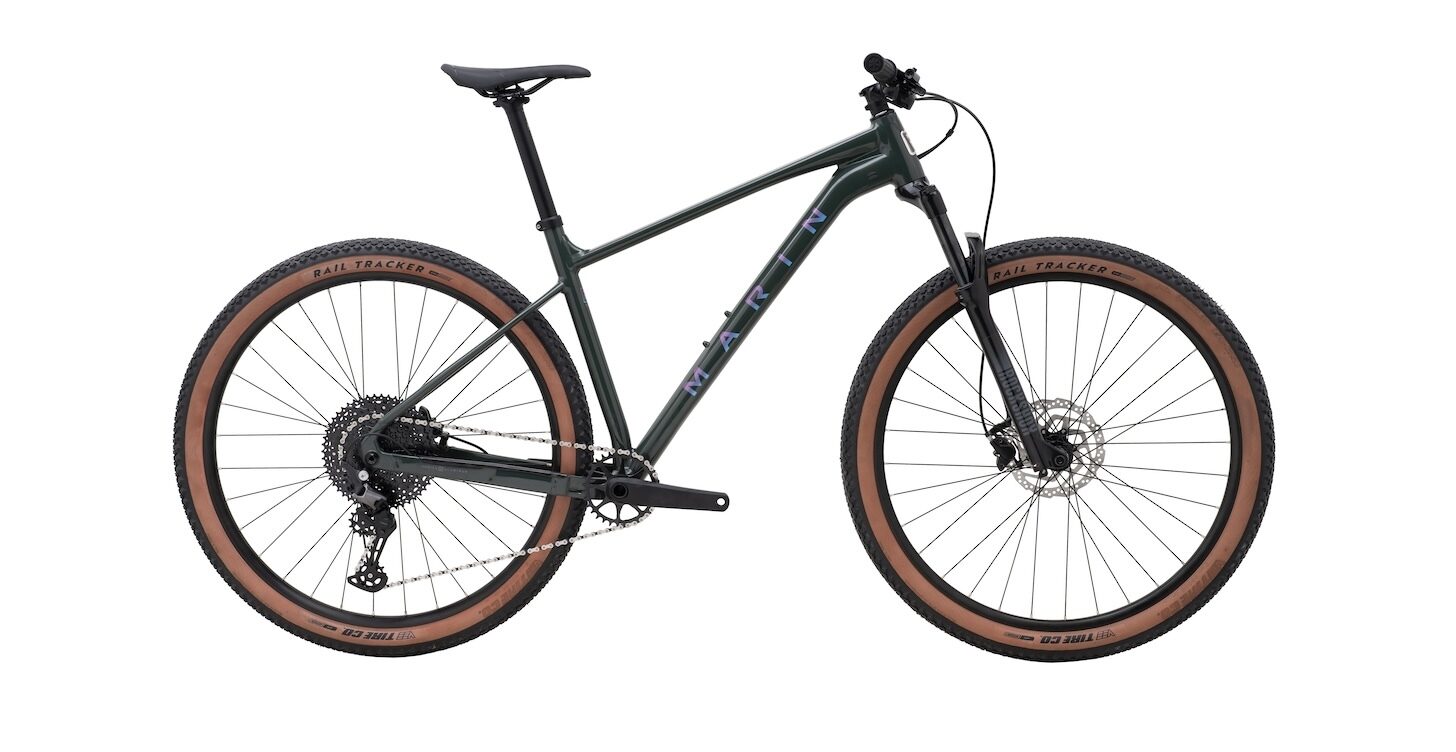

MARIN TEAM MARIN 1 HARDTAIL MTB BIKE 2025 SOLID GREEN
Product Details - Marin Team Marin 1 Hardtail Mtb Bike 2025 Solid Green
Product Details - Marin Team Marin 1 Hardtail Mtb Bike 2025 Solid Green
XC LIGHT WITH TRAIL RIDING CAPABILITY
We made the Team Marin to be lightning-fast, super composed in the rough-and-tumble of spicy singletrack and perfectly in control up, along and down. It packs all the roll-up-your-sleeves tough of a trail bike and the zip you’d expect from an XC racer to perfectly blend speed with fun. Because who said XC had to be so serious?!
Champagne dreams on a cola budget. The Team Marin 1 brings XC-racer performance to a privateer price-point, all whilst staying super fun and super capable in the singletrack.
We started with a high-end Series 4 aluminum frame and fast-rolling 29” wheels and then added a capable RockShox Judy Silver fork, 12-speed Shimano drivetrain, Shimano hydraulic brakes and Vee Tire rubber to create a super fun, super affordable XC trail shredder.
Key Features
- Series 4 Aluminium frame: Advanced tube forming for minimal weight, 3D forged dropouts, flat-mount disc tabs, full internal cable routing, and a boost 148mm thru axle.
- 29” Wheels and 2.35” XC Tyres: Ensures maximum grip and float over obstacles to maintain speed so you can pick up those personal records and keep ahead of the pack.
-
Powerful Disc brakes: For minimal maintenance and all-conditions stopping power.
Full Specification
- Frame: Series 4 6061 Aluminium, 29" Wheels, Superlight Aluminium, Flat Mount Rear Brake, Internal Shifter and Dropper Post Routing, 148x12mm Boost Thru-Axle
- Fork: RockShox Judy Silver TK, 120mm Travel, Alloy Tapered Steerer, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset
- Shifters: Shimano Deore, SLM6100, 12-Speed
- Crankset: Forged Alloy 1x12, Hollow Spindle, Steel Narrow Wide 32T Chainring
- Cassette: SunRace, 12-Speed, 11-51T
- Chain: KMC X12
- Front Derailleur: N/A
- Rear Derailleur: Shimano Deore, RDM6100, 12-Speed
- Bottom Bracket: External Sealed Cartridge Bearings
- Pedals: Marin Oso OEM Nylon Platform
- Rims: Marin Aluminium Double Wall, 29mm Inner, Sleeve Joint, Disc Specific, Tubeless Compatible
- Front Hub: Forged Aluminium, 110x15mm, Disc, 32H
- Rear Hub: Forged Aluminium, 148x12mm, Disc Specific, 32H
- Tyres: Vee Tire, Rail Rocco XC, 29x2.3", Dual Control Compound, Folding Bead, Tubeless Ready
- Brakes: Shimano BR-MT200 Hydraulic Disc, 180mm Rotor Front, 160mm Rear
- Handlebar Grips: Marin Single Clamp Locking
- Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminium, 780mm Width, 4º Up, 9º Back
- Headset: FSA No 42ACB, 1 1/8" x 1 1/2”
- Stem: Marin 3D Forged Alloy, 35mm
- Saddle: Marin Speed Concept
- Seatpost: Marin Alloy, 30.9mm
- Accessories: N/A
- Weight: N/A
Size Guide for Marin Team Marin
| Size | Rider Height |
| S | 5'3" - 5'6" |
| M | 5'6" - 5'9" |
| L | 5'9" - 6'0" |
| XL | 6'0" - 6'4" |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
How we Build & Pack Your Bike
How we Build & Pack Your Bike
Delivery
Delivery
We offer several delivery options:
Store Collection: Pick up your order at our Salts Mill store, located at BD17 7EH.
Standard Delivery We partner with APC Euro-Tran for deliveries. Once your bike is dispatched, it typically arrives within 1 to 3 working days for Mainland UK. All bikes are fully built, checked, set up and then packed back down into a standard size bike box. Please note that electric bikes will be shipped in two boxes due to weight and size restrictions. We recommend our premium delivery service for electric bikes.
Premium Delivery We partner with DX's two-person delivery team. After dispatch, your bike usually arrives within 2 to 4 working days for Mainland UK. DX will contact you before delivery to schedule a convenient delivery date. All bikes come fully built, checked, set up and with both wheels attached. Trek bikes can only be sent via our premium delivery service.
Check out our video for more information on how your bike is assembled and packaged.
Aftercare
Aftercare
At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.
Bicycle Safety
Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.
Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.
Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.
Follow road rules – Ride responsibly and remain aware of your surroundings.
Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)
Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.
Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.
Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.
Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine Maintenance (Every Few Weeks)
Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.
Brake Safety – Check brake pads and responsiveness before each ride.
Tyre Inspection – Look for punctures and ensure correct air pressure.
Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.
Frame Safety Check – Look for any signs of damage or cracks.
Pedals - Ensure pedals are still tight and correctly fitted.
Professional Check-Ups
Have your bike serviced at least once a year, or more frequently if you ride often.
Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)
Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.
Avoid Overcharging – Unplug the charger once fully charged to extend battery life.
Pedals - Ensure pedals are still tight and correctly fitted.
Routine e-Bike Maintenance (Every Few Weeks)
Motor Inspection – Listen for unusual noises and ensure smooth operation.
Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.
Pedals - Ensure pedals are still tight and correctly fitted.
Seasonal e-Bike Maintenance
Check Electrical Components – Ensure wires and connections are clean and secure.
Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.
By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
If you have any problems or concerns: Contact All Terrain Customer Services on 01274 588488 or email sales@allterraincycles.co.uk
