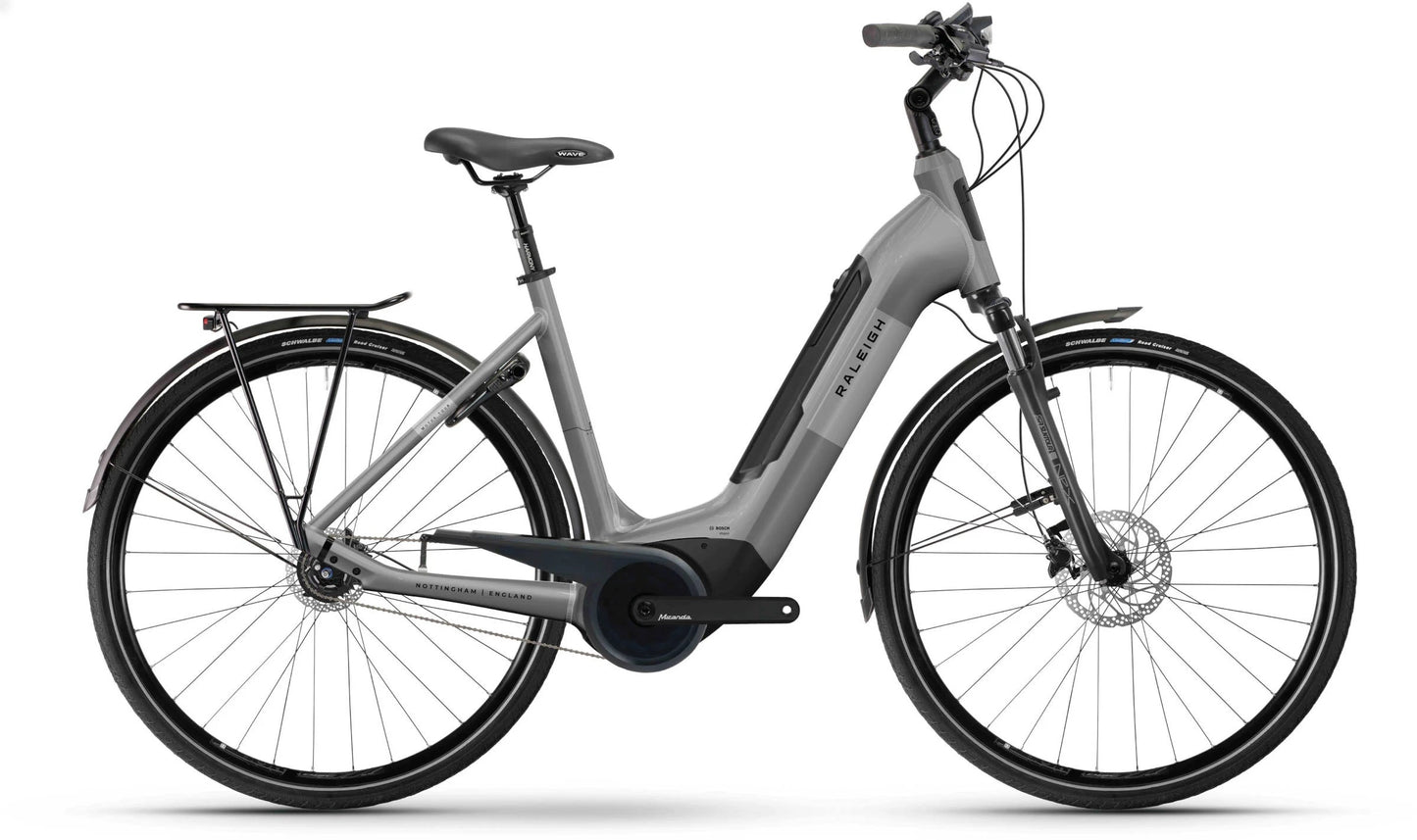

RALEIGH MOTUS TOUR HUB GEAR LTD LOW STEP HYBRID eBIKE 2025 GREY

eBikes by their very nature can require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.

Your eBike will be delivered built, set up and updated in two boxes.

Minimum personal assembly is required.

The Raleigh Motus Tour LTD Hub Gear Low Step Electric Bike comes with pedal assist to give your legs a helping hand.

Powered by a punchy 500Wh battery, the Motus Ltd is all about range and comfort. Want to tweak your ride? The Intuvia Display gives you total command – adjust your power levels, monitor your speed, check your battery, and see your remaining range – all without missing a beat. Hub gears enable you to shift while standing still. and require very little maintenance. They are known for their practicality and durability in all conditions.

Key Features

• Bosch BES3 Active Line Plus: It has plenty of power for most people's city riding, it's very quiet and has a natural feel.
• Hydraulic Disc Brakes: Reliable braking performance to keep you in control, whatever the weather.
• 7 Shimano Gears: Wide range of gears suitable for a range of terrain, with the simplicity of a single shifter.

Specification

• Fork Type - Suntour NEX Disc Suspension fork, 50mm Travel
• Frame Material - Aluminium 6061
• Frame Shape - Low step Total
• Bike Weight - 27.5kg
• Battery - Bosch Powertube 500WH
• Battery Charger Type - Bosch 2A Battery
• Charging Time - 4.5 hours
• Display - Bosch Intuvia
• Max Range - 100 miles
• Motor - Bosch Active Line Plus BES3
• Motor Position - Mid Motor
• Grips - XLC Ergonomic Grips
• Handlebar - Aluminium comfort handlebar 640mm
• Saddle - Selle Royal Wave saddle
• Seatpost - Aluminium seatpost 31.6x350mm
• Seatpost Clamp - Aluminium 34.9mm
• Stem - Aluminium adjustable stem 85mm
• Front Brake - Shimano MT200 Hydraulic Disc Brake, 180mm
• Number of Gears - 7
• Rear Brake - Shimano MT200 Hydraulic Disc Brake, 160mm
• Rear Shifter - Shimano Nexus revoshift 7 speed
• Cassette - 19T
• Chain - KMC e1
• Chain Guard - SKS Chainbow
• Crankset - Direct Mount 38T, 170mm BNI
• Gear Shift - Hub Gear
• Pedals - Aluminium flat pedal
• Front Tyre - 700x50c Schwalbe Road Cruiser Plus Reflective
• Hub - Shimano Nexus 7 speed hub
• Inner Tubes - 700x40/60 Schrader Valve
• Rear Tyre - 700x50c Schwalbe Road Cruiser Plus Reflective
• Rear Wheel - 700c, double wall, centre lock QR, 36H
• Front Light - Herrmans MR GO
• Mudguards - Eurofender Full Mudguards
• Rear Carrier - Aluminium Carrier, max load 25Kg
• Rear Light - Axa Juno
• Stand - Adjustable aluminium stand with 40mm mount
• Max permissible weight (Rider, Cargo and Bike) - 120 kg

We offer several delivery options:

Store Collection: Pick up your order at our Salts Mill store, located at BD17 7EH.

Standard Delivery We partner with APC Euro-Tran for deliveries. Once your bike is dispatched, it typically arrives within 1 to 3 working days for Mainland UK. All bikes are fully built, checked, set up and then packed back down into a standard size bike box. Please note that electric bikes will be shipped in two boxes due to weight and size restrictions. We recommend our premium delivery service for electric bikes.

Premium Delivery We partner with DX's two-person delivery team. After dispatch, your bike usually arrives within 2 to 4 working days for Mainland UK. DX will contact you before delivery to schedule a convenient delivery date. All bikes come fully built, checked, set up and with both wheels attached. Trek bikes can only be sent via our premium delivery service.

Check out our video for more information on how your bike is assembled and packaged.

At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.

Bicycle Safety

Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.

Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.

Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.

Follow road rules – Ride responsibly and remain aware of your surroundings.

Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)

Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.

Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.

Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.

Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine Maintenance (Every Few Weeks)

Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.

Brake Safety – Check brake pads and responsiveness before each ride.

Tyre Inspection – Look for punctures and ensure correct air pressure.

Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.

Frame Safety Check – Look for any signs of damage or cracks.

Pedals - Ensure pedals are still tight and correctly fitted.

Professional Check-Ups

Have your bike serviced at least once a year, or more frequently if you ride often.

Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)

Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.

Avoid Overcharging – Unplug the charger once fully charged to extend battery life.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine e-Bike Maintenance (Every Few Weeks)

Motor Inspection – Listen for unusual noises and ensure smooth operation.

Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.

Pedals - Ensure pedals are still tight and correctly fitted.

Seasonal e-Bike Maintenance

Check Electrical Components – Ensure wires and connections are clean and secure.

Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.

By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
