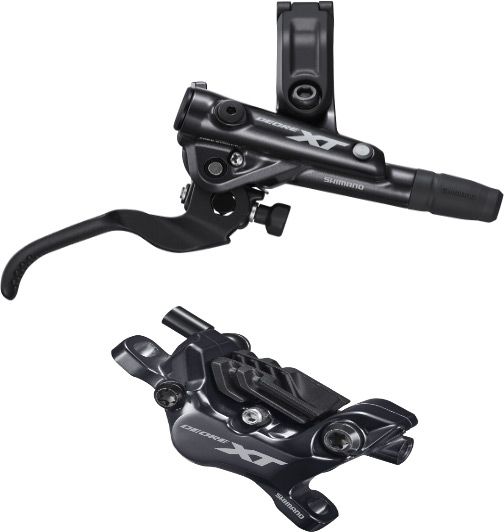

Shimano's XT BR-M8120 hydraulic disc brake delivers powerful stopping power with minimal hand effort.
The 4-piston design and 2-finger lever provide responsive, linear braking control that integrates perfectly with the XT M8100 groupset.
Features
- Powerful fully bled XT 4 pot hydraulic Servo Wave disc brake for more aggressive riding styles
- Fully bled lever and calliper comes without adapters or rotors giving you the freedom to customise to suit your bike
- Short stroke Servo-Wave mechanism for quick pad engagement and more power for aggressive riding
- 4 oversized pistons optimized for heat insulation, lightweight and stiffness
- Using Ice Tech alloy fin pads further improving heat radiation performance
- Recommended for use with Ice Tech rotors for optimum braking performance in a choice of 140, 160, 180 and 203 mm
- Lightweight forged calliper design that increases rigidity and reduces weight
- Forged alloy brake lever for optimum strength and reliability
- Mineral oil brake fluid is non-corrosive and less hazardous than conventional hydraulic brake fluid
- Shim-less mounting system allows for quick setting up
- Brake lever featuring reach and free stroke adjustment
- Hinged clamp for quick installation
- I-spec-EV compatible
Specification
-
Use: MTB, Enduro, Trail
-
Group: XT M8100
-
Model: BR-M8120 (front)
-
Brake type: Hydraulic Disc-Brake
-
Brake lever: BL-M8100
-
Lever length: 2-Finger
-
Mount: Right
-
Clamp: Open
-
Reach adjustment: Yes, without tool
-
Caliper: BR-M8120 (4-Piston)
-
Brake mounting: Postmount
-
Brake pads: N03A Resin with Fin
-
Brake hose: SM-BH90-SBM
-
Brake hose length: front 1000mm (shortable)
-
One-Way bleeding: Yes
-
Brake fluid: Mineral oil
-
Recommended brake rotor: RT-MT800
Material
-
Lever: Aluminium Anodized
-
Caliper: Aluminium Painted
Weight
Contents
- 1 x Brake lever XT BL-M8100 left
- 1 x Brake caliper XT BR-M8120 (4-Piston)
- 1 x Brake hose SM-BH90-SBM 1000mm long (shortable)
- 1 x Tube Joint Kit
- 1 x Brake pads N03A Resin with Fin
- 2 x Screw for brake caliper
Rotor and Adapter not included!
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
