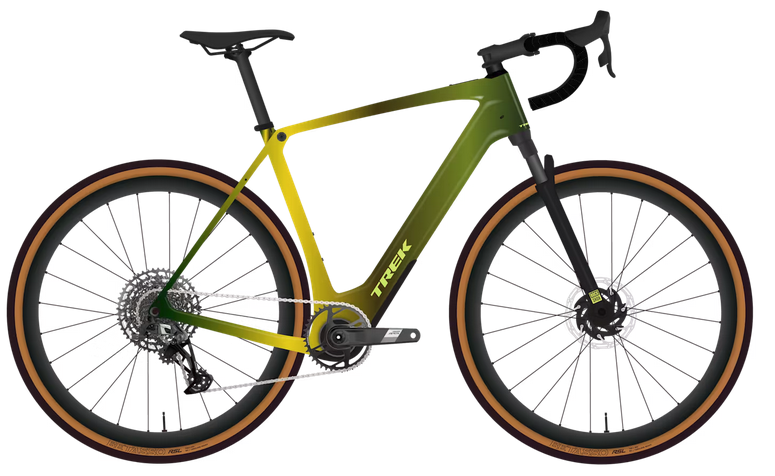

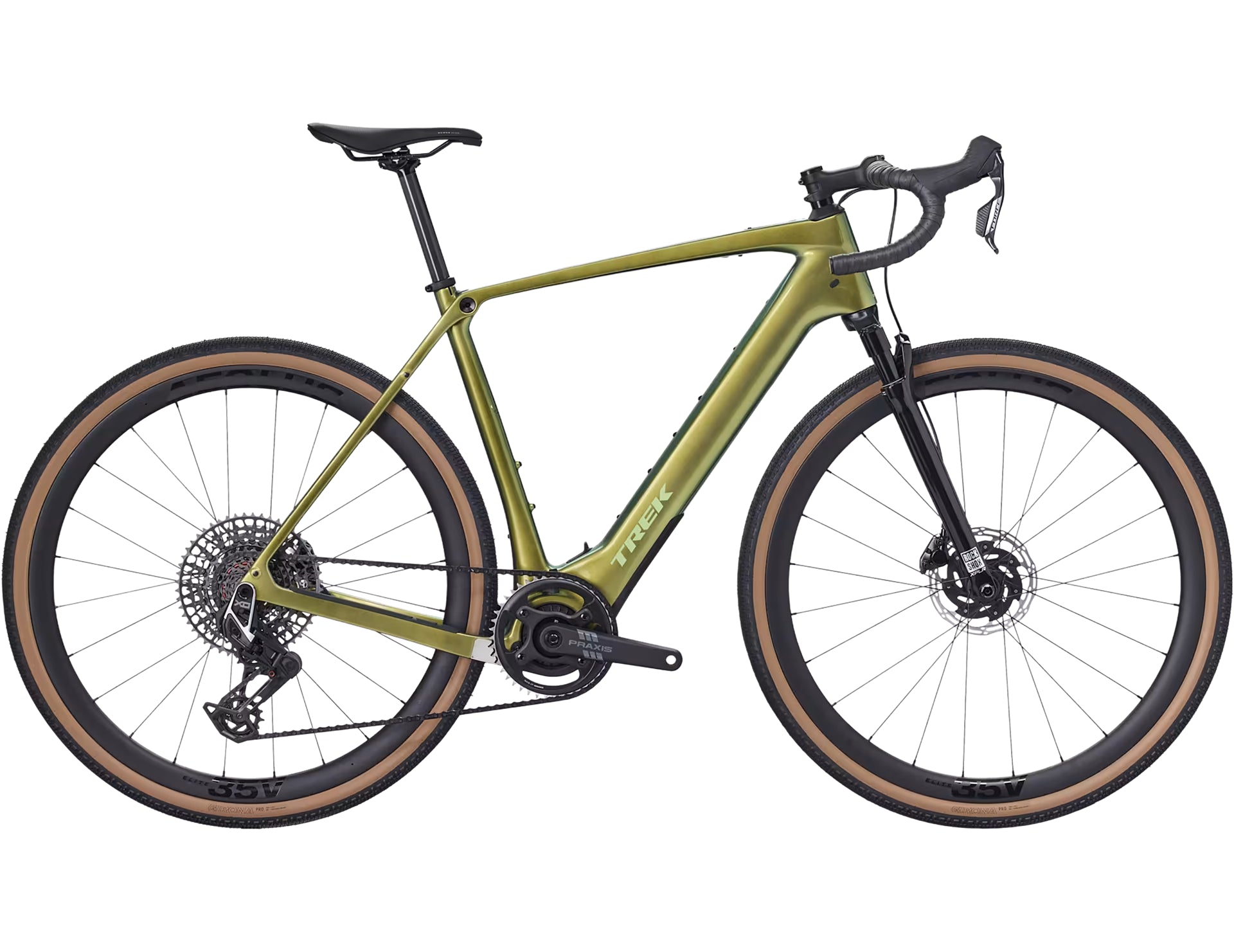

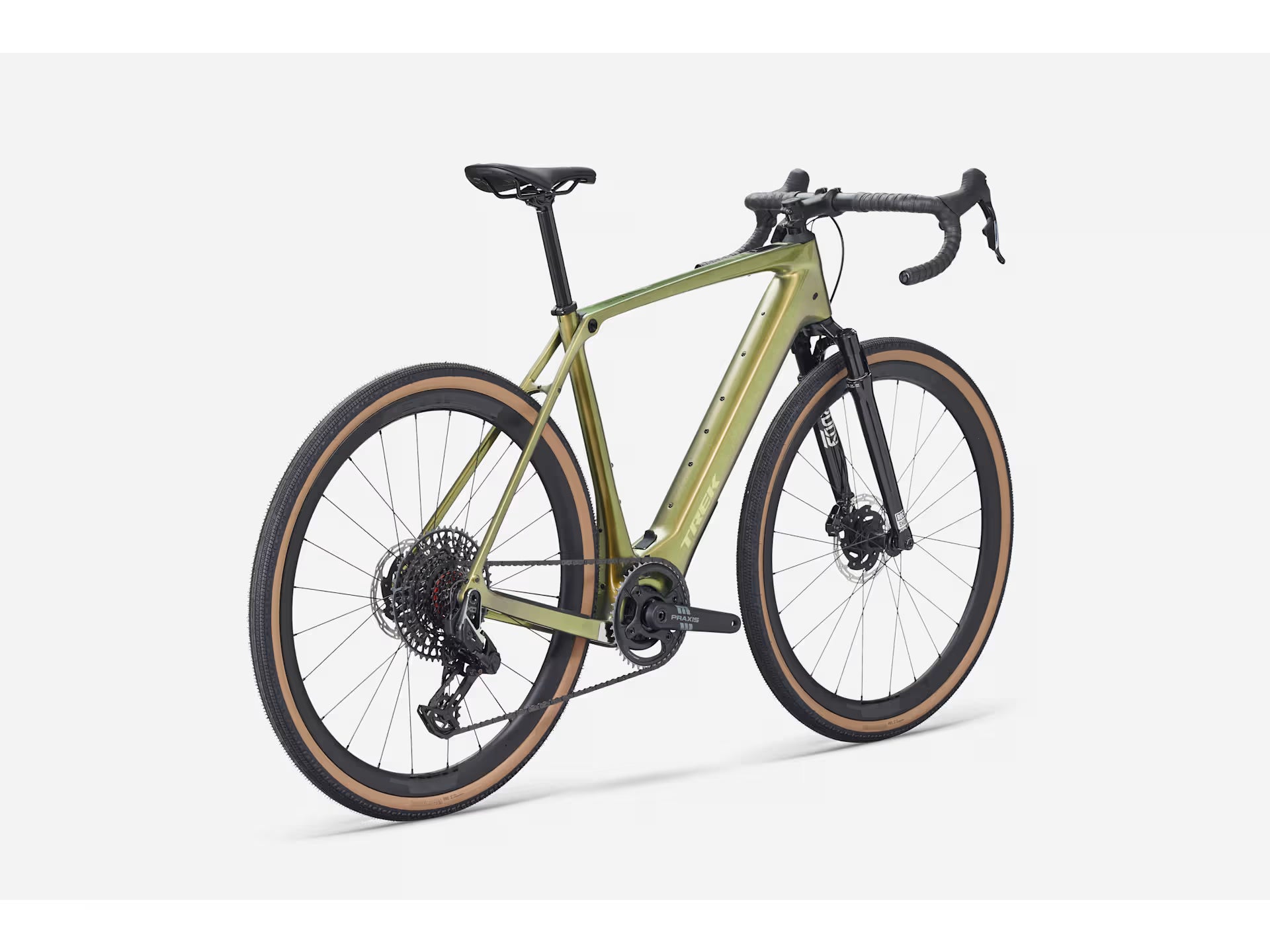

TREK CHECKPOINT + SL 7 AXS GRAVEL eBIKE 2026 CHAMELEON GREEN

eBikes by their very nature can require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.

Your eBike will be delivered built, set up and updated in two boxes.

Minimum personal assembly is required.

The Checkpoint+ SL 7 is an electric gravel bike built to take you on your most far-out adventures.

Its OCLV Carbon frame pairs with the smooth boost of TQ's HPR-60 motor, while a 40 mm RockShox Rudy XPLR suspension fork keeps handling confident and relaxed on the roughest roads. SRAM's Force AXS E1 13-speed drivetrain delivers smooth, wireless shifting and OCLV Carbon Bontrager Aeolus Elite 35V wheels and a carbon seatpost dampen vibrations while keeping the weight down.

Key Features

• TQ-HPR60 motor: The smallest, lightest and quietest e-bike drive unit in its class
• Carbon Fibre Frame: Ultra light and fast – and it's backed by Trek's lifetime warranty.

• SRAM Eagle 12-Speed Drivetrain: Simplicity combined with a wide gear ratio.


Specification

• Frame: 500 Series OCLV Carbon, TQ drive system, IsoSpeed, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, flat-mount disc, integrated chainkeeper, UDH, 142x12 mm chamfered thru axle

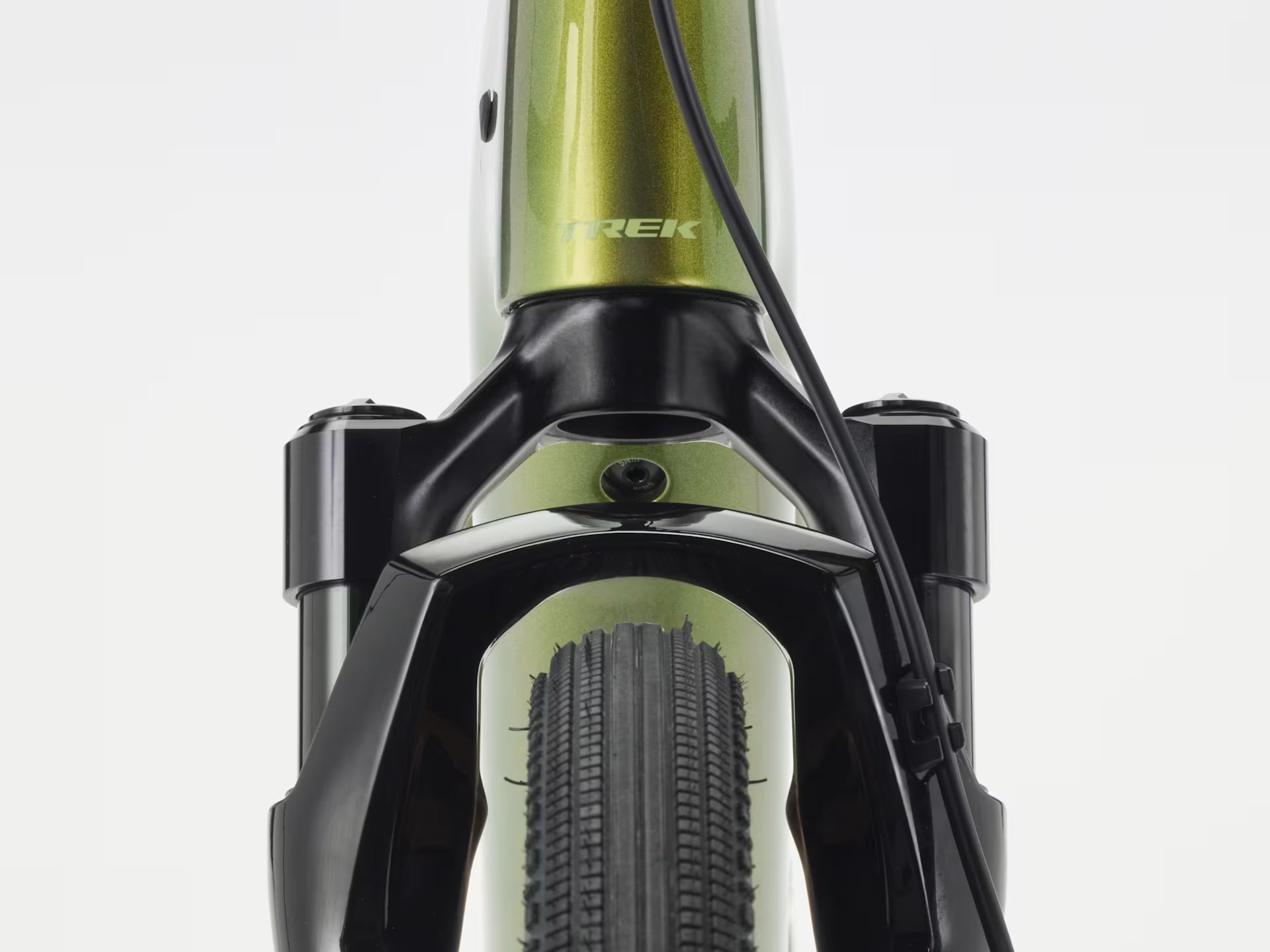

• Fork: RockShox Rudy XPLR, Solo Air spring, tapered steerer, 45 mm offset, 12x100 mm thru axle, 40 mm travel
• Battery: TQ 360Wh
• Charger: TQ 4A charger

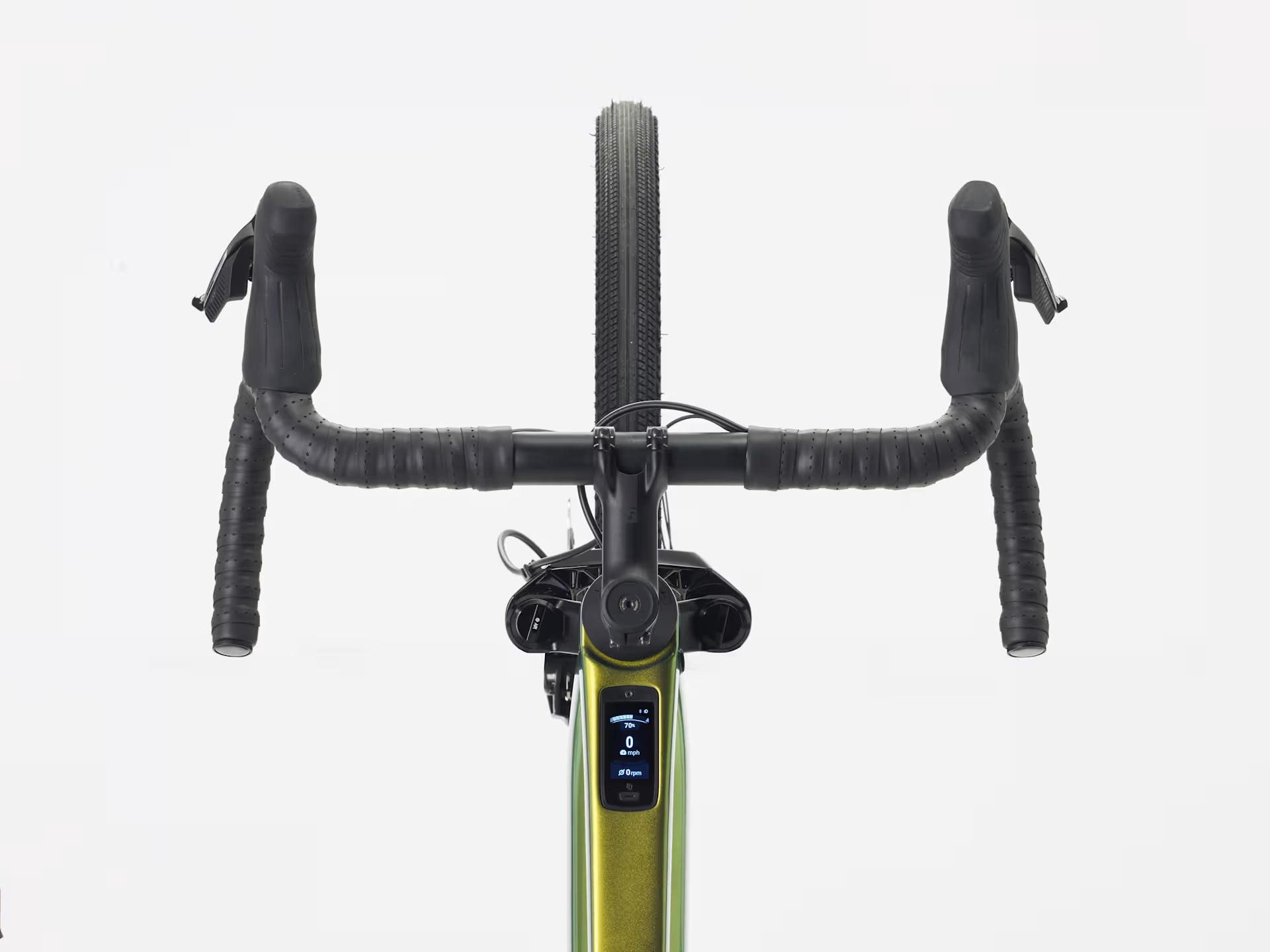

• Controller: TQ colour LED display with Bluetooth & ANT+ connectivity

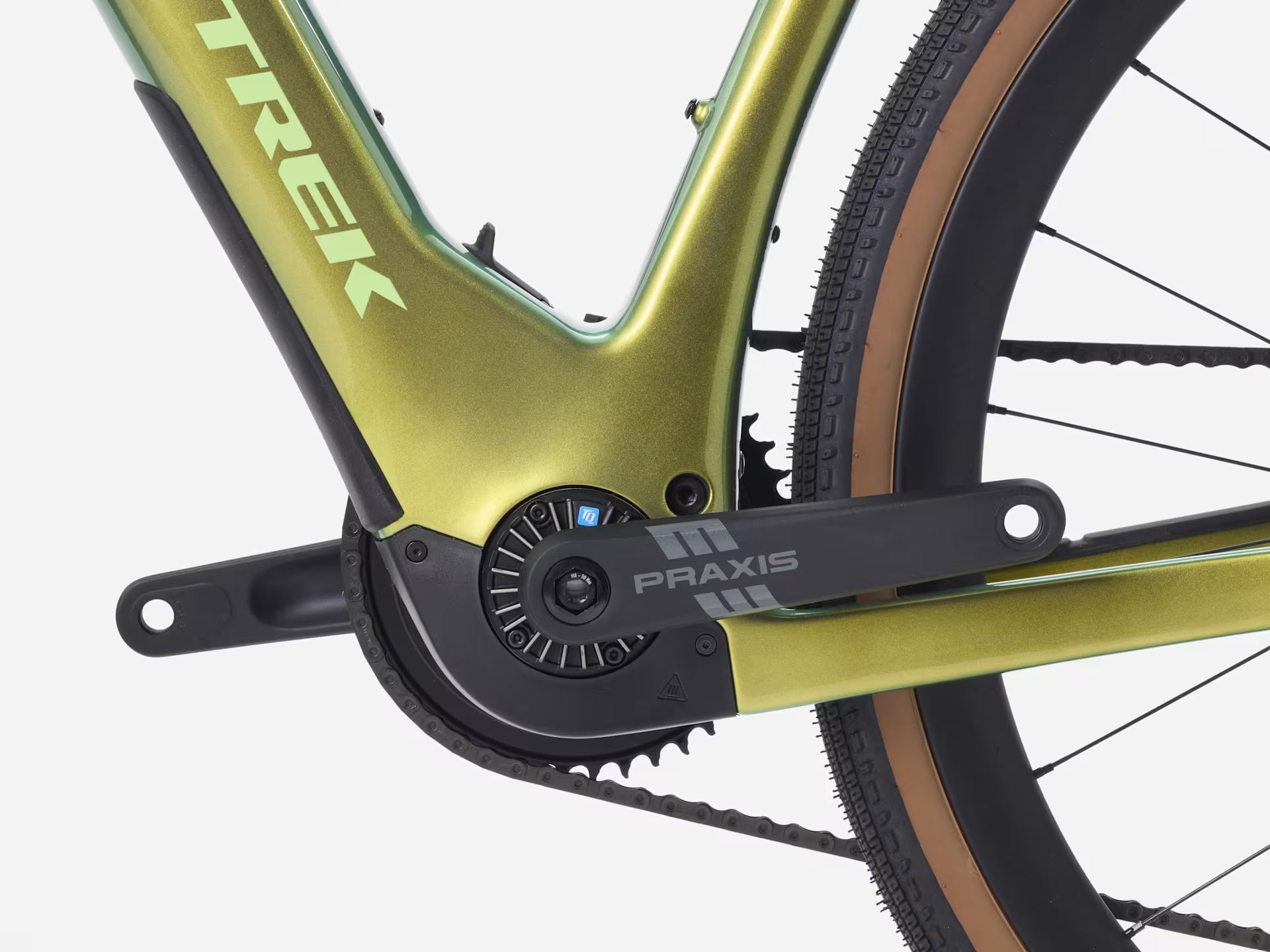

• Motor: TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
• Crankset: Praxis Alloy, S 165mm, M/ML 170mm, L/XL 172.5mm
• Cassette: SRAM Eagle XS-1295, T-Type, 10-52, 12-speed
• Chain: SRAM XO Eagle, T-Type, 12-speed
• Front Derailleur: N/A
• Rear Derailleur: SRAM X0 Eagle AXS, T-Type
• Pedals: Not supplied
• Front Wheel: Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, 100x12 mm thru axle
• Rear Wheel: Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless-Ready, 35 mm rim depth, SRAM XD-R driver, 142x12 mm thru axle
• Tyres: Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
• Brakes: SRAM
• Handlebars: Bontrager Pro Gravel, S 40cm, M/ML 42cm, L 44cm, XL 46cm
• Handlebar Tape: Bontrager Supertack Perf tape
• Headset: TBC
• Stem: Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, S/M 80mm, ML/L 90mm, XL 100mm
• Saddle: Verse Short Elite, hollow magnesium rails, 145 mm width
• Seatpost: Bontrager alloy, 27.2 mm, 8 mm offset, 330 mm length
• Accessories: N/A
• SKU: 57447

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

We offer several delivery options:

Store Collection: Pick up your order at our Salts Mill store, located at BD17 7EH.

Standard Delivery We partner with APC Euro-Tran for deliveries. Once your bike is dispatched, it typically arrives within 1 to 3 working days for Mainland UK. All bikes are fully built, checked, set up and then packed back down into a standard size bike box. Please note that electric bikes will be shipped in two boxes due to weight and size restrictions. We recommend our premium delivery service for electric bikes.

Premium Delivery We partner with DX's two-person delivery team. After dispatch, your bike usually arrives within 2 to 4 working days for Mainland UK. DX will contact you before delivery to schedule a convenient delivery date. All bikes come fully built, checked, set up and with both wheels attached. Trek bikes can only be sent via our premium delivery service.

Check out our video for more information on how your bike is assembled and packaged.

At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.

Bicycle Safety

Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.

Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.

Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.

Follow road rules – Ride responsibly and remain aware of your surroundings.

Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)

Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.

Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.

Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.

Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine Maintenance (Every Few Weeks)

Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.

Brake Safety – Check brake pads and responsiveness before each ride.

Tyre Inspection – Look for punctures and ensure correct air pressure.

Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.

Frame Safety Check – Look for any signs of damage or cracks.

Pedals - Ensure pedals are still tight and correctly fitted.

Professional Check-Ups

Have your bike serviced at least once a year, or more frequently if you ride often.

Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)

Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.

Avoid Overcharging – Unplug the charger once fully charged to extend battery life.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine e-Bike Maintenance (Every Few Weeks)

Motor Inspection – Listen for unusual noises and ensure smooth operation.

Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.

Pedals - Ensure pedals are still tight and correctly fitted.

Seasonal e-Bike Maintenance

Check Electrical Components – Ensure wires and connections are clean and secure.

Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.

By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
