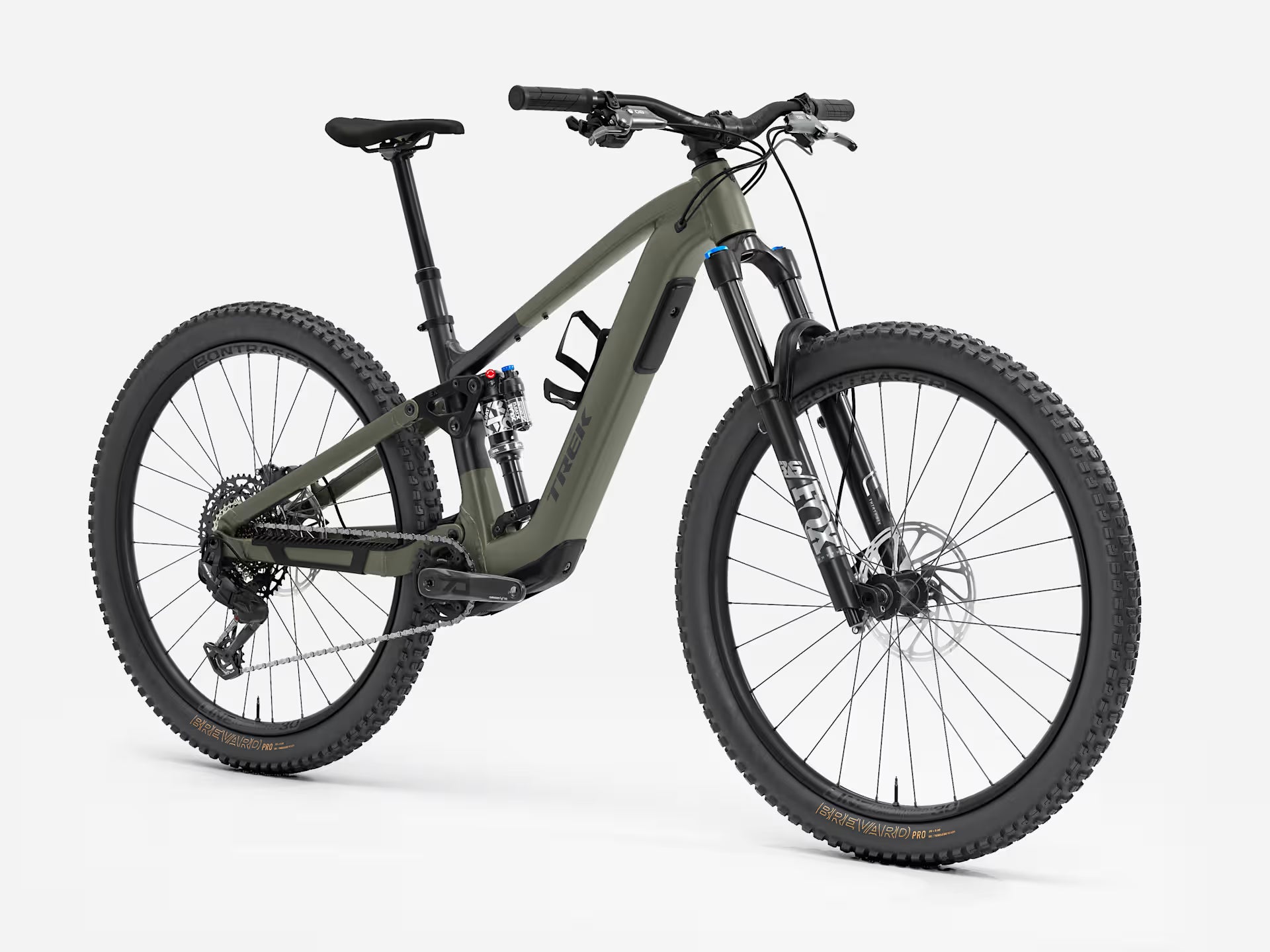

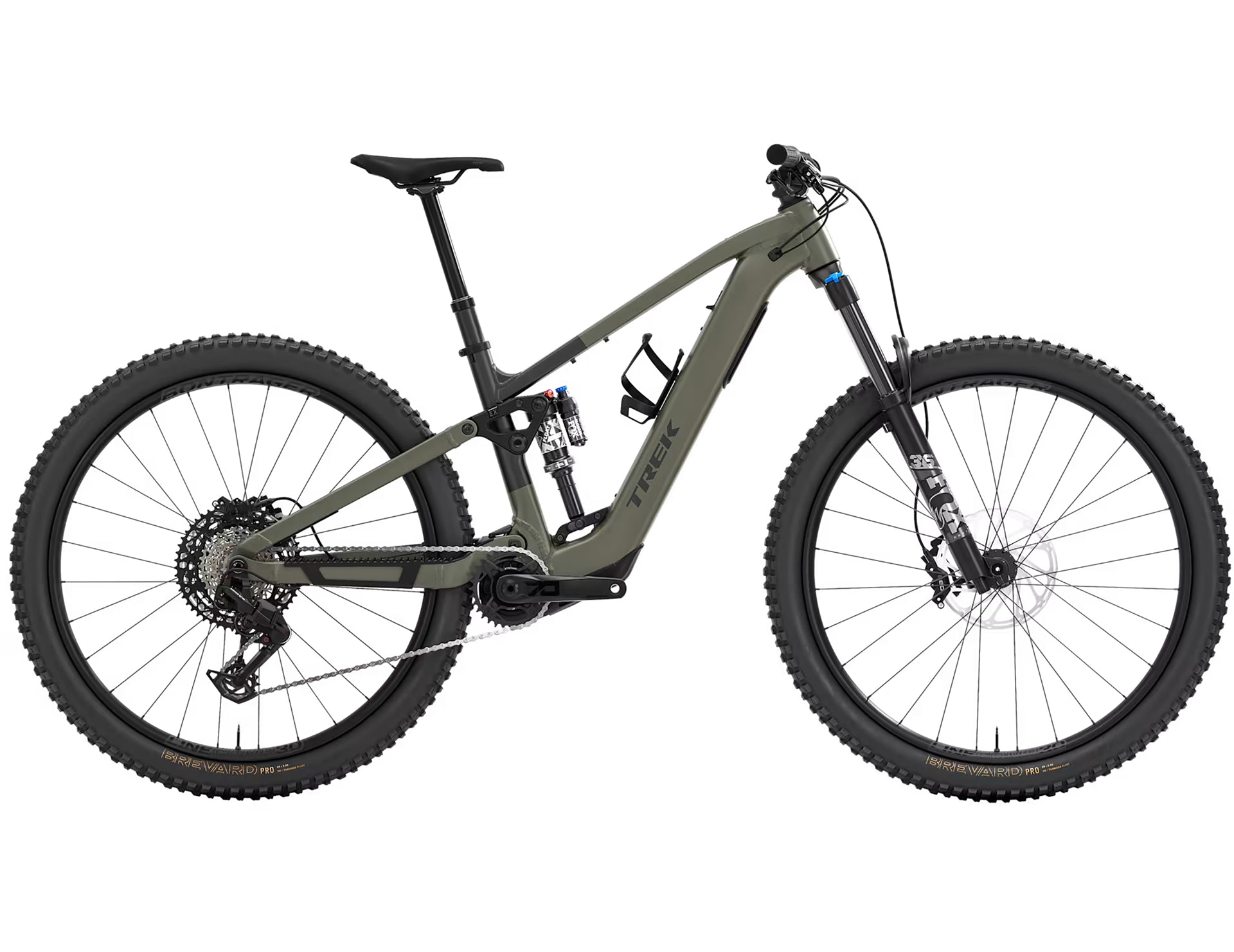

TREK FUEL+ EX 8 GEN 2 FULL SUSPENSION eMTB BIKE 2026 MATTE OLIVE GREY/TREK BLACK

eBikes by their very nature can in the future require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.

Your eBike will be delivered built, set up and updated.

Minimum personal assembly is required.

The Fuel+ EX 8 is a quiet and composed electric mountain bike built for tackling any trail.

It all starts out with an Alpha NEXT Platinum aluminium frame that gives you a smooth boost thanks to TQ's HPR-60 motor. A Fox Performance suspension package (145 mm rear, 150 mm front) keeps handling confident in the rough, while SRAM's Eagle 70 transmission delivers the smooth-shifting advantage of T-Type at a pocket-friendly price. It's all wrapped up with 4-piston SRAM DB 8 hydraulic disc brakes for stopping power on the steeps.

Key Features

• TQ HPR60 Motor: Not only more powerful, but quieter and more efficient too
• Aluminium Frame: Progressive geometry built to tackle steep and gnarly descents and punchy climbs alike
• 12-Speed SRAM Eagle 70: Reliable mechanical shifting without the faff of electronics


Full Specification

• Frame: Alpha NEXT Platinum aluminium, removable battery, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm

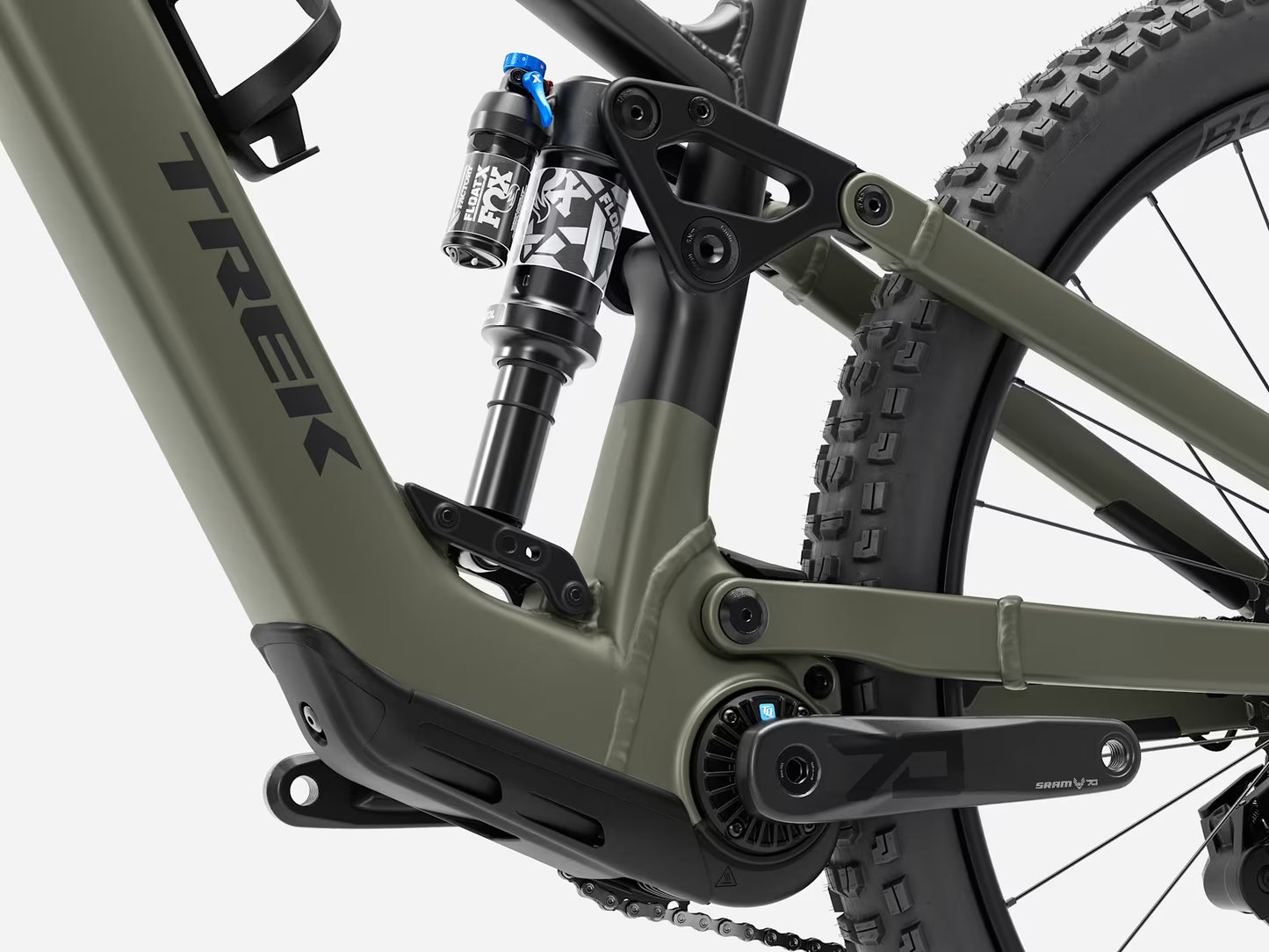

• Rear Shock: Fox Performance Float X, 2-position damper, 205 mm x 60 mm
• Fork: Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt X axle, 150 mm travel
• Motor: TQ HPR60
• Battery: TQ 580 Wh
• Controller: TQ LED display with Bluetooth & ANT+ connectivity
• Shifters: SRAM Eagle 70, 12-speed
• Crankset: SRAM EAGLE 70, 160 mm length

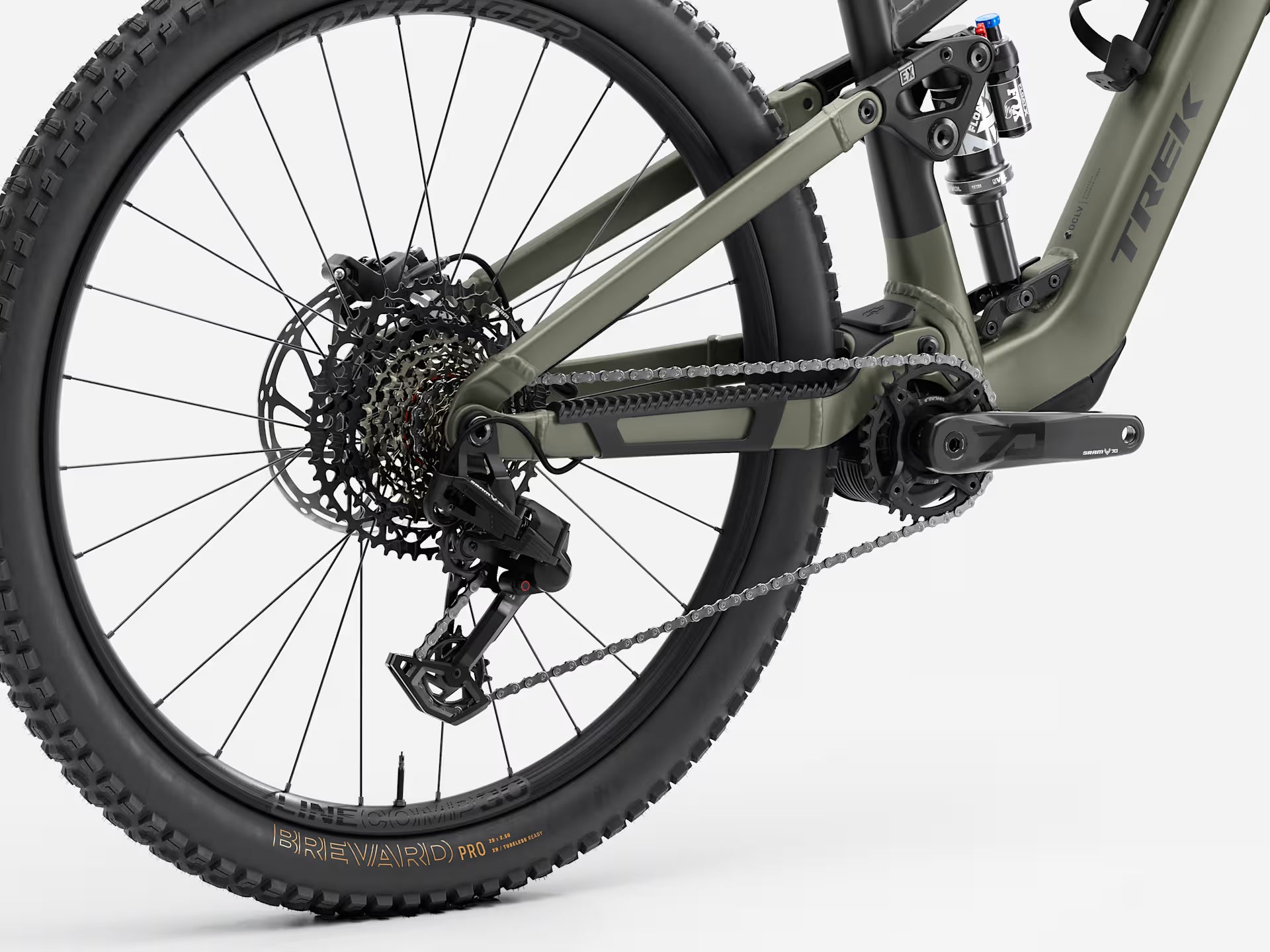

• Cassette: SRAM Eagle XS-1270, T-Type,10-52, 12-speed
• Chain: SRAM Eagle 70, T-Type, 12-speed
• Front Derailleur: N/A
• Rear Derailleur: SRAM Eagle 70, T-Type
• Bottom Bracket:
• Pedals: N/A
• Front Wheel: Bontrager Line TLR 30
• Rear Wheel: Bontrager Line TLR 30
• Front Tyre: Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"
• Rear Tyre: Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50" (Size S 27.5)
• Brakes: SRAM DB 8 4-piston hydraulic disc, SRAM Centerline 2.0, 6-bolt 200mm
• Handlebars: Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width
• Handlebar Grips: Trek Line Comp, Nylon Lock On
• Headset: FSA Orbit, sealed cartridge bearing, 1-1/8" top, 1.5" bottom, 1.5 crown
• Stem: Bontrager Elite, 35 mm, 0-degree, 45 mm length
• Saddle: Bontrager Verse Short, Stainless Steel Rails
• Seatpost: Bontrager Line Dropper, Max Flow, Internal Routing. Size S 150mm Travel 410mm length, Size M 170 / 450. Size L/XL/XXL 200/515
• Accessories: TQ 4A charger
• Weight: M - 21.08 kg / 46.48 lbs (with TLR sealant, no tubes)

• SKU: 56302

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

We offer several delivery options:

Store Collection: Pick up your order at our Salts Mill store, located at BD17 7EH.

Standard Delivery We partner with APC Euro-Tran for deliveries. Once your bike is dispatched, it typically arrives within 1 to 3 working days for Mainland UK. All bikes are fully built, checked, set up and then packed back down into a standard size bike box. Please note that electric bikes will be shipped in two boxes due to weight and size restrictions. We recommend our premium delivery service for electric bikes.

Premium Delivery We partner with DX's two-person delivery team. After dispatch, your bike usually arrives within 2 to 4 working days for Mainland UK. DX will contact you before delivery to schedule a convenient delivery date. All bikes come fully built, checked, set up and with both wheels attached. Trek bikes can only be sent via our premium delivery service.

Check out our video for more information on how your bike is assembled and packaged.

At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.

Bicycle Safety

Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.

Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.

Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.

Follow road rules – Ride responsibly and remain aware of your surroundings.

Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)

Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.

Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.

Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.

Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine Maintenance (Every Few Weeks)

Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.

Brake Safety – Check brake pads and responsiveness before each ride.

Tyre Inspection – Look for punctures and ensure correct air pressure.

Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.

Frame Safety Check – Look for any signs of damage or cracks.

Pedals - Ensure pedals are still tight and correctly fitted.

Professional Check-Ups

Have your bike serviced at least once a year, or more frequently if you ride often.

Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)

Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.

Avoid Overcharging – Unplug the charger once fully charged to extend battery life.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine e-Bike Maintenance (Every Few Weeks)

Motor Inspection – Listen for unusual noises and ensure smooth operation.

Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.

Pedals - Ensure pedals are still tight and correctly fitted.

Seasonal e-Bike Maintenance

Check Electrical Components – Ensure wires and connections are clean and secure.

Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.

By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
