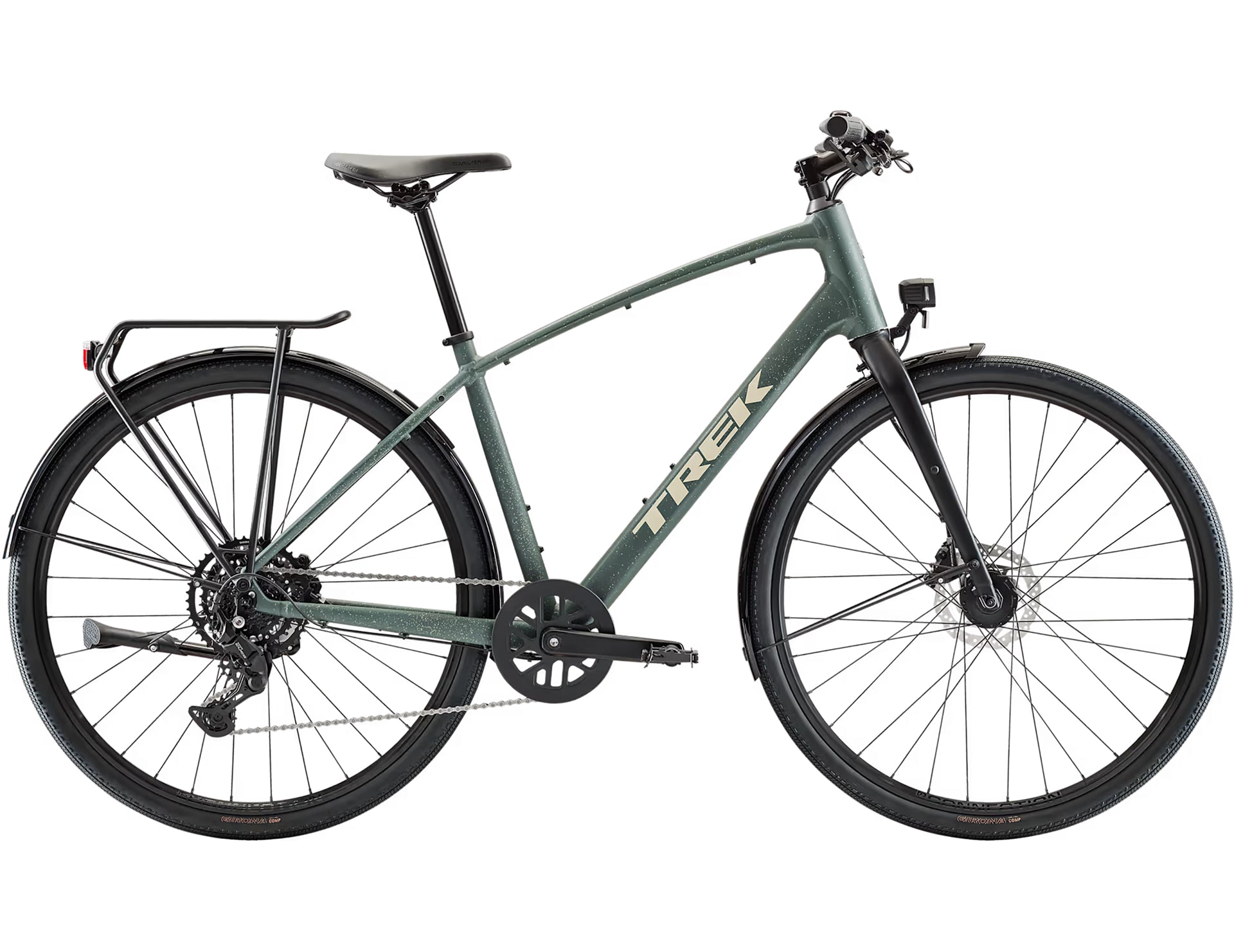

TREK FX SPORT AL EQUIPPED HYBRID BIKE 2026 KESWICK GREEN/LICHEN GREEN SPLATTER

The FX Sport AL Equipped is a capable and confident hybrid bike that's fun to ride from roads to rail trails and beyond.

 It has a light frame, a sturdy drivetrain and loads of ride-ready accessories like a rear rack and lights. Wide wheels and lofty tyres soak up bumps and rough terrain for a comfortable, confident ride on the road, light gravel trails, bike paths and more.

Key Features

• Fully Equipped: It comes equipped with lights, mudguards, a kickstand and a rear rack so you're ready to ride right from the start
• Shimano CUES: Wide range of gearing suitable for all-terrain & to make light work of hills.
• Hydraulic Disc Brakes: Reliable braking performance, whatever the weather.


Specification

• Frame: Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5mm QR
• Fork: Dual Sport alloy, internal brake routing, mudguard mounts, rack mounts, ThruSkew 5 mm QR
• Shifters: Shimano U4000, 9-speed
• Crankset: Prowheel alloy, 40T narrow-wide ring, 170 mm length
• Cassette: Shimano LINKGLIDE LG300, 11-46, 9-speed
• Chain: Shimano LG500
• Front Derailleur: N/A
• Rear Derailleur: Shimano CUES U4000
• Bottom Bracket: Sealed cartridge, 68 mm
• Pedals: Wellgo nylon body, alloy cage
• Rims: Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
• Front Hub: Shimano 3.0 watt dynamo hub
• Rear Hub: Shimano FH-QC300-HM, 32-hole, CentreLock, 8-/9-/10-/11-speed, 135x5 mm QR
• Tyres: Bontrager Girona 700 x 42c
• Brakes: Shimano hydraulic disc, MT201 lever, UR300 calliper, RT10, CenterLock, 160 mm
• Handlebars: Bontrager alloy, 31.8 mm, 15 mm rise, Size S 600 mm width, M 660mm, L/XL 690mm
• Handlebar Grips: Bontrager Satellite IsoZonePlus, lock-on, ergonomic
• Headset: FSA Integrated, sealed cartridge bearing, 1-1/8"" top, 1.5""
• Stem: Bontrager Comp 31.8 mm, Blendr compatible, 7-degree, S 70 mm length, M 80mm, L 90mm, XL 100mm
• Saddle: Bontrager Commuter Comp
• Seatpost: Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length,
• Accessories: Herrmans H-Trace ECO dynamo LED, taillight, Herrmans Nordic MR5, 100 lumen, LED, with stand light function, Alloy Kickstand, MIK Alloy Rear Rack, Mudguards
• Weight: L - 14.40 kg -This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

• SKU: 56824

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

We offer several delivery options:

Store Collection: Pick up your order at our Salts Mill store, located at BD17 7EH.

Standard Delivery We partner with APC Euro-Tran for deliveries. Once your bike is dispatched, it typically arrives within 1 to 3 working days for Mainland UK. All bikes are fully built, checked, set up and then packed back down into a standard size bike box. Please note that electric bikes will be shipped in two boxes due to weight and size restrictions. We recommend our premium delivery service for electric bikes.

Premium Delivery We partner with DX's two-person delivery team. After dispatch, your bike usually arrives within 2 to 4 working days for Mainland UK. DX will contact you before delivery to schedule a convenient delivery date. All bikes come fully built, checked, set up and with both wheels attached. Trek bikes can only be sent via our premium delivery service.

Check out our video for more information on how your bike is assembled and packaged.

At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.

Bicycle Safety

Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.

Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.

Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.

Follow road rules – Ride responsibly and remain aware of your surroundings.

Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)

Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.

Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.

Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.

Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine Maintenance (Every Few Weeks)

Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.

Brake Safety – Check brake pads and responsiveness before each ride.

Tyre Inspection – Look for punctures and ensure correct air pressure.

Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.

Frame Safety Check – Look for any signs of damage or cracks.

Pedals - Ensure pedals are still tight and correctly fitted.

Professional Check-Ups

Have your bike serviced at least once a year, or more frequently if you ride often.

Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)

Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.

Avoid Overcharging – Unplug the charger once fully charged to extend battery life.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine e-Bike Maintenance (Every Few Weeks)

Motor Inspection – Listen for unusual noises and ensure smooth operation.

Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.

Pedals - Ensure pedals are still tight and correctly fitted.

Seasonal e-Bike Maintenance

Check Electrical Components – Ensure wires and connections are clean and secure.

Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.

By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
