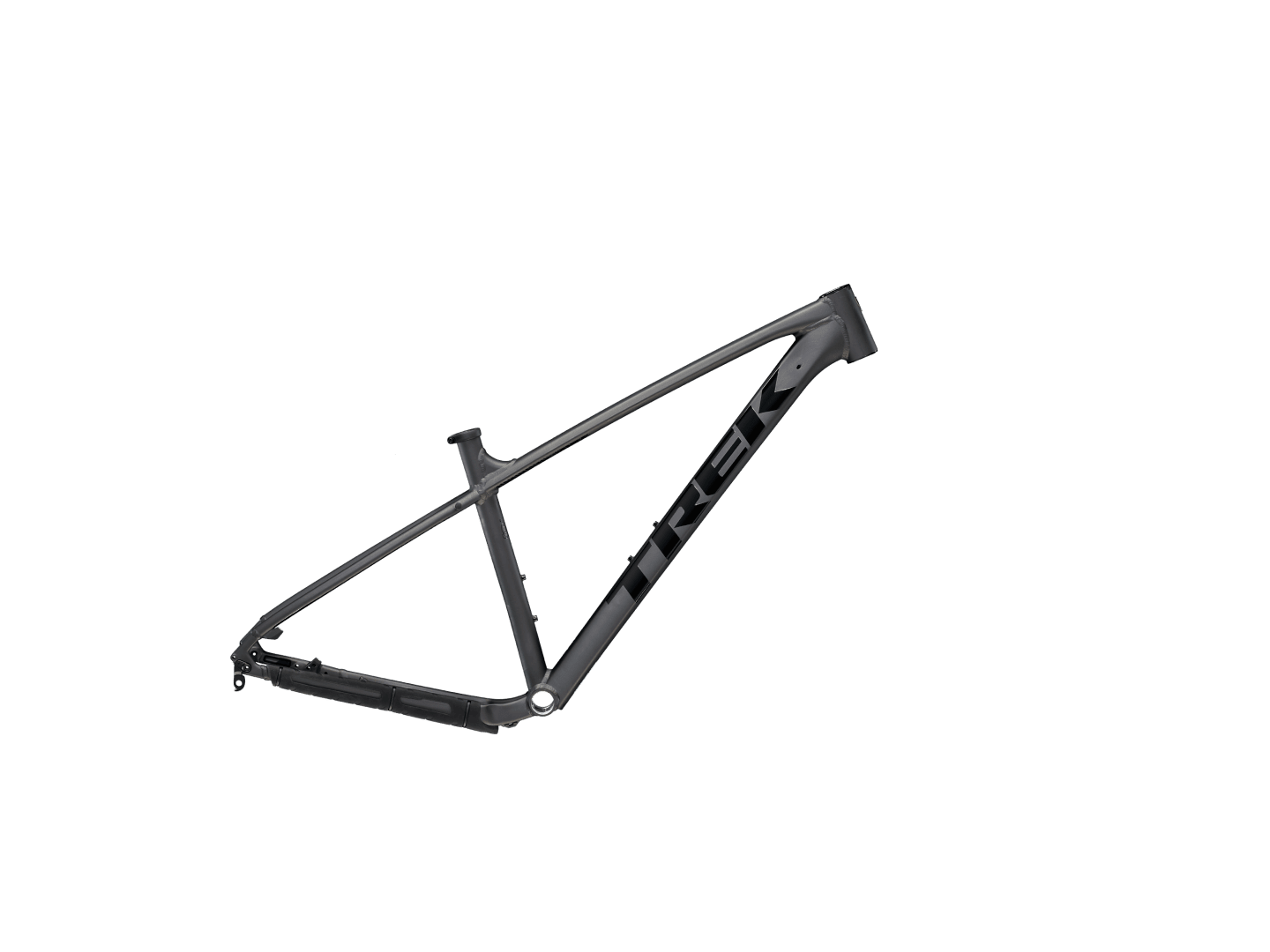

Marlin Frame Set is a lightweight aluminium frame ready to be built into the perfect easy going trail bike.
It's loaded with all-new geometry that's more capable than ever, ideal for gaining confidence and speed on the singletrack.
Key Features
- The Marlin Gen 3 gives you serious trail capability with bigger tyre clearance, internal dropper post routing, ThruSkew rear axle and longer, slacker geometry that gives you more stability on steeper trails and at higher speeds
- You'll get a lightweight aluminium frame that's robust enough for the ride without weighing you down
- Mudguard mounts make it easy to accessorise, so your mountain bike can double as a rugged commuter
-
Frame: Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew (XXS and XS Curved top tube)
-
Max Compatible fork travel: 120 mm, XXS: 80 mm
-
Skewer rear: 173x5 mm QR
-
Headset: Semi-integrated, 1-1/8"
-
Max tyre sizes: Frame: 29x2.40" (XXS: 26x2.40", XS & S: 27.5x2.40"), Fork: See manufacturer
-
Max brake rotor sizes: Frame: 180 mm (XXS: 160 mm), Fork: see fork manufacturer
-
Max chainring: 1x: See FAQ, 2x: 36T, 3x: 42T
-
Weight: M- 3.40 kg / 7.5 lbs
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Weights are based off pre-production products at time of publication. Weights may vary in final production.
