AMFLOW PX CARBON PRO 700Wh FULL SUSPENSION eMTB BIKE 2027 MOONSTONE GREY

PRE-ORDER CURRENTLY A 2-3 WEEK ARRIVAL TIME

eBikes by their very nature can require aftermarket updates and support. This cannot be supplied by All Terrain Cycles at distance; if required the work would have to be obtained from your local Brand Dealership, possibly at extra cost to yourself.

Your eBike will be delivered built, set up and updated in two boxes.

Minimum personal assembly is required.

The Amflow PX Carbon Pro is a top-tier trail e-MTB built for riders who demand the highest level of performance.

Featuring premium suspension, upgraded drivetrain components, and a carbon wheelset, it delivers exceptional control, precision, and responsiveness on the most technical terrain. The 700Wh battery provides extended range for all-day adventures, while the full suspension design absorbs impacts and maintains traction across challenging surfaces. The carbon frame keeps weight minimal without compromising durability, making it ideal for steep climbs and aggressive descents. Perfect for experienced riders tackling demanding trails, this e-MTB combines cutting-edge technology with refined handling characteristics. The Moonstone Grey finish adds a sophisticated touch to a machine engineered for serious performance.

Key Features

• Full carbon frame with advanced geometry adjustability
• FOX 36 Factory fork with GRIP X2 damper
• FOX Float X Factory rear shock
• SRAM X0 Eagle Transmission drivetrain
• Carbon mullet wheelset for reduced weight and increased stiffness

Full specification

• Frame: Amflow PX Carbon Pro Frame, Moonstone Gray, 40 adjustable geometry configurations, compatible with 27.5″ and 29″ rear wheels

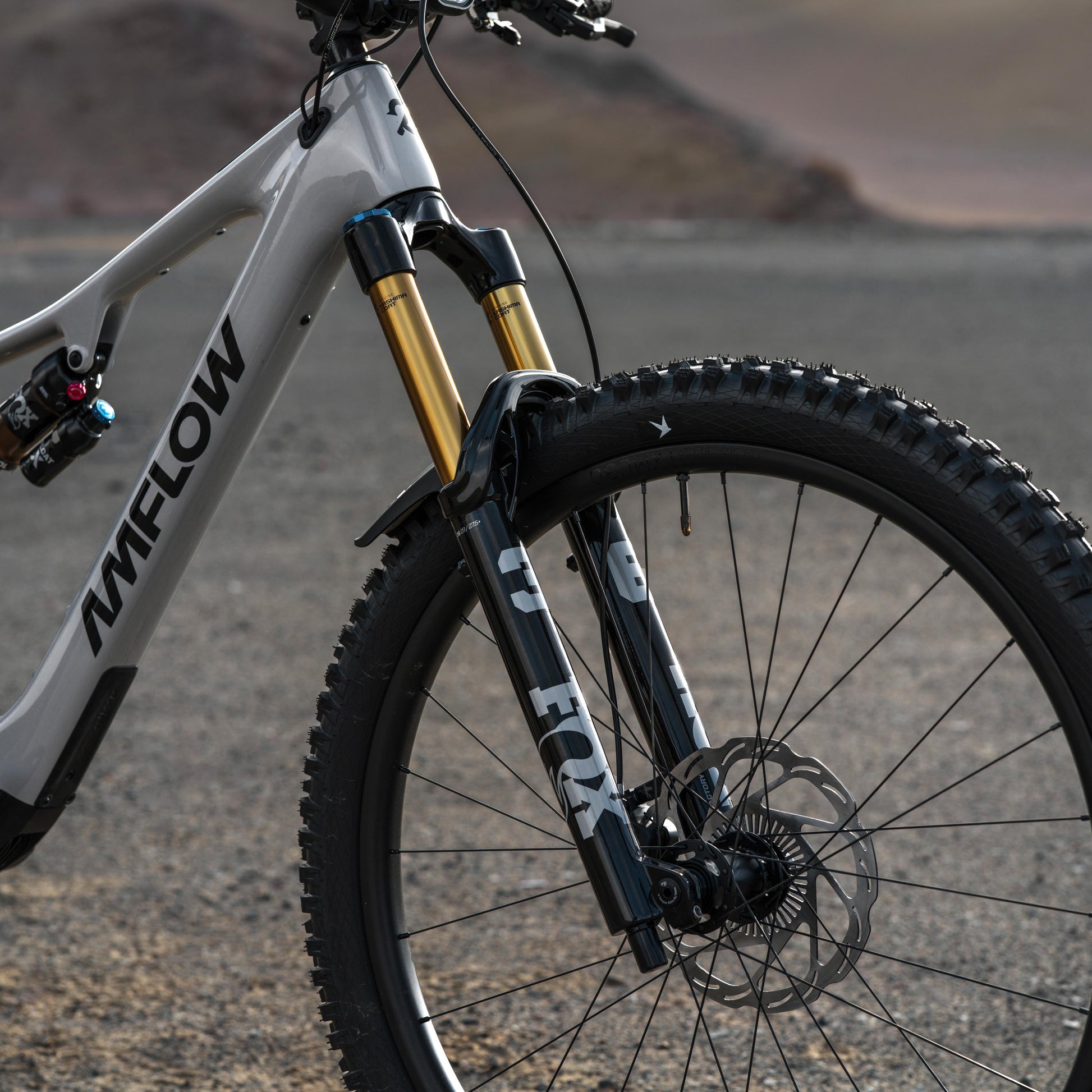

• Fork: FOX 36 Factory (MY 2027), 160mm travel, GRIP X2 damper, HSC/LSC/HSR/LSR adjustment, 15×110mm, 44mm offset
• Rear Shock: Fox Float X Factory (MY 2027), 2-position lever, custom tune, LSC & LSR adjustment, 210×55mm, air shock
• Shifters: SRAM AXS Pod Rocker Controller
• Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
• Cassette: SRAM XS-1295 Eagle Transmission Cassette, 10-52T
• Chain: SRAM X0 Eagle Transmission Chain
• Front Derailleur: N/A
• Rear Derailleur: SRAM X0 Eagle Transmission Derailleur
• Pedals: not included
• Front rim: Carbon, 29″, 30mm inner width, 28H, tubeless ready
• Rear rim: Carbon, 27.5″, 30mm inner width, 32H, tubeless ready
• Spokes: SAPIM E-Light Straightpull
• Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 28H, J-bend, 6-bolt
• Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 6 pawls 60T, XD
• Front tyre: Schwalbe Magic Mary, 29×2.5 Gravity Pro, Radial
• Rear tyre: Schwalbe Albert, 27.5×2.5 Gravity Pro, Radial
• Brakes: Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers
• Rotors: Magura Sensor Rotor (203mm, 2.5mm)
• Handlebars: Amflow Enduro Carbon Handlebar, 40mm rise, 800mm width, 35mm diameter, 5-degree upsweep, 9-degree backsweep
• Grips: Amflow Enduro Grip 2 Lock-on Grips
• Stem: Amflow Mountain Bike Split Stem, 35mm length, 35mm clamping diameter
• Saddle: Amflow Mountain Saddle Titanium
• Dropper post: Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20/25mm), M/L frame: 190mm, XL frame: 210mm, XXL frame: 230mm

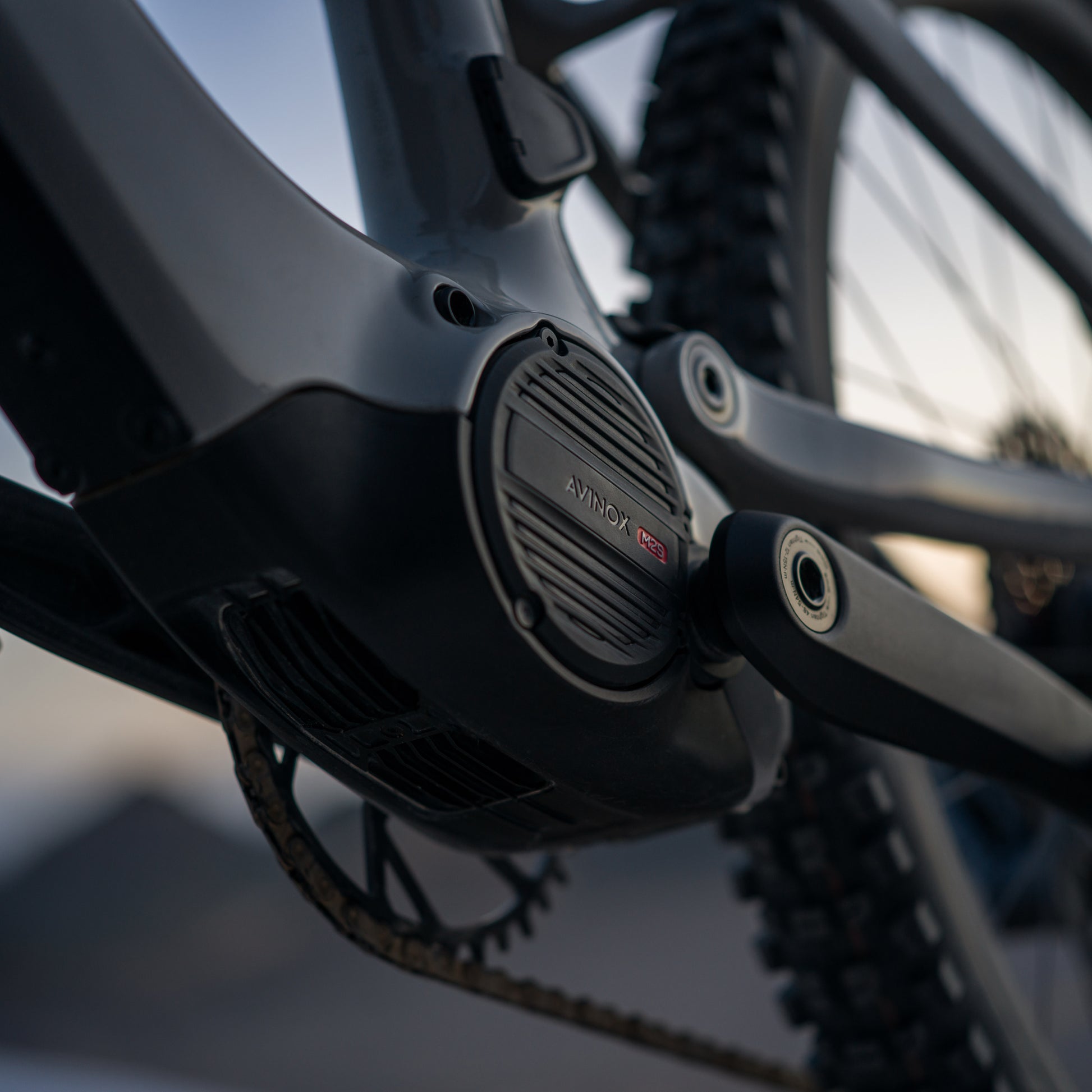

• Motor: Avinox M2S

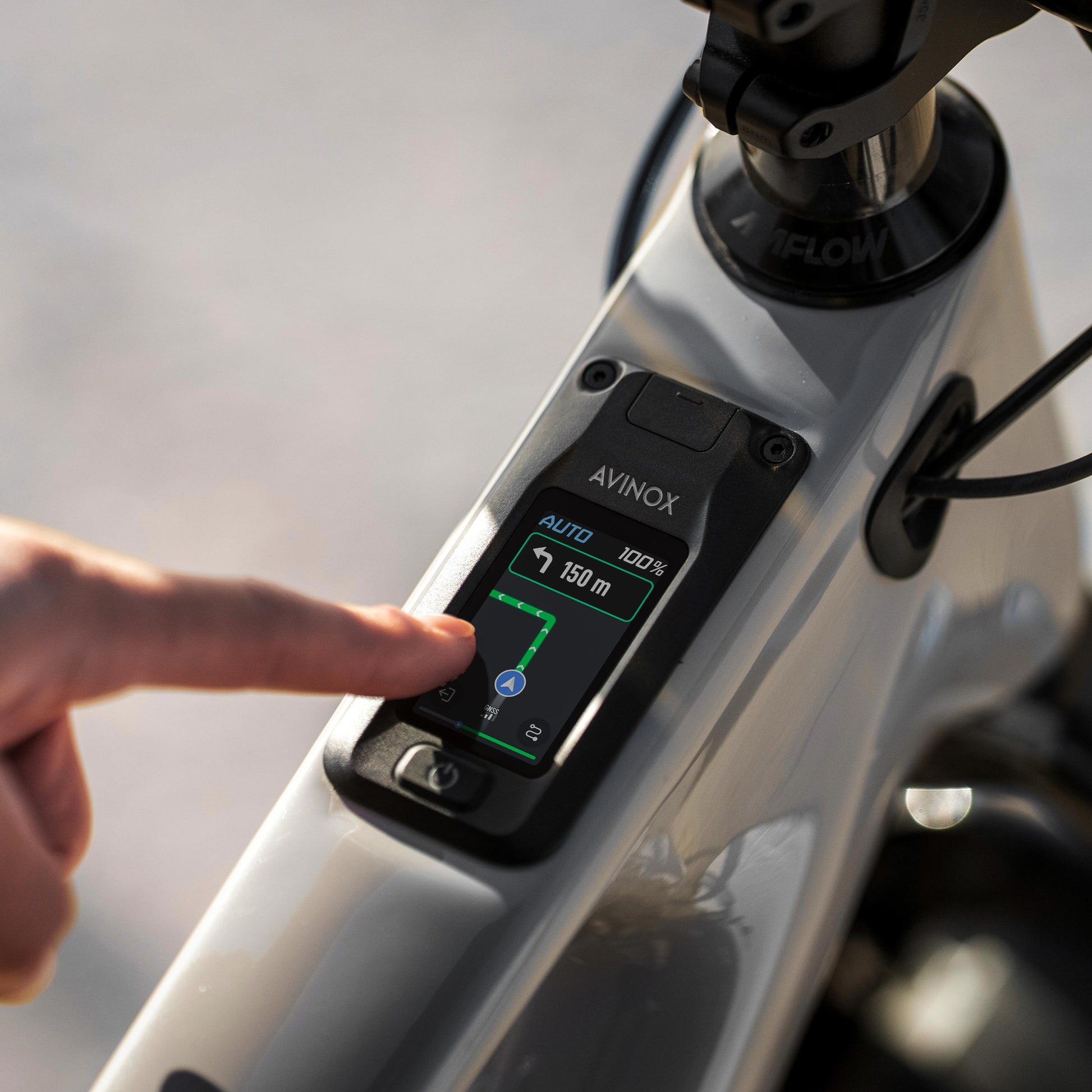

• Display: Avinox Screen: 2-inch OLED Control Display
• Battery: Avinox Integrated Battery: 700Wh
• Charger: Avinox Fast Charger: 12A/508W
• Controller: Avinox Wireless Controllers, right and left sides
• Front light: Avinox Front Light
• Rear light: Rear Light
• Bottle cage: Amflow Bottle Cage
• Geometry systems: Three Geometry Adjustment Systems

• Dropper spacers: 5/10mm Dropper Post Travel Reducing Spacer

• Torque wrench: Included

• Frame protection: Clear Frame Protection Film

• Shock pump: Included

• Guide: Quick Start Guide

• Valve conversion set: Schwalbe Clik Valve Conversion Set

• Mud guard: FOX 36 Mud Guard (Short)

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.

We offer several delivery options:

Store Collection: Pick up your order at our Salts Mill store, located at BD17 7EH.

Standard Delivery We partner with APC Euro-Tran for deliveries. Once your bike is dispatched, it typically arrives within 1 to 3 working days for Mainland UK. All bikes are fully built, checked, set up and then packed back down into a standard size bike box. Please note that electric bikes will be shipped in two boxes due to weight and size restrictions. We recommend our premium delivery service for electric bikes.

Premium Delivery We partner with DX's two-person delivery team. After dispatch, your bike usually arrives within 2 to 4 working days for Mainland UK. DX will contact you before delivery to schedule a convenient delivery date. All bikes come fully built, checked, set up and with both wheels attached. Trek bikes can only be sent via our premium delivery service.

Check out our video for more information on how your bike is assembled and packaged.

At All Terrain Cycles, we want you to ride with confidence every time. To ensure your bike or e-bike stays in peak condition, here are some essential safety and maintenance tips.

Bicycle Safety

Always wear a helmet – Safeguard against head injuries by using a properly fitted, safety-certified helmet.

Perform pre-ride checks – Before each ride, verify that brakes, tyres, and gears are in good working order.

Stay visible – Utilise lights and reflective gear when cycling in low-light conditions.

Follow road rules – Ride responsibly and remain aware of your surroundings.

Aftercare for Your New Bike Initial Check-Up (First 50-100 miles)

Gear Adjustment – New cables may stretch slightly; have a qualified mechanic check and adjust them.

Brake & Wheel Check – Inspect brakes for wear and ensure wheels are aligned properly.

Lubrication – Apply chain oil and check bolt tightness to maintain smooth performance.

Tyre Pressure – Regularly monitor to prevent flats and enhance efficiency.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine Maintenance (Every Few Weeks)

Chain Care – Clean and lubricate your chain to minimise wear and prolong its life.

Brake Safety – Check brake pads and responsiveness before each ride.

Tyre Inspection – Look for punctures and ensure correct air pressure.

Handlebar & Stem Alignment – Confirm they are tight and secure to prevent instability.

Frame Safety Check – Look for any signs of damage or cracks.

Pedals - Ensure pedals are still tight and correctly fitted.

Professional Check-Ups

Have your bike serviced at least once a year, or more frequently if you ride often.

Aftercare for Your New Electric Bicycle (e-Bike) Initial Check-Up (First 50-100 miles)

Battery Care – Fully charge your battery (if required) before the first ride and store it in a dry, moderate-temperature environment.

Avoid Overcharging – Unplug the charger once fully charged to extend battery life.

Pedals - Ensure pedals are still tight and correctly fitted.

Routine e-Bike Maintenance (Every Few Weeks)

Motor Inspection – Listen for unusual noises and ensure smooth operation.

Battery & Connection Checks – Inspect cables and connectors for dirt, moisture, or damage.

Pedals - Ensure pedals are still tight and correctly fitted.

Seasonal e-Bike Maintenance

Check Electrical Components – Ensure wires and connections are clean and secure.

Professional Servicing – Have your e-bike inspected at least once a year or every 500-1000 miles for optimal performance.

By following these aftercare guidelines, you’ll help ensure that your bicycle runs smoothly, lasts longer, and remains a joy to ride. Stay safe and enjoy the ride!
